Make sure that when multiple broadcast packets are queued on the same device in a short succession no virtual collision occurs. More...

Inheritance diagram for Bug555TestCase:

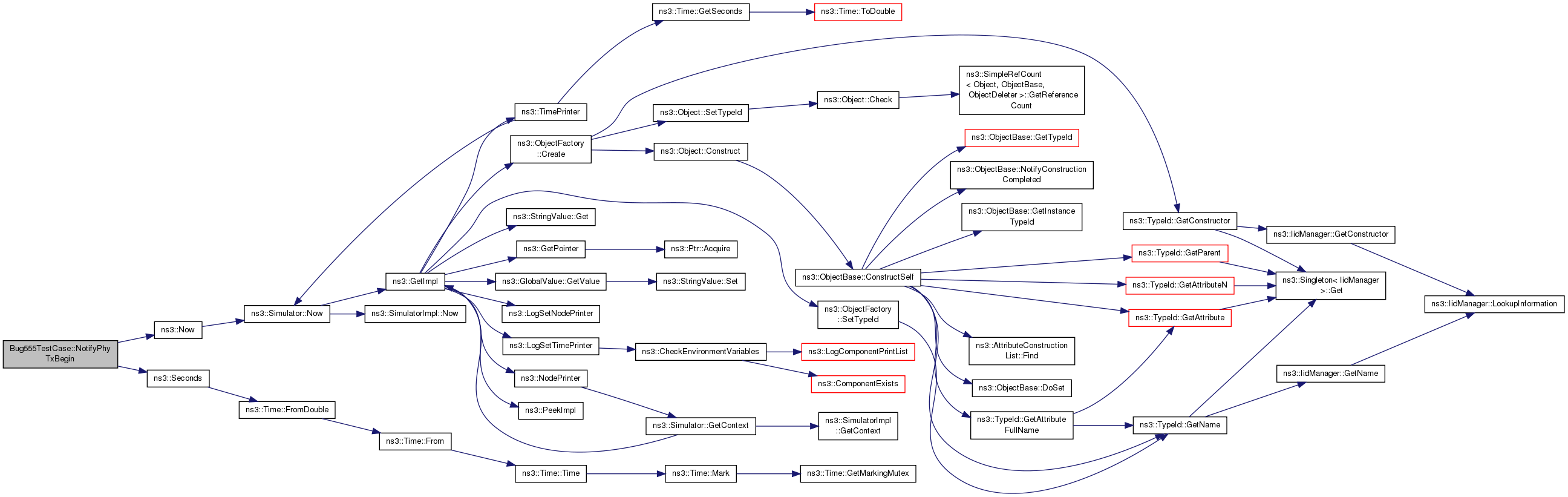

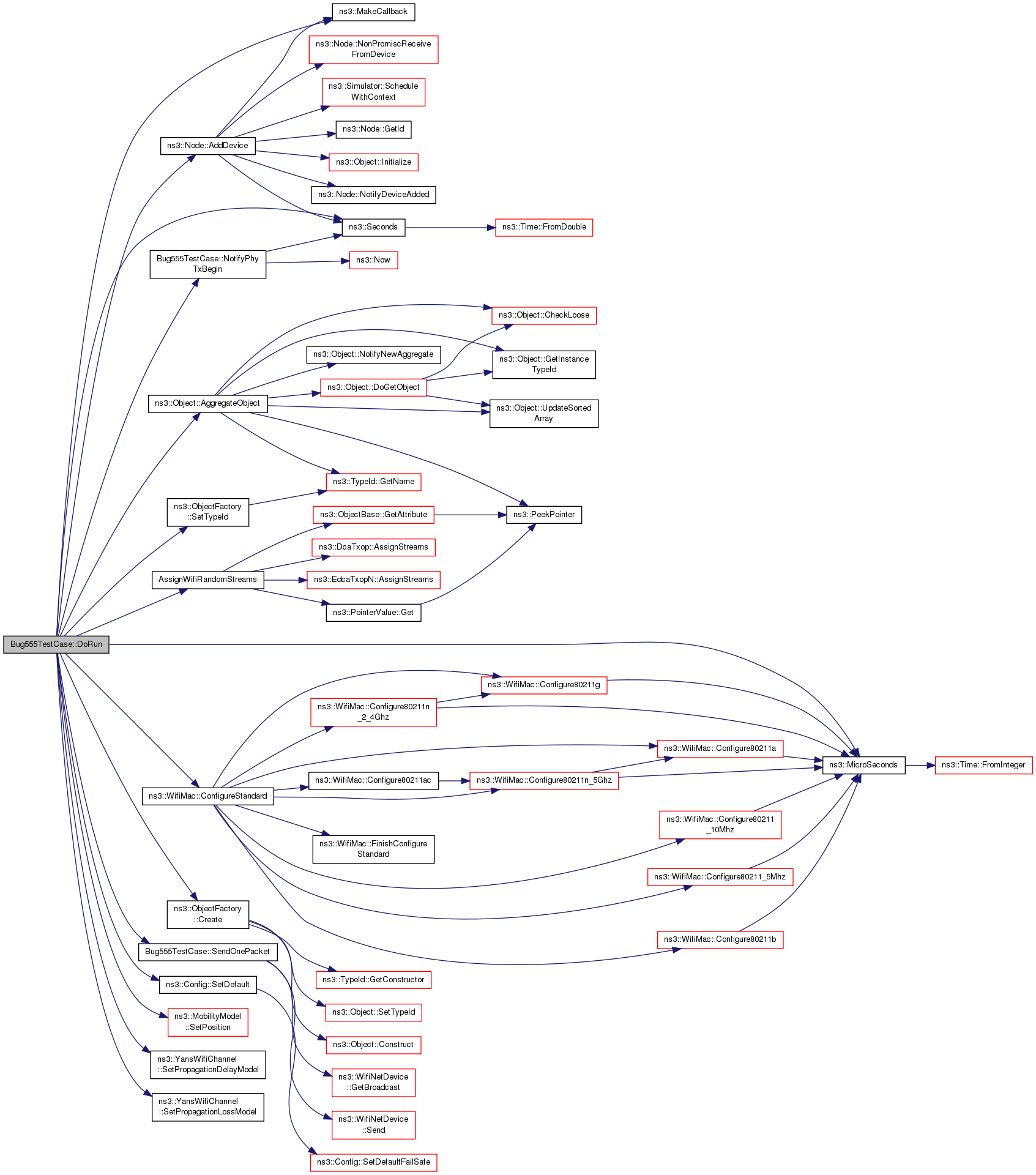

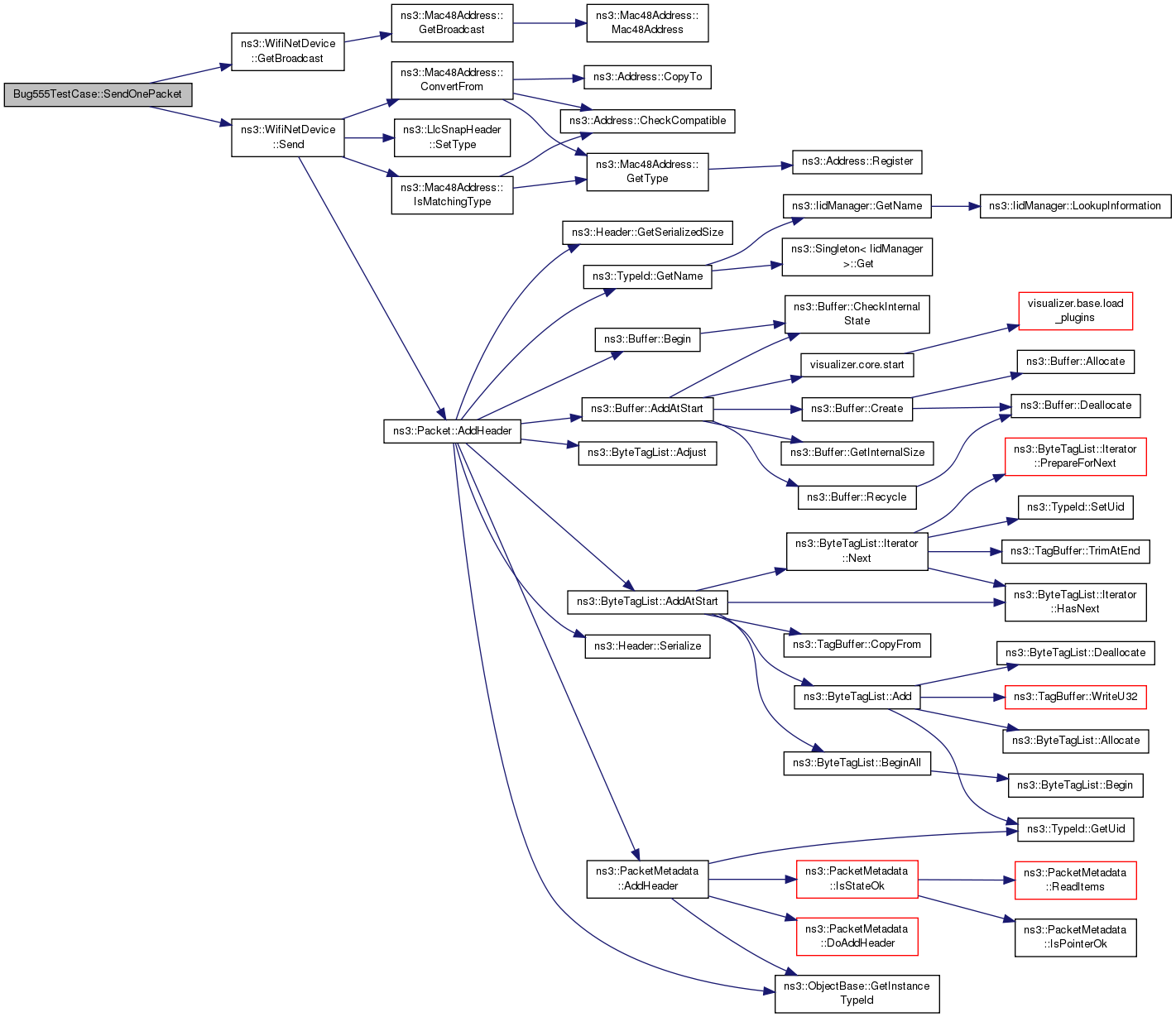

Collaboration diagram for Bug555TestCase:

Public Member Functions
	Bug555TestCase ()

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
void	NotifyPhyTxBegin (Ptr< const Packet > p)

void	SendOnePacket (Ptr< WifiNetDevice > dev)

Private Attributes
Time	m_firstTransmissionTime

ObjectFactory	m_mac

ObjectFactory	m_manager

unsigned int	m_numSentPackets

ObjectFactory	m_propDelay

Time	m_secondTransmissionTime

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Make sure that when multiple broadcast packets are queued on the same device in a short succession no virtual collision occurs.

The observed behavior is that the first frame will be sent immediately, and the frames are spaced by (backoff + SIFS + AIFS) time intervals (where backoff is a random number of slot sizes up to maximum CW)

The following test case should not generate virtual collision for the second frame. The seed and run numbers were pick such that the second frame gets backoff = 0.

                 frame 1, frame 2
                 arrive                SIFS + AIFS
                 V                    <----------->

time |-----------—|----------------—|----------—|--------—> 0 1s 1.001408s 1.001442s ^ ^ ^ start TX finish TX start TX frame 1 frame 1 frame 2 ^ frame 2 backoff = 0

The buggy behavior was that frame 2 experiences a virtual collision and re-selects the backoff again. As a result, the actual backoff experience by frame 2 is less likely to be 0 since that would require two successions of 0 backoff (one that generates the virtual collision and one after the virtual collision).

See Bug 555

Definition at line 361 of file wifi-test.cc.
