Inheritance diagram for TxDurationTest:

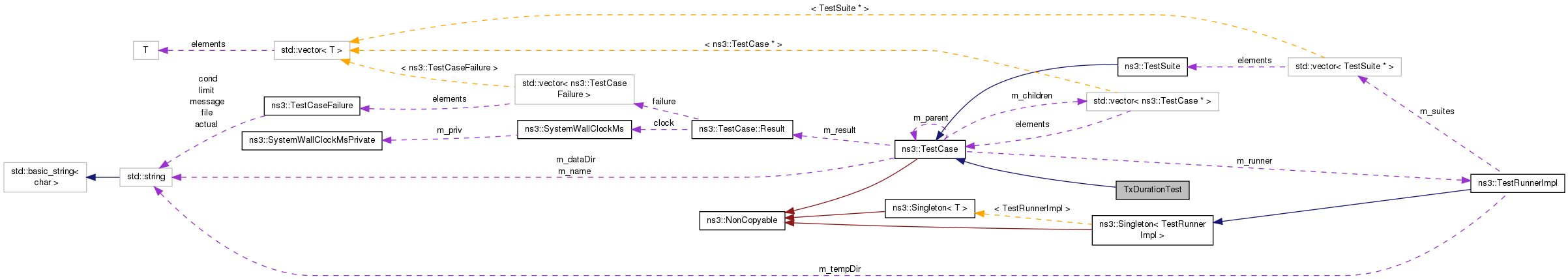

Collaboration diagram for TxDurationTest:

Public Member Functions
	TxDurationTest ()

virtual	~TxDurationTest ()

virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
bool	CheckPayloadDuration (uint32_t size, WifiMode payloadMode, uint32_t channelWidth, bool isShortGuardInterval, WifiPreamble preamble, uint32_t knownDurationMicroSeconds)
	Check if the payload tx duration returned by InterferenceHelper corresponds to a known value of the pay. More...

bool	CheckTxDuration (uint32_t size, WifiMode payloadMode, uint32_t channelWidth, bool isShortGuardInterval, WifiPreamble preamble, double knownDurationMicroSeconds)
	Check if the overall tx duration returned by InterferenceHelper corresponds to a known value of the pay. More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 36 of file tx-duration-test.cc.

Constructor & Destructor Documentation

TxDurationTest::TxDurationTest ( )

Definition at line 76 of file tx-duration-test.cc.

TxDurationTest::~TxDurationTest ( )

virtual

Definition at line 81 of file tx-duration-test.cc.

bool TxDurationTest::CheckPayloadDuration	(	uint32_t	size,
		WifiMode	payloadMode,
		uint32_t	channelWidth,
		bool	isShortGuardInterval,
		WifiPreamble	preamble,
		uint32_t	knownDurationMicroSeconds
	)

private

Check if the payload tx duration returned by InterferenceHelper corresponds to a known value of the pay.

Parameters

size	size of payload in octets (includes everything after the PLCP header)
payloadMode	the WifiMode used
channelWidth	the channel width used (in MHz)
isShortGuardInterval	whether short guard interval is used
knownDurationMicroSeconds	the known duration value of the transmission in microseconds

Definition at line 86 of file tx-duration-test.cc.

Referenced by DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

bool TxDurationTest::CheckTxDuration	(	uint32_t	size,
		WifiMode	payloadMode,
		uint32_t	channelWidth,
		bool	isShortGuardInterval,
		WifiPreamble	preamble,
		double	knownDurationMicroSeconds
	)

private

Check if the overall tx duration returned by InterferenceHelper corresponds to a known value of the pay.

Parameters

size	size of payload in octets (includes everything after the PLCP header)
payloadMode	the WifiMode used
channelWidth	the channel width used (in MHz)
isShortGuardInterval	whether short guard interval is used
preamble	the WifiPreamble used
knownDurationMicroSeconds	the known duration value of the transmission in microseconds
