LTE RLC Acknowledged Mode (AM), see 3GPP TS 36.322. More...

#include "lte-rlc-am.h"

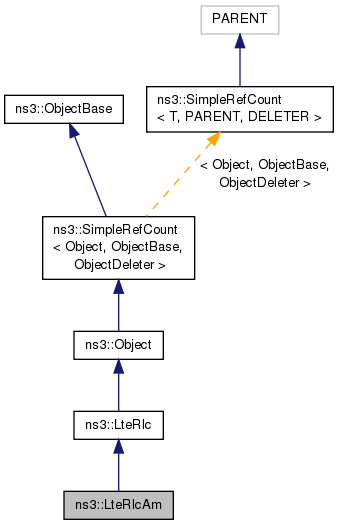

Inheritance diagram for ns3::LteRlcAm:

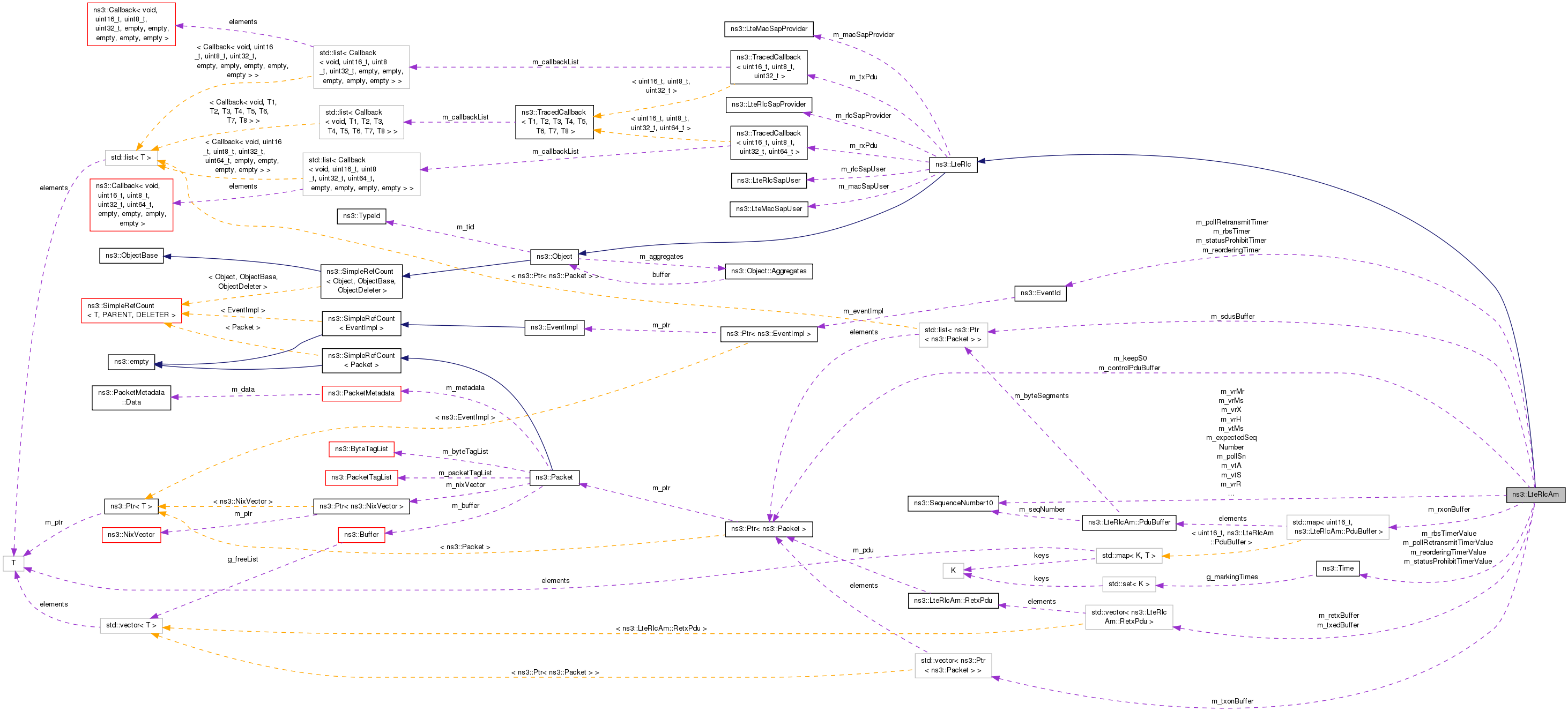

Collaboration diagram for ns3::LteRlcAm:

Classes
struct	PduBuffer

struct	RetxPdu

Public Member Functions
	LteRlcAm ()

virtual	~LteRlcAm ()

virtual void	DoDispose ()
	Destructor implementation. More...

virtual void	DoNotifyHarqDeliveryFailure ()

virtual void	DoNotifyTxOpportunity (uint32_t bytes, uint8_t layer, uint8_t harqId)
	MAC SAP. More...

virtual void	DoReceivePdu (Ptr< Packet > p)

virtual void	DoTransmitPdcpPdu (Ptr< Packet > p)
	RLC SAP. More...

Public Member Functions inherited from ns3::LteRlc
	LteRlc ()

virtual	~LteRlc ()

LteMacSapUser *	GetLteMacSapUser ()

LteRlcSapProvider *	GetLteRlcSapProvider ()

void	SetLcId (uint8_t lcId)

void	SetLteMacSapProvider (LteMacSapProvider *s)

void	SetLteRlcSapUser (LteRlcSapUser *s)

void	SetRnti (uint16_t rnti)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LteRlc
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
enum	ReassemblingState_t { NONE = 0, WAITING_S0_FULL = 1, WAITING_SI_SF = 2 }
	SDU Reassembling state. More...

Private Member Functions
void	DoReportBufferStatus ()

void	ExpirePollRetransmitTimer (void)

void	ExpireRbsTimer (void)

void	ExpireReorderingTimer (void)
	This method will schedule a timeout at WaitReplyTimeout interval in the future, unless a timer is already running for the cache, in which case this method does nothing. More...

void	ExpireStatusProhibitTimer (void)
	method called when the T_status_prohibit timer expires More...

bool	IsInsideReceivingWindow (SequenceNumber10 seqNumber)

void	ReassembleAndDeliver (Ptr< Packet > packet)

Private Attributes
uint32_t	m_byteWithoutPoll

Ptr< Packet >	m_controlPduBuffer

SequenceNumber10	m_expectedSeqNumber
	Expected Sequence Number. More...

Ptr< Packet >	m_keepS0

uint16_t	m_maxRetxThreshold
	Configurable parameters. More...

uint32_t	m_pduWithoutPoll
	Counters. More...

uint16_t	m_pollByte

uint16_t	m_pollPdu

EventId	m_pollRetransmitTimer
	Timers. More...

bool	m_pollRetransmitTimerJustExpired

Time	m_pollRetransmitTimerValue

SequenceNumber10	m_pollSn

EventId	m_rbsTimer

Time	m_rbsTimerValue

ReassemblingState_t	m_reassemblingState

EventId	m_reorderingTimer

Time	m_reorderingTimerValue

std::vector< RetxPdu >	m_retxBuffer
	Buffer for PDUs considered for retransmission. More...

uint32_t	m_retxBufferSize

std::map< uint16_t, PduBuffer >	m_rxonBuffer

std::list< Ptr< Packet > >	m_sdusBuffer

uint32_t	m_statusPduBufferSize

bool	m_statusPduRequested

EventId	m_statusProhibitTimer

Time	m_statusProhibitTimerValue

std::vector< RetxPdu >	m_txedBuffer
	Buffer for transmitted and retransmitted PDUs that have not been acked but are not considered for retransmission. More...

uint32_t	m_txedBufferSize

std::vector< Ptr< Packet > >	m_txonBuffer

uint32_t	m_txonBufferSize

bool	m_txOpportunityForRetxAlwaysBigEnough

SequenceNumber10	m_vrH

SequenceNumber10	m_vrMr

SequenceNumber10	m_vrMs

SequenceNumber10	m_vrR

SequenceNumber10	m_vrX

SequenceNumber10	m_vtA
	State variables. More...

SequenceNumber10	m_vtMs

SequenceNumber10	m_vtS

uint16_t	m_windowSize
	Constants. More...

Additional Inherited Members
Public Types inherited from ns3::LteRlc
typedef void(*	NotifyTxTracedCallback) (uint16_t rnti, uint8_t lcid, uint32_t bytes)
	TracedCallback signature for NotifyTxOpportunity events. More...

typedef void(*	ReceiveTracedCallback) (uint16_t rnti, uint8_t lcid, uint32_t bytes, uint64_t delay)
	TracedCallback signature for. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::LteRlc
uint8_t	m_lcid

LteMacSapProvider *	m_macSapProvider

LteMacSapUser *	m_macSapUser

LteRlcSapProvider *	m_rlcSapProvider

LteRlcSapUser *	m_rlcSapUser

uint16_t	m_rnti

TracedCallback< uint16_t, uint8_t, uint32_t, uint64_t >	m_rxPdu
	Used to inform of a PDU reception from the MAC SAP user. More...

TracedCallback< uint16_t, uint8_t, uint32_t >	m_txPdu
	Used to inform of a PDU delivery to the MAC SAP provider. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

LTE RLC Acknowledged Mode (AM), see 3GPP TS 36.322.

Config Paths

ns3::LteRlcAm is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb0/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/LteUeRrc/Srb1/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/DataRadioBearerMap/[i]/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb0/LteRlc/$ns3::LteRlcAm"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbRrc/UeMap/[i]/Srb1/LteRlc/$ns3::LteRlcAm"

Attributes

PollRetransmitTimer: Value of the t-PollRetransmit timer (See section 7.3 of 3GPP TS 36.322)
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +20000000.0ns
- Flags: construct write read
ReorderingTimer: Value of the t-Reordering timer (See section 7.3 of 3GPP TS 36.322)
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000.0ns
- Flags: construct write read
StatusProhibitTimer: Value of the t-StatusProhibit timer (See section 7.3 of 3GPP TS 36.322)
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +10000000.0ns
- Flags: construct write read
ReportBufferStatusTimer: How much to wait to issue a new Report Buffer Status since the last time a new SDU was received
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +20000000.0ns
- Flags: construct write read
TxOpportunityForRetxAlwaysBigEnough: If true, always pretend that the size of a TxOpportunity is big enough for retransmission. If false (default and realistic behavior), no retx is performed unless the corresponding TxOpportunity is big enough.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::LteRlc

TxPDU: PDU transmission notified to the MAC.
Callback signature: ns3::LteRlc::NotifyTxTracedCallback
RxPDU: PDU received.
Callback signature: ns3::LteRlc::ReceiveTracedCallback

Size of this type is 480 bytes (on a 64-bit architecture).

Definition at line 36 of file lte-rlc-am.h.

Member Enumeration Documentation

enum ns3::LteRlcAm::ReassemblingState_t

private

SDU Reassembling state.

Enumerator
NONE
WAITING_S0_FULL
WAITING_SI_SF

Definition at line 171 of file lte-rlc-am.h.

Constructor & Destructor Documentation

ns3::LteRlcAm::LteRlcAm ( )

Definition at line 38 of file lte-rlc-am.cc.

References m_byteWithoutPoll, m_expectedSeqNumber, m_maxRetxThreshold, m_pduWithoutPoll, m_pollByte, m_pollPdu, m_pollRetransmitTimerJustExpired, m_pollSn, m_reassemblingState, m_retxBuffer, m_retxBufferSize, m_statusPduBufferSize, m_statusPduRequested, m_txedBuffer, m_txedBufferSize, m_txonBufferSize, m_vrH, m_vrMr, m_vrMs, m_vrR, m_vrX, m_vtA, m_vtMs, m_vtS, m_windowSize, NS_LOG_FUNCTION, and WAITING_S0_FULL.

ns3::LteRlcAm::~LteRlcAm ( )

virtual

Definition at line 82 of file lte-rlc-am.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteRlcAm::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteRlc.

Definition at line 128 of file lte-rlc-am.cc.

References ns3::EventId::Cancel(), ns3::LteRlc::DoDispose(), m_controlPduBuffer, m_keepS0, m_pollRetransmitTimer, m_rbsTimer, m_reorderingTimer, m_retxBuffer, m_retxBufferSize, m_rxonBuffer, m_sdusBuffer, m_statusProhibitTimer, m_txedBuffer, m_txedBufferSize, m_txonBuffer, m_txonBufferSize, and NS_LOG_FUNCTION.

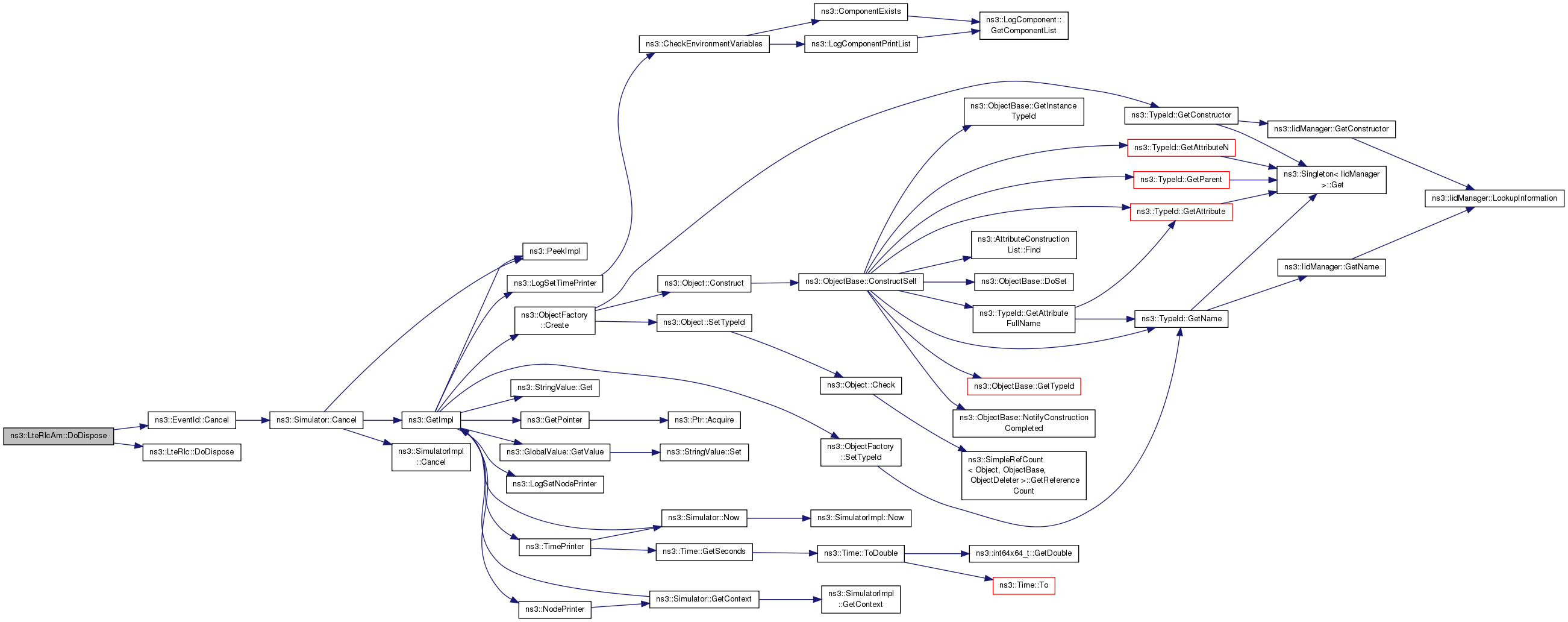

Here is the call graph for this function:

void ns3::LteRlcAm::DoNotifyHarqDeliveryFailure ( )

virtual

Implements ns3::LteRlc.

Definition at line 725 of file lte-rlc-am.cc.

References NS_LOG_FUNCTION.

void ns3::LteRlcAm::DoNotifyTxOpportunity	(	uint32_t	bytes,
		uint8_t	layer,
		uint8_t	harqId
	)

virtual

MAC SAP.

Implements ns3::LteRlc.

Definition at line 189 of file lte-rlc-am.cc.

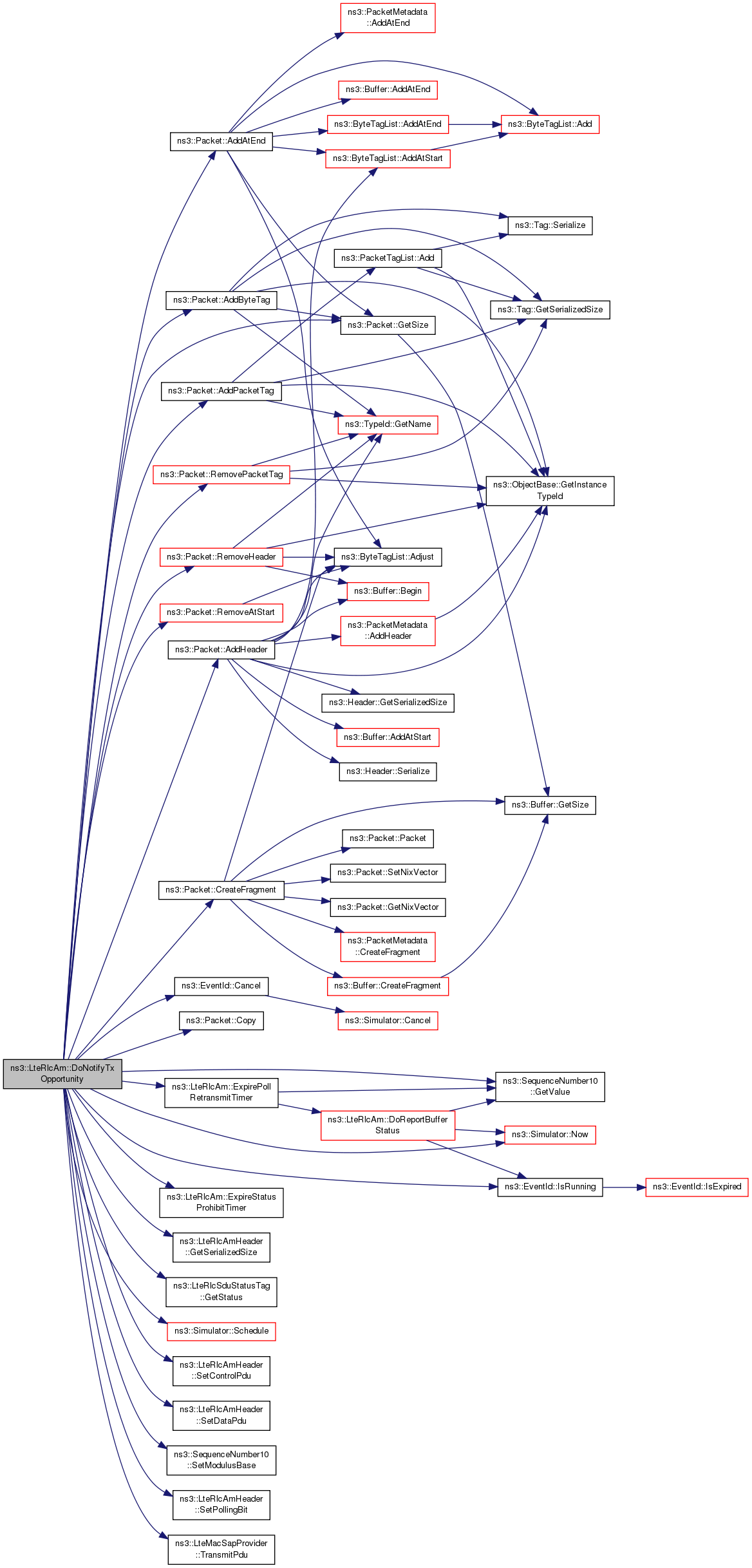

Here is the call graph for this function:

void ns3::LteRlcAm::DoReceivePdu ( Ptr< Packet > p )

virtual

Todo:: stop and reset the t-Reordering

Implements ns3::LteRlc.

Definition at line 732 of file lte-rlc-am.cc.

References ns3::EventId::Cancel(), DoReportBufferStatus(), ExpireReorderingTimer(), ns3::Packet::FindFirstMatchingByteTag(), ns3::Time::GetNanoSeconds(), ns3::Packet::GetSize(), ns3::SequenceNumber10::GetValue(), IsInsideReceivingWindow(), ns3::EventId::IsRunning(), ns3::LteRlc::m_lcid, m_pollRetransmitTimer, m_pollSn, m_reorderingTimer, m_reorderingTimerValue, m_retxBuffer, m_retxBufferSize, ns3::LteRlc::m_rnti, m_rxonBuffer, ns3::LteRlc::m_rxPdu, m_statusPduBufferSize, m_statusPduRequested, m_statusProhibitTimer, m_txedBuffer, m_txedBufferSize, m_vrH, m_vrMr, m_vrMs, m_vrR, m_vrX, m_vtA, m_vtMs, m_vtS, m_windowSize, ns3::Simulator::Now(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_INFO, NS_LOG_LOGIC, NS_LOG_WARN, ns3::LteRlcAmHeader::PDU, ns3::Packet::PeekHeader(), ReassembleAndDeliver(), ns3::Simulator::Schedule(), ns3::LteRlcAmHeader::SEGMENT, ns3::SequenceNumber10::SetModulusBase(), and ns3::LteRlcAmHeader::STATUS_REPORT_IS_REQUESTED.

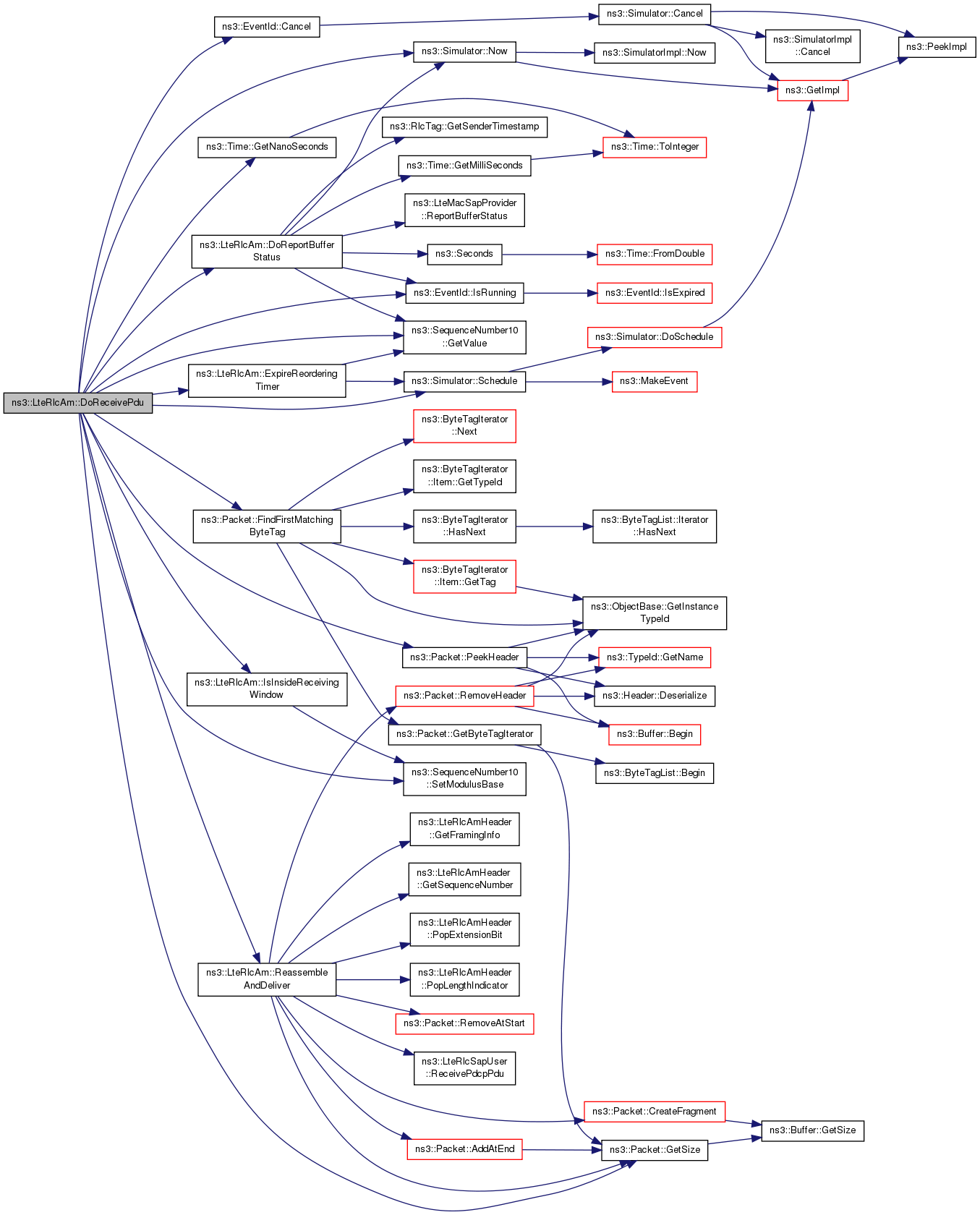

Here is the call graph for this function:

void ns3::LteRlcAm::DoReportBufferStatus ( void )

private

Definition at line 1539 of file lte-rlc-am.cc.

Referenced by DoReceivePdu(), DoTransmitPdcpPdu(), ExpirePollRetransmitTimer(), and ExpireRbsTimer().

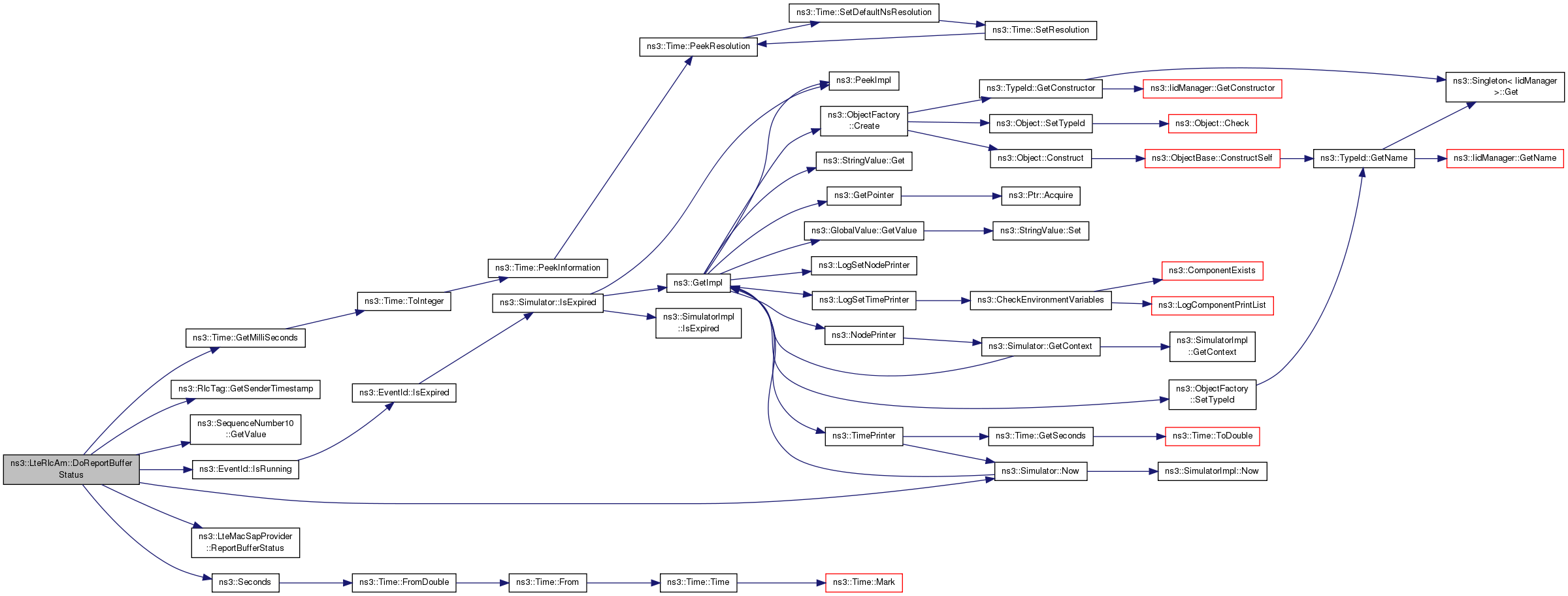

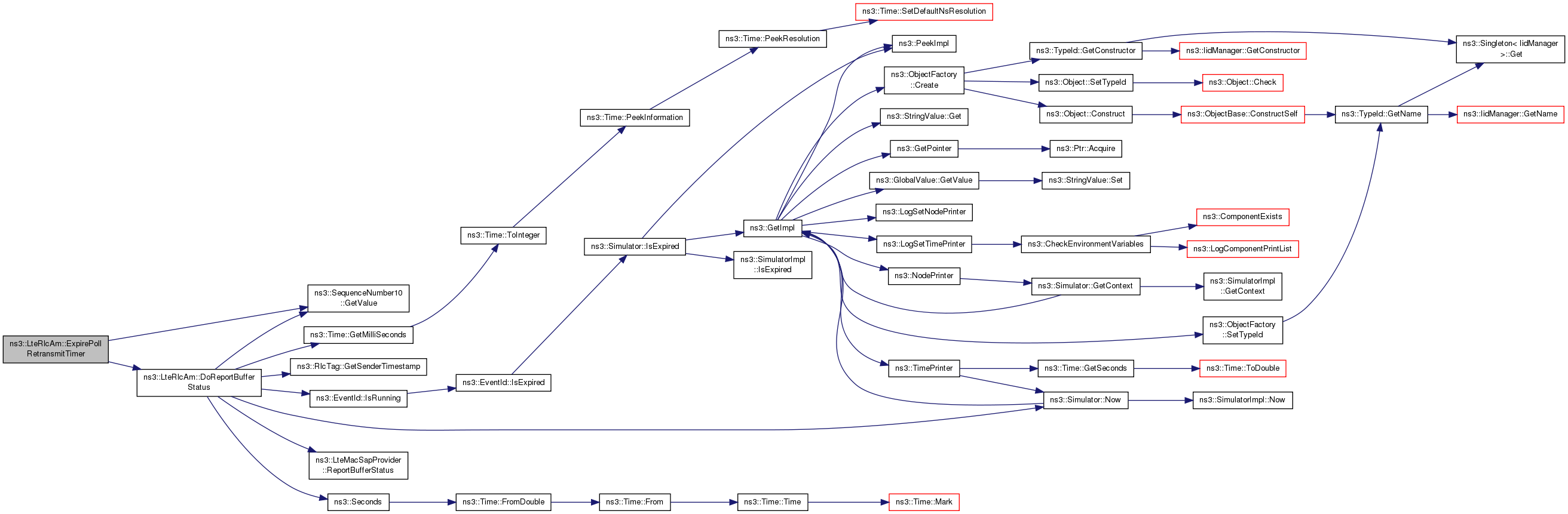

Here is the call graph for this function:

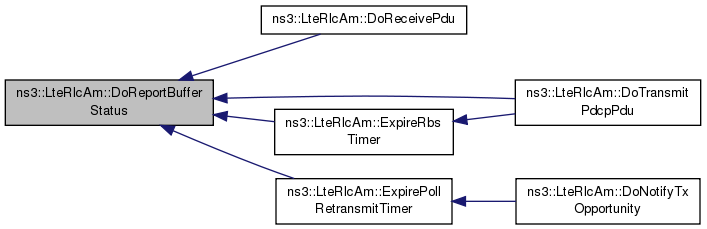

Here is the caller graph for this function:

void ns3::LteRlcAm::DoTransmitPdcpPdu ( Ptr< Packet > p )

virtual

RLC SAP.

Store arrival time

Store PDCP PDU

Report Buffer Status

Implements ns3::LteRlc.

Definition at line 156 of file lte-rlc-am.cc.

References ns3::Packet::AddPacketTag(), ns3::EventId::Cancel(), DoReportBufferStatus(), ExpireRbsTimer(), ns3::LteRlcSduStatusTag::FULL_SDU, ns3::Packet::GetSize(), ns3::LteRlc::m_lcid, m_rbsTimer, m_rbsTimerValue, ns3::LteRlc::m_rnti, m_txonBuffer, m_txonBufferSize, ns3::Simulator::Now(), NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Simulator::Schedule(), and ns3::LteRlcSduStatusTag::SetStatus().

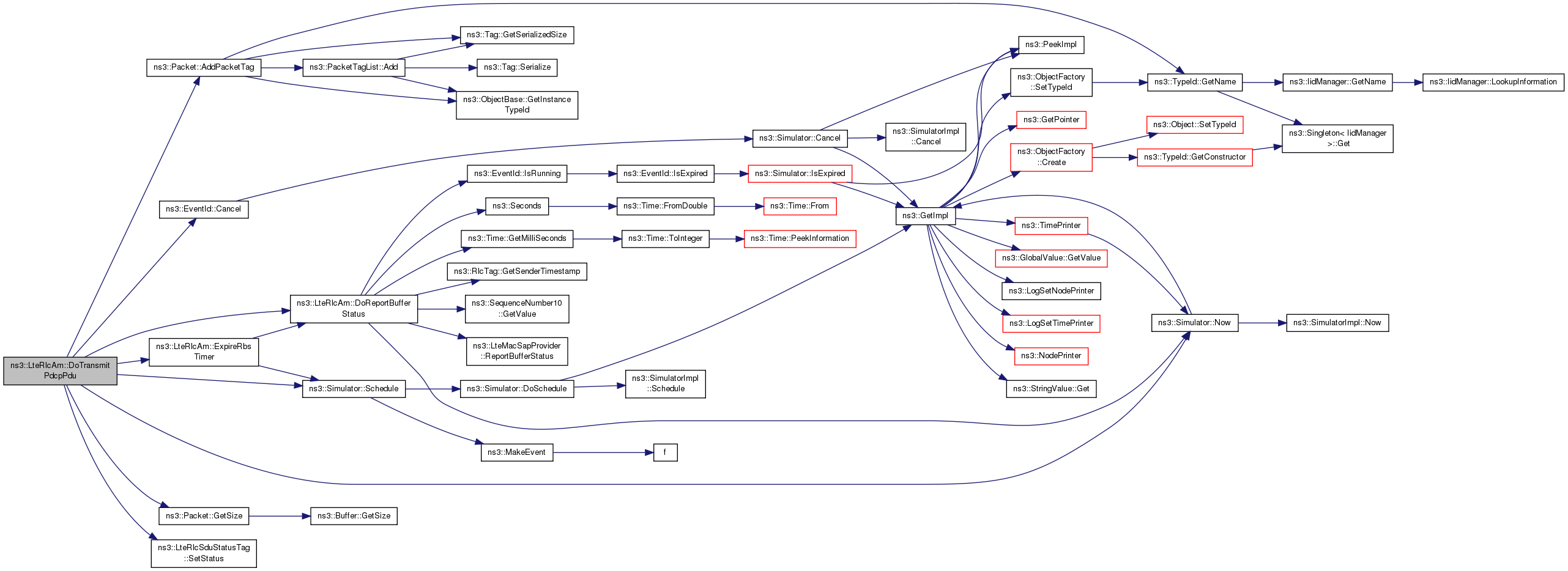

Here is the call graph for this function:

void ns3::LteRlcAm::ExpirePollRetransmitTimer ( void )

private

Definition at line 1654 of file lte-rlc-am.cc.

References DoReportBufferStatus(), ns3::SequenceNumber10::GetValue(), m_pollRetransmitTimerJustExpired, m_retxBuffer, m_retxBufferSize, m_statusPduRequested, m_txedBuffer, m_txedBufferSize, m_txonBufferSize, m_vtA, m_vtMs, m_vtS, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_INFO, and NS_LOG_LOGIC.

Referenced by DoNotifyTxOpportunity().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcAm::ExpireRbsTimer ( void )

private

Definition at line 1703 of file lte-rlc-am.cc.

References DoReportBufferStatus(), m_rbsTimer, m_rbsTimerValue, m_retxBufferSize, m_txedBufferSize, m_txonBufferSize, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by DoTransmitPdcpPdu().

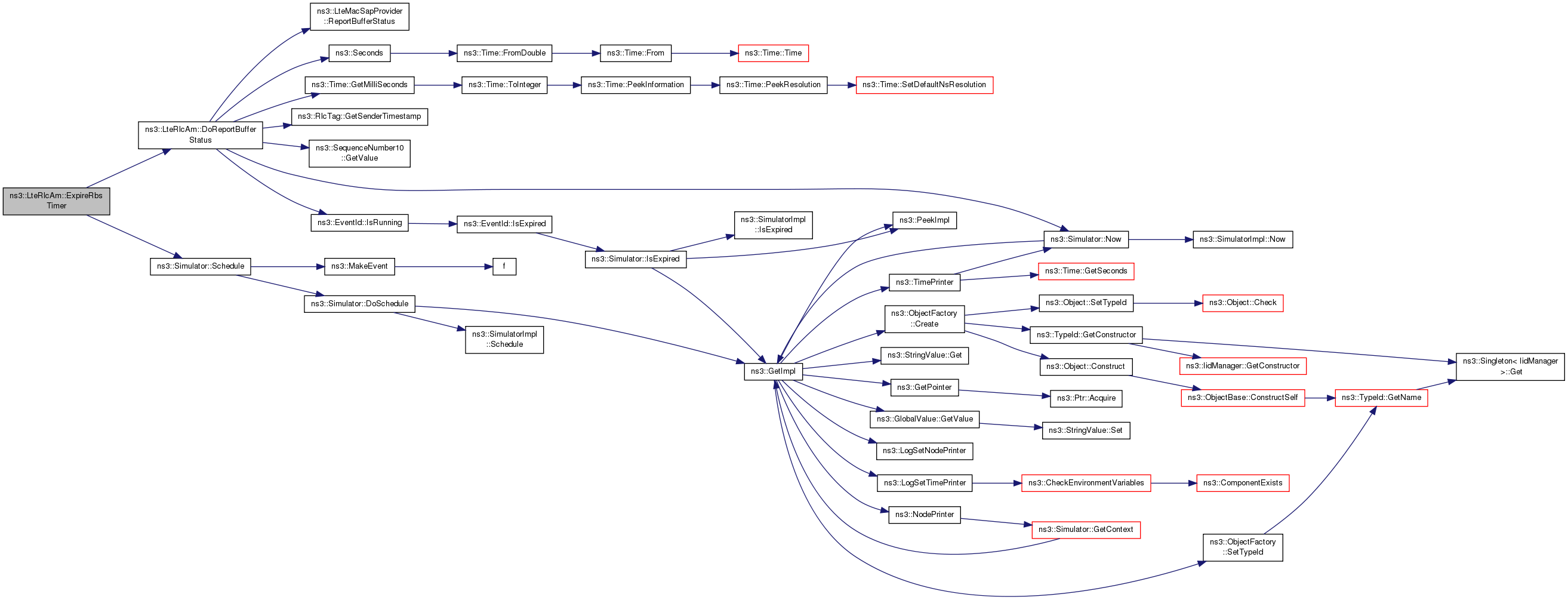

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcAm::ExpireReorderingTimer ( void )

private

This method will schedule a timeout at WaitReplyTimeout interval in the future, unless a timer is already running for the cache, in which case this method does nothing.

Definition at line 1612 of file lte-rlc-am.cc.

References ns3::SequenceNumber10::GetValue(), m_reorderingTimer, m_reorderingTimerValue, m_rxonBuffer, m_statusPduRequested, m_vrH, m_vrMs, m_vrX, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::Simulator::Schedule().

Referenced by DoReceivePdu().

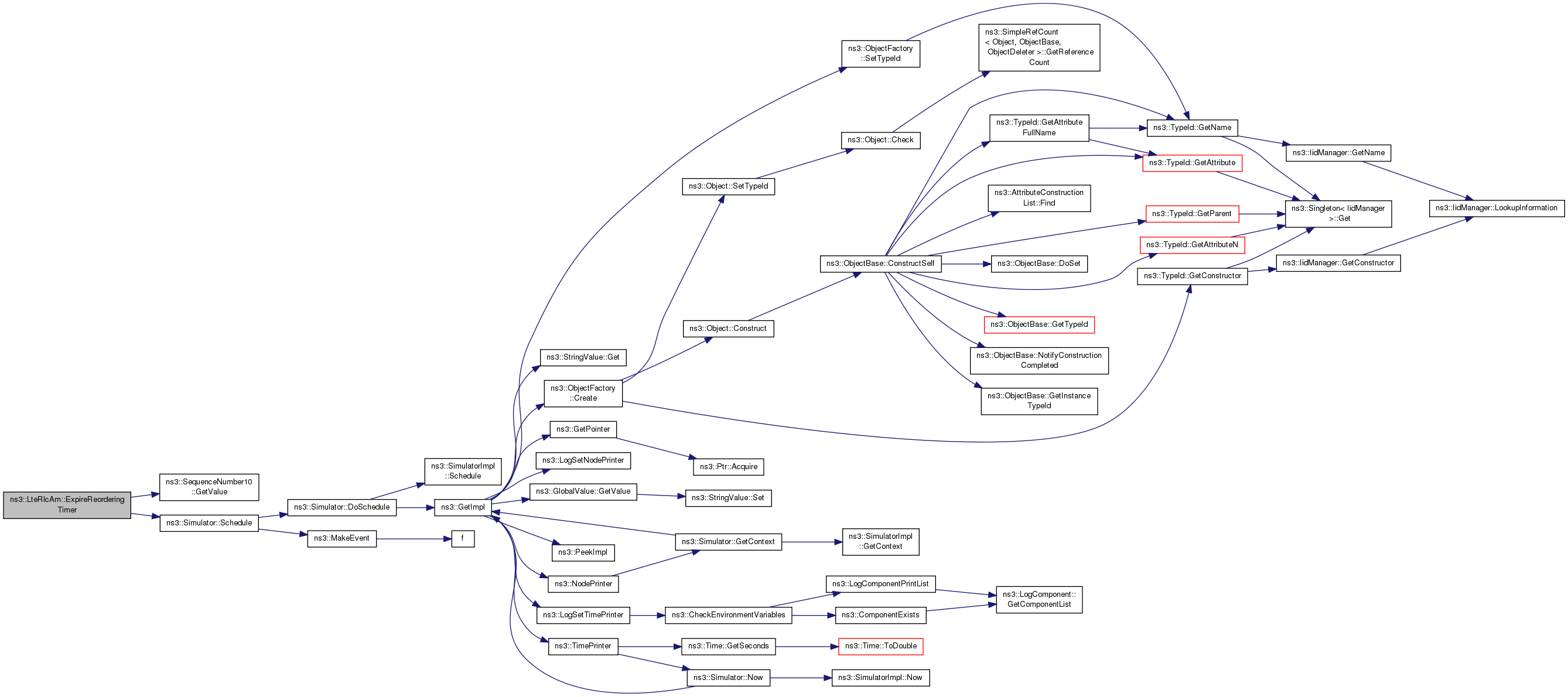

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcAm::ExpireStatusProhibitTimer ( void )

private

method called when the T_status_prohibit timer expires

Definition at line 1697 of file lte-rlc-am.cc.

References NS_LOG_FUNCTION.

Referenced by DoNotifyTxOpportunity().

Here is the caller graph for this function:

TypeId ns3::LteRlcAm::GetTypeId ( void )

static

Definition at line 88 of file lte-rlc-am.cc.

References m_pollRetransmitTimerValue, m_rbsTimerValue, m_reorderingTimerValue, m_statusProhibitTimerValue, m_txOpportunityForRetxAlwaysBigEnough, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MilliSeconds(), and ns3::TypeId::SetParent().

Referenced by ns3::LteUeRrc::ApplyRadioResourceConfigDedicated(), ns3::LteEnbRrc::GetRlcType(), and ns3::UeManager::SetupDataRadioBearer().

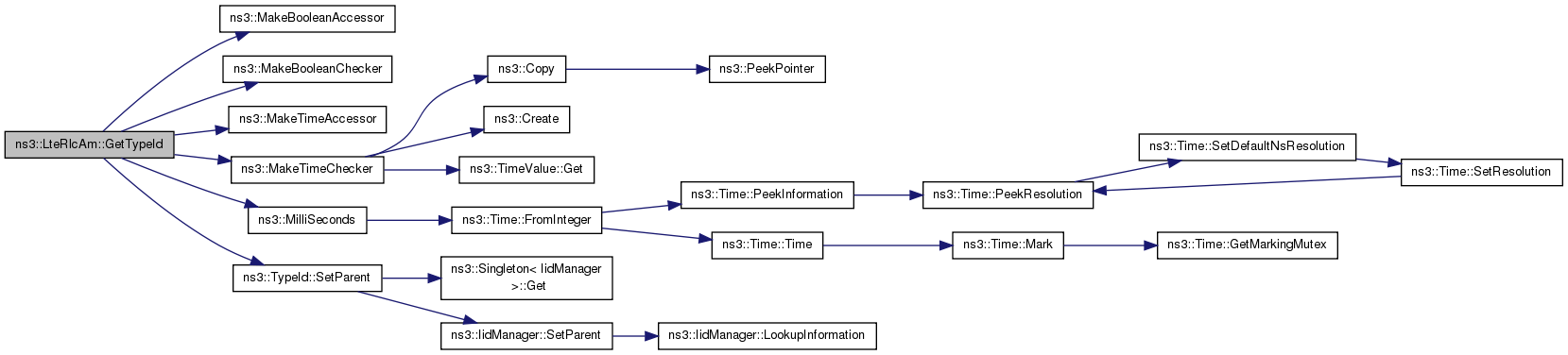

Here is the call graph for this function:

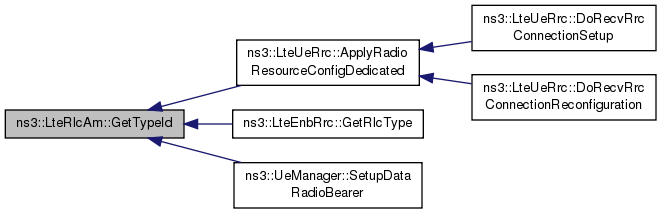

Here is the caller graph for this function:

bool ns3::LteRlcAm::IsInsideReceivingWindow ( SequenceNumber10 seqNumber )

private

Definition at line 1097 of file lte-rlc-am.cc.

References m_vrMr, m_vrR, NS_LOG_FUNCTION, NS_LOG_LOGIC, and ns3::SequenceNumber10::SetModulusBase().

Referenced by DoReceivePdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteRlcAm::ReassembleAndDeliver ( Ptr< Packet > packet )

private

Todo:: What to do in this case? Discard packet and continue? Or Assert?

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

ERROR: Transition not possible

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep SI

Deliver (Kept)S0 + SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Deliver one or multiple PDUs

Deliver full PDUs

Keep S0

Discard SN

Deliver zero, one or multiple PDUs

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Discard S0

Deliver one or multiple PDUs

Discard S0

Deliver zero, one or multiple PDUs

Keep S0

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Discard S0

Discard SI or SN

Deliver zero, one or multiple PDUs

Keep S0

ERROR: Transition not possible

Definition at line 1121 of file lte-rlc-am.cc.

Referenced by DoReceivePdu().

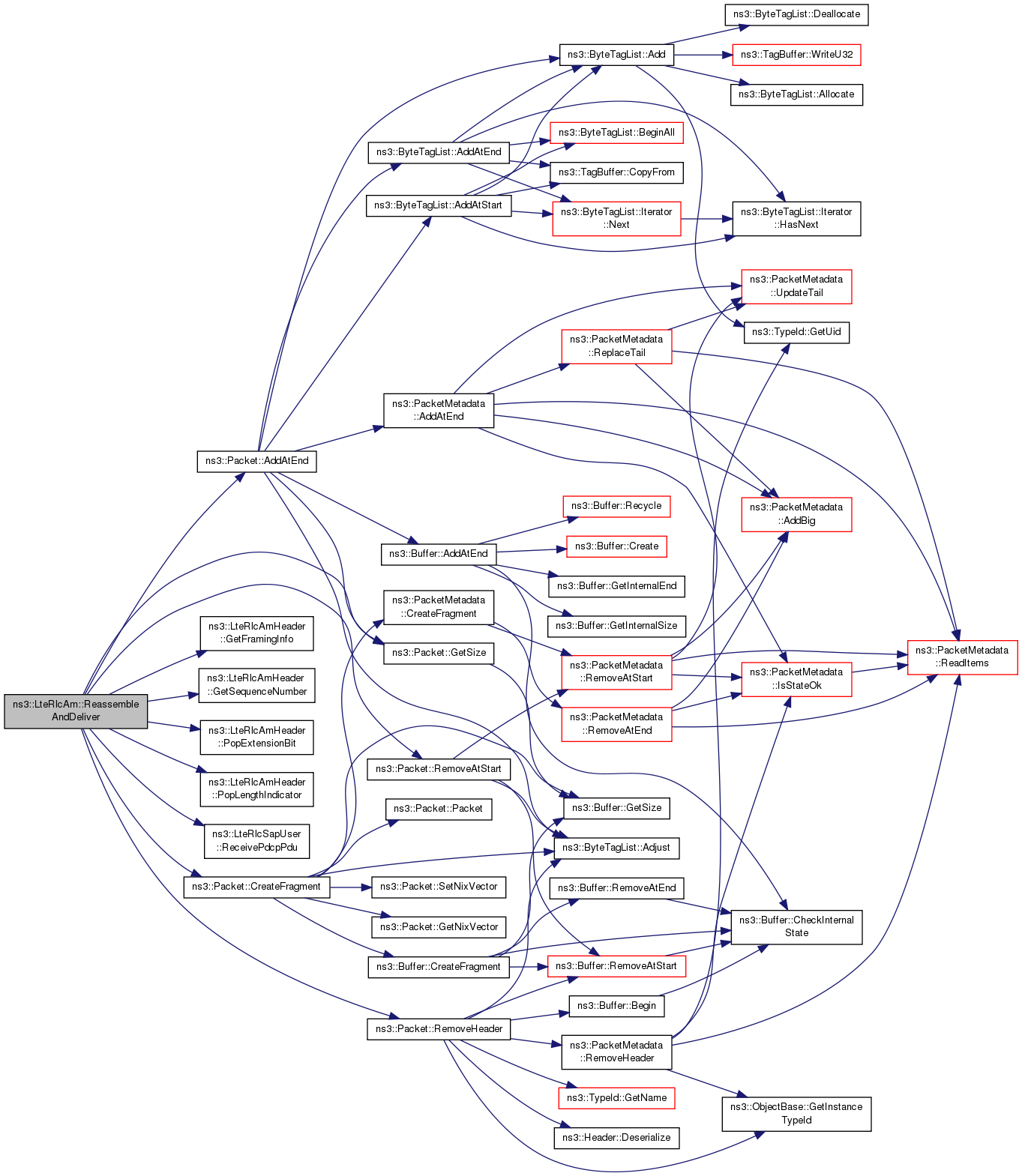

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::LteRlcAm::m_byteWithoutPoll

private

Definition at line 139 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

Ptr<Packet> ns3::LteRlcAm::m_controlPduBuffer

private

Definition at line 112 of file lte-rlc-am.h.

Referenced by DoDispose().

SequenceNumber10 ns3::LteRlcAm::m_expectedSeqNumber

private

Expected Sequence Number.

Definition at line 180 of file lte-rlc-am.h.

Referenced by LteRlcAm(), and ReassembleAndDeliver().

Ptr<Packet> ns3::LteRlcAm::m_keepS0

private

Definition at line 175 of file lte-rlc-am.h.

Referenced by DoDispose(), and ReassembleAndDeliver().

uint16_t ns3::LteRlcAm::m_maxRetxThreshold

private

Configurable parameters.

See section 7.4 in TS 36.322

Definition at line 161 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

uint32_t ns3::LteRlcAm::m_pduWithoutPoll

private

Counters.

See section 7.1 in TS 36.322

Definition at line 138 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_pollByte

private

Definition at line 163 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_pollPdu

private

Todo:: How these parameters are configured???

Definition at line 162 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and LteRlcAm().

EventId ns3::LteRlcAm::m_pollRetransmitTimer

private

Timers.

See section 7.3 in TS 36.322

Definition at line 149 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), and DoReceivePdu().

bool ns3::LteRlcAm::m_pollRetransmitTimerJustExpired

private

Definition at line 166 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), ExpirePollRetransmitTimer(), and LteRlcAm().

Time ns3::LteRlcAm::m_pollRetransmitTimerValue

private

Definition at line 150 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and GetTypeId().

SequenceNumber10 ns3::LteRlcAm::m_pollSn

private

Definition at line 126 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), and LteRlcAm().

EventId ns3::LteRlcAm::m_rbsTimer

private

Definition at line 155 of file lte-rlc-am.h.

Referenced by DoDispose(), DoTransmitPdcpPdu(), and ExpireRbsTimer().

Time ns3::LteRlcAm::m_rbsTimerValue

private

Definition at line 156 of file lte-rlc-am.h.

Referenced by DoTransmitPdcpPdu(), ExpireRbsTimer(), and GetTypeId().

ReassemblingState_t ns3::LteRlcAm::m_reassemblingState

private

Definition at line 174 of file lte-rlc-am.h.

Referenced by LteRlcAm(), and ReassembleAndDeliver().

EventId ns3::LteRlcAm::m_reorderingTimer

private

Definition at line 151 of file lte-rlc-am.h.

Referenced by DoDispose(), DoReceivePdu(), and ExpireReorderingTimer().

Time ns3::LteRlcAm::m_reorderingTimerValue

private

Definition at line 152 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and GetTypeId().

std::vector<RetxPdu> ns3::LteRlcAm::m_retxBuffer

private

Buffer for PDUs considered for retransmission.

Definition at line 93 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), and LteRlcAm().

uint32_t ns3::LteRlcAm::m_retxBufferSize

private

Definition at line 96 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), ExpireRbsTimer(), and LteRlcAm().

std::map<uint16_t, PduBuffer > ns3::LteRlcAm::m_rxonBuffer

private

Definition at line 110 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), and ExpireReorderingTimer().

std::list< Ptr<Packet> > ns3::LteRlcAm::m_sdusBuffer

private

Definition at line 117 of file lte-rlc-am.h.

Referenced by DoDispose(), and ReassembleAndDeliver().

uint32_t ns3::LteRlcAm::m_statusPduBufferSize

private

Definition at line 100 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), and LteRlcAm().

bool ns3::LteRlcAm::m_statusPduRequested

private

Definition at line 99 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), ExpireReorderingTimer(), and LteRlcAm().

EventId ns3::LteRlcAm::m_statusProhibitTimer

private

Definition at line 153 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), and DoReportBufferStatus().

Time ns3::LteRlcAm::m_statusProhibitTimerValue

private

Definition at line 154 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and GetTypeId().

std::vector<RetxPdu> ns3::LteRlcAm::m_txedBuffer

private

Buffer for transmitted and retransmitted PDUs that have not been acked but are not considered for retransmission.

Definition at line 90 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), and LteRlcAm().

uint32_t ns3::LteRlcAm::m_txedBufferSize

private

Definition at line 97 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), ExpireRbsTimer(), and LteRlcAm().

std::vector< Ptr<Packet> > ns3::LteRlcAm::m_txonBuffer

private

Definition at line 82 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReportBufferStatus(), and DoTransmitPdcpPdu().

uint32_t ns3::LteRlcAm::m_txonBufferSize

private

Definition at line 95 of file lte-rlc-am.h.

Referenced by DoDispose(), DoNotifyTxOpportunity(), DoReportBufferStatus(), DoTransmitPdcpPdu(), ExpirePollRetransmitTimer(), ExpireRbsTimer(), and LteRlcAm().

bool ns3::LteRlcAm::m_txOpportunityForRetxAlwaysBigEnough

private

Definition at line 165 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), and GetTypeId().

SequenceNumber10 ns3::LteRlcAm::m_vrH

private

Definition at line 133 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrMr

private

Definition at line 130 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), IsInsideReceivingWindow(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrMs

private

Definition at line 132 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrR

private

Definition at line 129 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), IsInsideReceivingWindow(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vrX

private

Definition at line 131 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), ExpireReorderingTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtA

private

State variables.

See section 7.1 in TS 36.322

Definition at line 123 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtMs

private

Definition at line 124 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), ExpirePollRetransmitTimer(), and LteRlcAm().

SequenceNumber10 ns3::LteRlcAm::m_vtS

private

Definition at line 125 of file lte-rlc-am.h.

Referenced by DoNotifyTxOpportunity(), DoReceivePdu(), DoReportBufferStatus(), ExpirePollRetransmitTimer(), and LteRlcAm().

uint16_t ns3::LteRlcAm::m_windowSize

private

Constants.

See section 7.2 in TS 36.322

Definition at line 144 of file lte-rlc-am.h.

Referenced by DoReceivePdu(), and LteRlcAm().

The documentation for this class was generated from the following files:

src/lte/model/lte-rlc-am.h
src/lte/model/lte-rlc-am.cc

Classes

Public Member Functions

Static Public Member Functions

Private Types

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources defined in parent class ns3::LteRlc

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
