create QoS-enabled MAC layers for a ns3::WifiNetDevice. More...

#include "qos-wifi-mac-helper.h"

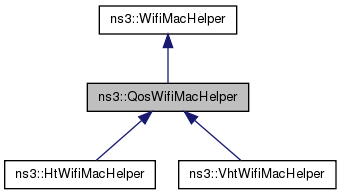

Inheritance diagram for ns3::QosWifiMacHelper:

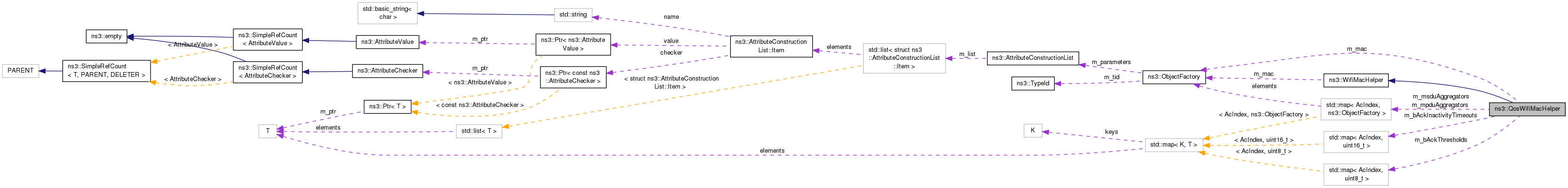

Collaboration diagram for ns3::QosWifiMacHelper:

Public Member Functions
	QosWifiMacHelper ()
	Create a QosWifiMacHelper that is used to make life easier when working with Wifi devices using a QOS MAC layer. More...

virtual	~QosWifiMacHelper ()
	Destroy a QosWifiMacHelper. More...

void	SetBlockAckInactivityTimeoutForAc (enum AcIndex ac, uint16_t timeout)
	Sets value of block ack inactivity timeout for a specific access class. More...

void	SetBlockAckThresholdForAc (enum AcIndex ac, uint8_t threshold)
	This method sets value of block ack threshold for a specific access class. More...

void	SetMpduAggregatorForAc (enum AcIndex ac, std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue())
	Set the class, type and attributes for the Mpdu aggregator. More...

void	SetMsduAggregatorForAc (AcIndex ac, std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue())
	Set the class, type and attributes for the Msdu aggregator. More...

virtual void	SetType (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue(), std::string n8="", const AttributeValue &v8=EmptyAttributeValue(), std::string n9="", const AttributeValue &v9=EmptyAttributeValue(), std::string n10="", const AttributeValue &v10=EmptyAttributeValue())
	Set the underlying type of the MAC and its attributes. More...

Public Member Functions inherited from ns3::WifiMacHelper
	WifiMacHelper ()
	Create a WifiMacHelper to make life easier for people who want to work with Wifi MAC layers. More...

virtual	~WifiMacHelper ()
	Destroy a WifiMacHelper. More...

Static Public Member Functions
static QosWifiMacHelper	Default (void)
	Create a mac helper in a default working state. More...

Protected Attributes
ObjectFactory	m_mac

Protected Attributes inherited from ns3::WifiMacHelper
ObjectFactory	m_mac

Private Member Functions
virtual Ptr< WifiMac >	Create (void) const

void	Setup (Ptr< WifiMac > mac, enum AcIndex ac, std::string dcaAttrName) const

Private Attributes
std::map< AcIndex, uint16_t >	m_bAckInactivityTimeouts

std::map< AcIndex, uint8_t >	m_bAckThresholds

std::map< AcIndex, ObjectFactory >	m_mpduAggregators

std::map< AcIndex, ObjectFactory >	m_msduAggregators

Detailed Description

create QoS-enabled MAC layers for a ns3::WifiNetDevice.

This class can create MACs of type ns3::ApWifiMac, ns3::StaWifiMac, and, ns3::AdhocWifiMac, with QosSupported attribute set to True.

Definition at line 41 of file qos-wifi-mac-helper.h.

Constructor & Destructor Documentation

ns3::QosWifiMacHelper::QosWifiMacHelper ( )

Create a QosWifiMacHelper that is used to make life easier when working with Wifi devices using a QOS MAC layer.

Definition at line 33 of file qos-wifi-mac-helper.cc.

ns3::QosWifiMacHelper::~QosWifiMacHelper ( )

virtual

Destroy a QosWifiMacHelper.

Definition at line 37 of file qos-wifi-mac-helper.cc.

Member Function Documentation

Ptr< WifiMac > ns3::QosWifiMacHelper::Create ( void ) const

privatevirtual

Returns: a newly-created MAC object.

This method implements the pure virtual method defined in ns3::WifiMacHelper.

Reimplemented from ns3::WifiMacHelper.

Definition at line 186 of file qos-wifi-mac-helper.cc.

References ns3::AC_BE, ns3::AC_BK, ns3::AC_VI, ns3::AC_VO, ns3::ObjectFactory::Create(), m_mac, third::mac, and Setup().

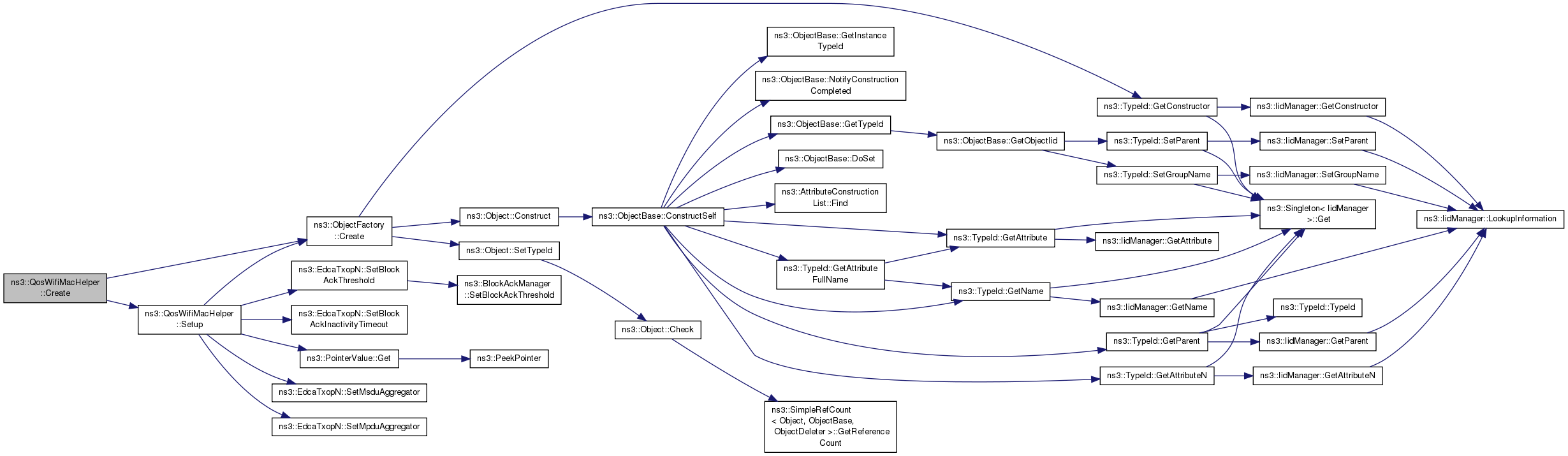

Here is the call graph for this function:

QosWifiMacHelper ns3::QosWifiMacHelper::Default ( void )

static

Create a mac helper in a default working state.

Definition at line 42 of file qos-wifi-mac-helper.cc.

References SetType().

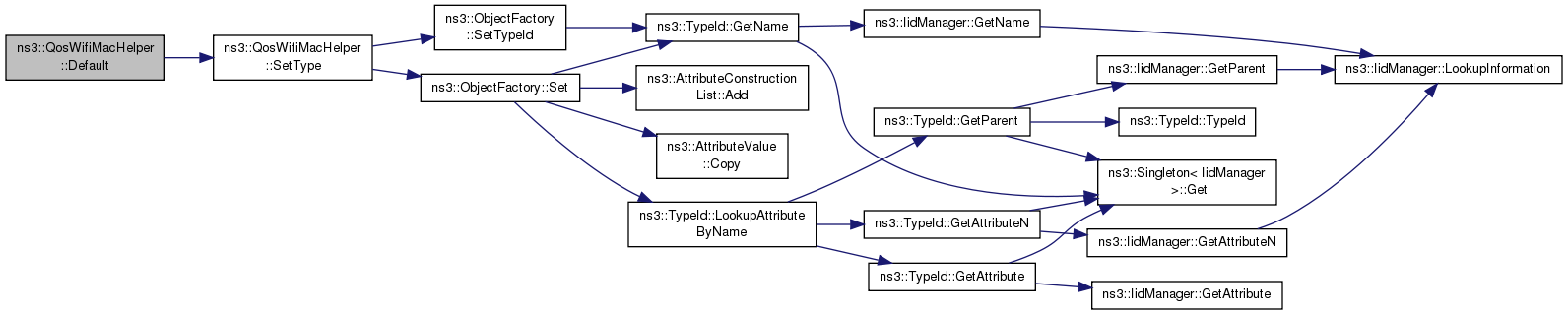

Here is the call graph for this function:

void ns3::QosWifiMacHelper::SetBlockAckInactivityTimeoutForAc	(	enum AcIndex	ac,
		uint16_t	timeout
	)

Sets value of block ack inactivity timeout for a specific access class.

timeout represents number of blocks of 1024 microseconds. When this timer expires the relative block ack agreement is teared down. Timer is reset in an recipient station every time that a block ack request or a MPDU with ack policy BLOCK ACK is received. Timer is reset in a originator station every time that a block ack frame is received.

Parameters

ac	access category for which we are setting block ack threshold. Possibilities are: AC_BK, AC_BE, AC_VI, AC_VO.
timeout	number of block of 1024 microseconds.

Definition at line 146 of file qos-wifi-mac-helper.cc.

References m_bAckInactivityTimeouts, and timeout.

void ns3::QosWifiMacHelper::SetBlockAckThresholdForAc	(	enum AcIndex	ac,
		uint8_t	threshold
	)

This method sets value of block ack threshold for a specific access class.

If number of packets in the respective queue reaches this value block ack mechanism is used.

Parameters

ac	access category for which we are setting block ack threshold. Possibilities are: AC_BK, AC_BE, AC_VI, AC_VO.
threshold	the threshold (number of packets)

Definition at line 140 of file qos-wifi-mac-helper.cc.

References m_bAckThresholds.

void ns3::QosWifiMacHelper::SetMpduAggregatorForAc	(	enum AcIndex	ac,
		std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`
	)

Set the class, type and attributes for the Mpdu aggregator.

Parameters

ac	access category for which we are setting aggregator. Possibilities are: AC_BK, AC_BE, AC_VI, AC_VO.
type	the type of ns3::MsduAggregator to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set

All the attributes specified in this method should exist in the requested aggregator.

Definition at line 112 of file qos-wifi-mac-helper.cc.

References m_mpduAggregators, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by ns3::VhtWifiMacHelper::Default().

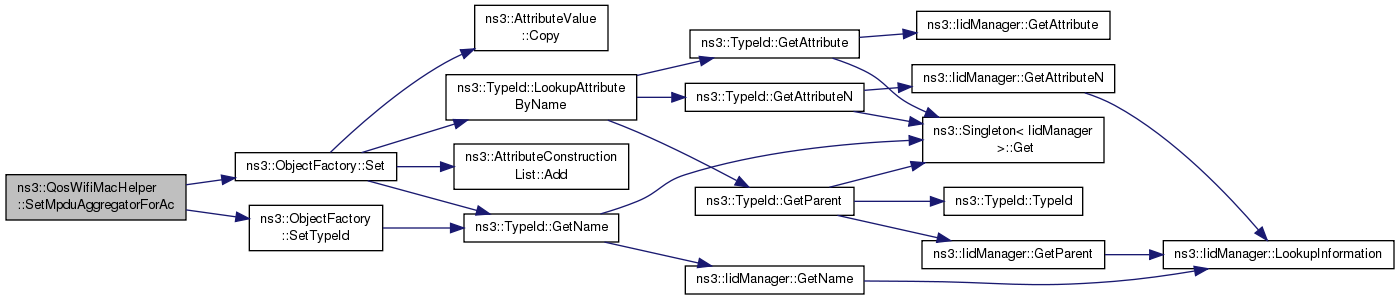

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::QosWifiMacHelper::SetMsduAggregatorForAc	(	AcIndex	ac,
		std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`
	)

Set the class, type and attributes for the Msdu aggregator.

Parameters

ac	access category for which we are setting aggregator. Possibilities are: AC_BK, AC_BE, AC_VI, AC_VO.
type	the type of ns3::MsduAggregator to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set

All the attributes specified in this method should exist in the requested aggregator.

Definition at line 84 of file qos-wifi-mac-helper.cc.

References m_msduAggregators, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

void ns3::QosWifiMacHelper::SetType	(	std::string	type,
		std::string	n0 = `""`,
		const AttributeValue &	v0 = `EmptyAttributeValue ()`,
		std::string	n1 = `""`,
		const AttributeValue &	v1 = `EmptyAttributeValue ()`,
		std::string	n2 = `""`,
		const AttributeValue &	v2 = `EmptyAttributeValue ()`,
		std::string	n3 = `""`,
		const AttributeValue &	v3 = `EmptyAttributeValue ()`,
		std::string	n4 = `""`,
		const AttributeValue &	v4 = `EmptyAttributeValue ()`,
		std::string	n5 = `""`,
		const AttributeValue &	v5 = `EmptyAttributeValue ()`,
		std::string	n6 = `""`,
		const AttributeValue &	v6 = `EmptyAttributeValue ()`,
		std::string	n7 = `""`,
		const AttributeValue &	v7 = `EmptyAttributeValue ()`,
		std::string	n8 = `""`,
		const AttributeValue &	v8 = `EmptyAttributeValue ()`,
		std::string	n9 = `""`,
		const AttributeValue &	v9 = `EmptyAttributeValue ()`,
		std::string	n10 = `""`,
		const AttributeValue &	v10 = `EmptyAttributeValue ()`
	)

virtual

Set the underlying type of the MAC and its attributes.

Parameters

type	the type of ns3::WifiMac to create.
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set
n8	the name of the attribute to set
v8	the value of the attribute to set
n9	the name of the attribute to set
v9	the value of the attribute to set
n10	the name of the attribute to set
v10	the value of the attribute to set
