QueueDiscItem is the abstract base class for items that are stored in a queue disc. More...

#include "queue-disc.h"

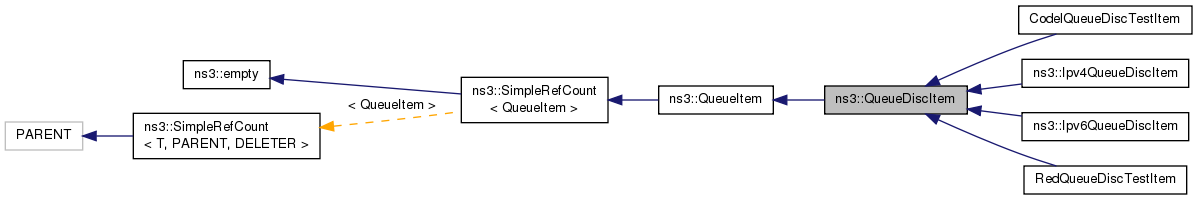

Inheritance diagram for ns3::QueueDiscItem:

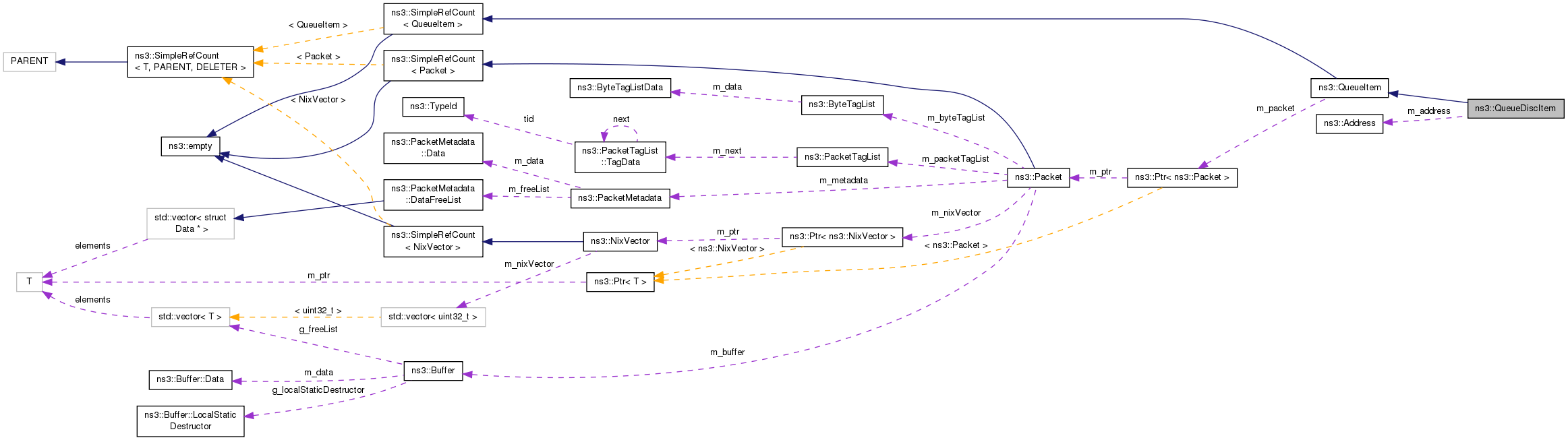

Collaboration diagram for ns3::QueueDiscItem:

Public Member Functions
	QueueDiscItem (Ptr< Packet > p, const Address &addr, uint16_t protocol)
	Create a queue disc item. More...

virtual	~QueueDiscItem ()

virtual void	AddHeader (void)=0
	Add the header to the packet. More...

Address	GetAddress (void) const
	Get the MAC address included in this item. More...

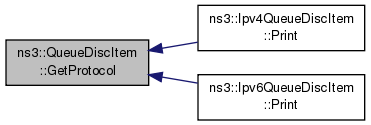

uint16_t	GetProtocol (void) const
	Get the L3 protocol included in this item. More...

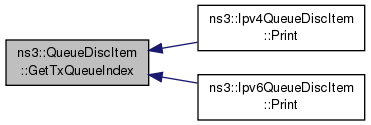

uint8_t	GetTxQueueIndex (void) const
	Get the transmission queue index included in this item. More...

virtual void	Print (std::ostream &os) const
	Print the item contents. More...

void	SetTxQueueIndex (uint8_t txq)
	Set the transmission queue index to store in this item. More...

Public Member Functions inherited from ns3::QueueItem
	QueueItem (Ptr< Packet > p)
	Create a queue item containing a packet. More...

virtual	~QueueItem ()

Ptr< Packet >	GetPacket (void) const

virtual uint32_t	GetPacketSize (void) const
	Use this method (instead of GetPacket ()->GetSize ()) to get the packet size. More...

Public Member Functions inherited from ns3::SimpleRefCount< QueueItem >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
	QueueDiscItem ()
	Default constructor. More...

	QueueDiscItem (const QueueDiscItem &)
	Copy constructor. More...

QueueDiscItem &	operator= (const QueueDiscItem &)
	Assignment operator. More...

Private Attributes
Address	m_address
	MAC destination address. More...

uint16_t	m_protocol
	L3 Protocol number. More...

uint8_t	m_txq
	Transmission queue index. More...

Additional Inherited Members
Public Types inherited from ns3::QueueItem
typedef void(*	TracedCallback) (Ptr< const QueueItem > item)
	TracedCallback signature for Ptr<QueueItem> More...

Static Public Member Functions inherited from ns3::SimpleRefCount< QueueItem >
static void	Cleanup (void)
	Noop. More...

Detailed Description

QueueDiscItem is the abstract base class for items that are stored in a queue disc.

It is derived from QueueItem (which only consists of a Ptr<Packet>) to additionally store the destination MAC address, the L3 protocol number and the transmission queue index,

Definition at line 43 of file queue-disc.h.

Constructor & Destructor Documentation

ns3::QueueDiscItem::QueueDiscItem	(	Ptr< Packet >	p,
		const Address &	addr,
		uint16_t	protocol
	)

Create a queue disc item.

Parameters

p	the packet included in the created item.
addr	the destination MAC address
protocol	the L3 protocol number

Definition at line 33 of file queue-disc.cc.

ns3::QueueDiscItem::~QueueDiscItem ( )

virtual

Definition at line 41 of file queue-disc.cc.

References NS_LOG_FUNCTION.

ns3::QueueDiscItem::QueueDiscItem ( )

private

Default constructor.

Defined and unimplemented to avoid misuse

ns3::QueueDiscItem::QueueDiscItem ( const QueueDiscItem & )

private

Copy constructor.

Defined and unimplemented to avoid misuse

Member Function Documentation

virtual void ns3::QueueDiscItem::AddHeader ( void )

pure virtual

Add the header to the packet.

Subclasses may keep header and payload separate to allow manipulating the header, so this method allows to add the header to the packet before sending the packet to the device.

Implemented in ns3::Ipv4QueueDiscItem, ns3::Ipv6QueueDiscItem, CodelQueueDiscTestItem, and RedQueueDiscTestItem.

Address ns3::QueueDiscItem::GetAddress ( void ) const

Get the MAC address included in this item.
