ns3::TcpHyblaIncrementTest Class Reference

Testing the congestion avoidance increment on TcpHybla. More...

Inheritance diagram for ns3::TcpHyblaIncrementTest:

Collaboration diagram for ns3::TcpHyblaIncrementTest:

Public Member Functions
	TcpHyblaIncrementTest (uint32_t cWnd, uint32_t ssThresh, uint32_t segmentSize, const Time &rtt, const std::string &name)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	RhoUpdated (double oldVal, double newVal)

Private Attributes
uint32_t	m_cWnd
double	m_rho
Time	m_rtt
uint32_t	m_segmentSize
uint32_t	m_ssThresh
Ptr< TcpSocketState >	m_state

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Testing the congestion avoidance increment on TcpHybla.

Definition at line 33 of file tcp-hybla-test.cc.

Constructor & Destructor Documentation

ns3::TcpHyblaIncrementTest::TcpHyblaIncrementTest	(	uint32_t	cWnd,
		uint32_t	ssThresh,
		uint32_t	segmentSize,
		const Time &	rtt,
		const std::string &	name
	)

Definition at line 52 of file tcp-hybla-test.cc.

Member Function Documentation

void ns3::TcpHyblaIncrementTest::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 71 of file tcp-hybla-test.cc.

References ns3::TimeValue::Get(), ns3::Time::GetSeconds(), m_cWnd, m_rho, m_rtt, m_segmentSize, m_ssThresh, m_state, ns3::MakeCallback(), max, ns3::MilliSeconds(), NS_TEST_ASSERT_MSG_EQ, NS_TEST_ASSERT_MSG_EQ_TOL, NS_TEST_ASSERT_MSG_LT_OR_EQ, NS_TEST_ASSERT_MSG_NE, and RhoUpdated().

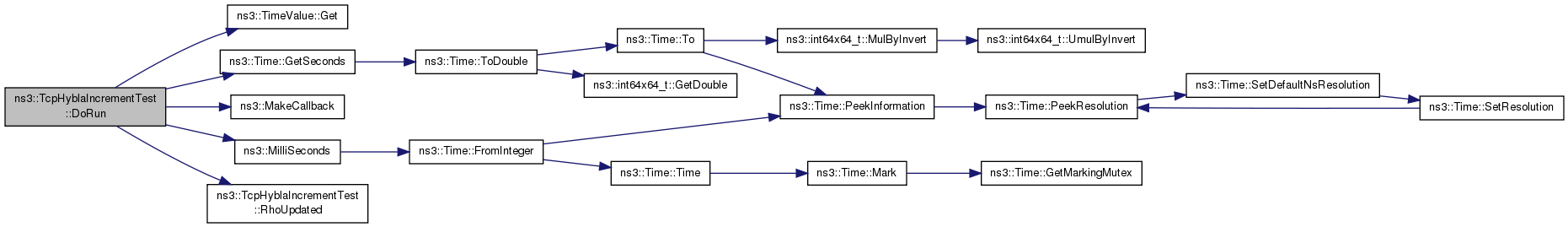

Here is the call graph for this function:

void ns3::TcpHyblaIncrementTest::RhoUpdated ( double  oldVal, double  newVal  )

private

Definition at line 65 of file tcp-hybla-test.cc.

References m_rho.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

uint32_t ns3::TcpHyblaIncrementTest::m_cWnd

private

Definition at line 44 of file tcp-hybla-test.cc.

Referenced by DoRun().

double ns3::TcpHyblaIncrementTest::m_rho

private

Definition at line 48 of file tcp-hybla-test.cc.

Referenced by DoRun(), and RhoUpdated().

Time ns3::TcpHyblaIncrementTest::m_rtt

private

Definition at line 47 of file tcp-hybla-test.cc.

Referenced by DoRun().

uint32_t ns3::TcpHyblaIncrementTest::m_segmentSize

private

Definition at line 46 of file tcp-hybla-test.cc.

Referenced by DoRun().

uint32_t ns3::TcpHyblaIncrementTest::m_ssThresh

private

Definition at line 45 of file tcp-hybla-test.cc.

Referenced by DoRun().

Ptr<TcpSocketState> ns3::TcpHyblaIncrementTest::m_state

private

Definition at line 49 of file tcp-hybla-test.cc.

Referenced by DoRun().

---

The documentation for this class was generated from the following file:

• src/internet/test/tcp-hybla-test.cc
