Ipv4DynamicGlobalRoutingTestCase Class Reference

Inheritance diagram for Ipv4DynamicGlobalRoutingTestCase:

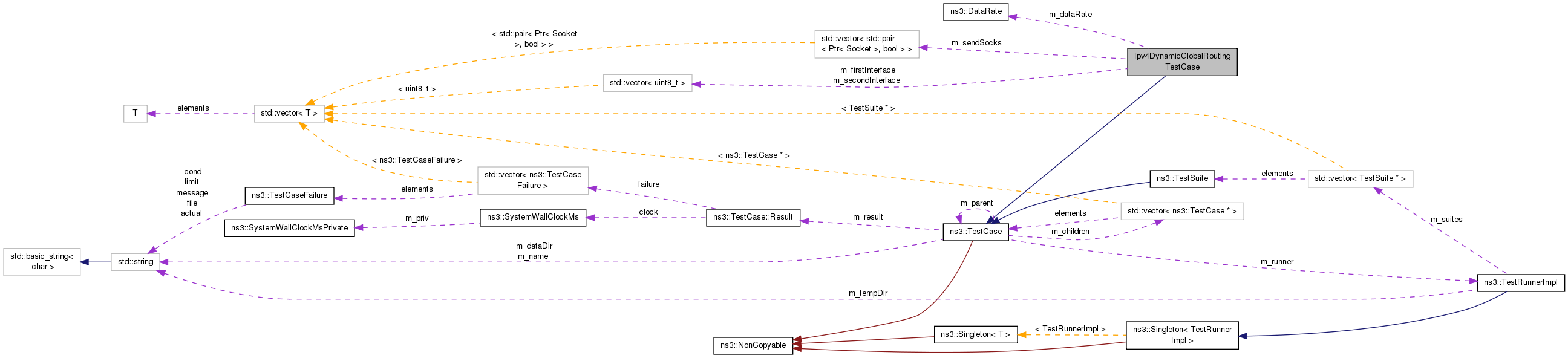

Collaboration diagram for Ipv4DynamicGlobalRoutingTestCase:

Public Member Functions
	Ipv4DynamicGlobalRoutingTestCase ()
virtual	~Ipv4DynamicGlobalRoutingTestCase ()
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	HandleRead (Ptr< Socket >)
void	SendData (uint8_t index)
void	ShutDownSock (uint8_t index)

Private Attributes
int	m_count
DataRate	m_dataRate
std::vector< uint8_t >	m_firstInterface
uint16_t	m_packetSize
std::vector< uint8_t >	m_secondInterface
std::vector< std::pair< Ptr< Socket >, bool > >	m_sendSocks

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 790 of file ipv4-global-routing-test-suite.cc.

Constructor & Destructor Documentation

Ipv4DynamicGlobalRoutingTestCase::Ipv4DynamicGlobalRoutingTestCase

(

)

Definition at line 811 of file ipv4-global-routing-test-suite.cc.

References m_dataRate, m_firstInterface, m_packetSize, and m_secondInterface.

Ipv4DynamicGlobalRoutingTestCase::~Ipv4DynamicGlobalRoutingTestCase ( )

virtual

Definition at line 820 of file ipv4-global-routing-test-suite.cc.

References m_sendSocks.

Member Function Documentation

void Ipv4DynamicGlobalRoutingTestCase::DoRun ( void  )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 907 of file ipv4-global-routing-test-suite.cc.

References ns3::Ipv4AddressHelper::Assign(), ns3::Socket::Bind(), ns3::NodeContainer::Create(), ns3::NodeContainer::Get(), ns3::Ipv4InterfaceContainer::GetAddress(), ns3::Object::GetObject(), HandleRead(), ns3::SimpleNetDeviceHelper::Install(), ns3::InternetStackHelper::Install(), ns3::Socket::Listen(), m_count, m_firstInterface, m_secondInterface, m_sendSocks, ns3::MakeCallback(), n0n2, n1n2, NS_TEST_ASSERT_MSG_EQ, port, ns3::Seconds(), SendData(), ns3::Ipv4AddressHelper::SetBase(), ns3::Config::SetDefault(), ns3::SimpleNetDeviceHelper::SetNetDevicePointToPointMode(), ns3::Socket::SetRecvCallback(), ns3::Socket::SetRecvPktInfo(), SetUp(), ns3::Socket::ShutdownSend(), and ShutDownSock().

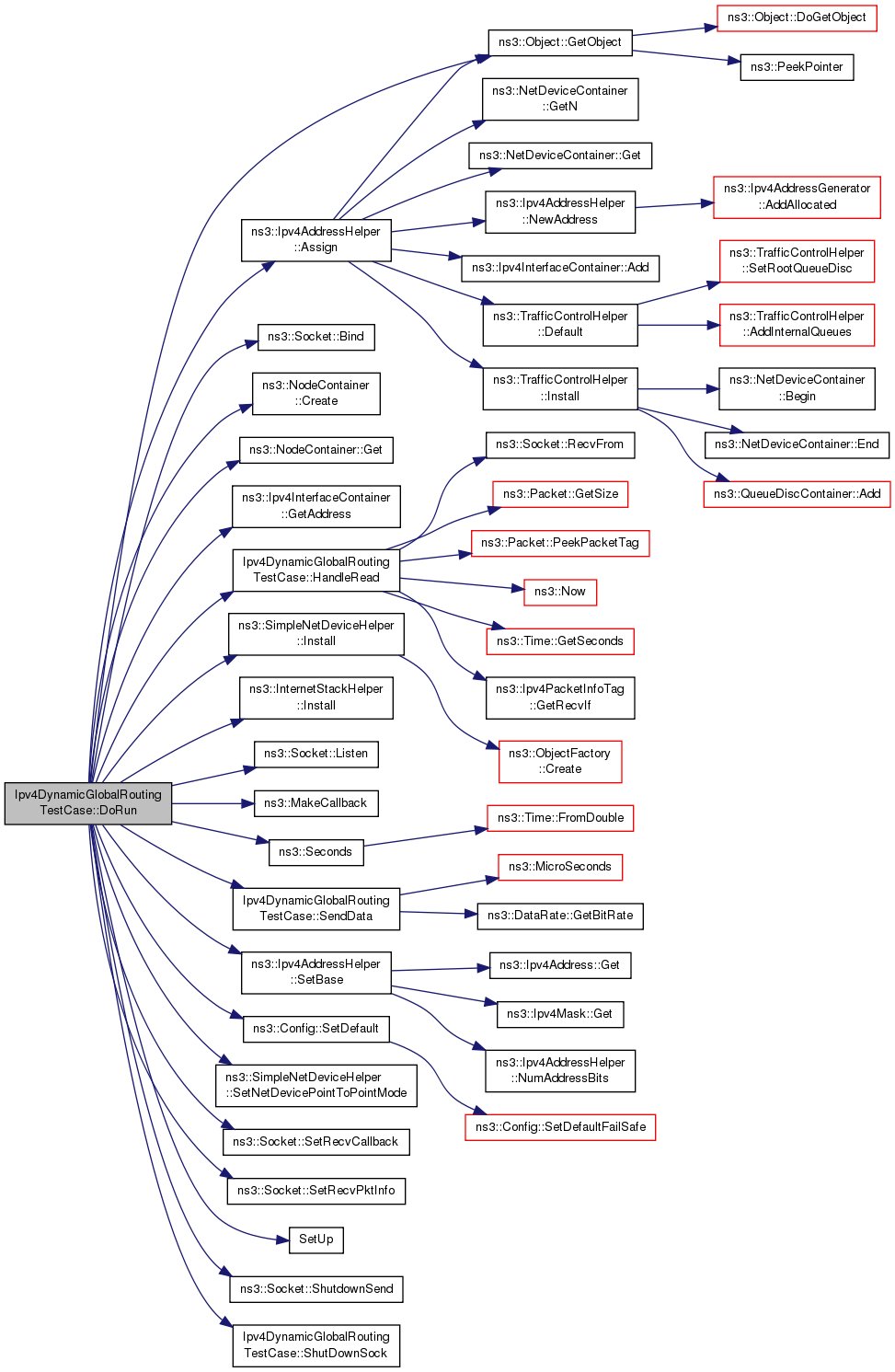

Here is the call graph for this function:

void Ipv4DynamicGlobalRoutingTestCase::HandleRead ( Ptr< Socket >  socket )

private

Definition at line 836 of file ipv4-global-routing-test-suite.cc.

References ns3::Ipv4PacketInfoTag::GetRecvIf(), ns3::Time::GetSeconds(), ns3::Packet::GetSize(), m_count, m_firstInterface, m_secondInterface, ns3::Now(), ns3::Packet::PeekPacketTag(), and ns3::Socket::RecvFrom().

Referenced by DoRun().

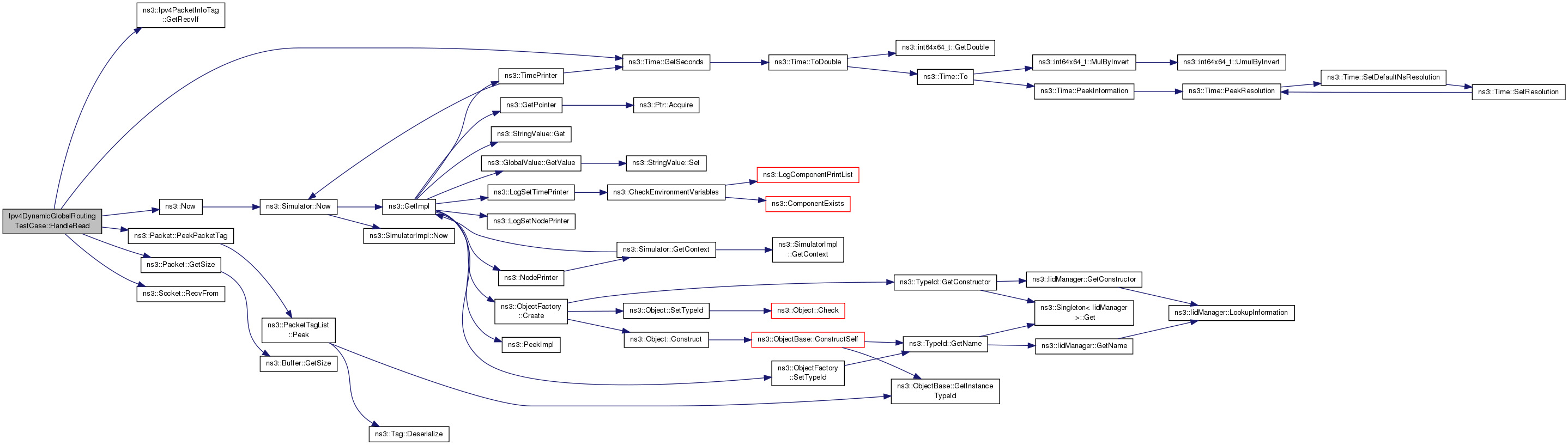

Here is the call graph for this function:

Here is the caller graph for this function:

void Ipv4DynamicGlobalRoutingTestCase::SendData ( uint8_t  index )

private

Definition at line 866 of file ipv4-global-routing-test-suite.cc.

References ns3::DataRate::GetBitRate(), m_dataRate, m_packetSize, m_sendSocks, and ns3::MicroSeconds().

Referenced by DoRun().

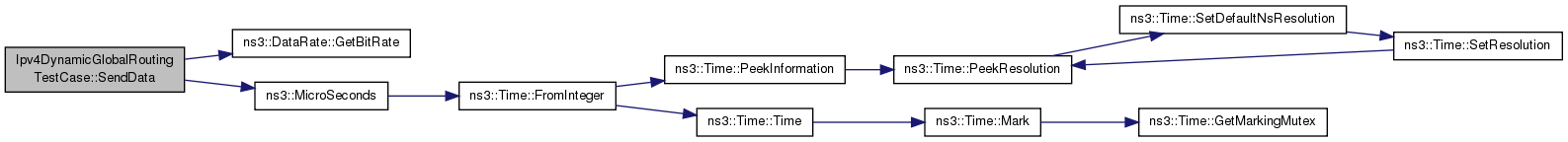

Here is the call graph for this function:

Here is the caller graph for this function:

void Ipv4DynamicGlobalRoutingTestCase::ShutDownSock ( uint8_t  index )

private

Definition at line 880 of file ipv4-global-routing-test-suite.cc.

References m_sendSocks.

Referenced by DoRun().

Here is the caller graph for this function:

Member Data Documentation

int Ipv4DynamicGlobalRoutingTestCase::m_count

private

Definition at line 802 of file ipv4-global-routing-test-suite.cc.

Referenced by DoRun(), and HandleRead().

DataRate Ipv4DynamicGlobalRoutingTestCase::m_dataRate

private

Definition at line 804 of file ipv4-global-routing-test-suite.cc.

Referenced by Ipv4DynamicGlobalRoutingTestCase(), and SendData().

std::vector<uint8_t> Ipv4DynamicGlobalRoutingTestCase::m_firstInterface

private

Definition at line 806 of file ipv4-global-routing-test-suite.cc.

Referenced by DoRun(), HandleRead(), and Ipv4DynamicGlobalRoutingTestCase().

uint16_t Ipv4DynamicGlobalRoutingTestCase::m_packetSize

private

Definition at line 805 of file ipv4-global-routing-test-suite.cc.

Referenced by Ipv4DynamicGlobalRoutingTestCase(), and SendData().

std::vector<uint8_t> Ipv4DynamicGlobalRoutingTestCase::m_secondInterface

private

Definition at line 807 of file ipv4-global-routing-test-suite.cc.

Referenced by DoRun(), HandleRead(), and Ipv4DynamicGlobalRoutingTestCase().

std::vector<std::pair<Ptr<Socket>, bool> > Ipv4DynamicGlobalRoutingTestCase::m_sendSocks

private

Definition at line 803 of file ipv4-global-routing-test-suite.cc.

Referenced by DoRun(), SendData(), ShutDownSock(), and ~Ipv4DynamicGlobalRoutingTestCase().

---

The documentation for this class was generated from the following file:

• src/internet/test/ipv4-global-routing-test-suite.cc
