Ipv4RipTest Class Reference

Inheritance diagram for Ipv4RipTest:

Collaboration diagram for Ipv4RipTest:

Public Member Functions
	Ipv4RipTest ()
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...
void	ReceivePkt (Ptr< Socket > socket)
Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...
std::string	GetName (void) const

Private Member Functions
void	DoSendData (Ptr< Socket > socket, std::string to)
void	SendData (Ptr< Socket > socket, std::string to)

Private Attributes
Ptr< Packet >	m_receivedPacket

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...
Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...
void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...
TestCase *	GetParent () const
	Get the parent of this TestCsse. More...
bool	IsStatusFailure (void) const
	Check if any tests failed. More...
bool	IsStatusSuccess (void) const
	Check if all tests passed. More...
void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...
void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...
bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...
bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...
std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...
std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Definition at line 53 of file ipv4-rip-test.cc.

Constructor & Destructor Documentation

Ipv4RipTest::Ipv4RipTest

(

)

Definition at line 66 of file ipv4-rip-test.cc.

Member Function Documentation

void Ipv4RipTest::DoRun ( void  )

virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 101 of file ipv4-rip-test.cc.

References ns3::NetDeviceContainer::Add(), ns3::Node::AddDevice(), ns3::Ipv4AddressHelper::Assign(), ns3::SocketFactory::CreateSocket(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::InternetStackHelper::Install(), m_receivedPacket, ns3::MakeCallback(), first::nodes, NS_TEST_EXPECT_MSG_EQ, ReceivePkt(), ns3::Packet::RemoveAllByteTags(), SendData(), ns3::SimpleNetDevice::SetAddress(), ns3::Socket::SetAllowBroadcast(), ns3::Ipv4AddressHelper::SetBase(), ns3::SimpleNetDevice::SetChannel(), ns3::Ipv4StaticRouting::SetDefaultRoute(), and ns3::InternetStackHelper::SetRoutingHelper().

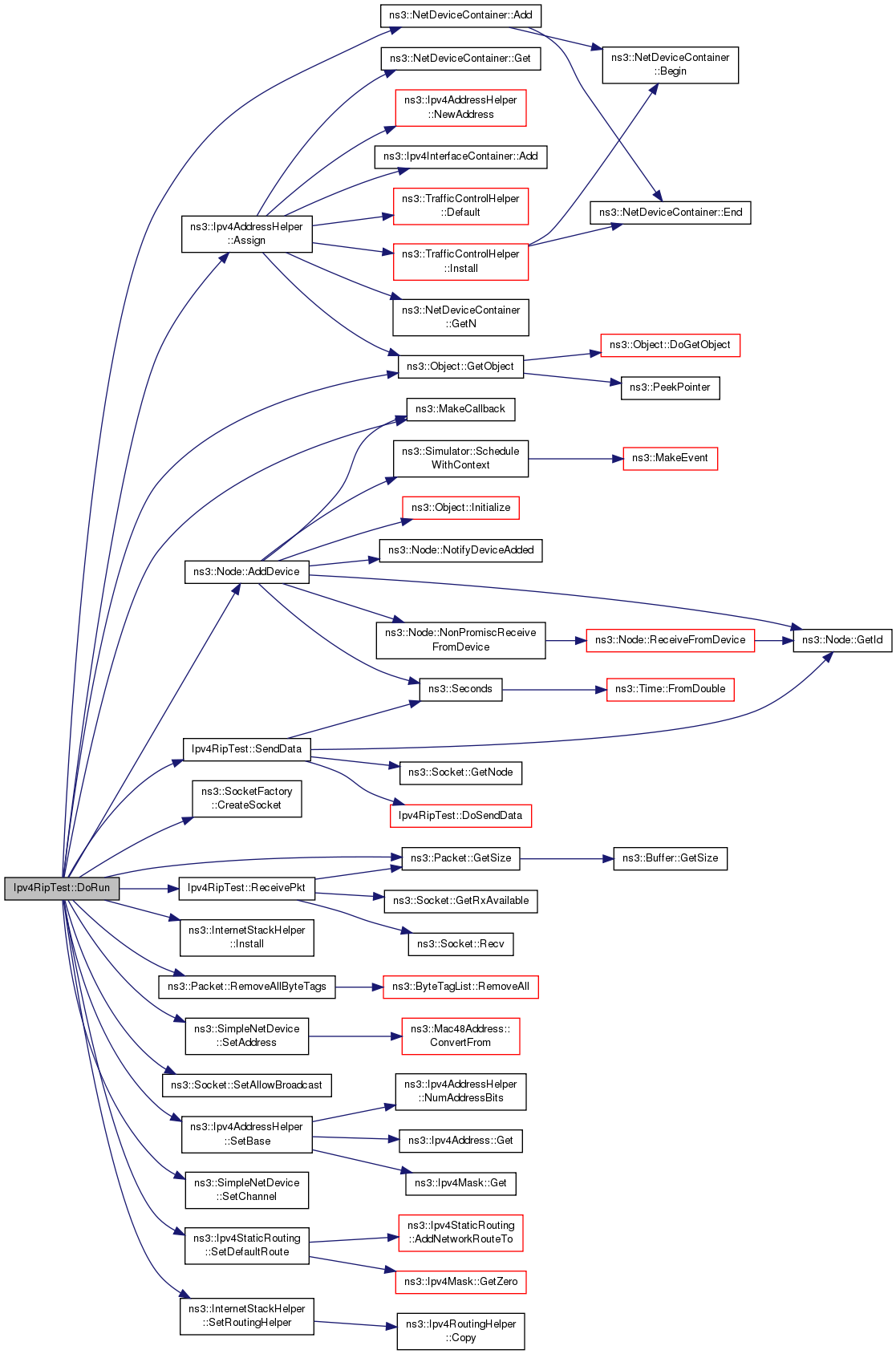

Here is the call graph for this function:

void Ipv4RipTest::DoSendData ( Ptr< Socket >  socket, std::string  to  )

private

Definition at line 83 of file ipv4-rip-test.cc.

References NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::SendTo().

Referenced by SendData().

Here is the call graph for this function:

Here is the caller graph for this function:

void Ipv4RipTest::ReceivePkt

(

Ptr< Socket >

socket

)

Definition at line 71 of file ipv4-rip-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedPacket, max, NS_ASSERT, and ns3::Socket::Recv().

Referenced by DoRun().

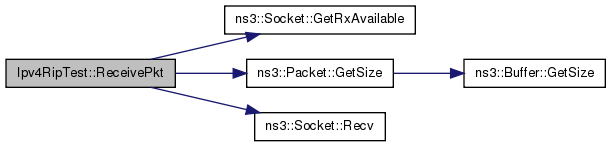

Here is the call graph for this function:

Here is the caller graph for this function:

void Ipv4RipTest::SendData ( Ptr< Socket >  socket, std::string  to  )

private

Definition at line 91 of file ipv4-rip-test.cc.

References DoSendData(), ns3::Node::GetId(), ns3::Socket::GetNode(), m_receivedPacket, and ns3::Seconds().

Referenced by DoRun().

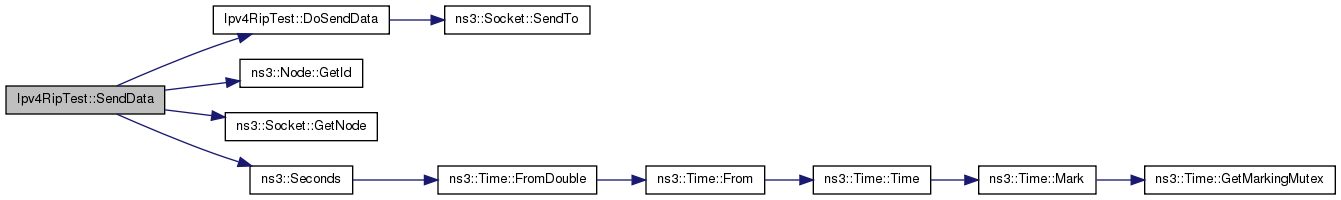

Here is the call graph for this function:

Here is the caller graph for this function:

Member Data Documentation

Ptr<Packet> Ipv4RipTest::m_receivedPacket

private

Definition at line 55 of file ipv4-rip-test.cc.

Referenced by DoRun(), ReceivePkt(), and SendData().

---

The documentation for this class was generated from the following file:

• src/internet/test/ipv4-rip-test.cc
