A Discrete-Event Network Simulator
API
Public Member Functions | Private Attributes | List of all members
Ipv6FragmentationTest Class Reference
+ Inheritance diagram for Ipv6FragmentationTest:

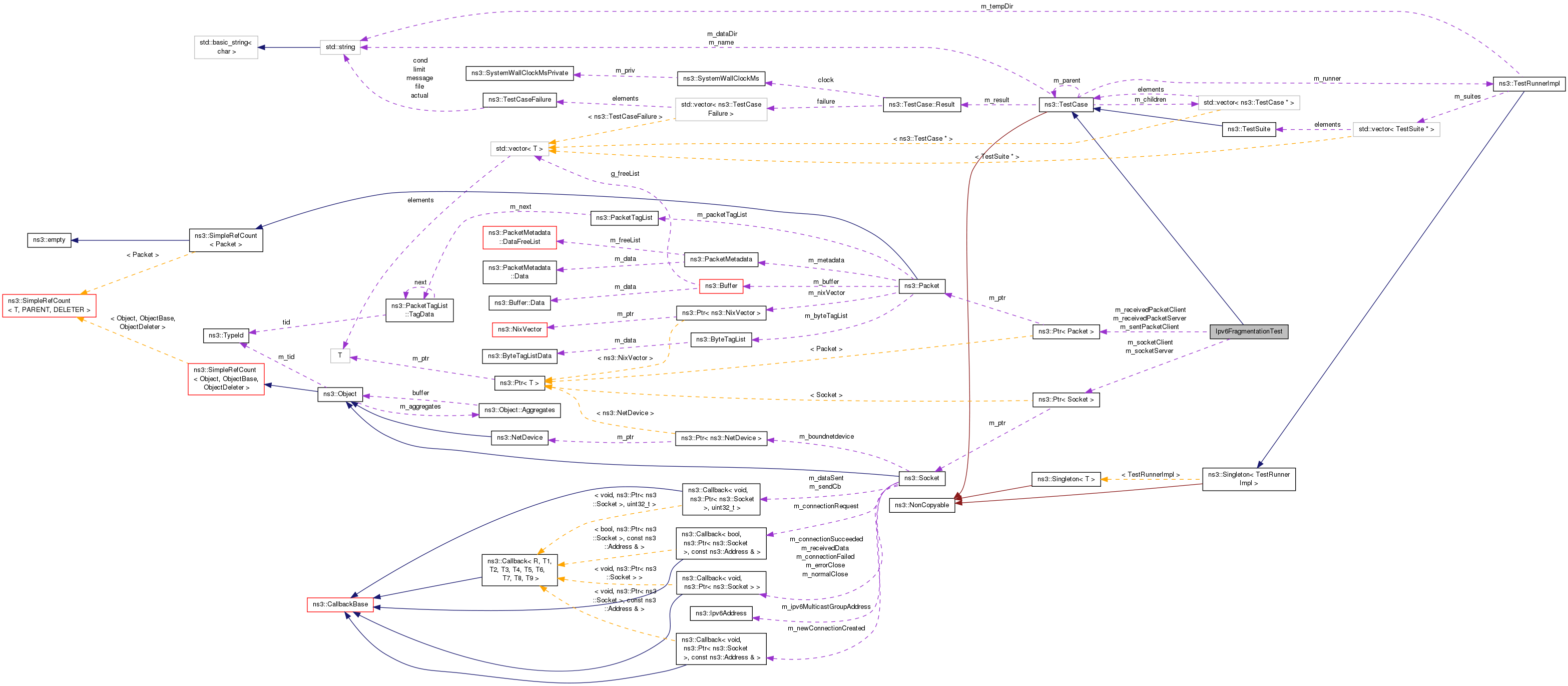

+ Collaboration diagram for Ipv6FragmentationTest:

Public Member Functions

 Ipv6FragmentationTest ()

 ~Ipv6FragmentationTest ()

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

void HandleReadClient (Ptr< Socket > socket)

void HandleReadIcmpClient (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo)

void HandleReadServer (Ptr< Socket > socket)

Ptr< Packet > SendClient (void)

void SetFill (uint8_t *fill, uint32_t fillSize, uint32_t dataSize)

void StartClient (Ptr< Node > ClientNode)

void StartServer (Ptr< Node > ServerNode)

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Private Attributes

uint8_t * m_data

uint32_t m_dataSize

uint8_t m_icmpCode

uint8_t m_icmpType

Ptr< Packet > m_receivedPacketClient

Ptr< Packet > m_receivedPacketServer

Ptr< Packet > m_sentPacketClient

uint32_t m_size

Ptr< Socket > m_socketClient

Ptr< Socket > m_socketServer


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

TestCase * GetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

Definition at line 119 of file ipv6-fragmentation-test.cc.

Constructor & Destructor Documentation

Ipv6FragmentationTest::Ipv6FragmentationTest ( )

Definition at line 155 of file ipv6-fragmentation-test.cc.

References m_data, m_dataSize, and m_socketServer.

Ipv6FragmentationTest::~Ipv6FragmentationTest ( )

Definition at line 163 of file ipv6-fragmentation-test.cc.

References m_data, and m_dataSize.

Member Function Documentation

void Ipv6FragmentationTest::DoRun ( void  )
virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 294 of file ipv6-fragmentation-test.cc.

References ns3::Ipv6::AddAddress(), ns3::Node::AddDevice(), ns3::Ipv6::AddInterface(), AddInternetStack(), third::channel, ns3::Packet::CopyData(), ns3::ErrorModel::Disable(), ns3::ErrorModel::Enable(), ns3::Packet::GetByteTagIterator(), ns3::TypeId::GetConstructor(), ns3::ByteTagIterator::Item::GetEnd(), ns3::Node::GetId(), ns3::TypeId::GetName(), ns3::Socket::GetNode(), ns3::Object::GetObject(), ns3::Packet::GetSize(), ns3::ByteTagIterator::Item::GetStart(), ns3::ByteTagIterator::Item::GetTag(), IPv6TestTag::getToken(), ns3::ByteTagIterator::Item::GetTypeId(), m_data, m_icmpCode, m_icmpType, m_receivedPacketServer, m_socketClient, NS_TEST_EXPECT_MSG_EQ, NS_TEST_EXPECT_MSG_NE, packetSize, ns3::Packet::PeekPacketTag(), ns3::BinaryErrorModel::Reset(), ns3::Seconds(), SendClient(), ns3::SimpleNetDevice::SetAddress(), ns3::SimpleNetDevice::SetChannel(), SetFill(), ns3::ErrorChannel::SetJumpingMode(), ns3::ErrorChannel::SetJumpingTime(), ns3::SimpleNetDevice::SetMtu(), ns3::SimpleNetDevice::SetReceiveErrorModel(), ns3::Ipv6::SetUp(), StartClient(), and StartServer().

+ Here is the call graph for this function:

void Ipv6FragmentationTest::HandleReadClient ( Ptr< Socket >  socket)

Definition at line 222 of file ipv6-fragmentation-test.cc.

References ns3::Packet::Copy(), m_receivedPacketClient, and ns3::Socket::RecvFrom().

Referenced by StartClient().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void Ipv6FragmentationTest::HandleReadIcmpClient ( Ipv6Address  icmpSource,
uint8_t  icmpTtl,
uint8_t  icmpType,
uint8_t  icmpCode,
uint32_t  icmpInfo
)

Definition at line 236 of file ipv6-fragmentation-test.cc.

References m_icmpCode, and m_icmpType.

Referenced by StartClient().

+ Here is the caller graph for this function:

void Ipv6FragmentationTest::HandleReadServer ( Ptr< Socket >  socket)

Definition at line 191 of file ipv6-fragmentation-test.cc.

References ns3::Packet::Copy(), m_receivedPacketServer, and ns3::Socket::RecvFrom().

Referenced by StartServer().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Ptr< Packet > Ipv6FragmentationTest::SendClient ( void  )

Definition at line 272 of file ipv6-fragmentation-test.cc.

References ns3::Packet::AddByteTag(), ns3::Packet::AddPacketTag(), m_data, m_dataSize, m_size, m_socketClient, ns3::Socket::Send(), and IPv6TestTag::setToken().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void Ipv6FragmentationTest::SetFill ( uint8_t *  fill,
uint32_t  fillSize,
uint32_t  dataSize
)

Definition at line 245 of file ipv6-fragmentation-test.cc.

References m_data, m_dataSize, and m_size.

Referenced by DoRun().

+ Here is the caller graph for this function:

void Ipv6FragmentationTest::StartClient ( Ptr< Node >  ClientNode)

Definition at line 205 of file ipv6-fragmentation-test.cc.

References ns3::Socket::Bind(), ns3::Socket::Connect(), HandleReadClient(), HandleReadIcmpClient(), m_socketClient, ns3::MakeCallback(), ns3::ObjectBase::SetAttribute(), and ns3::Socket::SetRecvCallback().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void Ipv6FragmentationTest::StartServer ( Ptr< Node >  ServerNode)

Definition at line 175 of file ipv6-fragmentation-test.cc.

References ns3::Socket::Bind(), HandleReadServer(), m_socketServer, ns3::MakeCallback(), and ns3::Socket::SetRecvCallback().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

uint8_t* Ipv6FragmentationTest::m_data
private

Definition at line 129 of file ipv6-fragmentation-test.cc.

Referenced by DoRun(), Ipv6FragmentationTest(), SendClient(), SetFill(), and ~Ipv6FragmentationTest().

uint32_t Ipv6FragmentationTest::m_dataSize
private

Definition at line 128 of file ipv6-fragmentation-test.cc.

Referenced by Ipv6FragmentationTest(), SendClient(), SetFill(), and ~Ipv6FragmentationTest().

uint8_t Ipv6FragmentationTest::m_icmpCode
private

Definition at line 132 of file ipv6-fragmentation-test.cc.

Referenced by DoRun(), and HandleReadIcmpClient().

uint8_t Ipv6FragmentationTest::m_icmpType
private

Definition at line 131 of file ipv6-fragmentation-test.cc.

Referenced by DoRun(), and HandleReadIcmpClient().

Ptr<Packet> Ipv6FragmentationTest::m_receivedPacketClient
private

Definition at line 122 of file ipv6-fragmentation-test.cc.

Referenced by HandleReadClient().

Ptr<Packet> Ipv6FragmentationTest::m_receivedPacketServer
private

Definition at line 123 of file ipv6-fragmentation-test.cc.

Referenced by DoRun(), and HandleReadServer().

Ptr<Packet> Ipv6FragmentationTest::m_sentPacketClient
private

Definition at line 121 of file ipv6-fragmentation-test.cc.

uint32_t Ipv6FragmentationTest::m_size
private

Definition at line 130 of file ipv6-fragmentation-test.cc.

Referenced by SendClient(), and SetFill().

Ptr<Socket> Ipv6FragmentationTest::m_socketClient
private

Definition at line 127 of file ipv6-fragmentation-test.cc.

Referenced by DoRun(), SendClient(), and StartClient().

Ptr<Socket> Ipv6FragmentationTest::m_socketServer
private

Definition at line 126 of file ipv6-fragmentation-test.cc.

Referenced by Ipv6FragmentationTest(), and StartServer().

The documentation for this class was generated from the following file:
