This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification. More...

#include "lte-test-fdbet-ff-mac-scheduler.h"

Inheritance diagram for LenaFdBetFfMacSchedulerTestCase1:

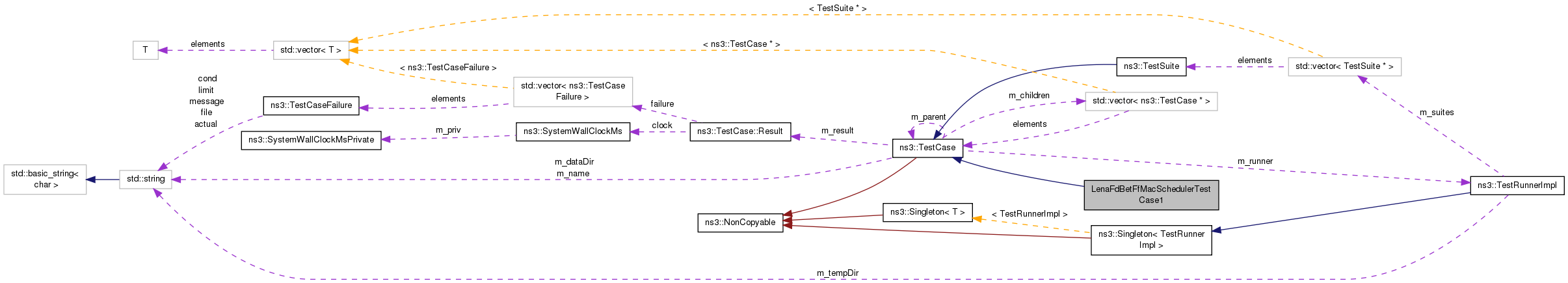

Collaboration diagram for LenaFdBetFfMacSchedulerTestCase1:

Public Member Functions
	LenaFdBetFfMacSchedulerTestCase1 (uint16_t nUser, uint16_t dist, double thrRefDl, double thrRefUl, bool errorModelEnabled)

virtual	~LenaFdBetFfMacSchedulerTestCase1 ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (uint16_t nUser, uint16_t dist)

Private Attributes
uint16_t	m_dist

bool	m_errorModelEnabled

uint16_t	m_nUser

double	m_thrRefDl

double	m_thrRefUl

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

This system test program creates different test cases with a single eNB and several UEs, all having the same Radio Bearer specification.

In each test case, the UEs see the same SINR from the eNB; different test cases are implemented obtained by using different SINR values and different numbers of UEs. The test consists on checking that the obtained throughput performance is equal among users is consistent with the definition of blind equal throughput scheduling

Definition at line 42 of file lte-test-fdbet-ff-mac-scheduler.h.

Constructor & Destructor Documentation

LenaFdBetFfMacSchedulerTestCase1::LenaFdBetFfMacSchedulerTestCase1	(	uint16_t	nUser,
		uint16_t	dist,
		double	thrRefDl,
		double	thrRefUl,
		bool	errorModelEnabled
	)

Definition at line 185 of file lte-test-fdbet-ff-mac-scheduler.cc.

LenaFdBetFfMacSchedulerTestCase1::~LenaFdBetFfMacSchedulerTestCase1 ( )

virtual

Definition at line 195 of file lte-test-fdbet-ff-mac-scheduler.cc.

Member Function Documentation

std::string LenaFdBetFfMacSchedulerTestCase1::BuildNameString	(	uint16_t	nUser,
		uint16_t	dist
	)

staticprivate

Definition at line 178 of file lte-test-fdbet-ff-mac-scheduler.cc.

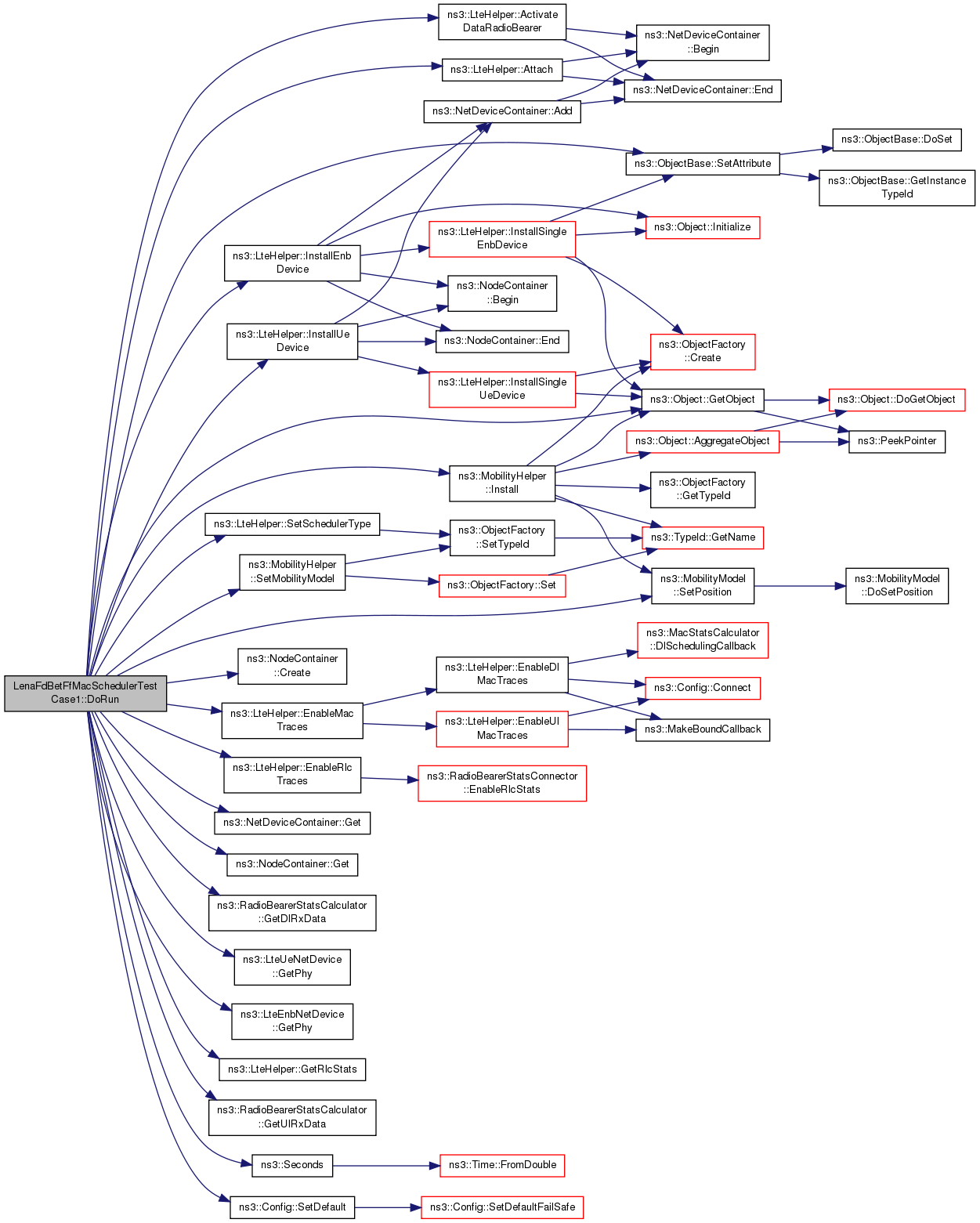

void LenaFdBetFfMacSchedulerTestCase1::DoRun ( void )

privatevirtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Initialize Simulation Scenario: 1 eNB and m_nUser UEs

Check that the downlink assignation is done in a "FD blind equal throughput" manner

Check that the assignation is done in a "FD blind equal throughput" manner among users with equal SINRs: the bandwidth should be distributed according to the ratio of the estimated throughput per TTI of each user; therefore equally partitioning the whole bandwidth achievable from a single users in a TTI

Check that the uplink assignation is done in a "FD blind equal throughput" manner

Check that the assignation is done in a "FD blind equal throughput" manner among users with equal SINRs: the bandwidht should be distributed according to the ratio of the estimated throughput per TTI of each user; therefore equally partitioning the whole bandwidth achievable from a single users in a TTI

Implements ns3::TestCase.

Definition at line 200 of file lte-test-fdbet-ff-mac-scheduler.cc.

References ns3::LteHelper::ActivateDataRadioBearer(), ns3::LteHelper::Attach(), ns3::NodeContainer::Create(), ns3::LteHelper::EnableMacTraces(), ns3::LteHelper::EnableRlcTraces(), ns3::NetDeviceContainer::Get(), ns3::NodeContainer::Get(), ns3::RadioBearerStatsCalculator::GetDlRxData(), ns3::Object::GetObject(), ns3::LteUeNetDevice::GetPhy(), ns3::LteEnbNetDevice::GetPhy(), ns3::LteHelper::GetRlcStats(), ns3::RadioBearerStatsCalculator::GetUlRxData(), ns3::MobilityHelper::Install(), ns3::LteHelper::InstallEnbDevice(), ns3::LteHelper::InstallUeDevice(), m_dist, m_errorModelEnabled, m_nUser, m_thrRefDl, m_thrRefUl, third::mobility, NS_LOG_INFO, NS_TEST_ASSERT_MSG_EQ_TOL, ns3::Seconds(), ns3::ObjectBase::SetAttribute(), ns3::Config::SetDefault(), ns3::MobilityHelper::SetMobilityModel(), ns3::MobilityModel::SetPosition(), and ns3::LteHelper::SetSchedulerType().
