A Discrete-Event Network Simulator
API
Public Member Functions | Private Member Functions | Private Attributes | List of all members
UdpSocketImplTest Class Reference
+ Inheritance diagram for UdpSocketImplTest:
+ Collaboration diagram for UdpSocketImplTest:

Public Member Functions

 UdpSocketImplTest ()

virtual void DoRun (void)
 Implementation to actually run this TestCase. More...

void ReceivePkt (Ptr< Socket > socket)

void ReceivePkt2 (Ptr< Socket > socket)

void SentPkt (Ptr< const QueueItem > item)

- Public Member Functions inherited from ns3::TestCase
virtual ~TestCase ()
 Destructor. More...

std::string GetName (void) const


Private Member Functions

void DoSendData (Ptr< Socket > socket)

void DoSendDataTo (Ptr< Socket > socket, std::string to)

uint32_t GetPriority (void)

uint32_t GetTos (void)

void SendData (Ptr< Socket > socket)

void SendDataTo (Ptr< Socket > socket, std::string to)


Private Attributes

Ptr< Packet > m_receivedPacket

Ptr< Packet > m_receivedPacket2

Ptr< Ipv4QueueDiscItem > m_sentPacket


Additional Inherited Members

- Public Types inherited from ns3::TestCase
enum  TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
 How long the test takes to execute. More...

- Protected Member Functions inherited from ns3::TestCase
 TestCase (std::string name)
 Constructor. More...

void AddTestCase (TestCase *testCase, enum TestDuration duration)
 Add an individual child TestCase to this test suite. More...

TestCase * GetParent () const
 Get the parent of this TestCsse. More...

bool IsStatusFailure (void) const
 Check if any tests failed. More...

bool IsStatusSuccess (void) const
 Check if all tests passed. More...

void SetDataDir (std::string directory)
 Set the data directory where reference trace files can be found. More...

void ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
 Log the failure of this TestCase. More...

bool MustAssertOnFailure (void) const
 Check if this run should assert on failure. More...

bool MustContinueOnFailure (void) const
 Check if this run should continue on failure. More...

std::string CreateDataDirFilename (std::string filename)
 Construct the full path to a file in the data directory. More...

std::string CreateTempDirFilename (std::string filename)
 Construct the full path to a file in a temporary directory. More...


Detailed Description

Definition at line 150 of file udp-test.cc.

Constructor & Destructor Documentation

UdpSocketImplTest::UdpSocketImplTest ( )

Definition at line 171 of file udp-test.cc.

Member Function Documentation

void UdpSocketImplTest::DoRun ( void  )
virtual

Implementation to actually run this TestCase.

Subclasses should override this method to conduct their tests.

Implements ns3::TestCase.

Definition at line 246 of file udp-test.cc.

References ns3::Ipv4::AddAddress(), ns3::Ipv4::AddInterface(), ns3::Socket::Bind(), ns3::SocketFactory::CreateSocket(), ns3::Socket::CreateSocket(), ns3::Object::Dispose(), ns3::QueueDiscContainer::Get(), ns3::NetDeviceContainer::Get(), ns3::Object::GetObject(), GetPriority(), ns3::Packet::GetSize(), GetTos(), ns3::SimpleNetDeviceHelper::Install(), ns3::InternetStackHelper::Install(), ns3::TrafficControlHelper::Install(), m_receivedPacket, m_receivedPacket2, ns3::MakeCallback(), first::nodes, NS_TEST_EXPECT_MSG_EQ, ReceivePkt(), ReceivePkt2(), ns3::Packet::RemoveAllByteTags(), SendData(), SendDataTo(), SentPkt(), ns3::Socket::SetAllowBroadcast(), ns3::SimpleNetDeviceHelper::SetNetDevicePointToPointMode(), ns3::Socket::SetRecvCallback(), ns3::InetSocketAddress::SetTos(), ns3::Ipv4::SetUp(), and ns3::ObjectBase::TraceConnectWithoutContext().

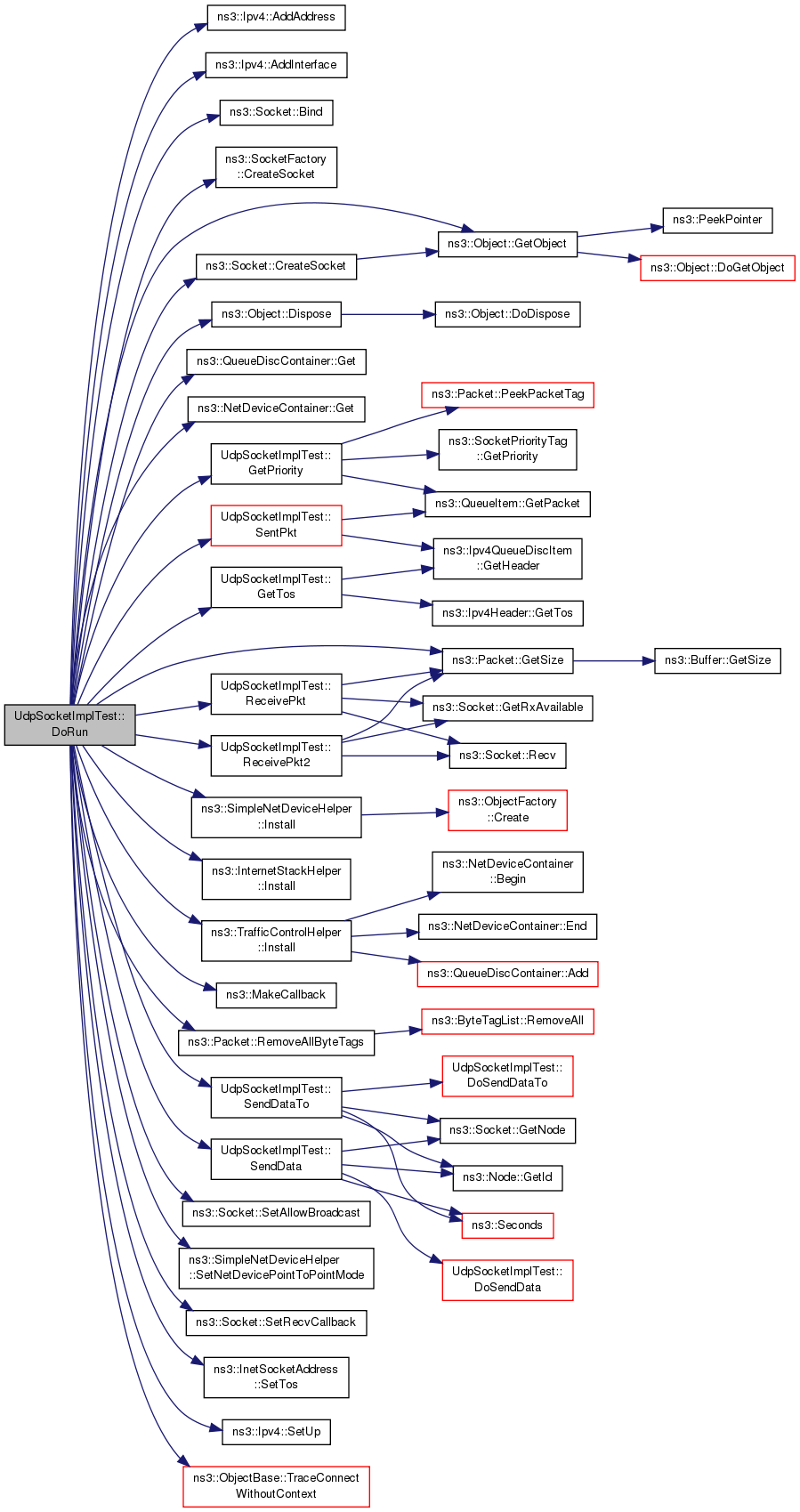

+ Here is the call graph for this function:

void UdpSocketImplTest::DoSendData ( Ptr< Socket >  socket)
private

Definition at line 232 of file udp-test.cc.

References NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::Send().

Referenced by SendData().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void UdpSocketImplTest::DoSendDataTo ( Ptr< Socket >  socket,
std::string  to
)
private

Definition at line 214 of file udp-test.cc.

References NS_TEST_EXPECT_MSG_EQ, and ns3::Socket::SendTo().

Referenced by SendDataTo().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t UdpSocketImplTest::GetPriority ( void  )
private

Definition at line 205 of file udp-test.cc.

References ns3::QueueItem::GetPacket(), ns3::SocketPriorityTag::GetPriority(), m_sentPacket, NS_TEST_EXPECT_MSG_EQ, and ns3::Packet::PeekPacketTag().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint32_t UdpSocketImplTest::GetTos ( void  )
private

Definition at line 200 of file udp-test.cc.

References ns3::Ipv4QueueDiscItem::GetHeader(), ns3::Ipv4Header::GetTos(), and m_sentPacket.

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void UdpSocketImplTest::ReceivePkt ( Ptr< Socket >  socket)

Definition at line 176 of file udp-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedPacket, max, NS_ASSERT, and ns3::Socket::Recv().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void UdpSocketImplTest::ReceivePkt2 ( Ptr< Socket >  socket)

Definition at line 184 of file udp-test.cc.

References ns3::Socket::GetRxAvailable(), ns3::Packet::GetSize(), m_receivedPacket2, max, NS_ASSERT, and ns3::Socket::Recv().

Referenced by DoRun().

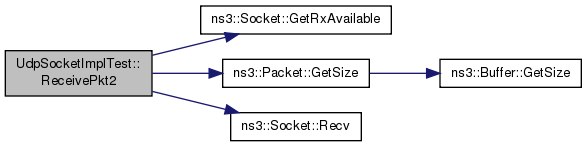

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void UdpSocketImplTest::SendData ( Ptr< Socket >  socket)
private

Definition at line 238 of file udp-test.cc.

References DoSendData(), ns3::Node::GetId(), ns3::Socket::GetNode(), and ns3::Seconds().

Referenced by DoRun().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void UdpSocketImplTest::SendDataTo ( Ptr< Socket >  socket,
std::string  to
)
private

Definition at line 222 of file udp-test.cc.

References DoSendDataTo(), ns3::Node::GetId(), ns3::Socket::GetNode(), m_receivedPacket, m_receivedPacket2, and ns3::Seconds().

Referenced by DoRun().

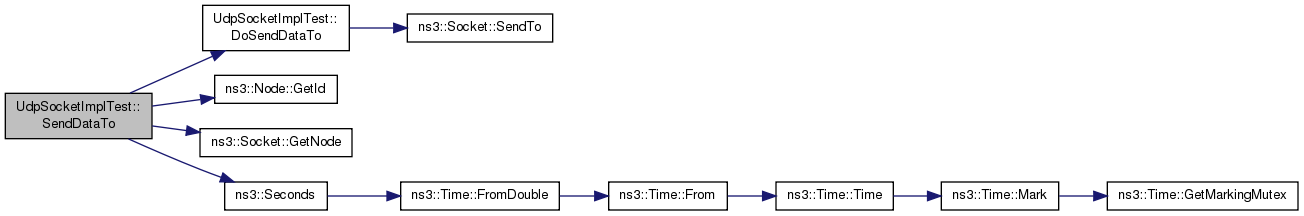

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void UdpSocketImplTest::SentPkt ( Ptr< const QueueItem >  item)

Definition at line 192 of file udp-test.cc.

References ns3::Packet::Copy(), ns3::Ipv4QueueDiscItem::GetHeader(), ns3::QueueItem::GetPacket(), m_sentPacket, and NS_TEST_EXPECT_MSG_NE.

Referenced by DoRun().

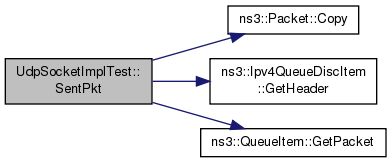

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Member Data Documentation

Ptr<Packet> UdpSocketImplTest::m_receivedPacket
private

Definition at line 152 of file udp-test.cc.

Referenced by DoRun(), ReceivePkt(), and SendDataTo().

Ptr<Packet> UdpSocketImplTest::m_receivedPacket2
private

Definition at line 153 of file udp-test.cc.

Referenced by DoRun(), ReceivePkt2(), and SendDataTo().

Ptr<Ipv4QueueDiscItem> UdpSocketImplTest::m_sentPacket
private

Definition at line 154 of file udp-test.cc.

Referenced by GetPriority(), GetTos(), and SentPkt().

The documentation for this class was generated from the following file:
