ns3::AcousticModemEnergyModelHelper Class Reference

Assign AcousticModemEnergyModel to uan devices. More...

#include "acoustic-modem-energy-model-helper.h"

Inheritance diagram for ns3::AcousticModemEnergyModelHelper:

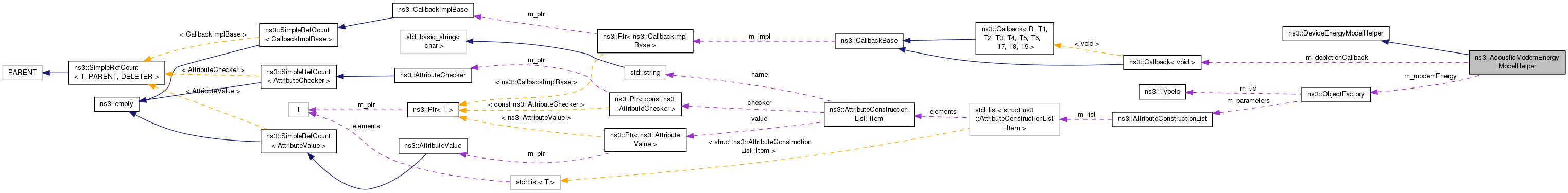

Collaboration diagram for ns3::AcousticModemEnergyModelHelper:

Public Member Functions
	AcousticModemEnergyModelHelper ()
	Construct a helper which is used to add a radio energy model to a node. More...
	~AcousticModemEnergyModelHelper ()
	Destroy an AcousticModemEnergy Helper. More...
void	Set (std::string name, const AttributeValue &v)
	Sets an attribute of the underlying energy model object. More...
void	SetDepletionCallback (AcousticModemEnergyModel::AcousticModemEnergyDepletionCallback callback)
	Sets the callback to be invoked when energy is depleted. More...
Public Member Functions inherited from ns3::DeviceEnergyModelHelper
virtual	~DeviceEnergyModelHelper ()
DeviceEnergyModelContainer	Install (Ptr< NetDevice > device, Ptr< EnergySource > source) const
DeviceEnergyModelContainer	Install (NetDeviceContainer deviceContainer, EnergySourceContainer sourceContainer) const

Private Member Functions
virtual Ptr< DeviceEnergyModel >	DoInstall (Ptr< NetDevice > device, Ptr< EnergySource > source) const
	Implements DeviceEnergyModel::Install. More...

Private Attributes
AcousticModemEnergyModel::AcousticModemEnergyDepletionCallback	m_depletionCallback
	Callback for energy depletion. More...
ObjectFactory	m_modemEnergy
	Energy model factory. More...

Detailed Description

Assign AcousticModemEnergyModel to uan devices.

This installer installs AcousticModemEnergyModel for only UanNetDevice objects.

Definition at line 37 of file acoustic-modem-energy-model-helper.h.

Constructor & Destructor Documentation

ns3::AcousticModemEnergyModelHelper::AcousticModemEnergyModelHelper

(

)

Construct a helper which is used to add a radio energy model to a node.

Definition at line 30 of file acoustic-modem-energy-model-helper.cc.

References m_depletionCallback, m_modemEnergy, ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify(), and ns3::ObjectFactory::SetTypeId().

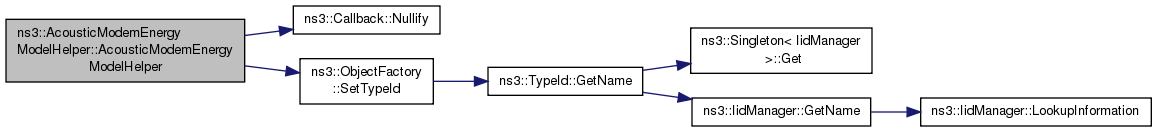

Here is the call graph for this function:

ns3::AcousticModemEnergyModelHelper::~AcousticModemEnergyModelHelper

(

)

Destroy an AcousticModemEnergy Helper.

Definition at line 36 of file acoustic-modem-energy-model-helper.cc.

Member Function Documentation

Ptr< DeviceEnergyModel > ns3::AcousticModemEnergyModelHelper::DoInstall ( Ptr< NetDevice >  device, Ptr< EnergySource >  source  ) const

privatevirtual

Implements DeviceEnergyModel::Install.

Parameters

device	Pointer to the NetDevice to install DeviceEnergyModel.
source	Pointer to EnergySource installed on node.

Returns

The energy model.

Implements ns3::DeviceEnergyModelHelper.

Definition at line 58 of file acoustic-modem-energy-model-helper.cc.

References ns3::DeviceEnergyModel::ChangeState(), ns3::ObjectFactory::Create(), m_depletionCallback, m_modemEnergy, ns3::MakeCallback(), NS_ASSERT, and NS_FATAL_ERROR.

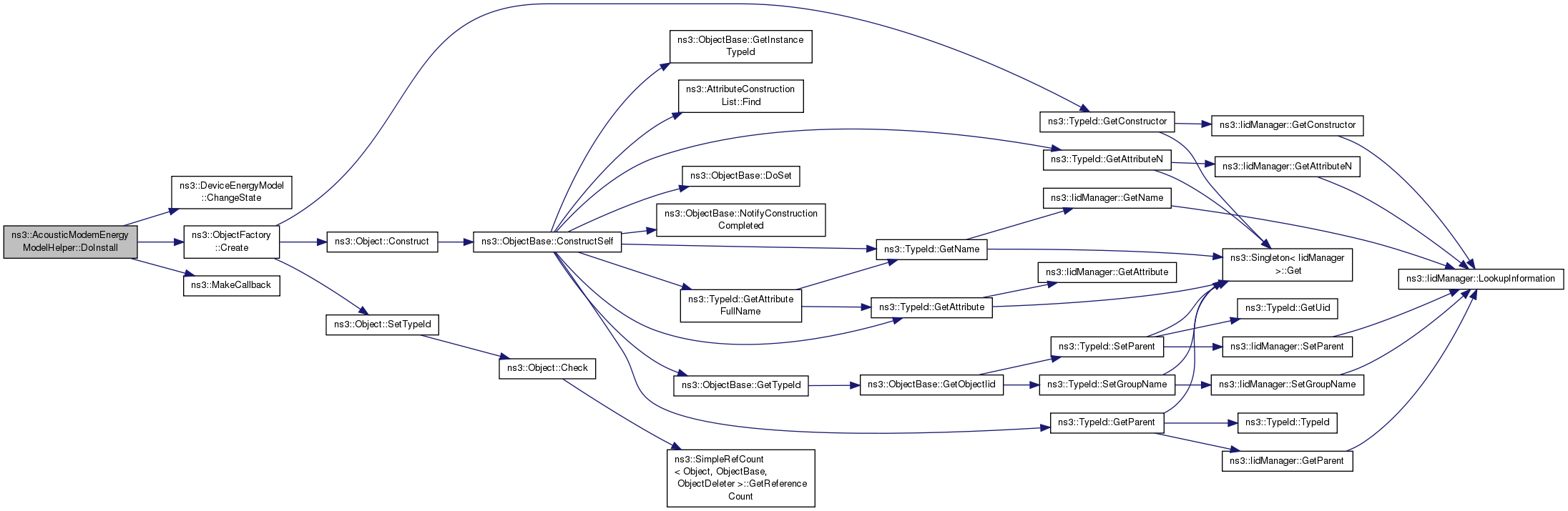

Here is the call graph for this function:

void ns3::AcousticModemEnergyModelHelper::Set ( std::string  name, const AttributeValue &  v  )

virtual

Sets an attribute of the underlying energy model object.

Parameters

name	The name of the attribute to set.
v	The value of the attribute.

Implements ns3::DeviceEnergyModelHelper.

Definition at line 41 of file acoustic-modem-energy-model-helper.cc.

References m_modemEnergy, and ns3::ObjectFactory::Set().

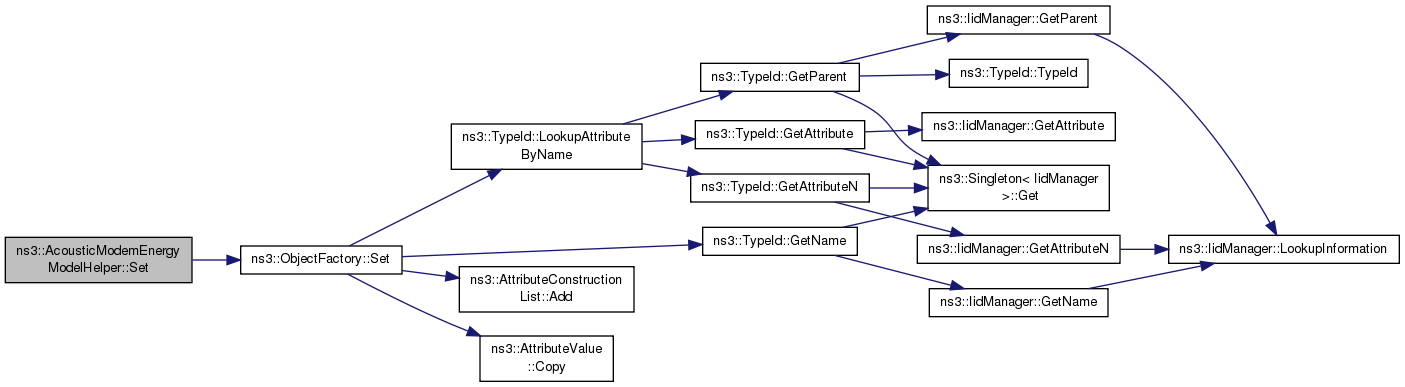

Here is the call graph for this function:

void ns3::AcousticModemEnergyModelHelper::SetDepletionCallback

(

AcousticModemEnergyModel::AcousticModemEnergyDepletionCallback

callback

)

Sets the callback to be invoked when energy is depleted.

Parameters

callback

Callback function for energy depletion handling.

Definition at line 47 of file acoustic-modem-energy-model-helper.cc.

References m_depletionCallback.

Referenced by AcousticModemEnergyDepletionTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

AcousticModemEnergyModel::AcousticModemEnergyDepletionCallback ns3::AcousticModemEnergyModelHelper::m_depletionCallback

private

Callback for energy depletion.

Definition at line 83 of file acoustic-modem-energy-model-helper.h.

Referenced by AcousticModemEnergyModelHelper(), DoInstall(), and SetDepletionCallback().

ObjectFactory ns3::AcousticModemEnergyModelHelper::m_modemEnergy

private

Energy model factory.

Definition at line 80 of file acoustic-modem-energy-model-helper.h.

Referenced by AcousticModemEnergyModelHelper(), DoInstall(), and Set().

---

The documentation for this class was generated from the following files:

• src/uan/helper/acoustic-modem-energy-model-helper.h
• src/uan/helper/acoustic-modem-energy-model-helper.cc
