This section documents the API of the ns-3 UAN module. More...

Files
file	uan-animation.cc
	This example showcases the "CW-MAC" described in System Design Considerations for Undersea Networks article in the IEEE Journal on Selected Areas of Communications 2008 by Nathan Parrish, Leonard Tracy and Sumit Roy.

file	uan-cw-example.cc
	This example showcases the "CW-MAC" described in System Design Considerations for Undersea Networks article in the IEEE Journal on Selected Areas of Communications 2008 by Nathan Parrish, Leonard Tracy and Sumit Roy.

Classes
struct	ns3::UanMacRcGw::AckData
	Packet ACK data. More...

class	ns3::AcousticModemEnergyModel
	WHOI micro-modem energy model. More...

class	ns3::AcousticModemEnergyModelHelper
	Assign AcousticModemEnergyModel to uan devices. More...

class	Experiment
	Helper class for UAN CW MAC example. More...

struct	ns3::UanMacRcGw::Request
	Reservation request. More...

class	ns3::Tap
	Holds PDP Tap information (amplitude and delay) More...

class	ns3::UanAddress
	A class used for addressing UAN MAC's. More...

class	ns3::UanChannel
	Channel class used by UAN devices. More...

class	ns3::UanHeaderCommon
	Common packet header fields. More...

class	ns3::UanHeaderRcAck
	Header used for ACK packets by protocol UanMacRc. More...

class	ns3::UanHeaderRcCts
	CTS header. More...

class	ns3::UanHeaderRcCtsGlobal
	Cycle broadcast information. More...

class	ns3::UanHeaderRcData
	Extra data header information. More...

class	ns3::UanHeaderRcRts
	RTS header. More...

class	ns3::UanHelper
	UAN configuration helper. More...

class	ns3::UanMac
	Virtual base class for all UAN MAC protocols. More...

class	ns3::UanMacAloha
	ALOHA MAC Protocol, the simplest MAC protocol for wireless networks. More...

class	ns3::UanMacCw
	CW-MAC protocol, similar in idea to the 802.11 DCF with constant backoff window. More...

class	ns3::UanMacRc
	Non-gateway node MAC for reservation channel MAC protocol. More...

class	ns3::UanMacRcGw
	Gateway side of RC-MAC. More...

class	ns3::UanModesList
	Container for UanTxModes. More...

class	ns3::UanNetDevice
	Net device for UAN models. More...

class	ns3::UanNoiseModel
	UAN Noise Model base class. More...

class	ns3::UanNoiseModelDefault
	Standard ambient acoustic noise model. More...

class	ns3::UanPacketArrival
	Class consisting of packet arrival information (Time, RxPower, mode, PDP). More...

class	ns3::UanPdp
	The power delay profile returned by propagation models. More...

class	ns3::UanPhy
	Base class for UAN Phy models. More...

class	ns3::UanPhyCalcSinr
	Class used for calculating SINR of packet in UanPhy. More...

class	ns3::UanPhyCalcSinrDefault
	Default SINR calculator for UanPhyGen. More...

class	ns3::UanPhyCalcSinrFhFsk
	WHOI Micromodem like FH-FSK model. More...

class	ns3::UanPhyDual
	Two channel Phy. More...

class	ns3::UanPhyGen
	Generic PHY model. More...

class	ns3::UanPhyListener
	Interface for PHY event listener. More...

class	ns3::UanPhyPer
	Calculate packet error probability, based on received SINR and modulation (mode). More...

class	ns3::UanPhyPerGenDefault
	Default Packet Error Rate calculator for UanPhyGen. More...

class	ns3::UanPhyPerUmodem
	Packet error rate calculation assuming WHOI Micromodem-like PHY. More...

class	ns3::UanPropModel
	Base class for implemented underwater propagation models. More...

class	ns3::UanPropModelIdeal
	Ideal propagation model (no pathloss, impulse PDP). More...

class	ns3::UanPropModelThorp
	Uses Thorp's approximation to compute pathloss. More...

class	ns3::UanTransducer
	Virtual base for Transducer objects. More...

class	ns3::UanTransducerHd
	Half duplex implementation of transducer object. More...

class	ns3::UanTxMode
	Abstraction of packet modulation information. More...

class	ns3::UanTxModeFactory
	Global database of UanTxMode objects, retrievable by id or name. More...

struct	ns3::UanTxModeFactory::UanTxModeItem
	Container for the UanTxMode properties. More...

Enumerations
enum	{ ns3::UanMacRc::TYPE_DATA, ns3::UanMacRc::TYPE_GWPING, ns3::UanMacRc::TYPE_RTS, ns3::UanMacRc::TYPE_CTS, ns3::UanMacRc::TYPE_ACK }
	Packet types. More...

enum	ns3::UanTxMode::ModulationType { ns3::UanTxMode::PSK, ns3::UanTxMode::QAM, ns3::UanTxMode::FSK, ns3::UanTxMode::OTHER }
	Modulation type. More...

enum	ns3::UanMacRcGw::State { ns3::UanMacRcGw::IDLE, ns3::UanMacRcGw::INCYCLE, ns3::UanMacRcGw::CTSING }
	Gateway state. More...

enum	ns3::UanMacCw::State { ns3::UanMacCw::IDLE, ns3::UanMacCw::CCABUSY, ns3::UanMacCw::RUNNING, ns3::UanMacCw::TX }
	Enum defining possible Phy states. More...

enum	ns3::UanTransducer::State { ns3::UanTransducer::TX, ns3::UanTransducer::RX }
	Transducer state. More...

enum	ns3::UanPhy::State { ns3::UanPhy::IDLE, ns3::UanPhy::CCABUSY, ns3::UanPhy::RX, ns3::UanPhy::TX, ns3::UanPhy::SLEEP, ns3::UanPhy::DISABLED }
	Enum defining possible Phy states. More...

enum	ns3::UanMacRc::State { ns3::UanMacRc::UNASSOCIATED, ns3::UanMacRc::GWPSENT, ns3::UanMacRc::IDLE, ns3::UanMacRc::RTSSENT, ns3::UanMacRc::DATATX }
	MAC state. More...

Functions
std::ostream &	ns3::operator<< (std::ostream &os, const UanPdp &pdp)
	Writes PDP to stream as list of arrivals. More...

std::istream &	ns3::operator>> (std::istream &is, UanPdp &pdp)
	Reads in list of arrivals from stream is. More...

Detailed Description

This section documents the API of the ns-3 UAN module.

For a generic functional description, please refer to the ns-3 manual.

Enumeration Type Documentation

anonymous enum

Packet types.

Enumerator
TYPE_DATA	Data.
TYPE_GWPING	Gateway ping.
TYPE_RTS	RTS.
TYPE_CTS	CTS.
TYPE_ACK	ACK.

Definition at line 167 of file uan-mac-rc.h.

enum ns3::UanTxMode::ModulationType

Modulation type.

Enumerator
PSK	Phase shift keying.
QAM	Quadrature amplitude modulation.
FSK	Frequency shift keying.
OTHER	Unspecified/undefined.

Definition at line 50 of file uan-tx-mode.h.

enum ns3::UanMacRcGw::State

private

Gateway state.

Enumerator
IDLE	Initial idle state.
INCYCLE	Cycling through nodes.
CTSING	Sending CTS.

Definition at line 98 of file uan-mac-rc-gw.h.

enum ns3::UanMacCw::State

private

Enum defining possible Phy states.

Enumerator
IDLE	Idle state.
CCABUSY	Channel busy.
RUNNING	Delay timer running.
TX	Transmitting.

Definition at line 114 of file uan-mac-cw.h.

enum ns3::UanTransducer::State

Transducer state.

Enumerator
TX	Transmitting.
RX	Receiving.

Definition at line 148 of file uan-transducer.h.

enum ns3::UanPhy::State

Enum defining possible Phy states.

Enumerator
IDLE	Idle state.
CCABUSY	Channel busy.
RX	Receiving.
TX	Transmitting.
SLEEP	Sleeping.
DISABLED	Disabled.

Definition at line 179 of file uan-phy.h.

enum ns3::UanMacRc::State

private

MAC state.

Enumerator
UNASSOCIATED	Initial state.
GWPSENT	Associated with gateway.
IDLE	Finished scheduling packet sends.
RTSSENT	RTS just sent.
DATATX	(Unused).

Definition at line 206 of file uan-mac-rc.h.

Function Documentation

std::ostream & ns3::operator<<	(	std::ostream &	os,
		const UanPdp &	pdp
	)

Writes PDP to stream as list of arrivals.

Parameters

os	The output stream.
pdp	The PDP.

Returns: The output stream.

Definition at line 30 of file uan-prop-model.cc.

References ns3::UanPdp::GetNTaps(), ns3::UanPdp::GetResolution(), ns3::Time::GetSeconds(), and ns3::UanPdp::m_taps.

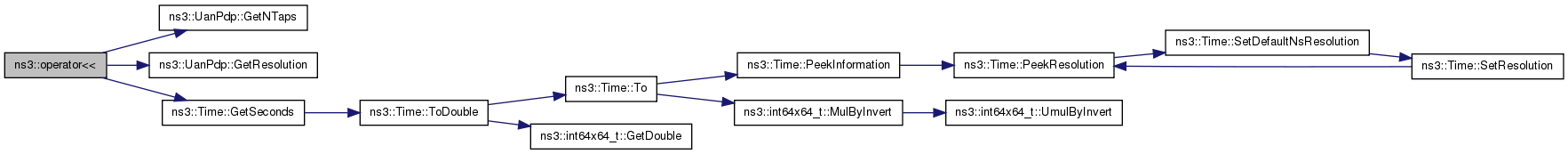

Here is the call graph for this function:

std::istream & ns3::operator>>	(	std::istream &	is,
		UanPdp &	pdp
	)

Reads in list of arrivals from stream is.

Parameters

is	The input stream.
pdp	The PDP variable to set.

Returns: The input stream.

Definition at line 44 of file uan-prop-model.cc.

References ns3::UanPdp::m_resolution, ns3::UanPdp::m_taps, NS_FATAL_ERROR, and ns3::Seconds().

Here is the call graph for this function:
