Half duplex implementation of transducer object. More...

#include "uan-transducer-hd.h"

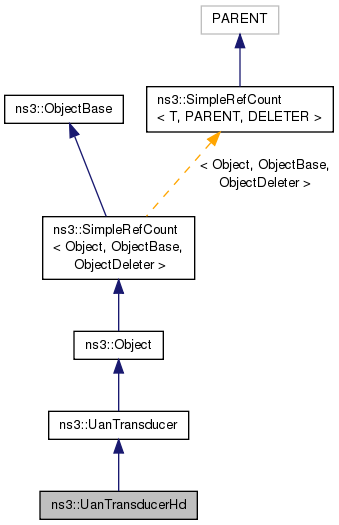

Inheritance diagram for ns3::UanTransducerHd:

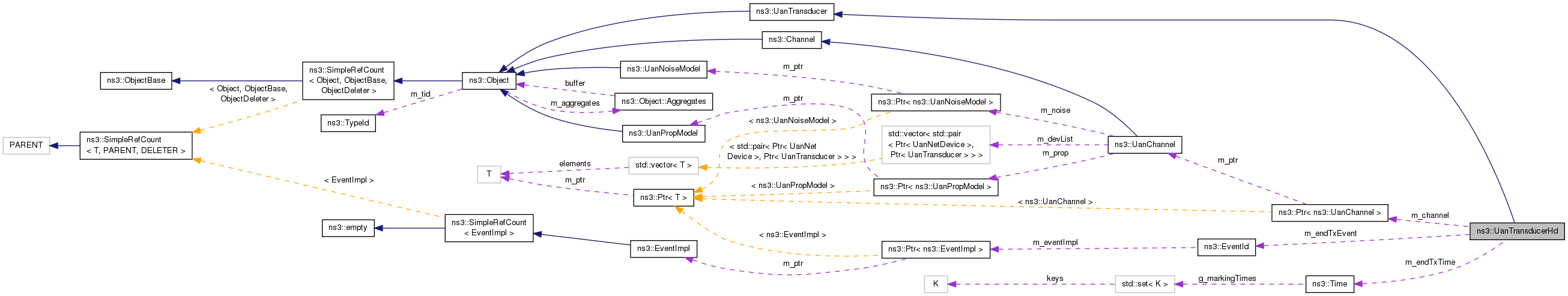

Collaboration diagram for ns3::UanTransducerHd:

Public Member Functions
	UanTransducerHd ()
	Constructor. More...

virtual	~UanTransducerHd ()
	Dummy destructor, see DoDispose. More...

virtual void	AddPhy (Ptr< UanPhy >)
	Attach a physical network layer above this transducer. More...

virtual void	Clear (void)
	Clears all pointer references. More...

virtual const ArrivalList &	GetArrivalList (void) const
	Get the list of overlapped (in time) packets at this transducer. More...

virtual Ptr< UanChannel >	GetChannel (void) const
	Get the attached channel. More...

virtual const UanPhyList &	GetPhyList (void) const
	Get the list of physical layer above this transducer. More...

virtual State	GetState (void) const
	Get the transducer state. More...

virtual bool	IsRx (void) const
	Is the state receiving (or available for reception)? More...

virtual bool	IsTx (void) const
	Is the state transmitting? More...

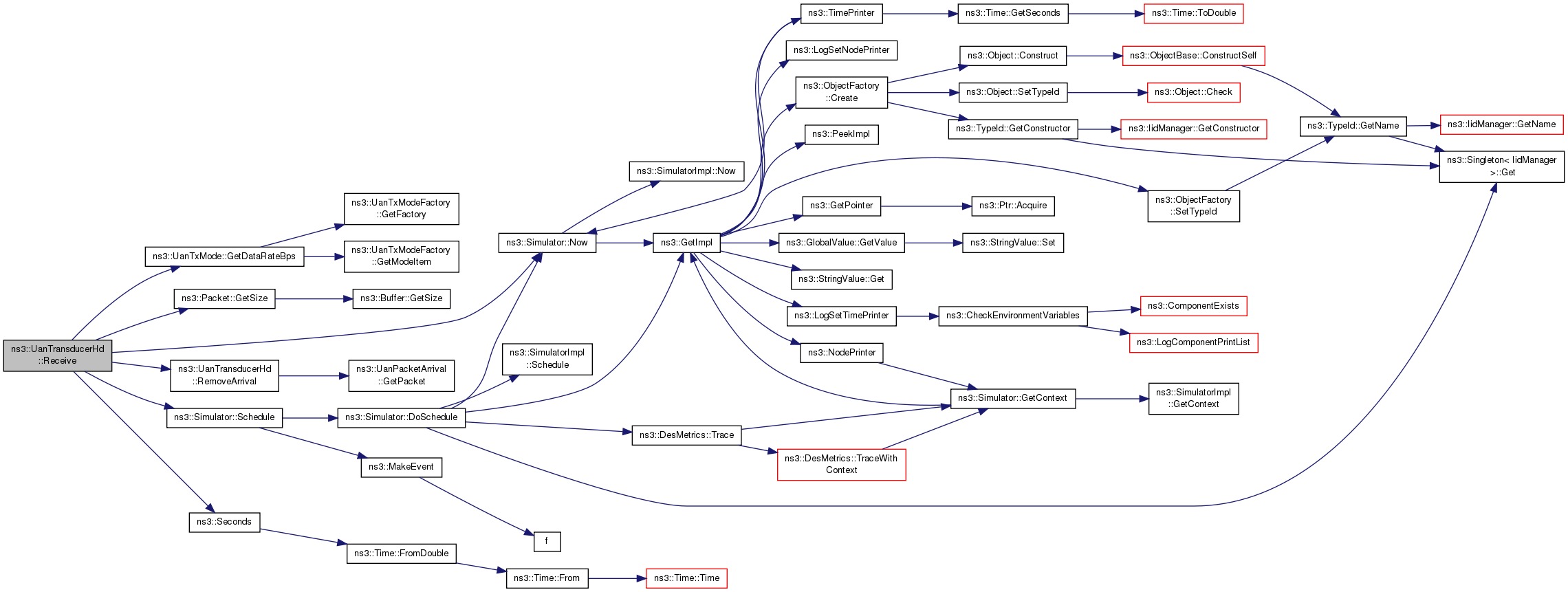

virtual void	Receive (Ptr< Packet > packet, double rxPowerDb, UanTxMode txMode, UanPdp pdp)
	Notify this object that a new packet has arrived at this nodes location. More...

virtual void	SetChannel (Ptr< UanChannel > chan)
	Attach this transducer to a channel. More...

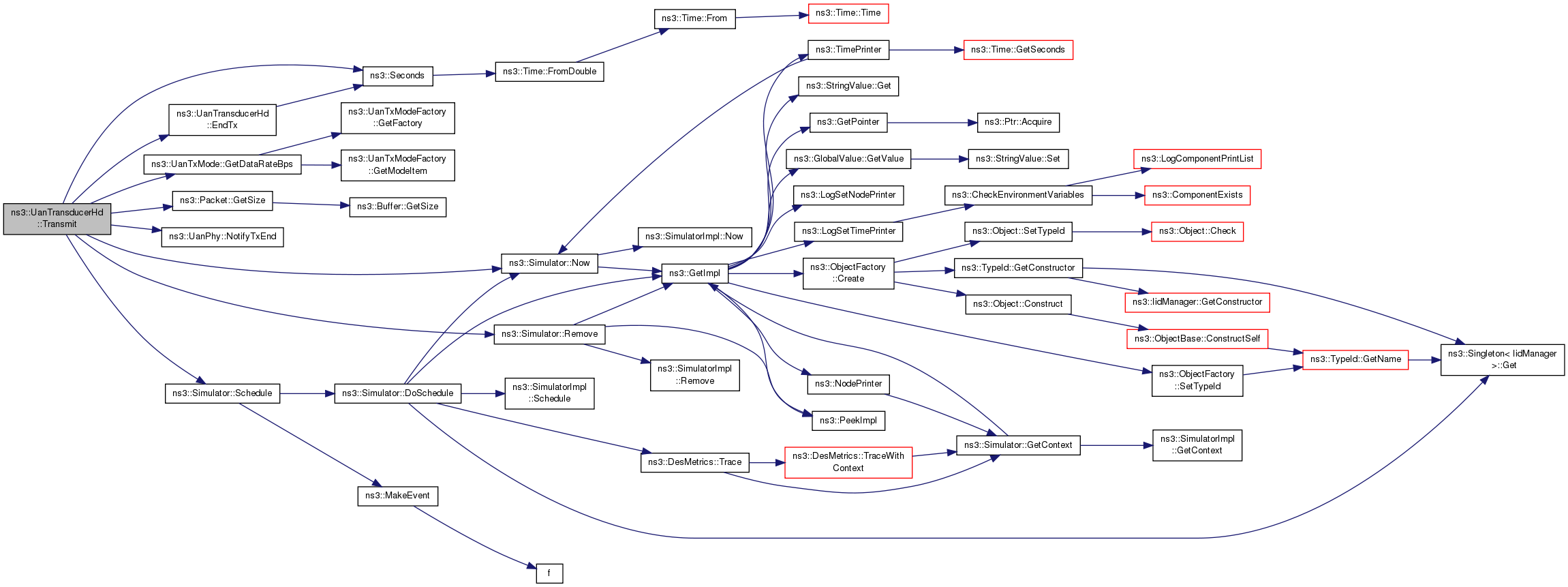

virtual void	Transmit (Ptr< UanPhy > src, Ptr< Packet > packet, double txPowerDb, UanTxMode txMode)
	Transmit a packet from this transducer. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

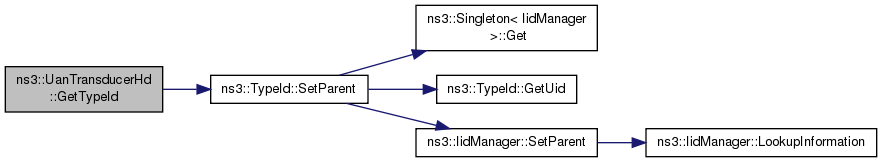

static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::UanTransducer
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoDispose ()
	Destructor implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	EndTx (void)
	Handle end of transmission event. More...

void	RemoveArrival (UanPacketArrival arrival)
	Remove an entry from the arrival list. More...

Private Attributes
ArrivalList	m_arrivalList
	List of arriving packets which overlap in time. More...

Ptr< UanChannel >	m_channel
	The attached channel. More...

bool	m_cleared
	Flab when we've been cleared. More...

EventId	m_endTxEvent
	Event scheduled for end of transmission. More...

Time	m_endTxTime
	Time at which transmission will be completed. More...

UanPhyList	m_phyList
	List of physical layers attached above this tranducer. More...

State	m_state
	Transducer state. More...

Additional Inherited Members
Public Types inherited from ns3::UanTransducer
typedef std::list< UanPacketArrival >	ArrivalList
	List of arriving packets overlapping in time. More...

enum	State { TX, RX }
	Transducer state. More...

typedef std::list< Ptr< UanPhy > >	UanPhyList
	List of UanPhy objects. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Half duplex implementation of transducer object.

This class will only allow attached Phy's to receive packets if not in TX mode.

Config Paths

ns3::UanTransducerHd is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::UanNetDevice/Transducer/$ns3::UanTransducerHd"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 36 of file uan-transducer-hd.h.

Constructor & Destructor Documentation

ns3::UanTransducerHd::UanTransducerHd ( )

Constructor.

Definition at line 36 of file uan-transducer-hd.cc.

ns3::UanTransducerHd::~UanTransducerHd ( )

virtual

Dummy destructor, see DoDispose.

Definition at line 44 of file uan-transducer-hd.cc.

Member Function Documentation

void ns3::UanTransducerHd::AddPhy ( Ptr< UanPhy > phy )

virtual

Attach a physical network layer above this transducer.

More than one physical layer may be attached.

Parameters

phy	The physical layer.

Implements ns3::UanTransducer.

Definition at line 213 of file uan-transducer-hd.cc.

References m_phyList.

void ns3::UanTransducerHd::Clear ( void )

virtual

Clears all pointer references.

Implements ns3::UanTransducer.

Definition at line 49 of file uan-transducer-hd.cc.

References ns3::EventId::Cancel(), m_arrivalList, m_channel, m_cleared, m_endTxEvent, and m_phyList.

Referenced by DoDispose().

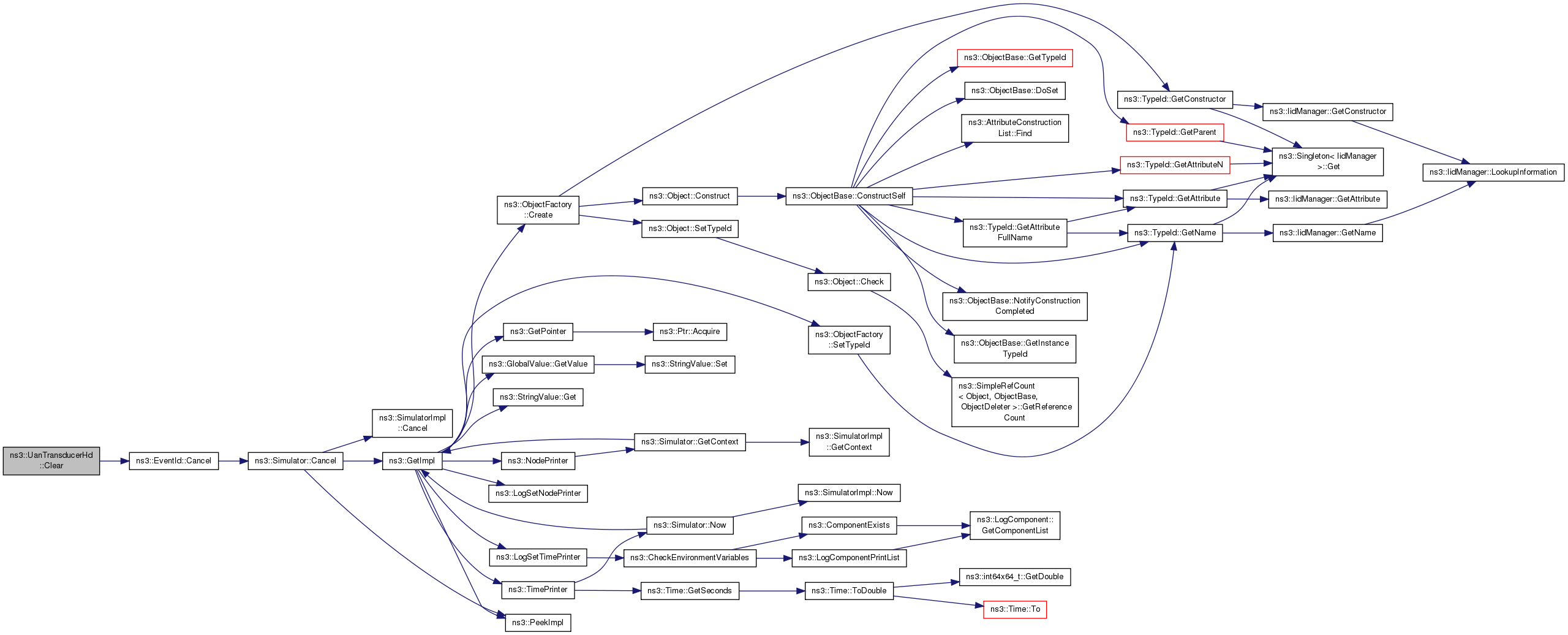

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::UanTransducerHd::DoDispose ( void )

protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 82 of file uan-transducer-hd.cc.

References Clear(), and ns3::Object::DoDispose().

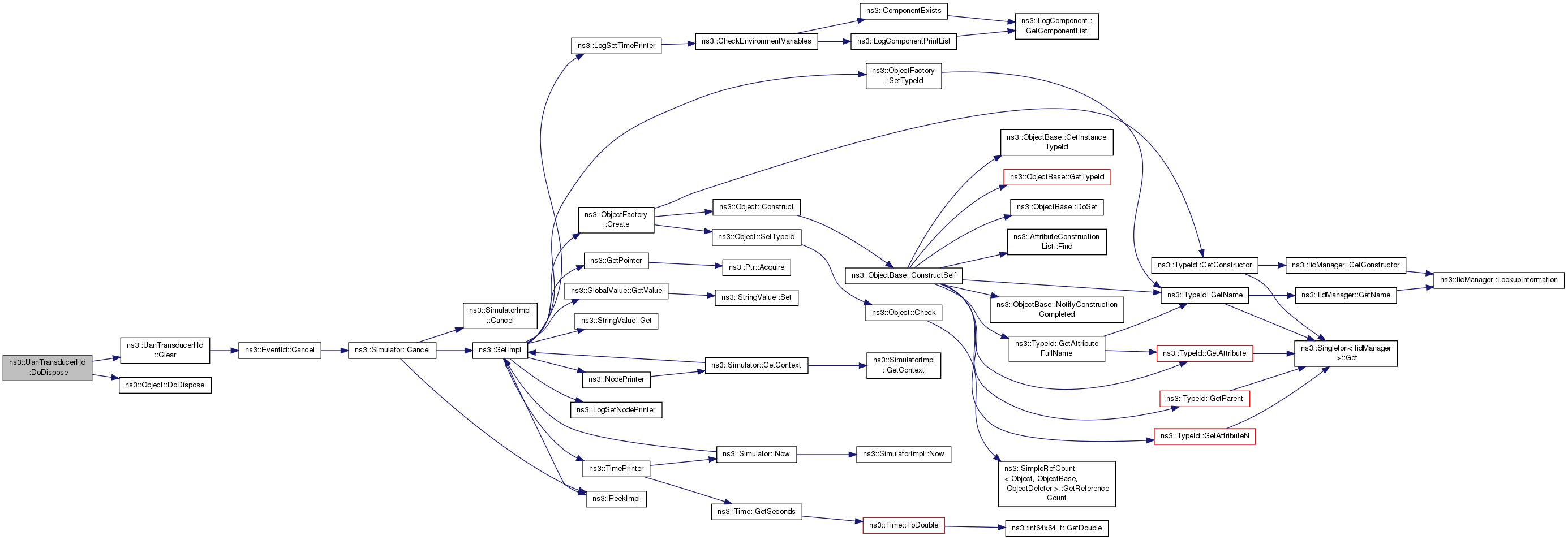

Here is the call graph for this function:
