ns3::Time Class Reference

Simulation virtual time values and global simulation resolution. More...

#include "nstime.h"

+ Collaboration diagram for ns3::Time:

Classes

struct  Information
 How to convert between other units and the current unit. More...

struct  Resolution
 Current time unit, and conversion info. More...


Public Types

enum  Unit {
  Y = 0, D = 1, H = 2, MIN = 3,
  S = 4, MS = 5, US = 6, NS = 7,
  PS = 8, FS = 9, LAST = 10
}
 The unit to use to interpret a number representing time. More...


Public Member Functions

 Time ()
 Default constructor, with value 0. More...

 Time (const Time &o)
 Copy constructor. More...

 Time (const std::string &s)
 Construct Time object from common time expressions like "1ms". More...

 ~Time ()
 Destructor. More...

TimeWithUnit As (const enum Unit unit) const
 Attach a unit to a Time, to facilitate output in a specific unit. More...

int Compare (const Time &o) const
 Compare this to another Time. More...

bool IsNegative (void) const

bool IsPositive (void) const

bool IsStrictlyNegative (void) const

bool IsStrictlyPositive (void) const

bool IsZero (void) const

 operator int64x64_t () const
 Cast to int64x64_t. More...

Timeoperator= (const Time &o)
 Assignment operator. More...

Numeric constructors.

Construct from a numeric value.

 Time (double v)
 Construct from a numeric value. More...

 Time (int v)
 Construct from a numeric value. More...

 Time (long int v)
 Construct from a numeric value. More...

 Time (long long int v)
 Construct from a numeric value. More...

 Time (unsigned int v)
 Construct from a numeric value. More...

 Time (unsigned long int v)
 Construct from a numeric value. More...

 Time (unsigned long long int v)
 Construct from a numeric value. More...

 Time (const int64x64_t &v)
 Construct from a numeric value. More...

Convert to Number in a Unit.

Convert a Time to number, in indicated units.

Conversions to seconds and larger will return doubles, with possible loss of precision. Conversions to units smaller than seconds will by rounded.

double GetYears (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

double GetDays (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

double GetHours (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

double GetMinutes (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

double GetSeconds (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

int64_t GetMilliSeconds (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

int64_t GetMicroSeconds (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

int64_t GetNanoSeconds (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

int64_t GetPicoSeconds (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

int64_t GetFemtoSeconds (void) const
 Get an approximation of the time stored in this instance in the indicated unit. More...

Convert to Raw Value.

Convert a Time to a number in the current resolution units.

int64_t GetTimeStep (void) const
 Get the raw time value, in the current resolution unit. More...

double GetDouble (void) const
 Get the raw time value, in the current resolution unit. More...

int64_t GetInteger (void) const
 Get the raw time value, in the current resolution unit. More...

Get Times as Numbers in Specified Units

Get the Time as integers or doubles in the indicated unit.

int64_t ToInteger (enum Unit unit) const
 Get the Time value expressed in a particular unit. More...

double ToDouble (enum Unit unit) const
 Get the Time value expressed in a particular unit. More...

int64x64_t To (enum Unit unit) const
 Get the Time value expressed in a particular unit. More...


Static Public Member Functions

static Time From (const int64x64_t &value)
 Create a Time in the current unit. More...

static enum Unit GetResolution (void)

static Time Max ()
 Maximum representable Time. More...

static Time Min ()
 Minimum representable Time. More...

static void SetResolution (enum Unit resolution)

static bool StaticInit ()
 Function to force static initialization of Time. More...

Create Times from Values and Units.

Create Times from values given in the indicated units.

static Time FromInteger (uint64_t value, enum Unit unit)
 Create a Time equal to value in unit unit. More...

static Time FromDouble (double value, enum Unit unit)
 Create a Time equal to value in unit unit. More...

static Time From (const int64x64_t &value, enum Unit unit)
 Create a Time equal to value in unit unit. More...


Private Types

typedef std::set< Time * > MarkedTimes
 Record all instances of Time, so we can rescale them when the resolution changes. More...


Static Private Member Functions

static void Clear (Time *const time)
 Remove a Time instance from the MarkedTimes, called by ~Time(). More...

static void ClearMarkedTimes ()
 Remove all MarkedTimes. More...

static void ConvertTimes (const enum Unit unit)
 Convert existing Times to the new unit. More...

static void Mark (Time *const time)
 Record a Time instance with the MarkedTimes. More...

static struct InformationPeekInformation (enum Unit timeUnit)
 Get the Information record for timeUnit for the current Resolution. More...

static struct ResolutionPeekResolution (void)
 Get the current Resolution. More...

static struct Resolution SetDefaultNsResolution (void)
 Set the default resolution. More...

static void SetResolution (enum Unit unit, struct Resolution *resolution, const bool convert=true)
 Set the current Resolution. More...


Private Attributes

int64_t m_data
 Virtual time value, in the current unit. More...


Static Private Attributes

static MarkedTimesg_markingTimes = 0
 Record of outstanding Time objects which will need conversion when the resolution is set. More...


Friends

Time Abs (const Time &time)
 Absolute value function for Time. More...

Time Max (const Time &ta, const Time &tb)
 Max function for Time. More...

Time Min (const Time &ta, const Time &tb)
 Min function for Time. More...

class Simulator

bool operator== (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

bool operator!= (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

bool operator<= (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

bool operator>= (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

bool operator< (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

bool operator> (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

Time operator+ (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

Time operator- (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

Time operator* (const Time &lhs, const int64_t &rhs)
 Arithmetic operator. More...

Time operator* (const int64_t &lhs, const Time &rhs)
 Arithmetic operator. More...

int64_t operator/ (const Time &lhs, const Time &rhs)
 Arithmetic operator. More...

Time operator/ (const Time &lhs, const int64_t &rhs)
 Arithmetic operator. More...

Timeoperator+= (Time &lhs, const Time &rhs)
 Arithmetic operator. More...

Timeoperator-= (Time &lhs, const Time &rhs)
 Arithmetic operator. More...


Related Functions

(Note that these are not member functions.)

SystemMutexGetMarkingMutex ()


Detailed Description

Simulation virtual time values and global simulation resolution.

This class defines all the classic C++ addition/subtraction operators: +, -, +=, -=; and all the classic comparison operators: ==, !=, <, >, <=, >=. It is thus easy to add, substract, or compare Time objects.

For example:

Time t1 = Seconds (10.0);
Time t2 = Seconds (10.0);
Time t3 = t1;
t3 += t2;

You can also use the following non-member functions to manipulate any of these ns3::Time object:

This class also controls the resolution of the underlying time value. The resolution is the smallest representable time interval. The default resolution is nanoseconds.

To change the resolution, use SetResolution(). All Time objects created before the call to SetResolution() will be updated to the new resolution. This can only be done once! (Tracking each Time object uses 4 pointers. For speed, once we convert the existing instances we discard the recording data structure and stop tracking new instances, so we have no way to do a second conversion.)

If you increase the global resolution, you also implicitly decrease the range of your simulation. The global simulation time is stored in a 64 bit integer, whose interpretation will depend on the global resolution. Therefore the maximum duration of your simulation, if you use picoseconds, is 2^64 ps = 2^24 s = 7 months, whereas, had you used nanoseconds, you could have run for 584 years.

Definition at line 102 of file nstime.h.

Member Typedef Documentation

typedef std::set< Time * > ns3::Time::MarkedTimes
private

Record all instances of Time, so we can rescale them when the resolution changes.

Internal:

We use a std::set so we can remove the record easily when ~Time() is called.

We don't use Ptr<Time>, because we would have to bloat every Time instance with SimpleRefCount<Time>.

Seems like this should be std::set< Time * const >, but Stack Overflow says otherwise, quoting the standard:

& sect;23.1/3 states that std::set key types must be assignable and copy constructable; clearly a const type will not be assignable.

Definition at line 607 of file nstime.h.

Constructor & Destructor Documentation

ns3::Time::Time ( )
inline

Default constructor, with value 0.

Definition at line 134 of file nstime.h.

References g_markingTimes, and Mark().

Referenced by From(), FromInteger(), Max(), and Min().

+ Here is the call graph for this function:

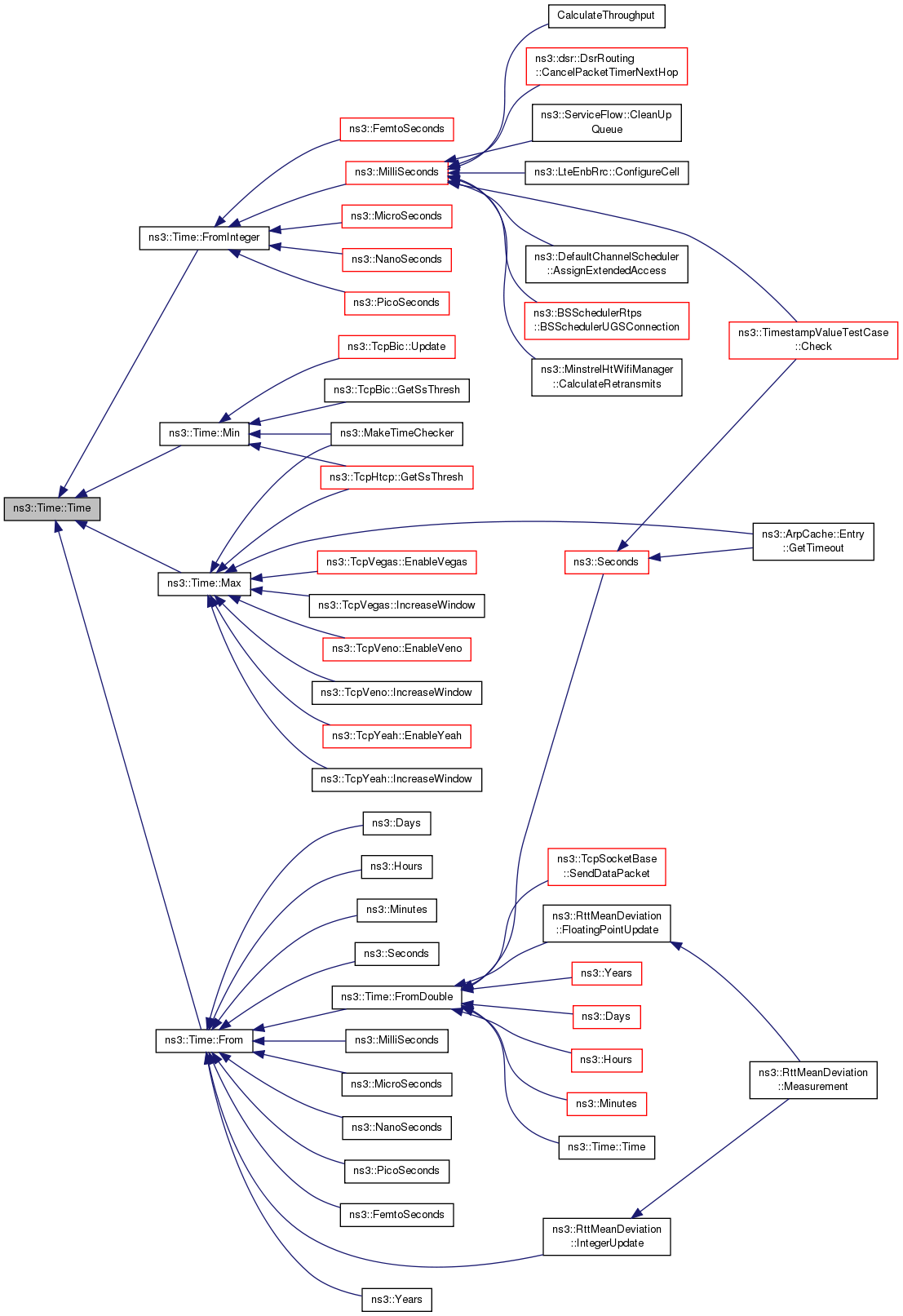

+ Here is the caller graph for this function:

ns3::Time::Time ( const Time o)
inline

Copy constructor.

Parameters
[in]oTime to copy

Definition at line 147 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( double  v)
inlineexplicit

Construct from a numeric value.

The current time resolution will be assumed as the unit.

Parameters
[in]vThe value.

Definition at line 165 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( int  v)
inlineexplicit

Construct from a numeric value.

The current time resolution will be assumed as the unit.

Parameters
[in]vThe value.

Definition at line 173 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( long int  v)
inlineexplicit

Construct from a numeric value.

The current time resolution will be assumed as the unit.

Parameters
[in]vThe value.

Definition at line 181 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( long long int  v)
inlineexplicit

Construct from a numeric value.

The current time resolution will be assumed as the unit.

Parameters
[in]vThe value.

Definition at line 189 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( unsigned int  v)
inlineexplicit

Construct from a numeric value.

The current time resolution will be assumed as the unit.

Parameters
[in]vThe value.

Definition at line 197 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( unsigned long int  v)
inlineexplicit

Construct from a numeric value.

The current time resolution will be assumed as the unit.

Parameters
[in]vThe value.

Definition at line 205 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( unsigned long long int  v)
inlineexplicit

Construct from a numeric value.

The current time resolution will be assumed as the unit.

Parameters
[in]vThe value.

Definition at line 213 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( const int64x64_t v)
inlineexplicit

Construct from a numeric value.

The current time resolution will be assumed as the unit.

Parameters
[in]vThe value.

Definition at line 221 of file nstime.h.

References g_markingTimes, and Mark().

+ Here is the call graph for this function:

ns3::Time::Time ( const std::string &  s)
explicit

Construct Time object from common time expressions like "1ms".

Supported units include:

  • s (seconds)
  • ms (milliseconds)
  • us (microseconds)
  • ns (nanoseconds)
  • ps (picoseconds)
  • fs (femtoseconds)
  • min (minutes)
  • h (hours)
  • d (days)
  • y (years)

There can be no white space between the numerical portion and the units. Any otherwise malformed string causes a fatal error to occur.

Parameters
[in]sThe string to parse into a Time

Definition at line 96 of file time.cc.

References D, FromDouble(), FS, g_markingTimes, H, Mark(), MIN, MS, NS, NS_ABORT_MSG, NS_LOG_FUNCTION, PS, S, US, and Y.

+ Here is the call graph for this function:

ns3::Time::~Time ( )
inline

Destructor.

Definition at line 265 of file nstime.h.

References Clear(), and g_markingTimes.

+ Here is the call graph for this function:

Member Function Documentation

void ns3::Time::Clear ( Time *const  time)
staticprivate

Remove a Time instance from the MarkedTimes, called by ~Time().

Parameters
[in]timeThe Time instance to remove.

Definition at line 313 of file time.cc.

References g_markingTimes, GetMarkingMutex(), NS_ASSERT, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NS_LOG_WARN.

Referenced by ~Time().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

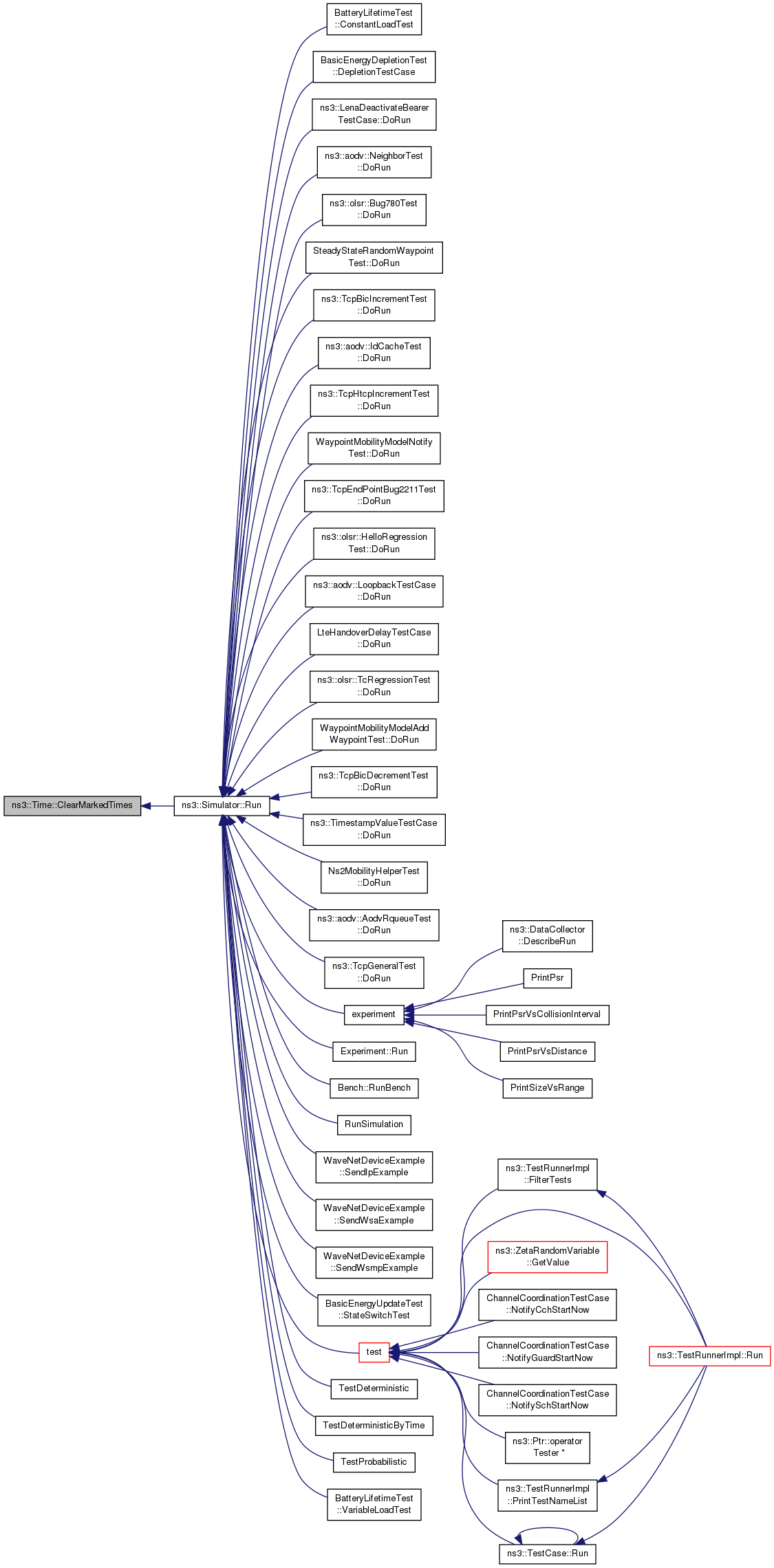

void ns3::Time::ClearMarkedTimes ( )
staticprivate

Remove all MarkedTimes.

Internal:
Has to be visible to the Simulator class, hence the friending.
Internal:

We're called by Simulator::Run, which knows nothing about the mutex, so we need a critical section here.

It would seem natural to use this function at the end of ConvertTimes, but that function already has the mutex. Our SystemMutex throws a fatal error if we try to lock it more than once in the same thread (at least in the unix implementation), so calling this function from ConvertTimes is a bad idea.

Instead, we copy this body into ConvertTimes.

Definition at line 256 of file time.cc.

References g_markingTimes, GetMarkingMutex(), NS_LOG_FUNCTION_NOARGS, and NS_LOG_LOGIC.

Referenced by ns3::Simulator::Run().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

int ns3::Time::Compare ( const Time o) const
inline

Compare this to another Time.

Parameters
[in]oThe other Time
Returns
-1,0,+1 if this < o, this == o, or this > o

Definition at line 304 of file nstime.h.

References m_data.

void ns3::Time::ConvertTimes ( const enum Unit  unit)
staticprivate

Convert existing Times to the new unit.

Parameters
[in]unitThe Unit to convert existing Times to.

Definition at line 343 of file time.cc.

References g_markingTimes, GetMarkingMutex(), m_data, max, min, NS_ASSERT_MSG, NS_LOG_FUNCTION_NOARGS, NS_LOG_LOGIC, and ToInteger().

Referenced by SetResolution().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

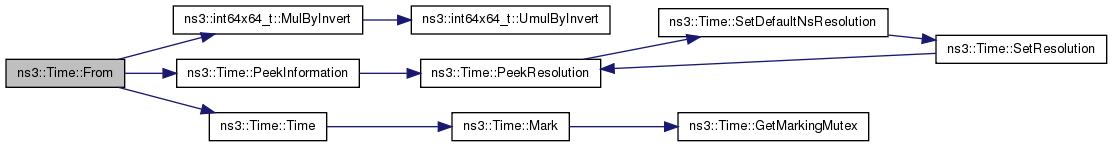

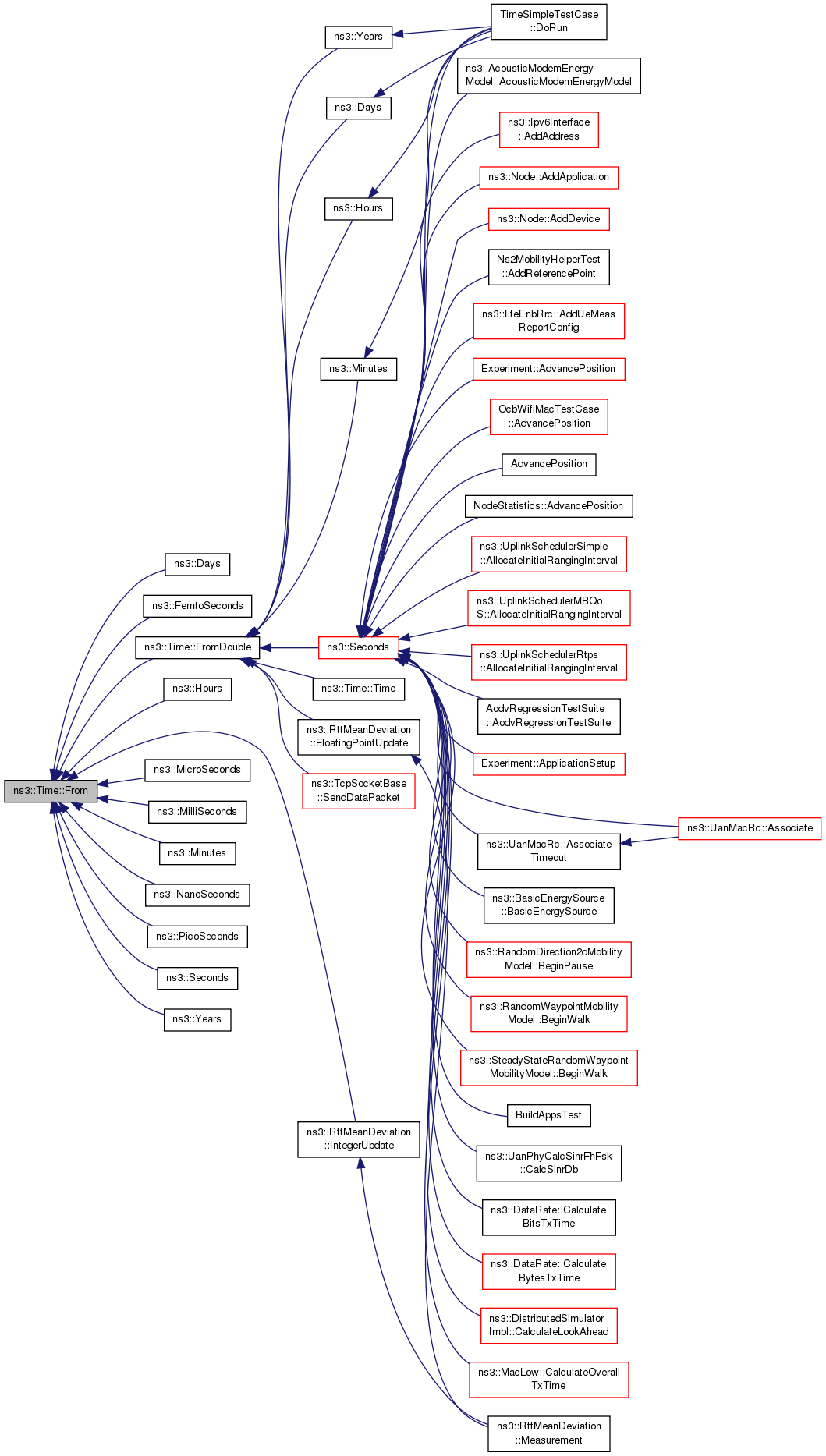

static Time ns3::Time::From ( const int64x64_t value)
inlinestatic

Create a Time in the current unit.

Parameters
[in]valueThe value of the new Time.
Returns
A Time with value in the current time unit.

Definition at line 412 of file nstime.h.

References Time().

Referenced by ns3::Days(), ns3::FemtoSeconds(), FromDouble(), ns3::Hours(), ns3::RttMeanDeviation::IntegerUpdate(), ns3::MicroSeconds(), ns3::MilliSeconds(), ns3::Minutes(), ns3::NanoSeconds(), ns3::PicoSeconds(), ns3::Seconds(), and ns3::Years().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

static Time ns3::Time::From ( const int64x64_t value,
enum Unit  unit
)
inlinestatic

Create a Time equal to value in unit unit.

Parameters
[in]valueThe new Time value, expressed in unit
[in]unitThe unit of value
Returns
The Time representing value in unit

Definition at line 446 of file nstime.h.

References ns3::Time::Information::fromMul, ns3::int64x64_t::MulByInvert(), PeekInformation(), Time(), and ns3::Time::Information::timeFrom.

+ Here is the call graph for this function:

static Time ns3::Time::FromDouble ( double  value,
enum Unit  unit
)
inlinestatic

Create a Time equal to value in unit unit.

Parameters
[in]valueThe new Time value, expressed in unit
[in]unitThe unit of value
Returns
The Time representing value in unit

Definition at line 442 of file nstime.h.

References From().

Referenced by ns3::Days(), ns3::RttMeanDeviation::FloatingPointUpdate(), ns3::Hours(), ns3::Minutes(), ns3::Seconds(), ns3::TcpSocketBase::SendDataPacket(), Time(), and ns3::Years().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

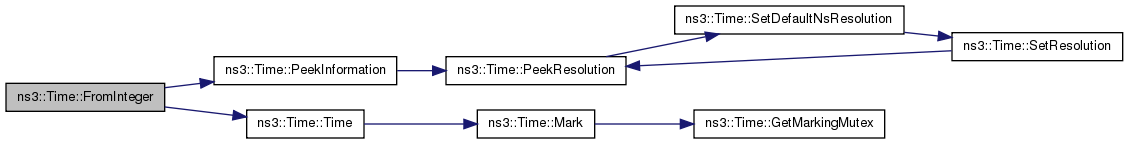

static Time ns3::Time::FromInteger ( uint64_t  value,
enum Unit  unit
)
inlinestatic

Create a Time equal to value in unit unit.

Parameters
[in]valueThe new Time value, expressed in unit
[in]unitThe unit of value
Returns
The Time representing value in unit

Definition at line 429 of file nstime.h.

References ns3::Time::Information::factor, ns3::Time::Information::fromMul, PeekInformation(), and Time().

Referenced by ns3::FemtoSeconds(), ns3::MicroSeconds(), ns3::MilliSeconds(), ns3::NanoSeconds(), and ns3::PicoSeconds().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::Time::GetDays ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 329 of file nstime.h.

References D, and ToDouble().

+ Here is the call graph for this function:

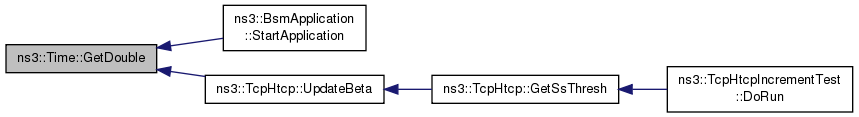

double ns3::Time::GetDouble ( void  ) const
inline

Get the raw time value, in the current resolution unit.

Returns
The raw time value

Definition at line 381 of file nstime.h.

References m_data.

Referenced by ns3::BsmApplication::StartApplication(), and ns3::TcpHtcp::UpdateBeta().

+ Here is the caller graph for this function:

int64_t ns3::Time::GetFemtoSeconds ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 361 of file nstime.h.

References FS, and ToInteger().

Referenced by ns3::WifiPhy::GetPayloadDuration().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::Time::GetHours ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 333 of file nstime.h.

References H, and ToDouble().

+ Here is the call graph for this function:

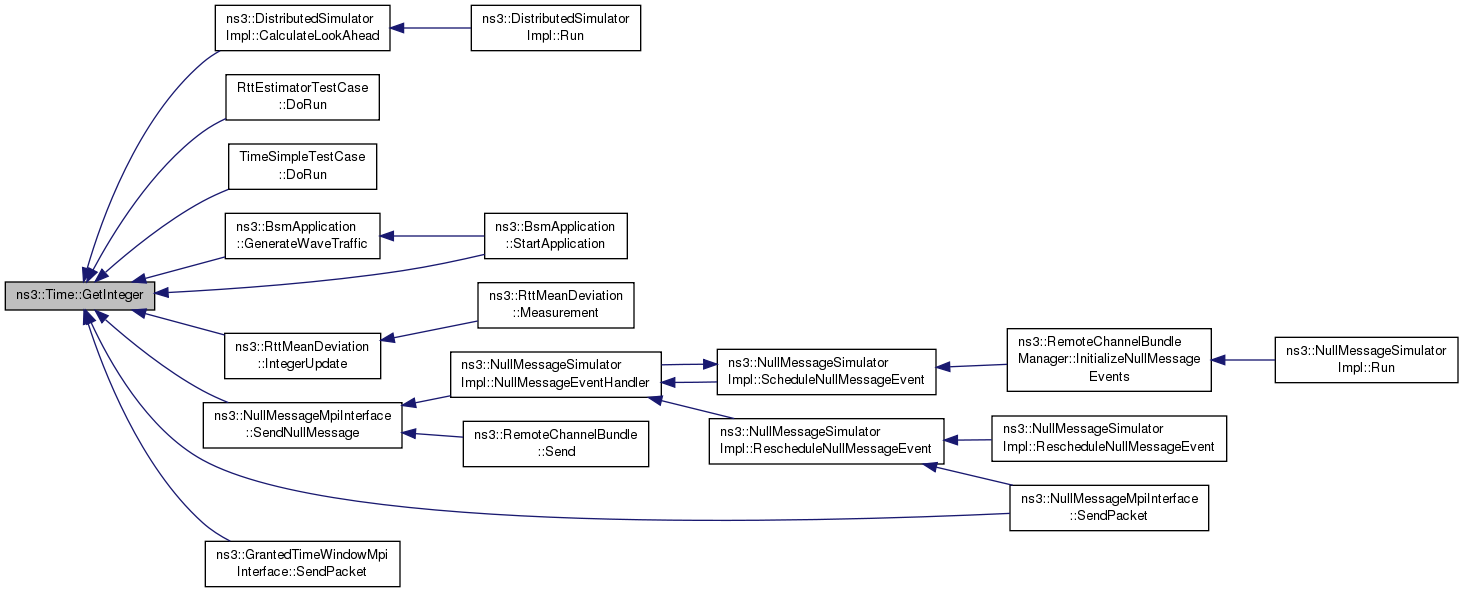

int64_t ns3::Time::GetInteger ( void  ) const
inline
int64_t ns3::Time::GetMicroSeconds ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 349 of file nstime.h.

References ToInteger(), and US.

Referenced by ns3::dot11s::IeBeaconTiming::BeaconIntervalToU16(), ns3::WifiRemoteStationInfo::CalculateAveragingCoefficient(), TxDurationTest::CheckPayloadDuration(), CoDelQueueDiscBasicDrop::Dequeue(), ns3::ApWifiMac::DoInitialize(), ns3::dot11s::HwmpProtocol::GetActivePathLifetime(), ns3::ApWifiMac::GetEdcaParameterSet(), ns3::NscTcpL4Protocol::gettime(), Ns3TcpLossTestCase::Ipv4L3Tx(), Ns3TcpStateTestCase::Ipv4L3Tx(), Ns3TcpInteroperabilityTestCase::Ipv4L3Tx(), ns3::MinstrelWifiManager::PrintTable(), ns3::LrWpanCsmaCa::RandomBackoffDelay(), ns3::MeshWifiInterfaceMac::Receive(), ns3::dot11s::HwmpProtocol::ReceivePreq(), ns3::MeshWifiInterfaceMac::SendBeacon(), ns3::ApWifiMac::SendOneBeacon(), ns3::dot11s::HwmpProtocol::SendProactivePreq(), ns3::ApWifiMac::SendProbeResp(), ns3::dot11s::PeerLink::SetBeaconInformation(), ns3::ApWifiMac::SetBeaconInterval(), ns3::dot11s::PeerLink::SetConfirmTimer(), ns3::dot11s::PeerLink::SetHoldingTimer(), ns3::dot11s::PeerLink::SetRetryTimer(), ns3::DcfManager::SetSlot(), ns3::DcfState::SetTxopLimit(), ns3::MinstrelHtWifiManager::StatsDump(), ns3::dot11s::IeBeaconTiming::TimestampToU16(), ns3::dot11s::PeerManagementProtocol::TimeToTu(), ns3::MinstrelWifiManager::UpdateStats(), and ns3::PcapFileWrapper::Write().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

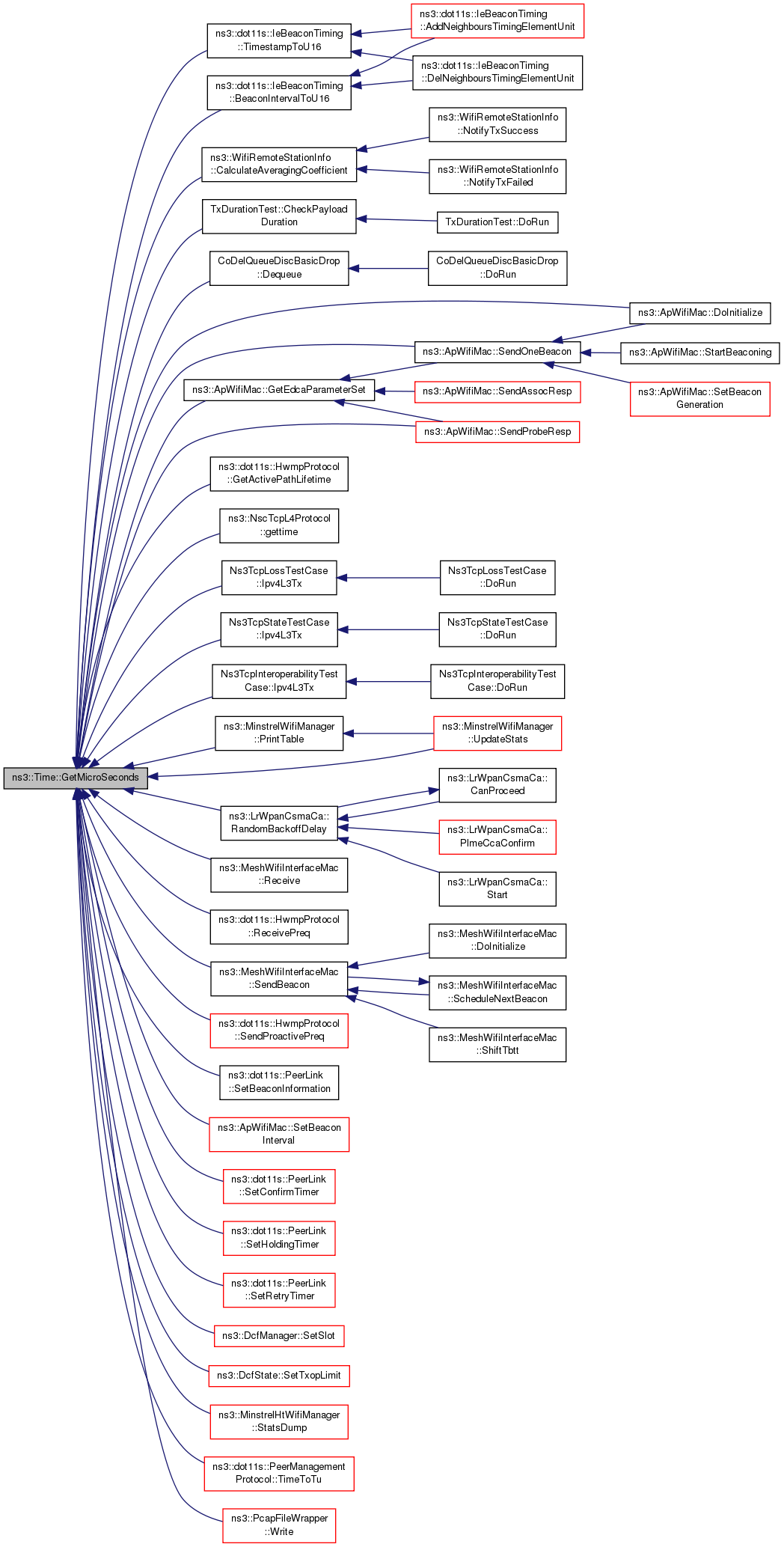

int64_t ns3::Time::GetMilliSeconds ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 345 of file nstime.h.

References MS, and ToInteger().

Referenced by ns3::DefaultChannelScheduler::AssignExtendedAccess(), ns3::TraceFadingLossModel::DoCalcRxPowerSpectralDensity(), ns3::A3RsrpHandoverAlgorithm::DoInitialize(), ns3::LteRlcTm::DoReportBufferStatus(), ns3::LteRlcUm::DoReportBufferStatus(), ns3::LteRlcAm::DoReportBufferStatus(), LenaDataPhyErrorModelTestCase::DoRun(), LenaDlCtrlPhyErrorModelTestCase::DoRun(), LteUeMeasurementsHandoverTestCase::DoRun(), ns3::TcpOptionTS::ElapsedTimeFromTsValue(), ns3::LteSpectrumPhy::EndRxData(), ns3::ChannelCoordinator::GetIntervalTime(), LteHandoverTargetTestCase::HandoverStartCallback(), ns3::TcpVegasTest::IncreaseWindow(), ns3::TcpYeah::IncreaseWindow(), ns3::TraceFadingLossModel::LoadTrace(), JakesPropagationExample::Next(), ChannelCoordinationTestCase::NotifyCchStartNow(), ChannelCoordinationTestCase::NotifyGuardStartNow(), ChannelCoordinationTestCase::NotifySchStartNow(), ns3::TcpOptionTS::NowToTsValue(), PingRtt(), ns3::TcpWestwood::PktsAcked(), ns3::TcpYeah::PktsAcked(), ns3::TcpIllinoisTest::RecalcParam(), ns3::TcpHybla::RecalcParam(), ns3::TcpIllinois::RecalcParam(), ns3::V4Ping::Receive(), ns3::LteUePhy::ReceiveLteControlMessageList(), LteUeMeasurementsPiecewiseTestCase1::RecvMeasurementReportCallback(), LteUeMeasurementsPiecewiseTestCase2::RecvMeasurementReportCallback(), LteUeMeasurementsHandoverTestCase::RecvMeasurementReportCallback(), ns3::aodv::RrepHeader::RrepHeader(), ns3::aodv::RrepHeader::SetHello(), ns3::aodv::RrepHeader::SetLifeTime(), ns3::ChannelCoordinator::StartChannelCoordination(), ns3::LteEnbPhy::StartSubFrame(), ns3::WaveMacLow::StartTransmission(), and ChannelCoordinationTestCase::TestIntervalAfter().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

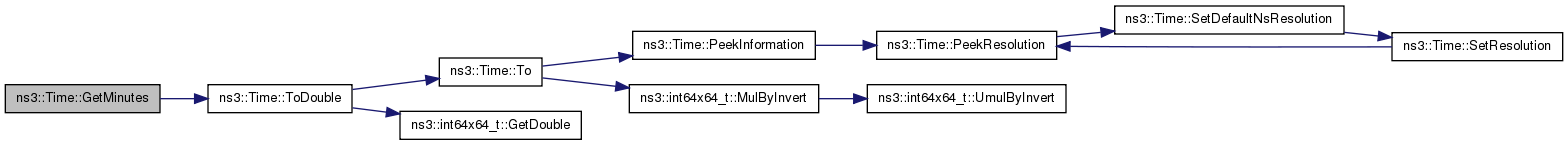

double ns3::Time::GetMinutes ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 337 of file nstime.h.

References MIN, and ToDouble().

+ Here is the call graph for this function:

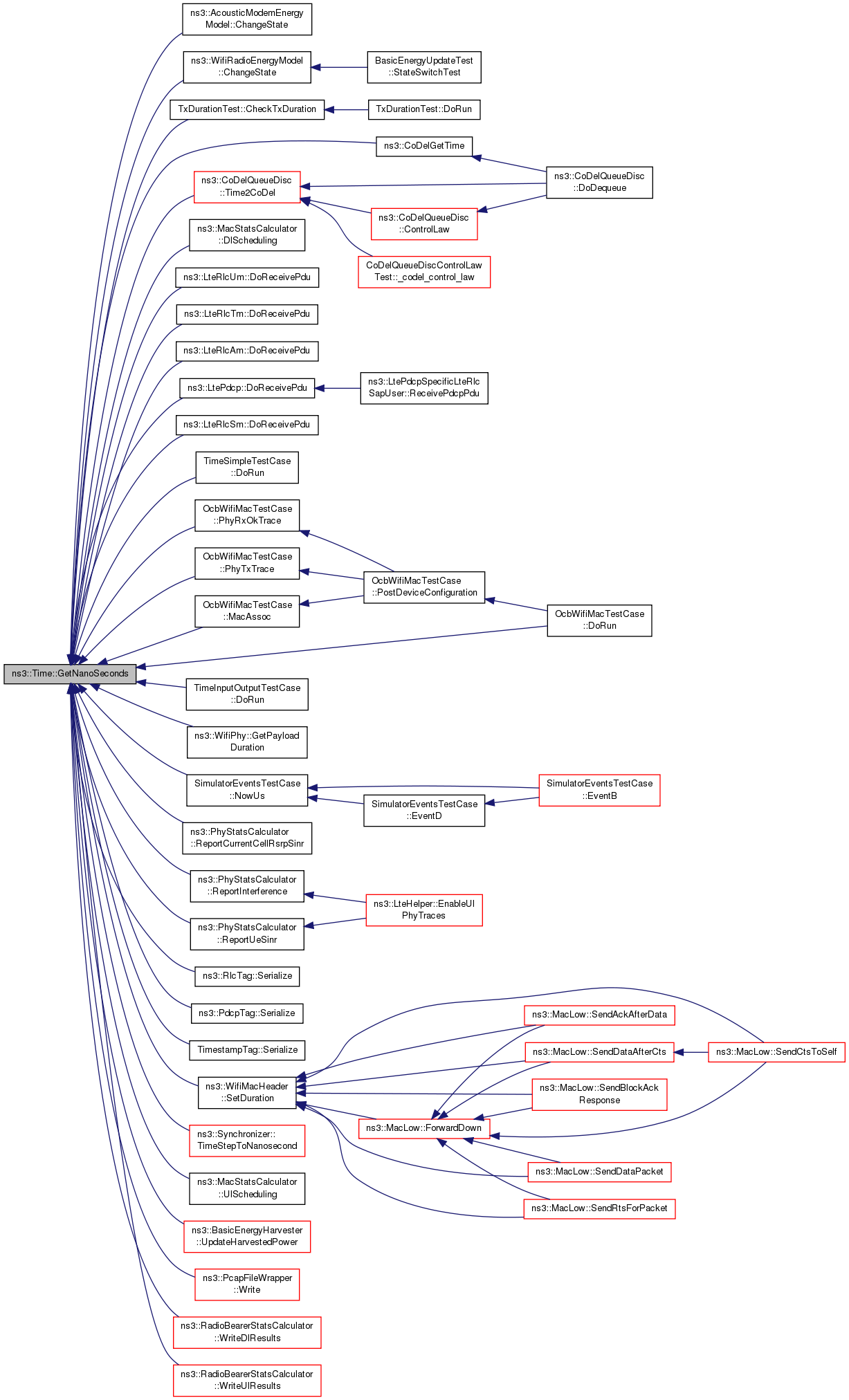

int64_t ns3::Time::GetNanoSeconds ( void  ) const
inline
int64_t ns3::Time::GetPicoSeconds ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 357 of file nstime.h.

References PS, and ToInteger().

+ Here is the call graph for this function:

enum Time::Unit ns3::Time::GetResolution ( void  )
static
Returns
The current global resolution.

Definition at line 380 of file time.cc.

References PeekResolution(), and ns3::Time::Resolution::unit.

Referenced by ns3::operator<<().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

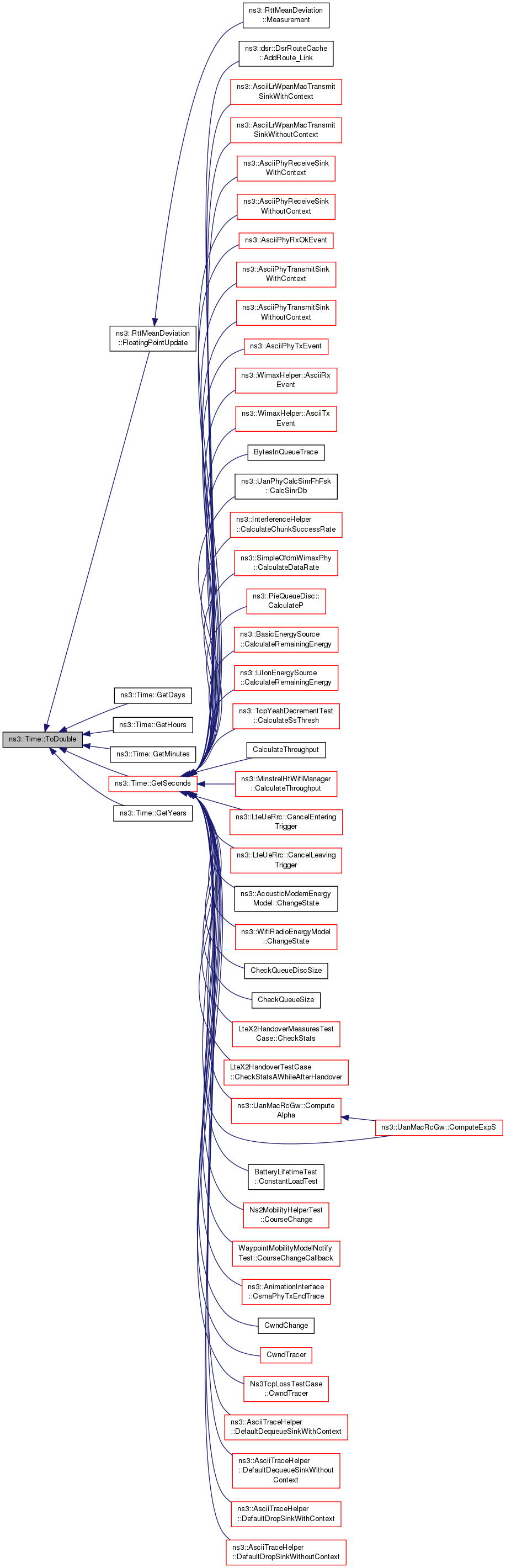

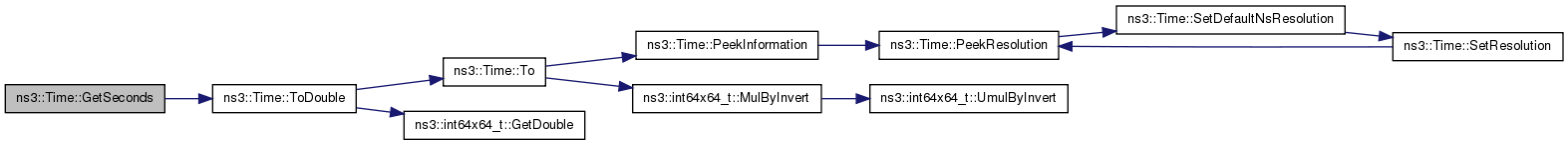

double ns3::Time::GetSeconds ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 341 of file nstime.h.

References S, and ToDouble().

Referenced by ns3::dsr::DsrRouteCache::AddRoute_Link(), ns3::AsciiLrWpanMacTransmitSinkWithContext(), ns3::AsciiLrWpanMacTransmitSinkWithoutContext(), ns3::AsciiPhyReceiveSinkWithContext(), ns3::AsciiPhyReceiveSinkWithoutContext(), ns3::AsciiPhyRxOkEvent(), ns3::AsciiPhyTransmitSinkWithContext(), ns3::AsciiPhyTransmitSinkWithoutContext(), ns3::AsciiPhyTxEvent(), ns3::WimaxHelper::AsciiRxEvent(), ns3::WimaxHelper::AsciiTxEvent(), BytesInQueueTrace(), ns3::UanPhyCalcSinrFhFsk::CalcSinrDb(), ns3::InterferenceHelper::CalculateChunkSuccessRate(), ns3::SimpleOfdmWimaxPhy::CalculateDataRate(), ns3::PieQueueDisc::CalculateP(), ns3::BasicEnergySource::CalculateRemainingEnergy(), ns3::LiIonEnergySource::CalculateRemainingEnergy(), ns3::TcpYeahDecrementTest::CalculateSsThresh(), CalculateThroughput(), ns3::MinstrelHtWifiManager::CalculateThroughput(), ns3::LteUeRrc::CancelEnteringTrigger(), ns3::LteUeRrc::CancelLeavingTrigger(), ns3::AcousticModemEnergyModel::ChangeState(), ns3::WifiRadioEnergyModel::ChangeState(), CheckQueueDiscSize(), CheckQueueSize(), LteX2HandoverMeasuresTestCase::CheckStats(), LteX2HandoverTestCase::CheckStatsAWhileAfterHandover(), ns3::UanMacRcGw::ComputeAlpha(), ns3::UanMacRcGw::ComputeExpS(), BatteryLifetimeTest::ConstantLoadTest(), Ns2MobilityHelperTest::CourseChange(), WaypointMobilityModelNotifyTest::CourseChangeCallback(), ns3::AnimationInterface::CsmaPhyTxEndTrace(), CwndChange(), CwndTracer(), Ns3TcpLossTestCase::CwndTracer(), ns3::AsciiTraceHelper::DefaultDequeueSinkWithContext(), ns3::AsciiTraceHelper::DefaultDequeueSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultDropSinkWithContext(), ns3::AsciiTraceHelper::DefaultDropSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultEnqueueSinkWithContext(), ns3::AsciiTraceHelper::DefaultEnqueueSinkWithoutContext(), ns3::AsciiTraceHelper::DefaultReceiveSinkWithContext(), ns3::AsciiTraceHelper::DefaultReceiveSinkWithoutContext(), ns3::AnimationInterface::DevTxTrace(), ns3::TraceFadingLossModel::DoCalcRxPowerSpectralDensity(), ns3::PieQueueDisc::DoDequeue(), ns3::SimpleOfdmWimaxPhy::DoGetFrameDurationCode(), ns3::SimpleOfdmWimaxPhy::DoGetNrBytes(), ns3::SimpleOfdmWimaxPhy::DoGetNrSymbols(), ns3::dot11s::HwmpProtocol::DoInitialize(), ns3::MeshWifiInterfaceMac::DoInitialize(), ns3::Rip::DoInitialize(), ns3::RipNg::DoInitialize(), ns3::TcpHyblaIncrementTest::DoRun(), LteRlcAmE2eTestCase::DoRun(), ns3::TcpVenoTest::DoRun(), TimeWithSignTestCase::DoRun(), ns3::SimpleOfdmWimaxPhy::DoSetPhyParameters(), ns3::RandomWalk2dMobilityModel::DoWalk(), ns3::GaussMarkovMobilityModel::DoWalk(), ns3::PieQueueDisc::DropEarly(), DroppingStateTracer(), LteHandoverDelayTestCase::EnbHandoverEndOkCallback(), ns3::LteChunkProcessor::End(), ns3::BaseStationNetDevice::EndDlSubFrame(), ns3::BaseStationNetDevice::EndUlSubFrame(), ns3::UanMacCw::Enqueue(), ns3::TcpWestwood::EstimateBW(), ns3::LteChunkProcessor::EvaluateChunk(), ns3::ShannonSpectrumErrorModel::EvaluateChunk(), EveryDropTracer(), ExampleFunction(), ns3::dsr::DsrRouteCache::FindSameRoute(), ns3::SpectrumAnalyzer::GenerateReport(), GenerateTraffic(), ns3::UanMacRcGw::GetExpPdk(), ns3::dsdv::RoutingProtocol::GetSettlingTime(), ns3::TcpWestwood::GetSsThresh(), ns3::JakesProcess::Oscillator::GetValueAt(), GoodputSampling(), MyModel::HandleEvent(), Ipv4DynamicGlobalRoutingTestCase::HandleRead(), HarvestedPower(), ns3::TcpYeahIncrementTest::IncreaseWindow(), ns3::TcpVegas::IncreaseWindow(), ns3::TcpVeno::IncreaseWindow(), ns3::TcpYeah::IncreaseWindow(), ns3::dsr::DsrRouteCache::IncStability(), InFlightTracer(), ns3::RedQueueDisc::InitializeParams(), ns3::SubscriberStationNetDevice::InitSubscriberStationNetDevice(), ns3::aodv::RoutingTableEntry::Invalidate(), ns3::Ipv4L3ProtocolDropSinkWithContext(), ns3::Ipv4L3ProtocolDropSinkWithoutContext(), ns3::Ipv4L3ProtocolRxSinkWithContext(), ns3::Ipv4L3ProtocolRxSinkWithoutContext(), ns3::Ipv4L3ProtocolTxSinkWithContext(), ns3::Ipv4L3ProtocolTxSinkWithoutContext(), Ns3TcpStateTestCase::Ipv4L3Tx(), ns3::Ipv6L3ProtocolDropSinkWithContext(), ns3::Ipv6L3ProtocolDropSinkWithoutContext(), ns3::Ipv6L3ProtocolRxSinkWithContext(), ns3::Ipv6L3ProtocolRxSinkWithoutContext(), ns3::Ipv6L3ProtocolTxSinkWithContext(), ns3::Ipv6L3ProtocolTxSinkWithoutContext(), ns3::ArpCache::Entry::IsExpired(), ns3::DcfManager::IsWithinAifs(), LimitsTrace(), ns3::olsr::RoutingProtocol::LinkSensing(), ns3::aodv::RoutingTable::MarkLinkAsUnidirectional(), ns3::BaseStationNetDevice::MarkUplinkAllocations(), modify(), NextRxTracer(), NextTxTracer(), NotifyConnectionEstablishedEnb(), NotifyConnectionEstablishedUe(), NotifyHandoverEndOkEnb(), NotifyHandoverEndOkUe(), NotifyHandoverStartEnb(), NotifyHandoverStartUe(), ns3::UanMacCw::NotifyTxStart(), NotifyViaTraceSource(), ns3::CoDelQueueDisc::OkToDrop(), ns3::operator*(), ns3::operator<<(), LrWpanCcaTestCase::PhyRxBegin(), LrWpanCcaTestCase::PhyRxDrop(), LrWpanCcaTestCase::PhyRxEnd(), PhyStateTrace(), LrWpanCcaTestCase::PhyTxBegin(), LrWpanCcaTestCase::PhyTxEnd(), ns3::TcpHtcp::PktsAcked(), LrWpanCcaTestCase::PlmeCcaConfirm(), ns3::SeqTsHeader::Print(), ns3::UanHeaderRcData::Print(), ns3::dsdv::RoutingTableEntry::Print(), ns3::UanHeaderRcRts::Print(), ns3::UanHeaderRcCtsGlobal::Print(), ns3::UanHeaderRcCts::Print(), ns3::Ipv4RoutingHelper::PrintArpCache(), ns3::Ipv4RoutingHelper::PrintArpCacheEvery(), PrintCellInfo(), IpAddressHelper::PrintIpAddresses(), ns3::Ipv6RoutingHelper::PrintNdiscCache(), ns3::Ipv6RoutingHelper::PrintNdiscCacheEvery(), PrintReceivedPacket(), PrintReceivedRoutingPacket(), ns3::UplinkSchedulerMBQoS::ProcessBandwidthRequest(), ns3::AnimationInterface::PurgePendingPackets(), RandomFunction(), WaveNetDeviceExample::Receive(), ns3::UanMacRc::ReceiveOkFromPhy(), WaveNetDeviceExample::ReceiveVsa(), ns3::dsdv::RoutingProtocol::RecvDsdv(), RemainingEnergy(), RemainingEnergyTrace(), ns3::dot11s::HwmpProtocol::Report(), ns3::flame::FlameProtocol::Report(), ns3::dot11s::PeerLink::Report(), ns3::MeshWifiInterfaceMac::Report(), ns3::MeshHelper::Report(), ns3::FlowMonitor::ReportLastRx(), SampleEmitter::Reschedule(), NetAnimExperiment::ResetData(), Experiment::ResetData(), RtoTracer(), ns3::RttEstimator::RttEstimator(), ns3::TcpRttEstimationTest::RttTrace(), RttTracer(), ns3::RvBatteryModel::RvModelAFunction(), ns3::TcpZeroWindowTest::Rx(), ns3::UanMacRc::ScheduleData(), ns3::aodv::RoutingProtocol::ScheduleRreqRetry(), ns3::dsr::DsrRouting::ScheduleRreqRetry(), ns3::TcpGeneralTest::SendPacket(), ns3::aodv::RoutingProtocol::SendRerrMessage(), ns3::aodv::RoutingProtocol::SendRerrWhenNoRouteToForward(), ns3::Rip::SendTriggeredRouteUpdate(), ns3::RipNg::SendTriggeredRouteUpdate(), ns3::Rip::SendUnsolicitedRouteUpdate(), ns3::RipNg::SendUnsolicitedRouteUpdate(), ns3::UanHeaderRcData::Serialize(), ns3::UanHeaderRcRts::Serialize(), ns3::UanHeaderRcCtsGlobal::Serialize(), ns3::UanHeaderRcCts::Serialize(), ns3::dot11s::PeerLink::SetBeaconInformation(), ns3::SimpleDeviceEnergyModel::SetCurrentA(), ns3::olsr::MessageHeader::Hello::SetHTime(), ns3::PointToPointNetDevice::SetInterframeGap(), ns3::UanPdp::SetTap(), ns3::TimeProbe::SetValue(), ns3::TimeProbe::SetValueByPath(), ns3::olsr::MessageHeader::SetVTime(), showPosition(), SocketPrinter(), SsThreshTracer(), ns3::dsr::DsrRouting::Start(), ns3::UanMacRcGw::StartCycle(), ns3::BaseStationNetDevice::StartDlSubFrame(), Ns3TcpStateTestCase::StartFlow(), Ns3TcpLossTestCase::StartFlow(), ns3::BaseStationNetDevice::StartFrame(), ns3::UanMacCw::StartTimer(), ns3::BaseStationNetDevice::StartUlSubFrame(), NodeStatistics::StateCallback(), StateChangeNotification(), ns3::UanPdp::SumTapsC(), ns3::UanPdp::SumTapsFromMaxC(), ns3::UanPdp::SumTapsFromMaxNc(), ns3::UanPdp::SumTapsNc(), TestDeterministicByTime(), ns3::TimePrinter(), TotalEnergy(), TotalEnergyHarvested(), ns3::TimeProbe::TraceSink(), ns3::CsmaNetDevice::TransmitCompleteEvent(), ns3::CsmaChannel::TransmitEnd(), ns3::PointToPointNetDevice::TransmitStart(), ns3::CsmaNetDevice::TransmitStart(), ns3::TcpZeroWindowTest::Tx(), LteHandoverDelayTestCase::UeHandoverEndOkCallback(), ns3::ConstantVelocityHelper::Update(), ns3::TcpHtcp::UpdateAlpha(), ns3::BasicEnergyHarvester::UpdateHarvestedPower(), BatteryLifetimeTest::VariableLoadTest(), ns3::WriteAveragePowerSpectralDensityReport(), Ns3TcpStateTestCase::WriteUntilBufferFull(), and Ns3TcpLossTestCase::WriteUntilBufferFull().

+ Here is the call graph for this function:

double ns3::Time::GetYears ( void  ) const
inline

Get an approximation of the time stored in this instance in the indicated unit.

Returns
An approximate value in the indicated unit.

Definition at line 325 of file nstime.h.

References ToDouble(), and Y.

+ Here is the call graph for this function:

bool ns3::Time::IsNegative ( void  ) const
inline
Returns
true if the time is negative or zero, false otherwise.

Definition at line 279 of file nstime.h.

References m_data.

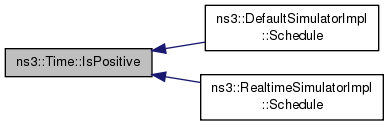

bool ns3::Time::IsPositive ( void  ) const
inline
Returns
true if the time is positive or zero, false otherwise.

Definition at line 284 of file nstime.h.

References m_data.

Referenced by ns3::DefaultSimulatorImpl::Schedule(), and ns3::RealtimeSimulatorImpl::Schedule().

+ Here is the caller graph for this function:

bool ns3::Time::IsStrictlyNegative ( void  ) const
inline
Returns
true if the time is strictly negative, false otherwise.

Definition at line 289 of file nstime.h.

References m_data.

bool ns3::Time::IsStrictlyPositive ( void  ) const
inline
Returns
true if the time is strictly positive, false otherwise.

Definition at line 294 of file nstime.h.

References m_data.

void ns3::Time::Mark ( Time *const  time)
staticprivate

Record a Time instance with the MarkedTimes.

Parameters
[in]timeThe Time instance to record.

Definition at line 287 of file time.cc.

References g_markingTimes, GetMarkingMutex(), NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_LOGIC, and NS_LOG_WARN.

Referenced by Time().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

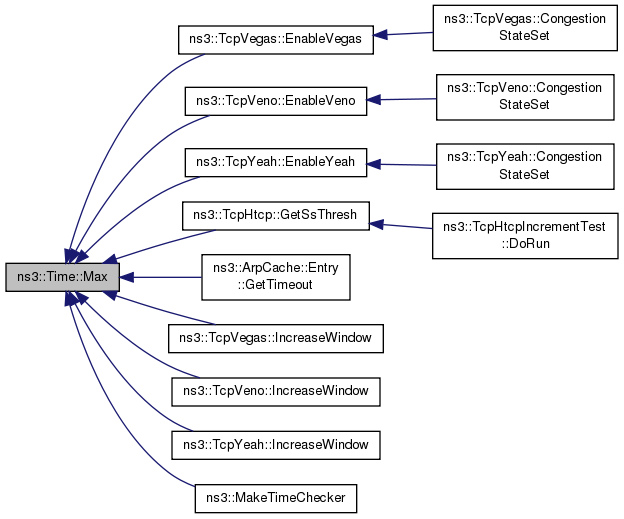

static Time ns3::Time::Max ( )
inlinestatic

Maximum representable Time.

Definition at line 259 of file nstime.h.

References max, and Time().

Referenced by ns3::TcpVegas::EnableVegas(), ns3::TcpVeno::EnableVeno(), ns3::TcpYeah::EnableYeah(), ns3::TcpHtcp::GetSsThresh(), ns3::ArpCache::Entry::GetTimeout(), ns3::TcpVegas::IncreaseWindow(), ns3::TcpVeno::IncreaseWindow(), ns3::TcpYeah::IncreaseWindow(), and ns3::MakeTimeChecker().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

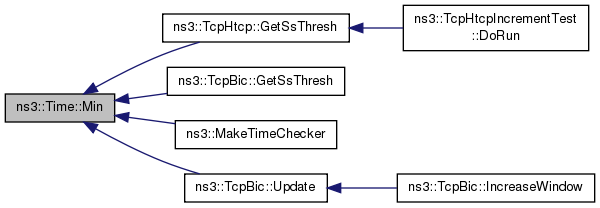

static Time ns3::Time::Min ( )
inlinestatic

Minimum representable Time.

Definition at line 254 of file nstime.h.

References min, and Time().

Referenced by ns3::TcpHtcp::GetSsThresh(), ns3::TcpBic::GetSsThresh(), ns3::MakeTimeChecker(), and ns3::TcpBic::Update().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

ns3::Time::operator int64x64_t ( ) const
inline

Cast to int64x64_t.

Definition at line 513 of file nstime.h.

References m_data.

Time& ns3::Time::operator= ( const Time o)
inline

Assignment operator.

Parameters
[in]oTime to assign.
Returns
The Time.

Definition at line 128 of file nstime.h.

References m_data.

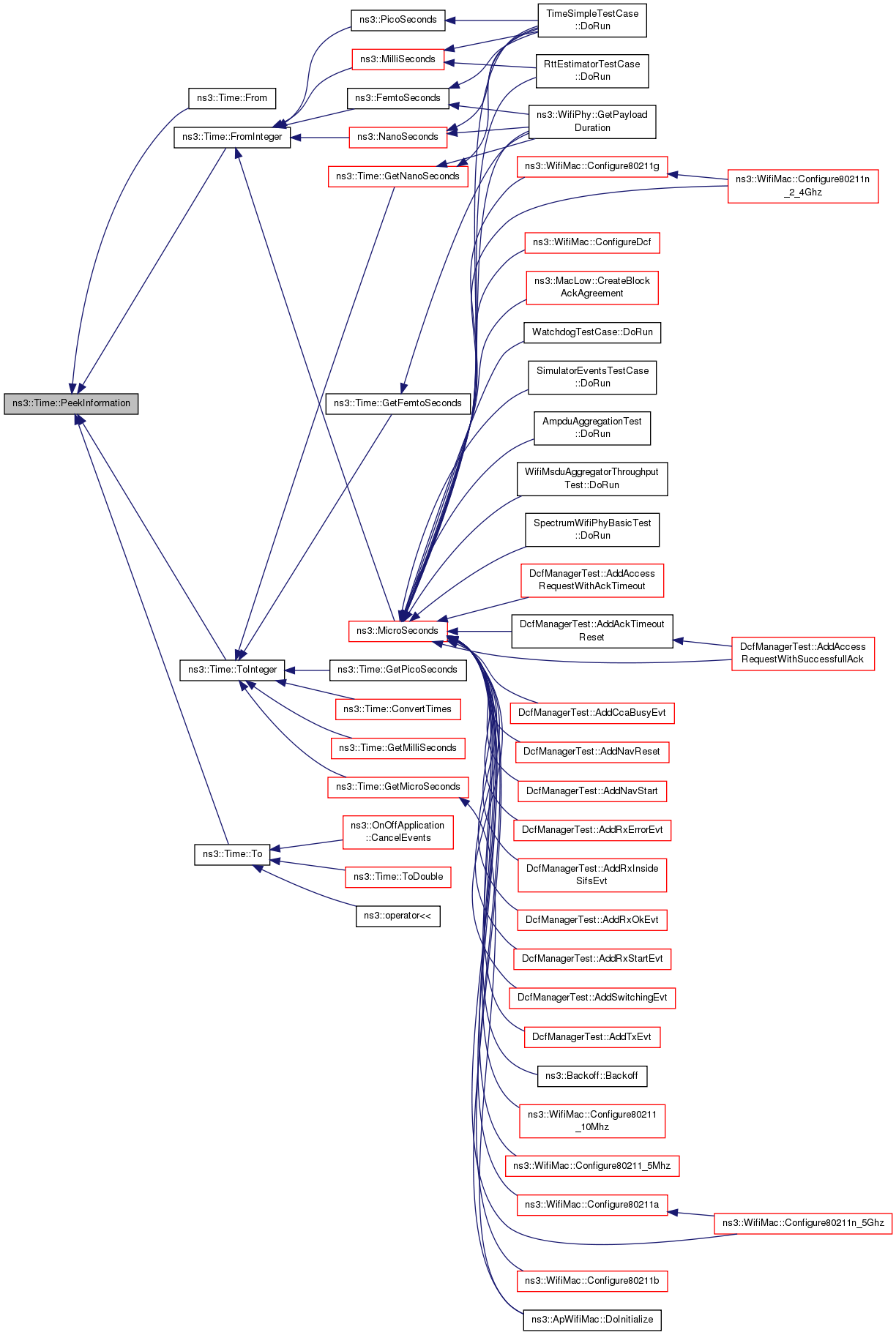

static struct Information* ns3::Time::PeekInformation ( enum Unit  timeUnit)
inlinestaticprivate

Get the Information record for timeUnit for the current Resolution.

Parameters
[in]timeUnitThe Unit to get Information for
Returns
The Information for timeUnit

Definition at line 567 of file nstime.h.

References ns3::Time::Resolution::info, and PeekResolution().

Referenced by From(), FromInteger(), To(), and ToInteger().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

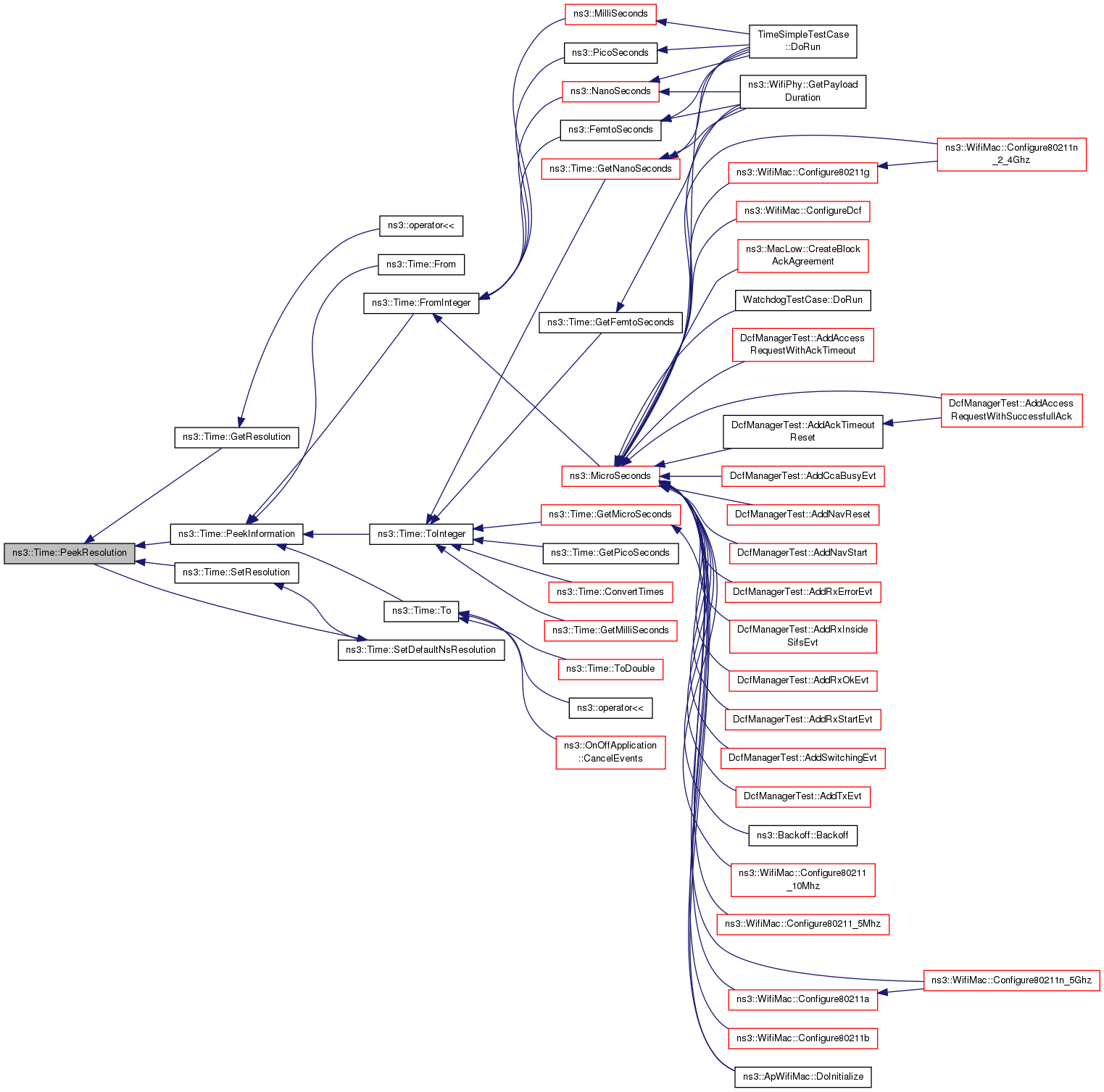

static struct Resolution* ns3::Time::PeekResolution ( void  )
inlinestaticprivate

Get the current Resolution.

Returns
A pointer to the current Resolution

Definition at line 556 of file nstime.h.

References SetDefaultNsResolution().

Referenced by GetResolution(), PeekInformation(), and SetResolution().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

struct Time::Resolution ns3::Time::SetDefaultNsResolution ( void  )
staticprivate

Set the default resolution.

Returns
The Resolution object for the default resolution.

Definition at line 170 of file time.cc.

References NS, NS_LOG_FUNCTION_NOARGS, and SetResolution().

Referenced by PeekResolution().

+ Here is the call graph for this function:

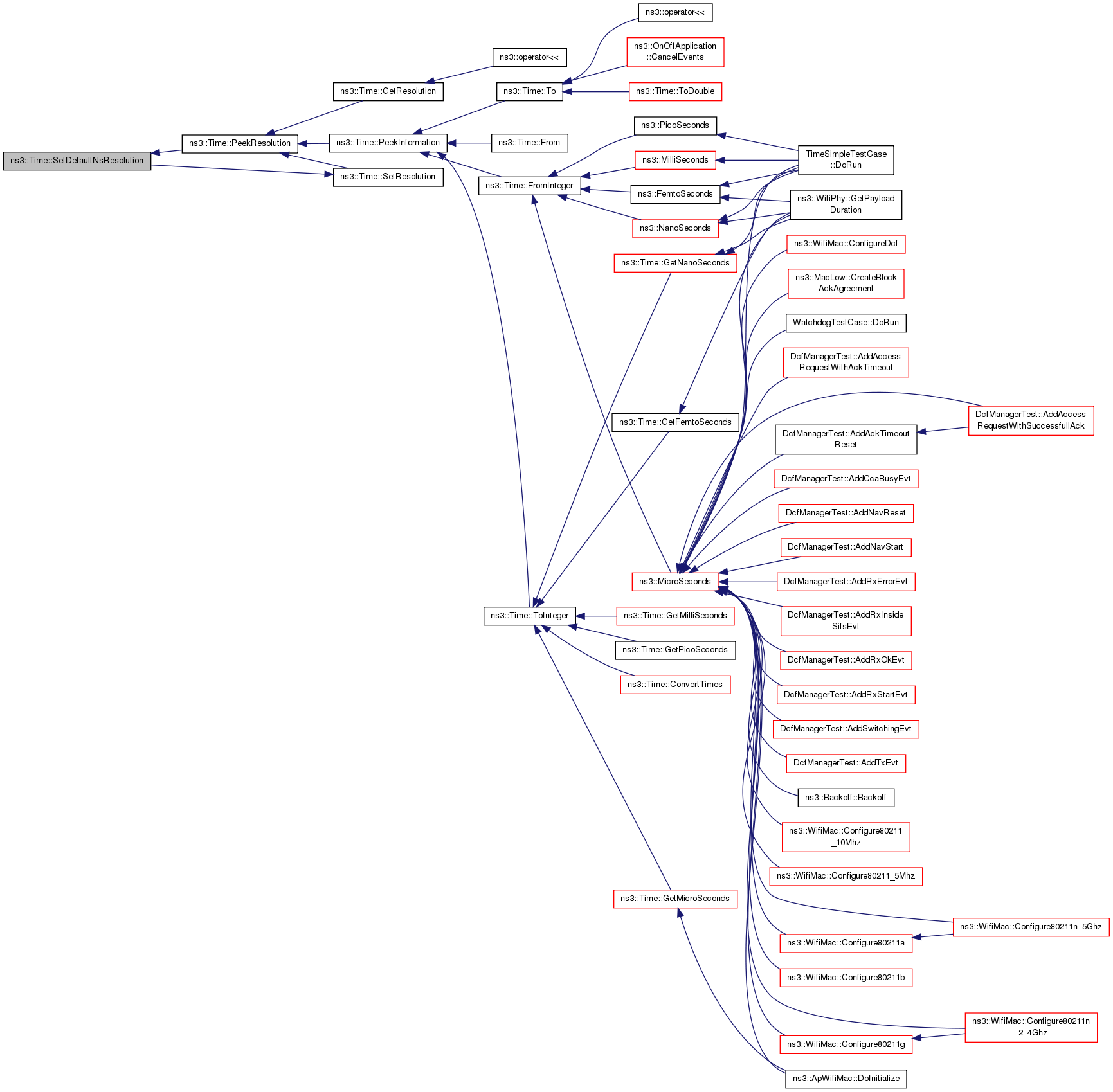

+ Here is the caller graph for this function:

void ns3::Time::SetResolution ( enum Unit  resolution)
static
Parameters
[in]resolutionThe new resolution to use

Change the global resolution used to convert all user-provided time values in Time objects and Time objects in user-expected time units.

Definition at line 180 of file time.cc.

References NS_LOG_FUNCTION, and PeekResolution().

Referenced by SetDefaultNsResolution().

+ Here is the call graph for this function:

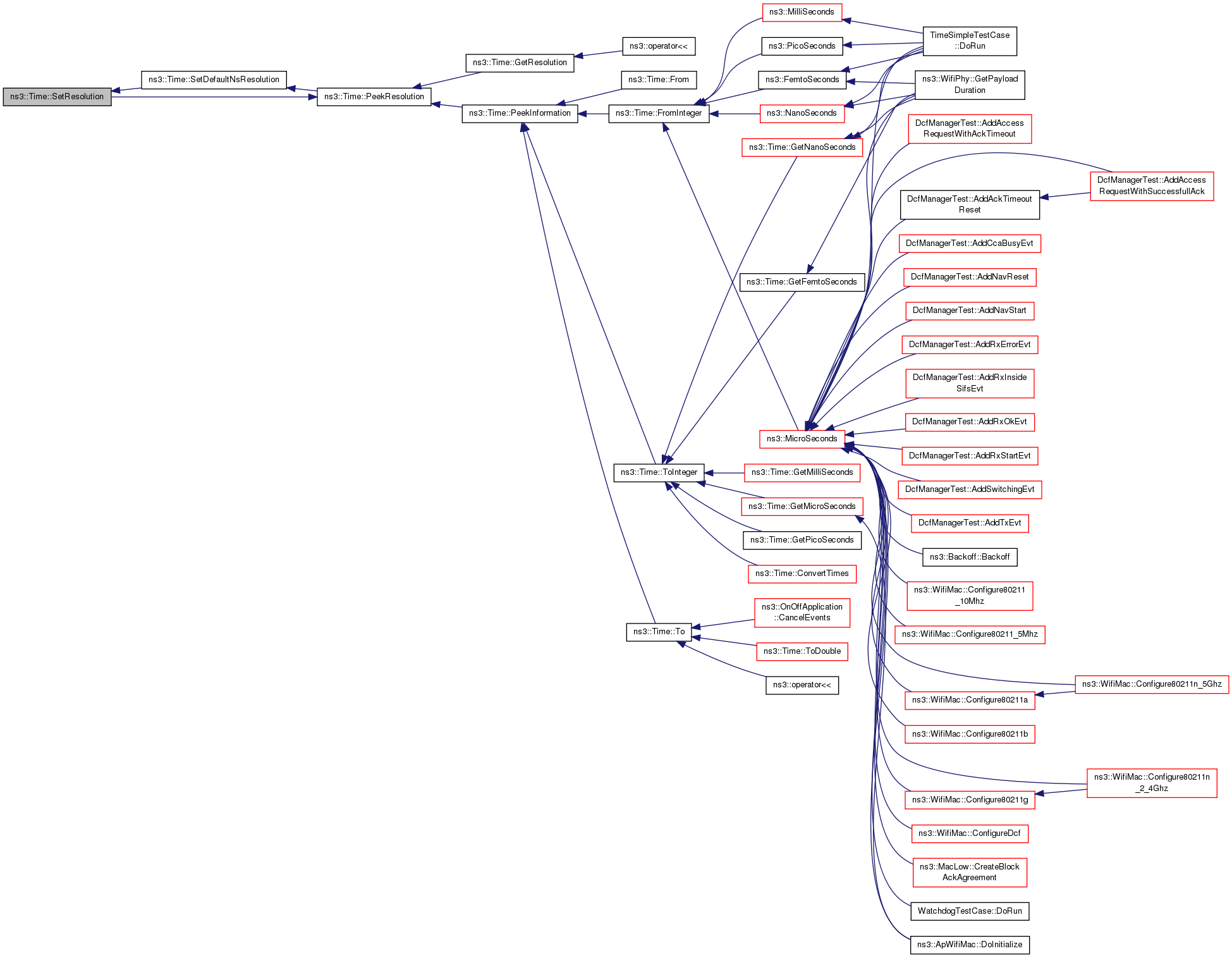

+ Here is the caller graph for this function:

void ns3::Time::SetResolution ( enum Unit  unit,
struct Resolution resolution,
const bool  convert = true
)
staticprivate

Set the current Resolution.

Parameters
[in]unitThe unit to use as the new resolution.
[in,out]resolutionThe Resolution record to update.
[in]convertWhether to convert existing Time objects to the new resolution.

Definition at line 189 of file time.cc.

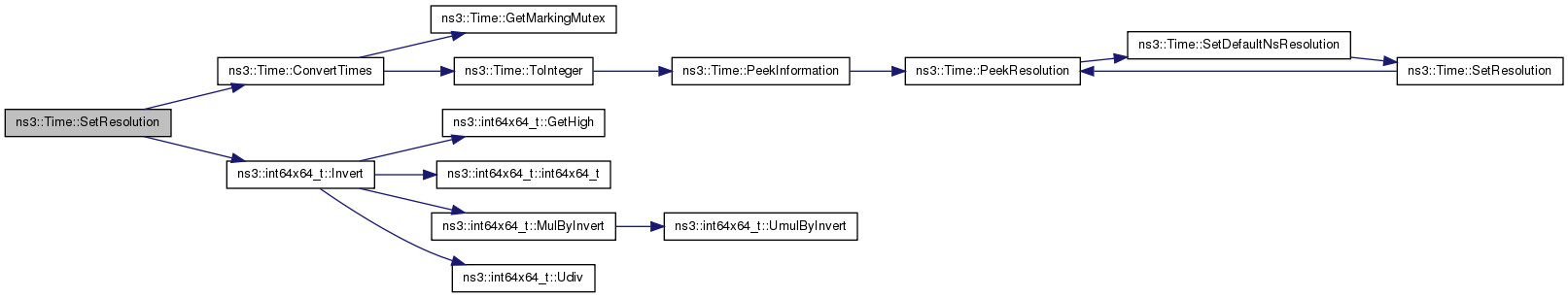

References ConvertTimes(), ns3::Time::Information::factor, ns3::Time::Information::fromMul, ns3::Time::Resolution::info, ns3::int64x64_t::Invert(), LAST, NS_ASSERT, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::Time::Information::timeFrom, ns3::Time::Information::timeTo, ns3::Time::Information::toMul, and ns3::Time::Resolution::unit.

+ Here is the call graph for this function:

bool ns3::Time::StaticInit ( )
static

Function to force static initialization of Time.

Returns
true on the first call

Definition at line 63 of file time.cc.

References g_markingTimes, GetMarkingMutex(), and NS_LOG_ERROR.

+ Here is the call graph for this function:

int64x64_t ns3::Time::To ( enum Unit  unit) const
inline

Get the Time value expressed in a particular unit.

Parameters
[in]unitThe desired unit
Returns
The Time expressed in unit

Definition at line 495 of file nstime.h.

References m_data, ns3::int64x64_t::MulByInvert(), PeekInformation(), ns3::Time::Information::timeTo, and ns3::Time::Information::toMul.

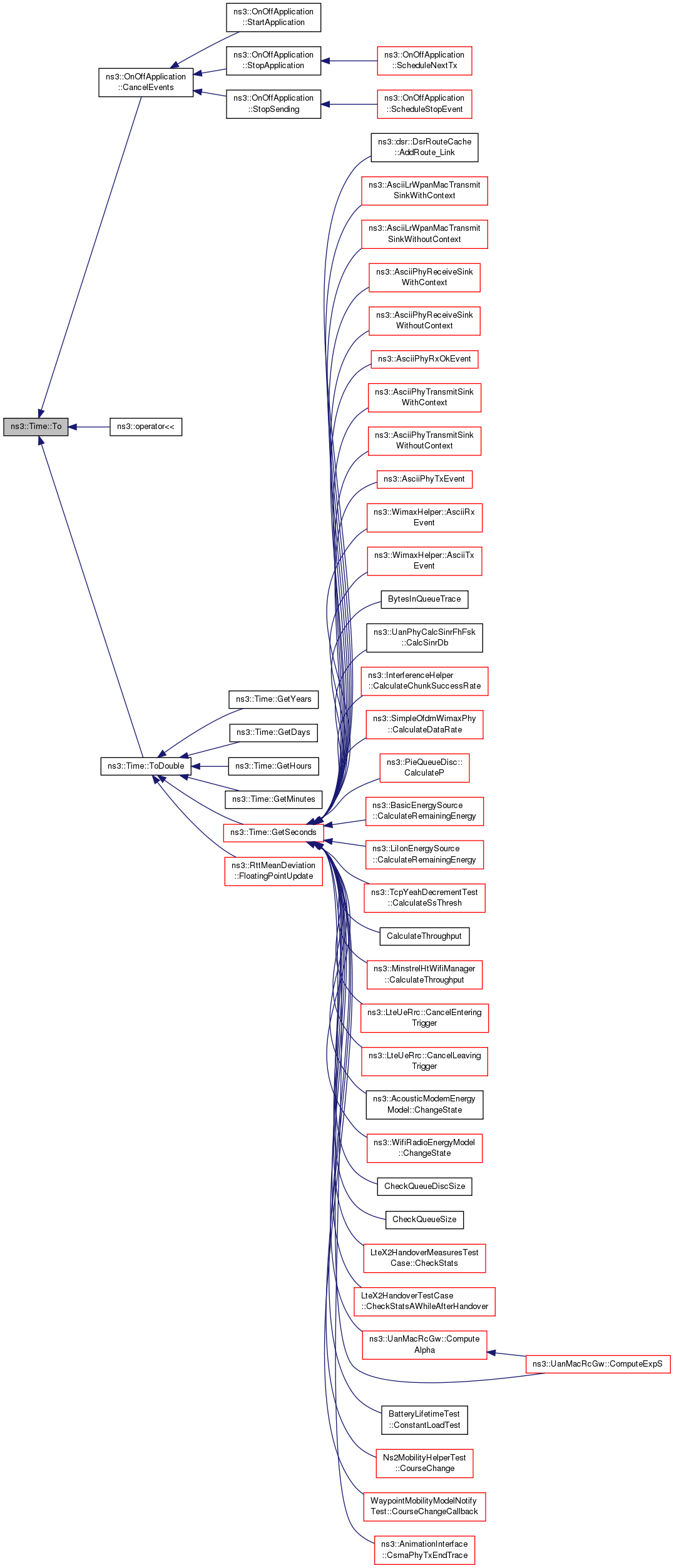

Referenced by ns3::OnOffApplication::CancelEvents(), ns3::operator<<(), and ToDouble().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

double ns3::Time::ToDouble ( enum Unit  unit) const
inline

Get the Time value expressed in a particular unit.

Parameters
[in]unitThe desired unit
Returns
The Time expressed in unit

Definition at line 491 of file nstime.h.

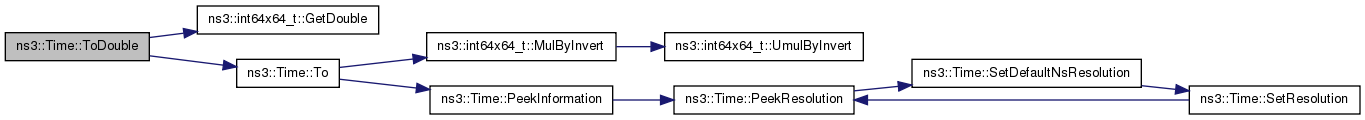

References ns3::int64x64_t::GetDouble(), and To().

Referenced by ns3::RttMeanDeviation::FloatingPointUpdate(), GetDays(), GetHours(), GetMinutes(), GetSeconds(), and GetYears().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

int64_t ns3::Time::ToInteger ( enum Unit  unit) const
inline

Get the Time value expressed in a particular unit.

Parameters
[in]unitThe desired unit
Returns
The Time expressed in unit

Definition at line 477 of file nstime.h.

References ns3::Time::Information::factor, m_data, PeekInformation(), and ns3::Time::Information::toMul.

Referenced by ConvertTimes(), GetFemtoSeconds(), GetMicroSeconds(), GetMilliSeconds(), GetNanoSeconds(), and GetPicoSeconds().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Friends And Related Function Documentation

Time Abs ( const Time time)
friend

Absolute value function for Time.

Parameters
[in]timeThe input value
Returns
The absolute value of the input value.

Definition at line 803 of file nstime.h.

SystemMutex & GetMarkingMutex ( )
related
Internal:
Get mutex for critical sections around modification of Time::g_markingTimes
Returns
The static mutex to control access to Time::g_markingTimes.

Definition at line 54 of file time.cc.

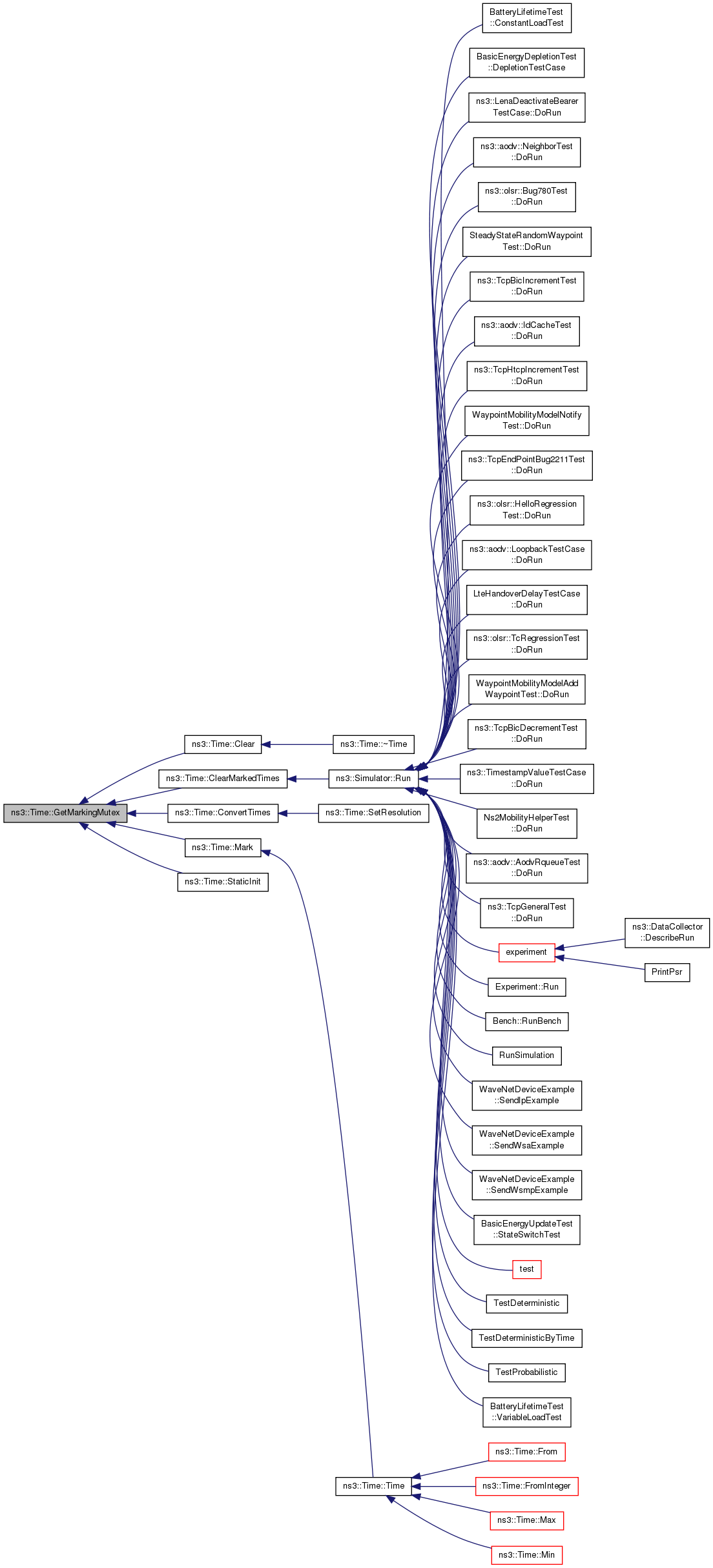

Referenced by Clear(), ClearMarkedTimes(), ConvertTimes(), Mark(), and StaticInit().

+ Here is the caller graph for this function:

Time Max ( const Time ta,
const Time tb
)
friend

Max function for Time.

Parameters
[in]taThe first value
[in]tbThe seconds value
Returns
The max of the two input values.

Definition at line 807 of file nstime.h.

Time Min ( const Time ta,
const Time tb
)
friend

Min function for Time.

Parameters
[in]taThe first value
[in]tbThe seconds value
Returns
The min of the two input values.

Definition at line 811 of file nstime.h.

bool operator!= ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 732 of file nstime.h.

Time operator* ( const Time lhs,
const int64_t &  rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 765 of file nstime.h.

Time operator* ( const int64_t &  lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 772 of file nstime.h.

Time operator+ ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 756 of file nstime.h.

Time& operator+= ( Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 791 of file nstime.h.

Time operator- ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 760 of file nstime.h.

Time& operator-= ( Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 796 of file nstime.h.

int64_t operator/ ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 779 of file nstime.h.

Time operator/ ( const Time lhs,
const int64_t &  rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 785 of file nstime.h.

bool operator< ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 747 of file nstime.h.

bool operator<= ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 737 of file nstime.h.

bool operator== ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 727 of file nstime.h.

bool operator> ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 752 of file nstime.h.

bool operator>= ( const Time lhs,
const Time rhs
)
friend

Arithmetic operator.

Parameters
[in]lhsLeft hand argument
[in]rhsRight hand argument
Returns
The result of the operator.

Definition at line 742 of file nstime.h.

friend class Simulator
friend

Definition at line 635 of file nstime.h.

Member Data Documentation

Time::MarkedTimes * ns3::Time::g_markingTimes = 0
staticprivate

Record of outstanding Time objects which will need conversion when the resolution is set.

Internal:

Use a classic static variable so we can check in Time ctors without a function call.

We'd really like to initialize this here, but we don't want to require C++0x, so we init in time.cc. To ensure that happens before first use, we add a call to StaticInit (below) to every compilation unit which includes nstime.h.

Definition at line 622 of file nstime.h.

Referenced by Clear(), ClearMarkedTimes(), ConvertTimes(), Mark(), StaticInit(), Time(), and ~Time().


The documentation for this class was generated from the following files:
