ns3::AdhocAlohaNoackIdealPhyHelper Class Reference

create the AlohaNoackNetDevice More...

#include "adhoc-aloha-noack-ideal-phy-helper.h"

Collaboration diagram for ns3::AdhocAlohaNoackIdealPhyHelper:

Public Member Functions
	AdhocAlohaNoackIdealPhyHelper ()
	~AdhocAlohaNoackIdealPhyHelper ()
NetDeviceContainer	Install (NodeContainer c) const
NetDeviceContainer	Install (Ptr< Node > node) const
NetDeviceContainer	Install (std::string nodeName) const
void	SetAntenna (std::string type, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())
void	SetChannel (Ptr< SpectrumChannel > channel)
	set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper More...
void	SetChannel (std::string channelName)
	set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper More...
void	SetDeviceAttribute (std::string n1, const AttributeValue &v1)
void	SetNoisePowerSpectralDensity (Ptr< SpectrumValue > noisePsd)
void	SetPhyAttribute (std::string name, const AttributeValue &v)
void	SetTxPowerSpectralDensity (Ptr< SpectrumValue > txPsd)

Protected Attributes
ObjectFactory	m_antenna
	Object factory for the Antenna objects. More...
Ptr< SpectrumChannel >	m_channel
	Channel. More...
ObjectFactory	m_device
	Object factory for the NetDevice objects. More...
Ptr< SpectrumValue >	m_noisePsd
	Noise power spectral density. More...
ObjectFactory	m_phy
	Object factory for the phy objects. More...
ObjectFactory	m_queue
	Object factory for the Queue objects. More...
Ptr< SpectrumValue >	m_txPsd
	Tx power spectral density. More...

Detailed Description

create the AlohaNoackNetDevice

Definition at line 42 of file adhoc-aloha-noack-ideal-phy-helper.h.

Constructor & Destructor Documentation

ns3::AdhocAlohaNoackIdealPhyHelper::AdhocAlohaNoackIdealPhyHelper

(

)

Definition at line 41 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_antenna, m_device, m_phy, m_queue, and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

ns3::AdhocAlohaNoackIdealPhyHelper::~AdhocAlohaNoackIdealPhyHelper

(

)

Definition at line 49 of file adhoc-aloha-noack-ideal-phy-helper.cc.

Member Function Documentation

NetDeviceContainer ns3::AdhocAlohaNoackIdealPhyHelper::Install

(

NodeContainer

c

)

const

Parameters

c	the set of nodes on which a device must be created

Returns

a device container which contains all the devices created by this method.

Definition at line 118 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References ns3::NetDeviceContainer::Add(), ns3::Node::AddDevice(), ns3::Mac48Address::Allocate(), ns3::NodeContainer::Begin(), ns3::ObjectFactory::Create(), first::devices, ns3::NodeContainer::End(), ns3::Object::GetObject(), m_antenna, m_channel, m_device, m_noisePsd, m_phy, m_queue, m_txPsd, ns3::MakeCallback(), ns3::AlohaNoackNetDevice::NotifyReceptionEndOk(), ns3::AlohaNoackNetDevice::NotifyReceptionStart(), ns3::AlohaNoackNetDevice::NotifyTransmissionEnd(), NS_ASSERT, NS_ASSERT_MSG, third::phy, and ns3::HalfDuplexIdealPhy::StartTx().

Referenced by SpectrumIdealPhyTestCase::DoRun(), and Install().

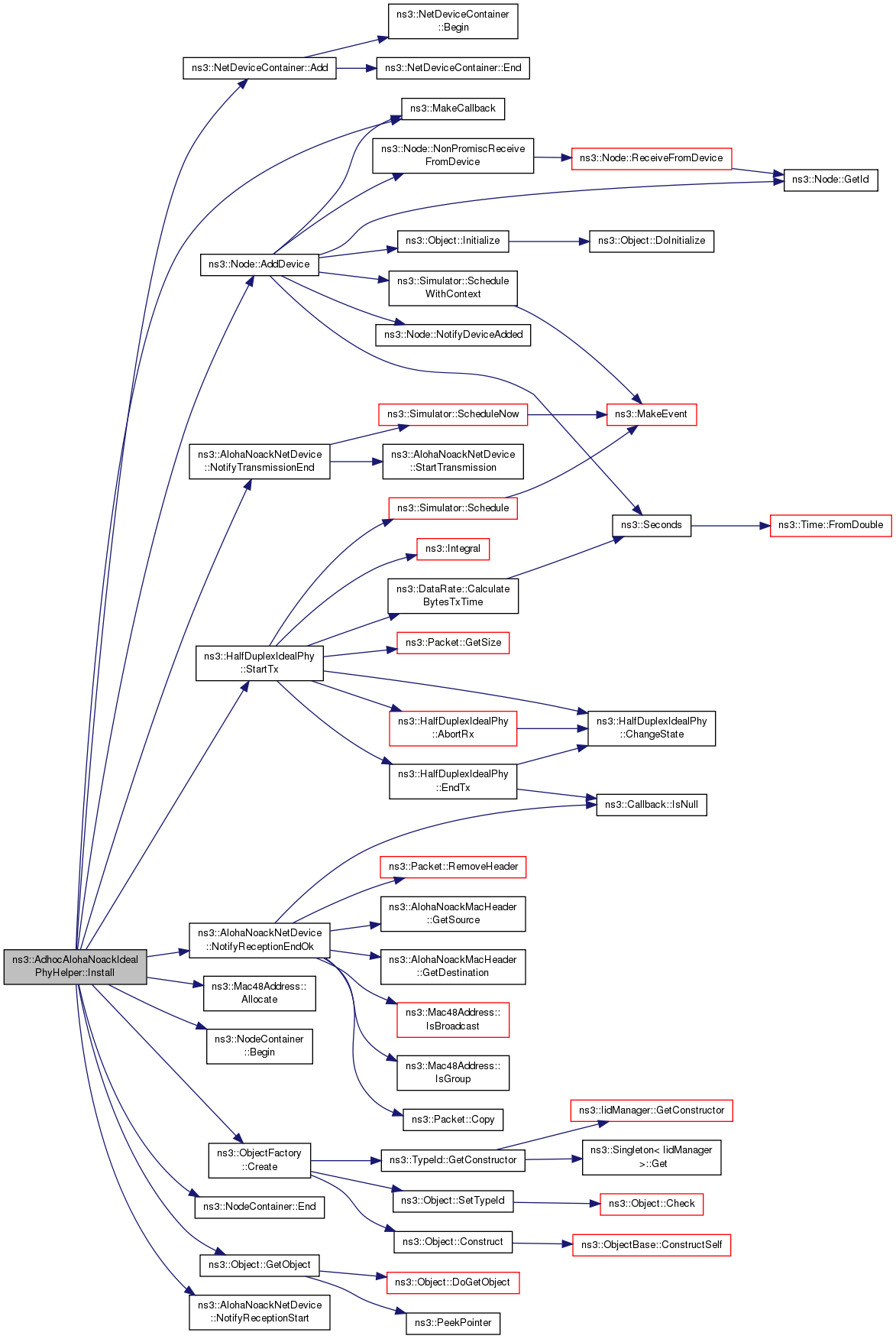

Here is the call graph for this function:

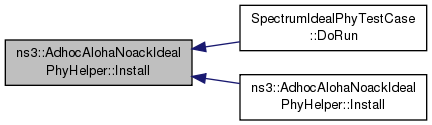

Here is the caller graph for this function:

NetDeviceContainer ns3::AdhocAlohaNoackIdealPhyHelper::Install

(

Ptr< Node >

node

)

const

Parameters

node	the node on which a device must be created

Returns

a device container which contains all the devices created by this method.

Definition at line 173 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References Install().

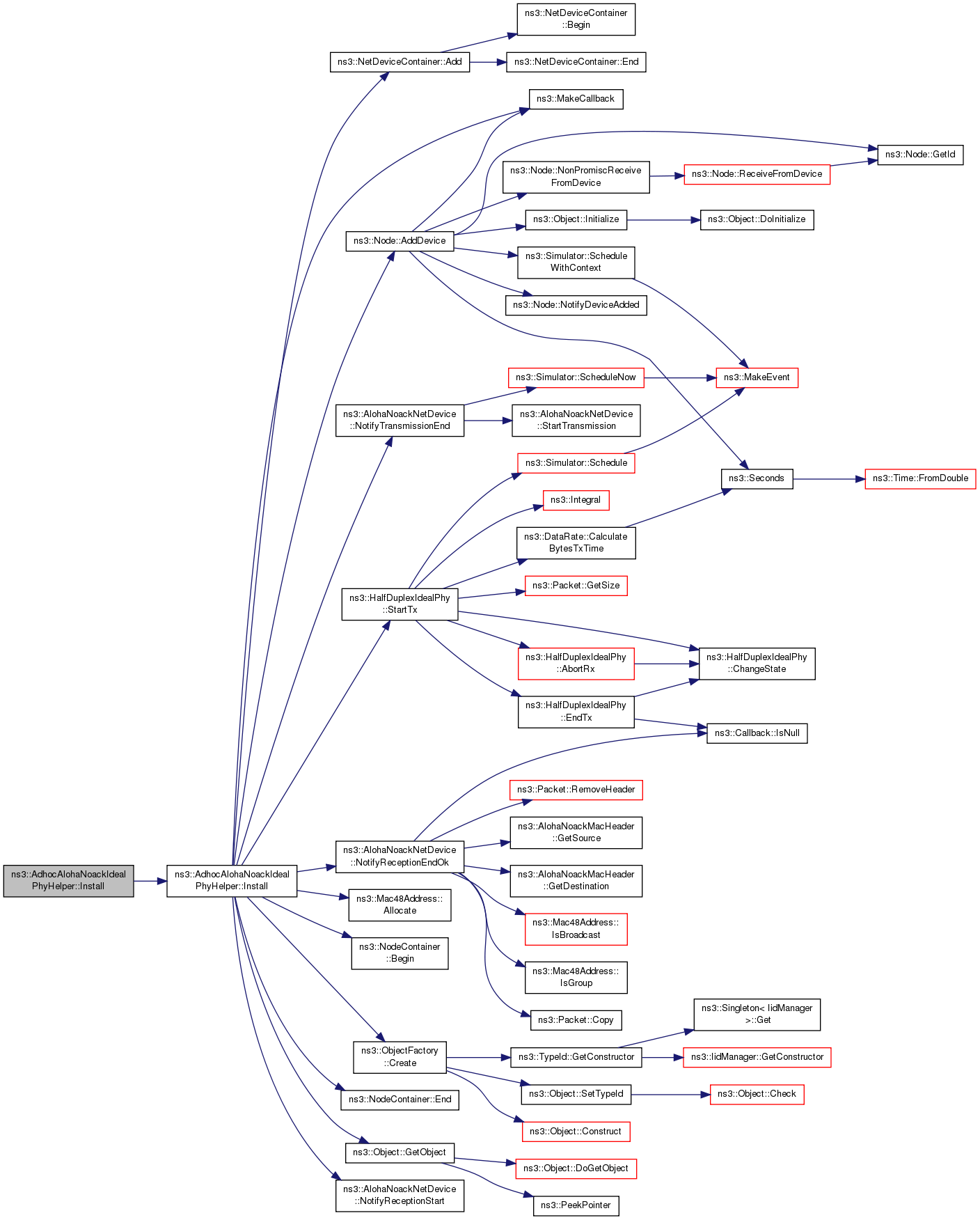

Here is the call graph for this function:

NetDeviceContainer ns3::AdhocAlohaNoackIdealPhyHelper::Install

(

std::string

nodeName

)

const

Parameters

nodeName

the name of node on which a device must be created

Returns

a device container which contains all the devices created by this method.

Definition at line 179 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References Install().

Here is the call graph for this function:

void ns3::AdhocAlohaNoackIdealPhyHelper::SetAntenna	(	std::string	type,
		std::string	n0 = "",
		const AttributeValue &	v0 = EmptyAttributeValue (),
		std::string	n1 = "",
		const AttributeValue &	v1 = EmptyAttributeValue (),
		std::string	n2 = "",
		const AttributeValue &	v2 = EmptyAttributeValue (),
		std::string	n3 = "",
		const AttributeValue &	v3 = EmptyAttributeValue (),
		std::string	n4 = "",
		const AttributeValue &	v4 = EmptyAttributeValue (),
		std::string	n5 = "",
		const AttributeValue &	v5 = EmptyAttributeValue (),
		std::string	n6 = "",
		const AttributeValue &	v6 = EmptyAttributeValue (),
		std::string	n7 = "",
		const AttributeValue &	v7 = EmptyAttributeValue ()
	)

Parameters

type	the type of the model to set
n0	the name of the attribute to set
v0	the value of the attribute to set
n1	the name of the attribute to set
v1	the value of the attribute to set
n2	the name of the attribute to set
v2	the value of the attribute to set
n3	the name of the attribute to set
v3	the value of the attribute to set
n4	the name of the attribute to set
v4	the value of the attribute to set
n5	the name of the attribute to set
v5	the value of the attribute to set
n6	the name of the attribute to set
v6	the value of the attribute to set
n7	the name of the attribute to set
v7	the value of the attribute to set

Configure the AntennaModel instance for each new device to be created

Definition at line 94 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_antenna, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Here is the call graph for this function:

void ns3::AdhocAlohaNoackIdealPhyHelper::SetChannel

(

Ptr< SpectrumChannel >

channel

)

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters

channel

Definition at line 54 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References third::channel, and m_channel.

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the caller graph for this function:

void ns3::AdhocAlohaNoackIdealPhyHelper::SetChannel

(

std::string

channelName

)

set the SpectrumChannel that will be used by SpectrumPhy instances created by this helper

Parameters

channelName

Definition at line 60 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References third::channel, and m_channel.

void ns3::AdhocAlohaNoackIdealPhyHelper::SetDeviceAttribute	(	std::string	n1,
		const AttributeValue &	v1
	)

Parameters

n1	the name of the attribute to set
v1	the value of the attribute to set

Set these attributes on each AlohaNoackNetDevice created

Definition at line 88 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_device, and ns3::ObjectFactory::Set().

Here is the call graph for this function:

void ns3::AdhocAlohaNoackIdealPhyHelper::SetNoisePowerSpectralDensity

(

Ptr< SpectrumValue >

noisePsd

)

Parameters

noisePsd

the Power Spectral Density to be used for transmission by all created PHY instances

Definition at line 74 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_noisePsd, and NS_LOG_FUNCTION.

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the caller graph for this function:

void ns3::AdhocAlohaNoackIdealPhyHelper::SetPhyAttribute	(	std::string	name,
		const AttributeValue &	v
	)

Parameters

name	the name of the attribute to set
v	the value of the attribute

Set these attributes on each HdOfdmSpectrumPhy instance to be created

Definition at line 81 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_phy, and ns3::ObjectFactory::Set().

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::AdhocAlohaNoackIdealPhyHelper::SetTxPowerSpectralDensity

(

Ptr< SpectrumValue >

txPsd

)

Parameters

txPsd

the Power Spectral Density to be used for transmission by all created PHY instances

Definition at line 67 of file adhoc-aloha-noack-ideal-phy-helper.cc.

References m_txPsd, and NS_LOG_FUNCTION.

Referenced by SpectrumIdealPhyTestCase::DoRun().

Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::AdhocAlohaNoackIdealPhyHelper::m_antenna

protected

Object factory for the Antenna objects.

Definition at line 144 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by AdhocAlohaNoackIdealPhyHelper(), Install(), and SetAntenna().

Ptr<SpectrumChannel> ns3::AdhocAlohaNoackIdealPhyHelper::m_channel

protected

Channel.

Definition at line 145 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by Install(), and SetChannel().

ObjectFactory ns3::AdhocAlohaNoackIdealPhyHelper::m_device

protected

Object factory for the NetDevice objects.

Definition at line 142 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by AdhocAlohaNoackIdealPhyHelper(), Install(), and SetDeviceAttribute().

Ptr<SpectrumValue> ns3::AdhocAlohaNoackIdealPhyHelper::m_noisePsd

protected

Noise power spectral density.

Definition at line 147 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by Install(), and SetNoisePowerSpectralDensity().

ObjectFactory ns3::AdhocAlohaNoackIdealPhyHelper::m_phy

protected

Object factory for the phy objects.

Definition at line 141 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by AdhocAlohaNoackIdealPhyHelper(), Install(), and SetPhyAttribute().

ObjectFactory ns3::AdhocAlohaNoackIdealPhyHelper::m_queue

protected

Object factory for the Queue objects.

Definition at line 143 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by AdhocAlohaNoackIdealPhyHelper(), and Install().

Ptr<SpectrumValue> ns3::AdhocAlohaNoackIdealPhyHelper::m_txPsd

protected

Tx power spectral density.

Definition at line 146 of file adhoc-aloha-noack-ideal-phy-helper.h.

Referenced by Install(), and SetTxPowerSpectralDensity().

---

The documentation for this class was generated from the following files:

• src/spectrum/helper/adhoc-aloha-noack-ideal-phy-helper.h
• src/spectrum/helper/adhoc-aloha-noack-ideal-phy-helper.cc
