The aim of the AmpduTag is to provide means for a MAC to specify that a packet includes A-MPDU since this is done in HT-SIG and there is no HT-SIG representation in ns-3. More...

#include "ampdu-tag.h"

Inheritance diagram for ns3::AmpduTag:

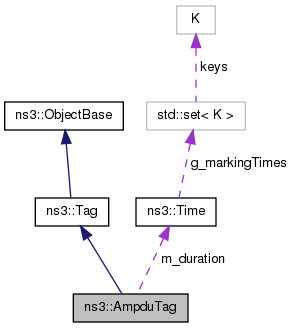

Collaboration diagram for ns3::AmpduTag:

Public Member Functions
	AmpduTag ()
	Create a AmpduTag with the default =0 no Ampdu. More...

virtual void	Deserialize (TagBuffer i)

bool	GetAmpdu (void) const

virtual TypeId	GetInstanceTypeId (void) const
	Get the most derived TypeId for this Object. More...

Time	GetRemainingAmpduDuration (void) const

uint8_t	GetRemainingNbOfMpdus (void) const

virtual uint32_t	GetSerializedSize () const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (TagBuffer i) const

void	SetAmpdu (bool supported)
	Set m_ampdu to 1. More...

void	SetRemainingAmpduDuration (Time duration)

void	SetRemainingNbOfMpdus (uint8_t nbofmpdus)

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Tag
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint8_t	m_ampdu
	Flag whether it is an A-MPDU. More...

Time	m_duration
	Remaining duration of the A-MPDU in nanoseconds. More...

uint8_t	m_nbOfMpdus
	Remaining number of MPDUs in the A-MPDU. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The aim of the AmpduTag is to provide means for a MAC to specify that a packet includes A-MPDU since this is done in HT-SIG and there is no HT-SIG representation in ns-3.

Introspection did not find any typical Config paths.

Attributes

AmpduExists: The value that indicates that the packet contains an AMPDU
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Flags: read

No TraceSources are defined for this type.
Size of this type is 24 bytes (on a 64-bit architecture).

Definition at line 38 of file ampdu-tag.h.

Constructor & Destructor Documentation

ns3::AmpduTag::AmpduTag ( )

Create a AmpduTag with the default =0 no Ampdu.

Definition at line 51 of file ampdu-tag.cc.

Member Function Documentation

void ns3::AmpduTag::Deserialize ( TagBuffer i )

virtual

Parameters

i	the buffer to read data from.

Read the content of the tag from the provided tag buffer. DO NOT attempt to read more bytes than you wrote with Tag::Serialize.

Implements ns3::Tag.

Definition at line 94 of file ampdu-tag.cc.

References m_ampdu, m_duration, m_nbOfMpdus, ns3::TagBuffer::Read(), and ns3::TagBuffer::ReadU8().

Here is the call graph for this function:

bool ns3::AmpduTag::GetAmpdu ( void ) const

Returns: true if it is an A-MPDU, false otherwise.

Returns m_ampdu

Definition at line 104 of file ampdu-tag.cc.

References m_ampdu.

Referenced by GetTypeId().

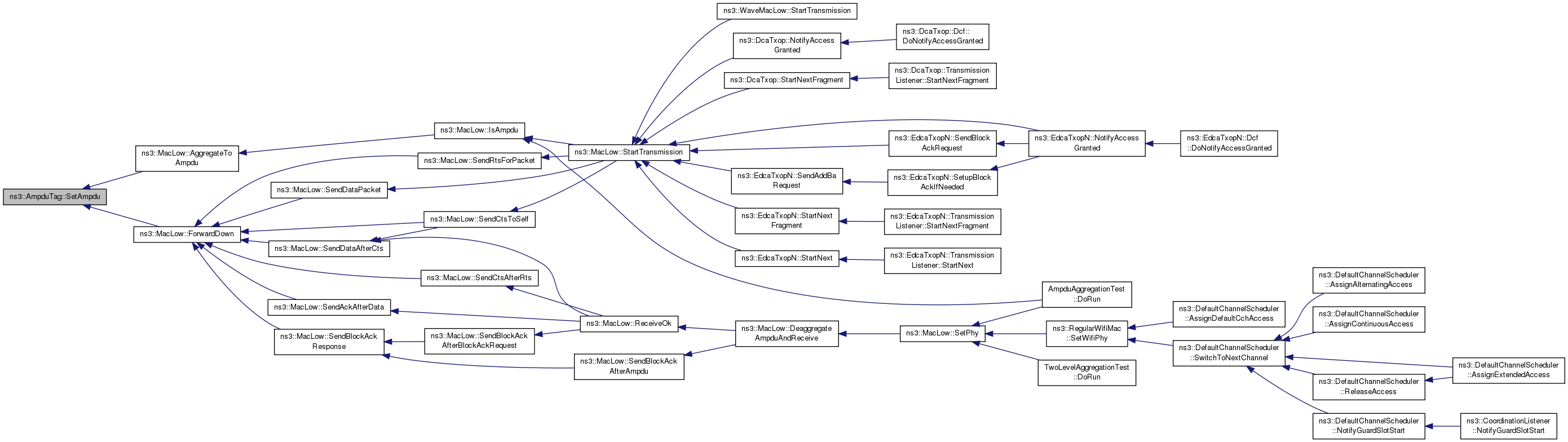

Here is the caller graph for this function:

TypeId ns3::AmpduTag::GetInstanceTypeId ( void ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.
