ns3::BSSchedulerRtps Class Reference

This class implements a simple downlink scheduler for rtPS flows. More...

#include "bs-scheduler-rtps.h"

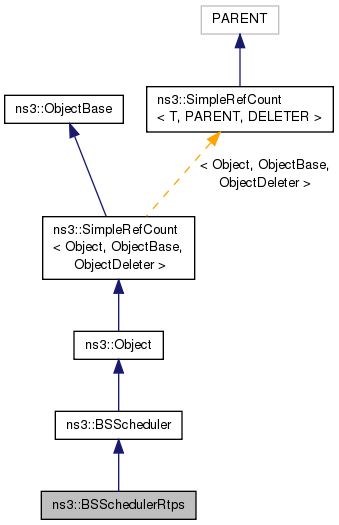

+ Inheritance diagram for ns3::BSSchedulerRtps:

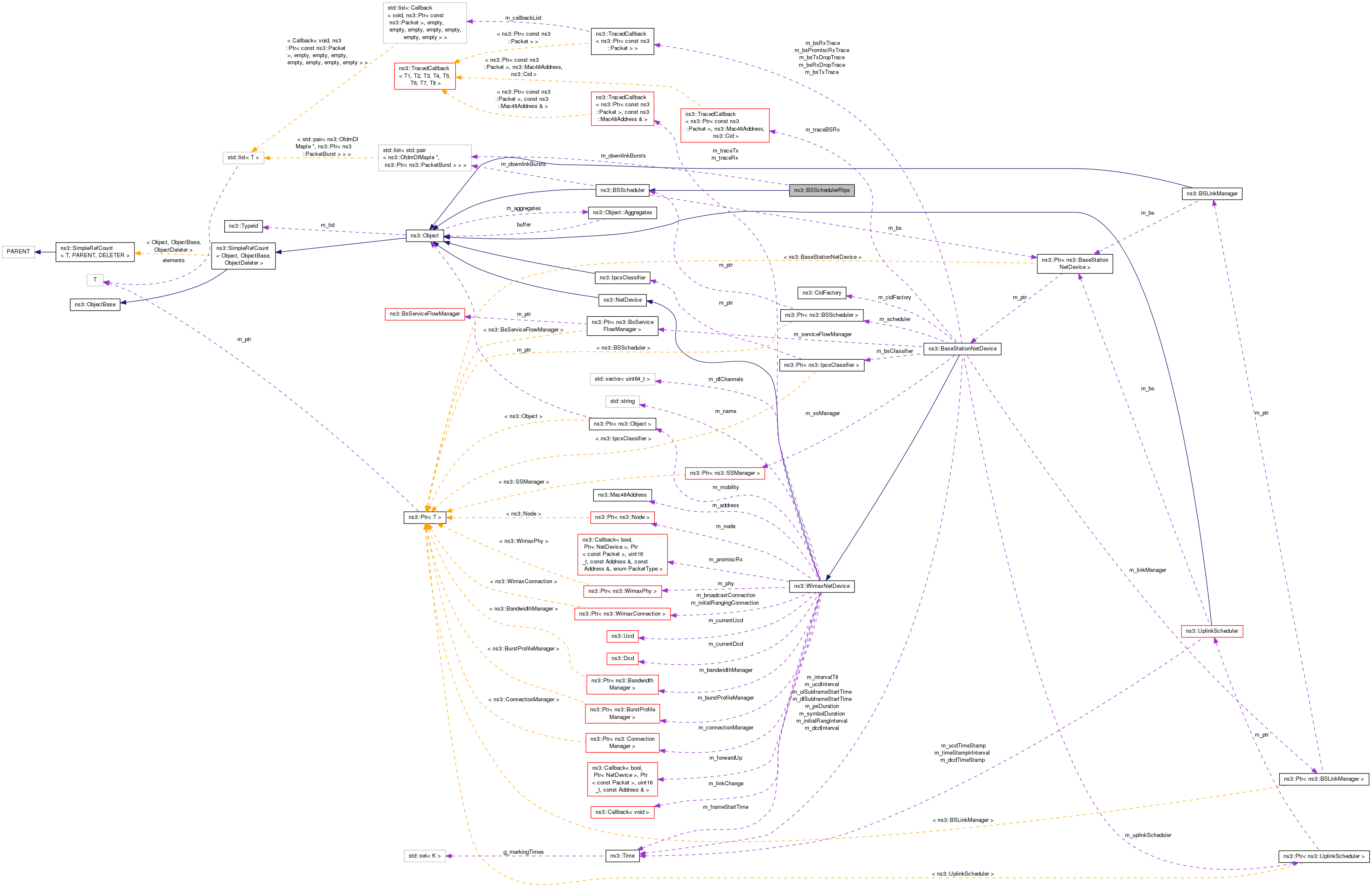

+ Collaboration diagram for ns3::BSSchedulerRtps:

Public Member Functions

 BSSchedulerRtps ()

 BSSchedulerRtps (Ptr< BaseStationNetDevice > bs)

 ~BSSchedulerRtps (void)

void AddDownlinkBurst (Ptr< const WimaxConnection > connection, uint8_t diuc, WimaxPhy::ModulationType modulationType, Ptr< PacketBurst > burst)

void BSSchedulerBasicConnection (uint32_t &availableSymbols)

void BSSchedulerBEConnection (uint32_t &availableSymbols)

void BSSchedulerBroadcastConnection (uint32_t &availableSymbols)

void BSSchedulerInitialRangingConnection (uint32_t &availableSymbols)

void BSSchedulerNRTPSConnection (uint32_t &availableSymbols)

void BSSchedulerPrimaryConnection (uint32_t &availableSymbols)

void BSSchedulerRTPSConnection (uint32_t &availableSymbols)
 Downlink Scheduler for rtPS connections. More...

void BSSchedulerUGSConnection (uint32_t &availableSymbols)

Ptr< PacketBurstCreateUgsBurst (ServiceFlow *serviceFlow, WimaxPhy::ModulationType modulationType, uint32_t availableSymbols)

std::list< std::pair< OfdmDlMapIe *, Ptr< PacketBurst > > > * GetDownlinkBursts (void) const

void Schedule (void)
 Schedule function. More...

bool SelectBEConnection (Ptr< WimaxConnection > &connection)
 Check for BE connections that have packets to transmit. More...

bool SelectConnection (Ptr< WimaxConnection > &connection)

bool SelectIRandBCConnection (Ptr< WimaxConnection > &connection)
 Check for IR and Broadcast connections that have packets to transmit. More...

bool SelectMenagementConnection (Ptr< WimaxConnection > &connection)
 Check for Basic and Primary connections that have packets to transmit. More...

bool SelectNRTPSConnection (Ptr< WimaxConnection > &connection)
 Check for nrtPS connections that have packets to transmit. More...

bool SelectRTPSConnection (Ptr< WimaxConnection > &connection)
 Check for rtPS connections that have packets to transmit. More...

bool SelectUGSConnection (Ptr< WimaxConnection > &connection)
 Check for UGS connections that have packets to transmit. More...

- Public Member Functions inherited from ns3::BSScheduler
 BSScheduler ()

 BSScheduler (Ptr< BaseStationNetDevice > bs)

 ~BSScheduler (void)

bool CheckForFragmentation (Ptr< WimaxConnection > connection, int availableSymbols, WimaxPhy::ModulationType modulationType)

virtual Ptr< BaseStationNetDeviceGetBs (void)

virtual void SetBs (Ptr< BaseStationNetDevice > bs)

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::BSScheduler
static TypeId GetTypeId (void)

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

std::list< std::pair< OfdmDlMapIe *, Ptr< PacketBurst > > > * m_downlinkBursts


Additional Inherited Members

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoDispose (void)
 Destructor implementation. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

virtual void NotifyNewAggregate (void)
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Detailed Description

This class implements a simple downlink scheduler for rtPS flows.

The DL-rtPS-Scheduler assigns the available bandwidth the service flows in the following order: IR Connections, Broadcast Connections, Basic and Primary Connections, UGS Connections, rtPS Connections, nrtPS Connections, BE Connections. The IR, Broadcast and Basic/Primary Connections must transmit all packet in the queue. The UGS flows can transmit the quota of date equal to the "Grant Size" (that is one of service flows QoS parameters) according to their requested MaxLatency (another QoS parameter). All rtPS flows are able to transmit all packet in the queue according to the available bandwidth. The bandwidth saturation control has been implemented to redistribute the effective available bandwidth to all rtPS flows that have at least one packet to transmit. The remaining bandwidth is allocated to rntPS and BE Connections.

Config Paths

ns3::BSSchedulerRtps is accessible through the following paths with Config::Set and Config::Connect:

  • "/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/BSScheduler/$ns3::BSSchedulerRtps"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::BaseStationNetDevice/Scheduler/$ns3::BSSchedulerRtps"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/BSScheduler/$ns3::BSSchedulerRtps"
  • "/NodeList/[i]/DeviceList/[i]/$ns3::BaseStationNetDevice/Scheduler/$ns3::BSSchedulerRtps"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 58 of file bs-scheduler-rtps.h.

Constructor & Destructor Documentation

ns3::BSSchedulerRtps::BSSchedulerRtps ( )

Definition at line 57 of file bs-scheduler-rtps.cc.

References ns3::BSScheduler::SetBs().

+ Here is the call graph for this function:

ns3::BSSchedulerRtps::BSSchedulerRtps ( Ptr< BaseStationNetDevice bs)

Definition at line 63 of file bs-scheduler-rtps.cc.

References ns3::BSScheduler::SetBs().

+ Here is the call graph for this function:

ns3::BSSchedulerRtps::~BSSchedulerRtps ( void  )

Definition at line 71 of file bs-scheduler-rtps.cc.

References m_downlinkBursts, and ns3::BSScheduler::SetBs().

+ Here is the call graph for this function:

Member Function Documentation

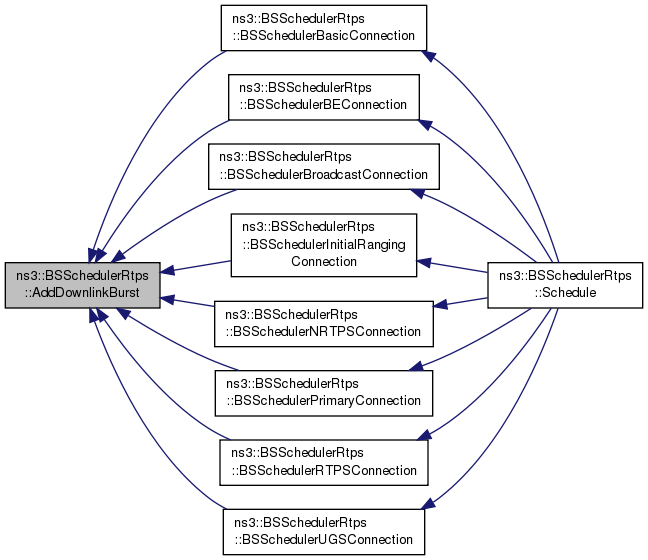

void ns3::BSSchedulerRtps::AddDownlinkBurst ( Ptr< const WimaxConnection connection,
uint8_t  diuc,
WimaxPhy::ModulationType  modulationType,
Ptr< PacketBurst burst
)
virtual

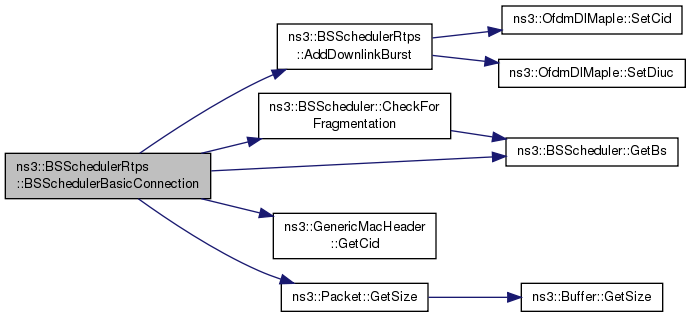

void ns3::BSSchedulerRtps::BSSchedulerBasicConnection ( uint32_t &  availableSymbols)

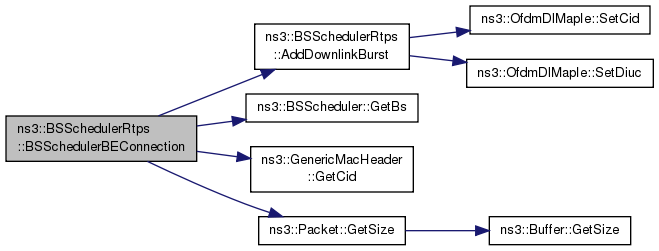

void ns3::BSSchedulerRtps::BSSchedulerBEConnection ( uint32_t &  availableSymbols)

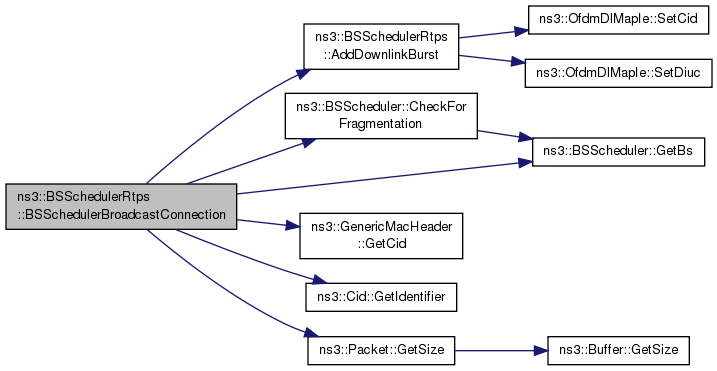

void ns3::BSSchedulerRtps::BSSchedulerBroadcastConnection ( uint32_t &  availableSymbols)

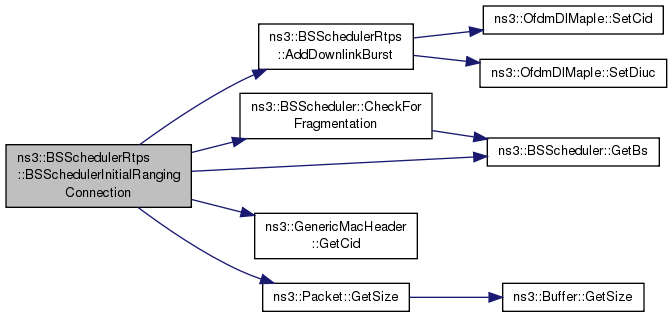

void ns3::BSSchedulerRtps::BSSchedulerInitialRangingConnection ( uint32_t &  availableSymbols)

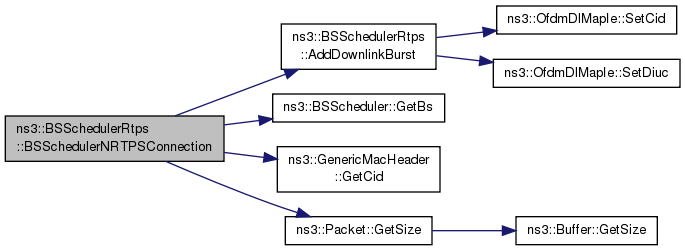

void ns3::BSSchedulerRtps::BSSchedulerNRTPSConnection ( uint32_t &  availableSymbols)

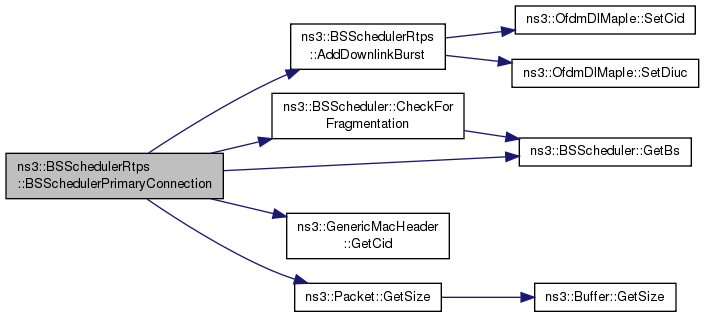

void ns3::BSSchedulerRtps::BSSchedulerPrimaryConnection ( uint32_t &  availableSymbols)

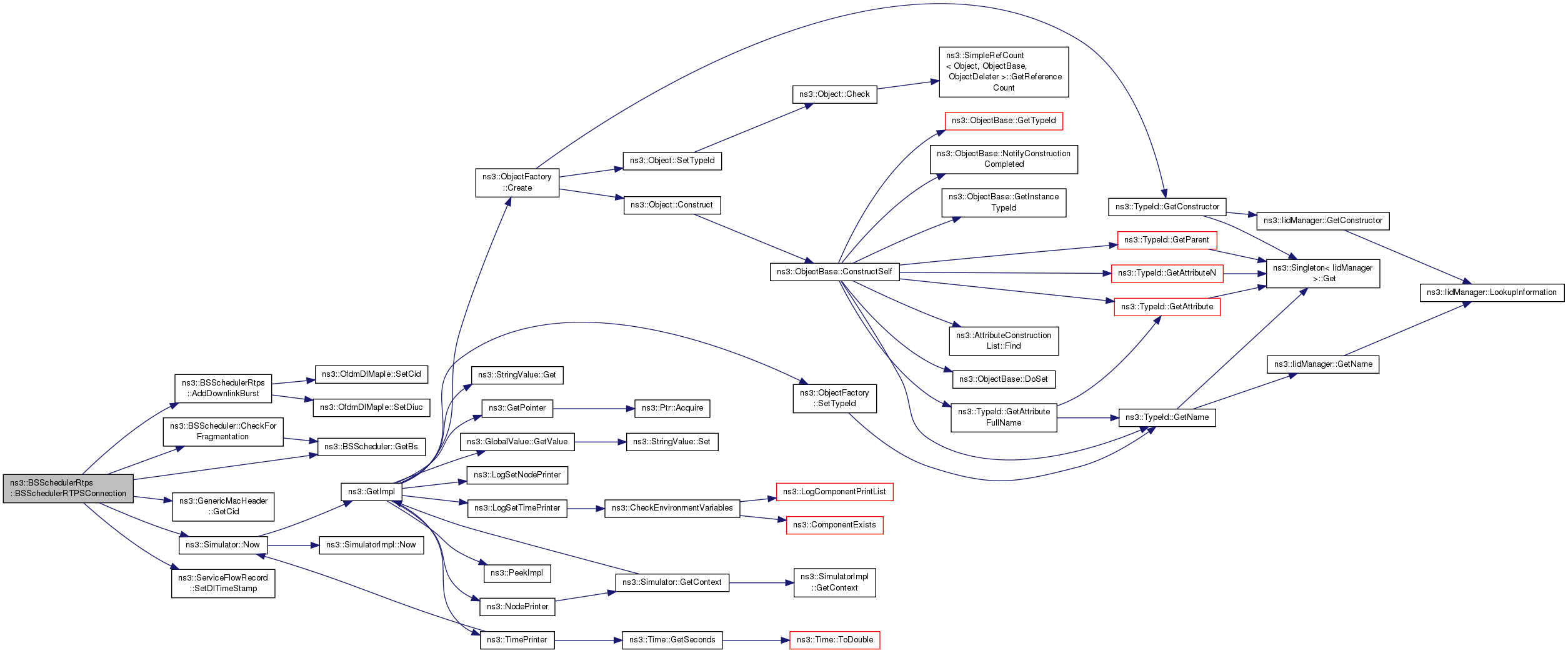

void ns3::BSSchedulerRtps::BSSchedulerRTPSConnection ( uint32_t &  availableSymbols)

Downlink Scheduler for rtPS connections.

Parameters
availableSymbolsavailable symbols for rtPS flows

This method represent the DL Scheduler for rtPS connections. The scheduler is designed to serve all rtPS connections that have at least one packet to transmit, every DL Subframe. To each rtPS connections are allocated, at the beginning, the bandwidth to transmit a quota of data equal to the queue length. If the sum of all pre-allocated bandwidth exceed the available symbols for rtPS connections, the Channel Saturation Control function is called to redistribute the available bandwidth.

Definition at line 485 of file bs-scheduler-rtps.cc.

References AddDownlinkBurst(), ns3::BSScheduler::CheckForFragmentation(), ns3::WimaxNetDevice::DIRECTION_DOWNLINK, ns3::BSScheduler::GetBs(), ns3::GenericMacHeader::GetCid(), ns3::MacHeaderType::HEADER_TYPE_GENERIC, ns3::Cid::MULTICAST, ns3::Simulator::Now(), NS_ASSERT_MSG, NS_LOG_INFO, ns3::ServiceFlowRecord::SetDlTimeStamp(), and ns3::ServiceFlow::SF_TYPE_RTPS.

Referenced by Schedule().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

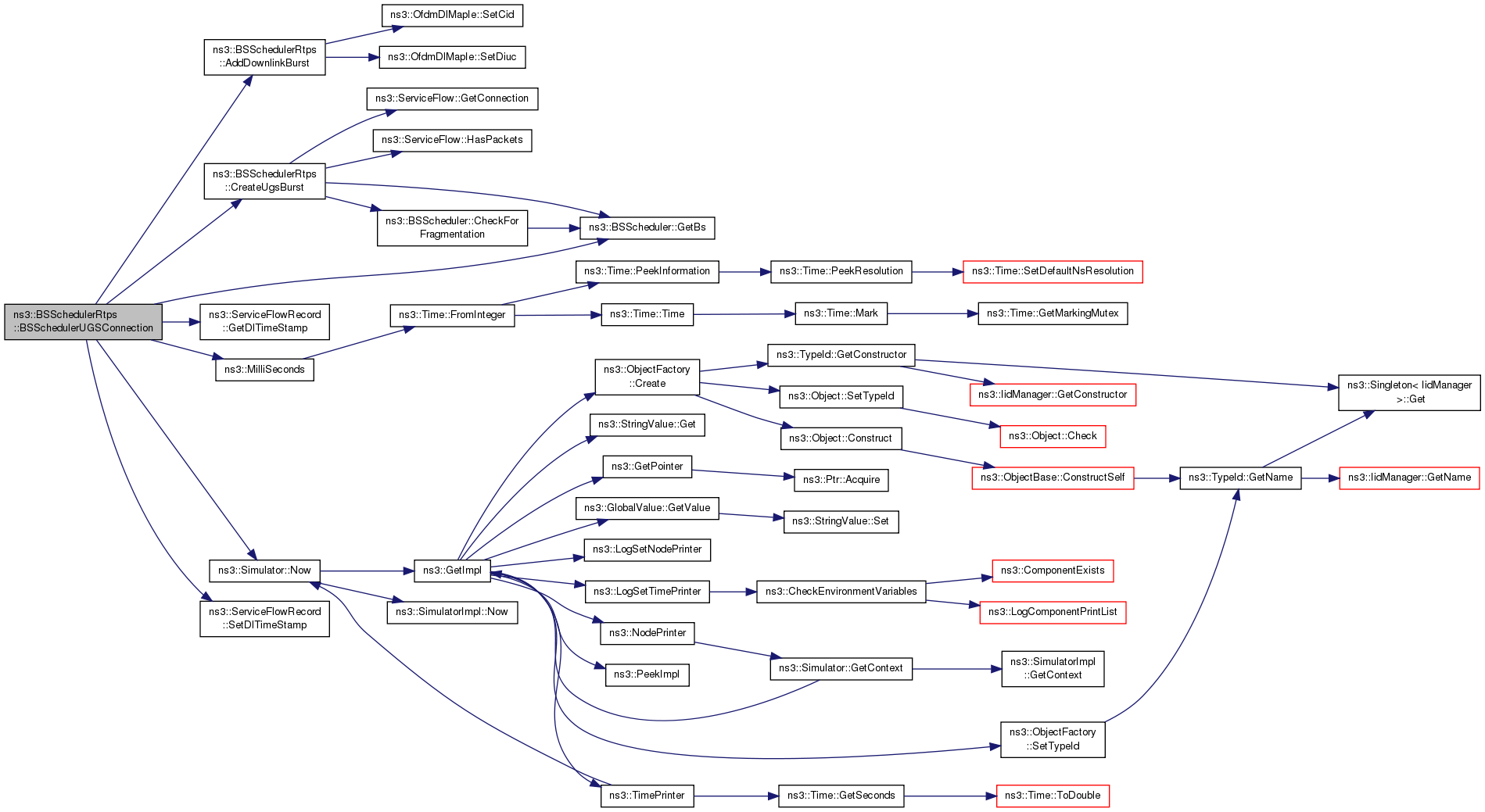

void ns3::BSSchedulerRtps::BSSchedulerUGSConnection ( uint32_t &  availableSymbols)
Ptr< PacketBurst > ns3::BSSchedulerRtps::CreateUgsBurst ( ServiceFlow serviceFlow,
WimaxPhy::ModulationType  modulationType,
uint32_t  availableSymbols
)
virtual

Implements ns3::BSScheduler.

Definition at line 170 of file bs-scheduler-rtps.cc.

References ns3::BSScheduler::CheckForFragmentation(), ns3::BSScheduler::GetBs(), ns3::ServiceFlow::GetConnection(), ns3::ServiceFlow::HasPackets(), and ns3::MacHeaderType::HEADER_TYPE_GENERIC.

Referenced by BSSchedulerUGSConnection().

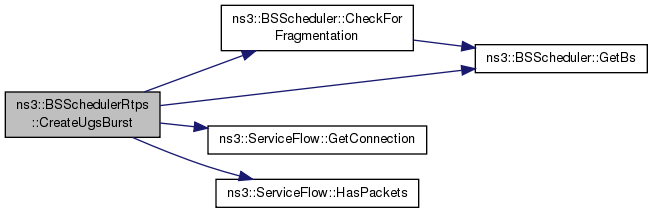

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

std::list< std::pair< OfdmDlMapIe *, Ptr< PacketBurst > > > * ns3::BSSchedulerRtps::GetDownlinkBursts ( void  ) const
virtual

Implements ns3::BSScheduler.

Definition at line 89 of file bs-scheduler-rtps.cc.

References m_downlinkBursts.

TypeId ns3::BSSchedulerRtps::GetTypeId ( void  )
static

Definition at line 47 of file bs-scheduler-rtps.cc.

References ns3::TypeId::SetParent().

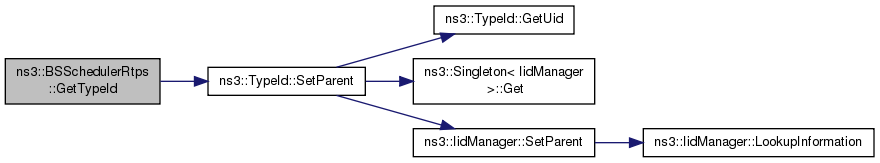

+ Here is the call graph for this function:

void ns3::BSSchedulerRtps::Schedule ( void  )
virtual

Schedule function.

A DownLink Scheduler for rtPS Flows.

The DL Scheduler assigns the available bandwidth in the following order:

  • IR Connections
  • Broadcast Connections
  • Basic and Primary Connections
  • UGS Connections
  • rtPS Connections
  • nrtPS Connections
  • BE Connections All rtPS flows that have packets in the queue can transmit at least one packet, according to the available bandwidth.

Implements ns3::BSScheduler.

Definition at line 132 of file bs-scheduler-rtps.cc.

References ns3::Cid::BASIC, BSSchedulerBasicConnection(), BSSchedulerBEConnection(), BSSchedulerBroadcastConnection(), BSSchedulerInitialRangingConnection(), BSSchedulerNRTPSConnection(), BSSchedulerPrimaryConnection(), BSSchedulerRTPSConnection(), BSSchedulerUGSConnection(), ns3::BSScheduler::GetBs(), m_downlinkBursts, NS_LOG_DEBUG, ns3::Cid::PRIMARY, ns3::ServiceFlow::SF_TYPE_ALL, ns3::ServiceFlow::SF_TYPE_NONE, and ns3::Cid::TRANSPORT.

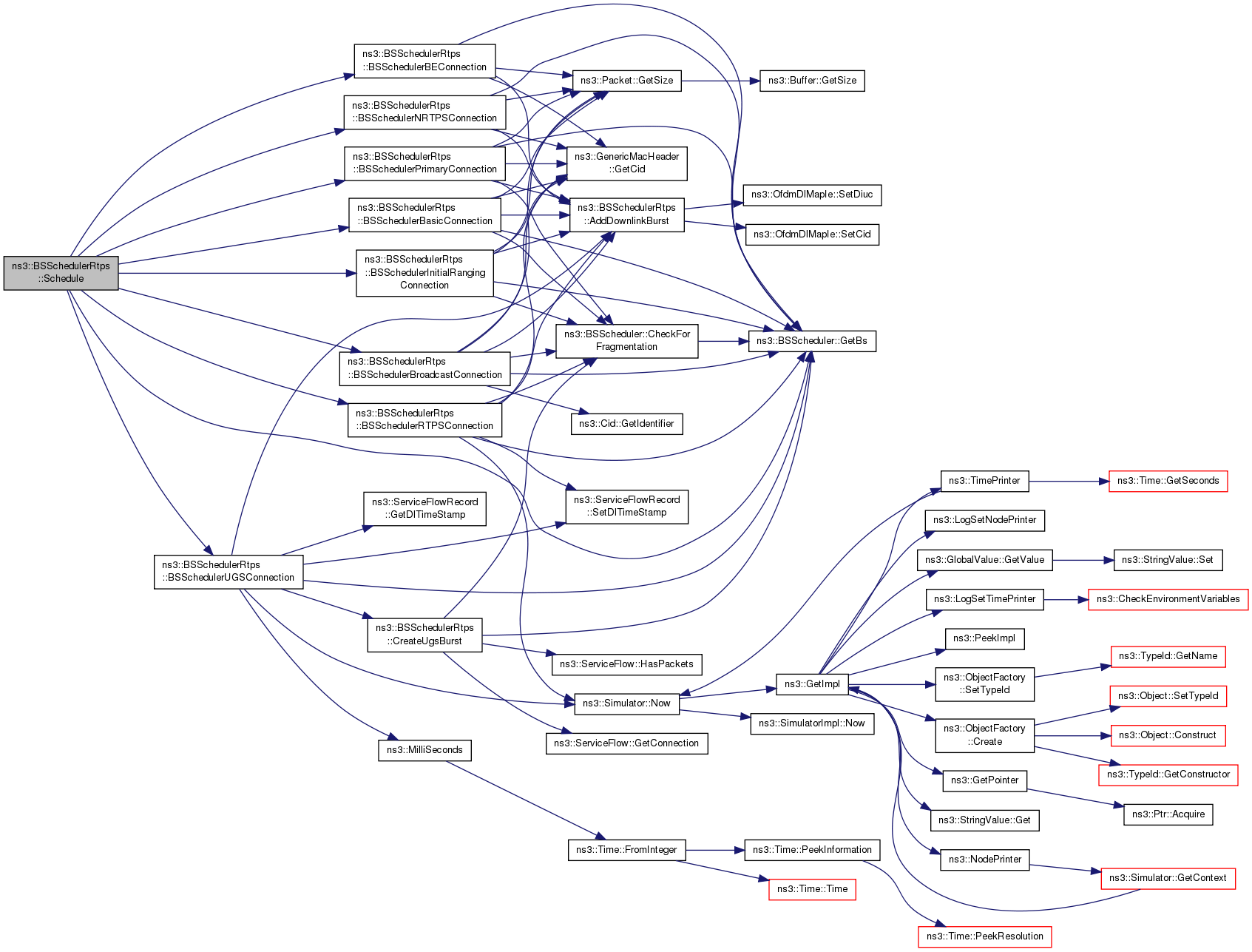

+ Here is the call graph for this function:

bool ns3::BSSchedulerRtps::SelectBEConnection ( Ptr< WimaxConnection > &  connection)

Check for BE connections that have packets to transmit.

bool ns3::BSSchedulerRtps::SelectConnection ( Ptr< WimaxConnection > &  connection)
virtual

Implements ns3::BSScheduler.

Definition at line 210 of file bs-scheduler-rtps.cc.

bool ns3::BSSchedulerRtps::SelectIRandBCConnection ( Ptr< WimaxConnection > &  connection)

Check for IR and Broadcast connections that have packets to transmit.

Parameters
connectionwill point to a initial ranging or broadcast connection wich have packets to transmit
Returns
false if no initial ranging or broadcast connection has packets to transmit, true otherwise
bool ns3::BSSchedulerRtps::SelectMenagementConnection ( Ptr< WimaxConnection > &  connection)

Check for Basic and Primary connections that have packets to transmit.

Parameters
connectionwill point to a basic or primary connection wich have packets to transmit
Returns
false if no basic or primary connection has packets to transmit, true otherwise
bool ns3::BSSchedulerRtps::SelectNRTPSConnection ( Ptr< WimaxConnection > &  connection)

Check for nrtPS connections that have packets to transmit.

bool ns3::BSSchedulerRtps::SelectRTPSConnection ( Ptr< WimaxConnection > &  connection)

Check for rtPS connections that have packets to transmit.

bool ns3::BSSchedulerRtps::SelectUGSConnection ( Ptr< WimaxConnection > &  connection)

Check for UGS connections that have packets to transmit.

The method return the UGS connection that have packets to transmits, according to the MaxLatency specifications.

Member Data Documentation

std::list<std::pair<OfdmDlMapIe*, Ptr<PacketBurst> > >* ns3::BSSchedulerRtps::m_downlinkBursts
private

The documentation for this class was generated from the following files:
