#include "bs-service-flow-manager.h"

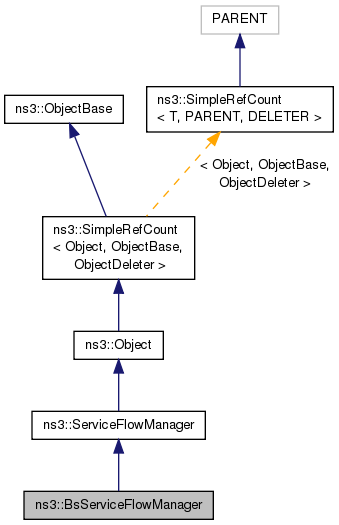

Inheritance diagram for ns3::BsServiceFlowManager:

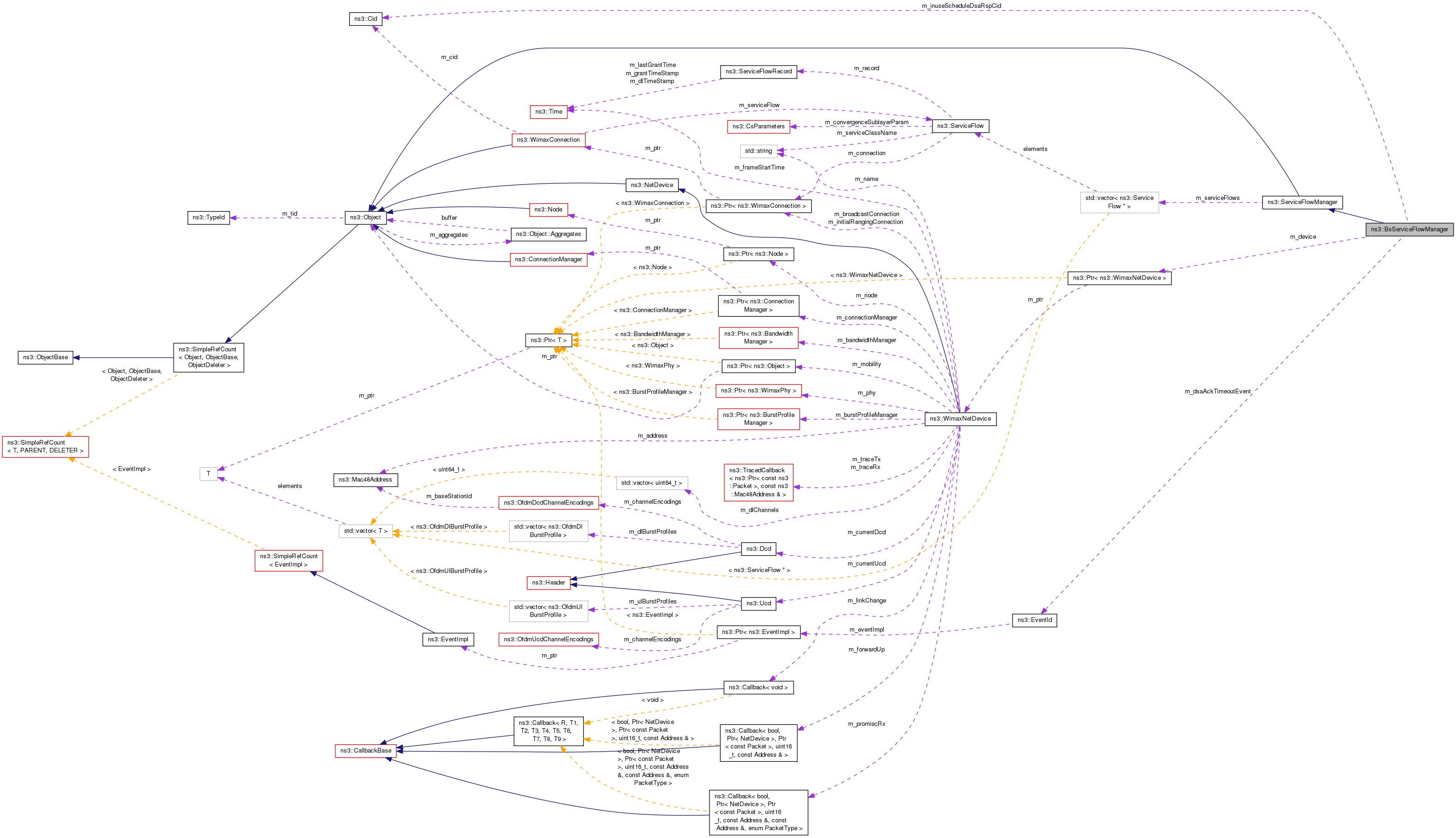

Collaboration diagram for ns3::BsServiceFlowManager:

Public Types
enum	ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT }

Public Types inherited from ns3::ServiceFlowManager
enum	ConfirmationCode { CONFIRMATION_CODE_SUCCESS, CONFIRMATION_CODE_REJECT }

Public Member Functions
	BsServiceFlowManager (Ptr< BaseStationNetDevice > device)

	~BsServiceFlowManager (void)

void	AddMulticastServiceFlow (ServiceFlow sf, enum WimaxPhy::ModulationType modulation)
	add a multicast service flow More...

void	AddServiceFlow (ServiceFlow *serviceFlow)
	Add a new service flow. More...

void	AllocateServiceFlows (const DsaReq &dsaReq, Cid cid)

void	DoDispose (void)
	Destructor implementation. More...

EventId	GetDsaAckTimeoutEvent (void) const

ServiceFlow *	GetServiceFlow (uint32_t sfid) const

ServiceFlow *	GetServiceFlow (Cid cid) const

std::vector< ServiceFlow * >	GetServiceFlows (ServiceFlow::SchedulingType schedulingType) const

void	ProcessDsaAck (const DsaAck &dsaAck, Cid cid)
	process a DSA-ACK message More...

ServiceFlow *	ProcessDsaReq (const DsaReq &dsaReq, Cid cid)
	process a DSA-Req message More...

void	SetMaxDsaRspRetries (uint8_t maxDsaRspRetries)
	set the maximum Dynamic ServiceFlow Add (DSA) retries More...

Public Member Functions inherited from ns3::ServiceFlowManager
	ServiceFlowManager ()

	~ServiceFlowManager (void)

void	AddServiceFlow (ServiceFlow *serviceFlow)

bool	AreServiceFlowsAllocated ()

bool	AreServiceFlowsAllocated (std::vector< ServiceFlow * > *serviceFlows)

bool	AreServiceFlowsAllocated (std::vector< ServiceFlow * > serviceFlows)

ServiceFlow *	DoClassify (Ipv4Address SrcAddress, Ipv4Address DstAddress, uint16_t SrcPort, uint16_t DstPort, uint8_t Proto, ServiceFlow::Direction dir) const

void	DoDispose (void)
	Destructor implementation. More...

ServiceFlow *	GetNextServiceFlowToAllocate ()

uint32_t	GetNrServiceFlows (void) const

ServiceFlow *	GetServiceFlow (uint32_t sfid) const

ServiceFlow *	GetServiceFlow (Cid cid) const

std::vector< ServiceFlow * >	GetServiceFlows (enum ServiceFlow::SchedulingType schedulingType) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::ServiceFlowManager
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
DsaRsp	CreateDsaRsp (const ServiceFlow *serviceFlow, uint16_t transactionId)

uint8_t	GetMaxDsaRspRetries (void) const

void	ScheduleDsaRsp (ServiceFlow *serviceFlow, Cid cid)

Private Attributes
Ptr< WimaxNetDevice >	m_device

EventId	m_dsaAckTimeoutEvent

Cid	m_inuseScheduleDsaRspCid

uint8_t	m_maxDsaRspRetries

uint32_t	m_sfidIndex

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Definition at line 43 of file bs-service-flow-manager.h.

Constructor & Destructor Documentation

ns3::BsServiceFlowManager::BsServiceFlowManager ( Ptr< BaseStationNetDevice > device )

Definition at line 45 of file bs-service-flow-manager.cc.

References ns3::Cid::InitialRanging(), and m_inuseScheduleDsaRspCid.

Here is the call graph for this function:

ns3::BsServiceFlowManager::~BsServiceFlowManager ( void )

Definition at line 53 of file bs-service-flow-manager.cc.

Member Function Documentation

void ns3::BsServiceFlowManager::AddMulticastServiceFlow	(	ServiceFlow	sf,
		enum WimaxPhy::ModulationType	modulation
	)

add a multicast service flow

Definition at line 223 of file bs-service-flow-manager.cc.

References AddServiceFlow(), ns3::ServiceFlow::CopyParametersFrom(), m_device, ns3::Cid::MULTICAST, ns3::ServiceFlow::SetConnection(), ns3::ServiceFlow::SetIsEnabled(), ns3::ServiceFlow::SetIsMulticast(), ns3::ServiceFlow::SetModulation(), ns3::ServiceFlow::SetType(), and ns3::ServiceFlow::SF_TYPE_ACTIVE.

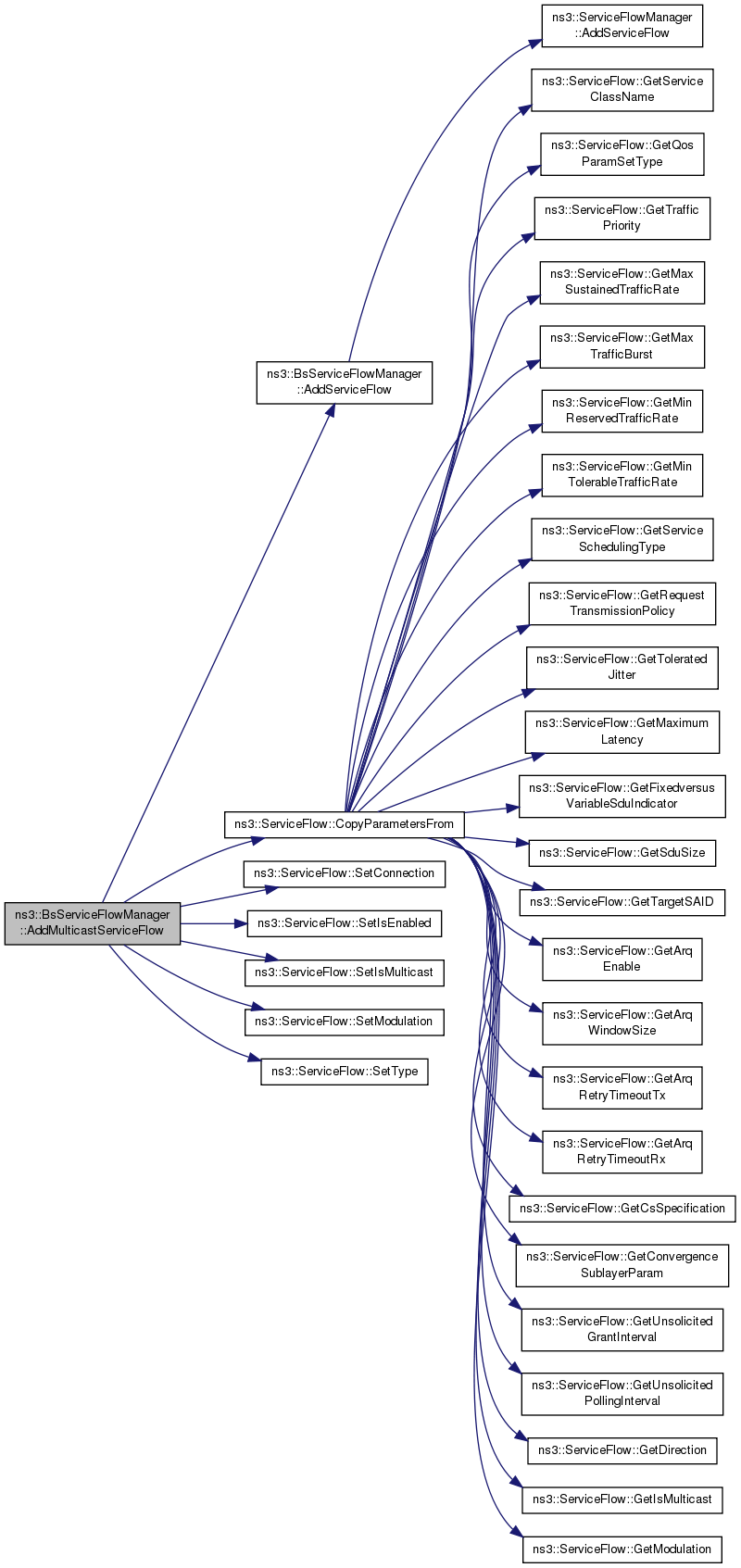

Here is the call graph for this function:

void ns3::BsServiceFlowManager::AddServiceFlow ( ServiceFlow * serviceFlow )

Add a new service flow.

Parameters

serviceFlow the service flow to add

Definition at line 94 of file bs-service-flow-manager.cc.

References ns3::ServiceFlowManager::AddServiceFlow().

Referenced by AddMulticastServiceFlow(), and ProcessDsaReq().

Here is the call graph for this function:

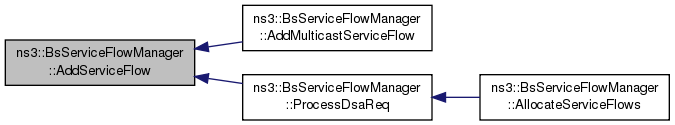

Here is the caller graph for this function:

void ns3::BsServiceFlowManager::AllocateServiceFlows	(	const DsaReq &	dsaReq,
		Cid	cid
	)

Definition at line 239 of file bs-service-flow-manager.cc.

References NS_LOG_INFO, ProcessDsaReq(), and ScheduleDsaRsp().

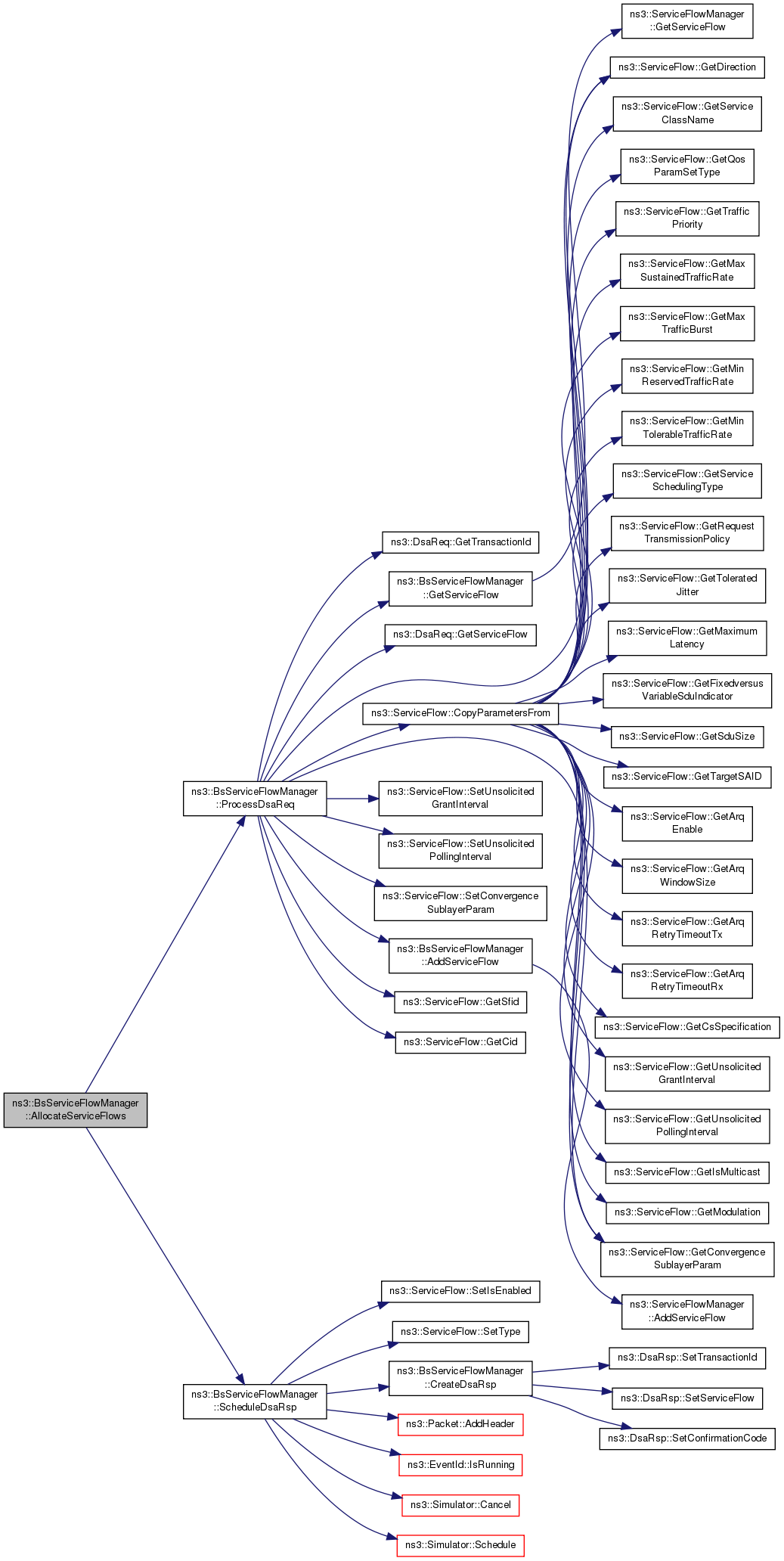

Here is the call graph for this function:

DsaRsp ns3::BsServiceFlowManager::CreateDsaRsp	(	const ServiceFlow *	serviceFlow,
		uint16_t	transactionId
	)

private

Definition at line 118 of file bs-service-flow-manager.cc.

References CONFIRMATION_CODE_SUCCESS, ns3::DsaRsp::SetConfirmationCode(), ns3::DsaRsp::SetServiceFlow(), and ns3::DsaRsp::SetTransactionId().

Referenced by ScheduleDsaRsp().

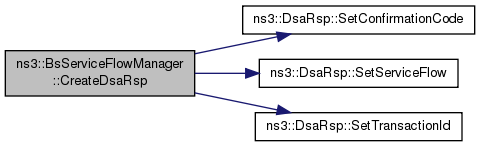

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::BsServiceFlowManager::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 70 of file bs-service-flow-manager.cc.

References ns3::ServiceFlowManager::DoDispose().

Here is the call graph for this function:
