Hold together all Wimax-related objects in a NetDevice. More...

#include "wimax-net-device.h"

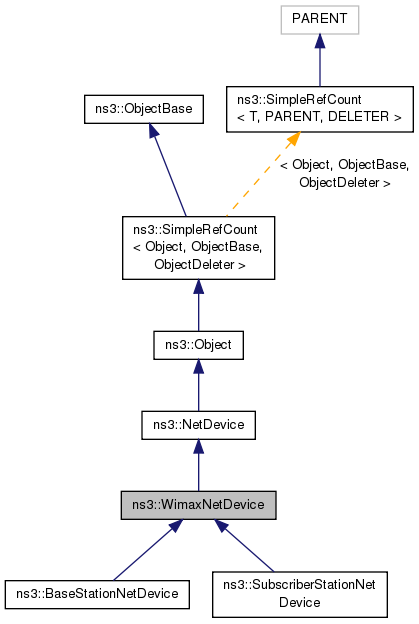

Inheritance diagram for ns3::WimaxNetDevice:

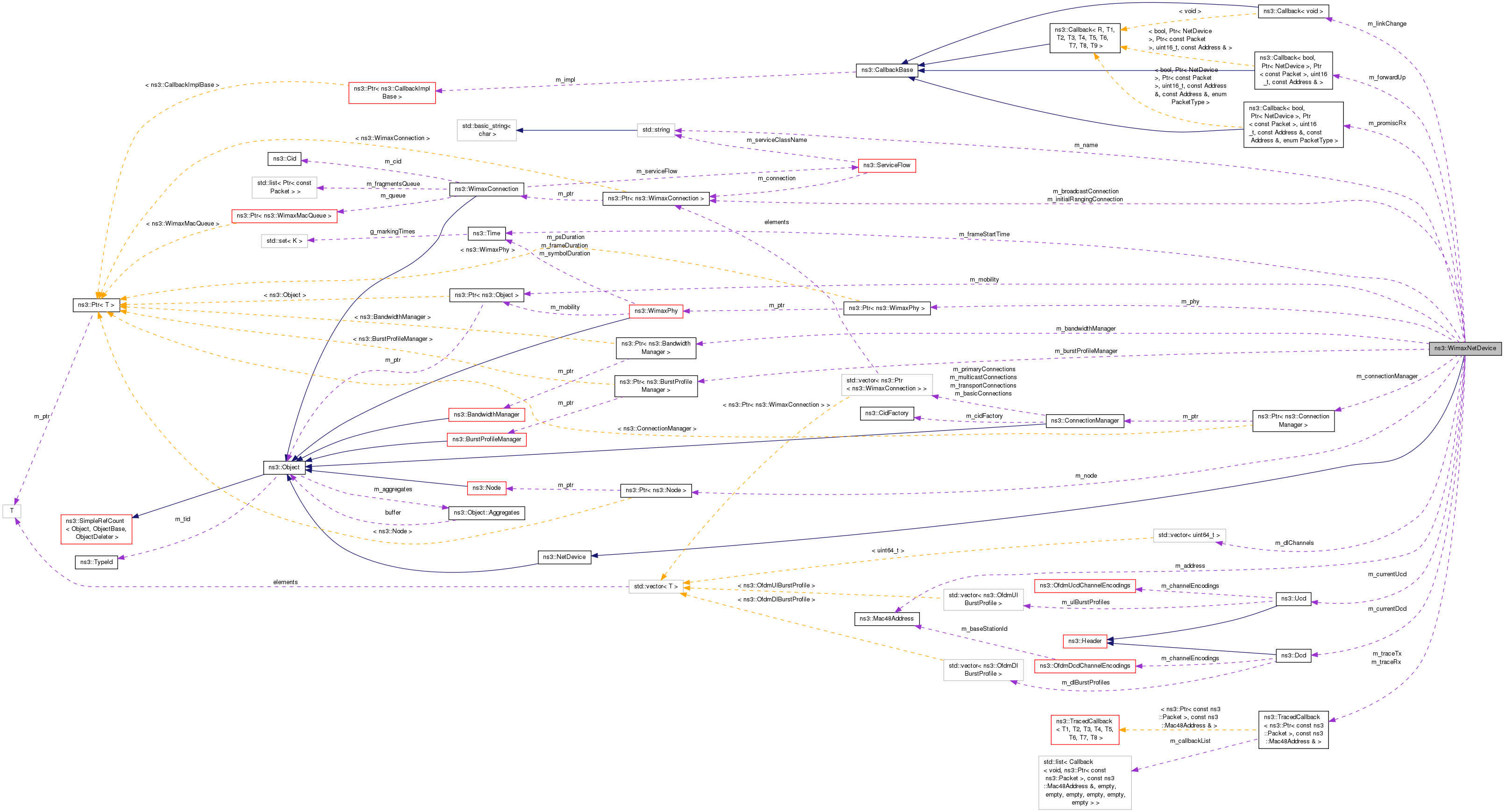

Collaboration diagram for ns3::WimaxNetDevice:

Public Types
enum	Direction { DIRECTION_DOWNLINK, DIRECTION_UPLINK }

enum	RangingStatus { RANGING_STATUS_EXPIRED, RANGING_STATUS_CONTINUE, RANGING_STATUS_ABORT, RANGING_STATUS_SUCCESS }

typedef void(*	TxRxTracedCallback) (Ptr< const Packet > packet, const Mac48Address &mac)
	TracedCallback signature for packet and Mac48Address. More...

Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) (void)
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Public Member Functions

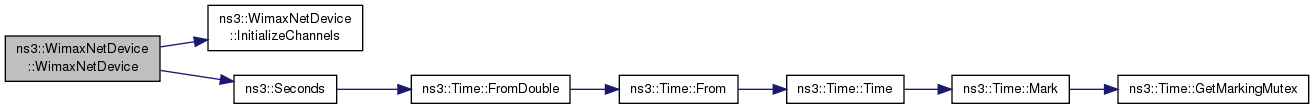

	WimaxNetDevice (void)

virtual	~WimaxNetDevice (void)

virtual void	AddLinkChangeCallback (Callback< void > callback)

void	Attach (Ptr< WimaxChannel > channel)

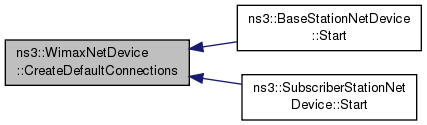

void	CreateDefaultConnections (void)
	Creates the initial ranging and broadcast connections. More...

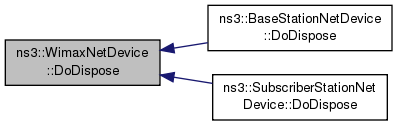

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual bool	Enqueue (Ptr< Packet > packet, const MacHeaderType &hdrType, Ptr< WimaxConnection > connection)=0

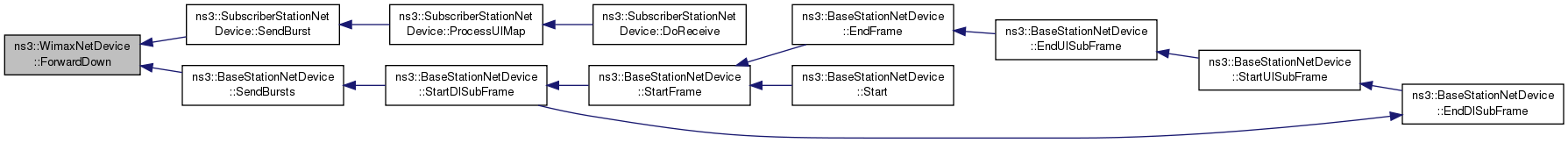

void	ForwardDown (Ptr< PacketBurst > burst, WimaxPhy::ModulationType modulationType)

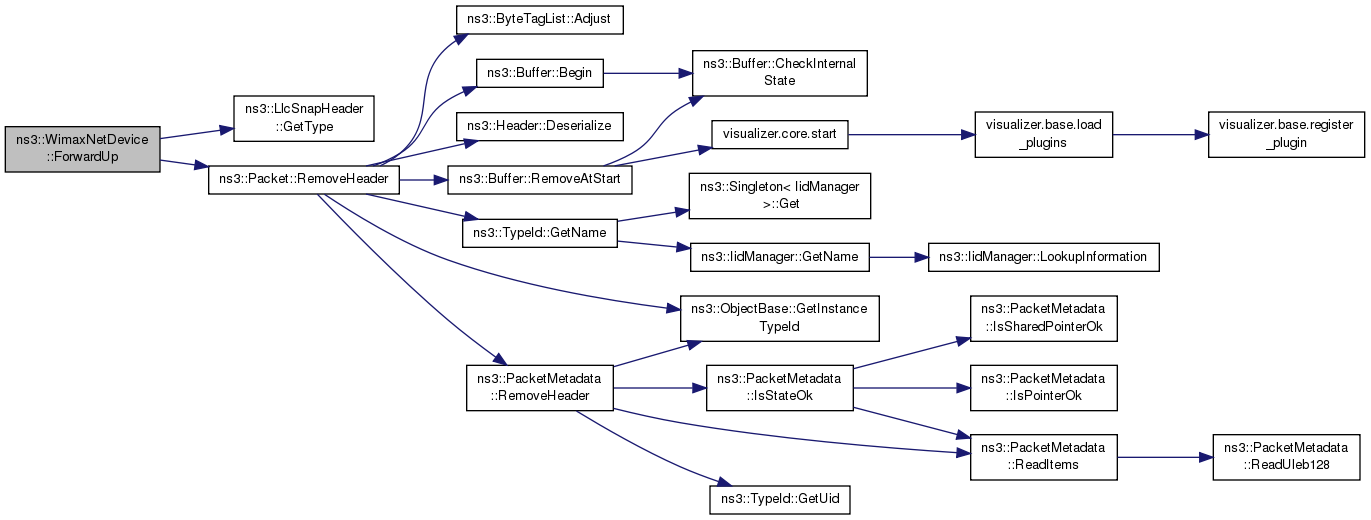

void	ForwardUp (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest)

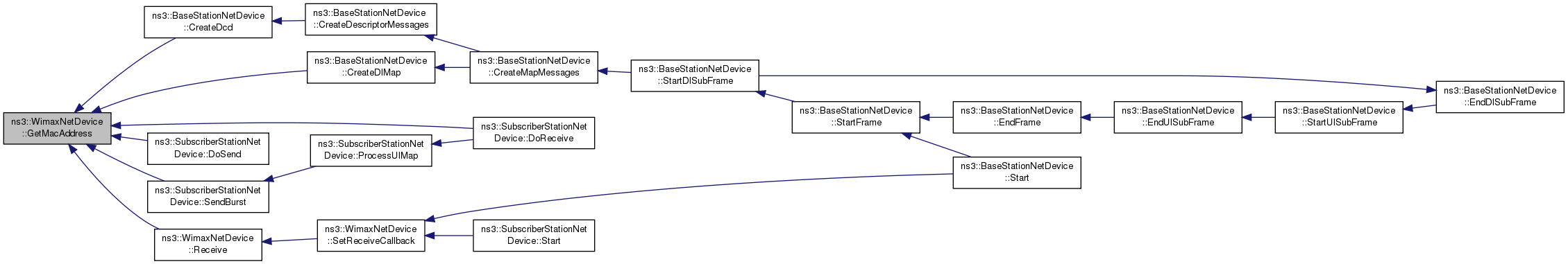

virtual Address	GetAddress (void) const

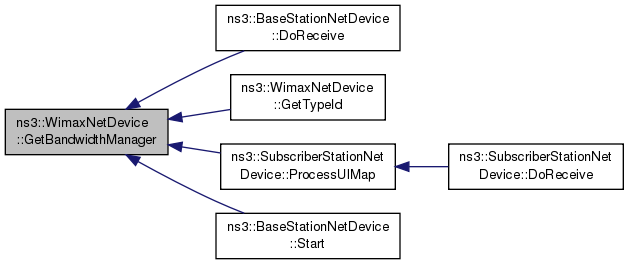

Ptr< BandwidthManager >	GetBandwidthManager (void) const

virtual Address	GetBroadcast (void) const

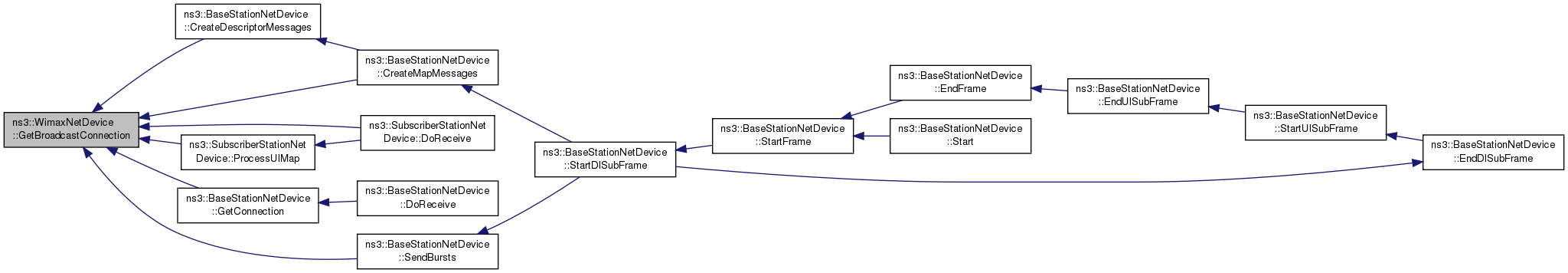

Ptr< WimaxConnection >	GetBroadcastConnection (void) const

Ptr< BurstProfileManager >	GetBurstProfileManager (void) const

uint64_t	GetChannel (uint8_t index) const

virtual Ptr< Channel >	GetChannel (void) const

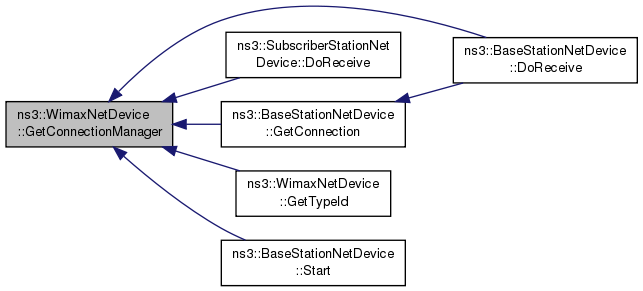

Ptr< ConnectionManager >	GetConnectionManager (void) const

Dcd	GetCurrentDcd (void) const

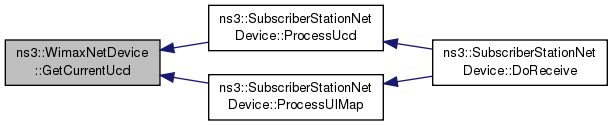

Ucd	GetCurrentUcd (void) const

virtual uint32_t	GetIfIndex (void) const

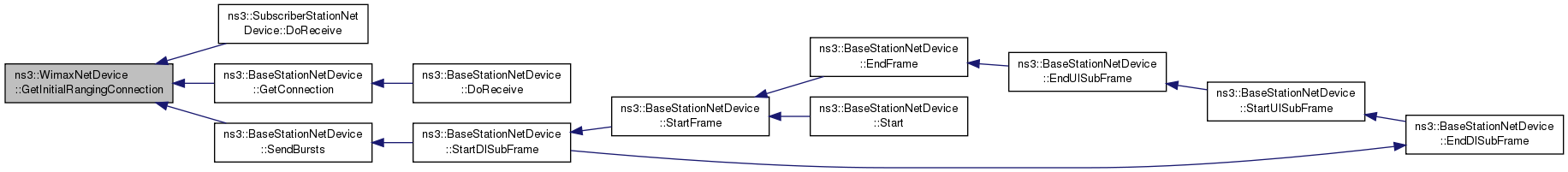

Ptr< WimaxConnection >	GetInitialRangingConnection (void) const

Mac48Address	GetMacAddress (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (void) const

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

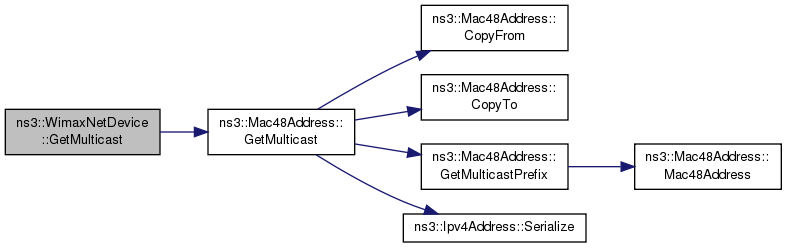

virtual Address	GetMulticast (Ipv4Address multicastGroup) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual std::string	GetName (void) const

virtual Ptr< Node >	GetNode (void) const

uint32_t	GetNrFrames (void) const

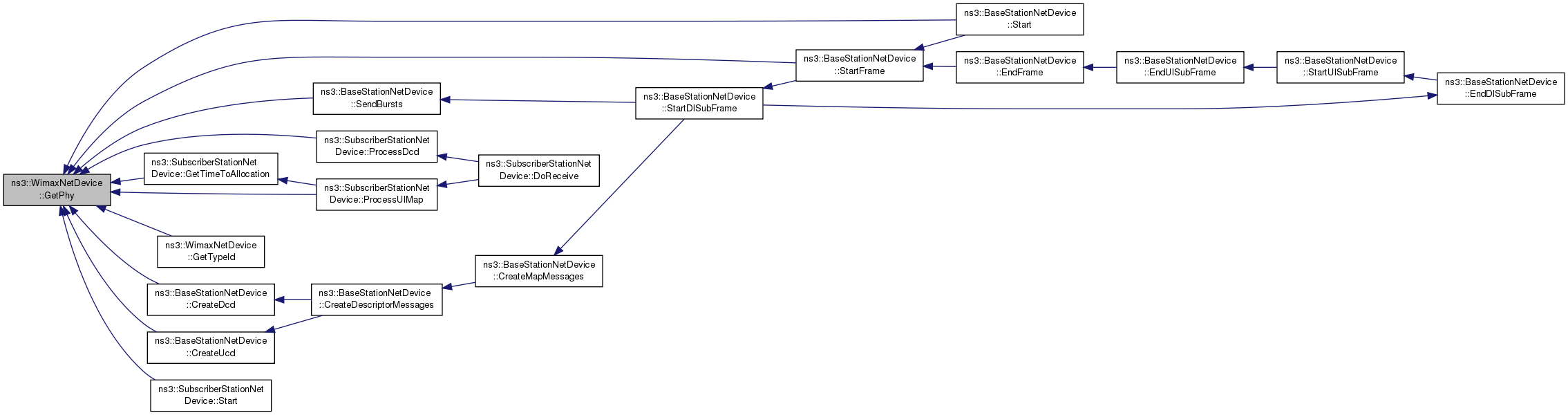

Ptr< WimaxPhy >	GetPhy (void) const

virtual Ptr< Channel >	GetPhyChannel (void) const

NetDevice::PromiscReceiveCallback	GetPromiscReceiveCallback (void)

uint16_t	GetRtg (void) const

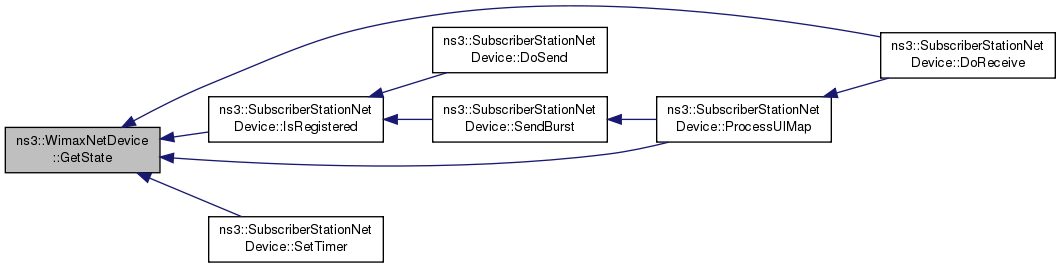

uint8_t	GetState (void) const

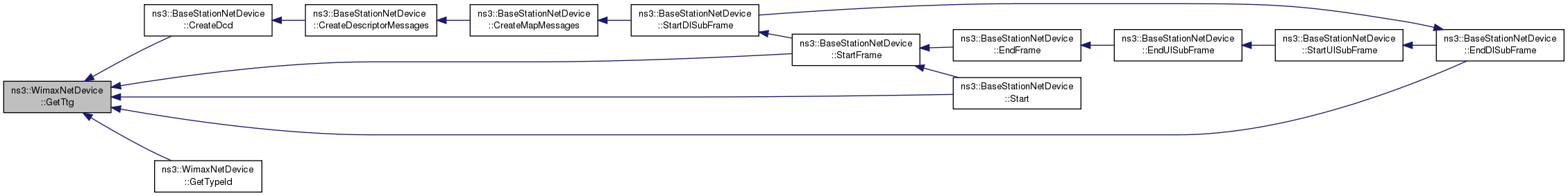

uint16_t	GetTtg (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

bool	IsPromisc (void)

virtual Address	MakeMulticastAddress (Ipv4Address multicastGroup) const

virtual bool	NeedsArp (void) const

void	NotifyPromiscTrace (Ptr< Packet > p)

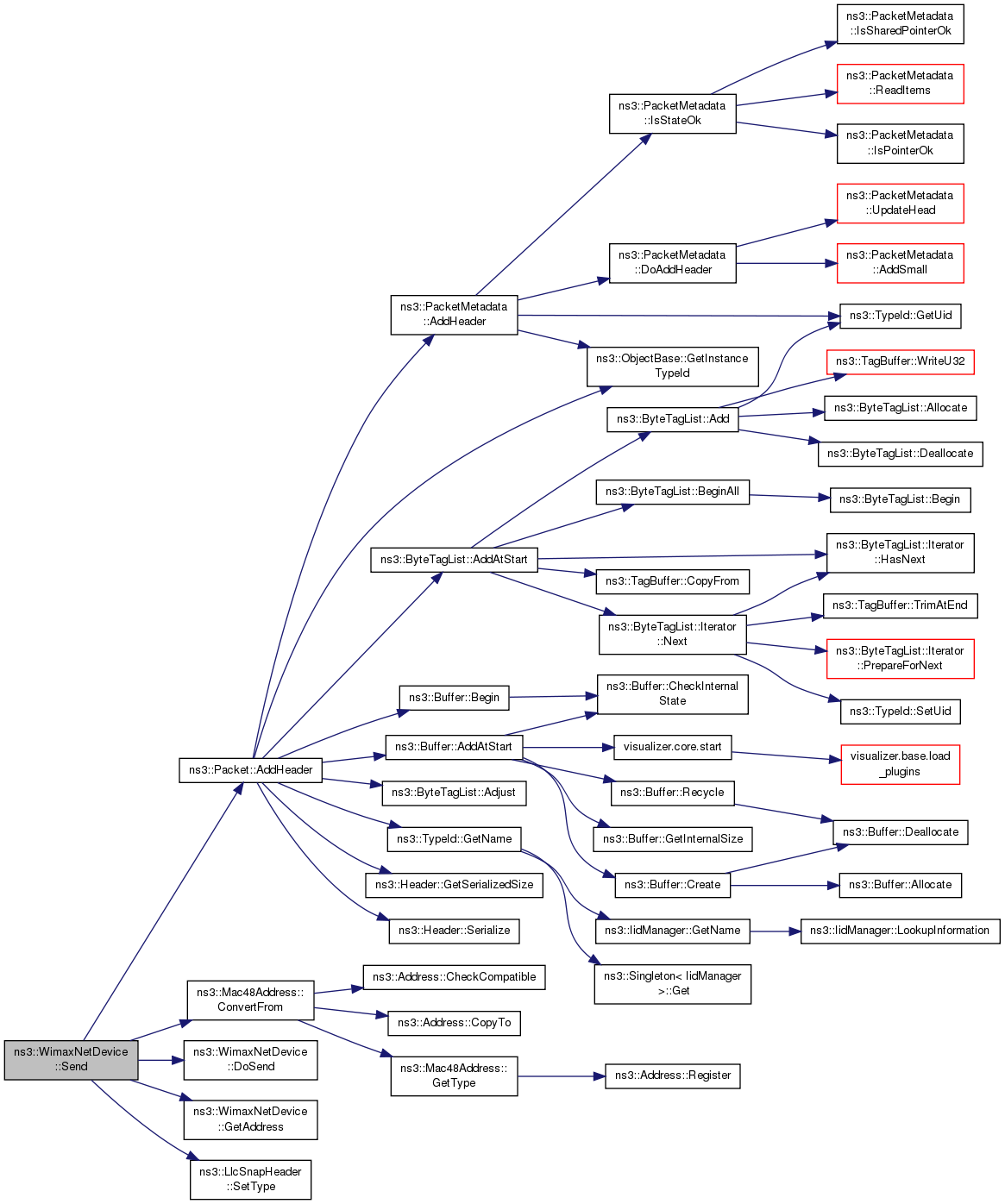

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

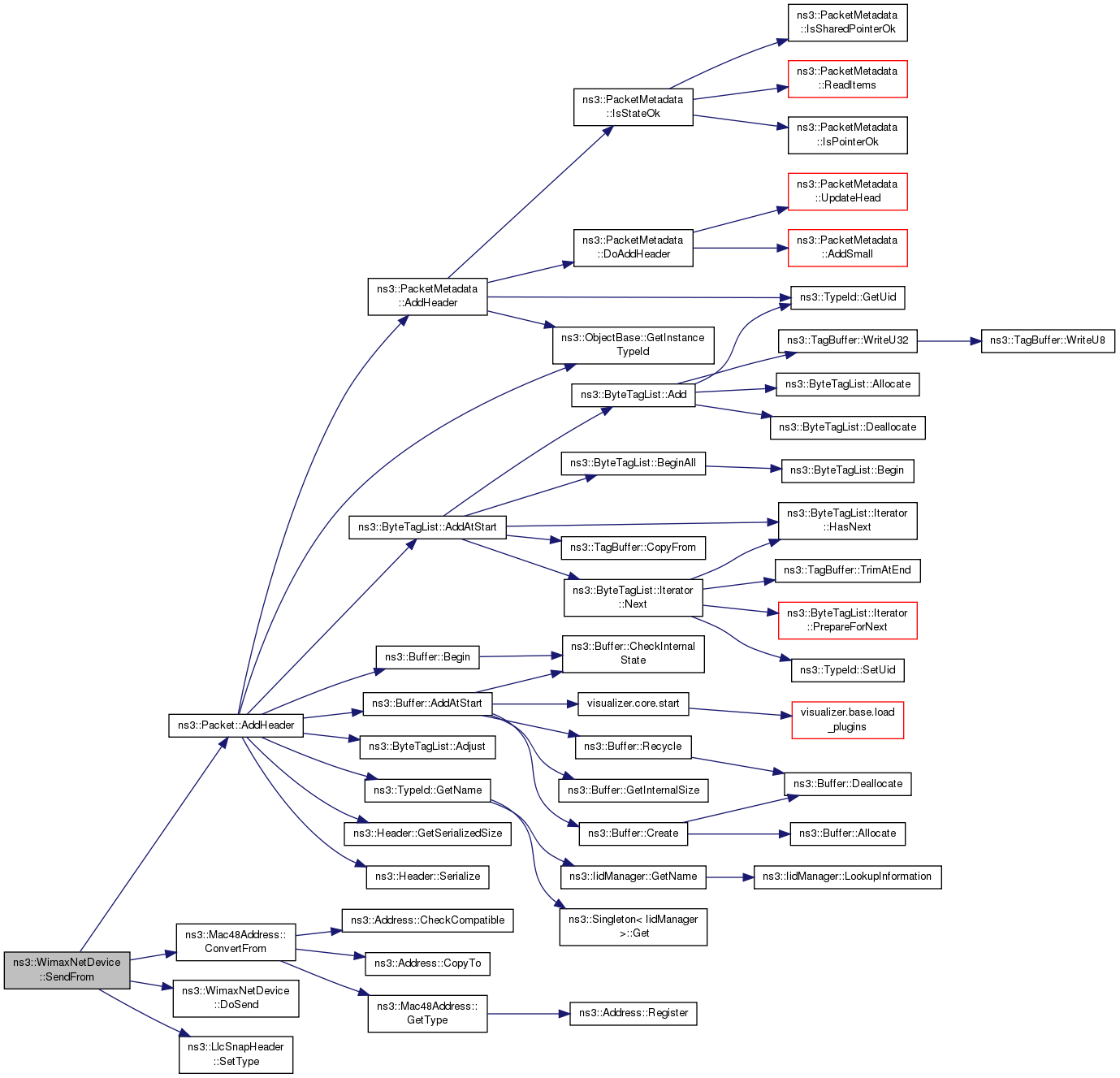

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

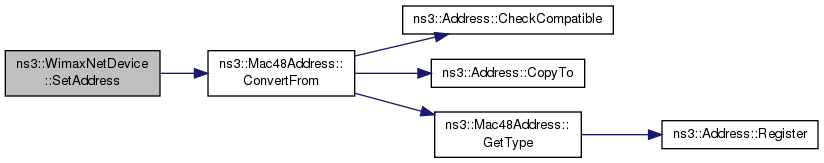

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

void	SetBandwidthManager (Ptr< BandwidthManager > bandwidthManager)

void	SetBurstProfileManager (Ptr< BurstProfileManager > burstProfileManager)

void	SetChannel (Ptr< WimaxChannel > wimaxChannel)

virtual void	SetConnectionManager (Ptr< ConnectionManager > connectionManager)

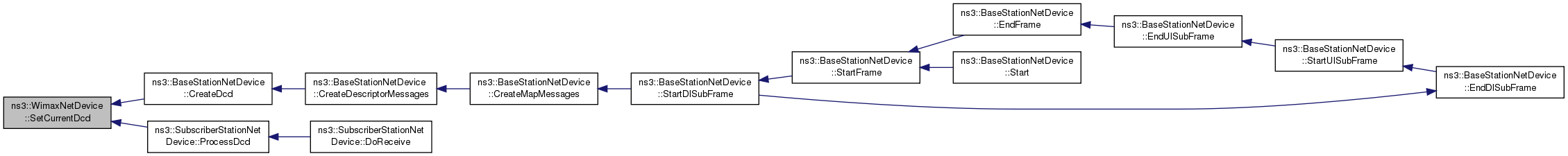

void	SetCurrentDcd (Dcd dcd)

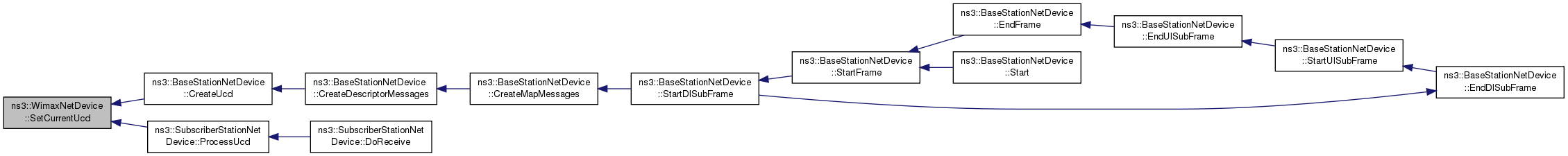

void	SetCurrentUcd (Ucd ucd)

virtual void	SetIfIndex (const uint32_t index)

virtual void	SetLinkChangeCallback (Callback< void > callback)

void	SetMacAddress (Mac48Address address)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetName (const std::string name)

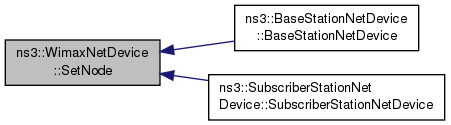

virtual void	SetNode (Ptr< Node > node)

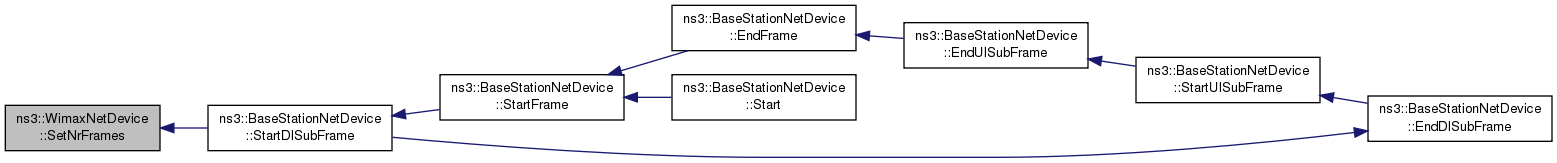

void	SetNrFrames (uint32_t nrFrames)

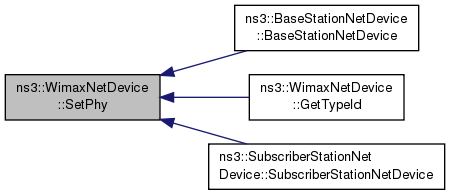

void	SetPhy (Ptr< WimaxPhy > phy)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

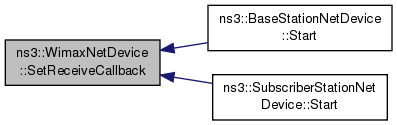

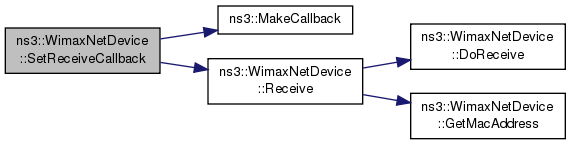

void	SetReceiveCallback (void)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

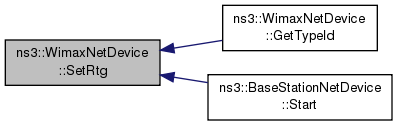

void	SetRtg (uint16_t rtg)

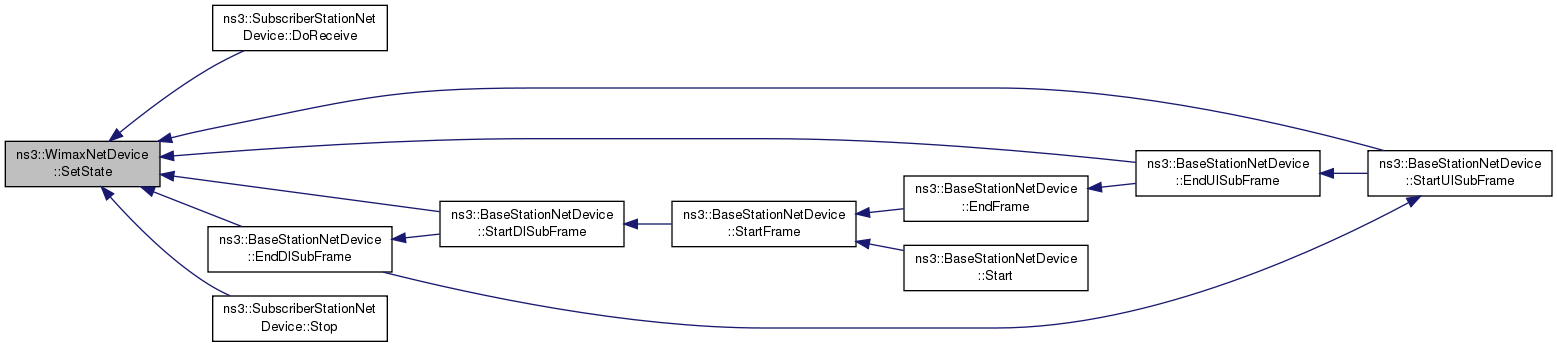

void	SetState (uint8_t state)

void	SetTtg (uint16_t ttg)

virtual void	Start (void)=0

virtual void	Stop (void)=0

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

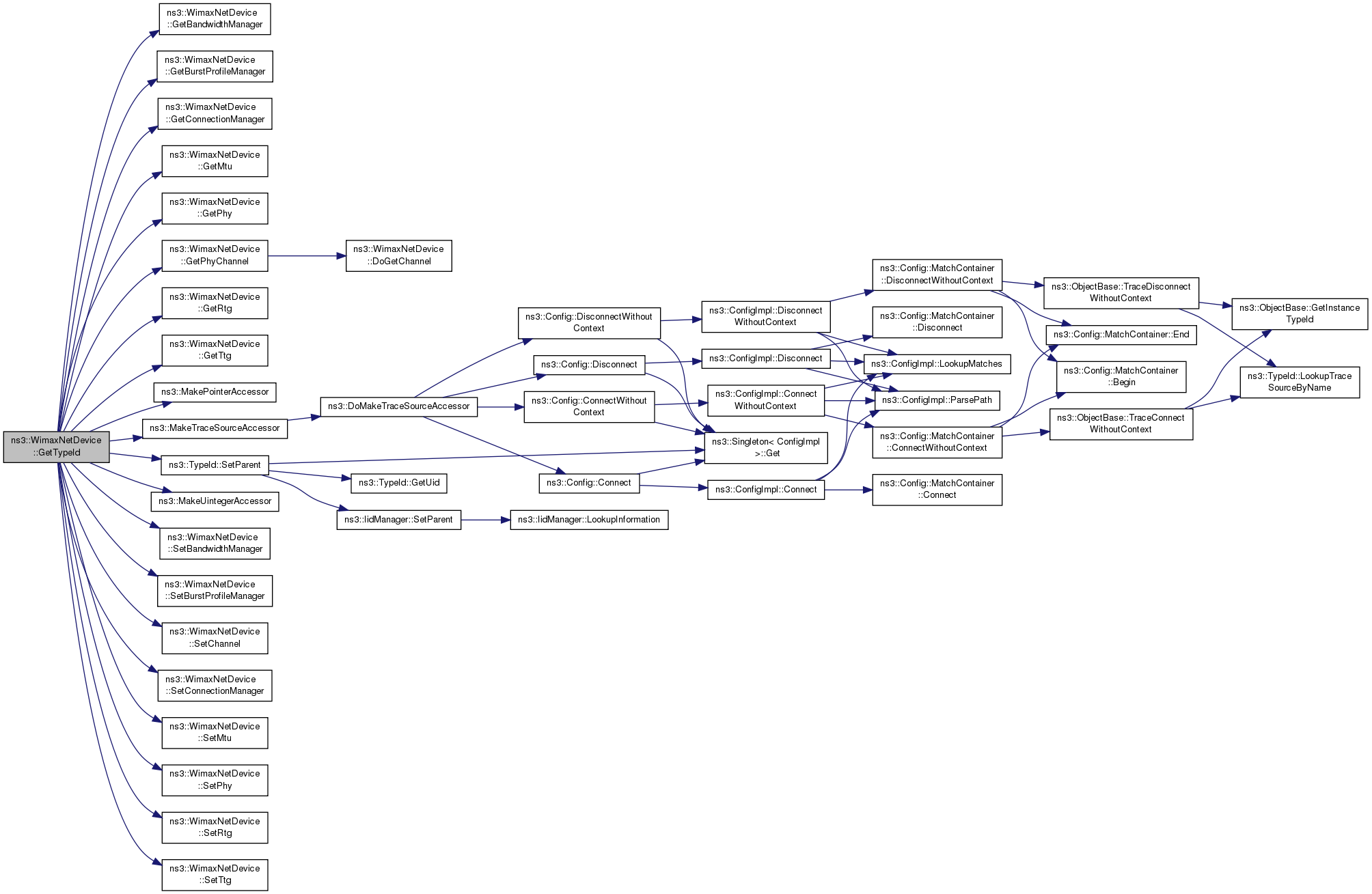

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Public Attributes
TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceRx

TracedCallback< Ptr< const Packet >, const Mac48Address & >	m_traceTx

Static Public Attributes
static uint8_t	m_direction = ~0

static Time	m_frameStartTime = Seconds (0)

Private Member Functions
	WimaxNetDevice (const WimaxNetDevice &)

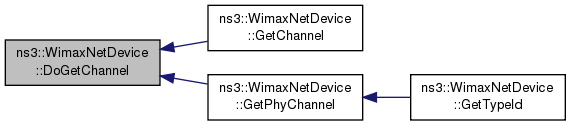

virtual Ptr< WimaxChannel >	DoGetChannel (void) const

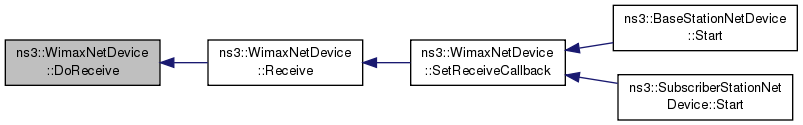

virtual void	DoReceive (Ptr< Packet > packet)=0

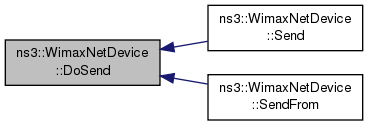

virtual bool	DoSend (Ptr< Packet > packet, const Mac48Address &source, const Mac48Address &dest, uint16_t protocolNumber)=0

void	InitializeChannels (void)

WimaxNetDevice &	operator= (const WimaxNetDevice &)

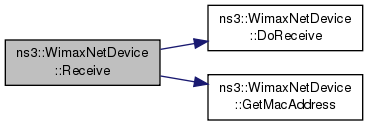

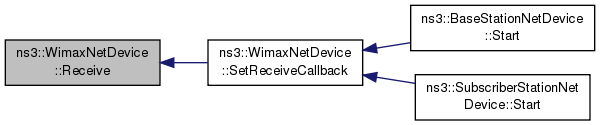

void	Receive (Ptr< const PacketBurst > burst)

Private Attributes
Mac48Address	m_address

Ptr< BandwidthManager >	m_bandwidthManager

Ptr< WimaxConnection >	m_broadcastConnection

Ptr< BurstProfileManager >	m_burstProfileManager

Ptr< ConnectionManager >	m_connectionManager

Dcd	m_currentDcd

Ucd	m_currentUcd

std::vector< uint64_t >	m_dlChannels

NetDevice::ReceiveCallback	m_forwardUp

uint32_t	m_ifIndex

Ptr< WimaxConnection >	m_initialRangingConnection

Callback< void >	m_linkChange

bool	m_linkUp

Ptr< Object >	m_mobility

uint16_t	m_mtu

std::string	m_name

Ptr< Node >	m_node

Ptr< WimaxPhy >	m_phy

NetDevice::PromiscReceiveCallback	m_promiscRx

uint16_t	m_rtg

uint8_t	m_state

uint32_t	m_symbolIndex

uint16_t	m_ttg

Static Private Attributes
static const uint16_t	DEFAULT_MSDU_SIZE = 1400

static uint32_t	m_nrFrames = 0

static const uint16_t	MAX_MSDU_SIZE = 1500

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Hold together all Wimax-related objects in a NetDevice.

This class holds together ns3::WimaxPhy, ns3::WimaxConnection, ns3::ConectionManager, ns3::BurstProfileManager, and ns3::BandwidthManager.

Config Paths

ns3::WimaxNetDevice is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice"

Attributes

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:1500
- Initial value: 1400
- Flags: construct write read
Phy: The PHY layer attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxPhy>
- Initial value: 0
- Flags: construct write read
Channel: The channel attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxChannel>
- Initial value: 0
- Flags: construct write read
RTG: receive/transmit transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
TTG: transmit/receive transition gap.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:120
- Initial value: 0
- Flags: construct write read
ConnectionManager: The connection manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::ConnectionManager>
- Initial value: 0
- Flags: construct write read
BurstProfileManager: The burst profile manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BurstProfileManager>
- Initial value: 0
- Flags: construct write read
BandwidthManager: The bandwidth manager attached to this device.
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::BandwidthManager>
- Initial value: 0
- Flags: construct write read
InitialRangingConnection: Initial ranging connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: construct write read
BroadcastConnection: Broadcast connection
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::WimaxConnection>
- Initial value: 0
- Flags: construct write read

TraceSources

Rx: Receive trace
Callback signature: ns3::WimaxNetDevice::TxRxTracedCallback
Tx: Transmit trace
Callback signature: ns3::WimaxNetDevice::TxRxTracedCallback

Size of this type is 384 bytes (on a 64-bit architecture).

Definition at line 69 of file wimax-net-device.h.

Member Typedef Documentation

typedef void(* ns3::WimaxNetDevice::TxRxTracedCallback) (Ptr< const Packet > packet, const Mac48Address &mac)

TracedCallback signature for packet and Mac48Address.

Parameters

[in]	packet	The packet.
[in]	mac	The Mac48Address.

Deprecated:: The const Mac48Address & argument is deprecated and will be changed to Mac48Address in a future release. The TracedCallback signature will then match Packet::Mac48Address and this typedef can be removed.

Definition at line 233 of file wimax-net-device.h.

Constructor & Destructor Documentation

ns3::WimaxNetDevice::WimaxNetDevice ( void )

Definition at line 138 of file wimax-net-device.cc.

References InitializeChannels(), m_bandwidthManager, m_burstProfileManager, m_connectionManager, m_direction, m_frameStartTime, m_nrFrames, and ns3::Seconds().

Here is the call graph for this function:

ns3::WimaxNetDevice::~WimaxNetDevice ( void )

virtual

Definition at line 153 of file wimax-net-device.cc.

ns3::WimaxNetDevice::WimaxNetDevice ( const WimaxNetDevice & )

private

Member Function Documentation

void ns3::WimaxNetDevice::AddLinkChangeCallback ( Callback< void > callback )

virtual

Parameters

callback the callback to invoke

Add a callback invoked whenever the link status changes to UP. This callback is typically used by the IP/ARP layer to flush the ARP cache and by IPv6 stack to flush NDISC cache whenever the link goes up.

Implements ns3::NetDevice.

Definition at line 643 of file wimax-net-device.cc.

References NS_FATAL_ERROR.

void ns3::WimaxNetDevice::Attach ( Ptr< WimaxChannel > channel )

Definition at line 357 of file wimax-net-device.cc.

References m_phy.

void ns3::WimaxNetDevice::CreateDefaultConnections ( void )

Creates the initial ranging and broadcast connections.

Definition at line 511 of file wimax-net-device.cc.

References ns3::Cid::BROADCAST, ns3::Cid::Broadcast(), ns3::Cid::INITIAL_RANGING, ns3::Cid::InitialRanging(), m_broadcastConnection, and m_initialRangingConnection.

Referenced by ns3::BaseStationNetDevice::Start(), and ns3::SubscriberStationNetDevice::Start().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WimaxNetDevice::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Reimplemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

Definition at line 158 of file wimax-net-device.cc.

References ns3::Object::DoDispose(), m_bandwidthManager, m_broadcastConnection, m_burstProfileManager, m_connectionManager, m_initialRangingConnection, m_node, and m_phy.

Referenced by ns3::BaseStationNetDevice::DoDispose(), and ns3::SubscriberStationNetDevice::DoDispose().

Here is the call graph for this function:

Here is the caller graph for this function:

Ptr< WimaxChannel > ns3::WimaxNetDevice::DoGetChannel ( void ) const

privatevirtual

Definition at line 532 of file wimax-net-device.cc.

References m_phy.

Referenced by GetChannel(), and GetPhyChannel().

Here is the caller graph for this function:

virtual void ns3::WimaxNetDevice::DoReceive ( Ptr< Packet > packet )

privatepure virtual

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

Referenced by Receive().

Here is the caller graph for this function:

virtual bool ns3::WimaxNetDevice::DoSend	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest,
		uint16_t	protocolNumber
	)

privatepure virtual

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

Referenced by Send(), and SendFrom().

Here is the caller graph for this function:

virtual bool ns3::WimaxNetDevice::Enqueue	(	Ptr< Packet >	packet,
		const MacHeaderType &	hdrType,
		Ptr< WimaxConnection >	connection
	)

pure virtual

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

void ns3::WimaxNetDevice::ForwardDown	(	Ptr< PacketBurst >	burst,
		WimaxPhy::ModulationType	modulationType
	)

Definition at line 583 of file wimax-net-device.cc.

References m_direction, and m_phy.

Referenced by ns3::SubscriberStationNetDevice::SendBurst(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::ForwardUp	(	Ptr< Packet >	packet,
		const Mac48Address &	source,
		const Mac48Address &	dest
	)

Definition at line 348 of file wimax-net-device.cc.

References ns3::LlcSnapHeader::GetType(), m_forwardUp, m_traceRx, and ns3::Packet::RemoveHeader().

Referenced by ns3::BaseStationNetDevice::DoReceive(), and ns3::SubscriberStationNetDevice::DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::GetAddress ( void ) const

virtual

Returns: the current Address of this interface.

Implements ns3::NetDevice.

Definition at line 415 of file wimax-net-device.cc.

References m_address.

Referenced by Send().

Here is the caller graph for this function:

Ptr< BandwidthManager > ns3::WimaxNetDevice::GetBandwidthManager ( void ) const

Returns: the bandwidth manager installed on the device

Definition at line 499 of file wimax-net-device.cc.

References m_bandwidthManager.

Referenced by ns3::BaseStationNetDevice::DoReceive(), GetTypeId(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::GetBroadcast ( void ) const

virtual

Returns: the broadcast address supported by this netdevice.

Calling this method is invalid if IsBroadcast returns not true.

Implements ns3::NetDevice.

Definition at line 274 of file wimax-net-device.cc.

References ns3::Mac48Address::GetBroadcast().

Here is the call graph for this function:

Ptr< WimaxConnection > ns3::WimaxNetDevice::GetBroadcastConnection ( void ) const

Returns: the broadcast connection

Definition at line 445 of file wimax-net-device.cc.

References m_broadcastConnection.

Referenced by ns3::BaseStationNetDevice::CreateDescriptorMessages(), ns3::BaseStationNetDevice::CreateMapMessages(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

Ptr< BurstProfileManager > ns3::WimaxNetDevice::GetBurstProfileManager ( void ) const

Returns: the burst profile manager currently installed in the device

Definition at line 487 of file wimax-net-device.cc.

References m_burstProfileManager.

Referenced by GetTypeId(), ns3::SubscriberStationNetDevice::SendBurst(), ns3::BaseStationNetDevice::SendBursts(), ns3::BaseStationNetDevice::SetDlBurstProfiles(), and ns3::BaseStationNetDevice::SetUlBurstProfiles().

Here is the caller graph for this function:

uint64_t ns3::WimaxNetDevice::GetChannel ( uint8_t index ) const

Definition at line 385 of file wimax-net-device.cc.

References m_dlChannels.

Ptr< Channel > ns3::WimaxNetDevice::GetChannel ( void ) const

virtual

Returns: the channel this NetDevice is connected to. The value returned can be zero if the NetDevice is not yet connected to any channel or if the underlying NetDevice has no concept of a channel. i.e., callers must check for zero and be ready to handle it.

Implements ns3::NetDevice.

Definition at line 225 of file wimax-net-device.cc.

References DoGetChannel().

Here is the call graph for this function:

Ptr< ConnectionManager > ns3::WimaxNetDevice::GetConnectionManager ( void ) const

Returns: the connection manager of the device

Definition at line 475 of file wimax-net-device.cc.

References m_connectionManager.

Referenced by ns3::BaseStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), GetTypeId(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

Dcd ns3::WimaxNetDevice::GetCurrentDcd ( void ) const

Definition at line 457 of file wimax-net-device.cc.

References m_currentDcd.

Referenced by ns3::SubscriberStationNetDevice::ProcessDcd().

Here is the caller graph for this function:

Ucd ns3::WimaxNetDevice::GetCurrentUcd ( void ) const

Definition at line 469 of file wimax-net-device.cc.

References m_currentUcd.

Referenced by ns3::SubscriberStationNetDevice::ProcessUcd(), and ns3::SubscriberStationNetDevice::ProcessUlMap().

Here is the caller graph for this function:

uint32_t ns3::WimaxNetDevice::GetIfIndex ( void ) const

virtual

Returns: index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 219 of file wimax-net-device.cc.

References m_ifIndex.

Ptr< WimaxConnection > ns3::WimaxNetDevice::GetInitialRangingConnection ( void ) const

Returns: the initial ranging connection

Definition at line 439 of file wimax-net-device.cc.

References m_initialRangingConnection.

Referenced by ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::GetConnection(), and ns3::BaseStationNetDevice::SendBursts().

Here is the caller graph for this function:

Mac48Address ns3::WimaxNetDevice::GetMacAddress ( void ) const

Returns: the mac address of the net device

Definition at line 421 of file wimax-net-device.cc.

References m_address.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::CreateDlMap(), ns3::SubscriberStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::DoSend(), Receive(), and ns3::SubscriberStationNetDevice::SendBurst().

Here is the caller graph for this function:

uint16_t ns3::WimaxNetDevice::GetMtu ( void ) const

virtual

Returns: the link-level MTU in bytes for this interface.

This value is typically used by the IP layer to perform IP fragmentation when needed.

Implements ns3::NetDevice.

Definition at line 248 of file wimax-net-device.cc.

References m_mtu.

Referenced by GetTypeId().

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::GetMulticast ( void ) const

virtual

Definition at line 286 of file wimax-net-device.cc.

Referenced by MakeMulticastAddress().

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::GetMulticast ( Ipv6Address addr ) const

virtual

Get the MAC multicast address corresponding to the IPv6 address provided.

Parameters

addr	IPv6 address

Returns: the MAC multicast address

Warning: Calling this method is invalid if IsMulticast returns not true.

Implements ns3::NetDevice.

Definition at line 634 of file wimax-net-device.cc.

References ns3::Mac48Address::GetMulticast(), and NS_LOG_LOGIC.

Here is the call graph for this function:

Address ns3::WimaxNetDevice::GetMulticast ( Ipv4Address multicastGroup ) const

virtual

Make and return a MAC multicast address using the provided multicast group.

RFC 1112 says that an Ipv4 host group address is mapped to an Ethernet multicast address by placing the low-order 23-bits of the IP address into the low-order 23 bits of the Ethernet multicast address 01-00-5E-00-00-00 (hex). Similar RFCs exist for Ipv6 and Eui64 mappings. This method performs the multicast address creation function appropriate to the underlying MAC address of the device. This MAC address is encapsulated in an abstract Address to avoid dependencies on the exact MAC address format.

In the case of net devices that do not support multicast, clients are expected to test NetDevice::IsMulticast and avoid attempting to map multicast packets. Subclasses of NetDevice that do support multicasting are expected to override this method and provide an implementation appropriate to the particular device.

Parameters

multicastGroup The IP address for the multicast group destination of the packet.

Returns: The MAC multicast Address used to send packets to the provided multicast group.

Warning: Calling this method is invalid if IsMulticast returns not true.

See also: IsMulticast()

Implements ns3::NetDevice.

Definition at line 617 of file wimax-net-device.cc.

References ns3::Mac48Address::GetMulticast(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

std::string ns3::WimaxNetDevice::GetName ( void ) const

virtual

Definition at line 207 of file wimax-net-device.cc.

References m_name.

Ptr< Node > ns3::WimaxNetDevice::GetNode ( void ) const

virtual

Returns: the node base class which contains this network interface.

When a subclass needs to get access to the underlying node base class to print the nodeid for example, it can invoke this method.

Implements ns3::NetDevice.

Definition at line 324 of file wimax-net-device.cc.

References m_node.

uint32_t ns3::WimaxNetDevice::GetNrFrames ( void ) const

Definition at line 396 of file wimax-net-device.cc.

References m_nrFrames.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::StartDlSubFrame(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

Ptr< WimaxPhy > ns3::WimaxNetDevice::GetPhy ( void ) const

Returns: a pointer to the physical layer.

Definition at line 369 of file wimax-net-device.cc.

References m_phy.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::CreateUcd(), ns3::SubscriberStationNetDevice::GetTimeToAllocation(), GetTypeId(), ns3::SubscriberStationNetDevice::ProcessDcd(), ns3::SubscriberStationNetDevice::ProcessUlMap(), ns3::BaseStationNetDevice::SendBursts(), ns3::BaseStationNetDevice::Start(), ns3::SubscriberStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

Ptr< Channel > ns3::WimaxNetDevice::GetPhyChannel ( void ) const

virtual

Definition at line 231 of file wimax-net-device.cc.

References DoGetChannel().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

NetDevice::PromiscReceiveCallback ns3::WimaxNetDevice::GetPromiscReceiveCallback ( void )

uint16_t ns3::WimaxNetDevice::GetRtg ( void ) const

Returns: receive/transmit transition gap

Definition at line 195 of file wimax-net-device.cc.

References m_rtg.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::EndUlSubFrame(), GetTypeId(), ns3::BaseStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

uint8_t ns3::WimaxNetDevice::GetState ( void ) const

Definition at line 433 of file wimax-net-device.cc.

References m_state.

Referenced by ns3::SubscriberStationNetDevice::DoReceive(), ns3::SubscriberStationNetDevice::IsRegistered(), ns3::SubscriberStationNetDevice::ProcessUlMap(), and ns3::SubscriberStationNetDevice::SetTimer().

Here is the caller graph for this function:

uint16_t ns3::WimaxNetDevice::GetTtg ( void ) const

Returns: transmit/receive transition gap

Definition at line 183 of file wimax-net-device.cc.

References m_ttg.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), ns3::BaseStationNetDevice::EndDlSubFrame(), GetTypeId(), ns3::BaseStationNetDevice::Start(), and ns3::BaseStationNetDevice::StartFrame().

Here is the caller graph for this function:

TypeId ns3::WimaxNetDevice::GetTypeId ( void )

static

Definition at line 52 of file wimax-net-device.cc.

References DEFAULT_MSDU_SIZE, GetBandwidthManager(), GetBurstProfileManager(), GetConnectionManager(), GetMtu(), GetPhy(), GetPhyChannel(), GetRtg(), GetTtg(), m_broadcastConnection, m_initialRangingConnection, m_traceRx, m_traceTx, ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), MAX_MSDU_SIZE, SetBandwidthManager(), SetBurstProfileManager(), SetChannel(), SetConnectionManager(), SetMtu(), ns3::TypeId::SetParent(), SetPhy(), SetRtg(), and SetTtg().

Here is the call graph for this function:

void ns3::WimaxNetDevice::InitializeChannels ( void )

private

Definition at line 591 of file wimax-net-device.cc.

References m_dlChannels.

Referenced by WimaxNetDevice().

Here is the caller graph for this function:

bool ns3::WimaxNetDevice::IsBridge ( void ) const

virtual

Return true if the net device is acting as a bridge.

Returns: value of m_isBridge flag

Implements ns3::NetDevice.

Definition at line 610 of file wimax-net-device.cc.

References NS_LOG_FUNCTION_NOARGS.

bool ns3::WimaxNetDevice::IsBroadcast ( void ) const

virtual

Returns: true if this interface supports a broadcast address, false otherwise.

Implements ns3::NetDevice.

Definition at line 268 of file wimax-net-device.cc.

bool ns3::WimaxNetDevice::IsLinkUp ( void ) const

virtual

Returns: true if link is up; false otherwise

Implements ns3::NetDevice.

Definition at line 254 of file wimax-net-device.cc.

References m_linkUp, and m_phy.

bool ns3::WimaxNetDevice::IsMulticast ( void ) const

virtual

Returns: value of m_isMulticast flag

Implements ns3::NetDevice.

Definition at line 280 of file wimax-net-device.cc.

bool ns3::WimaxNetDevice::IsPointToPoint ( void ) const

virtual

Return true if the net device is on a point-to-point link.

Returns: value of m_isPointToPoint flag

Implements ns3::NetDevice.

Definition at line 298 of file wimax-net-device.cc.

bool ns3::WimaxNetDevice::IsPromisc ( void )

Definition at line 565 of file wimax-net-device.cc.

References ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), and m_promiscRx.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the call graph for this function:

Here is the caller graph for this function:

Address ns3::WimaxNetDevice::MakeMulticastAddress ( Ipv4Address multicastGroup ) const

virtual

Definition at line 292 of file wimax-net-device.cc.

References GetMulticast().

Here is the call graph for this function:

bool ns3::WimaxNetDevice::NeedsArp ( void ) const

virtual

Returns: true if ARP is needed, false otherwise.

Called by higher-layers to check if this NetDevice requires ARP to be used.

Implements ns3::NetDevice.

Definition at line 330 of file wimax-net-device.cc.

void ns3::WimaxNetDevice::NotifyPromiscTrace ( Ptr< Packet > p )

Definition at line 571 of file wimax-net-device.cc.

Referenced by ns3::SubscriberStationNetDevice::DoReceive().

Here is the caller graph for this function:

WimaxNetDevice& ns3::WimaxNetDevice::operator= ( const WimaxNetDevice & )

private

void ns3::WimaxNetDevice::Receive ( Ptr< const PacketBurst > burst )

private

Definition at line 518 of file wimax-net-device.cc.

References DoReceive(), GetMacAddress(), list, and NS_LOG_DEBUG.

Referenced by SetReceiveCallback().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::WimaxNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 304 of file wimax-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), DoSend(), GetAddress(), m_traceTx, and ns3::LlcSnapHeader::SetType().

Here is the call graph for this function:

bool ns3::WimaxNetDevice::SendFrom	(	Ptr< Packet >	packet,
		const Address &	source,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
source	source mac address (so called "MAC spoofing")
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device with the specified source and destination Addresses.

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 544 of file wimax-net-device.cc.

References ns3::Packet::AddHeader(), ns3::Mac48Address::ConvertFrom(), DoSend(), m_traceTx, and ns3::LlcSnapHeader::SetType().

Here is the call graph for this function:

void ns3::WimaxNetDevice::SetAddress ( Address address )

virtual

Set the address of this interface.

Parameters

address address to set

Implements ns3::NetDevice.

Definition at line 403 of file wimax-net-device.cc.

References ns3::Mac48Address::ConvertFrom(), and m_address.

Here is the call graph for this function:

void ns3::WimaxNetDevice::SetBandwidthManager ( Ptr< BandwidthManager > bandwidthManager )

Parameters

bandwidthManager the bandwidth manager to be installed on the device

Definition at line 505 of file wimax-net-device.cc.

References m_bandwidthManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetBurstProfileManager ( Ptr< BurstProfileManager > burstProfileManager )

Parameters

burstProfileManager the burst profile manager to be installed on the device

Definition at line 493 of file wimax-net-device.cc.

References m_burstProfileManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetChannel ( Ptr< WimaxChannel > wimaxChannel )

Parameters

wimaxChannel the channel to be used

Definition at line 375 of file wimax-net-device.cc.

References m_phy.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetConnectionManager ( Ptr< ConnectionManager > connectionManager )

virtual

Parameters

connectionManager the commection manager to be installed in the device

Definition at line 481 of file wimax-net-device.cc.

References m_connectionManager.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetCurrentDcd ( Dcd dcd )

Definition at line 451 of file wimax-net-device.cc.

References m_currentDcd.

Referenced by ns3::BaseStationNetDevice::CreateDcd(), and ns3::SubscriberStationNetDevice::ProcessDcd().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetCurrentUcd ( Ucd ucd )

Definition at line 463 of file wimax-net-device.cc.

References m_currentUcd.

Referenced by ns3::BaseStationNetDevice::CreateUcd(), and ns3::SubscriberStationNetDevice::ProcessUcd().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetIfIndex ( const uint32_t index )

virtual

Parameters

index ifIndex of the device

Implements ns3::NetDevice.

Definition at line 213 of file wimax-net-device.cc.

References m_ifIndex.

void ns3::WimaxNetDevice::SetLinkChangeCallback ( Callback< void > callback )

virtual

Definition at line 262 of file wimax-net-device.cc.

References m_linkChange.

void ns3::WimaxNetDevice::SetMacAddress ( Mac48Address address )

Parameters

address the mac address of the net device

Definition at line 409 of file wimax-net-device.cc.

References first::address, and m_address.

bool ns3::WimaxNetDevice::SetMtu ( const uint16_t mtu )

virtual

Parameters

mtu	MTU value, in bytes, to set for the device

Returns: whether the MTU value was within legal bounds

Override for default MTU defined on a per-type basis.

Implements ns3::NetDevice.

Definition at line 237 of file wimax-net-device.cc.

References m_mtu, and MAX_MSDU_SIZE.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetName ( const std::string name )

virtual

Definition at line 201 of file wimax-net-device.cc.

References m_name.

void ns3::WimaxNetDevice::SetNode ( Ptr< Node > node )

virtual

Parameters

node	the node associated to this netdevice.

This method is called from ns3::Node::AddDevice.

Implements ns3::NetDevice.

Definition at line 318 of file wimax-net-device.cc.

References m_node.

Referenced by ns3::BaseStationNetDevice::BaseStationNetDevice(), and ns3::SubscriberStationNetDevice::SubscriberStationNetDevice().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetNrFrames ( uint32_t nrFrames )

Definition at line 391 of file wimax-net-device.cc.

References m_nrFrames.

Referenced by ns3::BaseStationNetDevice::StartDlSubFrame().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetPhy ( Ptr< WimaxPhy > phy )

Parameters

phy	the phy layer to use.

Definition at line 363 of file wimax-net-device.cc.

References m_phy, and third::phy.

Referenced by ns3::BaseStationNetDevice::BaseStationNetDevice(), GetTypeId(), and ns3::SubscriberStationNetDevice::SubscriberStationNetDevice().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetPromiscReceiveCallback ( PromiscReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received in promiscuous mode and must be forwarded to the higher layers.

Enables netdevice promiscuous mode and sets the callback that will handle promiscuous mode packets. Note, promiscuous mode packets means all packets, including those packets that can be sensed by the netdevice but which are intended to be received by other hosts.

Implements ns3::NetDevice.

Definition at line 559 of file wimax-net-device.cc.

References m_promiscRx.

void ns3::WimaxNetDevice::SetReceiveCallback ( void )

Definition at line 538 of file wimax-net-device.cc.

References m_phy, ns3::MakeCallback(), and Receive().

Referenced by ns3::BaseStationNetDevice::Start(), and ns3::SubscriberStationNetDevice::Start().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetReceiveCallback ( NetDevice::ReceiveCallback cb )

virtual

Parameters

cb	callback to invoke whenever a packet has been received and must be forwarded to the higher layers.

Set the callback to be used to notify higher layers when a packet has been received.

Implements ns3::NetDevice.

Definition at line 342 of file wimax-net-device.cc.

References m_forwardUp.

void ns3::WimaxNetDevice::SetRtg ( uint16_t rtg )

Parameters

rtg	receive/transmit transition gap

Definition at line 189 of file wimax-net-device.cc.

References m_rtg.

Referenced by GetTypeId(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetState ( uint8_t state )

Definition at line 427 of file wimax-net-device.cc.

References m_state.

Referenced by ns3::SubscriberStationNetDevice::DoReceive(), ns3::BaseStationNetDevice::EndDlSubFrame(), ns3::BaseStationNetDevice::EndUlSubFrame(), ns3::BaseStationNetDevice::StartDlSubFrame(), ns3::BaseStationNetDevice::StartUlSubFrame(), and ns3::SubscriberStationNetDevice::Stop().

Here is the caller graph for this function:

void ns3::WimaxNetDevice::SetTtg ( uint16_t ttg )

Parameters

ttg	transmit/receive transition gap

Definition at line 177 of file wimax-net-device.cc.

References m_ttg.

Referenced by GetTypeId(), and ns3::BaseStationNetDevice::Start().

Here is the caller graph for this function:

virtual void ns3::WimaxNetDevice::Start ( void )

pure virtual

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

virtual void ns3::WimaxNetDevice::Stop ( void )

pure virtual

Implemented in ns3::SubscriberStationNetDevice, and ns3::BaseStationNetDevice.

bool ns3::WimaxNetDevice::SupportsSendFrom ( void ) const

virtual

Returns: true if this interface supports a bridging mode, false otherwise.

Implements ns3::NetDevice.

Definition at line 577 of file wimax-net-device.cc.

Member Data Documentation

const uint16_t ns3::WimaxNetDevice::DEFAULT_MSDU_SIZE = 1400

staticprivate

Definition at line 265 of file wimax-net-device.h.

Referenced by GetTypeId().

Mac48Address ns3::WimaxNetDevice::m_address

private

Definition at line 293 of file wimax-net-device.h.

Referenced by GetAddress(), GetMacAddress(), SetAddress(), and SetMacAddress().

Ptr<BandwidthManager> ns3::WimaxNetDevice::m_bandwidthManager

private

Definition at line 309 of file wimax-net-device.h.

Referenced by DoDispose(), GetBandwidthManager(), SetBandwidthManager(), and WimaxNetDevice().

Ptr<WimaxConnection> ns3::WimaxNetDevice::m_broadcastConnection

private

Definition at line 305 of file wimax-net-device.h.

Referenced by CreateDefaultConnections(), DoDispose(), GetBroadcastConnection(), and GetTypeId().

Ptr<BurstProfileManager> ns3::WimaxNetDevice::m_burstProfileManager

private

Definition at line 308 of file wimax-net-device.h.

Referenced by DoDispose(), GetBurstProfileManager(), SetBurstProfileManager(), and WimaxNetDevice().

Ptr<ConnectionManager> ns3::WimaxNetDevice::m_connectionManager

private

Definition at line 307 of file wimax-net-device.h.

Referenced by DoDispose(), GetConnectionManager(), SetConnectionManager(), and WimaxNetDevice().

Dcd ns3::WimaxNetDevice::m_currentDcd

private

Definition at line 301 of file wimax-net-device.h.

Referenced by GetCurrentDcd(), and SetCurrentDcd().

Ucd ns3::WimaxNetDevice::m_currentUcd

private

Definition at line 302 of file wimax-net-device.h.

Referenced by GetCurrentUcd(), and SetCurrentUcd().

uint8_t ns3::WimaxNetDevice::m_direction = ~0

static

Definition at line 189 of file wimax-net-device.h.

Referenced by ForwardDown(), ns3::BaseStationNetDevice::StartDlSubFrame(), ns3::BaseStationNetDevice::StartUlSubFrame(), and WimaxNetDevice().

std::vector<uint64_t> ns3::WimaxNetDevice::m_dlChannels

private

Definition at line 291 of file wimax-net-device.h.

Referenced by GetChannel(), and InitializeChannels().

NetDevice::ReceiveCallback ns3::WimaxNetDevice::m_forwardUp

private

Definition at line 278 of file wimax-net-device.h.

Referenced by ForwardUp(), and SetReceiveCallback().

Time ns3::WimaxNetDevice::m_frameStartTime = Seconds (0)

static

Definition at line 191 of file wimax-net-device.h.

Referenced by ns3::SubscriberStationNetDevice::GetTimeToAllocation(), ns3::BaseStationNetDevice::StartDlSubFrame(), ns3::BaseStationNetDevice::StartFrame(), and WimaxNetDevice().

uint32_t ns3::WimaxNetDevice::m_ifIndex

private

Definition at line 281 of file wimax-net-device.h.

Referenced by GetIfIndex(), and SetIfIndex().

Ptr<WimaxConnection> ns3::WimaxNetDevice::m_initialRangingConnection

private

Definition at line 304 of file wimax-net-device.h.

Referenced by CreateDefaultConnections(), DoDispose(), GetInitialRangingConnection(), and GetTypeId().

Callback<void> ns3::WimaxNetDevice::m_linkChange

private

Definition at line 284 of file wimax-net-device.h.

Referenced by SetLinkChangeCallback().

bool ns3::WimaxNetDevice::m_linkUp

private

Definition at line 283 of file wimax-net-device.h.

Referenced by IsLinkUp().

Ptr<Object> ns3::WimaxNetDevice::m_mobility

private

Definition at line 311 of file wimax-net-device.h.

uint16_t ns3::WimaxNetDevice::m_mtu

mutableprivate

Definition at line 285 of file wimax-net-device.h.

Referenced by GetMtu(), and SetMtu().

std::string ns3::WimaxNetDevice::m_name

private

Definition at line 282 of file wimax-net-device.h.

Referenced by GetName(), and SetName().

Ptr<Node> ns3::WimaxNetDevice::m_node

private

Definition at line 276 of file wimax-net-device.h.

Referenced by DoDispose(), GetNode(), and SetNode().

uint32_t ns3::WimaxNetDevice::m_nrFrames = 0

staticprivate

Definition at line 288 of file wimax-net-device.h.

Referenced by GetNrFrames(), SetNrFrames(), and WimaxNetDevice().

Ptr<WimaxPhy> ns3::WimaxNetDevice::m_phy

private

Definition at line 277 of file wimax-net-device.h.

Referenced by Attach(), DoDispose(), DoGetChannel(), ForwardDown(), GetPhy(), IsLinkUp(), SetChannel(), SetPhy(), and SetReceiveCallback().

NetDevice::PromiscReceiveCallback ns3::WimaxNetDevice::m_promiscRx

private

Definition at line 279 of file wimax-net-device.h.

Referenced by IsPromisc(), and SetPromiscReceiveCallback().

uint16_t ns3::WimaxNetDevice::m_rtg

private

Definition at line 299 of file wimax-net-device.h.

Referenced by GetRtg(), and SetRtg().

uint8_t ns3::WimaxNetDevice::m_state

private

Definition at line 294 of file wimax-net-device.h.

Referenced by GetState(), and SetState().

uint32_t ns3::WimaxNetDevice::m_symbolIndex

private

Definition at line 295 of file wimax-net-device.h.

TracedCallback<Ptr<const Packet>, const Mac48Address &> ns3::WimaxNetDevice::m_traceRx

Deprecated:: The const Mac48Address & argument is deprecated and will be changed to Mac48Address in a future release. The TracedCallback signature will then match Packet::Mac48Address and this typedef can be removed.

Todo:: This member variable should be private.

Definition at line 241 of file wimax-net-device.h.

Referenced by ForwardUp(), and GetTypeId().

TracedCallback<Ptr<const Packet>, const Mac48Address &> ns3::WimaxNetDevice::m_traceTx

Deprecated:: The const Mac48Address & argument is deprecated and will be changed to Mac48Address in a future release. The TracedCallback signature will then match Packet::Mac48Address and this typedef can be removed.

Todo:: This member variable should be private.

Definition at line 249 of file wimax-net-device.h.

Referenced by GetTypeId(), Send(), and SendFrom().

uint16_t ns3::WimaxNetDevice::m_ttg

private

Definition at line 298 of file wimax-net-device.h.

Referenced by GetTtg(), and SetTtg().

const uint16_t ns3::WimaxNetDevice::MAX_MSDU_SIZE = 1500

staticprivate

Definition at line 263 of file wimax-net-device.h.

Referenced by GetTypeId(), and SetMtu().

The documentation for this class was generated from the following files:

src/wimax/model/wimax-net-device.h
src/wimax/model/wimax-net-device.cc

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Static Public Attributes

Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Config Paths

Attributes

TraceSources

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
