The uplink BsrLteControlMessage defines the specific extension of the CE element for reporting the buffer status report. More...

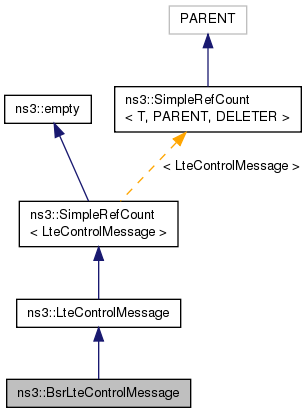

Inheritance diagram for ns3::BsrLteControlMessage:

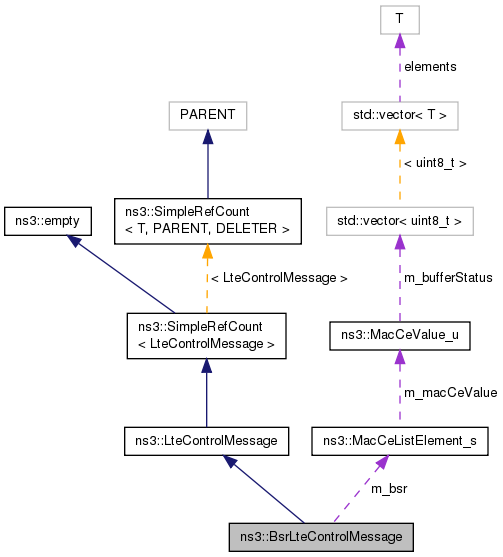

Collaboration diagram for ns3::BsrLteControlMessage:

Public Member Functions
	BsrLteControlMessage (void)

virtual	~BsrLteControlMessage (void)

MacCeListElement_s	GetBsr (void)
	Get BSR informations. More...

void	SetBsr (MacCeListElement_s bsr)
	add a BSR feedback record into the message. More...

Public Member Functions inherited from ns3::LteControlMessage
	LteControlMessage (void)

virtual	~LteControlMessage (void)

MessageType	GetMessageType (void)
	Get the type of the message. More...

void	SetMessageType (MessageType type)
	Set the type of the message. More...

Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Additional Inherited Members
Public Types inherited from ns3::LteControlMessage
enum	MessageType { DL_DCI, UL_DCI, DL_CQI, UL_CQI, BSR, DL_HARQ, RACH_PREAMBLE, RAR, MIB, SIB1 }
	The type of the message NOTE: The messages sent by UE are filtered by the LteEnbPhy::ReceiveLteControlMessageList in order to remove the ones that has been already handoff by the eNB for avoiding propagation of spurious messages. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< LteControlMessage >
static void	Cleanup (void)
	Noop. More...

Detailed Description

The uplink BsrLteControlMessage defines the specific extension of the CE element for reporting the buffer status report.

Definition at line 182 of file lte-control-messages.h.

Constructor & Destructor Documentation

ns3::BsrLteControlMessage::BsrLteControlMessage ( void )

Definition at line 148 of file lte-control-messages.cc.

Here is the call graph for this function:

ns3::BsrLteControlMessage::~BsrLteControlMessage ( void )

virtual

Definition at line 154 of file lte-control-messages.cc.

MacCeListElement_s ns3::BsrLteControlMessage::GetBsr ( void )

Get BSR informations.

Definition at line 168 of file lte-control-messages.cc.

References m_bsr.

void ns3::BsrLteControlMessage::SetBsr ( MacCeListElement_s bsr )

add a BSR feedback record into the message.

Parameters

bsr	the BSR feedback

Definition at line 160 of file lte-control-messages.cc.

References m_bsr.

MacCeListElement_s ns3::BsrLteControlMessage::m_bsr

private

Definition at line 201 of file lte-control-messages.h.

Referenced by GetBsr(), and SetBsr().

The documentation for this class was generated from the following files:
