LteEnbPhy models the physical layer for the eNodeB. More...

#include "lte-enb-phy.h"

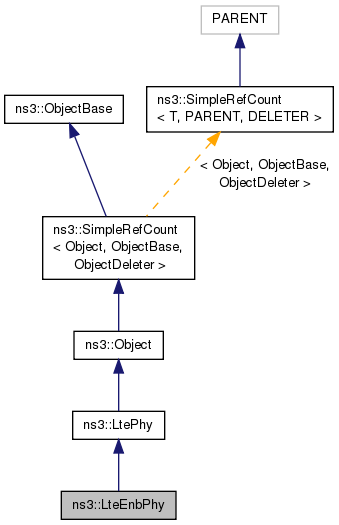

Inheritance diagram for ns3::LteEnbPhy:

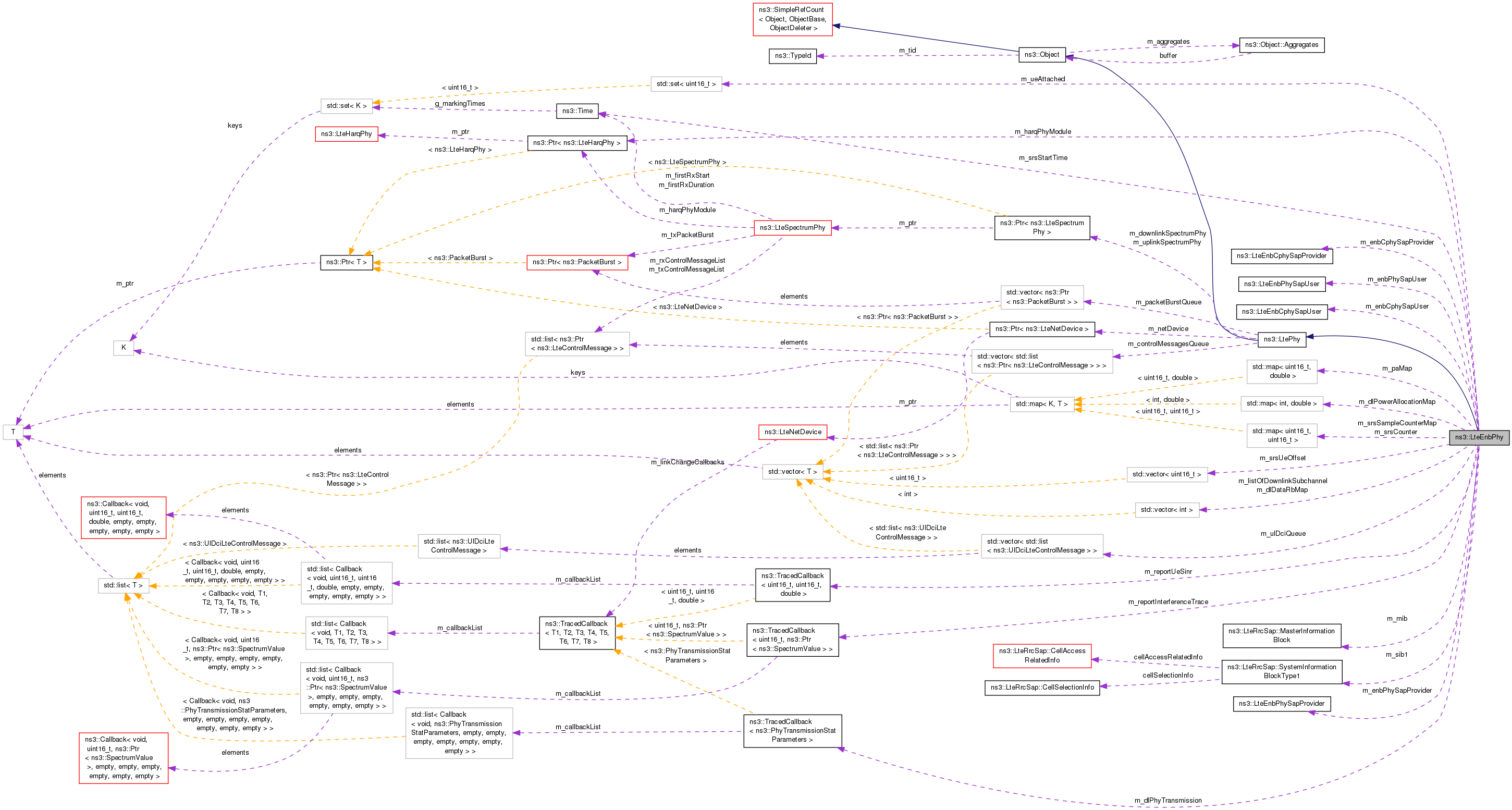

Collaboration diagram for ns3::LteEnbPhy:

Public Types
typedef void(*	ReportInterferenceTracedCallback) (uint16_t cellId, Ptr< SpectrumValue > spectrumValue)
	TracedCallback signature for the linear average of SRS SINRs. More...

typedef void(*	ReportUeSinrTracedCallback) (uint16_t cellId, uint16_t rnti, double sinrLinear)
	TracedCallback signature for the linear average of SRS SINRs. More...

Public Member Functions
	LteEnbPhy ()

	LteEnbPhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)

virtual	~LteEnbPhy ()

void	CalcChannelQualityForUe (std::vector< double > sinr, Ptr< LteSpectrumPhy > ue)
	Calculate the channel quality for a given UE. More...

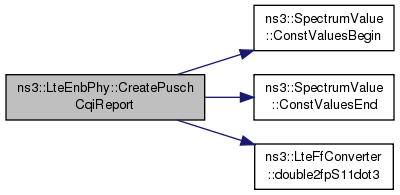

FfMacSchedSapProvider::SchedUlCqiInfoReqParameters	CreatePuschCqiReport (const SpectrumValue &sinr)
	Create the UL CQI feedback from SINR values perceived at the physical layer with the PUSCH signal received from eNB. More...

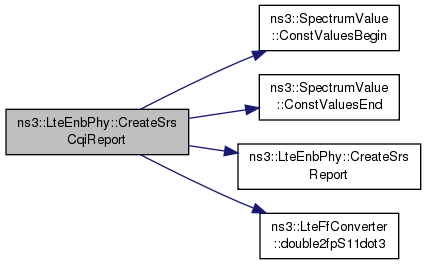

FfMacSchedSapProvider::SchedUlCqiInfoReqParameters	CreateSrsCqiReport (const SpectrumValue &sinr)
	Create the UL CQI feedback from SINR values perceived at the physical layer with the SRS signal received from eNB. More...

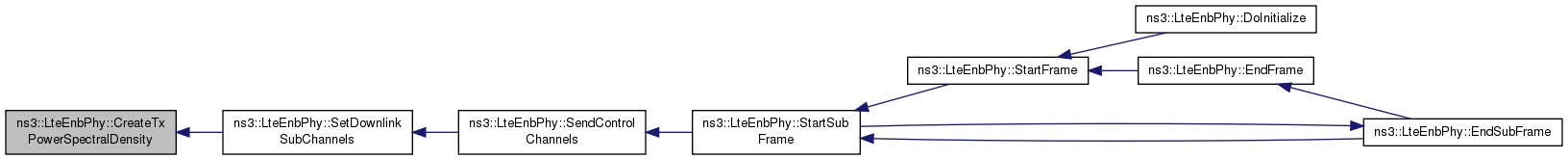

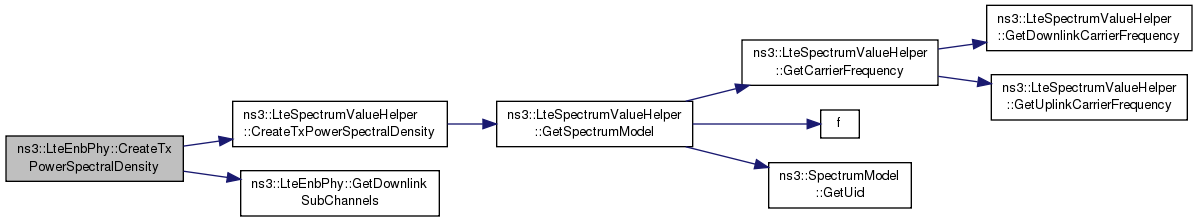

virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensity ()
	Create the PSD for TX. More...

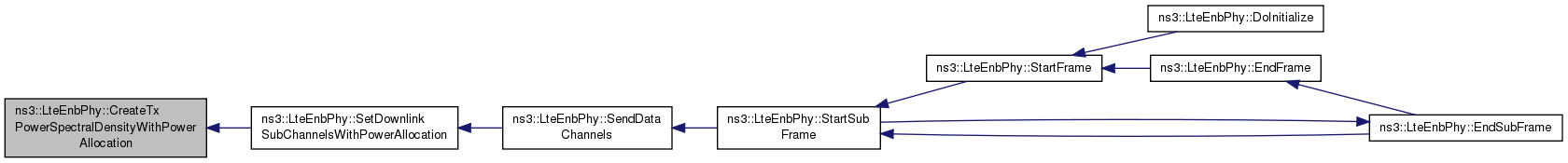

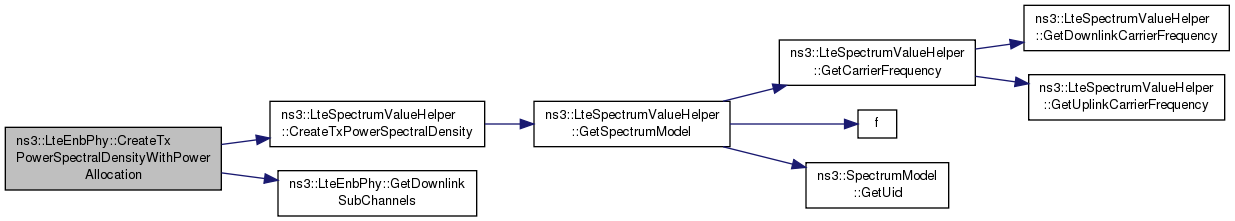

virtual Ptr< SpectrumValue >	CreateTxPowerSpectralDensityWithPowerAllocation ()
	Create the PSD for TX with power allocation for each RB. More...

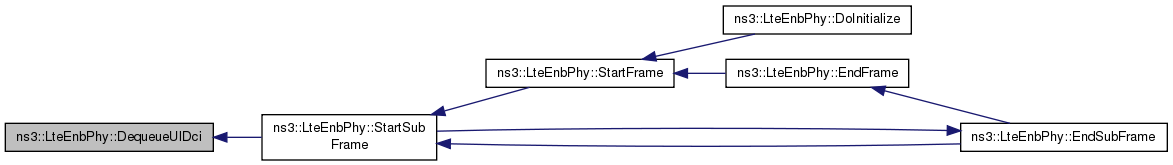

std::list< UlDciLteControlMessage >	DequeueUlDci (void)

virtual void	DoDispose (void)
	Destructor implementation. More...

int8_t	DoGetReferenceSignalPower () const

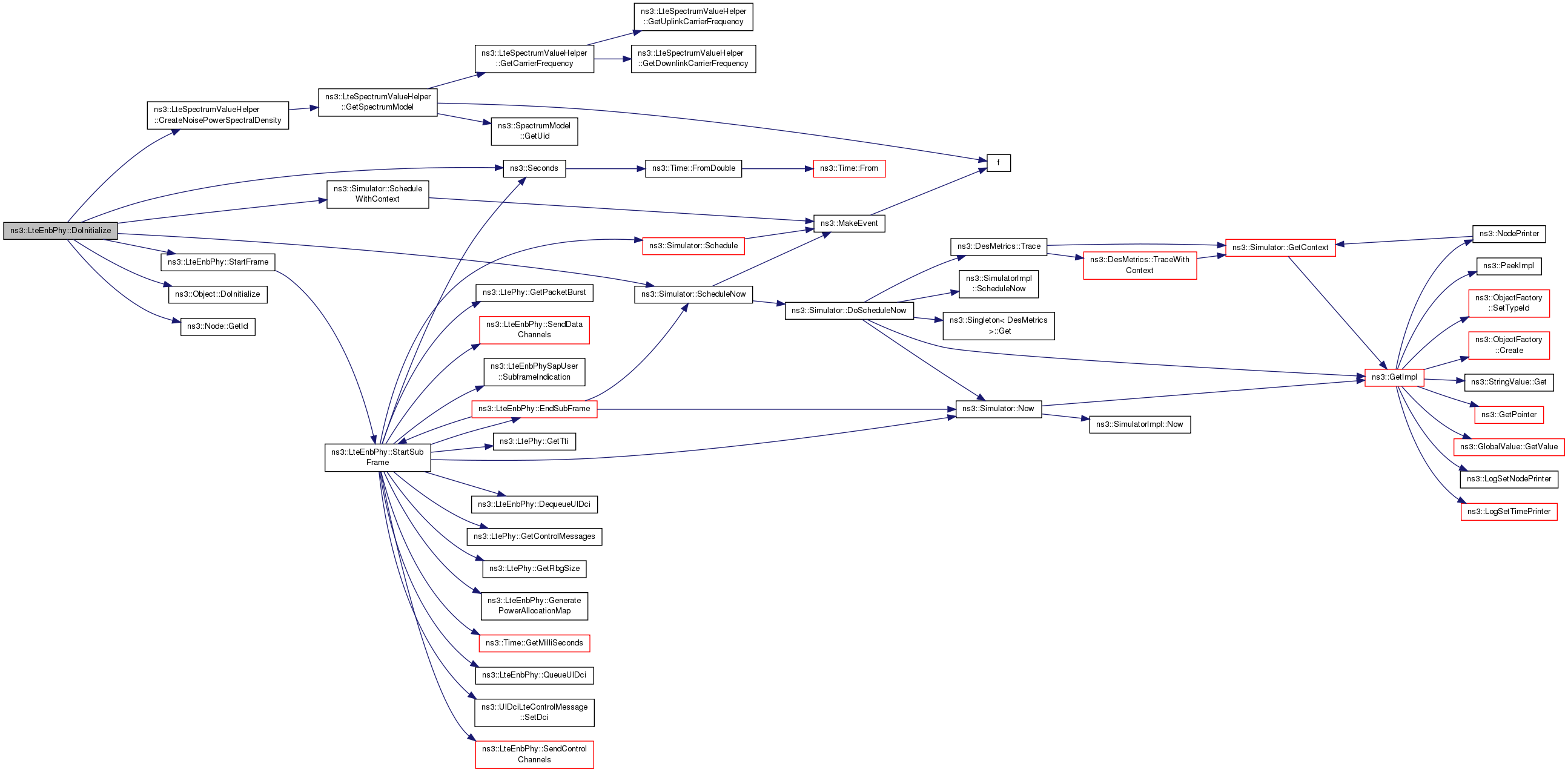

virtual void	DoInitialize (void)
	Initialize() implementation. More...

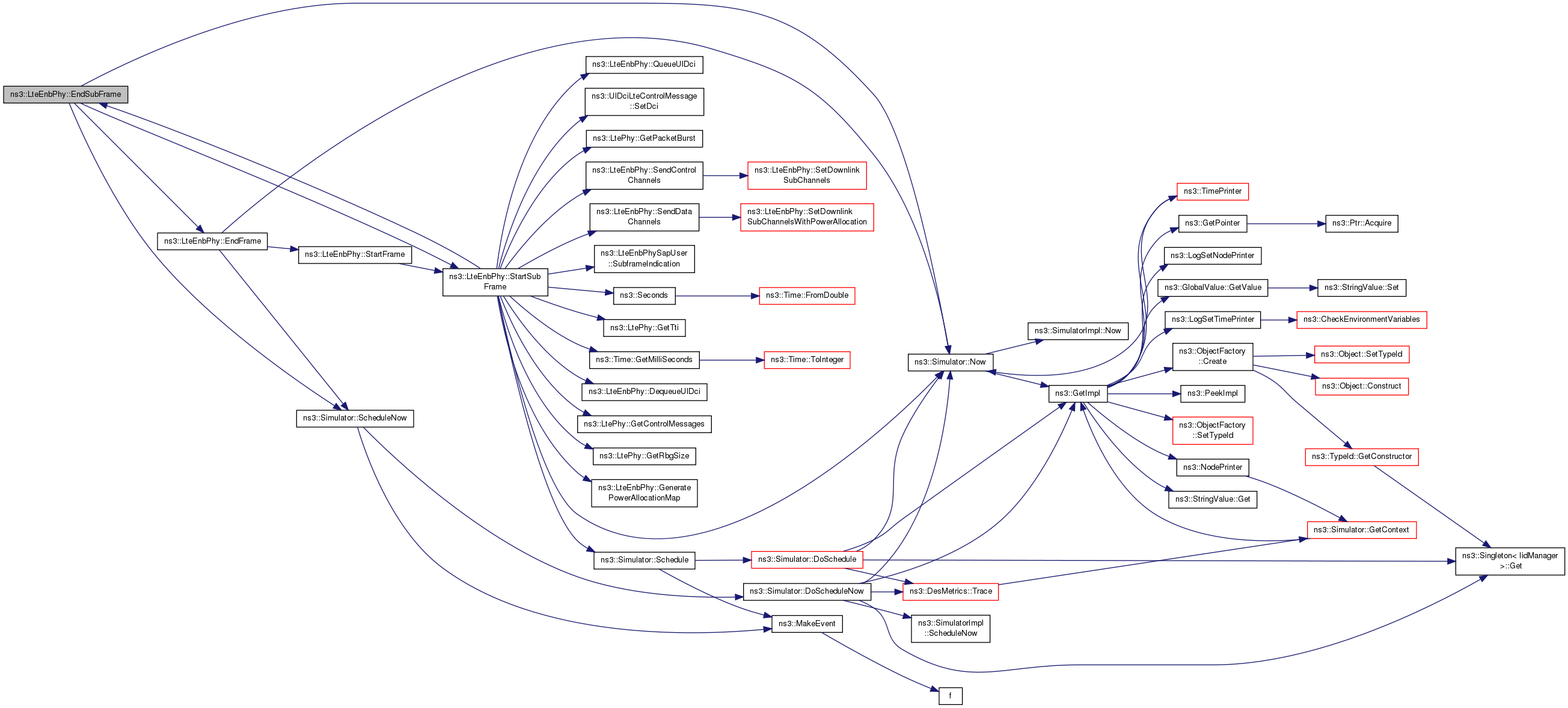

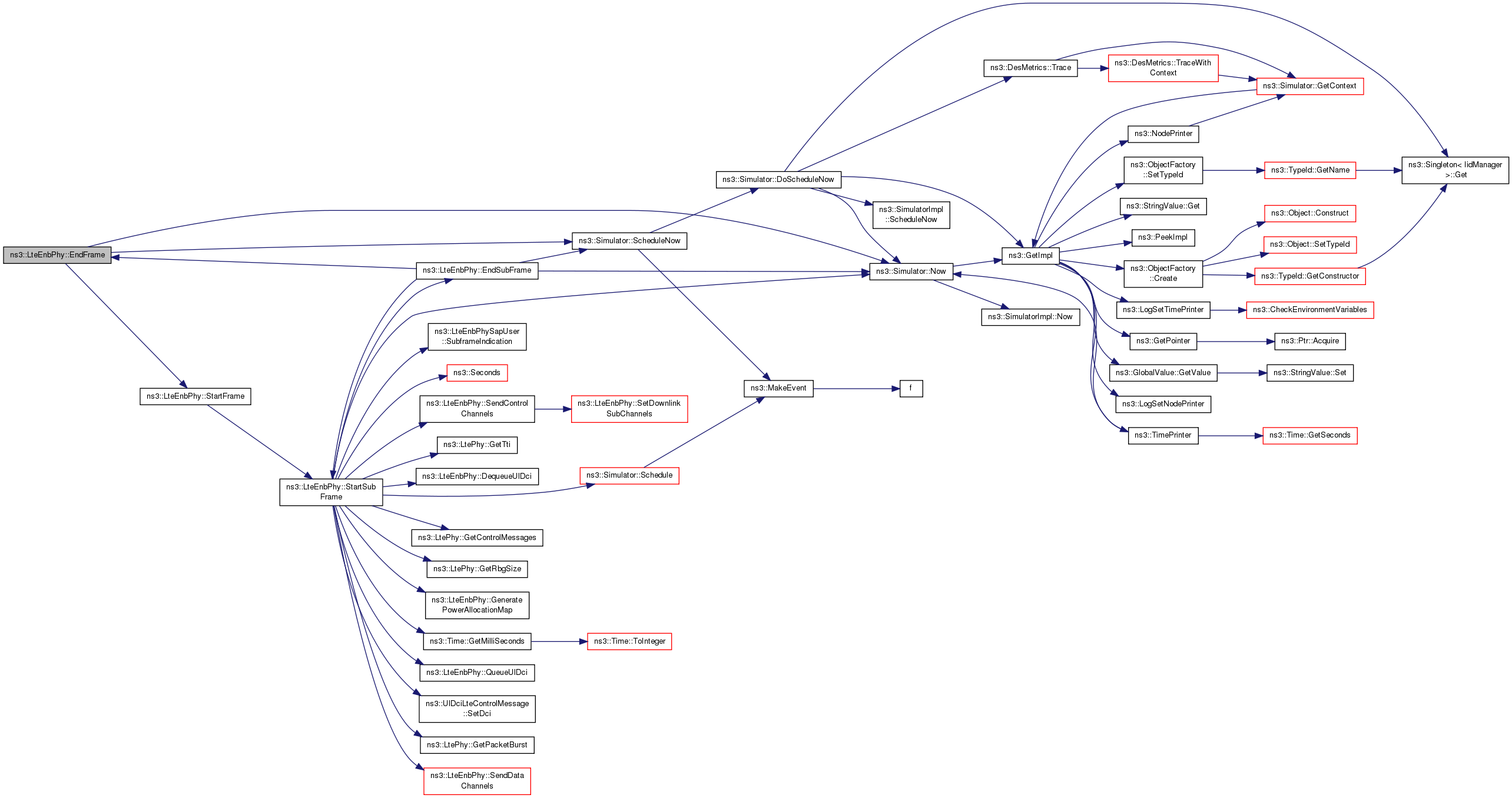

void	EndFrame (void)
	End a LTE frame. More...

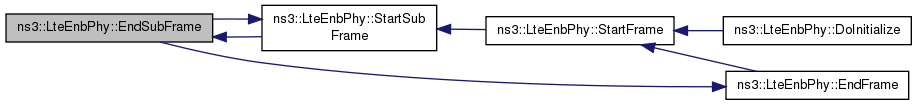

void	EndSubFrame (void)
	End a LTE sub frame. More...

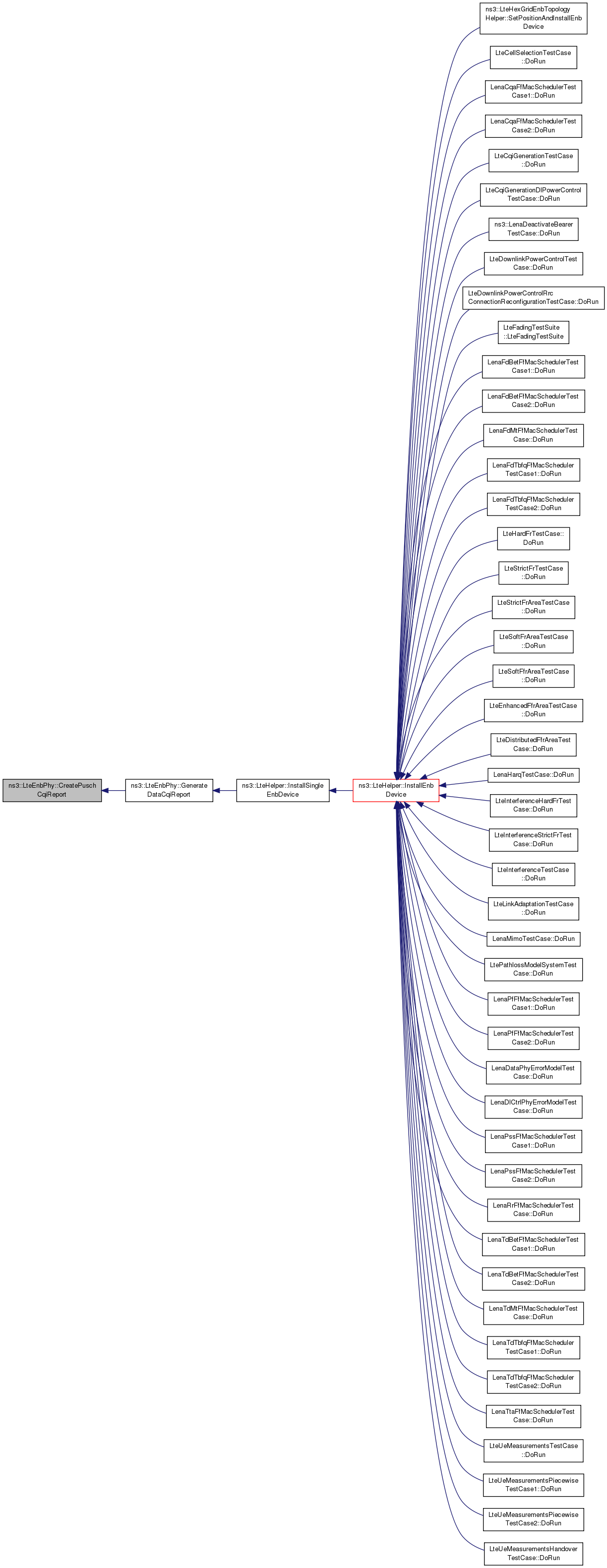

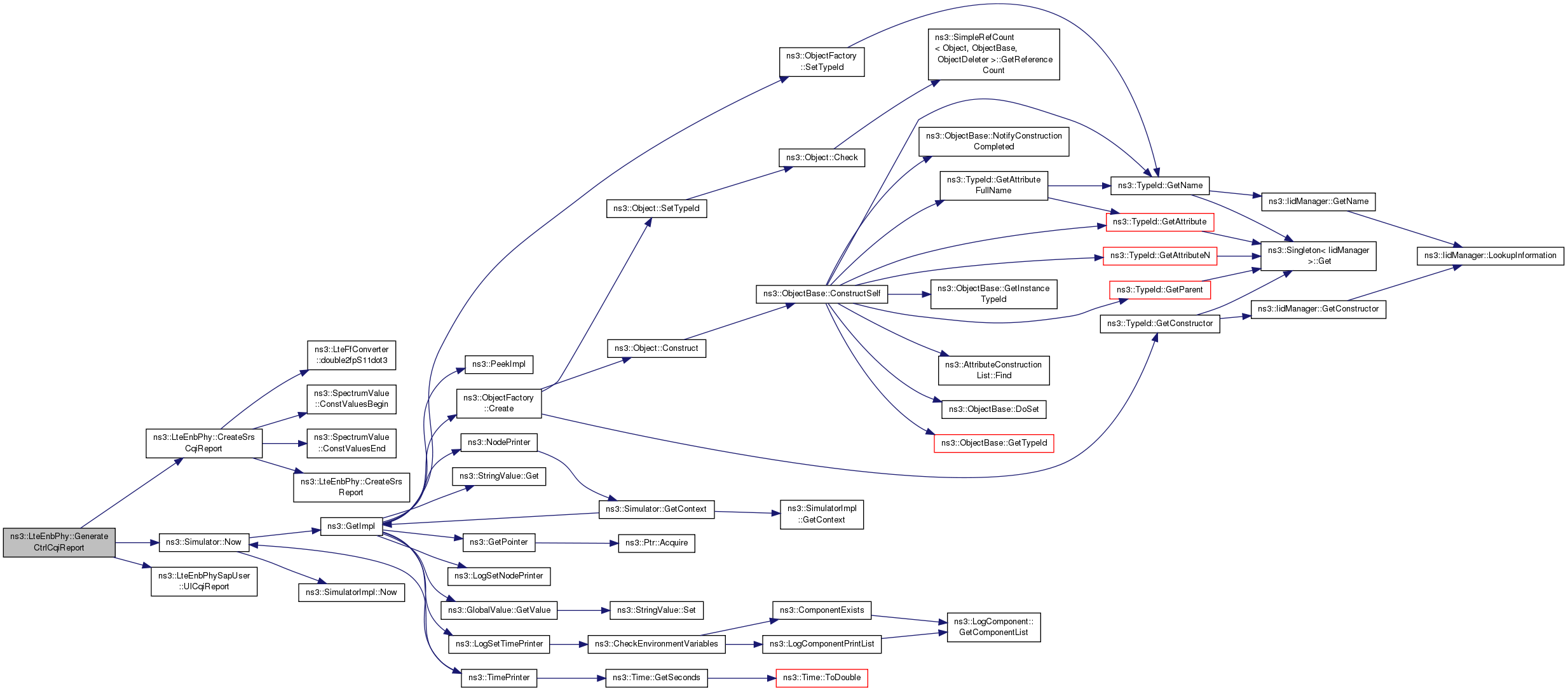

virtual void	GenerateCtrlCqiReport (const SpectrumValue &sinr)
	generate a CQI report based on the given SINR of Ctrl frame More...

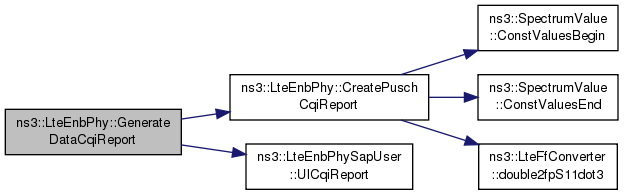

virtual void	GenerateDataCqiReport (const SpectrumValue &sinr)
	generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs) More...

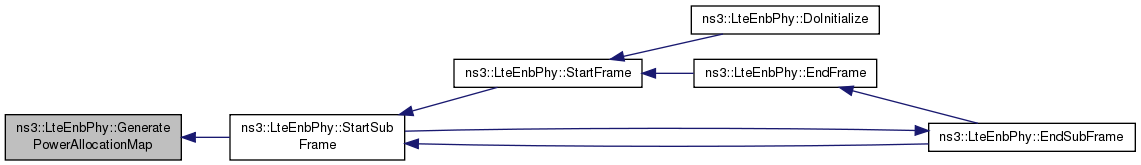

void	GeneratePowerAllocationMap (uint16_t rnti, int rbId)
	Generate power allocation map (i.e. More...

Ptr< LteSpectrumPhy >	GetDlSpectrumPhy () const

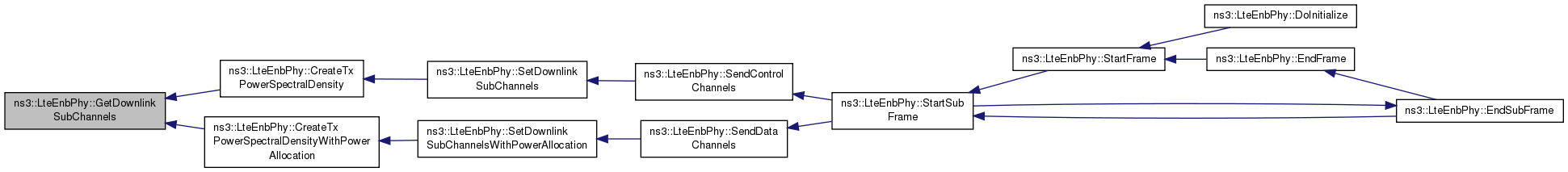

std::vector< int >	GetDownlinkSubChannels (void)

LteEnbCphySapProvider *	GetLteEnbCphySapProvider ()
	Get the CPHY SAP provider. More...

LteEnbPhySapProvider *	GetLteEnbPhySapProvider ()
	Get the PHY SAP provider. More...

uint8_t	GetMacChDelay (void) const

double	GetNoiseFigure () const

double	GetTxPower () const

Ptr< LteSpectrumPhy >	GetUlSpectrumPhy () const

void	PhyPduReceived (Ptr< Packet > p)
	PhySpectrum received a new PHY-PDU. More...

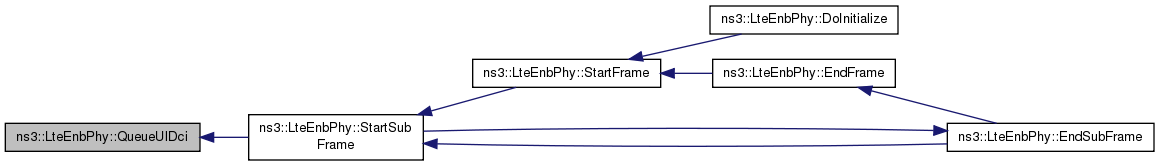

void	QueueUlDci (UlDciLteControlMessage m)

virtual void	ReceiveLteControlMessage (Ptr< LteControlMessage > msg)
	Receive the control message. More...

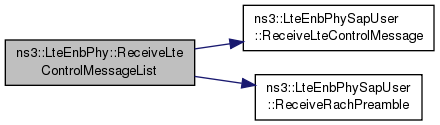

virtual void	ReceiveLteControlMessageList (std::list< Ptr< LteControlMessage > >)
	PhySpectrum received a new list of LteControlMessage. More...

virtual void	ReceiveLteUlHarqFeedback (UlInfoListElement_s mes)
	PhySpectrum generated a new UL HARQ feedback. More...

virtual void	ReportInterference (const SpectrumValue &interf)
	generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB More...

virtual void	ReportRsReceivedPower (const SpectrumValue &power)
	generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP More...

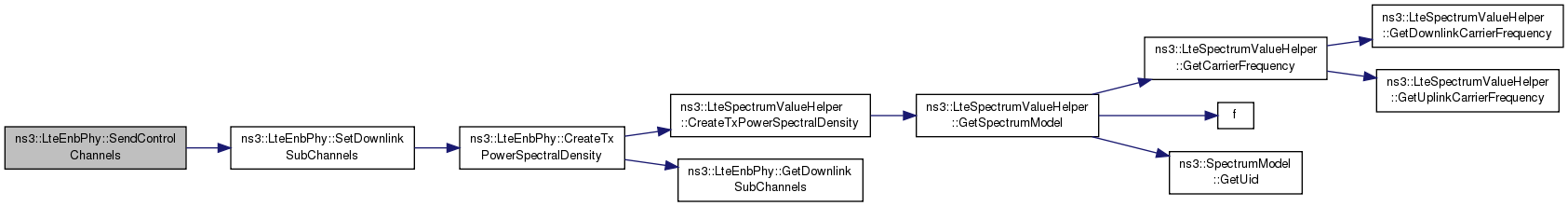

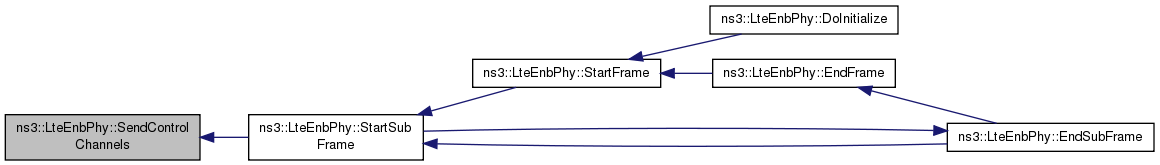

void	SendControlChannels (std::list< Ptr< LteControlMessage > > ctrlMsgList)
	Send the PDCCH and PCFICH in the first 3 symbols. More...

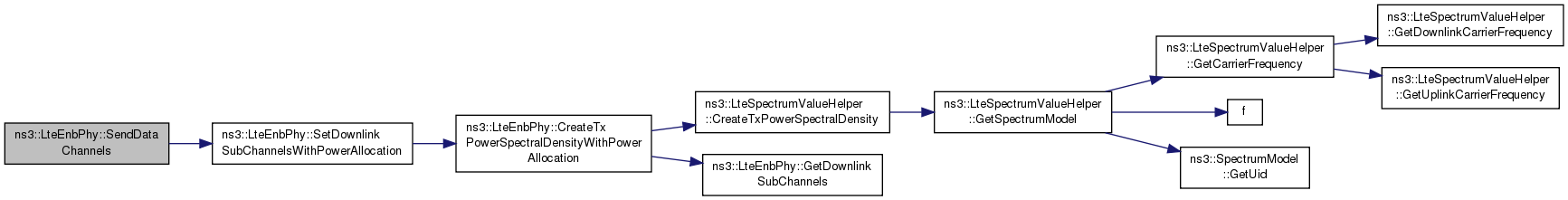

void	SendDataChannels (Ptr< PacketBurst > pb)
	Send the PDSCH. More...

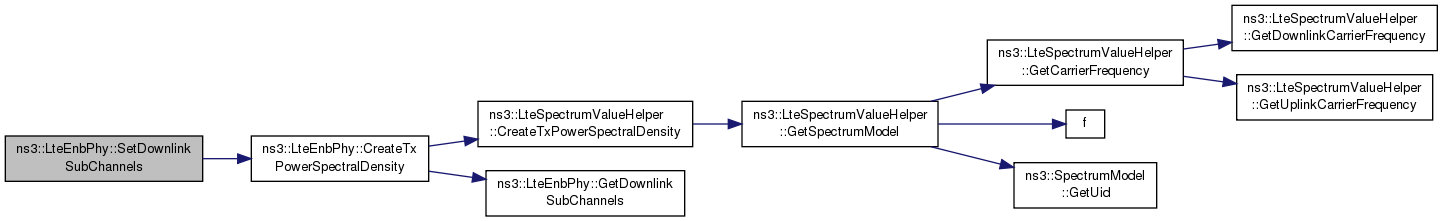

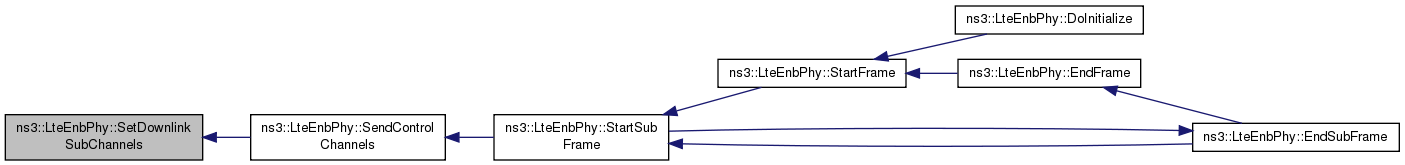

void	SetDownlinkSubChannels (std::vector< int > mask)
	set the resource blocks (a.k.a. More...

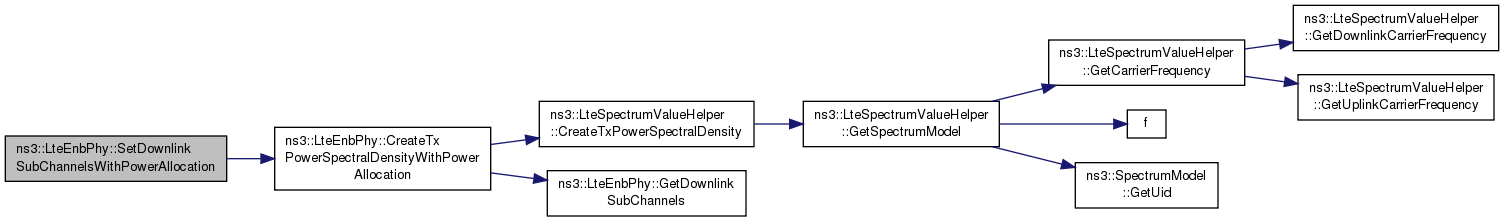

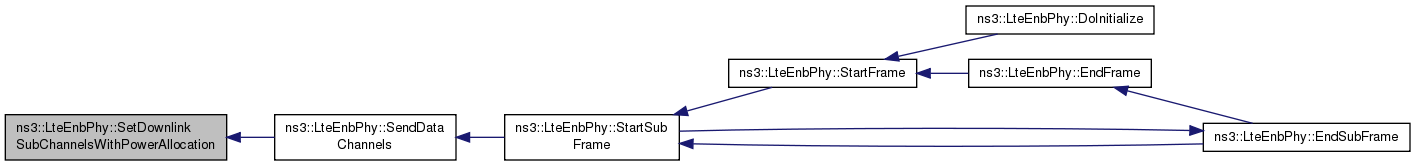

void	SetDownlinkSubChannelsWithPowerAllocation (std::vector< int > mask)
	set the resource blocks (a.k.a. More...

void	SetHarqPhyModule (Ptr< LteHarqPhy > harq)

void	SetLteEnbCphySapUser (LteEnbCphySapUser *s)
	Set the CPHY SAP User. More...

void	SetLteEnbPhySapUser (LteEnbPhySapUser *s)
	Set the PHY SAP User. More...

void	SetMacChDelay (uint8_t delay)

void	SetNoiseFigure (double pow)

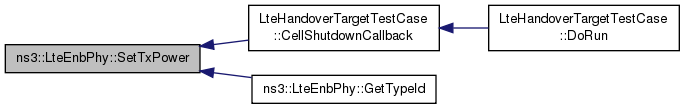

void	SetTxPower (double pow)

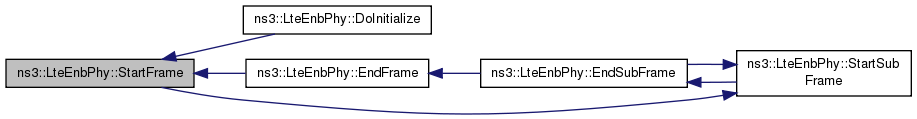

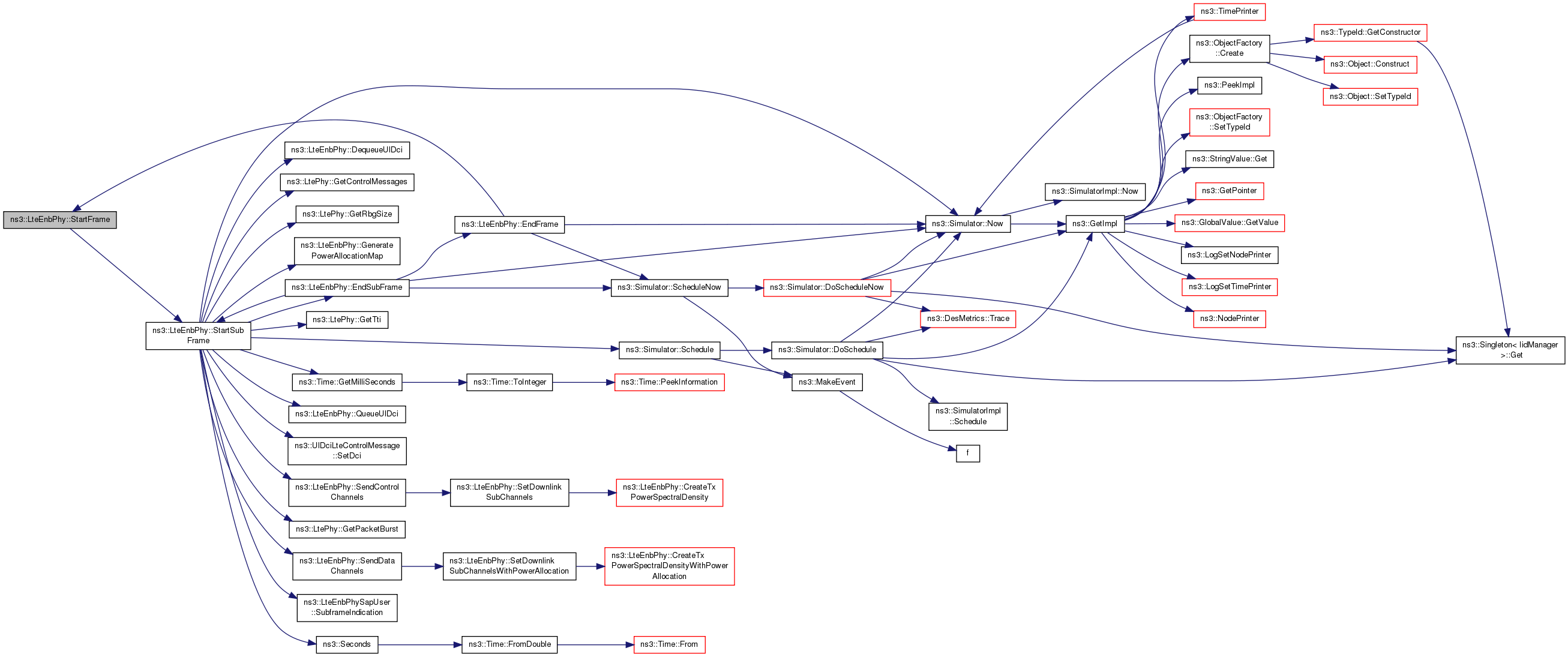

void	StartFrame (void)
	Start a LTE frame. More...

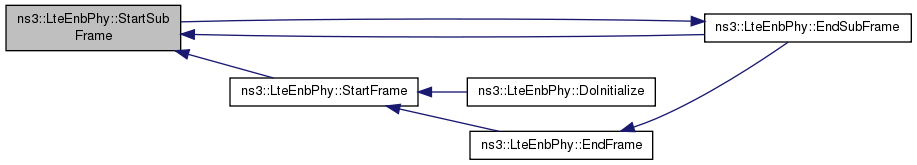

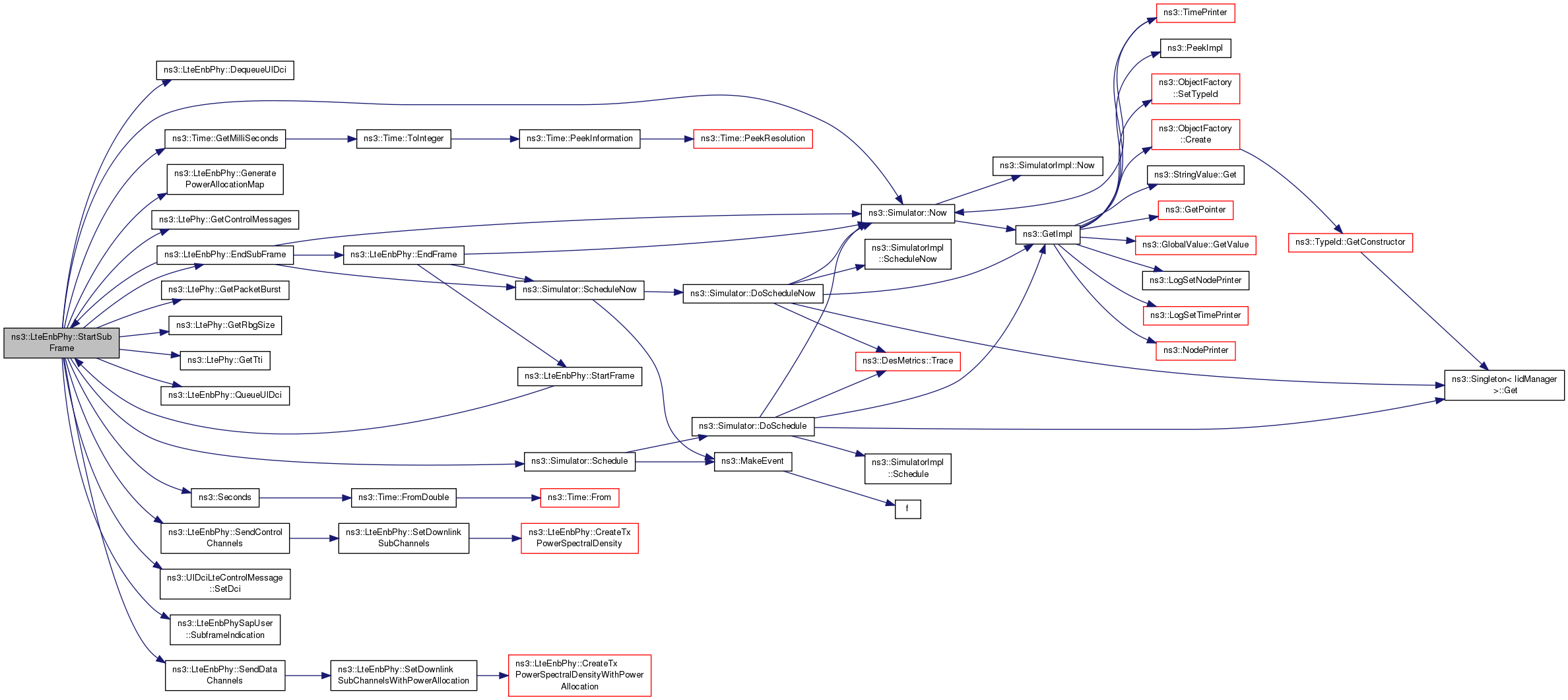

void	StartSubFrame (void)
	Start a LTE sub frame. More...

Public Member Functions inherited from ns3::LtePhy
	LtePhy ()

	LtePhy (Ptr< LteSpectrumPhy > dlPhy, Ptr< LteSpectrumPhy > ulPhy)

virtual	~LtePhy ()

void	DoDispose ()
	Destructor implementation. More...

void	DoSetCellId (uint16_t cellId)

std::list< Ptr< LteControlMessage > >	GetControlMessages (void)

Ptr< LteNetDevice >	GetDevice () const
	Get the device where the phy layer is attached. More...

Ptr< LteSpectrumPhy >	GetDownlinkSpectrumPhy ()

Ptr< PacketBurst >	GetPacketBurst (void)

uint8_t	GetRbgSize (void) const

uint16_t	GetSrsPeriodicity (uint16_t srcCi) const

uint16_t	GetSrsSubframeOffset (uint16_t srcCi) const

double	GetTti (void) const

Ptr< LteSpectrumPhy >	GetUplinkSpectrumPhy ()

void	SetControlMessages (Ptr< LteControlMessage > m)

void	SetDevice (Ptr< LteNetDevice > d)
	Set the device where the phy layer is attached. More...

void	SetDownlinkChannel (Ptr< SpectrumChannel > c)
	Set the downlink channel. More...

void	SetMacPdu (Ptr< Packet > p)

void	SetTti (double tti)

void	SetUplinkChannel (Ptr< SpectrumChannel > c)
	Set the uplink channel. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

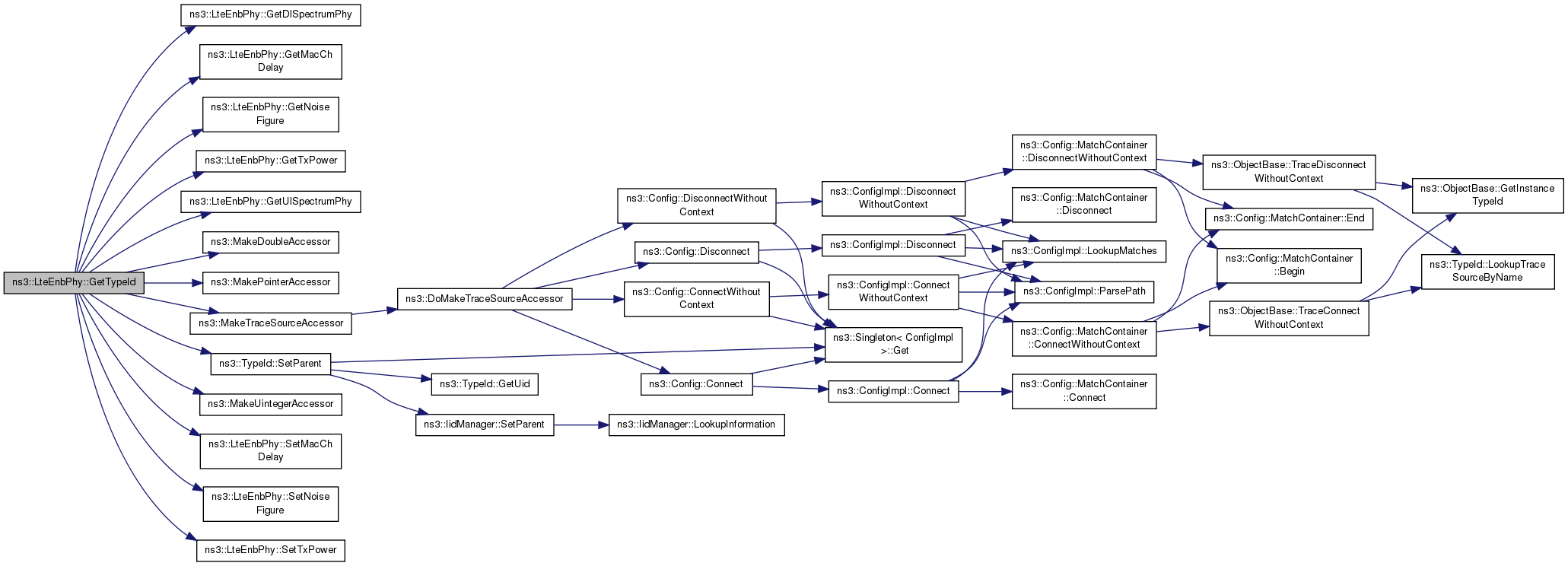

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LtePhy
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
bool	AddUePhy (uint16_t rnti)
	Add the given RNTI to the list of attached UE m_ueAttached. More...

void	CreateSrsReport (uint16_t rnti, double srs)

bool	DeleteUePhy (uint16_t rnti)
	Remove the given RNTI from the list of attached UE m_ueAttached. More...

void	DoAddUe (uint16_t rnti)

uint8_t	DoGetMacChTtiDelay ()

void	DoRemoveUe (uint16_t rnti)

void	DoSendLteControlMessage (Ptr< LteControlMessage > msg)

void	DoSendMacPdu (Ptr< Packet > p)
	Queue the MAC PDU to be sent (according to m_macChTtiDelay) More...

void	DoSetBandwidth (uint8_t ulBandwidth, uint8_t dlBandwidth)

void	DoSetEarfcn (uint16_t dlEarfcn, uint16_t ulEarfcn)

void	DoSetMasterInformationBlock (LteRrcSap::MasterInformationBlock mib)

void	DoSetPa (uint16_t rnti, double pa)

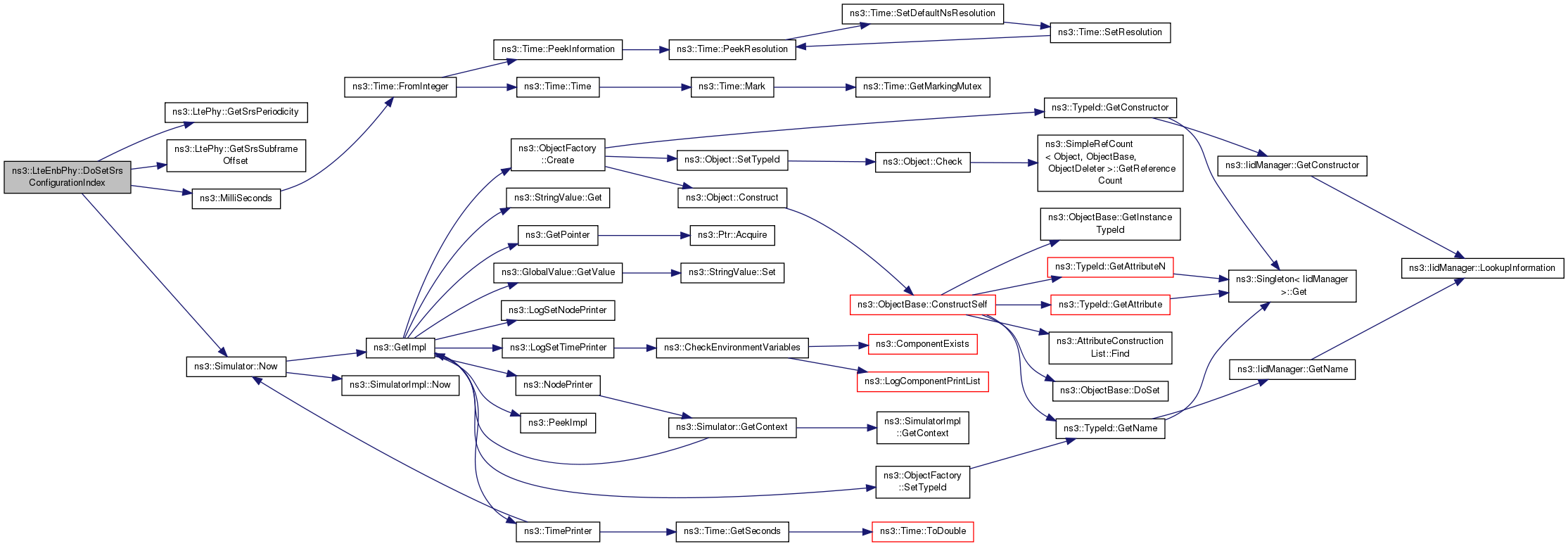

void	DoSetSrsConfigurationIndex (uint16_t rnti, uint16_t srcCi)

void	DoSetSystemInformationBlockType1 (LteRrcSap::SystemInformationBlockType1 sib1)

void	DoSetTransmissionMode (uint16_t rnti, uint8_t txMode)

Private Attributes
uint16_t	m_currentSrsOffset

std::vector< int >	m_dlDataRbMap

TracedCallback< PhyTransmissionStatParameters >	m_dlPhyTransmission
	The `DlPhyTransmission` trace source. More...

std::map< int, double >	m_dlPowerAllocationMap
	DL power allocation map. More...

LteEnbCphySapProvider *	m_enbCphySapProvider

LteEnbCphySapUser *	m_enbCphySapUser

LteEnbPhySapProvider *	m_enbPhySapProvider

LteEnbPhySapUser *	m_enbPhySapUser

Ptr< LteHarqPhy >	m_harqPhyModule

uint16_t	m_interferenceSampleCounter

uint16_t	m_interferenceSamplePeriod
	The `InterferenceSamplePeriod` attribute. More...

std::vector< int >	m_listOfDownlinkSubchannel
	A vector of integers, if the i-th value is j it means that the j-th resource block is used for transmission in the downlink. More...

LteRrcSap::MasterInformationBlock	m_mib
	The Master Information Block message to be broadcasted every frame. More...

uint32_t	m_nrFrames
	The frame number currently served. More...

uint32_t	m_nrSubFrames
	The subframe number currently served. More...

std::map< uint16_t, double >	m_paMap
	P_A per UE RNTI. More...

TracedCallback< uint16_t, Ptr< SpectrumValue > >	m_reportInterferenceTrace
	The `ReportInterference` trace source. More...

TracedCallback< uint16_t, uint16_t, double >	m_reportUeSinr
	The `ReportUeSinr` trace source. More...

LteRrcSap::SystemInformationBlockType1	m_sib1
	The System Information Block Type 1 message to be broadcasted. More...

std::map< uint16_t, uint16_t >	m_srsCounter

uint16_t	m_srsPeriodicity

std::map< uint16_t, uint16_t >	m_srsSampleCounterMap

uint16_t	m_srsSamplePeriod
	The `UeSinrSamplePeriod` trace source. More...

Time	m_srsStartTime

std::vector< uint16_t >	m_srsUeOffset

std::set< uint16_t >	m_ueAttached
	List of RNTI of attached UEs. More...

std::vector< std::list< UlDciLteControlMessage > >	m_ulDciQueue
	For storing info on future receptions. More...

Friends
class	EnbMemberLteEnbPhySapProvider

class	MemberLteEnbCphySapProvider< LteEnbPhy >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Protected Attributes inherited from ns3::LtePhy
uint16_t	m_cellId
	Cell identifier. More...

std::vector< std::list< Ptr< LteControlMessage > > >	m_controlMessagesQueue
	A queue of control messages to be sent. More...

uint8_t	m_dlBandwidth
	The DL bandwidth in number of PRBs. More...

uint16_t	m_dlEarfcn
	The downlink carrier frequency. More...

Ptr< LteSpectrumPhy >	m_downlinkSpectrumPhy
	The downlink LteSpectrumPhy associated to this LtePhy. More...

uint8_t	m_macChTtiDelay
	Delay between MAC and channel layer in terms of TTIs. More...

Ptr< LteNetDevice >	m_netDevice
	Pointer to the NetDevice where this PHY layer is attached. More...

double	m_noiseFigure
	Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. More...

std::vector< Ptr< PacketBurst > >	m_packetBurstQueue
	A queue of packet bursts to be sent. More...

uint8_t	m_rbgSize
	The RB gruop size according to the bandwidth. More...

double	m_tti
	Transmission time interval. More...

double	m_txPower
	Transmission power in dBm. More...

uint8_t	m_ulBandwidth
	The UL bandwidth in number of PRBs. More...

uint16_t	m_ulEarfcn
	The uplink carrier frequency. More...

Ptr< LteSpectrumPhy >	m_uplinkSpectrumPhy
	The uplink LteSpectrumPhy associated to this LtePhy. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

LteEnbPhy models the physical layer for the eNodeB.

Config Paths

ns3::LteEnbPhy is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice/LteEnbPhy"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice/LteEnbPhy"

Attributes

TxPower: Transmission power in dBm
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 30
- Flags: construct write read
NoiseFigure: Loss (dB) in the Signal-to-Noise-Ratio due to non-idealities in the receiver. According to Wikipedia (http://en.wikipedia.org/wiki/Noise_figure), this is "the difference in decibels (dB) between the noise output of the actual receiver to the noise output of an ideal receiver with the same overall gain and bandwidth when the receivers are connected to sources at the standard noise temperature T0." In this model, we consider T0 = 290K.
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 5
- Flags: construct write read
MacToChannelDelay: The delay in TTI units that occurs between a scheduling decision in the MAC and the actual start of the transmission by the PHY. This is intended to be used to model the latency of real PHY and MAC implementations.
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 2
- Flags: construct write read
UeSinrSamplePeriod: The sampling period for reporting UEs' SINR stats.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1
- Flags: construct write read
InterferenceSamplePeriod: The sampling period for reporting interference stats
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 1
- Flags: construct write read
DlSpectrumPhy: The downlink LteSpectrumPhy associated to this LtePhy
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSpectrumPhy>
- Flags: read
UlSpectrumPhy: The uplink LteSpectrumPhy associated to this LtePhy
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteSpectrumPhy>
- Flags: read

TraceSources

ReportUeSinr: Report UEs' averaged linear SINR
Callback signature: ns3::LteEnbPhy::ReportUeSinrTracedCallback
ReportInterference: Report linear interference power per PHY RB
Callback signature: ns3::LteEnbPhy::ReportInterferenceTracedCallback
DlPhyTransmission: DL transmission PHY layer statistics.
Callback signature: ns3::PhyTransmissionStatParameters::TracedCallback

Size of this type is 632 bytes (on a 64-bit architecture).

Definition at line 47 of file lte-enb-phy.h.

Member Typedef Documentation

typedef void(* ns3::LteEnbPhy::ReportInterferenceTracedCallback) (uint16_t cellId, Ptr< SpectrumValue > spectrumValue)

TracedCallback signature for the linear average of SRS SINRs.

Parameters

[in]	cellId
[in]	spectrumValue

Deprecated:: The non-const Ptr<SpectrumValue> argument is deprecated and will be changed to Ptr<const SpectrumValue> in a future release.

Definition at line 305 of file lte-enb-phy.h.

typedef void(* ns3::LteEnbPhy::ReportUeSinrTracedCallback) (uint16_t cellId, uint16_t rnti, double sinrLinear)

TracedCallback signature for the linear average of SRS SINRs.

Parameters

[in]	cellId
[in]	rnti
[in]	sinrLinear

Definition at line 294 of file lte-enb-phy.h.

Constructor & Destructor Documentation

ns3::LteEnbPhy::LteEnbPhy ( )

Warning: the default constructor should not be used

Definition at line 133 of file lte-enb-phy.cc.

References NS_FATAL_ERROR, and NS_LOG_FUNCTION.

ns3::LteEnbPhy::LteEnbPhy	(	Ptr< LteSpectrumPhy >	dlPhy,
		Ptr< LteSpectrumPhy >	ulPhy
	)

Parameters

dlPhy	the downlink LteSpectrumPhy instance
ulPhy	the uplink LteSpectrumPhy instance

Definition at line 139 of file lte-enb-phy.cc.

References EnbMemberLteEnbPhySapProvider, ns3::LtePhy::m_downlinkSpectrumPhy, m_enbCphySapProvider, m_enbPhySapProvider, m_harqPhyModule, and ns3::LtePhy::m_uplinkSpectrumPhy.

ns3::LteEnbPhy::~LteEnbPhy ( )

virtual

Definition at line 233 of file lte-enb-phy.cc.

Member Function Documentation

bool ns3::LteEnbPhy::AddUePhy ( uint16_t rnti )

private

Add the given RNTI to the list of attached UE m_ueAttached.

Parameters

rnti	RNTI of a UE

Returns: true if the RNTI has not existed before, or false otherwise.

Definition at line 378 of file lte-enb-phy.cc.

References m_ueAttached, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by DoAddUe().

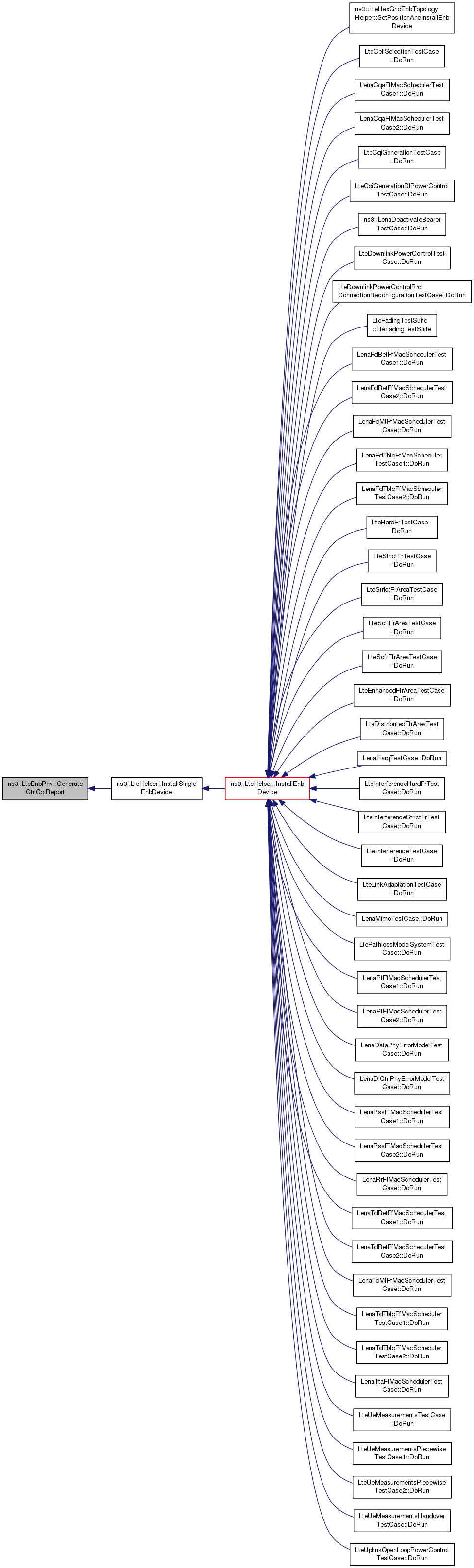

Here is the caller graph for this function:

void ns3::LteEnbPhy::CalcChannelQualityForUe	(	std::vector< double >	sinr,
		Ptr< LteSpectrumPhy >	ue
	)

Calculate the channel quality for a given UE.

Parameters

sinr	a list of computed SINR
ue	the UE

Definition at line 498 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION.

FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ns3::LteEnbPhy::CreatePuschCqiReport ( const SpectrumValue & sinr )

Create the UL CQI feedback from SINR values perceived at the physical layer with the PUSCH signal received from eNB.

Parameters

sinr	SINR values vector

Returns: UL CQI feedback in the format usable by an FF MAC scheduler

Definition at line 866 of file lte-enb-phy.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), ns3::LteFfConverter::double2fpS11dot3(), ns3::UlCqi_s::m_sinr, ns3::UlCqi_s::m_type, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, NS_LOG_FUNCTION, and ns3::UlCqi_s::PUSCH.

Referenced by GenerateDataCqiReport().

Here is the call graph for this function:

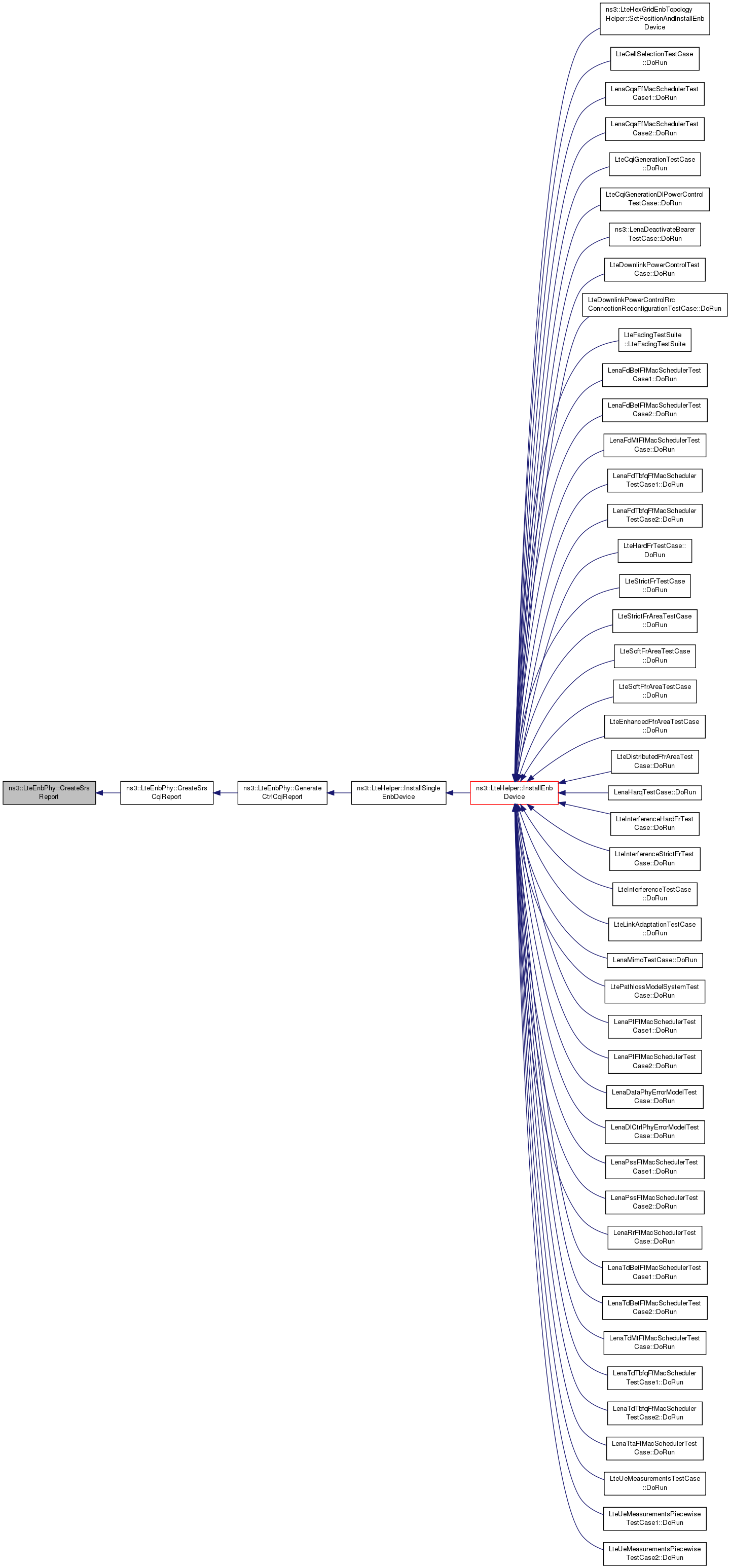

Here is the caller graph for this function:

FfMacSchedSapProvider::SchedUlCqiInfoReqParameters ns3::LteEnbPhy::CreateSrsCqiReport ( const SpectrumValue & sinr )

Create the UL CQI feedback from SINR values perceived at the physical layer with the SRS signal received from eNB.

Parameters

sinr	SINR values vector

Returns: UL CQI feedback in the format usable by an FF MAC scheduler

Definition at line 967 of file lte-enb-phy.cc.

References ns3::SpectrumValue::ConstValuesBegin(), ns3::SpectrumValue::ConstValuesEnd(), CreateSrsReport(), ns3::LteFfConverter::double2fpS11dot3(), m_currentSrsOffset, ns3::UlCqi_s::m_sinr, m_srsUeOffset, ns3::VendorSpecificListElement_s::m_type, ns3::UlCqi_s::m_type, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_ulCqi, ns3::FfMacSchedSapProvider::SchedUlCqiInfoReqParameters::m_vendorSpecificList, NS_LOG_DEBUG, NS_LOG_FUNCTION, ns3::UlCqi_s::SRS, and SRS_CQI_RNTI_VSP.

Referenced by GenerateCtrlCqiReport().

Here is the call graph for this function:

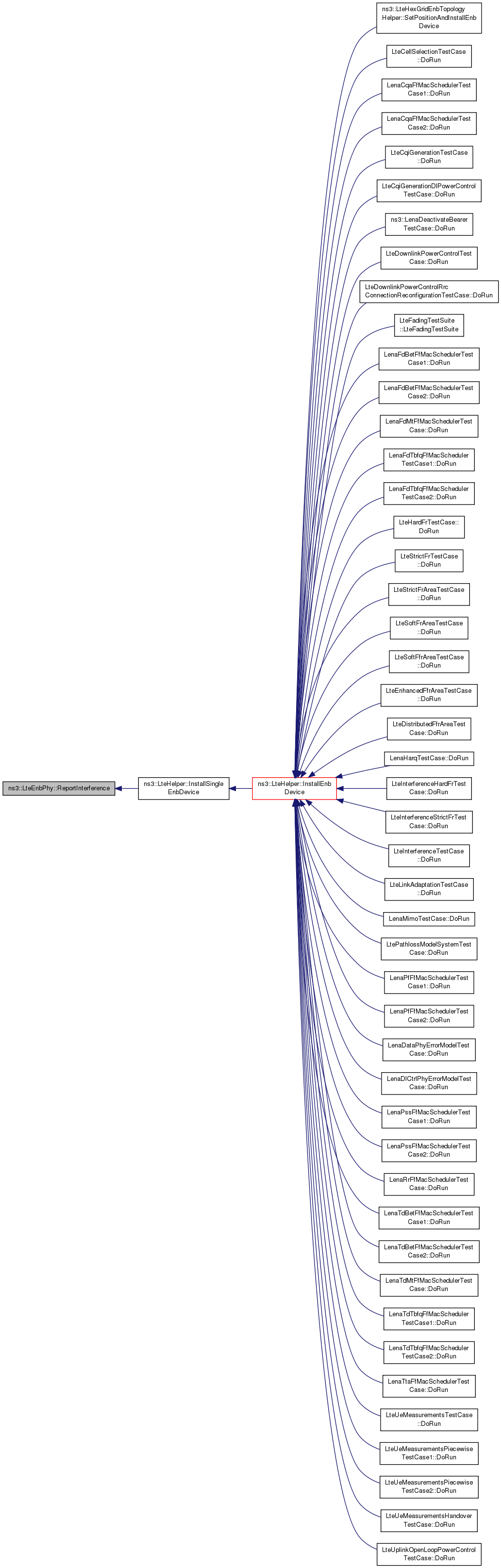

Here is the caller graph for this function:

void ns3::LteEnbPhy::CreateSrsReport	(	uint16_t	rnti,
		double	srs
	)

private

Definition at line 1002 of file lte-enb-phy.cc.

References ns3::LtePhy::m_cellId, m_reportUeSinr, m_srsSampleCounterMap, m_srsSamplePeriod, and NS_LOG_FUNCTION.

Referenced by CreateSrsCqiReport().

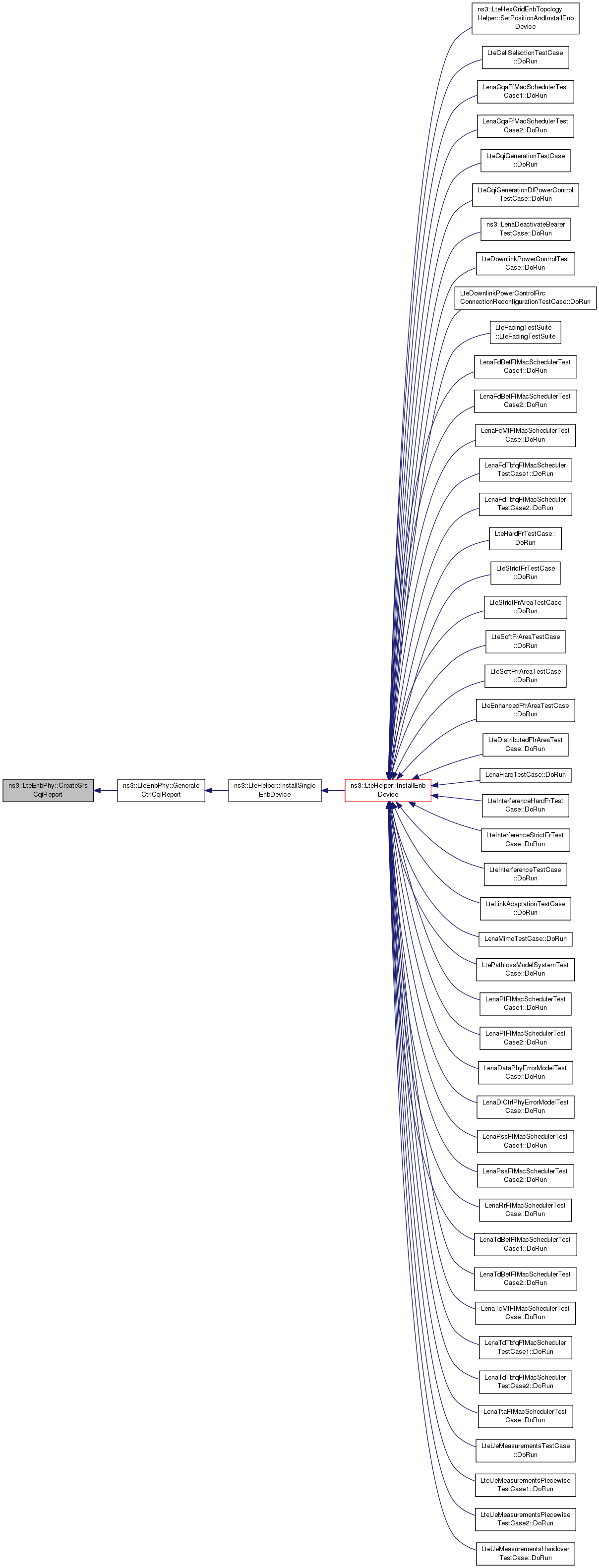

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::LteEnbPhy::CreateTxPowerSpectralDensity ( )

virtual

Create the PSD for TX.

Implements ns3::LtePhy.

Definition at line 477 of file lte-enb-phy.cc.

References ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity(), GetDownlinkSubChannels(), ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by SetDownlinkSubChannels().

Here is the call graph for this function:

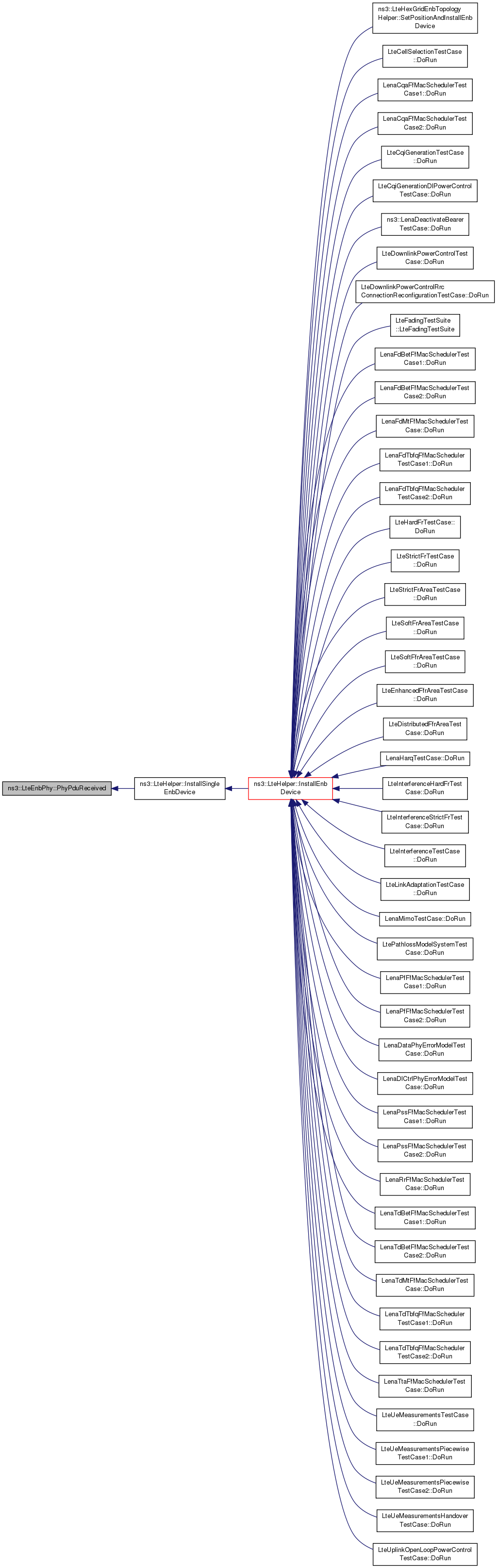

Here is the caller graph for this function:

Ptr< SpectrumValue > ns3::LteEnbPhy::CreateTxPowerSpectralDensityWithPowerAllocation ( )

virtual

Create the PSD for TX with power allocation for each RB.

Definition at line 487 of file lte-enb-phy.cc.

References ns3::LteSpectrumValueHelper::CreateTxPowerSpectralDensity(), GetDownlinkSubChannels(), ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_dlEarfcn, m_dlPowerAllocationMap, ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by SetDownlinkSubChannelsWithPowerAllocation().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::LteEnbPhy::DeleteUePhy ( uint16_t rnti )

private

Remove the given RNTI from the list of attached UE m_ueAttached.

Parameters

rnti	RNTI of a UE

Returns: true if the RNTI has existed before, or false otherwise.

Definition at line 396 of file lte-enb-phy.cc.

References m_ueAttached, NS_LOG_ERROR, and NS_LOG_FUNCTION.

Referenced by DoRemoveUe().

Here is the caller graph for this function:

std::list< UlDciLteControlMessage > ns3::LteEnbPhy::DequeueUlDci ( void )

Returns: the list of UL-CQI to be processed

Definition at line 1035 of file lte-enb-phy.cc.

References m_ulDciQueue, and NS_LOG_FUNCTION.

Referenced by StartSubFrame().

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoAddUe ( uint16_t rnti )

private

Definition at line 920 of file lte-enb-phy.cc.

References AddUePhy(), DoSetPa(), NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbPhy::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 238 of file lte-enb-phy.cc.

References ns3::LtePhy::DoDispose(), m_enbCphySapProvider, m_enbPhySapProvider, m_srsUeOffset, m_ueAttached, and NS_LOG_FUNCTION.

Here is the call graph for this function:

uint8_t ns3::LteEnbPhy::DoGetMacChTtiDelay ( )

private

Definition at line 423 of file lte-enb-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

Referenced by ns3::EnbMemberLteEnbPhySapProvider::GetMacChTtiDelay().

Here is the caller graph for this function:

int8_t ns3::LteEnbPhy::DoGetReferenceSignalPower ( ) const

Returns: the transmission power in dBm

Definition at line 318 of file lte-enb-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

void ns3::LteEnbPhy::DoInitialize ( void )

virtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 249 of file lte-enb-phy.cc.

References ns3::LteSpectrumValueHelper::CreateNoisePowerSpectralDensity(), ns3::Object::DoInitialize(), ns3::Node::GetId(), ns3::LtePhy::m_netDevice, ns3::LtePhy::m_noiseFigure, ns3::LtePhy::m_ulBandwidth, ns3::LtePhy::m_ulEarfcn, ns3::LtePhy::m_uplinkSpectrumPhy, NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), ns3::Simulator::ScheduleWithContext(), ns3::Seconds(), and StartFrame().

Here is the call graph for this function:

void ns3::LteEnbPhy::DoRemoveUe ( uint16_t rnti )

private

Definition at line 932 of file lte-enb-phy.cc.

References DeleteUePhy(), m_paMap, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbPhy::DoSendLteControlMessage ( Ptr< LteControlMessage > msg )

private

Definition at line 505 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetControlMessages().

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SendLteControlMessage().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSendMacPdu ( Ptr< Packet > p )

privatevirtual

Queue the MAC PDU to be sent (according to m_macChTtiDelay)

Parameters

p	the MAC PDU to sent

Implements ns3::LtePhy.

Definition at line 416 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION, and ns3::LtePhy::SetMacPdu().

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SendMacPdu().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSetBandwidth	(	uint8_t	ulBandwidth,
		uint8_t	dlBandwidth
	)

private

Definition at line 888 of file lte-enb-phy.cc.

References ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_rbgSize, ns3::LtePhy::m_ulBandwidth, NS_LOG_FUNCTION, and ns3::Type0AllocationRbg.

Referenced by ns3::EnbMemberLteEnbPhySapProvider::SetBandwidth().

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSetEarfcn	(	uint16_t	dlEarfcn,
		uint16_t	ulEarfcn
	)

private

Definition at line 911 of file lte-enb-phy.cc.

References ns3::LtePhy::m_dlEarfcn, ns3::LtePhy::m_ulEarfcn, and NS_LOG_FUNCTION.

void ns3::LteEnbPhy::DoSetMasterInformationBlock ( LteRrcSap::MasterInformationBlock mib )

private

Definition at line 1090 of file lte-enb-phy.cc.

References m_mib, and NS_LOG_FUNCTION.

void ns3::LteEnbPhy::DoSetPa	(	uint16_t	rnti,
		double	pa
	)

private

Definition at line 949 of file lte-enb-phy.cc.

References m_paMap, and NS_LOG_FUNCTION.

Referenced by DoAddUe().

Here is the caller graph for this function:

void ns3::LteEnbPhy::DoSetSrsConfigurationIndex	(	uint16_t	rnti,
		uint16_t	srcCi
	)

private

Definition at line 1057 of file lte-enb-phy.cc.

References ns3::LtePhy::GetSrsPeriodicity(), ns3::LtePhy::GetSrsSubframeOffset(), ns3::LtePhy::m_macChTtiDelay, m_srsCounter, m_srsPeriodicity, m_srsStartTime, m_srsUeOffset, ns3::MilliSeconds(), ns3::Simulator::Now(), NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbPhy::DoSetSystemInformationBlockType1 ( LteRrcSap::SystemInformationBlockType1 sib1 )

private

Definition at line 1098 of file lte-enb-phy.cc.

References m_sib1, and NS_LOG_FUNCTION.

void ns3::LteEnbPhy::DoSetTransmissionMode	(	uint16_t	rnti,
		uint8_t	txMode
	)

private

Definition at line 1021 of file lte-enb-phy.cc.

References NS_LOG_FUNCTION.

void ns3::LteEnbPhy::EndFrame ( void )

End a LTE frame.

Definition at line 817 of file lte-enb-phy.cc.

References ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and StartFrame().

Referenced by EndSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::EndSubFrame ( void )

End a LTE sub frame.

Definition at line 802 of file lte-enb-phy.cc.

References EndFrame(), m_nrSubFrames, ns3::Simulator::Now(), NS_LOG_FUNCTION, ns3::Simulator::ScheduleNow(), and StartSubFrame().

Referenced by StartSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::GenerateCtrlCqiReport ( const SpectrumValue & sinr )

virtual

generate a CQI report based on the given SINR of Ctrl frame

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 825 of file lte-enb-phy.cc.

References CreateSrsCqiReport(), m_enbPhySapUser, m_srsStartTime, ns3::Simulator::Now(), NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::UlCqiReport().

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::GenerateDataCqiReport ( const SpectrumValue & sinr )

virtual

generate a CQI report based on the given SINR of Data frame (used for PUSCH CQIs)

Parameters

sinr	the SINR vs frequency measured by the device

Implements ns3::LtePhy.

Definition at line 837 of file lte-enb-phy.cc.

References CreatePuschCqiReport(), m_enbPhySapUser, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::UlCqiReport().

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::GeneratePowerAllocationMap	(	uint16_t	rnti,
		int	rbId
	)

Generate power allocation map (i.e.

tx power level for each RB)

Parameters

rnti	indicates which UE will occupy this RB
rbId	indicates which RB UE is using, power level for this RB is power level of UE

Definition at line 462 of file lte-enb-phy.cc.

References m_dlPowerAllocationMap, m_paMap, ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by StartSubFrame().

Here is the caller graph for this function:

Ptr< LteSpectrumPhy > ns3::LteEnbPhy::GetDlSpectrumPhy ( ) const

Returns: a pointer to the LteSpectrumPhy instance relative to the downlink

Definition at line 366 of file lte-enb-phy.cc.

References ns3::LtePhy::m_downlinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

std::vector< int > ns3::LteEnbPhy::GetDownlinkSubChannels ( void )

Returns: a vector of integers, if the i-th value is j it means that the j-th resource block is used for transmission in the downlink. If there is no i such that the value of the i-th element is j, it means that RB j is not used.

Definition at line 455 of file lte-enb-phy.cc.

References m_listOfDownlinkSubchannel, and NS_LOG_FUNCTION.

Referenced by CreateTxPowerSpectralDensity(), and CreateTxPowerSpectralDensityWithPowerAllocation().

Here is the caller graph for this function:

LteEnbCphySapProvider * ns3::LteEnbPhy::GetLteEnbCphySapProvider ( )

Get the CPHY SAP provider.

Returns: a pointer to the SAP Provider

Definition at line 297 of file lte-enb-phy.cc.

References m_enbCphySapProvider, and NS_LOG_FUNCTION.

LteEnbPhySapProvider * ns3::LteEnbPhy::GetLteEnbPhySapProvider ( )

Get the PHY SAP provider.

Returns: a pointer to the SAP Provider of the PHY

Definition at line 284 of file lte-enb-phy.cc.

References m_enbPhySapProvider.

uint8_t ns3::LteEnbPhy::GetMacChDelay ( void ) const

Returns: the TTI delay between MAC and channel

Definition at line 360 of file lte-enb-phy.cc.

References ns3::LtePhy::m_macChTtiDelay.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::LteEnbPhy::GetNoiseFigure ( ) const

Returns: the noise figure in dB

Definition at line 332 of file lte-enb-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

double ns3::LteEnbPhy::GetTxPower ( ) const

Returns: the transmission power in dBm

Definition at line 311 of file lte-enb-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

TypeId ns3::LteEnbPhy::GetTypeId ( void )

static

Todo:: In what unit is this?

Todo:: In what unit is this?

Definition at line 158 of file lte-enb-phy.cc.

References ns3::TypeId::ATTR_GET, GetDlSpectrumPhy(), GetMacChDelay(), GetNoiseFigure(), GetTxPower(), GetUlSpectrumPhy(), m_dlPhyTransmission, m_interferenceSamplePeriod, m_reportInterferenceTrace, m_reportUeSinr, m_srsSamplePeriod, ns3::MakeDoubleAccessor(), ns3::MakePointerAccessor(), ns3::MakeTraceSourceAccessor(), ns3::MakeUintegerAccessor(), SetMacChDelay(), SetNoiseFigure(), ns3::TypeId::SetParent(), and SetTxPower().

Here is the call graph for this function:

Ptr< LteSpectrumPhy > ns3::LteEnbPhy::GetUlSpectrumPhy ( ) const

Returns: a pointer to the LteSpectrumPhy instance relative to the uplink

Definition at line 372 of file lte-enb-phy.cc.

References ns3::LtePhy::m_uplinkSpectrumPhy.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbPhy::PhyPduReceived ( Ptr< Packet > p )

PhySpectrum received a new PHY-PDU.

Definition at line 430 of file lte-enb-phy.cc.

References m_enbPhySapUser, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::ReceivePhyPdu().

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::QueueUlDci ( UlDciLteControlMessage m )

Parameters

m	the UL-CQI to be queued

Definition at line 1028 of file lte-enb-phy.cc.

References m_ulDciQueue, NS_LOG_FUNCTION, and UL_PUSCH_TTIS_DELAY.

Referenced by StartSubFrame().

Here is the caller graph for this function:

void ns3::LteEnbPhy::ReceiveLteControlMessage ( Ptr< LteControlMessage > msg )

virtual

Receive the control message.

Parameters

msg	the received message

Definition at line 515 of file lte-enb-phy.cc.

References m_enbPhySapUser, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::ReceiveLteControlMessage().

Here is the call graph for this function:

void ns3::LteEnbPhy::ReceiveLteControlMessageList ( std::list< Ptr< LteControlMessage > > msgList )

virtual

PhySpectrum received a new list of LteControlMessage.

Definition at line 523 of file lte-enb-phy.cc.

References ns3::LteControlMessage::BSR, ns3::LteControlMessage::DL_CQI, ns3::LteControlMessage::DL_HARQ, m_enbPhySapUser, ns3::MacCeListElement_s::m_rnti, ns3::DlInfoListElement_s::m_rnti, ns3::CqiListElement_s::m_rnti, m_ueAttached, NS_FATAL_ERROR, NS_LOG_FUNCTION, ns3::LteControlMessage::RACH_PREAMBLE, ns3::LteEnbPhySapUser::ReceiveLteControlMessage(), and ns3::LteEnbPhySapUser::ReceiveRachPreamble().

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::ReceiveLteUlHarqFeedback ( UlInfoListElement_s mes )

virtual

PhySpectrum generated a new UL HARQ feedback.

Definition at line 1113 of file lte-enb-phy.cc.

References m_enbPhySapUser, NS_LOG_FUNCTION, and ns3::LteEnbPhySapUser::UlInfoListElementHarqFeeback().

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::ReportInterference ( const SpectrumValue & interf )

virtual

generate a report based on the linear interference and noise power perceived during DATA frame NOTE: used only by eNB

Parameters

interf the interference + noise power measured by the device

Implements ns3::LtePhy.

Definition at line 845 of file lte-enb-phy.cc.

References ns3::LtePhy::m_cellId, m_interferenceSampleCounter, m_interferenceSamplePeriod, m_reportInterferenceTrace, and NS_LOG_FUNCTION.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

void ns3::LteEnbPhy::ReportRsReceivedPower ( const SpectrumValue & power )

virtual

generate a report based on the linear RS power perceived during CTRL frame NOTE: used only by UE for evaluating RSRP

Parameters

power the RS power measured by the device

Implements ns3::LtePhy.

Definition at line 858 of file lte-enb-phy.cc.

void ns3::LteEnbPhy::SendControlChannels ( std::list< Ptr< LteControlMessage > > ctrlMsgList )

Send the PDCCH and PCFICH in the first 3 symbols.

Parameters

ctrlMsgList the list of control messages of PDCCH

Definition at line 768 of file lte-enb-phy.cc.

References ns3::LtePhy::m_cellId, ns3::LtePhy::m_dlBandwidth, ns3::LtePhy::m_downlinkSpectrumPhy, m_nrSubFrames, NS_LOG_FUNCTION, NS_LOG_LOGIC, and SetDownlinkSubChannels().

Referenced by StartSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::SendDataChannels ( Ptr< PacketBurst > pb )

Send the PDSCH.

Parameters

pb	the PacketBurst to be sent

Definition at line 789 of file lte-enb-phy.cc.

References m_dlDataRbMap, ns3::LtePhy::m_downlinkSpectrumPhy, NS_LOG_LOGIC, and SetDownlinkSubChannelsWithPowerAllocation().

Referenced by StartSubFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetDownlinkSubChannels ( std::vector< int > mask )

set the resource blocks (a.k.a.

sub channels) to be used in the downlink for transmission

Parameters

mask	a vector of integers, if the i-th value is j it means that the j-th resource block is used for transmission in the downlink. If there is no i such that the value of the i-th element is j, it means that RB j is not used.

Definition at line 437 of file lte-enb-phy.cc.

References CreateTxPowerSpectralDensity(), ns3::LtePhy::m_downlinkSpectrumPhy, m_listOfDownlinkSubchannel, and NS_LOG_FUNCTION.

Referenced by SendControlChannels().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetDownlinkSubChannelsWithPowerAllocation ( std::vector< int > mask )

set the resource blocks (a.k.a.

sub channels) and its power to be used in the downlink for transmission

Parameters

mask	a vector of integers, if the i-th value is j it means that the j-th resource block is used for transmission in the downlink. If there is no i such that the value of the i-th element is j, it means that RB j is not used.

Definition at line 446 of file lte-enb-phy.cc.

References CreateTxPowerSpectralDensityWithPowerAllocation(), ns3::LtePhy::m_downlinkSpectrumPhy, m_listOfDownlinkSubchannel, and NS_LOG_FUNCTION.

Referenced by SendDataChannels().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetHarqPhyModule ( Ptr< LteHarqPhy > harq )

Definition at line 1106 of file lte-enb-phy.cc.

References m_harqPhyModule.

void ns3::LteEnbPhy::SetLteEnbCphySapUser ( LteEnbCphySapUser * s )

Set the CPHY SAP User.

Parameters

s	a pointer to the SAP user

Definition at line 290 of file lte-enb-phy.cc.

References m_enbCphySapUser, and NS_LOG_FUNCTION.

void ns3::LteEnbPhy::SetLteEnbPhySapUser ( LteEnbPhySapUser * s )

Set the PHY SAP User.

Parameters

s	a pointer to the PHY SAP user

Definition at line 278 of file lte-enb-phy.cc.

References m_enbPhySapUser.

void ns3::LteEnbPhy::SetMacChDelay ( uint8_t delay )

Parameters

delay the TTI delay between MAC and channel

Definition at line 339 of file lte-enb-phy.cc.

References ns3::LtePhy::m_controlMessagesQueue, ns3::LtePhy::m_macChTtiDelay, ns3::LtePhy::m_packetBurstQueue, m_ulDciQueue, NS_LOG_FUNCTION, and UL_PUSCH_TTIS_DELAY.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetNoiseFigure ( double pow )

Parameters

pow	the noise figure in dB

Definition at line 325 of file lte-enb-phy.cc.

References ns3::LtePhy::m_noiseFigure, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbPhy::SetTxPower ( double pow )

Parameters

pow	the transmission power in dBm

Definition at line 304 of file lte-enb-phy.cc.

References ns3::LtePhy::m_txPower, and NS_LOG_FUNCTION.

Referenced by LteHandoverTargetTestCase::CellShutdownCallback(), and GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbPhy::StartFrame ( void )

Start a LTE frame.

Definition at line 580 of file lte-enb-phy.cc.

References ns3::LtePhy::m_controlMessagesQueue, m_mib, m_nrFrames, m_nrSubFrames, NS_LOG_FUNCTION, NS_LOG_INFO, StartSubFrame(), and ns3::LteRrcSap::MasterInformationBlock::systemFrameNumber.

Referenced by DoInitialize(), and EndFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbPhy::StartSubFrame ( void )

Start a LTE sub frame.

Definition at line 599 of file lte-enb-phy.cc.

Referenced by EndSubFrame(), and StartFrame().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class EnbMemberLteEnbPhySapProvider

friend

Definition at line 49 of file lte-enb-phy.h.

Referenced by LteEnbPhy().

friend class MemberLteEnbCphySapProvider< LteEnbPhy >

friend

Definition at line 50 of file lte-enb-phy.h.

Member Data Documentation

uint16_t ns3::LteEnbPhy::m_currentSrsOffset

private

Definition at line 388 of file lte-enb-phy.h.

Referenced by CreateSrsCqiReport(), and StartSubFrame().

std::vector<int> ns3::LteEnbPhy::m_dlDataRbMap

private

Definition at line 361 of file lte-enb-phy.h.

Referenced by SendDataChannels(), and StartSubFrame().

TracedCallback<PhyTransmissionStatParameters> ns3::LteEnbPhy::m_dlPhyTransmission

private

The DlPhyTransmission trace source.

Contains trace information regarding PHY stats from DL Tx perspective. Exporting a structure with type PhyTransmissionStatParameters.

Definition at line 437 of file lte-enb-phy.h.

Referenced by GetTypeId(), and StartSubFrame().

std::map<int, double> ns3::LteEnbPhy::m_dlPowerAllocationMap

private

DL power allocation map.

Definition at line 351 of file lte-enb-phy.h.

Referenced by CreateTxPowerSpectralDensityWithPowerAllocation(), GeneratePowerAllocationMap(), and StartSubFrame().

LteEnbCphySapProvider* ns3::LteEnbPhy::m_enbCphySapProvider

private

Definition at line 369 of file lte-enb-phy.h.

Referenced by DoDispose(), GetLteEnbCphySapProvider(), and LteEnbPhy().

LteEnbCphySapUser* ns3::LteEnbPhy::m_enbCphySapUser

private

Definition at line 370 of file lte-enb-phy.h.

Referenced by SetLteEnbCphySapUser().

LteEnbPhySapProvider* ns3::LteEnbPhy::m_enbPhySapProvider

private

Definition at line 366 of file lte-enb-phy.h.

Referenced by DoDispose(), GetLteEnbPhySapProvider(), and LteEnbPhy().

LteEnbPhySapUser* ns3::LteEnbPhy::m_enbPhySapUser

private

Definition at line 367 of file lte-enb-phy.h.

Referenced by GenerateCtrlCqiReport(), GenerateDataCqiReport(), PhyPduReceived(), ReceiveLteControlMessage(), ReceiveLteControlMessageList(), ReceiveLteUlHarqFeedback(), SetLteEnbPhySapUser(), and StartSubFrame().

Ptr<LteHarqPhy> ns3::LteEnbPhy::m_harqPhyModule

private

Definition at line 402 of file lte-enb-phy.h.

Referenced by LteEnbPhy(), SetHarqPhyModule(), and StartSubFrame().

uint16_t ns3::LteEnbPhy::m_interferenceSampleCounter

private

Definition at line 430 of file lte-enb-phy.h.

Referenced by ReportInterference().

uint16_t ns3::LteEnbPhy::m_interferenceSamplePeriod

private

The InterferenceSamplePeriod attribute.

The sampling period for reporting interference stats.

Todo:: In what unit is this?

Definition at line 429 of file lte-enb-phy.h.

Referenced by GetTypeId(), and ReportInterference().

std::vector<int> ns3::LteEnbPhy::m_listOfDownlinkSubchannel

private

A vector of integers, if the i-th value is j it means that the j-th resource block is used for transmission in the downlink.

If there is no i such that the value of the i-th element is j, it means that RB j is not used.

Definition at line 359 of file lte-enb-phy.h.

Referenced by GetDownlinkSubChannels(), SetDownlinkSubChannels(), and SetDownlinkSubChannelsWithPowerAllocation().

LteRrcSap::MasterInformationBlock ns3::LteEnbPhy::m_mib

private

The Master Information Block message to be broadcasted every frame.

The message content is specified by the upper layer through the RRC SAP.

Definition at line 394 of file lte-enb-phy.h.

Referenced by DoSetMasterInformationBlock(), and StartFrame().

uint32_t ns3::LteEnbPhy::m_nrFrames

private

The frame number currently served.

In ns-3, frame number starts from 1. In contrast, the 3GPP standard's frame number starts from 0.

Definition at line 376 of file lte-enb-phy.h.

Referenced by StartFrame(), and StartSubFrame().

uint32_t ns3::LteEnbPhy::m_nrSubFrames

private

The subframe number currently served.

In ns-3, subframe number starts from 1. In contrast, the 3GPP standard's subframe number starts from 0. The number resets to the beginning again after 10 subframes.

Definition at line 382 of file lte-enb-phy.h.

Referenced by EndSubFrame(), SendControlChannels(), StartFrame(), and StartSubFrame().

std::map<uint16_t,double> ns3::LteEnbPhy::m_paMap

private

P_A per UE RNTI.

Definition at line 348 of file lte-enb-phy.h.

Referenced by DoRemoveUe(), DoSetPa(), and GeneratePowerAllocationMap().
