ns3::DsrMainHelper Class Reference

Helper class that adds DSR routing to nodes. More...

#include "dsr-main-helper.h"

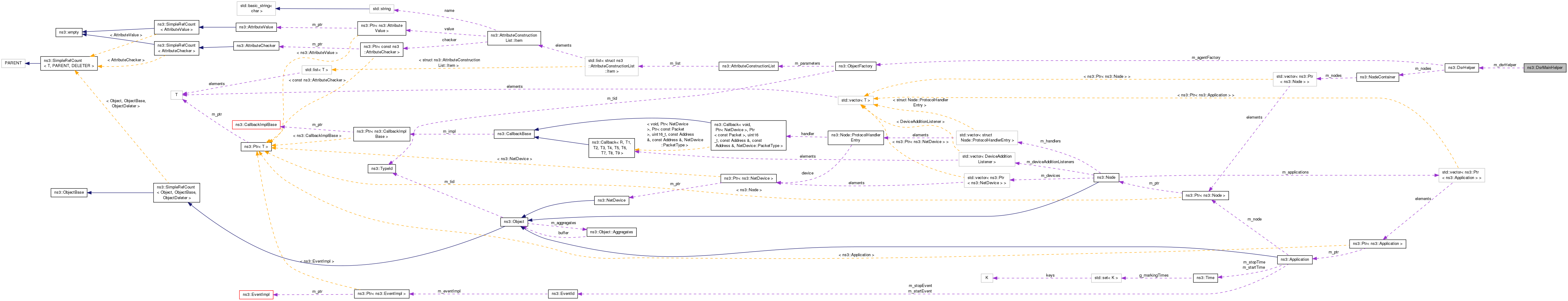

Collaboration diagram for ns3::DsrMainHelper:

Public Member Functions
	DsrMainHelper ()
	Create an DsrMainHelper that makes life easier for people who want to install DSR routing to nodes. More...
	DsrMainHelper (const DsrMainHelper &)
	Construct an DsrMainHelper from another previously initialized instance (Copy Constructor). More...
	~DsrMainHelper ()
void	Install (DsrHelper &dsrHelper, NodeContainer nodes)
void	SetDsrHelper (DsrHelper &dsrHelper)

Private Member Functions
void	Install (Ptr< Node > node)
DsrMainHelper &	operator= (const DsrMainHelper &o)
	Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own. More...

Private Attributes
const DsrHelper *	m_dsrHelper

Detailed Description

Helper class that adds DSR routing to nodes.

Definition at line 45 of file dsr-main-helper.h.

Constructor & Destructor Documentation

ns3::DsrMainHelper::DsrMainHelper

(

)

Create an DsrMainHelper that makes life easier for people who want to install DSR routing to nodes.

Definition at line 47 of file dsr-main-helper.cc.

References NS_LOG_FUNCTION.

ns3::DsrMainHelper::~DsrMainHelper

(

)

Definition at line 59 of file dsr-main-helper.cc.

References m_dsrHelper, and NS_LOG_FUNCTION.

ns3::DsrMainHelper::DsrMainHelper

(

const DsrMainHelper &

o

)

Construct an DsrMainHelper from another previously initialized instance (Copy Constructor).

Definition at line 53 of file dsr-main-helper.cc.

References ns3::DsrHelper::Copy(), m_dsrHelper, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

void ns3::DsrMainHelper::Install	(	DsrHelper &	dsrHelper,
		NodeContainer	nodes
	)

Definition at line 77 of file dsr-main-helper.cc.

References ns3::NodeContainer::Begin(), ns3::DsrHelper::Copy(), ns3::NodeContainer::End(), m_dsrHelper, and NS_LOG_DEBUG.

Referenced by RoutingExperiment::Run(), and RoutingHelper::SetupRoutingProtocol().

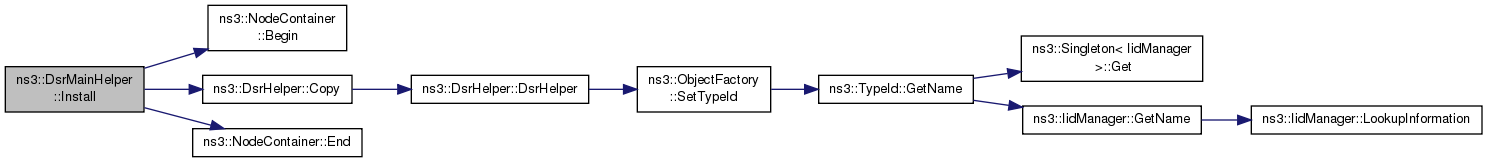

Here is the call graph for this function:

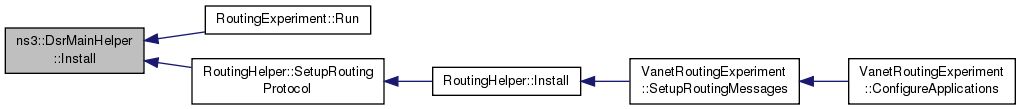

Here is the caller graph for this function:

void ns3::DsrMainHelper::Install ( Ptr< Node >  node )

private

Definition at line 89 of file dsr-main-helper.cc.

References ns3::DsrHelper::Create(), m_dsrHelper, NS_LOG_FUNCTION, and ns3::dsr::DsrRouting::SetNode().

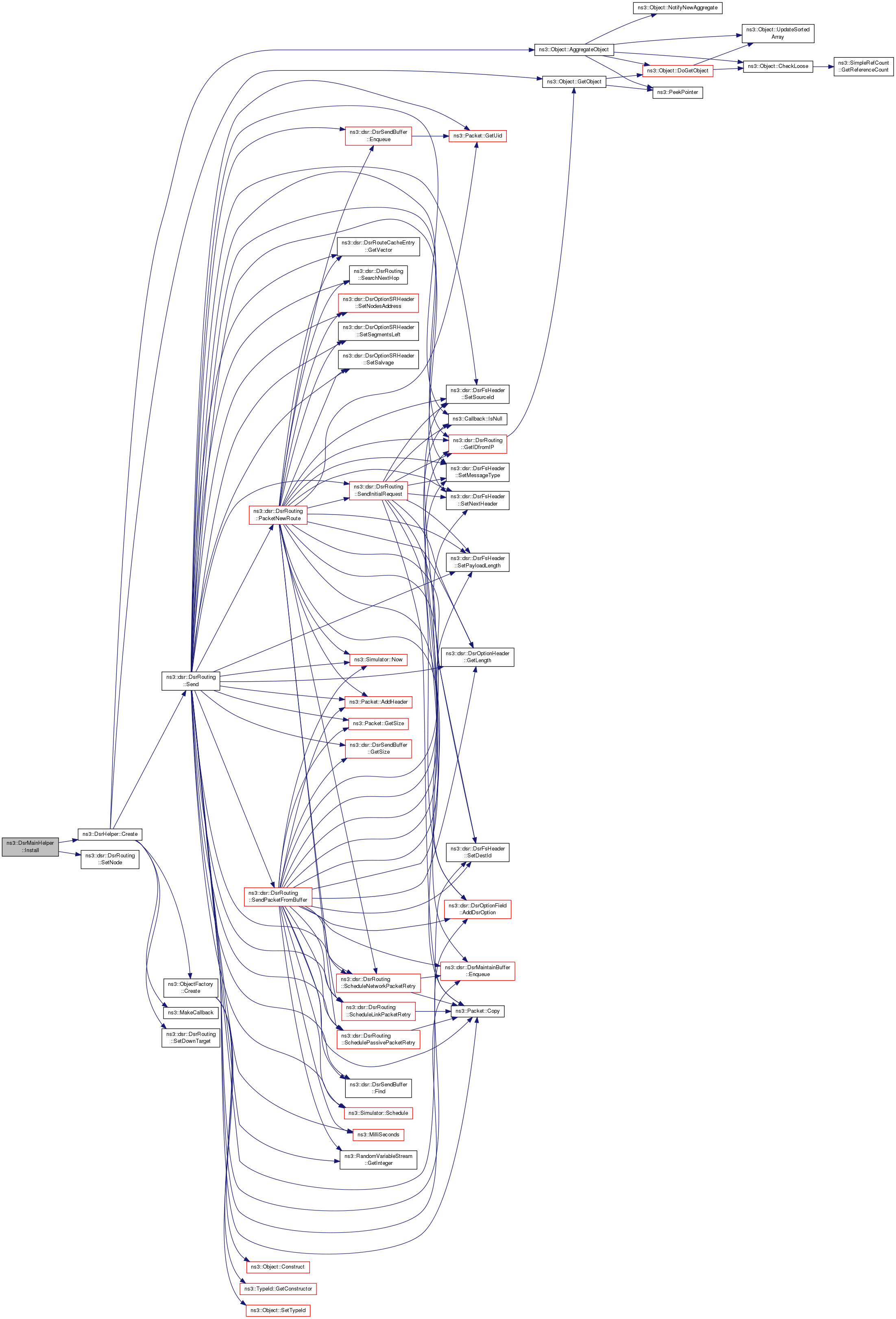

Here is the call graph for this function:

DsrMainHelper & ns3::DsrMainHelper::operator= ( const DsrMainHelper &  o )

private

Assignment operator declared private and not implemented to disallow assignment and prevent the compiler from happily inserting its own.

Definition at line 66 of file dsr-main-helper.cc.

References ns3::DsrHelper::Copy(), and m_dsrHelper.

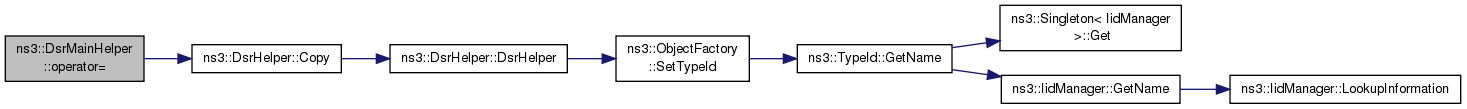

Here is the call graph for this function:

void ns3::DsrMainHelper::SetDsrHelper

(

DsrHelper &

dsrHelper

)

Definition at line 103 of file dsr-main-helper.cc.

References ns3::DsrHelper::Copy(), m_dsrHelper, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Data Documentation

const DsrHelper* ns3::DsrMainHelper::m_dsrHelper

private

Definition at line 69 of file dsr-main-helper.h.

Referenced by DsrMainHelper(), Install(), operator=(), SetDsrHelper(), and ~DsrMainHelper().

---

The documentation for this class was generated from the following files:

• src/dsr/helper/dsr-main-helper.h
• src/dsr/helper/dsr-main-helper.cc
