Behaves as NewReno, except that each time PktsAcked is called, a notification is sent to TcpPktsAckedOpenTest. More...

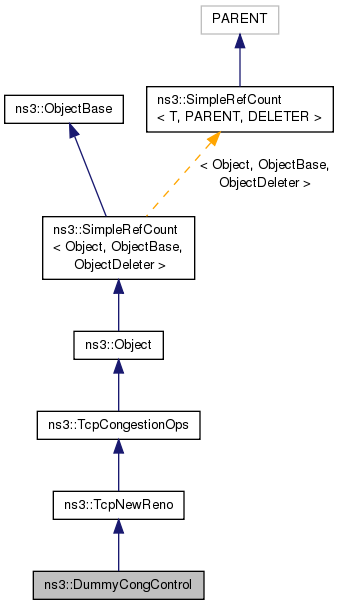

Inheritance diagram for ns3::DummyCongControl:

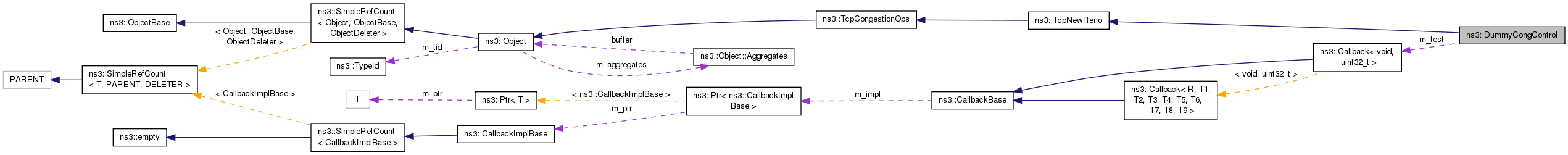

Collaboration diagram for ns3::DummyCongControl:

Public Member Functions
	DummyCongControl ()

void	PktsAcked (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked, const Time &rtt)
	Timing information on received ACK. More...

void	SetCallback (Callback< void, uint32_t > test)

Public Member Functions inherited from ns3::TcpNewReno
	TcpNewReno ()

	TcpNewReno (const TcpNewReno &sock)
	Copy constructor. More...

	~TcpNewReno ()

virtual Ptr< TcpCongestionOps >	Fork ()
	Copy the congestion control algorithm across socket. More...

std::string	GetName () const
	Get the name of the congestion control algorithm. More...

virtual uint32_t	GetSsThresh (Ptr< const TcpSocketState > tcb, uint32_t bytesInFlight)
	Get the slow start threshold after a loss event. More...

virtual void	IncreaseWindow (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)
	Try to increase the cWnd following the NewReno specification. More...

Public Member Functions inherited from ns3::TcpCongestionOps
	TcpCongestionOps ()

	TcpCongestionOps (const TcpCongestionOps &other)
	Copy constructor. More...

virtual	~TcpCongestionOps ()

virtual void	CongestionStateSet (Ptr< TcpSocketState > tcb, const TcpSocketState::TcpCongState_t newState)
	Trigger events/calculations specific to a congestion state. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::TcpNewReno
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::TcpCongestionOps
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Callback< void, uint32_t >	m_test

Additional Inherited Members
Protected Member Functions inherited from ns3::TcpNewReno
virtual void	CongestionAvoidance (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)
	NewReno congestion avoidance. More...

virtual uint32_t	SlowStart (Ptr< TcpSocketState > tcb, uint32_t segmentsAcked)
	Tcp NewReno slow start algorithm. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Behaves as NewReno, except that each time PktsAcked is called, a notification is sent to TcpPktsAckedOpenTest.

Definition at line 69 of file tcp-pkts-acked-test.cc.

Constructor & Destructor Documentation

ns3::DummyCongControl::DummyCongControl ( )

inline

Definition at line 73 of file tcp-pkts-acked-test.cc.

Member Function Documentation

TypeId ns3::DummyCongControl::GetTypeId ( void )

static

Definition at line 92 of file tcp-pkts-acked-test.cc.

References ns3::TypeId::SetParent().

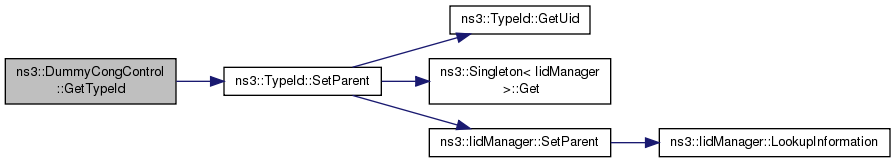

Here is the call graph for this function:

void ns3::DummyCongControl::PktsAcked	(	Ptr< TcpSocketState >	tcb,
		uint32_t	segmentsAcked,
		const Time &	rtt
	)

inlinevirtual

Timing information on received ACK.

The function is called every time an ACK is received (only one time also for cumulative ACKs) and contains timing information. It is optional (congestion controls can not implement it) and the default implementation does nothing.

Parameters
