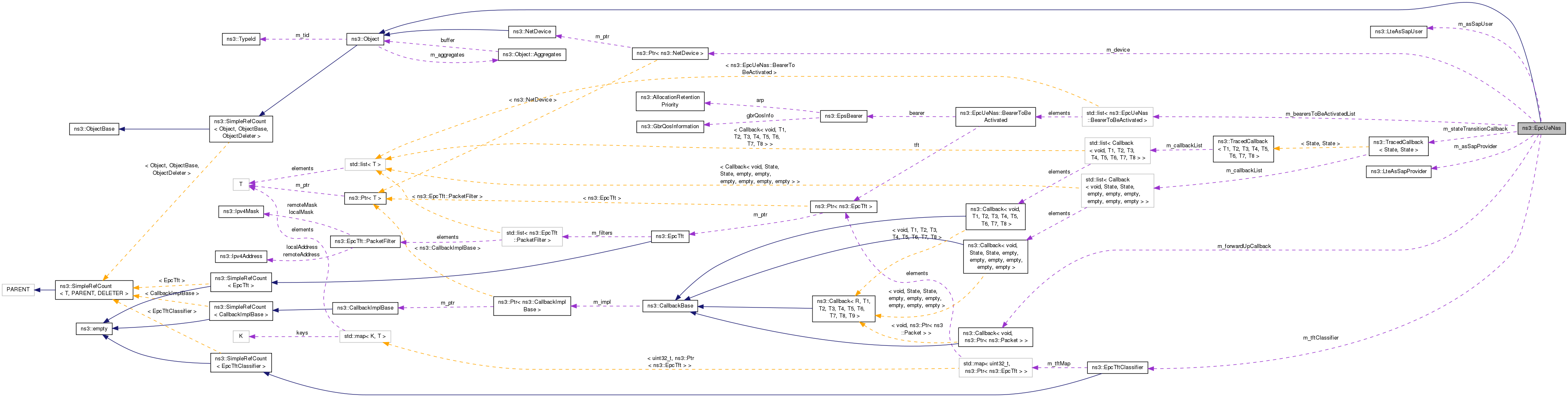

Collaboration diagram for ns3::EpcUeNas:

Classes
struct	BearerToBeActivated

Public Types
enum	State { OFF = 0, ATTACHING, IDLE_REGISTERED, CONNECTING_TO_EPC, ACTIVE, NUM_STATES }
	Definition of NAS states as per "LTE - From theory to practice", Section 3.2.3.2 "Connection Establishment and Release". More...

typedef void(*	StateTracedCallback) (const State oldState, const State newState)
	TracedCallback signature for state change events. More...

Public Member Functions
	EpcUeNas ()
	Constructor. More...

virtual	~EpcUeNas ()
	Destructor. More...

void	ActivateEpsBearer (EpsBearer bearer, Ptr< EpcTft > tft)
	Activate an EPS bearer. More...

void	Connect ()
	Causes NAS to tell AS to go to ACTIVE state. More...

void	Connect (uint16_t cellId, uint16_t dlEarfcn)
	Causes NAS to tell AS to camp to a specific cell and go to ACTIVE state. More...

void	Disconnect ()
	instruct the NAS to disconnect More...

virtual void	DoDispose (void)
	Destructor implementation. More...

LteAsSapUser *	GetAsSapUser ()

uint32_t	GetCsgId () const

State	GetState () const

bool	Send (Ptr< Packet > p)
	Enqueue an IP packet on the proper bearer for uplink transmission. More...

void	SetAsSapProvider (LteAsSapProvider *s)
	Set the AS SAP provider to interact with the NAS entity. More...

void	SetCsgId (uint32_t csgId)

void	SetDevice (Ptr< NetDevice > dev)

void	SetForwardUpCallback (Callback< void, Ptr< Packet > > cb)
	set the callback used to forward data packets up the stack More...

void	SetImsi (uint64_t imsi)

void	StartCellSelection (uint16_t dlEarfcn)
	Causes NAS to tell AS to find a suitable cell and camp to it. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
void	DoActivateEpsBearer (EpsBearer bearer, Ptr< EpcTft > tft)

void	DoNotifyConnectionFailed ()

void	DoNotifyConnectionReleased ()

void	DoNotifyConnectionSuccessful ()

void	DoRecvData (Ptr< Packet > packet)

void	SwitchToState (State s)
	Switch the UE RRC to the given state. More...

Private Attributes
LteAsSapProvider *	m_asSapProvider

LteAsSapUser *	m_asSapUser

std::list< BearerToBeActivated >	m_bearersToBeActivatedList

uint8_t	m_bidCounter

uint32_t	m_csgId
	Closed Subscriber Group identity. More...

Ptr< NetDevice >	m_device
	The UE NetDevice. More...

Callback< void, Ptr< Packet > >	m_forwardUpCallback

uint64_t	m_imsi
	The unique UE identifier. More...

State	m_state
	The current UE NAS state. More...

TracedCallback< State, State >	m_stateTransitionCallback
	The `StateTransition` trace source. More...

EpcTftClassifier	m_tftClassifier

Friends
class	MemberLteAsSapUser< EpcUeNas >

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Config Paths

ns3::EpcUeNas is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteUeNetDevice/EpcUeNas"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteUeNetDevice/EpcUeNas"

No Attributes are defined for this type.

TraceSources

StateTransition: fired upon every UE NAS state transition
Callback signature: ns3::EpcUeNas::StateTracedCallback

Size of this type is 176 bytes (on a 64-bit architecture).

Definition at line 34 of file epc-ue-nas.h.

Member Typedef Documentation

typedef void(* ns3::EpcUeNas::StateTracedCallback) (const State oldState, const State newState)

TracedCallback signature for state change events.

Parameters

[in] oldState The old State. [in] newState the new State.

Definition at line 178 of file epc-ue-nas.h.

Member Enumeration Documentation

enum ns3::EpcUeNas::State

Definition of NAS states as per "LTE - From theory to practice", Section 3.2.3.2 "Connection Establishment and Release".

Enumerator
OFF
ATTACHING
IDLE_REGISTERED
CONNECTING_TO_EPC
ACTIVE
NUM_STATES

Definition at line 156 of file epc-ue-nas.h.

Constructor & Destructor Documentation

ns3::EpcUeNas::EpcUeNas ( )

Constructor.

Definition at line 60 of file epc-ue-nas.cc.

References m_asSapUser, and NS_LOG_FUNCTION.

ns3::EpcUeNas::~EpcUeNas ( )

virtual

Destructor.

Definition at line 71 of file epc-ue-nas.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::EpcUeNas::ActivateEpsBearer	(	EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

Activate an EPS bearer.

Parameters

bearer	the characteristics of the bearer to be created
tft	the TFT identifying the traffic that will go on this bearer

Definition at line 187 of file epc-ue-nas.cc.

References ACTIVE, ns3::EpcUeNas::BearerToBeActivated::bearer, m_bearersToBeActivatedList, m_state, NS_FATAL_ERROR, NS_LOG_FUNCTION, and ns3::EpcUeNas::BearerToBeActivated::tft.

Referenced by ns3::EmuEpcHelper::ActivateEpsBearer().

Here is the caller graph for this function:

void ns3::EpcUeNas::Connect ( )

Causes NAS to tell AS to go to ACTIVE state.

The end result is equivalent with EMM Registered + ECM Connected states.

Definition at line 156 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Connect(), m_asSapProvider, and NS_LOG_FUNCTION.

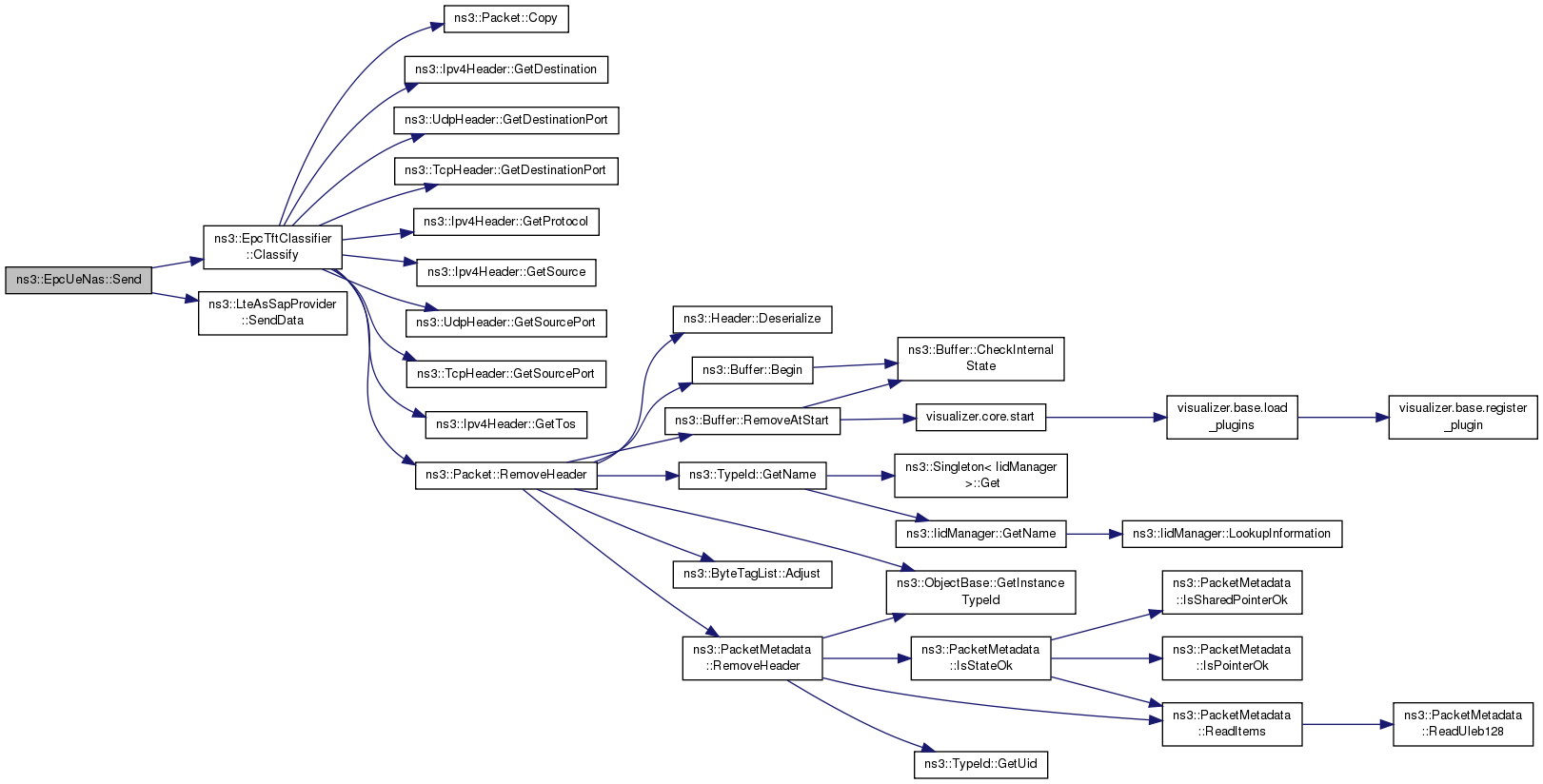

Here is the call graph for this function:

void ns3::EpcUeNas::Connect	(	uint16_t	cellId,
		uint16_t	dlEarfcn
	)

Causes NAS to tell AS to camp to a specific cell and go to ACTIVE state.

Parameters

cellId	the id of the eNB to camp on
dlEarfcn	the DL frequency of the eNB

The end result is equivalent with EMM Registered + ECM Connected states. Since RRC Idle Mode cell selection is not supported yet, we force the UE RRC to be camped on a specific eNB.

Definition at line 165 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Connect(), ns3::LteAsSapProvider::ForceCampedOnEnb(), m_asSapProvider, and NS_LOG_FUNCTION.

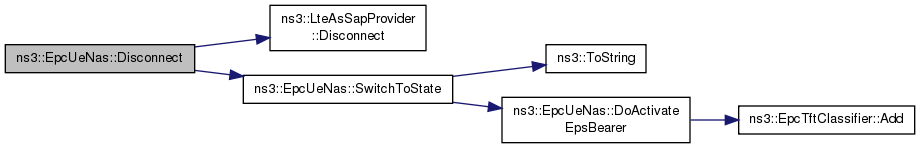

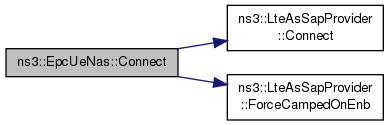

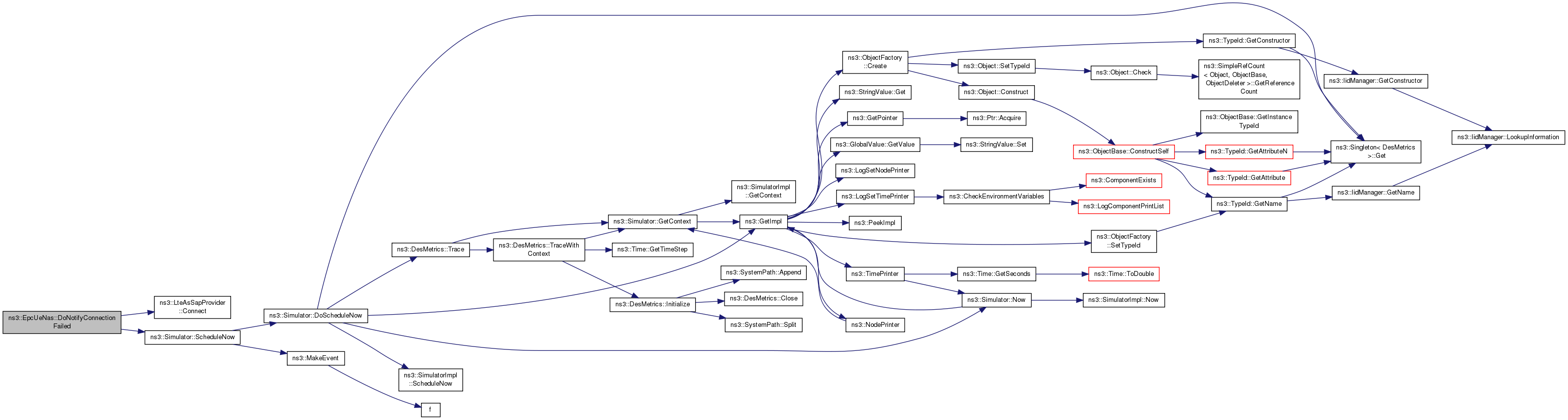

Here is the call graph for this function:

void ns3::EpcUeNas::Disconnect ( )

instruct the NAS to disconnect

Definition at line 178 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Disconnect(), m_asSapProvider, NS_LOG_FUNCTION, OFF, and SwitchToState().

Here is the call graph for this function:

void ns3::EpcUeNas::DoActivateEpsBearer	(	EpsBearer	bearer,
		Ptr< EpcTft >	tft
	)

private

Definition at line 268 of file epc-ue-nas.cc.

References ns3::EpcTftClassifier::Add(), m_bidCounter, m_tftClassifier, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

Referenced by SwitchToState().

Here is the call graph for this function:

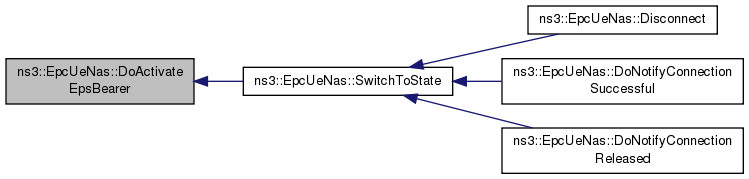

Here is the caller graph for this function:

void ns3::EpcUeNas::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 77 of file epc-ue-nas.cc.

References m_asSapUser, and NS_LOG_FUNCTION.

void ns3::EpcUeNas::DoNotifyConnectionFailed ( )

private

Definition at line 245 of file epc-ue-nas.cc.

References ns3::LteAsSapProvider::Connect(), m_asSapProvider, NS_LOG_FUNCTION, and ns3::Simulator::ScheduleNow().

Here is the call graph for this function:

void ns3::EpcUeNas::DoNotifyConnectionReleased ( )

private

Definition at line 261 of file epc-ue-nas.cc.

References NS_LOG_FUNCTION, OFF, and SwitchToState().

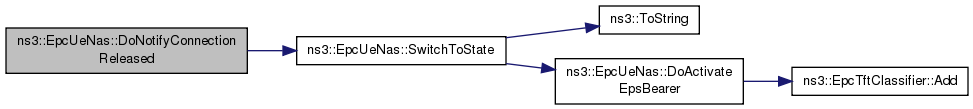

Here is the call graph for this function:

void ns3::EpcUeNas::DoNotifyConnectionSuccessful ( )

private

Definition at line 237 of file epc-ue-nas.cc.

References ACTIVE, NS_LOG_FUNCTION, and SwitchToState().

Here is the call graph for this function:

void ns3::EpcUeNas::DoRecvData ( Ptr< Packet > packet )

private

Definition at line 254 of file epc-ue-nas.cc.

References m_forwardUpCallback, and NS_LOG_FUNCTION.

LteAsSapUser * ns3::EpcUeNas::GetAsSapUser ( )

Returns: the AS SAP user exported by this RRC

Definition at line 135 of file epc-ue-nas.cc.

References m_asSapUser, and NS_LOG_FUNCTION.

uint32_t ns3::EpcUeNas::GetCsgId ( ) const

Returns: csgId Closed Subscriber Group identity

Definition at line 121 of file epc-ue-nas.cc.

References m_csgId, and NS_LOG_FUNCTION.

EpcUeNas::State ns3::EpcUeNas::GetState ( void ) const

Returns: The current state

Definition at line 277 of file epc-ue-nas.cc.

References m_state, and NS_LOG_FUNCTION.

TypeId ns3::EpcUeNas::GetTypeId ( void )

static

Definition at line 84 of file epc-ue-nas.cc.

References m_stateTransitionCallback, ns3::MakeTraceSourceAccessor(), and ns3::TypeId::SetParent().

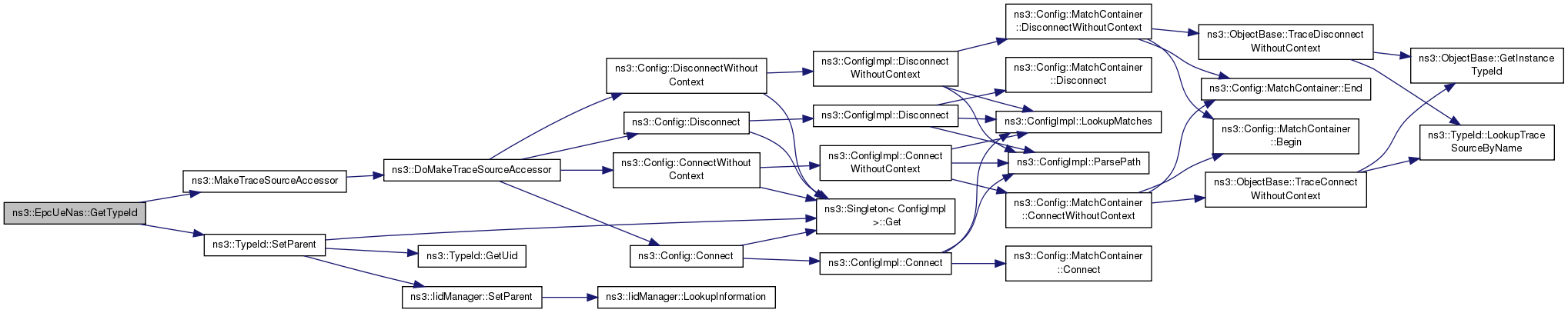

Here is the call graph for this function:

bool ns3::EpcUeNas::Send ( Ptr< Packet > p )

Enqueue an IP packet on the proper bearer for uplink transmission.

Parameters

p	the packet

Returns: true if successful, false if an error occurred

Definition at line 206 of file epc-ue-nas.cc.

References ACTIVE, ns3::EpcTftClassifier::Classify(), m_asSapProvider, m_state, m_tftClassifier, NS_ASSERT, NS_LOG_FUNCTION, NS_LOG_WARN, ns3::LteAsSapProvider::SendData(), and ns3::EpcTft::UPLINK.

Here is the call graph for this function:

void ns3::EpcUeNas::SetAsSapProvider ( LteAsSapProvider * s )

Set the AS SAP provider to interact with the NAS entity.

Parameters

s	the AS SAP provider

Definition at line 128 of file epc-ue-nas.cc.

References m_asSapProvider, and NS_LOG_FUNCTION.

void ns3::EpcUeNas::SetCsgId ( uint32_t csgId )

Parameters

csgId Closed Subscriber Group identity

Definition at line 113 of file epc-ue-nas.cc.

References m_asSapProvider, m_csgId, NS_LOG_FUNCTION, and ns3::LteAsSapProvider::SetCsgWhiteList().

Here is the call graph for this function:

void ns3::EpcUeNas::SetDevice ( Ptr< NetDevice > dev )

Parameters

dev	the UE NetDevice

Definition at line 99 of file epc-ue-nas.cc.

References m_device, and NS_LOG_FUNCTION.

void ns3::EpcUeNas::SetForwardUpCallback ( Callback< void, Ptr< Packet > > cb )

set the callback used to forward data packets up the stack

Parameters

cb	the callback

Definition at line 142 of file epc-ue-nas.cc.

References m_forwardUpCallback, and NS_LOG_FUNCTION.

void ns3::EpcUeNas::SetImsi ( uint64_t imsi )

Parameters

imsi	the unique UE identifier

Definition at line 106 of file epc-ue-nas.cc.

References m_imsi, and NS_LOG_FUNCTION.

void ns3::EpcUeNas::StartCellSelection ( uint16_t dlEarfcn )

Causes NAS to tell AS to find a suitable cell and camp to it.

Parameters

dlEarfcn the DL frequency of the eNB

Definition at line 149 of file epc-ue-nas.cc.

References m_asSapProvider, NS_LOG_FUNCTION, and ns3::LteAsSapProvider::StartCellSelection().

Here is the call graph for this function:

void ns3::EpcUeNas::SwitchToState ( State s )

private

Switch the UE RRC to the given state.

Parameters

s	the destination state

Definition at line 284 of file epc-ue-nas.cc.

References ACTIVE, DoActivateEpsBearer(), m_bearersToBeActivatedList, m_imsi, m_state, m_stateTransitionCallback, NS_LOG_FUNCTION, NS_LOG_INFO, and ns3::ToString().

Referenced by Disconnect(), DoNotifyConnectionReleased(), and DoNotifyConnectionSuccessful().

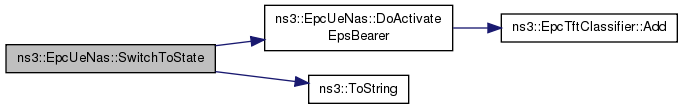

Here is the call graph for this function:

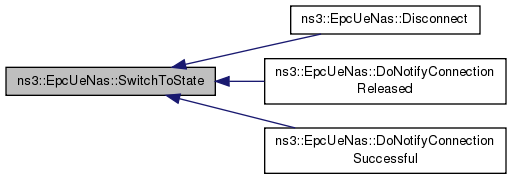

Here is the caller graph for this function:

Friends And Related Function Documentation

friend class MemberLteAsSapUser< EpcUeNas >

friend

Definition at line 36 of file epc-ue-nas.h.

Member Data Documentation

LteAsSapProvider* ns3::EpcUeNas::m_asSapProvider

private

Definition at line 215 of file epc-ue-nas.h.

Referenced by Connect(), Disconnect(), DoNotifyConnectionFailed(), Send(), SetAsSapProvider(), SetCsgId(), and StartCellSelection().

LteAsSapUser* ns3::EpcUeNas::m_asSapUser

private

Definition at line 216 of file epc-ue-nas.h.

Referenced by DoDispose(), EpcUeNas(), and GetAsSapUser().

std::list<BearerToBeActivated> ns3::EpcUeNas::m_bearersToBeActivatedList

private

Definition at line 229 of file epc-ue-nas.h.

Referenced by ActivateEpsBearer(), and SwitchToState().

uint8_t ns3::EpcUeNas::m_bidCounter

private

Definition at line 218 of file epc-ue-nas.h.

Referenced by DoActivateEpsBearer().

uint32_t ns3::EpcUeNas::m_csgId

private

Closed Subscriber Group identity.

Definition at line 213 of file epc-ue-nas.h.

Referenced by GetCsgId(), and SetCsgId().

Ptr<NetDevice> ns3::EpcUeNas::m_device

private

The UE NetDevice.

Definition at line 207 of file epc-ue-nas.h.

Referenced by SetDevice().

Callback<void, Ptr<Packet> > ns3::EpcUeNas::m_forwardUpCallback

private

Definition at line 221 of file epc-ue-nas.h.

Referenced by DoRecvData(), and SetForwardUpCallback().

uint64_t ns3::EpcUeNas::m_imsi

private

The unique UE identifier.

Definition at line 210 of file epc-ue-nas.h.

Referenced by SetImsi(), and SwitchToState().

State ns3::EpcUeNas::m_state

private

The current UE NAS state.

Definition at line 197 of file epc-ue-nas.h.

Referenced by ActivateEpsBearer(), GetState(), Send(), and SwitchToState().

TracedCallback<State, State> ns3::EpcUeNas::m_stateTransitionCallback

private

The StateTransition trace source.

Fired upon every UE NAS state transition. Exporting old state and new state.

Todo:: This should be a TracedValue

Definition at line 204 of file epc-ue-nas.h.

Referenced by GetTypeId(), and SwitchToState().

EpcTftClassifier ns3::EpcUeNas::m_tftClassifier

private

Definition at line 219 of file epc-ue-nas.h.

Referenced by DoActivateEpsBearer(), and Send().

The documentation for this class was generated from the following files:

src/lte/model/epc-ue-nas.h
src/lte/model/epc-ue-nas.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Private Member Functions

Private Attributes

Friends

Additional Inherited Members

Detailed Description

Config Paths

TraceSources

Member Typedef Documentation

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation
