A Error channel, introducing deterministic delays on even/odd packets. More...

#include "error-channel.h"

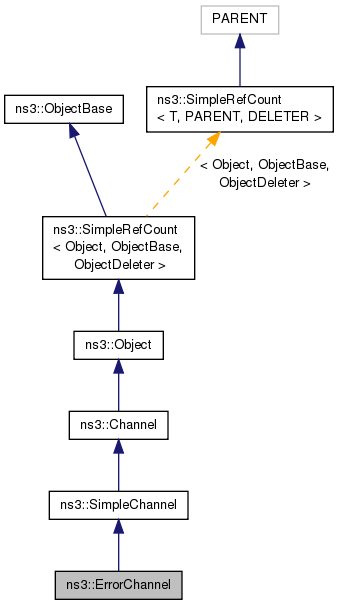

Inheritance diagram for ns3::ErrorChannel:

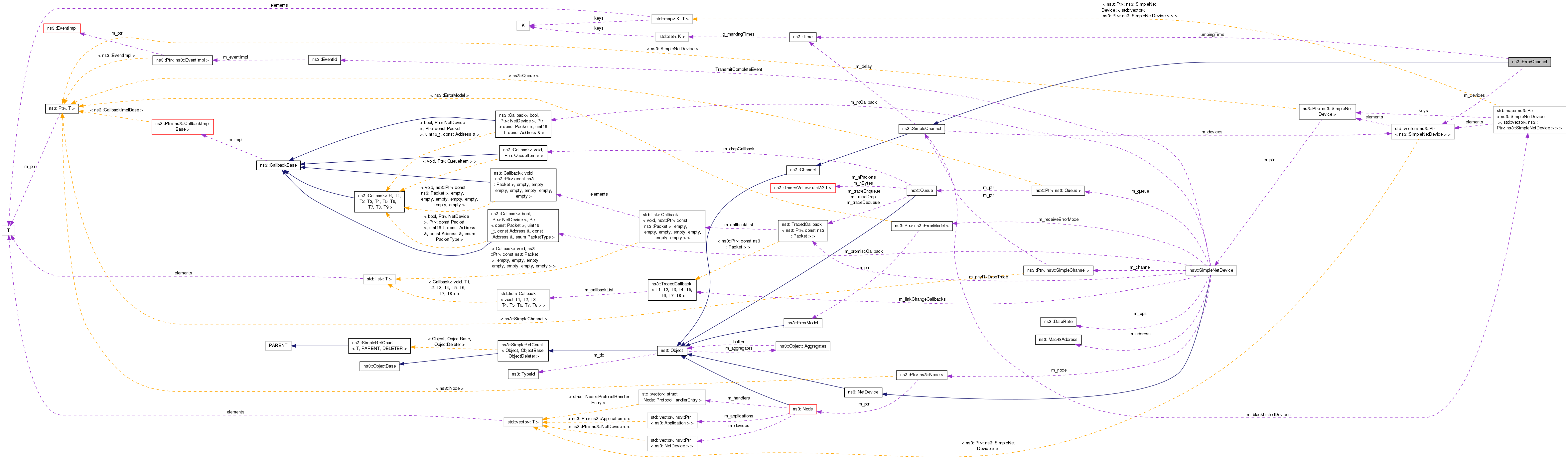

Collaboration diagram for ns3::ErrorChannel:

Public Member Functions
	ErrorChannel ()

virtual void	Add (Ptr< SimpleNetDevice > device)
	Attached a net device to the channel. More...

virtual Ptr< NetDevice >	GetDevice (uint32_t i) const

virtual uint32_t	GetNDevices (void) const

virtual void	Send (Ptr< Packet > p, uint16_t protocol, Mac48Address to, Mac48Address from, Ptr< SimpleNetDevice > sender)
	A packet is sent by a net device. More...

void	SetJumpingMode (bool mode)
	Set if the odd packets are delayed (even ones are not delayed ever) More...

void	SetJumpingTime (Time delay)
	Set the delay for the odd packets (even ones are not delayed) More...

Public Member Functions inherited from ns3::SimpleChannel
	SimpleChannel ()

virtual void	BlackList (Ptr< SimpleNetDevice > from, Ptr< SimpleNetDevice > to)
	Blocks the communications from a NetDevice to another NetDevice. More...

virtual void	UnBlackList (Ptr< SimpleNetDevice > from, Ptr< SimpleNetDevice > to)
	Un-Blocks the communications from a NetDevice to another NetDevice. More...

Public Member Functions inherited from ns3::Channel
	Channel ()

virtual	~Channel ()

uint32_t	GetId (void) const

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::SimpleChannel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Channel
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
bool	jumping

uint8_t	jumpingState

Time	jumpingTime

std::vector< Ptr< SimpleNetDevice > >	m_devices

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

A Error channel, introducing deterministic delays on even/odd packets.

Used for testing

Definition at line 38 of file error-channel.h.

Constructor & Destructor Documentation

ns3::ErrorChannel::ErrorChannel ( )

Definition at line 43 of file error-channel.cc.

References jumping, and jumpingState.

Member Function Documentation

void ns3::ErrorChannel::Add ( Ptr< SimpleNetDevice > device )

virtual

Attached a net device to the channel.

Parameters

device the device to attach to the channel

Reimplemented from ns3::SimpleChannel.

Definition at line 91 of file error-channel.cc.

References m_devices.

Ptr< NetDevice > ns3::ErrorChannel::GetDevice ( uint32_t i ) const

virtual

Parameters

i	index of NetDevice to retrieve

Returns: one of the NetDevices connected to this channel.

This method must be implemented by subclasses.

Reimplemented from ns3::SimpleChannel.

Definition at line 102 of file error-channel.cc.

References m_devices.

uint32_t ns3::ErrorChannel::GetNDevices ( void ) const

virtual

Returns: the number of NetDevices connected to this Channel.

This method must be implemented by subclasses.

Reimplemented from ns3::SimpleChannel.

Definition at line 97 of file error-channel.cc.

References m_devices.

TypeId ns3::ErrorChannel::GetTypeId ( void )

static

Definition at line 34 of file error-channel.cc.

References ns3::TypeId::SetParent().

Here is the call graph for this function:

void ns3::ErrorChannel::Send	(	Ptr< Packet >	p,
		uint16_t	protocol,
		Mac48Address	to,
		Mac48Address	from,
		Ptr< SimpleNetDevice >	sender
	)

virtual

A packet is sent by a net device.

A receive event will be scheduled for all net device connected to the channel other than the net device who sent the packet

Parameters

p	packet to be sent
protocol	protocol number
to	address to send packet to
from	address the packet is coming from
sender	netdevice who sent the packet

Reimplemented from ns3::SimpleChannel.

Definition at line 63 of file error-channel.cc.

References ns3::Packet::Copy(), jumping, jumpingState, jumpingTime, m_devices, NS_LOG_FUNCTION, ns3::SimpleNetDevice::Receive(), ns3::Simulator::ScheduleWithContext(), and ns3::Seconds().

Here is the call graph for this function:

void ns3::ErrorChannel::SetJumpingMode ( bool mode )

Set if the odd packets are delayed (even ones are not delayed ever)

Parameters

mode	true if the odd packets should be delayed.

Definition at line 56 of file error-channel.cc.

References jumping, and jumpingState.

Referenced by Ipv4FragmentationTest::DoRun(), and Ipv6FragmentationTest::DoRun().

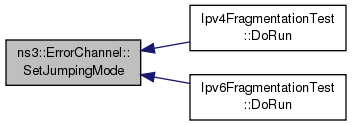

Here is the caller graph for this function:

void ns3::ErrorChannel::SetJumpingTime ( Time delay )

Set the delay for the odd packets (even ones are not delayed)

Parameters

delay Delay for the odd packets.

Definition at line 50 of file error-channel.cc.

References jumpingTime.

Referenced by Ipv4FragmentationTest::DoRun(), and Ipv6FragmentationTest::DoRun().

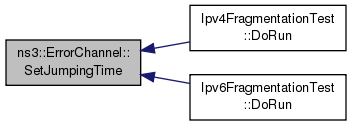

Here is the caller graph for this function:

Member Data Documentation

bool ns3::ErrorChannel::jumping

private

Definition at line 69 of file error-channel.h.

Referenced by ErrorChannel(), Send(), and SetJumpingMode().

uint8_t ns3::ErrorChannel::jumpingState

private

Definition at line 68 of file error-channel.h.

Referenced by ErrorChannel(), Send(), and SetJumpingMode().

Time ns3::ErrorChannel::jumpingTime

private

Definition at line 67 of file error-channel.h.

Referenced by Send(), and SetJumpingTime().

std::vector<Ptr<SimpleNetDevice> > ns3::ErrorChannel::m_devices

private

Definition at line 66 of file error-channel.h.

Referenced by Add(), GetDevice(), GetNDevices(), and Send().

The documentation for this class was generated from the following files:

src/internet/test/error-channel.h
src/internet/test/error-channel.cc
