ns3::ExtendedSupportedRatesIE Class Reference

The Extended Supported Rates Information ElementThis class knows how to serialise and deserialise the Extended Supported Rates Element that holds (non-HT) rates beyond the 8 that the original Supported Rates element can carry. More...

#include "supported-rates.h"

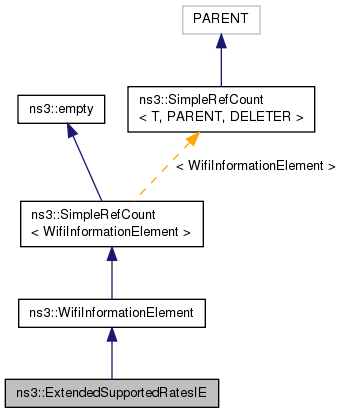

+ Inheritance diagram for ns3::ExtendedSupportedRatesIE:

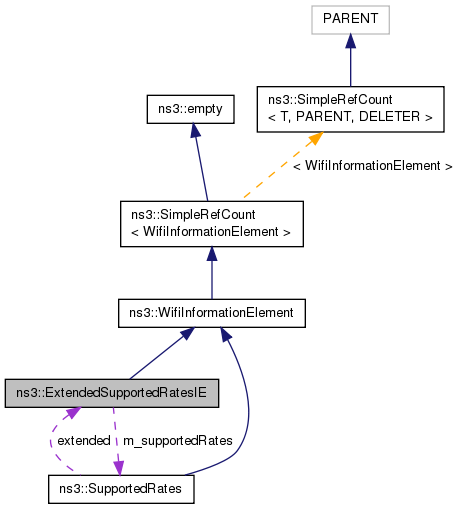

+ Collaboration diagram for ns3::ExtendedSupportedRatesIE:

Public Member Functions

 ExtendedSupportedRatesIE ()

 ExtendedSupportedRatesIE (SupportedRates *rates)
 Create an extended supported rates information element from the given rates. More...

uint8_t DeserializeInformationField (Buffer::Iterator start, uint8_t length)
 Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId ElementId () const
 Own unique Element ID. More...

uint8_t GetInformationFieldSize () const
 Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint16_t GetSerializedSize () const
 Return the serialized size of this supported rates information element. More...

Buffer::Iterator Serialize (Buffer::Iterator start) const
 This information element is a bit special in that it is only included if there are more than 8 rates. More...

void SerializeInformationField (Buffer::Iterator start) const
 Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void SetSupportedRates (SupportedRates *rates)

- Public Member Functions inherited from ns3::WifiInformationElement
virtual ~WifiInformationElement ()

Buffer::Iterator Deserialize (Buffer::Iterator i)
 Deserialize entire IE, which must be present. More...

Buffer::Iterator DeserializeIfPresent (Buffer::Iterator i)
 Deserialize entire IE if it is present. More...

uint16_t GetSerializedSize () const
 Get the size of the serialized IE including Element ID and length fields. More...

virtual bool operator< (WifiInformationElement const &a) const
 Compare information elements using Element ID. More...

virtual bool operator== (WifiInformationElement const &a) const
 Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void Print (std::ostream &os) const
 Generate human-readable form of IE. More...

Buffer::Iterator Serialize (Buffer::Iterator i) const
 Serialize entire IE including Element ID and length fields. More...

- Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Private Attributes

SupportedRatesm_supportedRates
 This member points to the SupportedRates object that contains the actual rate details. More...


Additional Inherited Members

- Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void Cleanup (void)
 Noop. More...


Detailed Description

The Extended Supported Rates Information Element

This class knows how to serialise and deserialise the Extended Supported Rates Element that holds (non-HT) rates beyond the 8 that the original Supported Rates element can carry.

The SupportedRates class still records all the rates, and an instance of ExtendedSupportedRatesIE lies within SupportedRates.

Definition at line 45 of file supported-rates.h.

Constructor & Destructor Documentation

ns3::ExtendedSupportedRatesIE::ExtendedSupportedRatesIE ( )

Definition at line 222 of file supported-rates.cc.

ns3::ExtendedSupportedRatesIE::ExtendedSupportedRatesIE ( SupportedRates rates)

Create an extended supported rates information element from the given rates.

Parameters
rates

Definition at line 226 of file supported-rates.cc.

References m_supportedRates.

Member Function Documentation

uint8_t ns3::ExtendedSupportedRatesIE::DeserializeInformationField ( Buffer::Iterator  start,
uint8_t  length
)
virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.
length
Returns
the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 302 of file supported-rates.cc.

References ns3::SupportedRates::m_nRates, ns3::SupportedRates::m_rates, m_supportedRates, ns3::SupportedRates::MAX_SUPPORTED_RATES, NS_ASSERT, and ns3::Buffer::Iterator::Read().

+ Here is the call graph for this function:

WifiInformationElementId ns3::ExtendedSupportedRatesIE::ElementId ( ) const
virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 232 of file supported-rates.cc.

References IE_EXTENDED_SUPPORTED_RATES.

uint8_t ns3::ExtendedSupportedRatesIE::GetInformationFieldSize ( ) const
virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns
the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 244 of file supported-rates.cc.

References ns3::SupportedRates::m_nRates, m_supportedRates, and NS_ASSERT.

uint16_t ns3::ExtendedSupportedRatesIE::GetSerializedSize ( void  ) const

Return the serialized size of this supported rates information element.

Returns
the serialized size of this supported rates information element

Definition at line 287 of file supported-rates.cc.

References ns3::WifiInformationElement::GetSerializedSize(), ns3::SupportedRates::m_nRates, and m_supportedRates.

Referenced by ns3::dot11s::PeerLinkOpenStart::GetSerializedSize(), ns3::MgtAssocRequestHeader::GetSerializedSize(), ns3::dot11s::PeerLinkConfirmStart::GetSerializedSize(), ns3::MgtAssocResponseHeader::GetSerializedSize(), ns3::MgtProbeRequestHeader::GetSerializedSize(), and ns3::MgtProbeResponseHeader::GetSerializedSize().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Buffer::Iterator ns3::ExtendedSupportedRatesIE::Serialize ( Buffer::Iterator  start) const

This information element is a bit special in that it is only included if there are more than 8 rates.

To support this we override the Serialize and GetSerializedSize methods of WifiInformationElement.

Parameters
start
Returns
an iterator

Definition at line 273 of file supported-rates.cc.

References ns3::SupportedRates::m_nRates, m_supportedRates, ns3::WifiInformationElement::Serialize(), and visualizer.core::start().

Referenced by ns3::dot11s::PeerLinkOpenStart::Serialize(), ns3::MgtAssocRequestHeader::Serialize(), ns3::dot11s::PeerLinkConfirmStart::Serialize(), ns3::MgtAssocResponseHeader::Serialize(), ns3::MgtProbeRequestHeader::Serialize(), and ns3::MgtProbeResponseHeader::Serialize().

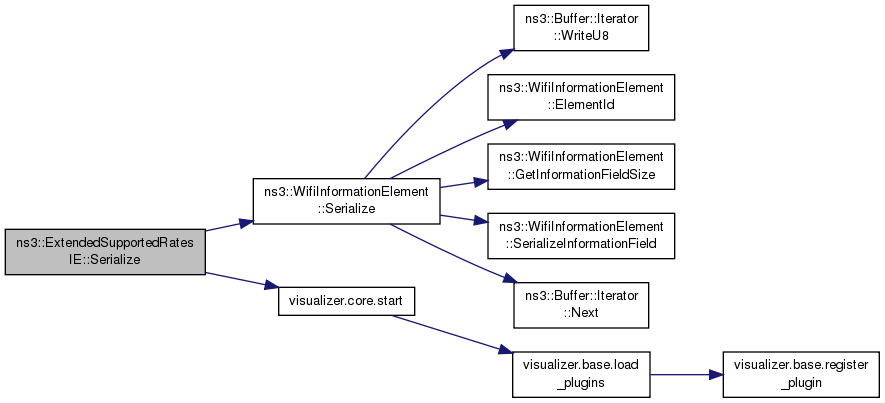

+ Here is the call graph for this function:

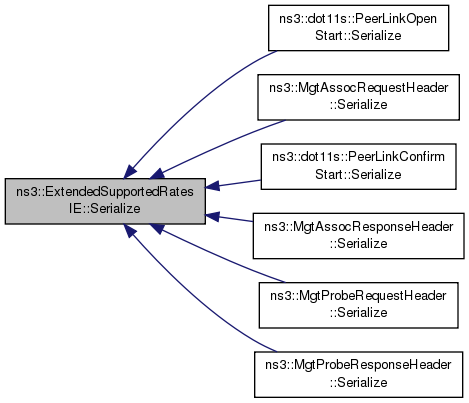

+ Here is the caller graph for this function:

void ns3::ExtendedSupportedRatesIE::SerializeInformationField ( Buffer::Iterator  start) const
virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 259 of file supported-rates.cc.

References ns3::SupportedRates::m_nRates, ns3::SupportedRates::m_rates, m_supportedRates, NS_ASSERT, and ns3::Buffer::Iterator::Write().

+ Here is the call graph for this function:

void ns3::ExtendedSupportedRatesIE::SetSupportedRates ( SupportedRates rates)

Definition at line 238 of file supported-rates.cc.

References m_supportedRates.

Referenced by ns3::SupportedRates::operator=(), and ns3::SupportedRates::SupportedRates().

+ Here is the caller graph for this function:

Member Data Documentation

SupportedRates* ns3::ExtendedSupportedRatesIE::m_supportedRates
private

This member points to the SupportedRates object that contains the actual rate details.

This class is a friend of that, so we have access to all the private data we need.

Definition at line 90 of file supported-rates.h.

Referenced by DeserializeInformationField(), ExtendedSupportedRatesIE(), GetInformationFieldSize(), GetSerializedSize(), Serialize(), SerializeInformationField(), and SetSupportedRates().


The documentation for this class was generated from the following files:
