ns3::SupportedRates Class Reference

The Supported Rates Information ElementThis class knows how to serialise and deserialise the Supported Rates Element that holds the first 8 (non-HT) supported rates. More...

#include "supported-rates.h"

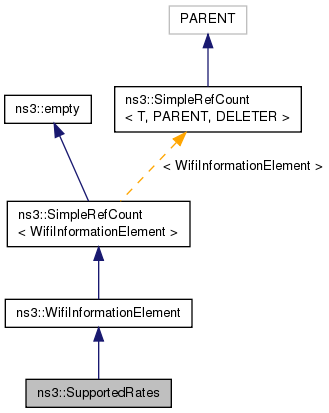

+ Inheritance diagram for ns3::SupportedRates:

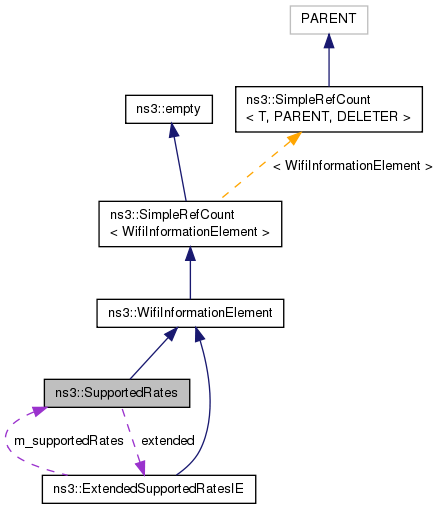

+ Collaboration diagram for ns3::SupportedRates:

Public Member Functions

 SupportedRates ()

 SupportedRates (const SupportedRates &)

void AddBssMembershipSelectorRate (uint32_t bs)
 Add a special value to the supported rate set, corresponding to a BSS membership selector. More...

void AddSupportedRate (uint32_t bs)
 Add the given rate to the supported rates. More...

uint8_t DeserializeInformationField (Buffer::Iterator start, uint8_t length)
 Deserialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

WifiInformationElementId ElementId () const
 Own unique Element ID. More...

uint8_t GetInformationFieldSize () const
 Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets. More...

uint8_t GetNRates (void) const
 Return the number of supported rates. More...

uint32_t GetRate (uint8_t i) const
 Return the rate at the given index. More...

bool IsBasicRate (uint32_t bs) const
 Check if the given rate is a basic rate. More...

bool IsBssMembershipSelectorRate (uint32_t bs) const
 Check if the given rate is a BSS membership selector value. More...

bool IsSupportedRate (uint32_t bs) const
 Check if the given rate is supported. More...

SupportedRatesoperator= (const SupportedRates &)

void SerializeInformationField (Buffer::Iterator start) const
 Serialize information (i.e., the body of the IE, not including the Element ID and length octets) More...

void SetBasicRate (uint32_t bs)
 Set the given rate to basic rates. More...

- Public Member Functions inherited from ns3::WifiInformationElement
virtual ~WifiInformationElement ()

Buffer::Iterator Deserialize (Buffer::Iterator i)
 Deserialize entire IE, which must be present. More...

Buffer::Iterator DeserializeIfPresent (Buffer::Iterator i)
 Deserialize entire IE if it is present. More...

uint16_t GetSerializedSize () const
 Get the size of the serialized IE including Element ID and length fields. More...

virtual bool operator< (WifiInformationElement const &a) const
 Compare information elements using Element ID. More...

virtual bool operator== (WifiInformationElement const &a) const
 Compare two IEs for equality by ID & Length, and then through memcmp of serialised version. More...

virtual void Print (std::ostream &os) const
 Generate human-readable form of IE. More...

Buffer::Iterator Serialize (Buffer::Iterator i) const
 Serialize entire IE including Element ID and length fields. More...

- Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...


Public Attributes

ExtendedSupportedRatesIE extended


Static Public Attributes

static const uint8_t MAX_SUPPORTED_RATES = 32
 This defines the maximum number of supported rates that a STA is allowed to have. More...


Private Attributes

uint8_t m_nRates
 Number of supported rates. More...

uint8_t m_rates [MAX_SUPPORTED_RATES]
 List of supported bitrate (divided by 500000) More...


Friends

class ExtendedSupportedRatesIE


Additional Inherited Members

- Static Public Member Functions inherited from ns3::SimpleRefCount< WifiInformationElement >
static void Cleanup (void)
 Noop. More...


Detailed Description

The Supported Rates Information Element

This class knows how to serialise and deserialise the Supported Rates Element that holds the first 8 (non-HT) supported rates.

The ExtendedSupportedRatesIE class (of which an instance exists in objects of this class) deals with rates beyond the first 8.

Definition at line 104 of file supported-rates.h.

Constructor & Destructor Documentation

ns3::SupportedRates::SupportedRates ( )

Definition at line 32 of file supported-rates.cc.

References NS_LOG_FUNCTION.

ns3::SupportedRates::SupportedRates ( const SupportedRates rates)

Definition at line 39 of file supported-rates.cc.

References extended, m_nRates, m_rates, MAX_SUPPORTED_RATES, NS_LOG_FUNCTION, and ns3::ExtendedSupportedRatesIE::SetSupportedRates().

+ Here is the call graph for this function:

Member Function Documentation

void ns3::SupportedRates::AddBssMembershipSelectorRate ( uint32_t  bs)

Add a special value to the supported rate set, corresponding to a BSS membership selector.

Parameters
bsthe special membership selector value (not a valid rate)

Definition at line 114 of file supported-rates.cc.

References BSS_MEMBERSHIP_SELECTOR_HT_PHY, BSS_MEMBERSHIP_SELECTOR_VHT_PHY, m_nRates, m_rates, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::StaWifiMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().

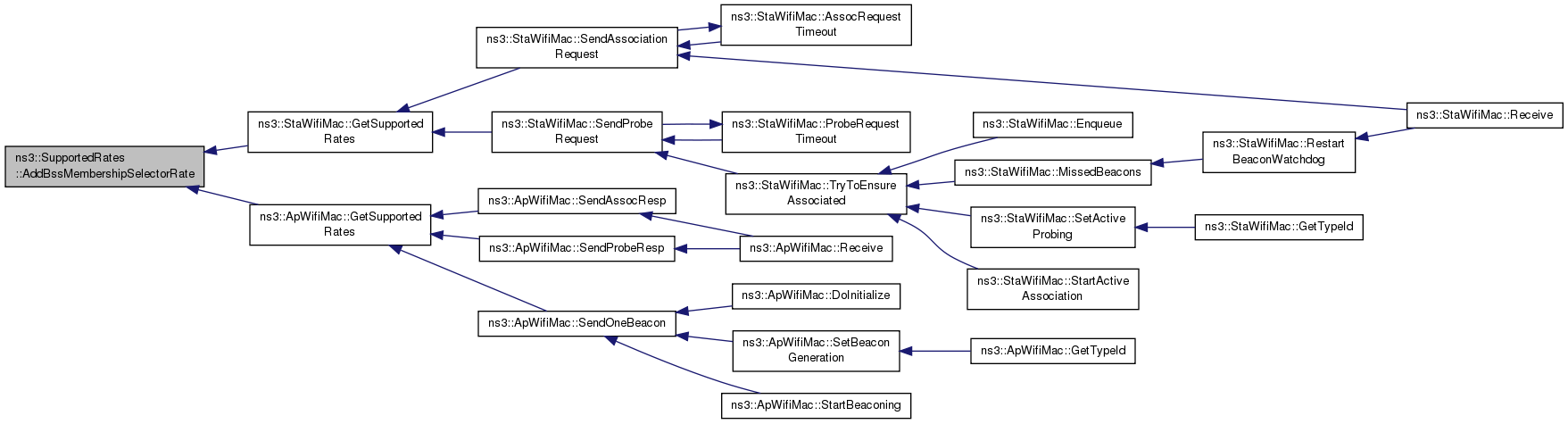

+ Here is the caller graph for this function:

void ns3::SupportedRates::AddSupportedRate ( uint32_t  bs)

Add the given rate to the supported rates.

Parameters
bsthe rate to be added

Definition at line 59 of file supported-rates.cc.

References BSS_MEMBERSHIP_SELECTOR_HT_PHY, BSS_MEMBERSHIP_SELECTOR_VHT_PHY, IsBssMembershipSelectorRate(), IsSupportedRate(), m_nRates, m_rates, MAX_SUPPORTED_RATES, NS_ASSERT, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::GetSupportedRates(), ns3::StaWifiMac::GetSupportedRates(), ns3::ApWifiMac::GetSupportedRates(), and SetBasicRate().

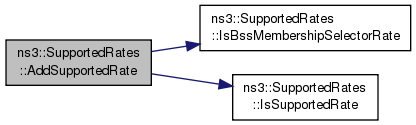

+ Here is the call graph for this function:

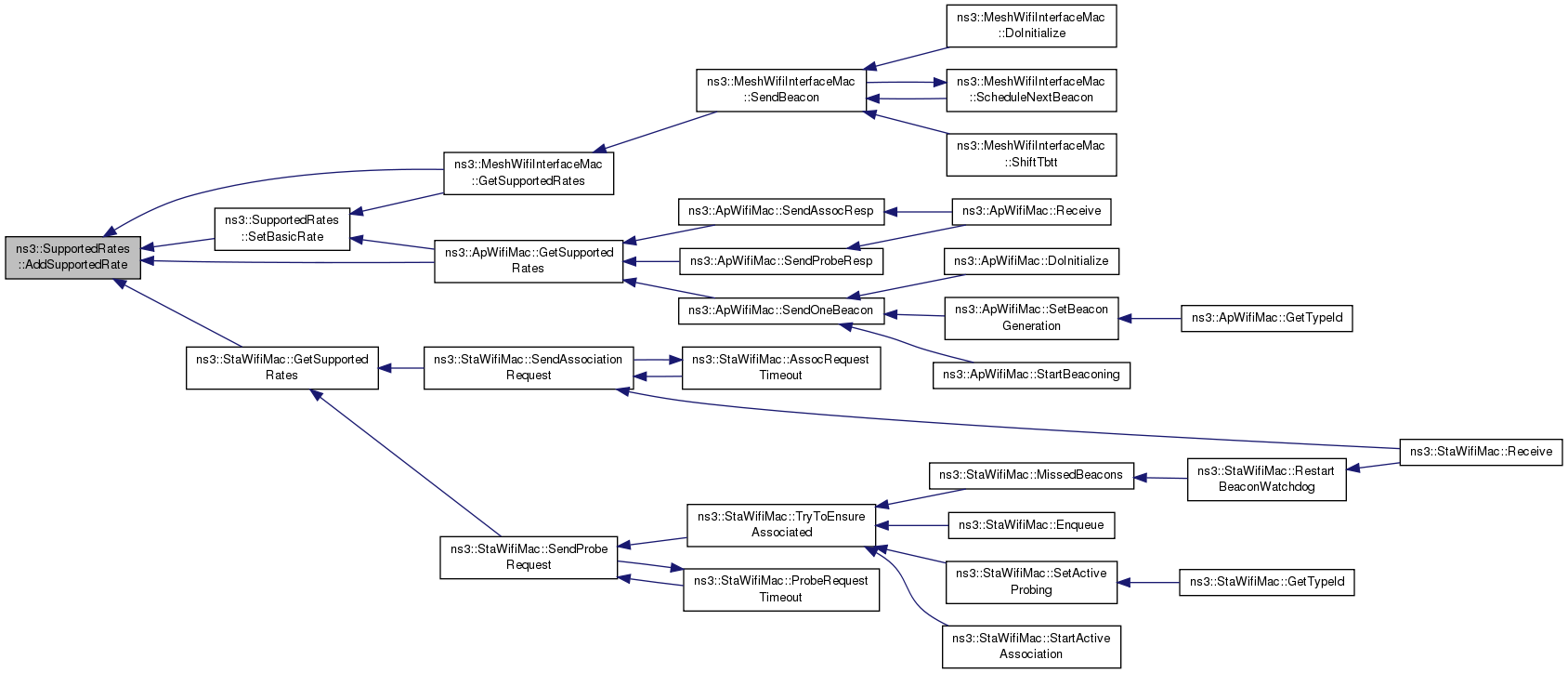

+ Here is the caller graph for this function:

uint8_t ns3::SupportedRates::DeserializeInformationField ( Buffer::Iterator  start,
uint8_t  length
)
virtual

Deserialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.
length
Returns
the number of bytes read

Implements ns3::WifiInformationElement.

Definition at line 213 of file supported-rates.cc.

References m_nRates, m_rates, NS_ASSERT, and ns3::Buffer::Iterator::Read().

+ Here is the call graph for this function:

WifiInformationElementId ns3::SupportedRates::ElementId ( ) const
virtual

Own unique Element ID.

Implements ns3::WifiInformationElement.

Definition at line 189 of file supported-rates.cc.

References IE_SUPPORTED_RATES.

uint8_t ns3::SupportedRates::GetInformationFieldSize ( ) const
virtual

Length of serialized information (i.e., the length of the body of the IE, not including the Element ID and length octets.

This is the value that will appear in the second octet of the entire IE - the length field)

Returns
the length of serialized information

Implements ns3::WifiInformationElement.

Definition at line 195 of file supported-rates.cc.

References m_nRates.

uint8_t ns3::SupportedRates::GetNRates ( void  ) const

Return the number of supported rates.

Returns
the number of supported rates

Definition at line 177 of file supported-rates.cc.

References m_nRates.

Referenced by ns3::operator<<().

+ Here is the caller graph for this function:

uint32_t ns3::SupportedRates::GetRate ( uint8_t  i) const

Return the rate at the given index.

Return the rate (converted back to raw value) at the given index.

Parameters
ithe given index
Returns
the rate

Definition at line 183 of file supported-rates.cc.

References m_rates.

Referenced by ns3::operator<<().

+ Here is the caller graph for this function:

bool ns3::SupportedRates::IsBasicRate ( uint32_t  bs) const

Check if the given rate is a basic rate.

The rate is encoded as it is serialized to the Supported Rates Information Element (i.e. as a multiple of 500 Kbits/sec, with MSB set to 1).

Parameters
bsthe rate to be checked
Returns
true if the rate is a basic rate, false otherwise

Definition at line 135 of file supported-rates.cc.

References m_nRates, m_rates, and NS_LOG_FUNCTION.

Referenced by ns3::operator<<(), ns3::StaWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

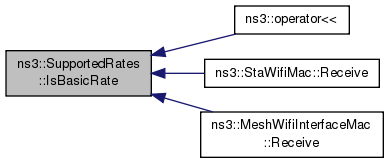

+ Here is the caller graph for this function:

bool ns3::SupportedRates::IsBssMembershipSelectorRate ( uint32_t  bs) const

Check if the given rate is a BSS membership selector value.

The rate is encoded as it is serialized to the Supporting Rates Information Element (i.e. with the MSB set to 1).

Parameters
bsthe rate to be checked
Returns
true if the rate is a BSS membership selector, false otherwise

Definition at line 166 of file supported-rates.cc.

References BSS_MEMBERSHIP_SELECTOR_HT_PHY, BSS_MEMBERSHIP_SELECTOR_VHT_PHY, and NS_LOG_FUNCTION.

Referenced by AddSupportedRate(), ns3::StaWifiMac::Receive(), and SetBasicRate().

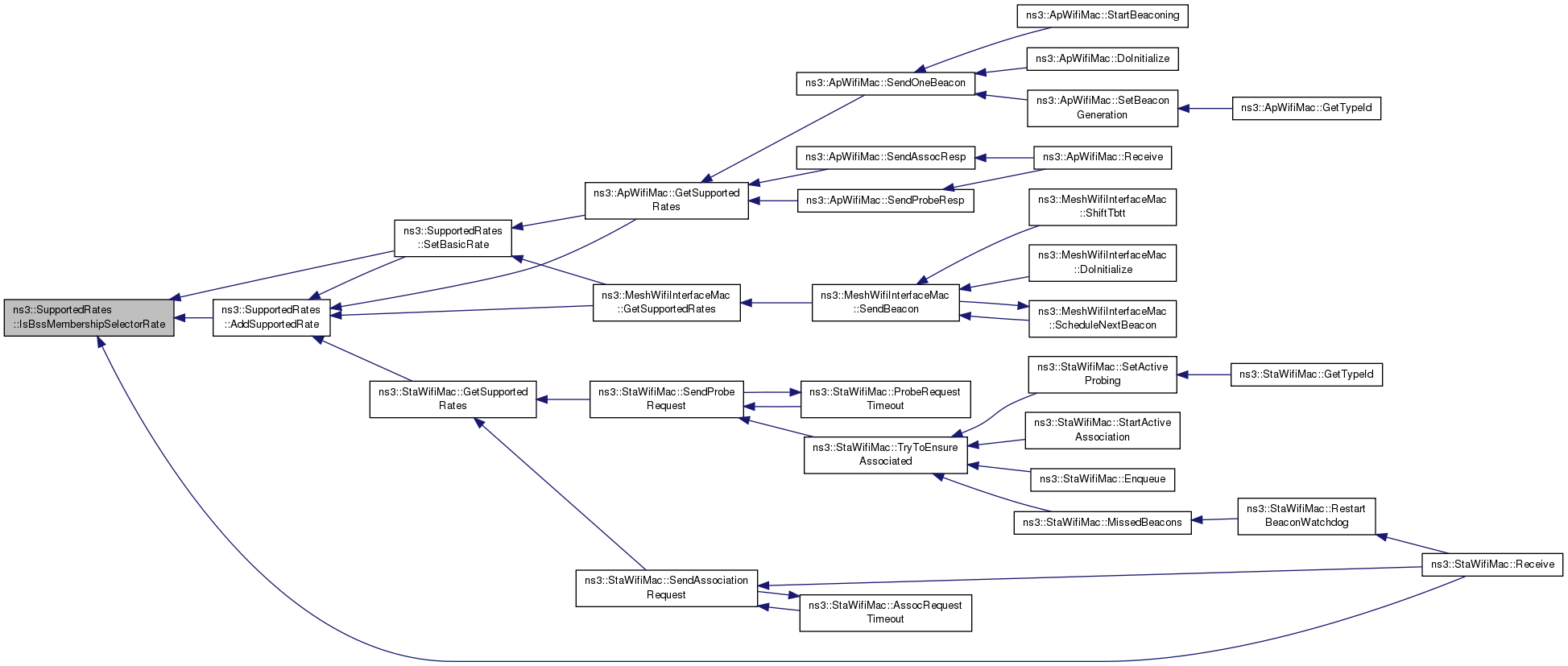

+ Here is the caller graph for this function:

bool ns3::SupportedRates::IsSupportedRate ( uint32_t  bs) const

Check if the given rate is supported.

The rate is encoded as it is serialized to the Supported Rates Information Element (i.e. as a multiple of 500 Kbits/sec, possibly with MSB set to 1).

Parameters
bsthe rate to be checked
Returns
true if the rate is supported, false otherwise

Definition at line 150 of file supported-rates.cc.

References m_nRates, m_rates, and NS_LOG_FUNCTION.

Referenced by AddSupportedRate(), ns3::MeshWifiInterfaceMac::CheckSupportedRates(), ns3::StaWifiMac::Receive(), ns3::ApWifiMac::Receive(), and ns3::MeshWifiInterfaceMac::Receive().

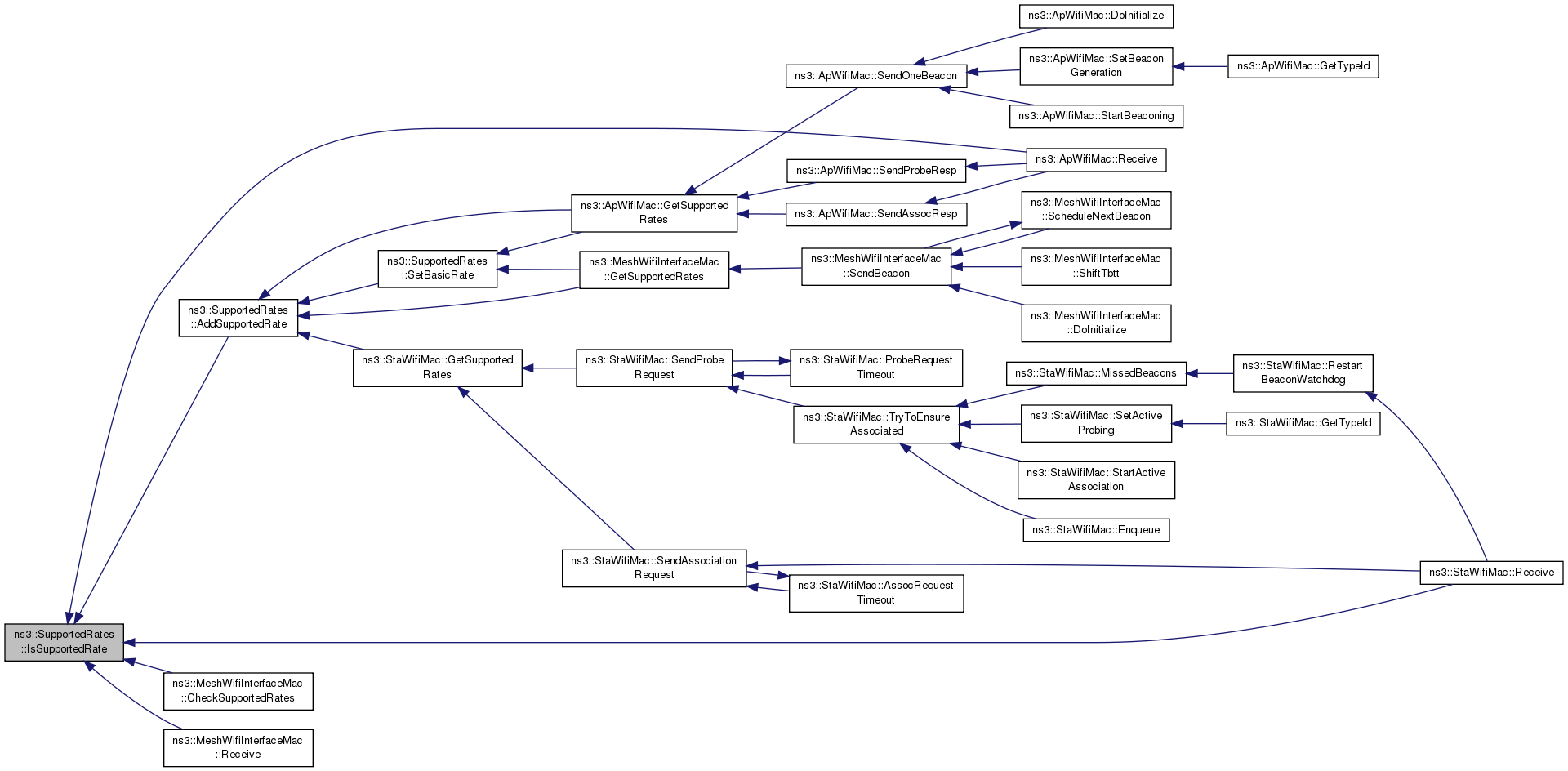

+ Here is the caller graph for this function:

SupportedRates & ns3::SupportedRates::operator= ( const SupportedRates rates)

Definition at line 49 of file supported-rates.cc.

References extended, m_nRates, m_rates, MAX_SUPPORTED_RATES, and ns3::ExtendedSupportedRatesIE::SetSupportedRates().

+ Here is the call graph for this function:

void ns3::SupportedRates::SerializeInformationField ( Buffer::Iterator  start) const
virtual

Serialize information (i.e., the body of the IE, not including the Element ID and length octets)

Parameters
startan iterator which points to where the information should be written.

Implements ns3::WifiInformationElement.

Definition at line 204 of file supported-rates.cc.

References m_nRates, m_rates, and ns3::Buffer::Iterator::Write().

+ Here is the call graph for this function:

void ns3::SupportedRates::SetBasicRate ( uint32_t  bs)

Set the given rate to basic rates.

Parameters
bsthe rate to be set

Definition at line 91 of file supported-rates.cc.

References AddSupportedRate(), IsBssMembershipSelectorRate(), m_nRates, m_rates, NS_ASSERT_MSG, NS_LOG_DEBUG, and NS_LOG_FUNCTION.

Referenced by ns3::MeshWifiInterfaceMac::GetSupportedRates(), and ns3::ApWifiMac::GetSupportedRates().

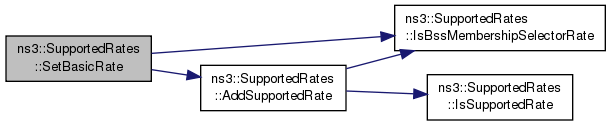

+ Here is the call graph for this function:

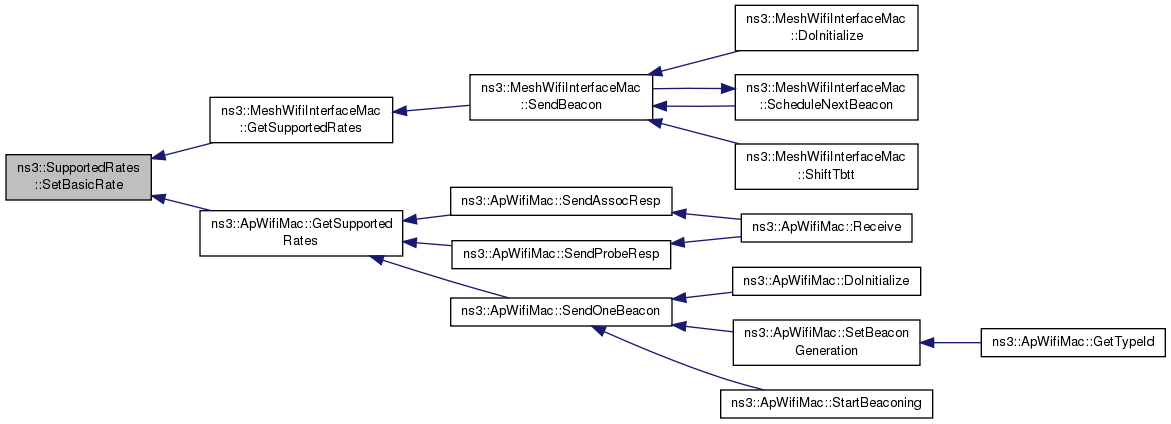

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class ExtendedSupportedRatesIE
friend

Definition at line 197 of file supported-rates.h.

Member Data Documentation

const uint8_t ns3::SupportedRates::MAX_SUPPORTED_RATES = 32
static

This defines the maximum number of supported rates that a STA is allowed to have.

Currently this number is set for IEEE 802.11b/g and SISO IEE 802.11n stations which need 2 rates each from Clauses 15 and 18, and then 8 from Clause 19.

Definition at line 118 of file supported-rates.h.

Referenced by AddSupportedRate(), ns3::ExtendedSupportedRatesIE::DeserializeInformationField(), operator=(), and SupportedRates().


The documentation for this class was generated from the following files:
