ns3::Ipv6ExtensionRoutingHeader Class Reference

Header of IPv6 Extension Routing. More...

#include "ipv6-extension-header.h"

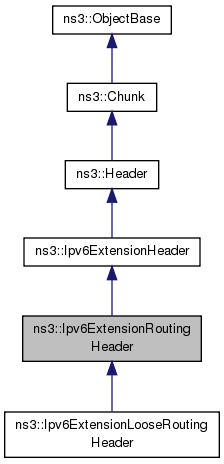

+ Inheritance diagram for ns3::Ipv6ExtensionRoutingHeader:
+ Collaboration diagram for ns3::Ipv6ExtensionRoutingHeader:

Public Member Functions

 Ipv6ExtensionRoutingHeader ()
 Constructor. More...

virtual ~Ipv6ExtensionRoutingHeader ()
 Destructor. More...

virtual uint32_t Deserialize (Buffer::Iterator start)
 Deserialize the packet. More...

virtual TypeId GetInstanceTypeId () const
 Get the instance type ID. More...

uint8_t GetSegmentsLeft () const
 Get the field "Segments left". More...

virtual uint32_t GetSerializedSize () const
 Get the serialized size of the packet. More...

uint8_t GetTypeRouting () const
 Get the field "Type of Routing". More...

virtual void Print (std::ostream &os) const
 Print some informations about the packet. More...

virtual void Serialize (Buffer::Iterator start) const
 Serialize the packet. More...

void SetSegmentsLeft (uint8_t segmentsLeft)
 Set the "Segments left" field. More...

void SetTypeRouting (uint8_t typeRouting)
 Set the "Type of Routing" field. More...

- Public Member Functions inherited from ns3::Ipv6ExtensionHeader
 Ipv6ExtensionHeader ()
 Constructor. More...

virtual ~Ipv6ExtensionHeader ()
 Destructor. More...

uint16_t GetLength () const
 Get the length of the extension. More...

uint8_t GetNextHeader () const
 Get the next header. More...

void SetLength (uint16_t length)
 brief Set the length of the extension. More...

void SetNextHeader (uint8_t nextHeader)
 Set the "Next header" field. More...

- Public Member Functions inherited from ns3::Header
virtual ~Header ()

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Ipv6ExtensionHeader
static TypeId GetTypeId ()
 Get the type identificator. More...

- Static Public Member Functions inherited from ns3::Header
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Chunk
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Private Attributes

uint8_t m_segmentsLeft
 Number of left segments. More...

uint8_t m_typeRouting
 Type of routing. More...


Additional Inherited Members

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...

- Protected Attributes inherited from ns3::Ipv6ExtensionHeader
uint8_t m_length
 The "length" field. More...


Detailed Description

Header of IPv6 Extension Routing.

Introspection did not find any typical Config paths.


No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 56 bytes (on a 64-bit architecture).

Definition at line 441 of file ipv6-extension-header.h.

Constructor & Destructor Documentation

ns3::Ipv6ExtensionRoutingHeader::Ipv6ExtensionRoutingHeader ( )

Constructor.

Definition at line 431 of file ipv6-extension-header.cc.

ns3::Ipv6ExtensionRoutingHeader::~Ipv6ExtensionRoutingHeader ( )
virtual

Destructor.

Definition at line 437 of file ipv6-extension-header.cc.

Member Function Documentation

uint32_t ns3::Ipv6ExtensionRoutingHeader::Deserialize ( Buffer::Iterator  start)
virtual

Deserialize the packet.

Parameters
startBuffer iterator
Returns
size of the packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 482 of file ipv6-extension-header.cc.

References GetSerializedSize(), ns3::Ipv6ExtensionHeader::m_length, m_segmentsLeft, m_typeRouting, ns3::Buffer::Iterator::ReadU8(), ns3::Ipv6ExtensionHeader::SetNextHeader(), and visualizer.core::start().

Referenced by ns3::SixLowPanNetDevice::DecompressLowPanNhc().

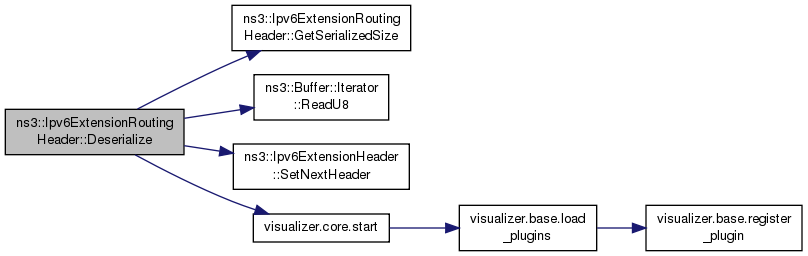

+ Here is the call graph for this function:

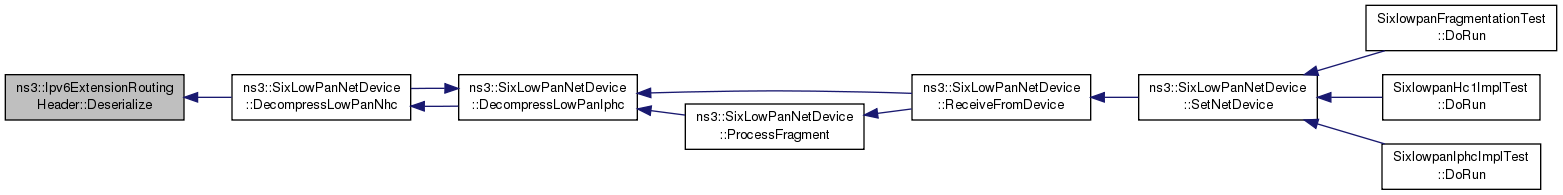

+ Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionRoutingHeader::GetInstanceTypeId ( void  ) const
virtual

Get the instance type ID.

Returns
instance type ID

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 426 of file ipv6-extension-header.cc.

References GetTypeId().

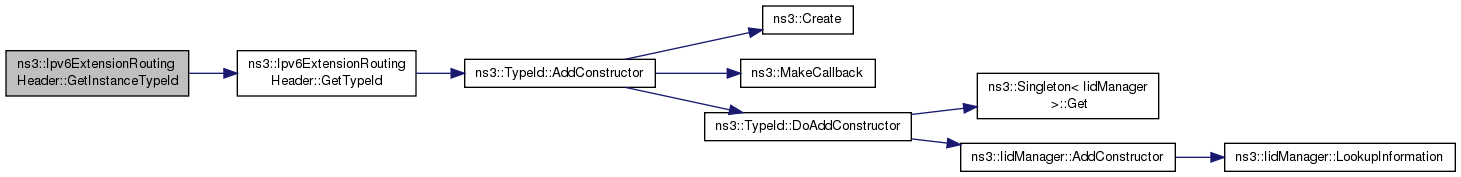

+ Here is the call graph for this function:

uint8_t ns3::Ipv6ExtensionRoutingHeader::GetSegmentsLeft ( ) const

Get the field "Segments left".

Returns
the number of segments left

Definition at line 456 of file ipv6-extension-header.cc.

References m_segmentsLeft.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Print(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

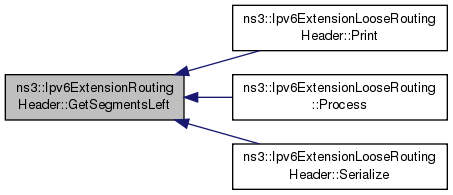

+ Here is the caller graph for this function:

uint32_t ns3::Ipv6ExtensionRoutingHeader::GetSerializedSize ( void  ) const
virtual

Get the serialized size of the packet.

Returns
size

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 467 of file ipv6-extension-header.cc.

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc(), and Deserialize().

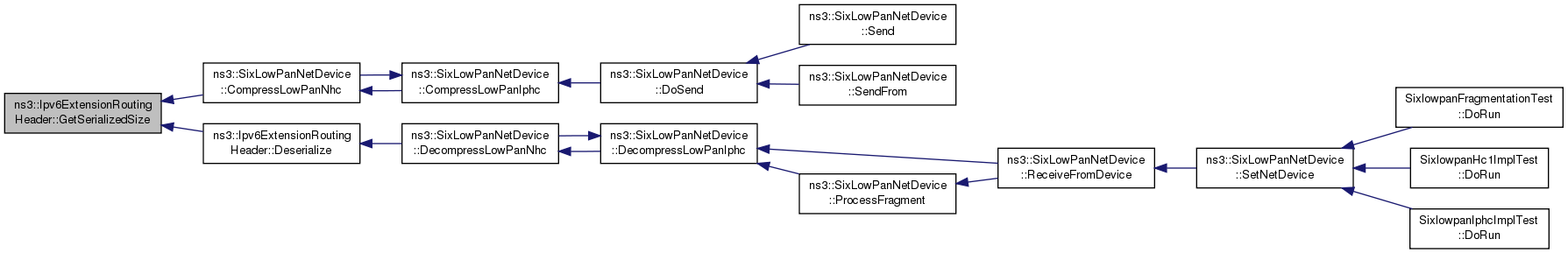

+ Here is the caller graph for this function:

TypeId ns3::Ipv6ExtensionRoutingHeader::GetTypeId ( void  )
static

Get the type identificator.

Returns
type identificator

Definition at line 416 of file ipv6-extension-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

uint8_t ns3::Ipv6ExtensionRoutingHeader::GetTypeRouting ( ) const

Get the field "Type of Routing".

Returns
the type of routing

Definition at line 446 of file ipv6-extension-header.cc.

References m_typeRouting.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Print(), and ns3::Ipv6ExtensionLooseRoutingHeader::Serialize().

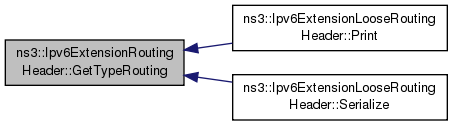

+ Here is the caller graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::Print ( std::ostream &  os) const
virtual

Print some informations about the packet.

Parameters
osoutput stream
Returns
info about this packet

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 461 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetLength(), ns3::Ipv6ExtensionHeader::GetNextHeader(), m_segmentsLeft, and m_typeRouting.

+ Here is the call graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::Serialize ( Buffer::Iterator  start) const
virtual

Serialize the packet.

Parameters
startBuffer iterator

Reimplemented from ns3::Ipv6ExtensionHeader.

Reimplemented in ns3::Ipv6ExtensionLooseRoutingHeader.

Definition at line 472 of file ipv6-extension-header.cc.

References ns3::Ipv6ExtensionHeader::GetNextHeader(), ns3::Ipv6ExtensionHeader::m_length, m_segmentsLeft, m_typeRouting, visualizer.core::start(), and ns3::Buffer::Iterator::WriteU8().

Referenced by ns3::SixLowPanNetDevice::CompressLowPanNhc().

+ Here is the call graph for this function:

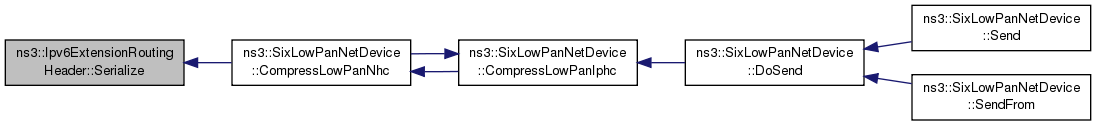

+ Here is the caller graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::SetSegmentsLeft ( uint8_t  segmentsLeft)

Set the "Segments left" field.

Parameters
segmentsLeftthe number of segments left

Definition at line 451 of file ipv6-extension-header.cc.

References m_segmentsLeft.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), ns3::Ipv6ExtensionLooseRouting::Process(), and ns3::Ping6::Send().

+ Here is the caller graph for this function:

void ns3::Ipv6ExtensionRoutingHeader::SetTypeRouting ( uint8_t  typeRouting)

Set the "Type of Routing" field.

Parameters
typeRoutingthe type of routing

Definition at line 441 of file ipv6-extension-header.cc.

References m_typeRouting.

Referenced by ns3::Ipv6ExtensionLooseRoutingHeader::Deserialize(), and ns3::Ping6::Send().

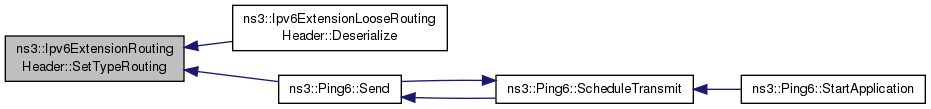

+ Here is the caller graph for this function:

Member Data Documentation

uint8_t ns3::Ipv6ExtensionRoutingHeader::m_segmentsLeft
private

Number of left segments.

Definition at line 525 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetSegmentsLeft(), Print(), Serialize(), and SetSegmentsLeft().

uint8_t ns3::Ipv6ExtensionRoutingHeader::m_typeRouting
private

Type of routing.

Definition at line 520 of file ipv6-extension-header.h.

Referenced by Deserialize(), GetTypeRouting(), Print(), Serialize(), and SetTypeRouting().


The documentation for this class was generated from the following files:
