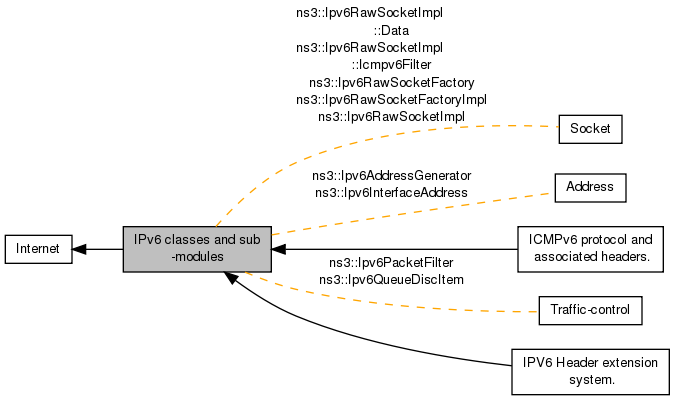

Collaboration diagram for IPv6 classes and sub-modules:

Modules
	ICMPv6 protocol and associated headers.

	IPV6 Header extension system.

Classes
struct	ns3::Ipv6RawSocketImpl::Data
	IPv6 raw data and additional information. More...

class	ns3::NdiscCache::Entry
	A record that holds information about a NdiscCache entry. More...

struct	ns3::Ipv6RawSocketImpl::Icmpv6Filter
	Struct to hold the ICMPv6 filter. More...

class	ns3::Ipv6
	Access to the IPv6 forwarding table, interfaces, and configuration. More...

class	ns3::Ipv6AddressGenerator
	This generator assigns addresses sequentially from a provided network address; used in topology code. More...

class	ns3::Ipv6AutoconfiguredPrefix
	Router prefix information. More...

class	ns3::Ipv6EndPoint
	A representation of an IPv6 endpoint/connection. More...

class	ns3::Ipv6EndPointDemux
	Demultiplexer for end points. More...

class	ns3::Ipv6Header
	Packet header for IPv6. More...

class	ns3::Ipv6Interface
	The IPv6 representation of a network interface. More...

class	ns3::Ipv6InterfaceAddress
	IPv6 address associated with an interface. More...

class	ns3::Ipv6InterfaceContainer
	Keep track of a set of IPv6 interfaces. More...

class	ns3::Ipv6L3Protocol
	IPv6 layer implementation. More...

class	ns3::Ipv6PacketFilter
	Ipv6PacketFilter is the abstract base class for filters defined for IPv6 packets. More...

class	ns3::Ipv6PacketInfoTag
	This class implements a tag that carries socket ancillary data to the socket interface. More...

class	ns3::Ipv6PacketProbe
	This class is designed to probe an underlying ns3 TraceSource exporting a packet, an IPv6 object, and an interface. More...

class	ns3::Ipv6PmtuCache
	This class implements the Path MTU cache, as defined by RFC 1981. More...

class	ns3::Ipv6QueueDiscItem
	Ipv6QueueDiscItem is a subclass of QueueDiscItem which stores IPv6 packets. More...

class	ns3::Ipv6RawSocketFactory
	API to create IPv6 RAW socket instances. More...

class	ns3::Ipv6RawSocketFactoryImpl
	Implementation of IPv6 raw socket factory. More...

class	ns3::Ipv6RawSocketImpl
	IPv6 raw socket. More...

class	ns3::NdiscCache
	IPv6 Neighbor Discovery cache. More...

Enumerations
enum	ns3::Ipv6L3Protocol::DropReason { ns3::Ipv6L3Protocol::DROP_TTL_EXPIRED = 1, ns3::Ipv6L3Protocol::DROP_NO_ROUTE, ns3::Ipv6L3Protocol::DROP_INTERFACE_DOWN, ns3::Ipv6L3Protocol::DROP_ROUTE_ERROR, ns3::Ipv6L3Protocol::DROP_UNKNOWN_PROTOCOL, ns3::Ipv6L3Protocol::DROP_UNKNOWN_OPTION, ns3::Ipv6L3Protocol::DROP_MALFORMED_HEADER, ns3::Ipv6L3Protocol::DROP_FRAGMENT_TIMEOUT }
	Reason why a packet has been dropped. More...

enum	ns3::Ipv6Header::DscpType { ns3::Ipv6Header::DscpDefault = 0x00, ns3::Ipv6Header::DSCP_CS1 = 0x08, ns3::Ipv6Header::DSCP_AF11 = 0x0A, ns3::Ipv6Header::DSCP_AF12 = 0x0C, ns3::Ipv6Header::DSCP_AF13 = 0x0E, ns3::Ipv6Header::DSCP_CS2 = 0x10, ns3::Ipv6Header::DSCP_AF21 = 0x12, ns3::Ipv6Header::DSCP_AF22 = 0x14, ns3::Ipv6Header::DSCP_AF23 = 0x16, ns3::Ipv6Header::DSCP_CS3 = 0x18, ns3::Ipv6Header::DSCP_AF31 = 0x1A, ns3::Ipv6Header::DSCP_AF32 = 0x1C, ns3::Ipv6Header::DSCP_AF33 = 0x1E, ns3::Ipv6Header::DSCP_CS4 = 0x20, ns3::Ipv6Header::DSCP_AF41 = 0x22, ns3::Ipv6Header::DSCP_AF42 = 0x24, ns3::Ipv6Header::DSCP_AF43 = 0x26, ns3::Ipv6Header::DSCP_CS5 = 0x28, ns3::Ipv6Header::DSCP_EF = 0x2E, ns3::Ipv6Header::DSCP_CS6 = 0x30, ns3::Ipv6Header::DSCP_CS7 = 0x38 }
	DiffServ Code Points Code Points defined in Assured Forwarding (AF) RFC 2597 Expedited Forwarding (EF) RFC 2598 Default and Class Selector (CS) RFC 2474 More...

enum	ns3::NdiscCache::Entry::NdiscCacheEntryState_e { ns3::NdiscCache::Entry::INCOMPLETE, ns3::NdiscCache::Entry::REACHABLE, ns3::NdiscCache::Entry::STALE, ns3::NdiscCache::Entry::DELAY, ns3::NdiscCache::Entry::PROBE, ns3::NdiscCache::Entry::PERMANENT }
	The Entry state enumeration. More...

enum	ns3::Ipv6Header::NextHeader_e { ns3::Ipv6Header::IPV6_EXT_HOP_BY_HOP = 0, ns3::Ipv6Header::IPV6_IPV4 = 4, ns3::Ipv6Header::IPV6_TCP = 6, ns3::Ipv6Header::IPV6_UDP = 17, ns3::Ipv6Header::IPV6_IPV6 = 41, ns3::Ipv6Header::IPV6_EXT_ROUTING = 43, ns3::Ipv6Header::IPV6_EXT_FRAGMENTATION = 44, ns3::Ipv6Header::IPV6_EXT_CONFIDENTIALITY = 50, ns3::Ipv6Header::IPV6_EXT_AUTHENTIFICATION = 51, ns3::Ipv6Header::IPV6_ICMPV6 = 58, ns3::Ipv6Header::IPV6_EXT_END = 59, ns3::Ipv6Header::IPV6_EXT_DESTINATION = 60, ns3::Ipv6Header::IPV6_SCTP = 135, ns3::Ipv6Header::IPV6_EXT_MOBILITY = 135, ns3::Ipv6Header::IPV6_UDP_LITE = 136 }
	IPv6 next-header value. More...

enum	ns3::Ipv6InterfaceAddress::Scope_e { ns3::Ipv6InterfaceAddress::HOST, ns3::Ipv6InterfaceAddress::LINKLOCAL, ns3::Ipv6InterfaceAddress::GLOBAL }
	Address scope. More...

enum	ns3::Ipv6InterfaceAddress::State_e { ns3::Ipv6InterfaceAddress::TENTATIVE, ns3::Ipv6InterfaceAddress::DEPRECATED, ns3::Ipv6InterfaceAddress::PREFERRED, ns3::Ipv6InterfaceAddress::PERMANENT, ns3::Ipv6InterfaceAddress::HOMEADDRESS, ns3::Ipv6InterfaceAddress::TENTATIVE_OPTIMISTIC, ns3::Ipv6InterfaceAddress::INVALID }
	State of an address associated with an interface. More...

Detailed Description

Enumeration Type Documentation

enum ns3::Ipv6L3Protocol::DropReason

Reason why a packet has been dropped.

Enumerator
DROP_TTL_EXPIRED	Packet TTL has expired.
DROP_NO_ROUTE	No route to host.
DROP_INTERFACE_DOWN	Interface is down so can not send packet.
DROP_ROUTE_ERROR	Route error.
DROP_UNKNOWN_PROTOCOL	Unknown L4 protocol.
DROP_UNKNOWN_OPTION	Unknown option.
DROP_MALFORMED_HEADER	Malformed header.
DROP_FRAGMENT_TIMEOUT	Fragment timeout.

Definition at line 80 of file ipv6-l3-protocol.h.

enum ns3::Ipv6Header::DscpType

DiffServ Code Points Code Points defined in Assured Forwarding (AF) RFC 2597 Expedited Forwarding (EF) RFC 2598 Default and Class Selector (CS) RFC 2474

Enumerator
DscpDefault
DSCP_CS1
DSCP_AF11
DSCP_AF12
DSCP_AF13
DSCP_CS2
DSCP_AF21
DSCP_AF22
DSCP_AF23
DSCP_CS3
DSCP_AF31
DSCP_AF32
DSCP_AF33
DSCP_CS4
DSCP_AF41
DSCP_AF42
DSCP_AF43
DSCP_CS5
DSCP_EF
DSCP_CS6
DSCP_CS7

Definition at line 45 of file ipv6-header.h.

enum ns3::NdiscCache::Entry::NdiscCacheEntryState_e

private

The Entry state enumeration.

Enumerator
INCOMPLETE	No mapping between IPv6 and L2 addresses.
REACHABLE	Mapping exists between IPv6 and L2 addresses.
STALE	Mapping is stale.
DELAY	Try to wait contact from remote host.
PROBE	Try to contact IPv6 address to know again its L2 address.
PERMANENT	Permanent Mapping exists between IPv6 and L2 addresses.

Definition at line 351 of file ndisc-cache.h.

enum ns3::Ipv6Header::NextHeader_e

IPv6 next-header value.

Enumerator
IPV6_EXT_HOP_BY_HOP
IPV6_IPV4
IPV6_TCP
IPV6_UDP
IPV6_IPV6
IPV6_EXT_ROUTING
IPV6_EXT_FRAGMENTATION
IPV6_EXT_CONFIDENTIALITY
IPV6_EXT_AUTHENTIFICATION
IPV6_ICMPV6
IPV6_EXT_END
IPV6_EXT_DESTINATION
IPV6_SCTP
IPV6_EXT_MOBILITY
IPV6_UDP_LITE

Definition at line 82 of file ipv6-header.h.

enum ns3::Ipv6InterfaceAddress::Scope_e

Address scope.

Enumerator
HOST	Localhost (::1/128)
LINKLOCAL	Link-local address (fe80::/64)
GLOBAL	Global address (2000::/3)

Definition at line 59 of file ipv6-interface-address.h.

enum ns3::Ipv6InterfaceAddress::State_e

State of an address associated with an interface.

Enumerator
TENTATIVE	Address is tentative, no packet can be sent unless DAD finished.
DEPRECATED	Address is deprecated and should not be used.
PREFERRED	Preferred address.
PERMANENT	Permanent address.
HOMEADDRESS	Address is a HomeAddress.
TENTATIVE_OPTIMISTIC	Address is tentative but we are optimistic so we can send packet even if DAD is not yet finished.
INVALID	Invalid state (after a DAD failed)

Definition at line 44 of file ipv6-interface-address.h.
