Ipv6QueueDiscItem is a subclass of QueueDiscItem which stores IPv6 packets. More...

#include "ipv6-queue-disc-item.h"

Inheritance diagram for ns3::Ipv6QueueDiscItem:

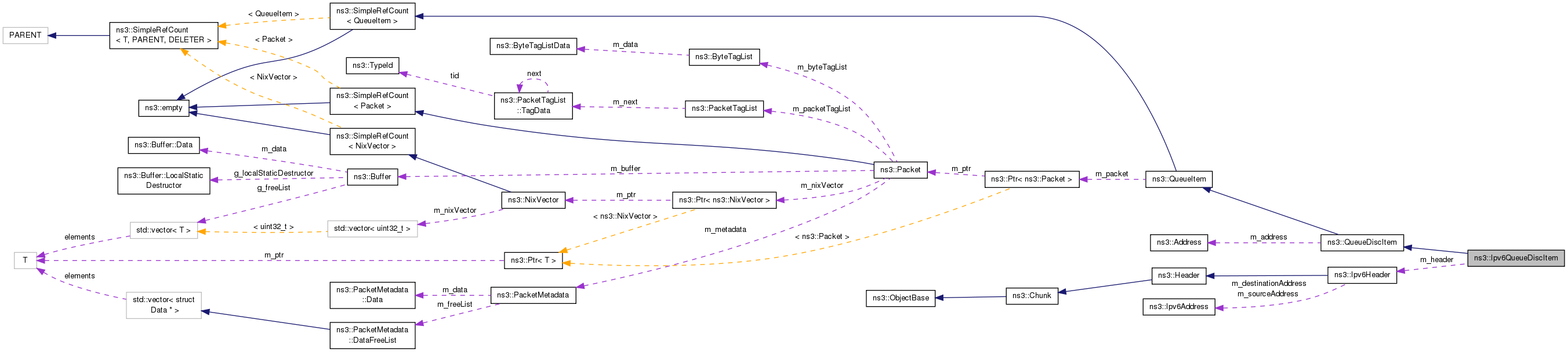

Collaboration diagram for ns3::Ipv6QueueDiscItem:

Public Member Functions
	Ipv6QueueDiscItem (Ptr< Packet > p, const Address &addr, uint16_t protocol, const Ipv6Header &header)
	Create an IPv6 queue disc item containing an IPv6 packet. More...

virtual	~Ipv6QueueDiscItem ()

virtual void	AddHeader (void)
	Add the header to the packet. More...

const Ipv6Header &	GetHeader (void) const

virtual uint32_t	GetPacketSize (void) const

virtual bool	GetUint8Value (Uint8Values field, uint8_t &value) const
	Retrieve the value of a given field from the packet, if present. More...

virtual void	Print (std::ostream &os) const
	Print the item contents. More...

Public Member Functions inherited from ns3::QueueDiscItem
	QueueDiscItem (Ptr< Packet > p, const Address &addr, uint16_t protocol)
	Create a queue disc item. More...

virtual	~QueueDiscItem ()

Address	GetAddress (void) const
	Get the MAC address included in this item. More...

uint16_t	GetProtocol (void) const
	Get the L3 protocol included in this item. More...

uint8_t	GetTxQueueIndex (void) const
	Get the transmission queue index included in this item. More...

void	SetTxQueueIndex (uint8_t txq)
	Set the transmission queue index to store in this item. More...

Public Member Functions inherited from ns3::QueueItem
	QueueItem (Ptr< Packet > p)
	Create a queue item containing a packet. More...

virtual	~QueueItem ()

Ptr< Packet >	GetPacket (void) const

Public Member Functions inherited from ns3::SimpleRefCount< QueueItem >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Member Functions
	Ipv6QueueDiscItem ()
	Default constructor. More...

	Ipv6QueueDiscItem (const Ipv6QueueDiscItem &)
	Copy constructor. More...

Ipv6QueueDiscItem &	operator= (const Ipv6QueueDiscItem &)
	Assignment operator. More...

Private Attributes
Ipv6Header	m_header
	The IPv6 header. More...

bool	m_headerAdded
	True if the header has already been added to the packet. More...

Additional Inherited Members
Public Types inherited from ns3::QueueItem
typedef void(*	TracedCallback) (Ptr< const QueueItem > item)
	TracedCallback signature for Ptr<QueueItem> More...

enum	Uint8Values { IP_DSFIELD }
	1-byte fields of the packet whose value can be retrieved, if present More...

Static Public Member Functions inherited from ns3::SimpleRefCount< QueueItem >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Ipv6QueueDiscItem is a subclass of QueueDiscItem which stores IPv6 packets.

Header and payload are kept separate to allow the queue disc to manipulate the header, which is added to the packet when the packet is dequeued.

Definition at line 39 of file ipv6-queue-disc-item.h.

Constructor & Destructor Documentation

ns3::Ipv6QueueDiscItem::Ipv6QueueDiscItem	(	Ptr< Packet >	p,
		const Address &	addr,
		uint16_t	protocol,
		const Ipv6Header &	header
	)

Create an IPv6 queue disc item containing an IPv6 packet.

Parameters

p	the packet included in the created item.
addr	the destination MAC address
protocol	the protocol number
header	the IPv6 header

Definition at line 26 of file ipv6-queue-disc-item.cc.

ns3::Ipv6QueueDiscItem::~Ipv6QueueDiscItem ( )

virtual

Definition at line 34 of file ipv6-queue-disc-item.cc.

References NS_LOG_FUNCTION.

ns3::Ipv6QueueDiscItem::Ipv6QueueDiscItem ( )

private

Default constructor.

Defined and unimplemented to avoid misuse

ns3::Ipv6QueueDiscItem::Ipv6QueueDiscItem ( const Ipv6QueueDiscItem & )

private

Copy constructor.

Defined and unimplemented to avoid misuse

Member Function Documentation

void ns3::Ipv6QueueDiscItem::AddHeader ( void )

virtual

Add the header to the packet.

Implements ns3::QueueDiscItem.

Definition at line 57 of file ipv6-queue-disc-item.cc.

References ns3::Packet::AddHeader(), ns3::QueueItem::GetPacket(), m_header, m_headerAdded, NS_ASSERT, NS_ASSERT_MSG, and NS_LOG_FUNCTION.

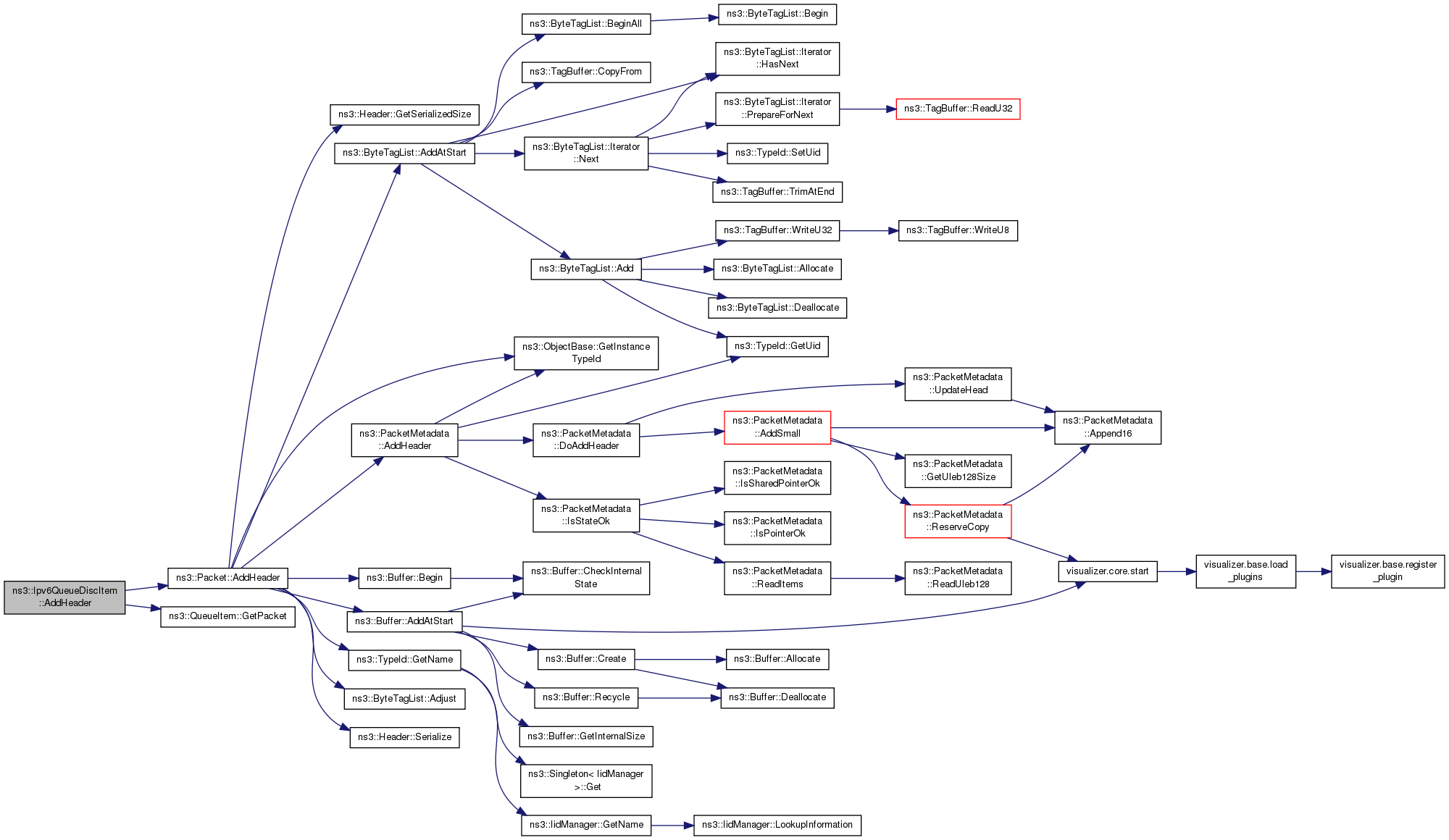

Here is the call graph for this function:

const Ipv6Header & ns3::Ipv6QueueDiscItem::GetHeader ( void ) const

Returns: the header stored in this item..

Definition at line 52 of file ipv6-queue-disc-item.cc.

References m_header.

uint32_t ns3::Ipv6QueueDiscItem::GetPacketSize ( void ) const

virtual

Returns: the correct packet size (header plus payload).

Reimplemented from ns3::QueueItem.

Definition at line 39 of file ipv6-queue-disc-item.cc.

References ns3::QueueItem::GetPacket(), ns3::Ipv6Header::GetSerializedSize(), ns3::Packet::GetSize(), m_header, m_headerAdded, and NS_ASSERT.

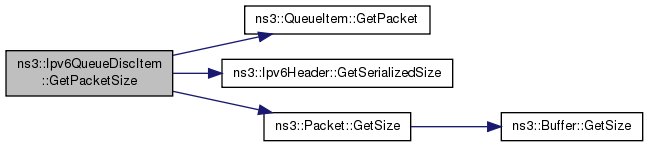

Here is the call graph for this function:

bool ns3::Ipv6QueueDiscItem::GetUint8Value	(	QueueItem::Uint8Values	field,
		uint8_t &	value
	)		const

virtual

Retrieve the value of a given field from the packet, if present.

Parameters

field	the field whose value has to be retrieved
value	the output parameter to store the retrieved value

Returns: true if the requested field is present in the packet, false otherwise.

Reimplemented from ns3::QueueItem.

Definition at line 83 of file ipv6-queue-disc-item.cc.

References ns3::Ipv6Header::GetTrafficClass(), ns3::QueueItem::IP_DSFIELD, and m_header.

Here is the call graph for this function:

Ipv6QueueDiscItem& ns3::Ipv6QueueDiscItem::operator= ( const Ipv6QueueDiscItem & )

private

Assignment operator.

Defined and unimplemented to avoid misuse

Returns

void ns3::Ipv6QueueDiscItem::Print ( std::ostream & os ) const

virtual

Print the item contents.

Parameters

os	output stream in which the data should be printed.

Reimplemented from ns3::QueueDiscItem.

Definition at line 69 of file ipv6-queue-disc-item.cc.

References ns3::QueueDiscItem::GetAddress(), ns3::QueueItem::GetPacket(), ns3::QueueDiscItem::GetProtocol(), ns3::QueueDiscItem::GetTxQueueIndex(), m_header, and m_headerAdded.

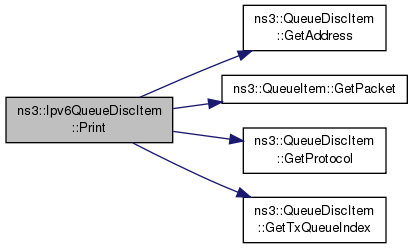

Here is the call graph for this function:

Member Data Documentation

Ipv6Header ns3::Ipv6QueueDiscItem::m_header

private

The IPv6 header.

Definition at line 103 of file ipv6-queue-disc-item.h.

Referenced by AddHeader(), GetHeader(), GetPacketSize(), GetUint8Value(), and Print().

bool ns3::Ipv6QueueDiscItem::m_headerAdded

private

True if the header has already been added to the packet.

Definition at line 104 of file ipv6-queue-disc-item.h.

Referenced by AddHeader(), GetPacketSize(), and Print().

The documentation for this class was generated from the following files:

src/internet/model/ipv6-queue-disc-item.h
src/internet/model/ipv6-queue-disc-item.cc
