This abstract class is used to process the time-vs-frequency SINR/interference/power chunk of a received LTE signal which was calculated by the LteInterference object. More...

#include "lte-chunk-processor.h"

Inheritance diagram for ns3::LteChunkProcessor:

Collaboration diagram for ns3::LteChunkProcessor:

Public Member Functions
	LteChunkProcessor ()

virtual	~LteChunkProcessor ()

virtual void	AddCallback (LteChunkProcessorCallback c)
	Add callback to list. More...

virtual void	End ()
	Finish calculation and inform interested objects about calculated value. More...

virtual void	EvaluateChunk (const SpectrumValue &sinr, Time duration)
	Collect SpectrumValue and duration of signal. More...

virtual void	Start ()
	Clear internal variables. More...

Public Member Functions inherited from ns3::SimpleRefCount< LteChunkProcessor >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Private Attributes
std::vector< LteChunkProcessorCallback >	m_lteChunkProcessorCallbacks

Ptr< SpectrumValue >	m_sumValues

Time	m_totDuration

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< LteChunkProcessor >
static void	Cleanup (void)
	Noop. More...

Detailed Description

This abstract class is used to process the time-vs-frequency SINR/interference/power chunk of a received LTE signal which was calculated by the LteInterference object.

Definition at line 45 of file lte-chunk-processor.h.

Constructor & Destructor Documentation

ns3::LteChunkProcessor::LteChunkProcessor ( )

Definition at line 32 of file lte-chunk-processor.cc.

References NS_LOG_FUNCTION.

ns3::LteChunkProcessor::~LteChunkProcessor ( )

virtual

Definition at line 37 of file lte-chunk-processor.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteChunkProcessor::AddCallback ( LteChunkProcessorCallback c )

virtual

Add callback to list.

This function adds callback c to list. Each callback pass calculated value to its object and is called in LteChunkProcessor::End().

Definition at line 43 of file lte-chunk-processor.cc.

References m_lteChunkProcessorCallbacks, and NS_LOG_FUNCTION.

Referenced by LteDownlinkDataSinrTestCase::DoRun(), LteUplinkDataSinrTestCase::DoRun(), LtePathlossModelSystemTestCase::DoRun(), LteDownlinkCtrlSinrTestCase::DoRun(), LteDownlinkPowerControlTestCase::DoRun(), and LteUplinkSrsSinrTestCase::DoRun().

Here is the caller graph for this function:

void ns3::LteChunkProcessor::End ( void )

virtual

Finish calculation and inform interested objects about calculated value.

During this function all callbacks from list are executed to inform interested object about calculated value. This function is called at the end of calculation.

Definition at line 71 of file lte-chunk-processor.cc.

References ns3::Time::GetSeconds(), m_lteChunkProcessorCallbacks, m_totDuration, NS_LOG_FUNCTION, and NS_LOG_WARN.

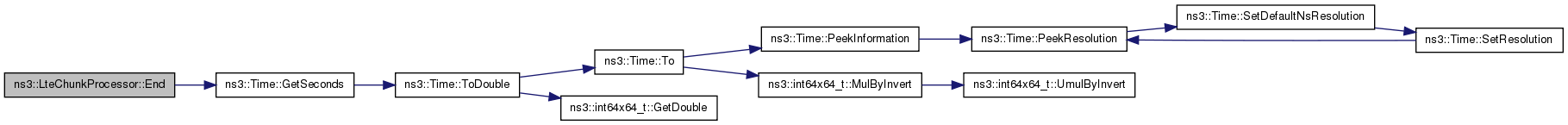

Here is the call graph for this function:
