The eNodeB device implementation. More...

#include "lte-enb-net-device.h"

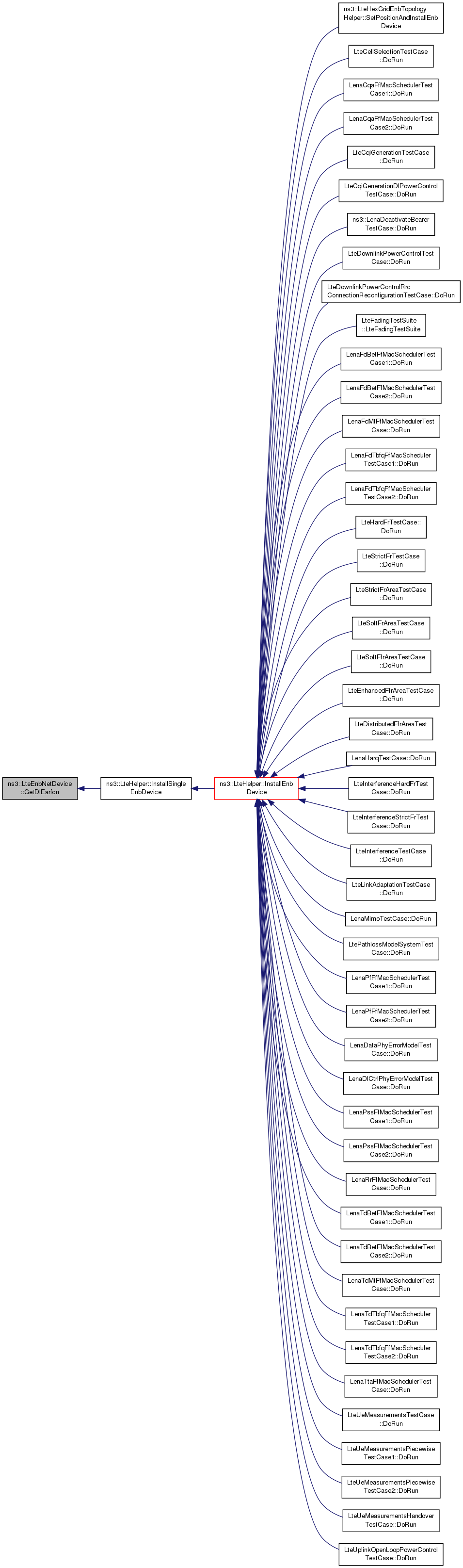

Inheritance diagram for ns3::LteEnbNetDevice:

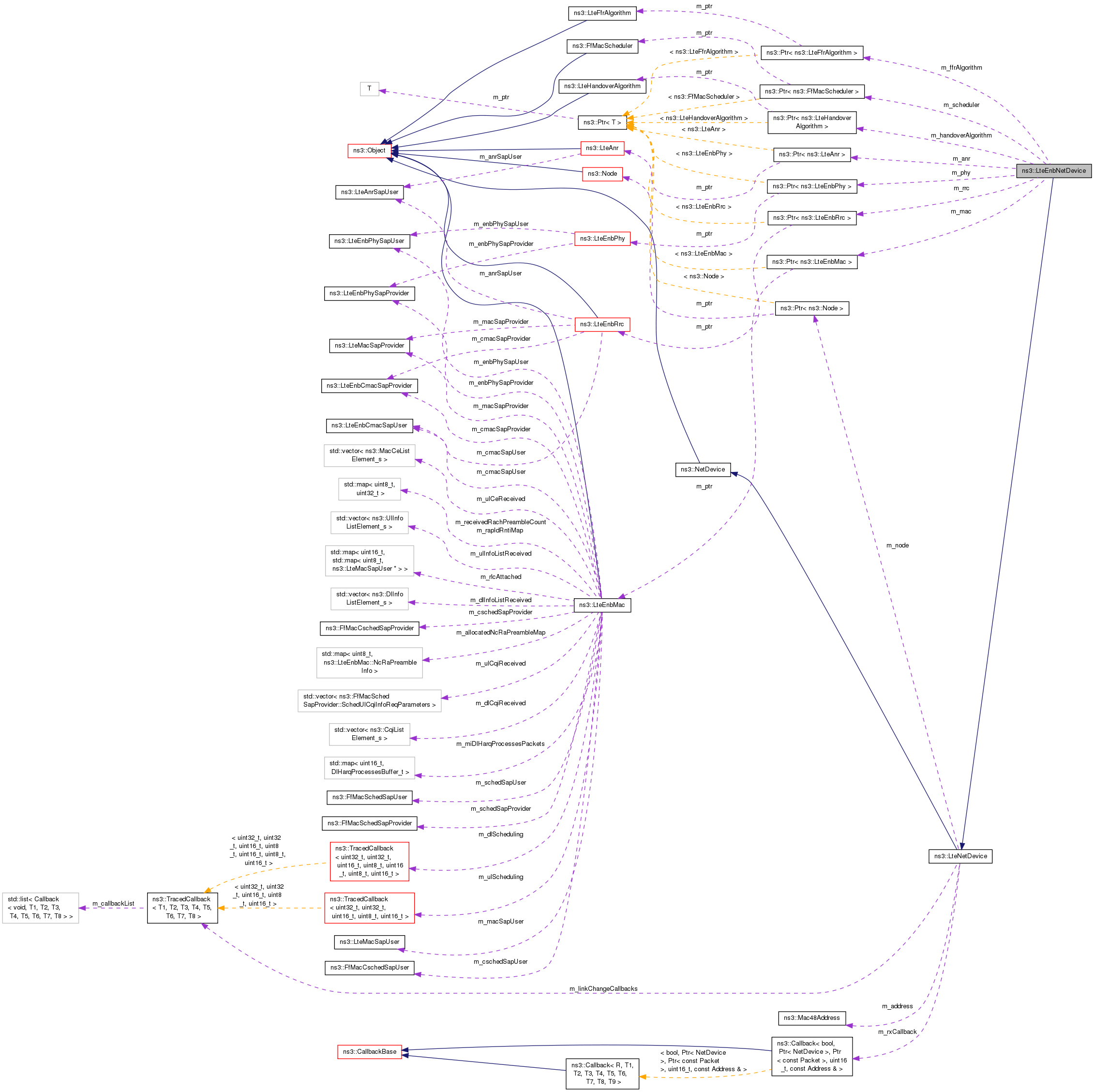

Collaboration diagram for ns3::LteEnbNetDevice:

Public Member Functions
	LteEnbNetDevice ()

virtual	~LteEnbNetDevice (void)

virtual void	DoDispose (void)
	Destructor implementation. More...

uint16_t	GetCellId () const

uint32_t	GetCsgId () const
	Returns the CSG ID of the eNodeB. More...

bool	GetCsgIndication () const
	Returns the CSG indication flag of the eNodeB. More...

uint8_t	GetDlBandwidth () const

uint16_t	GetDlEarfcn () const

Ptr< LteEnbMac >	GetMac (void) const

Ptr< LteEnbPhy >	GetPhy (void) const

Ptr< LteEnbRrc >	GetRrc () const

uint8_t	GetUlBandwidth () const

uint16_t	GetUlEarfcn () const

virtual bool	Send (Ptr< Packet > packet, const Address &dest, uint16_t protocolNumber)

void	SetCsgId (uint32_t csgId)
	Associate the eNodeB device with a particular CSG. More...

void	SetCsgIndication (bool csgIndication)
	Enable or disable the CSG indication flag. More...

void	SetDlBandwidth (uint8_t bw)

void	SetDlEarfcn (uint16_t earfcn)

void	SetUlBandwidth (uint8_t bw)

void	SetUlEarfcn (uint16_t earfcn)

Public Member Functions inherited from ns3::LteNetDevice
	LteNetDevice (void)

virtual	~LteNetDevice (void)

virtual void	AddLinkChangeCallback (Callback< void > callback)

virtual Address	GetAddress (void) const

virtual Address	GetBroadcast (void) const

virtual Ptr< Channel >	GetChannel (void) const

virtual uint32_t	GetIfIndex (void) const

virtual uint16_t	GetMtu (void) const

virtual Address	GetMulticast (Ipv4Address addr) const
	Make and return a MAC multicast address using the provided multicast group. More...

virtual Address	GetMulticast (Ipv6Address addr) const
	Get the MAC multicast address corresponding to the IPv6 address provided. More...

virtual Ptr< Node >	GetNode (void) const

virtual bool	IsBridge (void) const
	Return true if the net device is acting as a bridge. More...

virtual bool	IsBroadcast (void) const

virtual bool	IsLinkUp (void) const

virtual bool	IsMulticast (void) const

virtual bool	IsPointToPoint (void) const
	Return true if the net device is on a point-to-point link. More...

virtual bool	NeedsArp (void) const

void	Receive (Ptr< Packet > p)
	receive a packet from the lower layers in order to forward it to the upper layers More...

virtual bool	SendFrom (Ptr< Packet > packet, const Address &source, const Address &dest, uint16_t protocolNumber)

virtual void	SetAddress (Address address)
	Set the address of this interface. More...

virtual void	SetIfIndex (const uint32_t index)

virtual bool	SetMtu (const uint16_t mtu)

virtual void	SetNode (Ptr< Node > node)

virtual void	SetPromiscReceiveCallback (PromiscReceiveCallback cb)

virtual void	SetReceiveCallback (NetDevice::ReceiveCallback cb)

virtual bool	SupportsSendFrom (void) const

Public Member Functions inherited from ns3::NetDevice
virtual	~NetDevice ()

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::LteNetDevice
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::NetDevice
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions
virtual void	DoInitialize (void)
	Initialize() implementation. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions
void	UpdateConfig ()
	Propagate attributes and configuration to sub-modules. More...

Private Attributes
Ptr< LteAnr >	m_anr

uint16_t	m_cellId
	Cell Identifer. More...

uint16_t	m_csgId

bool	m_csgIndication

uint8_t	m_dlBandwidth
	downlink bandwidth in RBs More...

uint16_t	m_dlEarfcn
	downlink carrier frequency More...

Ptr< LteFfrAlgorithm >	m_ffrAlgorithm

Ptr< LteHandoverAlgorithm >	m_handoverAlgorithm

bool	m_isConfigured

bool	m_isConstructed

Ptr< LteEnbMac >	m_mac

Ptr< LteEnbPhy >	m_phy

Ptr< LteEnbRrc >	m_rrc

Ptr< FfMacScheduler >	m_scheduler

uint8_t	m_ulBandwidth
	uplink bandwidth in RBs More...

uint16_t	m_ulEarfcn
	uplink carrier frequency More...

Additional Inherited Members
Public Types inherited from ns3::NetDevice
typedef void(*	LinkChangeTracedCallback) (void)
	TracedCallback signature for link changed event. More...

enum	PacketType { PACKET_HOST = 1, NS3_PACKET_HOST = PACKET_HOST, PACKET_BROADCAST, NS3_PACKET_BROADCAST = PACKET_BROADCAST, PACKET_MULTICAST, NS3_PACKET_MULTICAST = PACKET_MULTICAST, PACKET_OTHERHOST, NS3_PACKET_OTHERHOST = PACKET_OTHERHOST }
	Packet types are used as they are in Linux. More...

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address &, const Address &, enum PacketType >	PromiscReceiveCallback

typedef Callback< bool, Ptr< NetDevice >, Ptr< const Packet >, uint16_t, const Address & >	ReceiveCallback

Protected Attributes inherited from ns3::LteNetDevice
NetDevice::ReceiveCallback	m_rxCallback

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

The eNodeB device implementation.

Config Paths

ns3::LteEnbNetDevice is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::LteNetDevice/$ns3::LteEnbNetDevice"
"/NodeList/[i]/DeviceList/[i]/$ns3::LteEnbNetDevice"

Attributes

LteEnbRrc: The RRC associated to this EnbNetDevice
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteEnbRrc>
- Initial value: 0
- Flags: construct write read
LteHandoverAlgorithm: The handover algorithm associated to this EnbNetDevice
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteHandoverAlgorithm>
- Initial value: 0
- Flags: construct write read
LteAnr: The automatic neighbour relation function associated to this EnbNetDevice
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteAnr>
- Initial value: 0
- Flags: construct write read
LteFfrAlgorithm: The FFR algorithm associated to this EnbNetDevice
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteFfrAlgorithm>
- Initial value: 0
- Flags: construct write read
LteEnbMac: The MAC associated to this EnbNetDevice
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteEnbMac>
- Initial value: 0
- Flags: construct write read
FfMacScheduler: The scheduler associated to this EnbNetDevice
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::FfMacScheduler>
- Initial value: 0
- Flags: construct write read
LteEnbPhy: The PHY associated to this EnbNetDevice
- Set with class: ns3::PointerValue
- Underlying type: ns3::Ptr< ns3::LteEnbPhy>
- Initial value: 0
- Flags: construct write read
UlBandwidth: Uplink Transmission Bandwidth Configuration in number of Resource Blocks
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 25
- Flags: construct write read
DlBandwidth: Downlink Transmission Bandwidth Configuration in number of Resource Blocks
- Set with class: ns3::UintegerValue
- Underlying type: uint8_t 0:255
- Initial value: 25
- Flags: construct write read
CellId: Cell Identifier
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 0
- Flags: construct write read
DlEarfcn: Downlink E-UTRA Absolute Radio Frequency Channel Number (EARFCN) as per 3GPP 36.101 Section 5.7.3.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:6599
- Initial value: 100
- Flags: construct write read
UlEarfcn: Uplink E-UTRA Absolute Radio Frequency Channel Number (EARFCN) as per 3GPP 36.101 Section 5.7.3.
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 18000:24599
- Initial value: 18100
- Flags: construct write read
CsgId: The Closed Subscriber Group (CSG) identity that this eNodeB belongs to
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 0
- Flags: construct write read
CsgIndication: If true, only UEs which are members of the CSG (i.e. same CSG ID) can gain access to the eNodeB, therefore enforcing closed access mode. Otherwise, the eNodeB operates as a non-CSG cell and implements open access mode.
- Set with class: BooleanValue
- Underlying type: bool
- Initial value: false
- Flags: construct write read

Attributes defined in parent class ns3::LteNetDevice

Mtu: The MAC-level Maximum Transmission Unit
- Set with class: ns3::UintegerValue
- Underlying type: uint16_t 0:65535
- Initial value: 30000
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 152 bytes (on a 64-bit architecture).

Definition at line 52 of file lte-enb-net-device.h.

Constructor & Destructor Documentation

ns3::LteEnbNetDevice::LteEnbNetDevice ( )

Definition at line 143 of file lte-enb-net-device.cc.

References NS_LOG_FUNCTION.

ns3::LteEnbNetDevice::~LteEnbNetDevice ( void )

virtual

Definition at line 151 of file lte-enb-net-device.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

void ns3::LteEnbNetDevice::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::LteNetDevice.

Definition at line 157 of file lte-enb-net-device.cc.

References ns3::LteNetDevice::DoDispose(), m_anr, m_ffrAlgorithm, m_handoverAlgorithm, m_mac, m_phy, m_rrc, m_scheduler, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::LteEnbNetDevice::DoInitialize ( void )

protectedvirtual

Initialize() implementation.

This method is called only once by Initialize(). If the user calls Initialize() multiple times, DoInitialize() is called only the first time.

Subclasses are expected to override this method and chain up to their parent's implementation once they are done. It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 324 of file lte-enb-net-device.cc.

References m_anr, m_ffrAlgorithm, m_handoverAlgorithm, m_isConstructed, m_mac, m_phy, m_rrc, NS_LOG_FUNCTION, and UpdateConfig().

Here is the call graph for this function:

uint16_t ns3::LteEnbNetDevice::GetCellId ( ) const

Returns: the Cell Identifier of this eNB

Definition at line 209 of file lte-enb-net-device.cc.

References m_cellId.

Referenced by ns3::DrbActivator::ActivateDrb(), ns3::PointToPointEpcHelper::AddX2Interface(), ns3::EmuEpcHelper::AddX2Interface(), LteHandoverTargetTestCase::CellShutdownCallback(), LteHandoverTargetTestCase::DoRun(), ns3::LteStatsCalculator::FindCellIdFromEnbRlcPath(), ns3::LteHelper::InstallSingleEnbDevice(), PrintGnuplottableEnbListToFile(), ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider(), and ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider().

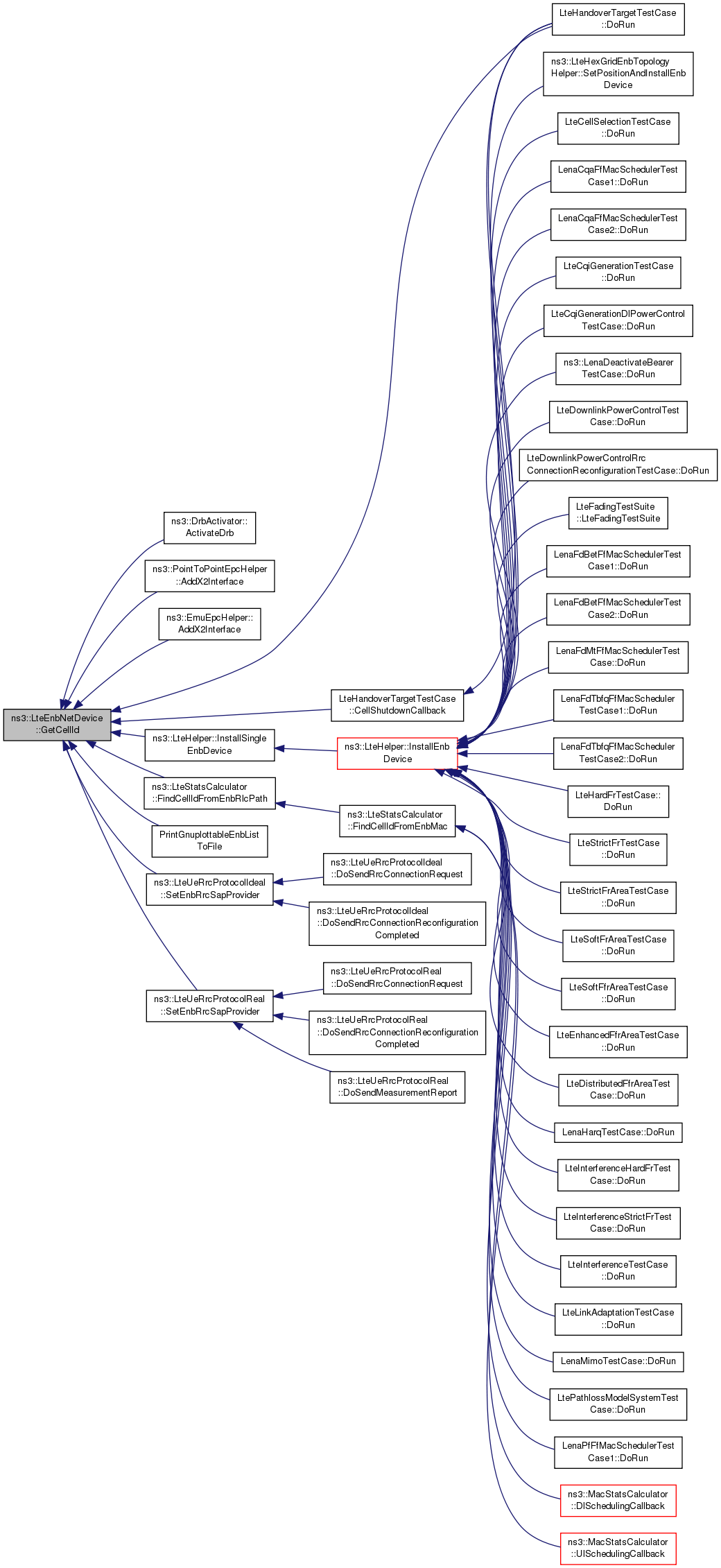

Here is the caller graph for this function:

uint32_t ns3::LteEnbNetDevice::GetCsgId ( ) const

Returns the CSG ID of the eNodeB.

Returns: the Closed Subscriber Group identity

See also: LteEnbNetDevice::SetCsgId

Definition at line 295 of file lte-enb-net-device.cc.

References m_csgId.

Referenced by GetTypeId().

Here is the caller graph for this function:

bool ns3::LteEnbNetDevice::GetCsgIndication ( ) const

Returns the CSG indication flag of the eNodeB.

Returns: the CSG indication flag

See also: LteEnbNetDevice::SetCsgIndication

Definition at line 309 of file lte-enb-net-device.cc.

References m_csgIndication.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint8_t ns3::LteEnbNetDevice::GetDlBandwidth ( ) const

Returns: the downlink bandwidth in RBs

Definition at line 242 of file lte-enb-net-device.cc.

References m_dlBandwidth.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint16_t ns3::LteEnbNetDevice::GetDlEarfcn ( ) const

Returns: the downlink carrier frequency (EARFCN)

Definition at line 269 of file lte-enb-net-device.cc.

References m_dlEarfcn.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

Ptr< LteEnbMac > ns3::LteEnbNetDevice::GetMac ( void ) const

Returns: a pointer to the MAC

Definition at line 191 of file lte-enb-net-device.cc.

References m_mac.

Ptr< LteEnbPhy > ns3::LteEnbNetDevice::GetPhy ( void ) const

Returns: a pointer to the physical layer.

Definition at line 197 of file lte-enb-net-device.cc.

References m_phy.

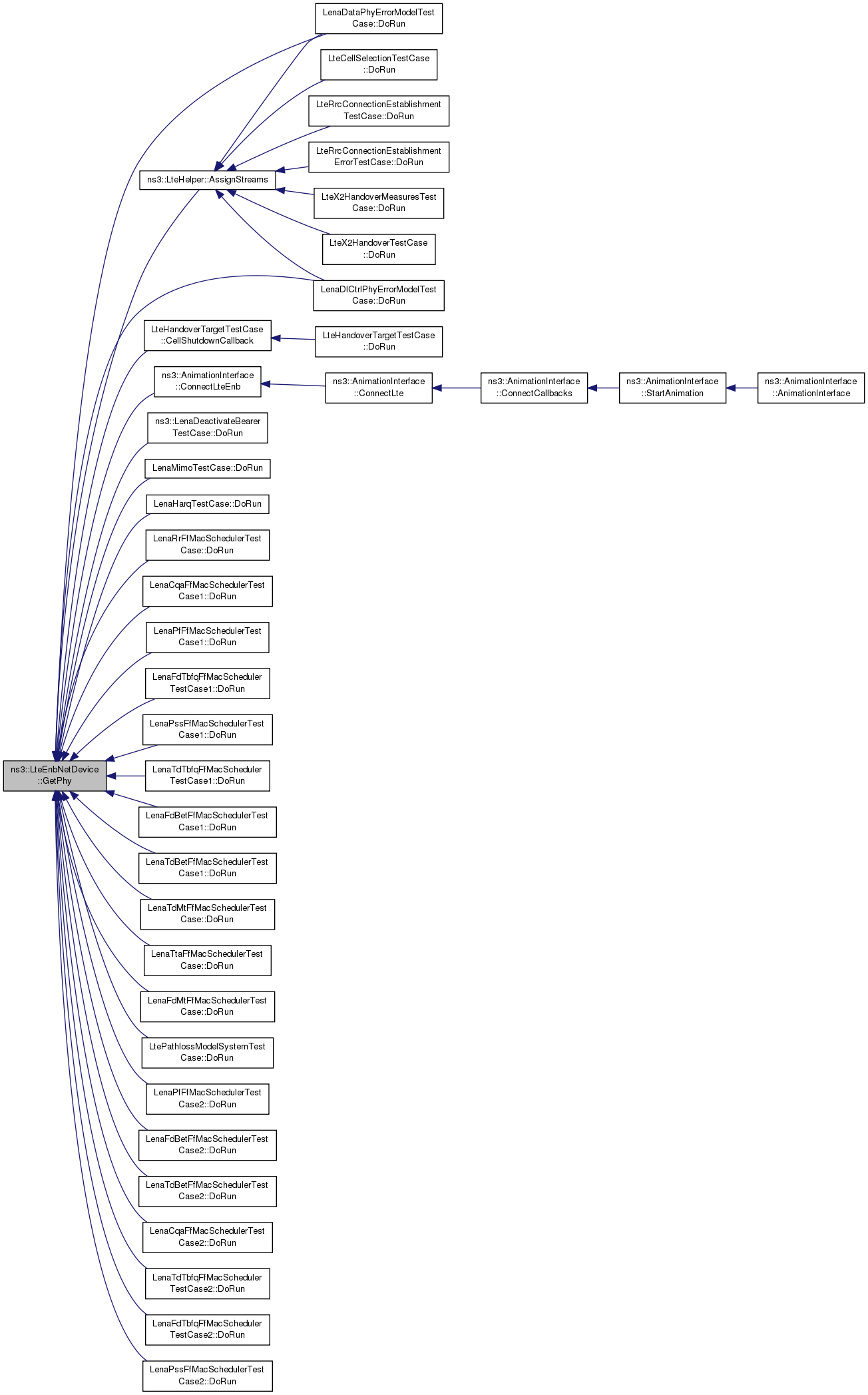

Here is the caller graph for this function:

Ptr< LteEnbRrc > ns3::LteEnbNetDevice::GetRrc ( ) const

Returns: a pointer to the Radio Resource Control instance of the eNB

Definition at line 203 of file lte-enb-net-device.cc.

References m_rrc.

Referenced by LteRrcConnectionEstablishmentTestCase::CheckNotConnected(), ns3::LteUeRrcProtocolIdeal::SetEnbRrcSapProvider(), and ns3::LteUeRrcProtocolReal::SetEnbRrcSapProvider().

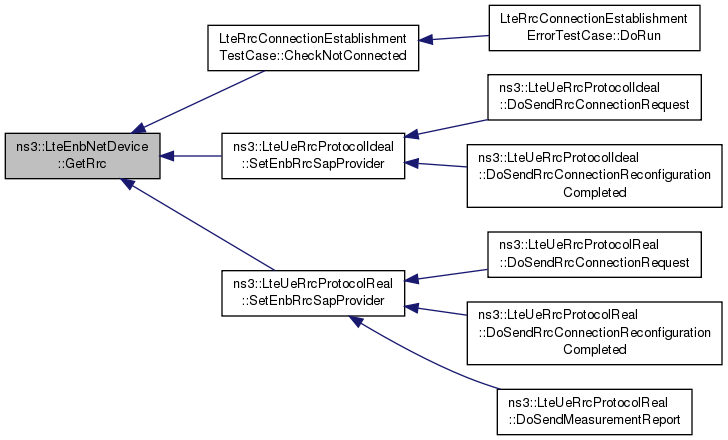

Here is the caller graph for this function:

TypeId ns3::LteEnbNetDevice::GetTypeId ( void )

static

Definition at line 54 of file lte-enb-net-device.cc.

References GetCsgId(), GetCsgIndication(), GetDlBandwidth(), GetUlBandwidth(), m_anr, m_cellId, m_dlEarfcn, m_ffrAlgorithm, m_handoverAlgorithm, m_mac, m_phy, m_rrc, m_scheduler, m_ulEarfcn, ns3::MakeBooleanAccessor(), ns3::MakeBooleanChecker(), ns3::MakePointerAccessor(), ns3::MakeUintegerAccessor(), SetCsgId(), SetCsgIndication(), SetDlBandwidth(), ns3::TypeId::SetParent(), and SetUlBandwidth().

Referenced by ns3::LteHelper::LteHelper().

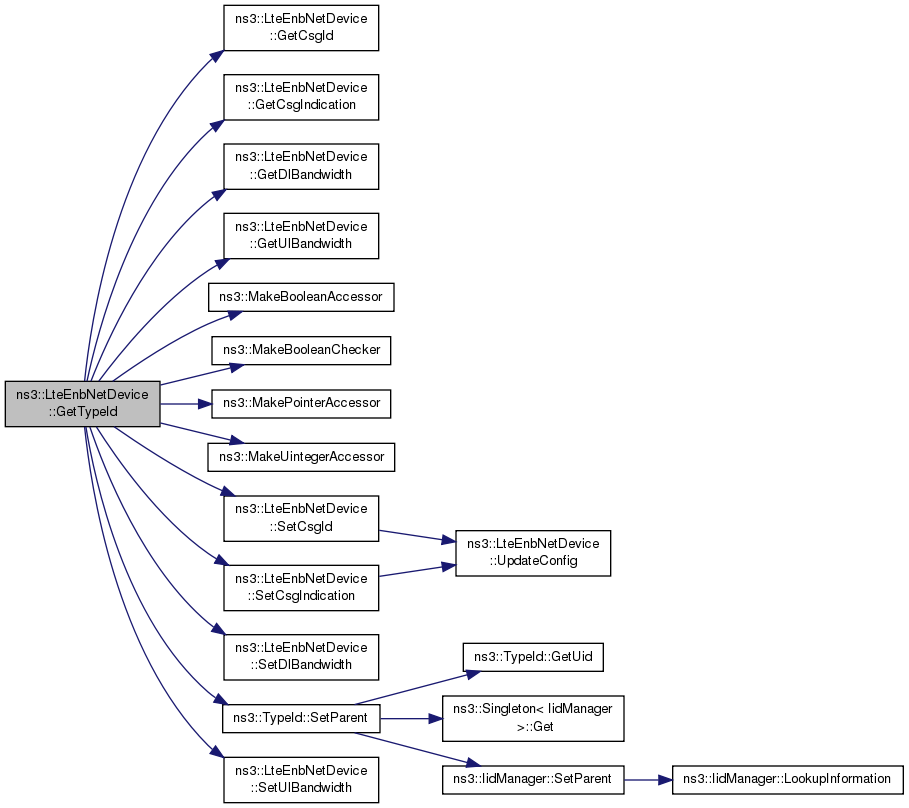

Here is the call graph for this function:

Here is the caller graph for this function:

uint8_t ns3::LteEnbNetDevice::GetUlBandwidth ( ) const

Returns: the uplink bandwidth in RBs

Definition at line 215 of file lte-enb-net-device.cc.

References m_ulBandwidth.

Referenced by GetTypeId().

Here is the caller graph for this function:

uint16_t ns3::LteEnbNetDevice::GetUlEarfcn ( ) const

Returns: the uplink carrier frequency (EARFCN)

Definition at line 282 of file lte-enb-net-device.cc.

References m_ulEarfcn.

Referenced by ns3::LteHelper::InstallSingleEnbDevice().

Here is the caller graph for this function:

bool ns3::LteEnbNetDevice::Send	(	Ptr< Packet >	packet,
		const Address &	dest,
		uint16_t	protocolNumber
	)

virtual

Parameters

packet	packet sent from above down to Network Device
dest	mac address of the destination (already resolved)
protocolNumber	identifies the type of payload contained in this packet. Used to call the right L3Protocol when the packet is received.

Called from higher layer to send packet into Network Device to the specified destination Address

Returns: whether the Send operation succeeded

Implements ns3::NetDevice.

Definition at line 344 of file lte-enb-net-device.cc.

References m_rrc, NS_ASSERT_MSG, NS_LOG_FUNCTION, and ns3::Ipv4L3Protocol::PROT_NUMBER.

void ns3::LteEnbNetDevice::SetCsgId ( uint32_t csgId )

Associate the eNodeB device with a particular CSG.

Parameters

csgId the intended Closed Subscriber Group identity

CSG identity is a number identifying a Closed Subscriber Group which the cell belongs to. eNodeB is associated with a single CSG identity.

The same CSG identity can also be associated to several UEs, which is equivalent as enlisting these UEs as the members of this particular CSG.

See also: LteEnbNetDevice::SetCsgIndication

Definition at line 301 of file lte-enb-net-device.cc.

References m_csgId, NS_LOG_FUNCTION, and UpdateConfig().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbNetDevice::SetCsgIndication ( bool csgIndication )

Enable or disable the CSG indication flag.

Parameters

csgIndication if TRUE, only CSG members are allowed to access this cell

When the CSG indication field is set to TRUE, only UEs which are members of the CSG (i.e. same CSG ID) can gain access to the eNodeB, therefore enforcing closed access mode. Otherwise, the eNodeB operates as a non-CSG cell and implements open access mode.

Note: This restriction only applies to initial cell selection and EPC-enabled simulation.

See also: LteEnbNetDevice::SetCsgIndication

Definition at line 315 of file lte-enb-net-device.cc.

References m_csgIndication, NS_LOG_FUNCTION, and UpdateConfig().

Referenced by GetTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::LteEnbNetDevice::SetDlBandwidth ( uint8_t bw )

Parameters

bw	the downlink bandwidth in RBs

Definition at line 248 of file lte-enb-net-device.cc.

References m_dlBandwidth, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbNetDevice::SetDlEarfcn ( uint16_t earfcn )

Parameters

earfcn the downlink carrier frequency (EARFCN)

Definition at line 275 of file lte-enb-net-device.cc.

References m_dlEarfcn, and NS_LOG_FUNCTION.

void ns3::LteEnbNetDevice::SetUlBandwidth ( uint8_t bw )

Parameters

bw	the uplink bandwidth in RBs

Definition at line 221 of file lte-enb-net-device.cc.

References m_ulBandwidth, NS_FATAL_ERROR, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::LteEnbNetDevice::SetUlEarfcn ( uint16_t earfcn )

Parameters

earfcn the uplink carrier frequency (EARFCN)

Definition at line 288 of file lte-enb-net-device.cc.

References m_ulEarfcn, and NS_LOG_FUNCTION.

void ns3::LteEnbNetDevice::UpdateConfig ( void )

private

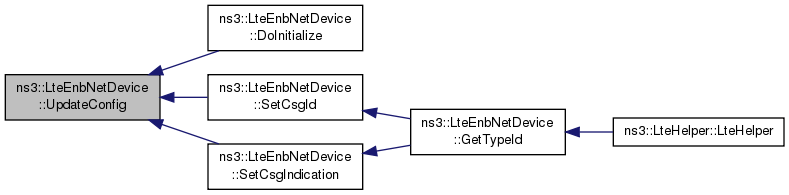

Propagate attributes and configuration to sub-modules.

Several attributes (e.g., the bandwidth) are exported as the attributes of the LteEnbNetDevice from a user perspective, but are actually used also in other sub-modules (the RRC, the PHY, the scheduler, etc.). This method takes care of updating the configuration of all these sub-modules so that their copy of attribute values are in sync with the one in the LteEnbNetDevice.

Definition at line 353 of file lte-enb-net-device.cc.

References m_cellId, m_csgId, m_csgIndication, m_dlBandwidth, m_dlEarfcn, m_isConfigured, m_isConstructed, m_rrc, m_ulBandwidth, m_ulEarfcn, NS_LOG_FUNCTION, and NS_LOG_LOGIC.
