Standard MPDU aggregator. More...

#include "mpdu-standard-aggregator.h"

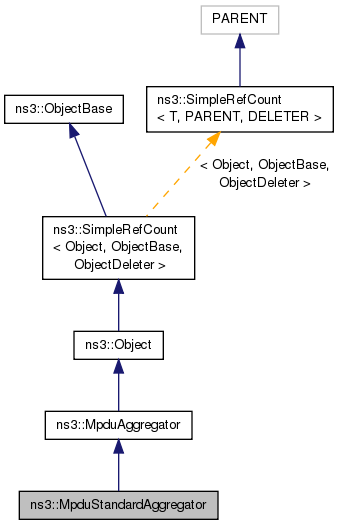

Inheritance diagram for ns3::MpduStandardAggregator:

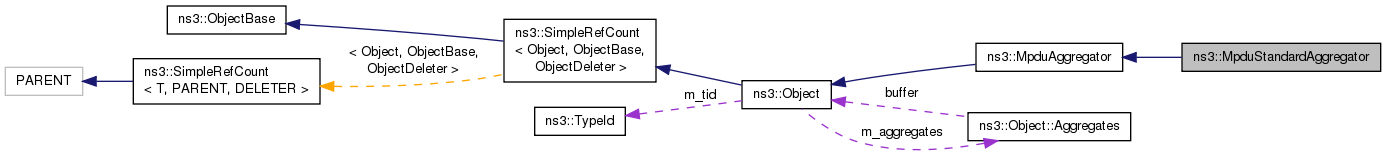

Collaboration diagram for ns3::MpduStandardAggregator:

Public Member Functions
	MpduStandardAggregator ()

	~MpduStandardAggregator ()

virtual void	AddHeaderAndPad (Ptr< Packet > packet, bool last, bool vhtSingleMpdu)
	Adds A-MPDU subframe header and padding to each MPDU that is part of an A-MPDU before it is sent. More...

virtual bool	Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket)

virtual void	AggregateVhtSingleMpdu (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket)
	This method performs a VHT single MPDU aggregation. More...

virtual uint32_t	CalculatePadding (Ptr< const Packet > packet)

virtual bool	CanBeAggregated (uint32_t packetSize, Ptr< Packet > aggregatedPacket, uint8_t blockAckSize)

virtual uint32_t	GetMaxAmpduSize (void) const

virtual void	SetMaxAmpduSize (uint32_t maxSize)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::MpduAggregator
static DeaggregatedMpdus	Deaggregate (Ptr< Packet > aggregatedPacket)
	Deaggregates an A-MPDU by removing the A-MPDU subframe header and padding. More...

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
uint32_t	m_maxAmpduLength
	Maximum length in bytes of A-MPDUs. More...

Additional Inherited Members
Public Types inherited from ns3::MpduAggregator
typedef std::list< std::pair< Ptr< Packet >, AmpduSubframeHeader > >	DeaggregatedMpdus
	A list of deaggregated packets and their A-MPDU subframe headers. More...

typedef std::list< std::pair< Ptr< Packet >, AmpduSubframeHeader > >::const_iterator	DeaggregatedMpdusCI
	A constant iterator for a list of deaggregated packets and their A-MPDU subframe headers. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Standard MPDU aggregator.

Introspection did not find any typical Config paths.

Attributes

MaxAmpduSize: Max length in bytes of an A-MPDU (Deprecated!)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 65535
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 33 of file mpdu-standard-aggregator.h.

Constructor & Destructor Documentation

ns3::MpduStandardAggregator::MpduStandardAggregator ( )

Definition at line 47 of file mpdu-standard-aggregator.cc.

ns3::MpduStandardAggregator::~MpduStandardAggregator ( )

Definition at line 51 of file mpdu-standard-aggregator.cc.

Member Function Documentation

void ns3::MpduStandardAggregator::AddHeaderAndPad	(	Ptr< Packet >	packet,
		bool	last,
		bool	vhtSingleMpdu
	)

virtual

Adds A-MPDU subframe header and padding to each MPDU that is part of an A-MPDU before it is sent.

Implements ns3::MpduAggregator.

Definition at line 121 of file mpdu-standard-aggregator.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), CalculatePadding(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, ns3::AmpduSubframeHeader::SetCrc(), ns3::AmpduSubframeHeader::SetEof(), ns3::AmpduSubframeHeader::SetLength(), and ns3::AmpduSubframeHeader::SetSig().

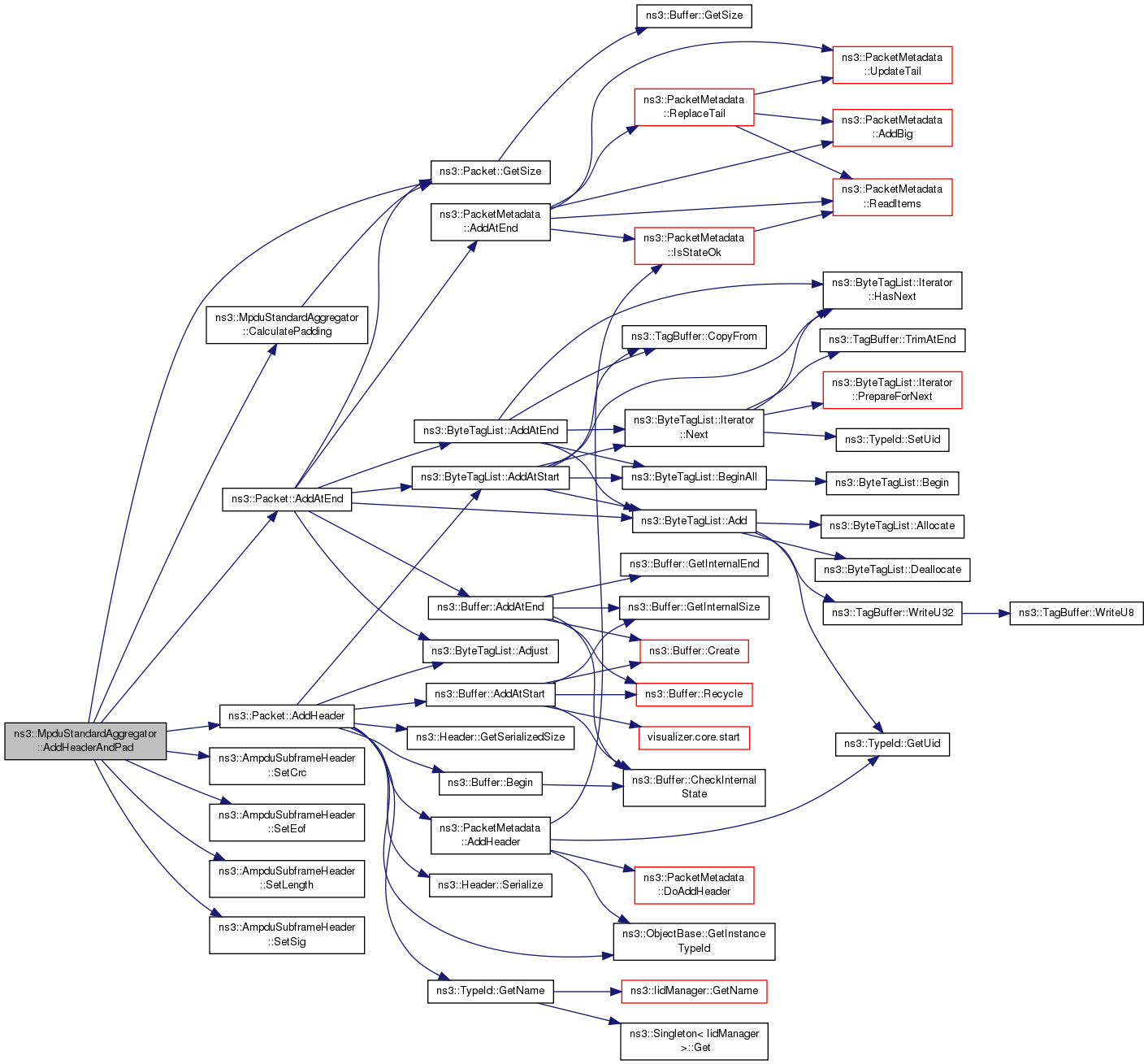

Here is the call graph for this function:

bool ns3::MpduStandardAggregator::Aggregate	(	Ptr< const Packet >	packet,
		Ptr< Packet >	aggregatedPacket
	)

virtual

Parameters

packet	packet we have to insert into aggregatedPacket.
aggregatedPacket	packet that will contain packet, if aggregation is possible.

Returns: true if packet can be aggregated to aggregatedPacket, false otherwise.

This method performs an MPDU aggregation. Returns true if packet can be aggregated to aggregatedPacket, false otherwise.

Implements ns3::MpduAggregator.

Definition at line 68 of file mpdu-standard-aggregator.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), CalculatePadding(), ns3::Packet::Copy(), ns3::Packet::GetSize(), m_maxAmpduLength, NS_LOG_FUNCTION, ns3::AmpduSubframeHeader::SetCrc(), ns3::AmpduSubframeHeader::SetLength(), and ns3::AmpduSubframeHeader::SetSig().

Here is the call graph for this function:

void ns3::MpduStandardAggregator::AggregateVhtSingleMpdu	(	Ptr< const Packet >	packet,
		Ptr< Packet >	aggregatedPacket
	)

virtual

This method performs a VHT single MPDU aggregation.

Implements ns3::MpduAggregator.

Definition at line 97 of file mpdu-standard-aggregator.cc.

References ns3::Packet::AddAtEnd(), ns3::Packet::AddHeader(), CalculatePadding(), ns3::Packet::Copy(), ns3::Packet::GetSize(), NS_LOG_FUNCTION, ns3::AmpduSubframeHeader::SetCrc(), ns3::AmpduSubframeHeader::SetEof(), ns3::AmpduSubframeHeader::SetLength(), and ns3::AmpduSubframeHeader::SetSig().

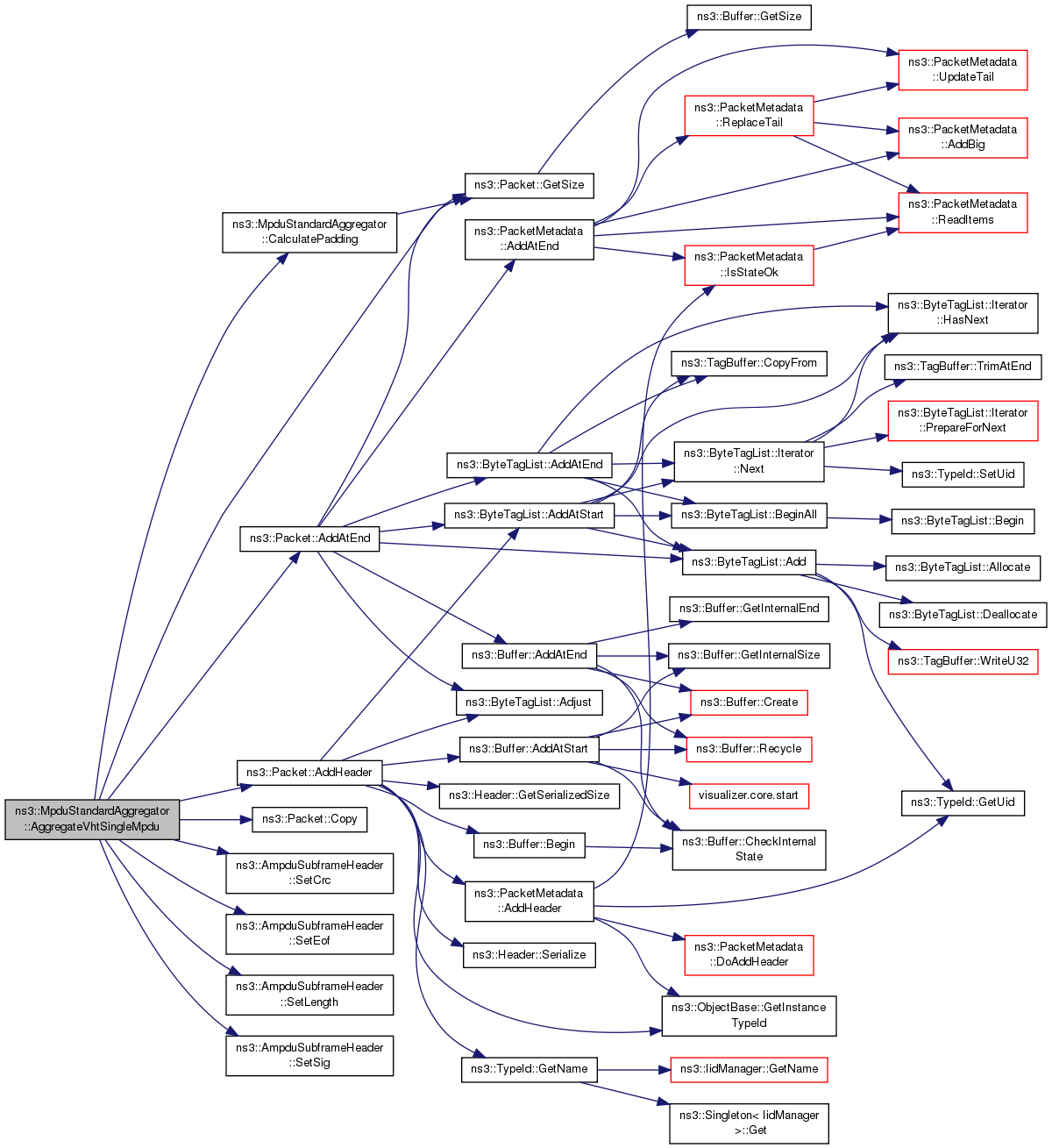

Here is the call graph for this function:

uint32_t ns3::MpduStandardAggregator::CalculatePadding ( Ptr< const Packet > packet )

virtual

Returns: padding that must be added to the end of an aggregated packet

Calculates how much padding must be added to the end of an aggregated packet, after that a new packet is added. Each A-MPDU subframe is padded so that its length is multiple of 4 octets.

Implements ns3::MpduAggregator.

Definition at line 166 of file mpdu-standard-aggregator.cc.

References ns3::Packet::GetSize().

Referenced by AddHeaderAndPad(), Aggregate(), AggregateVhtSingleMpdu(), and CanBeAggregated().

Here is the call graph for this function:

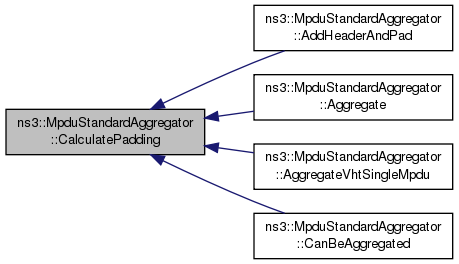

Here is the caller graph for this function:

bool ns3::MpduStandardAggregator::CanBeAggregated	(	uint32_t	packetSize,
		Ptr< Packet >	aggregatedPacket,
		uint8_t	blockAckSize
	)

virtual

Parameters

packetSize	size of the packet we want to insert into aggregatedPacket.
aggregatedPacket	packet that will contain the packet of size packetSize, if aggregation is possible.
blockAckSize	size of the piggybacked block ack request
