Standard MSDU aggregator. More...

#include "msdu-standard-aggregator.h"

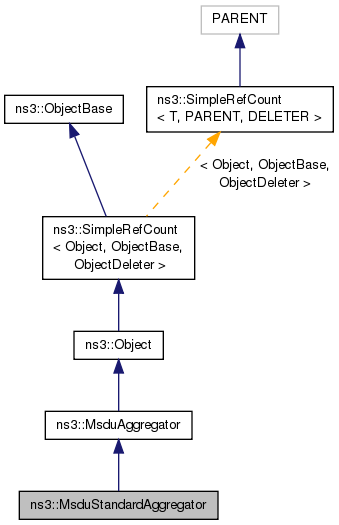

Inheritance diagram for ns3::MsduStandardAggregator:

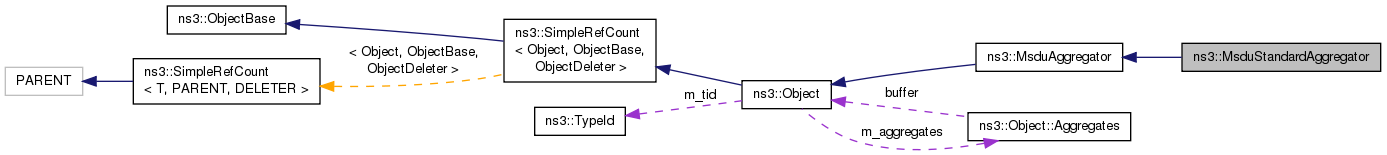

Collaboration diagram for ns3::MsduStandardAggregator:

Public Member Functions
	MsduStandardAggregator ()

	~MsduStandardAggregator ()

virtual bool	Aggregate (Ptr< const Packet > packet, Ptr< Packet > aggregatedPacket, Mac48Address src, Mac48Address dest)

virtual uint32_t	GetMaxAmsduSize (void) const

virtual void	SetMaxAmsduSize (uint32_t maxSize)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

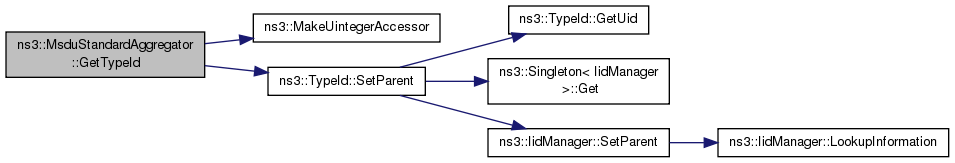

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::MsduAggregator
static DeaggregatedMsdus	Deaggregate (Ptr< Packet > aggregatedPacket)

static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
uint32_t	CalculatePadding (Ptr< const Packet > packet)
	Calculates how much padding must be added to the end of aggregated packet, after that a new packet is added. More...

Private Attributes
uint32_t	m_maxAmsduLength

Additional Inherited Members
Public Types inherited from ns3::MsduAggregator
typedef std::list< std::pair< Ptr< Packet >, AmsduSubframeHeader > >	DeaggregatedMsdus

typedef std::list< std::pair< Ptr< Packet >, AmsduSubframeHeader > >::const_iterator	DeaggregatedMsdusCI

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Standard MSDU aggregator.

Introspection did not find any typical Config paths.

Attributes

MaxAmsduSize: Max length in byte of an A-MSDU (Deprecated!)
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 7935
- Flags: construct write read

No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 33 of file msdu-standard-aggregator.h.

Constructor & Destructor Documentation

ns3::MsduStandardAggregator::MsduStandardAggregator ( )

Definition at line 47 of file msdu-standard-aggregator.cc.

ns3::MsduStandardAggregator::~MsduStandardAggregator ( )

Definition at line 51 of file msdu-standard-aggregator.cc.

Member Function Documentation

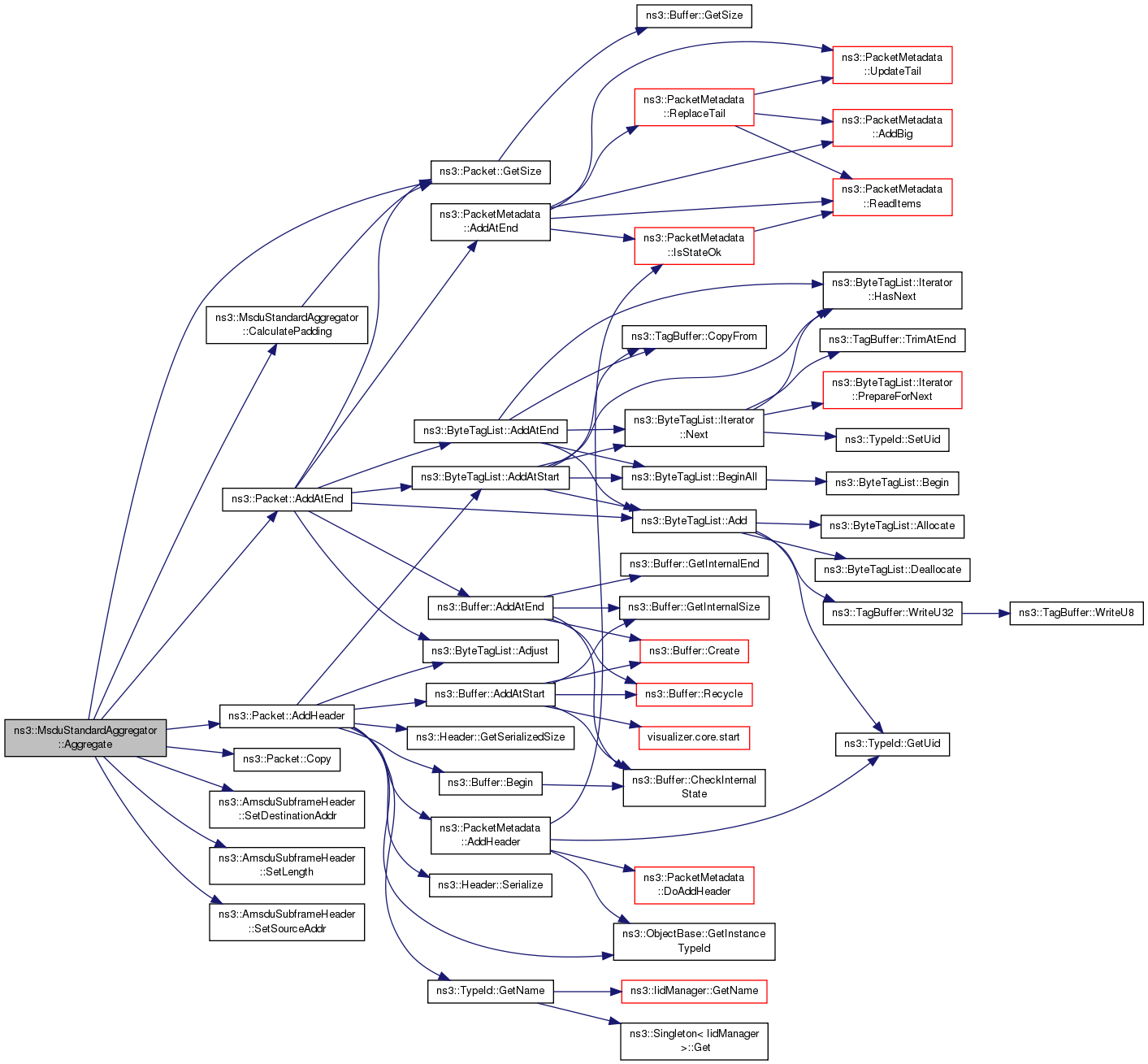

bool ns3::MsduStandardAggregator::Aggregate	(	Ptr< const Packet >	packet,
		Ptr< Packet >	aggregatedPacket,
		Mac48Address	src,
		Mac48Address	dest
	)

virtual

Parameters

packet	Packet we have to insert into aggregatedPacket.
aggregatedPacket	Packet that will contain packet, if aggregation is possible,
src	Source address of packet.
dest	Destination address of packet.
