ns3::NscInterfaceImpl Class Reference

Nsc interface implementation class. More...

Inheritance diagram for ns3::NscInterfaceImpl:

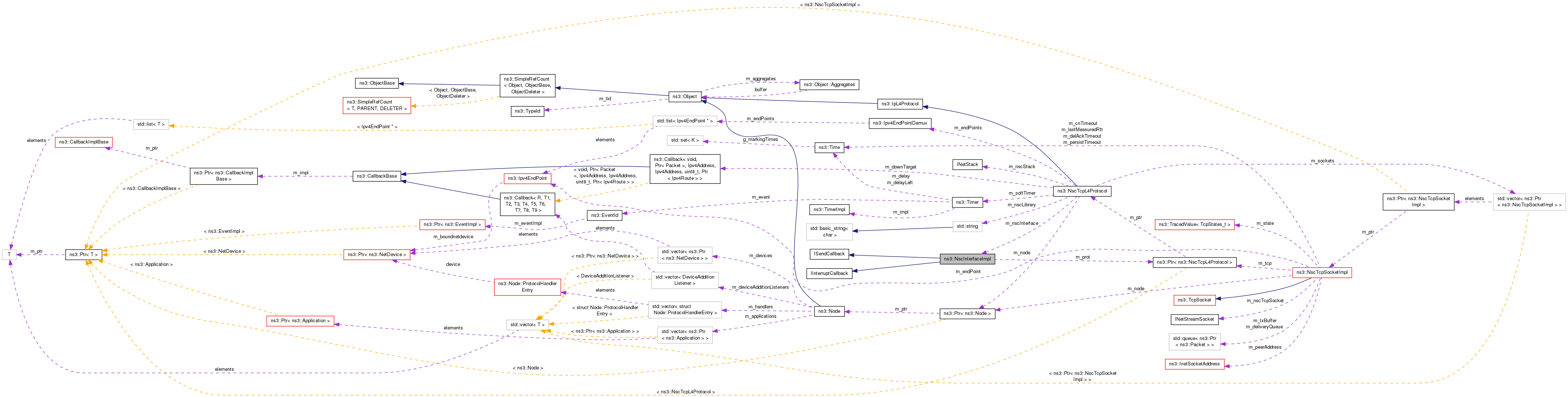

Collaboration diagram for ns3::NscInterfaceImpl:

Public Member Functions
	NscInterfaceImpl (Ptr< NscTcpL4Protocol > prot)
	Constructor. More...
Public Member Functions inherited from ISendCallback
virtual	~ISendCallback ()
Public Member Functions inherited from IInterruptCallback
virtual	~IInterruptCallback ()

Private Member Functions
virtual void	gettime (unsigned int *, unsigned int *)
	Called by the Linux stack RNG initialization. More...
virtual void	send_callback (const void *data, int datalen)
	Invoked by NSCs 'ethernet driver' to re-inject a packet into ns-3. More...
virtual void	wakeup ()
	Called by the NSC stack whenever something of interest has happened. More...

Private Attributes
Ptr< NscTcpL4Protocol >	m_prot
	the NSC TCP protocol More...

Detailed Description

Nsc interface implementation class.

Definition at line 61 of file nsc-tcp-l4-protocol.cc.

Constructor & Destructor Documentation

ns3::NscInterfaceImpl::NscInterfaceImpl

(

Ptr< NscTcpL4Protocol >

prot

)

Constructor.

Parameters

prot	the NSC TCP protocol

Definition at line 98 of file nsc-tcp-l4-protocol.cc.

Member Function Documentation

void ns3::NscInterfaceImpl::gettime ( unsigned int *  sec, unsigned int *  usec  )

privatevirtual

Called by the Linux stack RNG initialization.

Its also used by the cradle code to add a timestamp to printk/printf/debug output.

Implements IInterruptCallback.

Definition at line 114 of file nsc-tcp-l4-protocol.cc.

References m_prot.

void ns3::NscInterfaceImpl::send_callback ( const void *  data, int  datalen  )

privatevirtual

Invoked by NSCs 'ethernet driver' to re-inject a packet into ns-3.

A packet is an octet soup consisting of an IP Header, TCP Header and user payload, if any

Parameters

data	the data
datalen	the data length

Implements ISendCallback.

Definition at line 104 of file nsc-tcp-l4-protocol.cc.

References m_prot.

void ns3::NscInterfaceImpl::wakeup ( )

privatevirtual

Called by the NSC stack whenever something of interest has happened.

Examples: when data arrives on a socket, a listen socket has a new connection pending, etc.

Implements IInterruptCallback.

Definition at line 109 of file nsc-tcp-l4-protocol.cc.

References m_prot.

Member Data Documentation

Ptr<NscTcpL4Protocol> ns3::NscInterfaceImpl::m_prot

private

the NSC TCP protocol

Definition at line 95 of file nsc-tcp-l4-protocol.cc.

Referenced by gettime(), send_callback(), and wakeup().

---

The documentation for this class was generated from the following file:

• src/internet/model/nsc-tcp-l4-protocol.cc
