ns3::NscTcpL4Protocol Class Reference

Nsc wrapper glue, to interface with the Ipv4 protocol underneath. More...

#include "nsc-tcp-l4-protocol.h"

+ Inheritance diagram for ns3::NscTcpL4Protocol:
+ Collaboration diagram for ns3::NscTcpL4Protocol:

Public Member Functions

 NscTcpL4Protocol ()

virtual ~NscTcpL4Protocol ()

Ipv4EndPointAllocate (void)
 Allocate an IPv4 Endpoint. More...

Ipv4EndPointAllocate (Ipv4Address address)
 Allocate an IPv4 Endpoint. More...

Ipv4EndPointAllocate (uint16_t port)
 Allocate an IPv4 Endpoint. More...

Ipv4EndPointAllocate (Ipv4Address address, uint16_t port)
 Allocate an IPv4 Endpoint. More...

Ipv4EndPointAllocate (Ipv4Address localAddress, uint16_t localPort, Ipv4Address peerAddress, uint16_t peerPort)
 Allocate an IPv4 Endpoint. More...

Ptr< SocketCreateSocket (void)

void DeAllocate (Ipv4EndPoint *endPoint)
 Remove an IPv4 Endpoint. More...

virtual IpL4Protocol::DownTargetCallback GetDownTarget (void) const
 This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case) More...

virtual IpL4Protocol::DownTargetCallback6 GetDownTarget6 (void) const
 This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case) More...

std::string GetNscLibrary (void) const
 Get the NSC library being used. More...

virtual int GetProtocolNumber (void) const
 Returns the protocol number of this protocol. More...

virtual int GetVersion (void) const
 Get the NSC version. More...

virtual IpL4Protocol::RxStatus Receive (Ptr< Packet > p, Ipv4Header const &header, Ptr< Ipv4Interface > incomingInterface)
 Called from lower-level layers to send the packet up in the stack. More...

virtual IpL4Protocol::RxStatus Receive (Ptr< Packet > p, Ipv6Header const &header, Ptr< Ipv6Interface > interface)
 Called from lower-level layers to send the packet up in the stack. More...

virtual void SetDownTarget (IpL4Protocol::DownTargetCallback cb)
 This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case) More...

virtual void SetDownTarget6 (IpL4Protocol::DownTargetCallback6 cb)
 This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case) More...

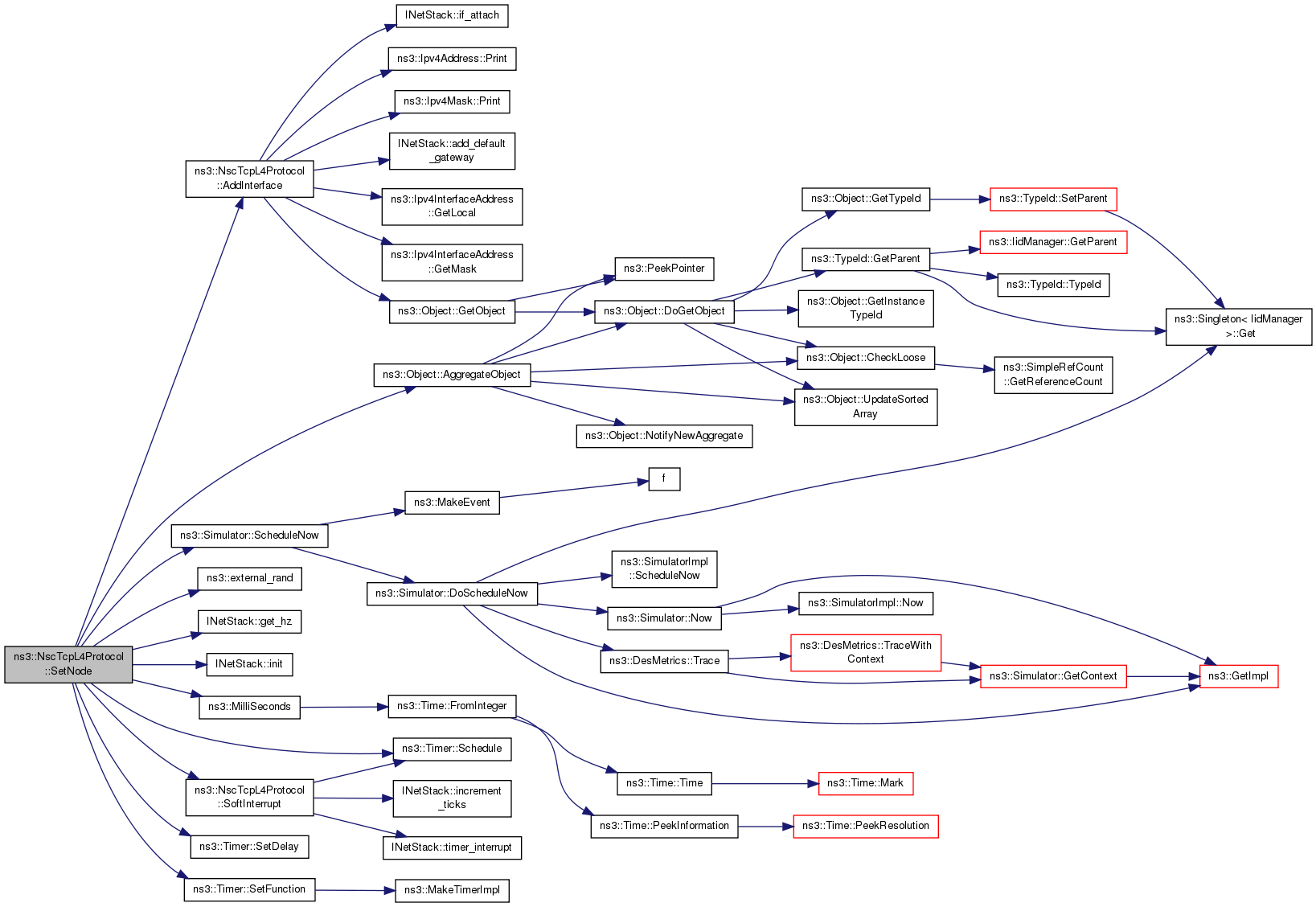

void SetNode (Ptr< Node > node)
 Set node associated with this stack. More...

void SetNscLibrary (const std::string &lib)
 Set the NSC library to be used. More...

- Public Member Functions inherited from ns3::IpL4Protocol
virtual ~IpL4Protocol ()

virtual void ReceiveIcmp (Ipv4Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv4Address payloadSource, Ipv4Address payloadDestination, const uint8_t payload[8])
 Called from lower-level layers to send the ICMP packet up in the stack. More...

virtual void ReceiveIcmp (Ipv6Address icmpSource, uint8_t icmpTtl, uint8_t icmpType, uint8_t icmpCode, uint32_t icmpInfo, Ipv6Address payloadSource, Ipv6Address payloadDestination, const uint8_t payload[8])
 Called from lower-level layers to send the ICMPv6 packet up in the stack. More...

- Public Member Functions inherited from ns3::Object
 Object ()
 Constructor. More...

virtual ~Object ()
 Destructor. More...

void AggregateObject (Ptr< Object > other)
 Aggregate two Objects together. More...

void Dispose (void)
 Dispose of this Object. More...

AggregateIterator GetAggregateIterator (void) const
 Get an iterator to the Objects aggregated to this one. More...

virtual TypeId GetInstanceTypeId (void) const
 Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T > GetObject (void) const
 Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T > GetObject (TypeId tid) const
 Get a pointer to the requested aggregated Object by TypeId. More...

void Initialize (void)
 Invoke DoInitialize on all Objects aggregated to this one. More...

bool IsInitialized (void) const
 Check if the object has been initialized. More...

- Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
 SimpleRefCount ()
 Constructor. More...

 SimpleRefCount (const SimpleRefCount &o)
 Copy constructor. More...

uint32_t GetReferenceCount (void) const
 Get the reference count of the object. More...

SimpleRefCountoperator= (const SimpleRefCount &o)
 Assignment. More...

void Ref (void) const
 Increment the reference count. More...

void Unref (void) const
 Decrement the reference count. More...

- Public Member Functions inherited from ns3::ObjectBase
virtual ~ObjectBase ()
 Virtual destructor. More...

void GetAttribute (std::string name, AttributeValue &value) const
 Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool GetAttributeFailSafe (std::string name, AttributeValue &value) const
 Get the value of an attribute without raising erros. More...

void SetAttribute (std::string name, const AttributeValue &value)
 Set a single attribute, raising fatal errors if unsuccessful. More...

bool SetAttributeFailSafe (std::string name, const AttributeValue &value)
 Set a single attribute without raising errors. More...

bool TraceConnect (std::string name, std::string context, const CallbackBase &cb)
 Connect a TraceSource to a Callback with a context. More...

bool TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
 Connect a TraceSource to a Callback without a context. More...

bool TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected with a context. More...

bool TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
 Disconnect from a TraceSource a Callback previously connected without a context. More...


Static Public Member Functions

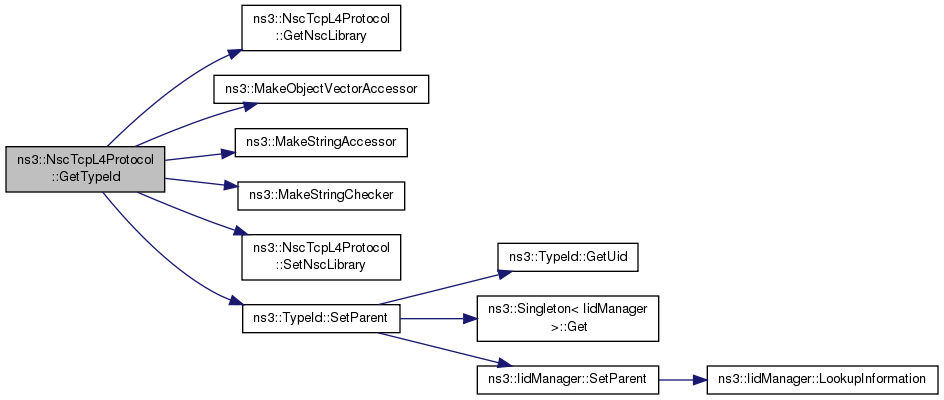

static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::IpL4Protocol
static TypeId GetTypeId (void)
 Get the type ID. More...

- Static Public Member Functions inherited from ns3::Object
static TypeId GetTypeId (void)
 Register this type. More...

- Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void Cleanup (void)
 Noop. More...

- Static Public Member Functions inherited from ns3::ObjectBase
static TypeId GetTypeId (void)
 Get the type ID. More...


Static Public Attributes

static const uint8_t PROT_NUMBER = 6
 protocol number (0x6) More...


Protected Member Functions

virtual void DoDispose (void)
 Destructor implementation. More...

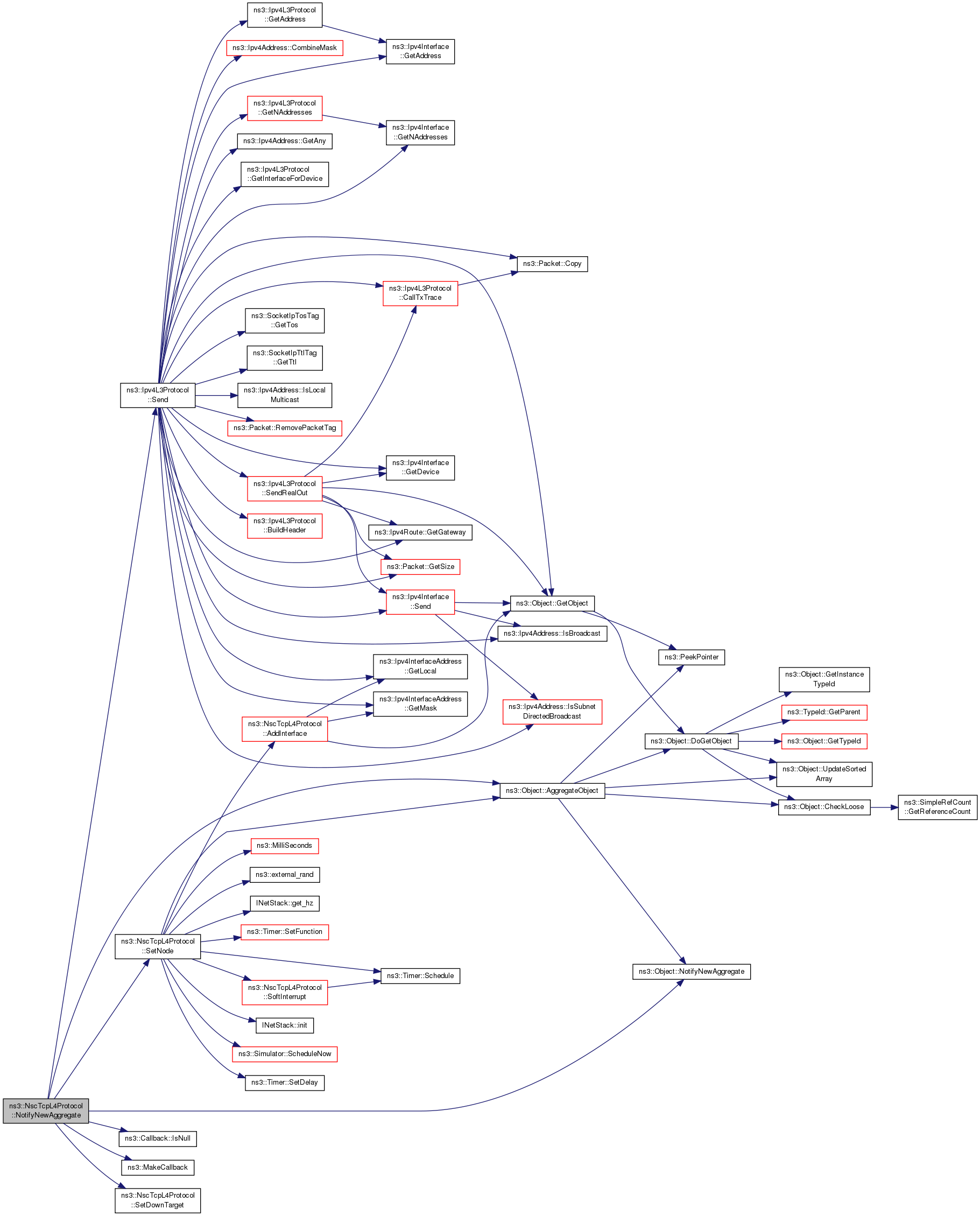

virtual void NotifyNewAggregate ()
 Notify all Objects aggregated to this one of a new Object being aggregated. More...

- Protected Member Functions inherited from ns3::Object
 Object (const Object &o)
 Copy an Object. More...

virtual void DoInitialize (void)
 Initialize() implementation. More...

- Protected Member Functions inherited from ns3::ObjectBase
void ConstructSelf (const AttributeConstructionList &attributes)
 Complete construction of ObjectBase; invoked by derived classes. More...

virtual void NotifyConstructionCompleted (void)
 Notifier called once the ObjectBase is fully constructed. More...


Private Member Functions

 NscTcpL4Protocol (NscTcpL4Protocol const &)
 Copy constructor. More...

void AddInterface (void)
 Add an interface. More...

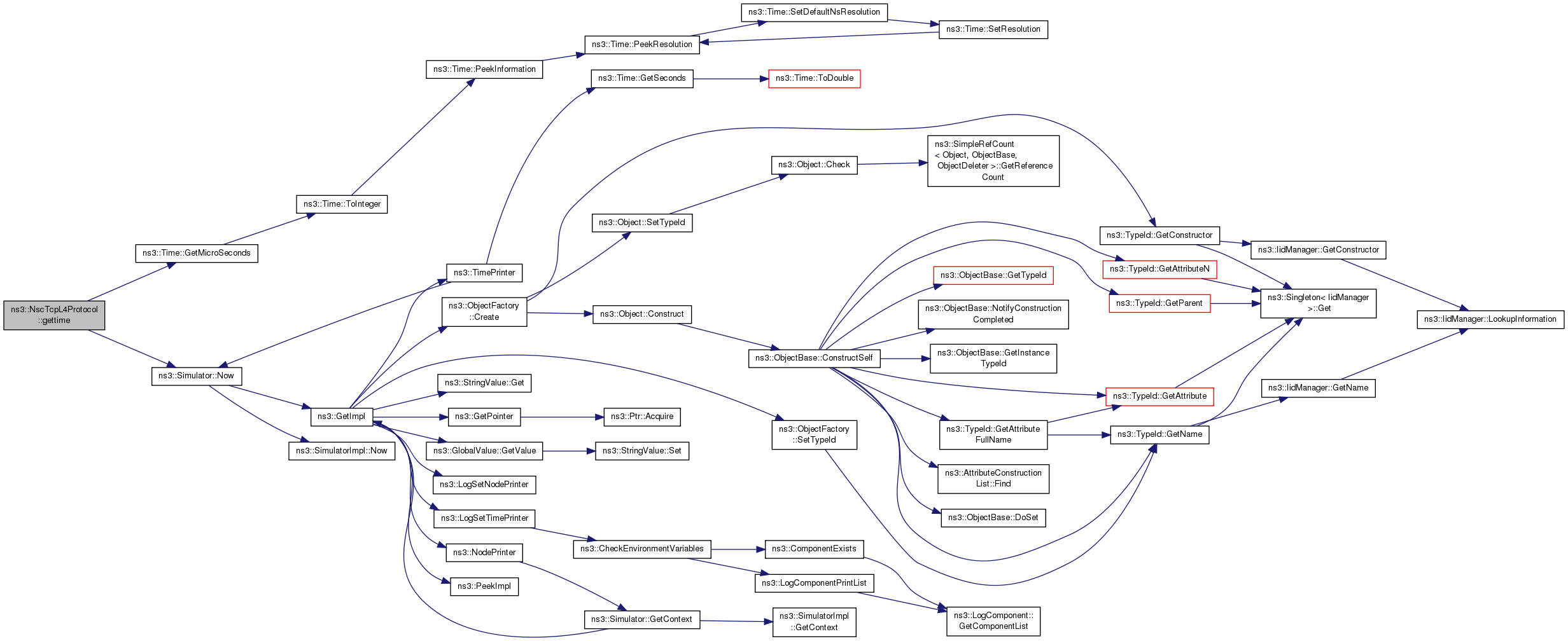

void gettime (unsigned int *sec, unsigned int *usec)
 Called by the Linux stack RNG initialization. More...

NscTcpL4Protocoloperator= (NscTcpL4Protocol const &)
 Copy constructor. More...

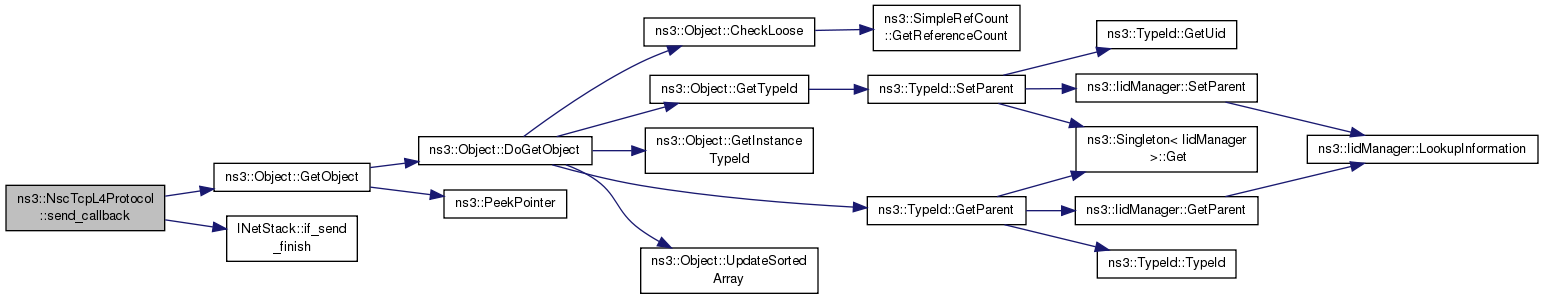

void send_callback (const void *data, int datalen)
 Invoked by NSCs 'ethernet driver' to re-inject a packet into ns-3. More...

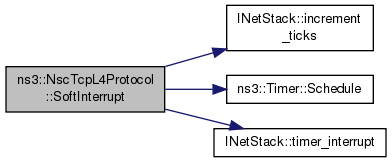

void SoftInterrupt (void)
 Provide a "soft" interrupt to NSC. More...

void wakeup ()
 Called by the NSC stack whenever something of interest has happened. More...


Private Attributes

void * m_dlopenHandle
 dynamic library handle. More...

IpL4Protocol::DownTargetCallback m_downTarget
 Callback to send packets over IPv4. More...

Ipv4EndPointDemuxm_endPoints
 A list of IPv4 end points. More...

Ptr< Nodem_node
 the node this stack is associated with More...

NscInterfaceImplm_nscInterface
 the NSC Interface. More...

std::string m_nscLibrary
 path to the NSC library. More...

INetStackm_nscStack
 the NSC stack. More...

std::vector< Ptr< NscTcpSocketImpl > > m_sockets
 list of sockets More...

Timer m_softTimer
 Soft interrupt timer. More...


Friends

class NscInterfaceImpl

class NscTcpSocketImpl


Additional Inherited Members

- Public Types inherited from ns3::IpL4Protocol
typedef Callback< void, Ptr< Packet >, Ipv4Address, Ipv4Address, uint8_t, Ptr< Ipv4Route > > DownTargetCallback
 callback to send packets over IPv4 More...

typedef Callback< void, Ptr< Packet >, Ipv6Address, Ipv6Address, uint8_t, Ptr< Ipv6Route > > DownTargetCallback6
 callback to send packets over IPv6 More...

enum  RxStatus { RX_OK, RX_CSUM_FAILED, RX_ENDPOINT_CLOSED, RX_ENDPOINT_UNREACH }
 Rx status codes. More...


Detailed Description

Nsc wrapper glue, to interface with the Ipv4 protocol underneath.

Definition at line 46 of file nsc-tcp-l4-protocol.h.

Constructor & Destructor Documentation

ns3::NscTcpL4Protocol::NscTcpL4Protocol ( )

Definition at line 157 of file nsc-tcp-l4-protocol.cc.

References m_dlopenHandle, and NS_LOG_LOGIC.

ns3::NscTcpL4Protocol::~NscTcpL4Protocol ( )
virtual

Definition at line 167 of file nsc-tcp-l4-protocol.cc.

References m_dlopenHandle, and NS_LOG_FUNCTION.

ns3::NscTcpL4Protocol::NscTcpL4Protocol ( NscTcpL4Protocol const &  )
private

Copy constructor.

Defined and not implemented to avoid misuse

Member Function Documentation

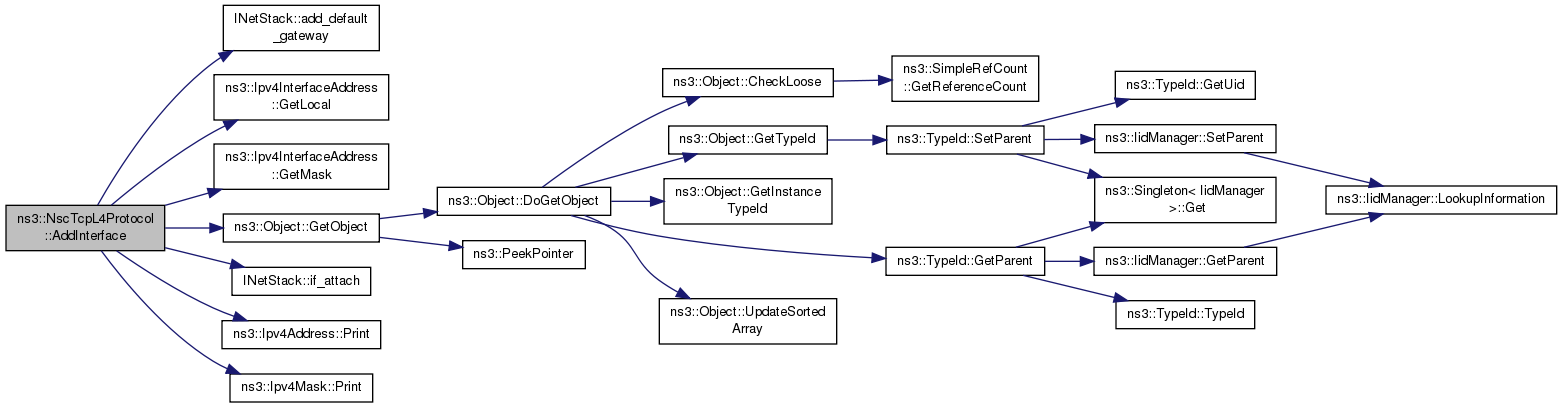

void ns3::NscTcpL4Protocol::AddInterface ( void  )
private

Add an interface.

Actually NSC only supports one interface per node (Bug 1398)

Definition at line 448 of file nsc-tcp-l4-protocol.cc.

References INetStack::add_default_gateway(), ns3::Ipv4InterfaceAddress::GetLocal(), ns3::Ipv4InterfaceAddress::GetMask(), ns3::Object::GetObject(), INetStack::if_attach(), m_node, m_nscStack, NS_ASSERT_MSG, NS_LOG_LOGIC, ns3::Ipv4Address::Print(), and ns3::Ipv4Mask::Print().

Referenced by SetNode().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

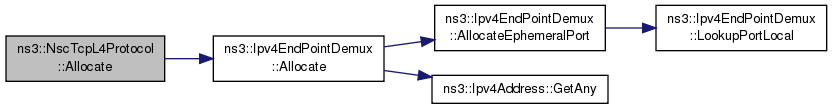

Ipv4EndPoint * ns3::NscTcpL4Protocol::Allocate ( void  )

Allocate an IPv4 Endpoint.

Returns
the Endpoint

Definition at line 298 of file nsc-tcp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv4EndPoint * ns3::NscTcpL4Protocol::Allocate ( Ipv4Address  address)

Allocate an IPv4 Endpoint.

Parameters
addressaddress to use
Returns
the Endpoint

Definition at line 305 of file nsc-tcp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv4EndPoint * ns3::NscTcpL4Protocol::Allocate ( uint16_t  port)

Allocate an IPv4 Endpoint.

Parameters
portport to use
Returns
the Endpoint

Definition at line 312 of file nsc-tcp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv4EndPoint * ns3::NscTcpL4Protocol::Allocate ( Ipv4Address  address,
uint16_t  port
)

Allocate an IPv4 Endpoint.

Parameters
addressaddress to use
portport to use
Returns
the Endpoint

Definition at line 319 of file nsc-tcp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ipv4EndPoint * ns3::NscTcpL4Protocol::Allocate ( Ipv4Address  localAddress,
uint16_t  localPort,
Ipv4Address  peerAddress,
uint16_t  peerPort
)

Allocate an IPv4 Endpoint.

Parameters
localAddresslocal address to use
localPortlocal port to use
peerAddressremote address to use
peerPortremote port to use
Returns
the Endpoint

Definition at line 326 of file nsc-tcp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::Allocate(), m_endPoints, and NS_LOG_FUNCTION.

+ Here is the call graph for this function:

Ptr< Socket > ns3::NscTcpL4Protocol::CreateSocket ( void  )
Returns
A smart Socket pointer to a NscTcpSocketImpl, allocated by this instance of the TCP protocol

Definition at line 286 of file nsc-tcp-l4-protocol.cc.

References m_node, m_sockets, and NS_LOG_FUNCTION.

void ns3::NscTcpL4Protocol::DeAllocate ( Ipv4EndPoint endPoint)

Remove an IPv4 Endpoint.

Parameters
endPointthe end point to remove

Definition at line 335 of file nsc-tcp-l4-protocol.cc.

References NS_LOG_FUNCTION.

void ns3::NscTcpL4Protocol::DoDispose ( void  )
protectedvirtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 262 of file nsc-tcp-l4-protocol.cc.

References ns3::Object::DoDispose(), m_downTarget, m_endPoints, m_node, m_nscInterface, m_sockets, NS_LOG_FUNCTION, and ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::Nullify().

+ Here is the call graph for this function:

IpL4Protocol::DownTargetCallback ns3::NscTcpL4Protocol::GetDownTarget ( void  ) const
virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv4 case)

Returns
current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 508 of file nsc-tcp-l4-protocol.cc.

References m_downTarget.

IpL4Protocol::DownTargetCallback6 ns3::NscTcpL4Protocol::GetDownTarget6 ( void  ) const
virtual

This method allows a caller to get the current down target callback set for this L4 protocol (IPv6 case)

Returns
current Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 514 of file nsc-tcp-l4-protocol.cc.

std::string ns3::NscTcpL4Protocol::GetNscLibrary ( void  ) const

Get the NSC library being used.

Returns
the library path

Definition at line 187 of file nsc-tcp-l4-protocol.cc.

References m_nscLibrary.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

int ns3::NscTcpL4Protocol::GetProtocolNumber ( void  ) const
virtual

Returns the protocol number of this protocol.

Returns
the protocol number.

Implements ns3::IpL4Protocol.

Definition at line 251 of file nsc-tcp-l4-protocol.cc.

References PROT_NUMBER.

void ns3::NscTcpL4Protocol::gettime ( unsigned int *  sec,
unsigned int *  usec
)
private

Called by the Linux stack RNG initialization.

Its also used by the cradle code to add a timestamp to printk/printf/debug output.

Parameters
secseconds
usecmicroseconds

Definition at line 436 of file nsc-tcp-l4-protocol.cc.

References ns3::Time::GetMicroSeconds(), and ns3::Simulator::Now().

+ Here is the call graph for this function:

TypeId ns3::NscTcpL4Protocol::GetTypeId ( void  )
static
int ns3::NscTcpL4Protocol::GetVersion ( void  ) const
virtual

Get the NSC version.

Returns
the NSC version

Definition at line 256 of file nsc-tcp-l4-protocol.cc.

void ns3::NscTcpL4Protocol::NotifyNewAggregate ( void  )
protectedvirtual

Notify all Objects aggregated to this one of a new Object being aggregated.

This function must be implemented in the stack that needs to notify other stacks connected to the node of their presence in the node.

This method is invoked whenever two sets of Objects are aggregated together. It is invoked exactly once for each Object in both sets. This method can be overriden by subclasses who wish to be notified of aggregation events. These subclasses must chain up to their base class NotifyNewAggregate() method.

It is safe to call GetObject() and AggregateObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 228 of file nsc-tcp-l4-protocol.cc.

References ns3::Object::AggregateObject(), ns3::Callback< R, T1, T2, T3, T4, T5, T6, T7, T8, T9 >::IsNull(), m_downTarget, m_node, ns3::MakeCallback(), ns3::Object::NotifyNewAggregate(), ns3::Ipv4L3Protocol::Send(), SetDownTarget(), and SetNode().

+ Here is the call graph for this function:

NscTcpL4Protocol& ns3::NscTcpL4Protocol::operator= ( NscTcpL4Protocol const &  )
private

Copy constructor.

Defined and not implemented to avoid misuse

Returns
IpL4Protocol::RxStatus ns3::NscTcpL4Protocol::Receive ( Ptr< Packet p,
Ipv4Header const &  header,
Ptr< Ipv4Interface incomingInterface
)
virtual

Called from lower-level layers to send the packet up in the stack.

Parameters
ppacket to forward up
headerIPv4 Header information
incomingInterfacethe Ipv4Interface on which the packet arrived
Returns
Rx status code

Implements ns3::IpL4Protocol.

Definition at line 342 of file nsc-tcp-l4-protocol.cc.

References ns3::Packet::AddHeader(), ns3::Packet::CopyData(), data, ns3::Ipv4Header::EnableChecksum(), ns3::Ipv4Header::GetDestination(), ns3::Packet::GetSize(), ns3::Ipv4Header::GetSource(), INetStack::if_receive_packet(), m_nscStack, NS_LOG_FUNCTION, packetSize, PROT_NUMBER, ns3::IpL4Protocol::RX_OK, ns3::Ipv4Header::SetDestination(), ns3::Ipv4Header::SetPayloadSize(), ns3::Ipv4Header::SetProtocol(), ns3::Ipv4Header::SetSource(), ns3::Ipv4Header::SetTtl(), and wakeup().

+ Here is the call graph for this function:

IpL4Protocol::RxStatus ns3::NscTcpL4Protocol::Receive ( Ptr< Packet p,
Ipv6Header const &  header,
Ptr< Ipv6Interface incomingInterface
)
virtual

Called from lower-level layers to send the packet up in the stack.

Parameters
ppacket to forward up
headerIPv6 Header information
incomingInterfacethe Ipv6Interface on which the packet arrived
Returns
Rx status code

Implements ns3::IpL4Protocol.

Definition at line 379 of file nsc-tcp-l4-protocol.cc.

References ns3::IpL4Protocol::RX_ENDPOINT_UNREACH.

void ns3::NscTcpL4Protocol::send_callback ( const void *  data,
int  datalen
)
private

Invoked by NSCs 'ethernet driver' to re-inject a packet into ns-3.

A packet is an octet soup consisting of an IP Header, TCP Header and user payload, if any

Parameters
datathe data
datalenthe data length

Definition at line 391 of file nsc-tcp-l4-protocol.cc.

References data, ns3::Object::GetObject(), INetStack::if_send_finish(), m_downTarget, m_node, m_nscStack, NS_ASSERT, NS_ASSERT_MSG, and PROT_NUMBER.

+ Here is the call graph for this function:

void ns3::NscTcpL4Protocol::SetDownTarget ( IpL4Protocol::DownTargetCallback  cb)
virtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv4 case)

Parameters
cbcurrent Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 497 of file nsc-tcp-l4-protocol.cc.

References m_downTarget.

Referenced by NotifyNewAggregate().

+ Here is the caller graph for this function:

void ns3::NscTcpL4Protocol::SetDownTarget6 ( IpL4Protocol::DownTargetCallback6  cb)
virtual

This method allows a caller to set the current down target callback set for this L4 protocol (IPv6 case)

Parameters
cbcurrent Callback for the L4 protocol

Implements ns3::IpL4Protocol.

Definition at line 503 of file nsc-tcp-l4-protocol.cc.

void ns3::NscTcpL4Protocol::SetNode ( Ptr< Node node)

Set node associated with this stack.

Parameters
nodethe node

Definition at line 192 of file nsc-tcp-l4-protocol.cc.

References AddInterface(), ns3::Object::AggregateObject(), ns3::external_rand(), INetStack::get_hz(), INetStack::init(), m_dlopenHandle, m_node, m_nscInterface, m_nscStack, m_softTimer, ns3::MilliSeconds(), NS_ASSERT, ns3::Timer::Schedule(), ns3::Simulator::ScheduleNow(), ns3::Timer::SetDelay(), ns3::Timer::SetFunction(), and SoftInterrupt().

Referenced by NotifyNewAggregate().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::NscTcpL4Protocol::SetNscLibrary ( const std::string &  lib)

Set the NSC library to be used.

Parameters
libthe library path

Definition at line 174 of file nsc-tcp-l4-protocol.cc.

References m_dlopenHandle, m_nscLibrary, NS_ASSERT, and NS_FATAL_ERROR.

Referenced by GetTypeId().

+ Here is the caller graph for this function:

void ns3::NscTcpL4Protocol::SoftInterrupt ( void  )
private

Provide a "soft" interrupt to NSC.

Definition at line 384 of file nsc-tcp-l4-protocol.cc.

References INetStack::increment_ticks(), m_nscStack, m_softTimer, ns3::Timer::Schedule(), and INetStack::timer_interrupt().

Referenced by SetNode().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::NscTcpL4Protocol::wakeup ( )
private

Called by the NSC stack whenever something of interest has happened.

Examples: when data arrives on a socket, a listen socket has a new connection pending, etc.

Definition at line 422 of file nsc-tcp-l4-protocol.cc.

References ns3::Ipv4EndPointDemux::GetAllEndPoints(), and m_endPoints.

Referenced by Receive().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

Friends And Related Function Documentation

friend class NscInterfaceImpl
friend

Definition at line 203 of file nsc-tcp-l4-protocol.h.

friend class NscTcpSocketImpl
friend

Definition at line 204 of file nsc-tcp-l4-protocol.h.

Member Data Documentation

void* ns3::NscTcpL4Protocol::m_dlopenHandle
private

dynamic library handle.

Definition at line 210 of file nsc-tcp-l4-protocol.h.

Referenced by NscTcpL4Protocol(), SetNode(), SetNscLibrary(), and ~NscTcpL4Protocol().

IpL4Protocol::DownTargetCallback ns3::NscTcpL4Protocol::m_downTarget
private

Callback to send packets over IPv4.

Definition at line 214 of file nsc-tcp-l4-protocol.h.

Referenced by DoDispose(), GetDownTarget(), NotifyNewAggregate(), send_callback(), and SetDownTarget().

Ipv4EndPointDemux* ns3::NscTcpL4Protocol::m_endPoints
private

A list of IPv4 end points.

Definition at line 207 of file nsc-tcp-l4-protocol.h.

Referenced by Allocate(), DoDispose(), and wakeup().

Ptr<Node> ns3::NscTcpL4Protocol::m_node
private

the node this stack is associated with

Definition at line 206 of file nsc-tcp-l4-protocol.h.

Referenced by AddInterface(), CreateSocket(), DoDispose(), NotifyNewAggregate(), send_callback(), and SetNode().

NscInterfaceImpl* ns3::NscTcpL4Protocol::m_nscInterface
private

the NSC Interface.

Definition at line 209 of file nsc-tcp-l4-protocol.h.

Referenced by DoDispose(), and SetNode().

std::string ns3::NscTcpL4Protocol::m_nscLibrary
private

path to the NSC library.

Definition at line 211 of file nsc-tcp-l4-protocol.h.

Referenced by GetNscLibrary(), and SetNscLibrary().

INetStack* ns3::NscTcpL4Protocol::m_nscStack
private

the NSC stack.

Definition at line 208 of file nsc-tcp-l4-protocol.h.

Referenced by AddInterface(), Receive(), send_callback(), SetNode(), and SoftInterrupt().

std::vector<Ptr<NscTcpSocketImpl> > ns3::NscTcpL4Protocol::m_sockets
private

list of sockets

Definition at line 213 of file nsc-tcp-l4-protocol.h.

Referenced by CreateSocket(), DoDispose(), and GetTypeId().

Timer ns3::NscTcpL4Protocol::m_softTimer
private

Soft interrupt timer.

Definition at line 212 of file nsc-tcp-l4-protocol.h.

Referenced by SetNode(), and SoftInterrupt().

const uint8_t ns3::NscTcpL4Protocol::PROT_NUMBER = 6
static

protocol number (0x6)

Definition at line 48 of file nsc-tcp-l4-protocol.h.

Referenced by GetProtocolNumber(), Receive(), and send_callback().


The documentation for this class was generated from the following files:
