An Address Block and its associated Address TLV Blocks. More...

#include "packetbb.h"

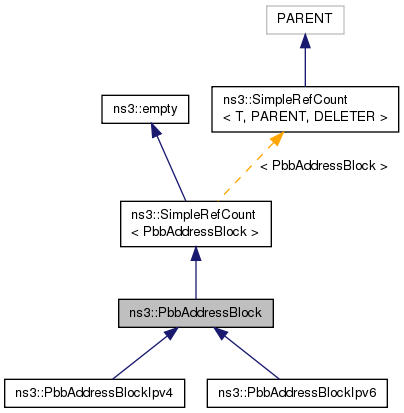

Inheritance diagram for ns3::PbbAddressBlock:

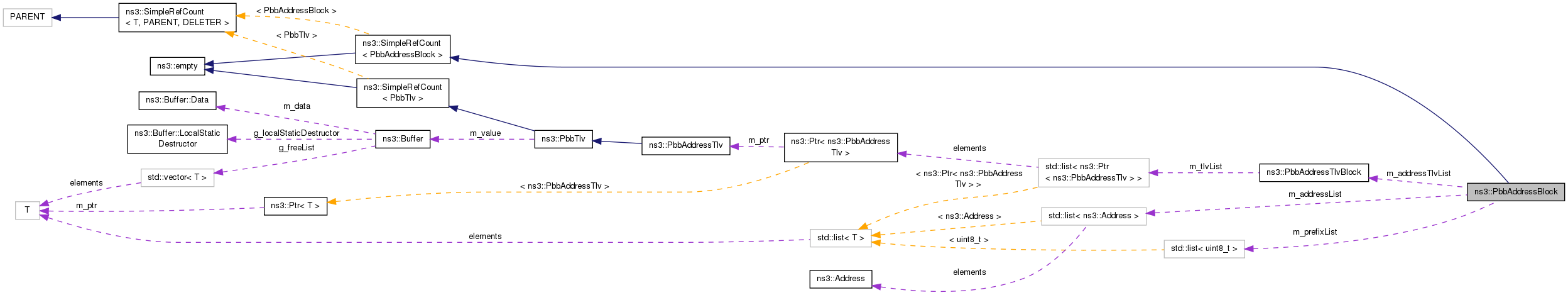

Collaboration diagram for ns3::PbbAddressBlock:

Public Types
typedef std::list< Address >::iterator	AddressIterator
	Address iterator. More...

typedef std::list< Address >::const_iterator	ConstAddressIterator
	Address const iterator. More...

typedef std::list< uint8_t >::const_iterator	ConstPrefixIterator
	Prefix const iterator. More...

typedef PbbAddressTlvBlock::ConstIterator	ConstTlvIterator
	tlvblock const iterator More...

typedef std::list< uint8_t >::iterator	PrefixIterator
	Prefix iterator. More...

typedef PbbAddressTlvBlock::Iterator	TlvIterator
	tlvblock iterator More...

Public Member Functions
	PbbAddressBlock ()

virtual	~PbbAddressBlock ()

Address	AddressBack (void) const

AddressIterator	AddressBegin (void)

ConstAddressIterator	AddressBegin (void) const

void	AddressClear (void)
	Removes all addresses from this block. More...

bool	AddressEmpty (void) const

AddressIterator	AddressEnd (void)

ConstAddressIterator	AddressEnd (void) const

AddressIterator	AddressErase (AddressIterator position)
	Removes the address at the specified position. More...

AddressIterator	AddressErase (AddressIterator first, AddressIterator last)
	Removes all addresses from [first, last) (includes first, not includes last). More...

Address	AddressFront (void) const

AddressIterator	AddressInsert (AddressIterator position, const Address value)
	Inserts an address at the specified position in this block. More...

void	AddressPopBack (void)
	Removes an address from the back of this block. More...

void	AddressPopFront (void)
	Removes an address from the front of this block. More...

void	AddressPushBack (Address address)
	Appends an address to the back of this block. More...

void	AddressPushFront (Address address)
	Prepends an address to the front of this block. More...

int	AddressSize (void) const

void	Deserialize (Buffer::Iterator &start)
	Deserializes an address block from the specified buffer. More...

uint32_t	GetSerializedSize (void) const

bool	operator!= (const PbbAddressBlock &other) const
	Inequality operator for PbbAddressBlock. More...

bool	operator== (const PbbAddressBlock &other) const
	Equality operator for PbbAddressBlock. More...

uint8_t	PrefixBack (void) const

PrefixIterator	PrefixBegin (void)

ConstPrefixIterator	PrefixBegin (void) const

void	PrefixClear (void)
	Removes all prefixes from this block. More...

bool	PrefixEmpty (void) const

PrefixIterator	PrefixEnd (void)

ConstPrefixIterator	PrefixEnd (void) const

PrefixIterator	PrefixErase (PrefixIterator position)
	Removes the prefix at the specified position. More...

PrefixIterator	PrefixErase (PrefixIterator first, PrefixIterator last)
	Removes all prefixes from [first, last) (includes first, not includes last). More...

uint8_t	PrefixFront (void) const

PrefixIterator	PrefixInsert (PrefixIterator position, const uint8_t value)
	Inserts a prefix at the specified position in this block. More...

void	PrefixPopBack (void)
	Removes a prefix from the back of this block. More...

void	PrefixPopFront (void)
	Removes a prefix from the front of this block. More...

void	PrefixPushBack (uint8_t prefix)
	Appends a prefix to the back of this block. More...

void	PrefixPushFront (uint8_t prefix)
	Prepends a prefix to the front of this block. More...

int	PrefixSize (void) const

void	Print (std::ostream &os) const
	Pretty-prints the contents of this address block. More...

void	Print (std::ostream &os, int level) const
	Pretty-prints the contents of this address block, with specified indentation. More...

void	Serialize (Buffer::Iterator &start) const
	Serializes this address block into the specified buffer. More...

Ptr< PbbAddressTlv >	TlvBack (void)

const Ptr< PbbAddressTlv >	TlvBack (void) const

TlvIterator	TlvBegin (void)

ConstTlvIterator	TlvBegin (void) const

void	TlvClear (void)
	Removes all address TLVs from this block. More...

bool	TlvEmpty (void) const

TlvIterator	TlvEnd (void)

ConstTlvIterator	TlvEnd (void) const

TlvIterator	TlvErase (TlvIterator position)
	Removes the address TLV at the specified position. More...

TlvIterator	TlvErase (TlvIterator first, TlvIterator last)
	Removes all address TLVs from [first, last) (includes first, not includes last). More...

Ptr< PbbAddressTlv >	TlvFront (void)

const Ptr< PbbAddressTlv >	TlvFront (void) const

TlvIterator	TlvInsert (TlvIterator position, const Ptr< PbbTlv > value)
	Inserts an address TLV at the specified position in this block. More...

void	TlvPopBack (void)
	Removes an address TLV from the back of this message. More...

void	TlvPopFront (void)
	Removes an address TLV from the front of this message. More...

void	TlvPushBack (Ptr< PbbAddressTlv > address)
	Appends an address TLV to the back of this message. More...

void	TlvPushFront (Ptr< PbbAddressTlv > address)
	Prepends an address TLV to the front of this message. More...

int	TlvSize (void) const

Public Member Functions inherited from ns3::SimpleRefCount< PbbAddressBlock >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Protected Member Functions
virtual Address	DeserializeAddress (uint8_t *buffer) const =0
	Deserialize one address. More...

virtual uint8_t	GetAddressLength (void) const =0
	Returns address length. More...

virtual void	PrintAddress (std::ostream &os, ConstAddressIterator iter) const =0
	Print one or more addresses. More...

virtual void	SerializeAddress (uint8_t *buffer, ConstAddressIterator iter) const =0
	Serialize one or more addresses. More...

Private Member Functions
void	GetHeadTail (uint8_t head, uint8_t &headlen, uint8_t tail, uint8_t &taillen) const
	Get head and tail. More...

uint8_t	GetPrefixFlags (void) const
	Get the prefix flags. More...

bool	HasZeroTail (const uint8_t *tail, uint8_t taillen) const
	Check if the tail is empty. More...

Private Attributes
std::list< Address >	m_addressList
	Addreses container. More...

PbbAddressTlvBlock	m_addressTlvList
	PbbAddressTlv container. More...

std::list< uint8_t >	m_prefixList
	Prefixes container. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< PbbAddressBlock >
static void	Cleanup (void)
	Noop. More...

Detailed Description

An Address Block and its associated Address TLV Blocks.

This is a pure virtual base class, when creating address blocks, you should instantiate either PbbAddressBlockIpv4 or PbbAddressBlockIpv6.

Definition at line 1184 of file packetbb.h.

Member Typedef Documentation

typedef std::list< Address >::iterator ns3::PbbAddressBlock::AddressIterator

Address iterator.

Definition at line 1188 of file packetbb.h.

typedef std::list< Address >::const_iterator ns3::PbbAddressBlock::ConstAddressIterator

Address const iterator.

Definition at line 1190 of file packetbb.h.

typedef std::list<uint8_t>::const_iterator ns3::PbbAddressBlock::ConstPrefixIterator

Prefix const iterator.

Definition at line 1195 of file packetbb.h.

typedef PbbAddressTlvBlock::ConstIterator ns3::PbbAddressBlock::ConstTlvIterator

tlvblock const iterator

Definition at line 1200 of file packetbb.h.

typedef std::list<uint8_t>::iterator ns3::PbbAddressBlock::PrefixIterator

Prefix iterator.

Definition at line 1193 of file packetbb.h.

typedef PbbAddressTlvBlock::Iterator ns3::PbbAddressBlock::TlvIterator

tlvblock iterator

Definition at line 1198 of file packetbb.h.

Constructor & Destructor Documentation

ns3::PbbAddressBlock::PbbAddressBlock ( )

Definition at line 1838 of file packetbb.cc.

References NS_LOG_FUNCTION.

ns3::PbbAddressBlock::~PbbAddressBlock ( )

virtual

Definition at line 1843 of file packetbb.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

Address ns3::PbbAddressBlock::AddressBack ( void ) const

Returns: the last address in this block.

Definition at line 1900 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

PbbAddressBlock::AddressIterator ns3::PbbAddressBlock::AddressBegin ( void )

Returns: an iterator to the first address in this block.

Definition at line 1851 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Referenced by GetHeadTail(), operator==(), Print(), and Serialize().

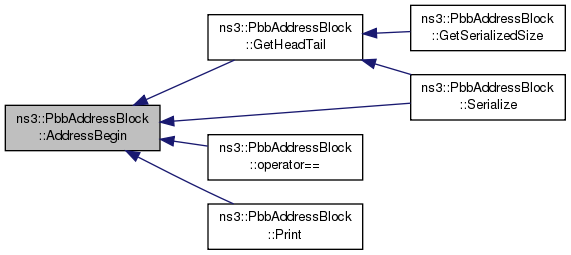

Here is the caller graph for this function:

PbbAddressBlock::ConstAddressIterator ns3::PbbAddressBlock::AddressBegin ( void ) const

Returns: a const iterator to the first address in this block.

Definition at line 1858 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

void ns3::PbbAddressBlock::AddressClear ( void )

Removes all addresses from this block.

Definition at line 1950 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

bool ns3::PbbAddressBlock::AddressEmpty ( void ) const

Returns: true if there are no addresses in this block, false otherwise.

Definition at line 1886 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

PbbAddressBlock::AddressIterator ns3::PbbAddressBlock::AddressEnd ( void )

Returns: an iterator to the last address in this block.

Definition at line 1865 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Referenced by GetHeadTail(), operator==(), Print(), and Serialize().

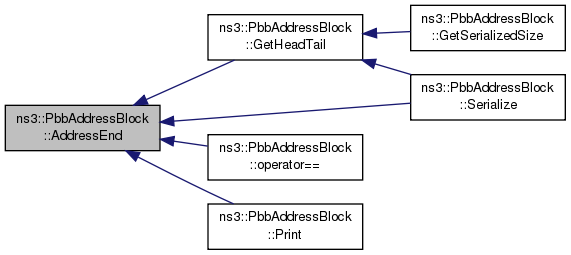

Here is the caller graph for this function:

PbbAddressBlock::ConstAddressIterator ns3::PbbAddressBlock::AddressEnd ( void ) const

Returns: a const iterator to the last address in this block.

Definition at line 1872 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

PbbAddressBlock::AddressIterator ns3::PbbAddressBlock::AddressErase ( PbbAddressBlock::AddressIterator position )

Removes the address at the specified position.

Parameters

position an Iterator pointing to the address to erase.

Returns: an iterator pointing to the next address in the block.

Definition at line 1935 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

PbbAddressBlock::AddressIterator ns3::PbbAddressBlock::AddressErase	(	PbbAddressBlock::AddressIterator	first,
		PbbAddressBlock::AddressIterator	last
	)

Removes all addresses from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first address to erase (inclusive).
last	an Iterator pointing to the element past the last address to erase.

Returns: an iterator pointing to the next address in the block.

Definition at line 1942 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Address ns3::PbbAddressBlock::AddressFront ( void ) const

Returns: the first address in this block.

Definition at line 1893 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

AddressIterator ns3::PbbAddressBlock::AddressInsert	(	AddressIterator	position,
		const Address	value
	)

Inserts an address at the specified position in this block.

Parameters

position	an Iterator pointing to the position in this block to insert the address.
value	the address to insert.

Returns: An iterator pointing to the newly inserted address.

void ns3::PbbAddressBlock::AddressPopBack ( void )

Removes an address from the back of this block.

Definition at line 1928 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

void ns3::PbbAddressBlock::AddressPopFront ( void )

Removes an address from the front of this block.

Definition at line 1914 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

void ns3::PbbAddressBlock::AddressPushBack ( Address address )

Appends an address to the back of this block.

Parameters

address the address to append.

Definition at line 1921 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

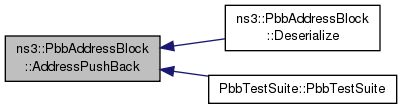

Here is the caller graph for this function:

void ns3::PbbAddressBlock::AddressPushFront ( Address address )

Prepends an address to the front of this block.

Parameters

address the address to prepend.

Definition at line 1907 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

int ns3::PbbAddressBlock::AddressSize ( void ) const

Returns: the number of addresses in this block.

Definition at line 1879 of file packetbb.cc.

References m_addressList, and NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), operator==(), and Serialize().

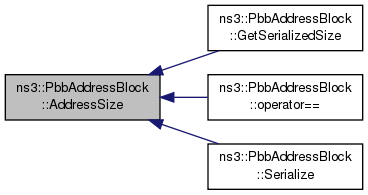

Here is the caller graph for this function:

void ns3::PbbAddressBlock::Deserialize ( Buffer::Iterator & start )

Deserializes an address block from the specified buffer.

Parameters

start a reference to the point in a buffer to begin deserializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 2324 of file packetbb.cc.

References AddressPushBack(), AHAS_FULL_TAIL, AHAS_HEAD, AHAS_MULTI_PRE_LEN, AHAS_SINGLE_PRE_LEN, AHAS_ZERO_TAIL, ns3::PbbAddressTlvBlock::Deserialize(), DeserializeAddress(), GetAddressLength(), m_addressTlvList, NS_LOG_FUNCTION, PrefixPushBack(), ns3::Buffer::Iterator::Read(), and ns3::Buffer::Iterator::ReadU8().

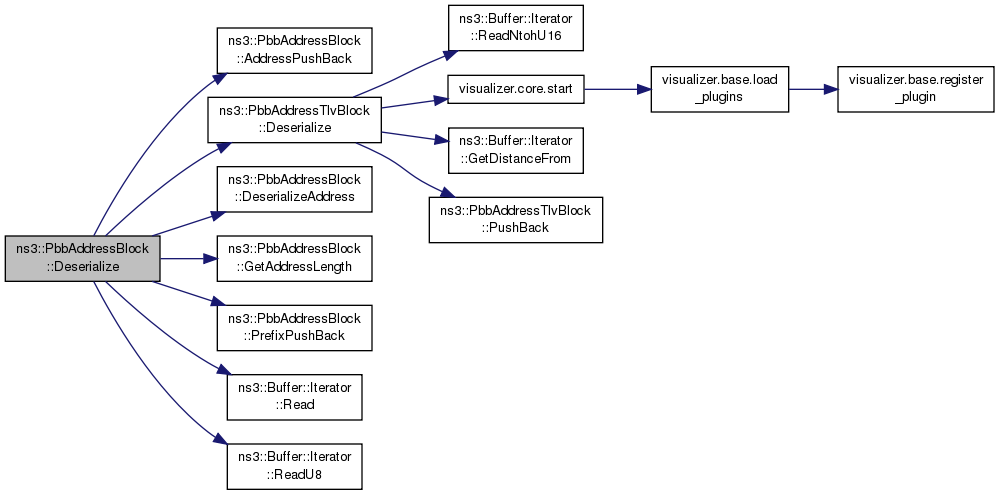

Here is the call graph for this function:

virtual Address ns3::PbbAddressBlock::DeserializeAddress ( uint8_t * buffer ) const

protectedpure virtual

Deserialize one address.

Parameters

buffer the buffer to deserialize from

Returns: the address

Implemented in ns3::PbbAddressBlockIpv6, and ns3::PbbAddressBlockIpv4.

Referenced by Deserialize().

Here is the caller graph for this function:

virtual uint8_t ns3::PbbAddressBlock::GetAddressLength ( void ) const

protectedpure virtual

Returns address length.

Returns: Address length

Implemented in ns3::PbbAddressBlockIpv6, and ns3::PbbAddressBlockIpv4.

Referenced by Deserialize(), GetHeadTail(), GetSerializedSize(), and Serialize().

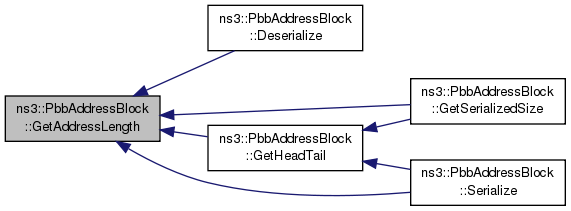

Here is the caller graph for this function:

void ns3::PbbAddressBlock::GetHeadTail	(	uint8_t *	head,
		uint8_t &	headlen,
		uint8_t *	tail,
		uint8_t &	taillen
	)		const

private

Get head and tail.

Parameters

head	the head
headlen	the head length
tail	the tail
taillen	the tail length

Definition at line 2487 of file packetbb.cc.

References AddressBegin(), AddressEnd(), GetAddressLength(), NS_LOG_FUNCTION, and SerializeAddress().

Referenced by GetSerializedSize(), and Serialize().

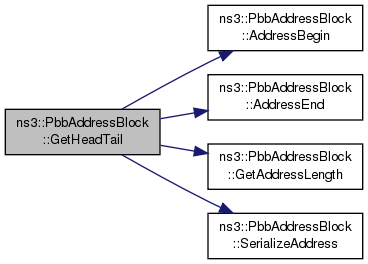

Here is the call graph for this function:

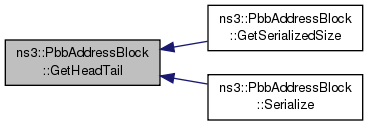

Here is the caller graph for this function:

uint8_t ns3::PbbAddressBlock::GetPrefixFlags ( void ) const

private

Get the prefix flags.

Returns: the prefix flags

Definition at line 2466 of file packetbb.cc.

References AHAS_MULTI_PRE_LEN, AHAS_SINGLE_PRE_LEN, NS_LOG_FUNCTION, and PrefixSize().

Referenced by Serialize().

Here is the call graph for this function:

Here is the caller graph for this function:

uint32_t ns3::PbbAddressBlock::GetSerializedSize ( void ) const

Returns: The size (in bytes) needed to serialize this address block.

Definition at line 2192 of file packetbb.cc.

References AddressSize(), GetAddressLength(), GetHeadTail(), ns3::PbbAddressTlvBlock::GetSerializedSize(), HasZeroTail(), m_addressTlvList, NS_LOG_FUNCTION, and PrefixSize().

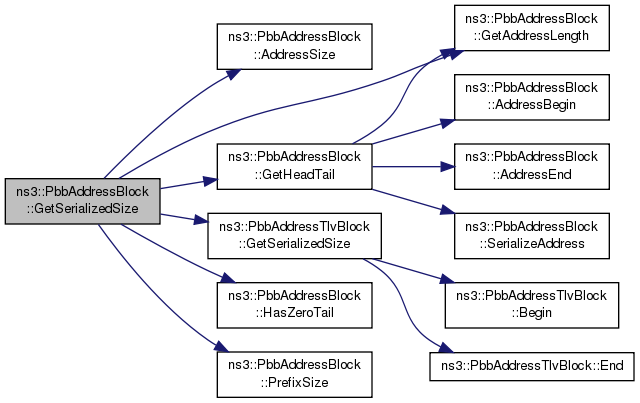

Here is the call graph for this function:

bool ns3::PbbAddressBlock::HasZeroTail	(	const uint8_t *	tail,
		uint8_t	taillen
	)		const

private

Check if the tail is empty.

Parameters

tail	the tail
taillen	the tail length

Returns: true if the tail is empty

Definition at line 2552 of file packetbb.cc.

References NS_LOG_FUNCTION.

Referenced by GetSerializedSize(), and Serialize().

Here is the caller graph for this function:

bool ns3::PbbAddressBlock::operator!= ( const PbbAddressBlock & other ) const

Inequality operator for PbbAddressBlock.

Parameters

other PbbAddressBlock to compare to this one

Returns: true if PbbAddressBlock are not equal

Definition at line 2460 of file packetbb.cc.

bool ns3::PbbAddressBlock::operator== ( const PbbAddressBlock & other ) const

Equality operator for PbbAddressBlock.

Parameters

other PbbAddressBlock to compare to this one

Returns: true if PbbMessages are equal

Definition at line 2417 of file packetbb.cc.

References AddressBegin(), AddressEnd(), AddressSize(), m_addressTlvList, PrefixBegin(), PrefixEnd(), and PrefixSize().

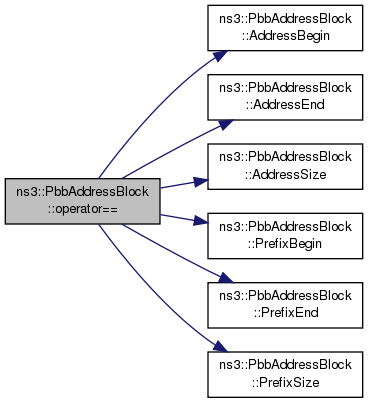

Here is the call graph for this function:

uint8_t ns3::PbbAddressBlock::PrefixBack ( void ) const

Returns: the last prefix in this block.

Definition at line 2008 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixBegin ( void )

Returns: an iterator to the first prefix in this block.

Definition at line 1959 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

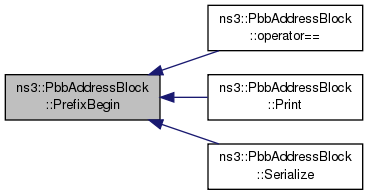

Here is the caller graph for this function:

PbbAddressBlock::ConstPrefixIterator ns3::PbbAddressBlock::PrefixBegin ( void ) const

Returns: a const iterator to the first prefix in this block.

Definition at line 1966 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

void ns3::PbbAddressBlock::PrefixClear ( void )

Removes all prefixes from this block.

Definition at line 2064 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

bool ns3::PbbAddressBlock::PrefixEmpty ( void ) const

Returns: true if there are no prefixes in this block, false otherwise.

Definition at line 1994 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixEnd ( void )

Returns: an iterator to the last prefix in this block.

Definition at line 1973 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by operator==(), Print(), and Serialize().

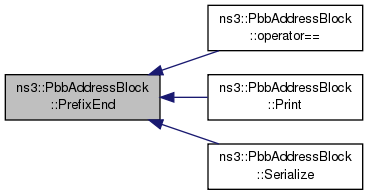

Here is the caller graph for this function:

PbbAddressBlock::ConstPrefixIterator ns3::PbbAddressBlock::PrefixEnd ( void ) const

Returns: a const iterator to the last prefix in this block.

Definition at line 1980 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixErase ( PbbAddressBlock::PrefixIterator position )

Removes the prefix at the specified position.

Parameters

position an Iterator pointing to the prefix to erase.

Returns: an iterator pointing to the next prefix in the block.

Definition at line 2050 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixErase	(	PbbAddressBlock::PrefixIterator	first,
		PbbAddressBlock::PrefixIterator	last
	)

Removes all prefixes from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first prefix to erase (inclusive).
last	an Iterator pointing to the element past the last prefix to erase.

Returns: an iterator pointing to the next prefix in the block.

Definition at line 2057 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

uint8_t ns3::PbbAddressBlock::PrefixFront ( void ) const

Returns: the first prefix in this block.

Definition at line 2001 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by Serialize().

Here is the caller graph for this function:

PbbAddressBlock::PrefixIterator ns3::PbbAddressBlock::PrefixInsert	(	PbbAddressBlock::PrefixIterator	position,
		const uint8_t	value
	)

Inserts a prefix at the specified position in this block.

Parameters

position	an Iterator pointing to the position in this block to insert the prefix.
value	the prefix to insert.

Returns: An iterator pointing to the newly inserted prefix.

Definition at line 2043 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

void ns3::PbbAddressBlock::PrefixPopBack ( void )

Removes a prefix from the back of this block.

Definition at line 2036 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

void ns3::PbbAddressBlock::PrefixPopFront ( void )

Removes a prefix from the front of this block.

Definition at line 2022 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

void ns3::PbbAddressBlock::PrefixPushBack ( uint8_t prefix )

Appends a prefix to the back of this block.

Parameters

prefix the prefix to append.

Definition at line 2029 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by Deserialize(), and PbbTestSuite::PbbTestSuite().

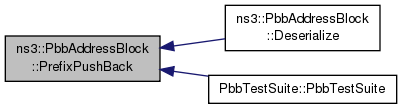

Here is the caller graph for this function:

void ns3::PbbAddressBlock::PrefixPushFront ( uint8_t prefix )

Prepends a prefix to the front of this block.

Parameters

prefix the prefix to prepend.

Definition at line 2015 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

int ns3::PbbAddressBlock::PrefixSize ( void ) const

Returns: the number of prefixes in this block.

Definition at line 1987 of file packetbb.cc.

References m_prefixList, and NS_LOG_FUNCTION.

Referenced by GetPrefixFlags(), GetSerializedSize(), operator==(), and Serialize().

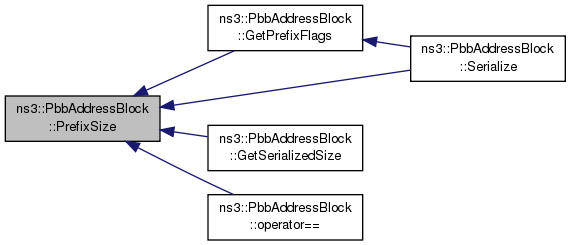

Here is the caller graph for this function:

void ns3::PbbAddressBlock::Print ( std::ostream & os ) const

Pretty-prints the contents of this address block.

Parameters

os	a stream object to print to.

Definition at line 2378 of file packetbb.cc.

References NS_LOG_FUNCTION.

void ns3::PbbAddressBlock::Print	(	std::ostream &	os,
		int	level
	)		const

Pretty-prints the contents of this address block, with specified indentation.

Parameters

os	a stream object to print to.
level	level of indentation.

This probably never needs to be called by users. This is used when recursively printing sub-objects.

Definition at line 2385 of file packetbb.cc.

References AddressBegin(), AddressEnd(), m_addressTlvList, NS_LOG_FUNCTION, PrefixBegin(), PrefixEnd(), ns3::PbbAddressTlvBlock::Print(), and PrintAddress().

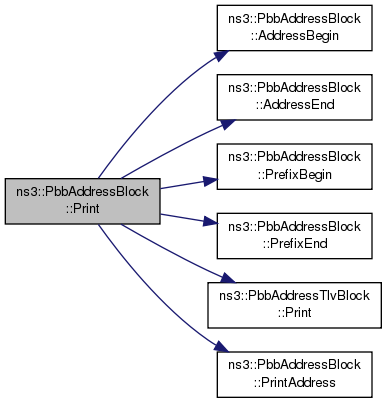

Here is the call graph for this function:

virtual void ns3::PbbAddressBlock::PrintAddress	(	std::ostream &	os,
		ConstAddressIterator	iter
	)		const

protectedpure virtual

Print one or more addresses.

Parameters

os	the output stream
iter	the iterator to the addresses

Implemented in ns3::PbbAddressBlockIpv6, and ns3::PbbAddressBlockIpv4.

Referenced by Print().

Here is the caller graph for this function:

void ns3::PbbAddressBlock::Serialize ( Buffer::Iterator & start ) const

Serializes this address block into the specified buffer.

Parameters

start a reference to the point in a buffer to begin serializing.

Users should not need to call this. Blocks will be deserialized by their containing packet.

Definition at line 2240 of file packetbb.cc.

References AddressBegin(), AddressEnd(), AddressSize(), AHAS_FULL_TAIL, AHAS_HEAD, AHAS_SINGLE_PRE_LEN, AHAS_ZERO_TAIL, GetAddressLength(), GetHeadTail(), GetPrefixFlags(), HasZeroTail(), m_addressTlvList, ns3::Buffer::Iterator::Next(), NS_LOG_FUNCTION, PrefixBegin(), PrefixEnd(), PrefixFront(), PrefixSize(), ns3::PbbAddressTlvBlock::Serialize(), SerializeAddress(), visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

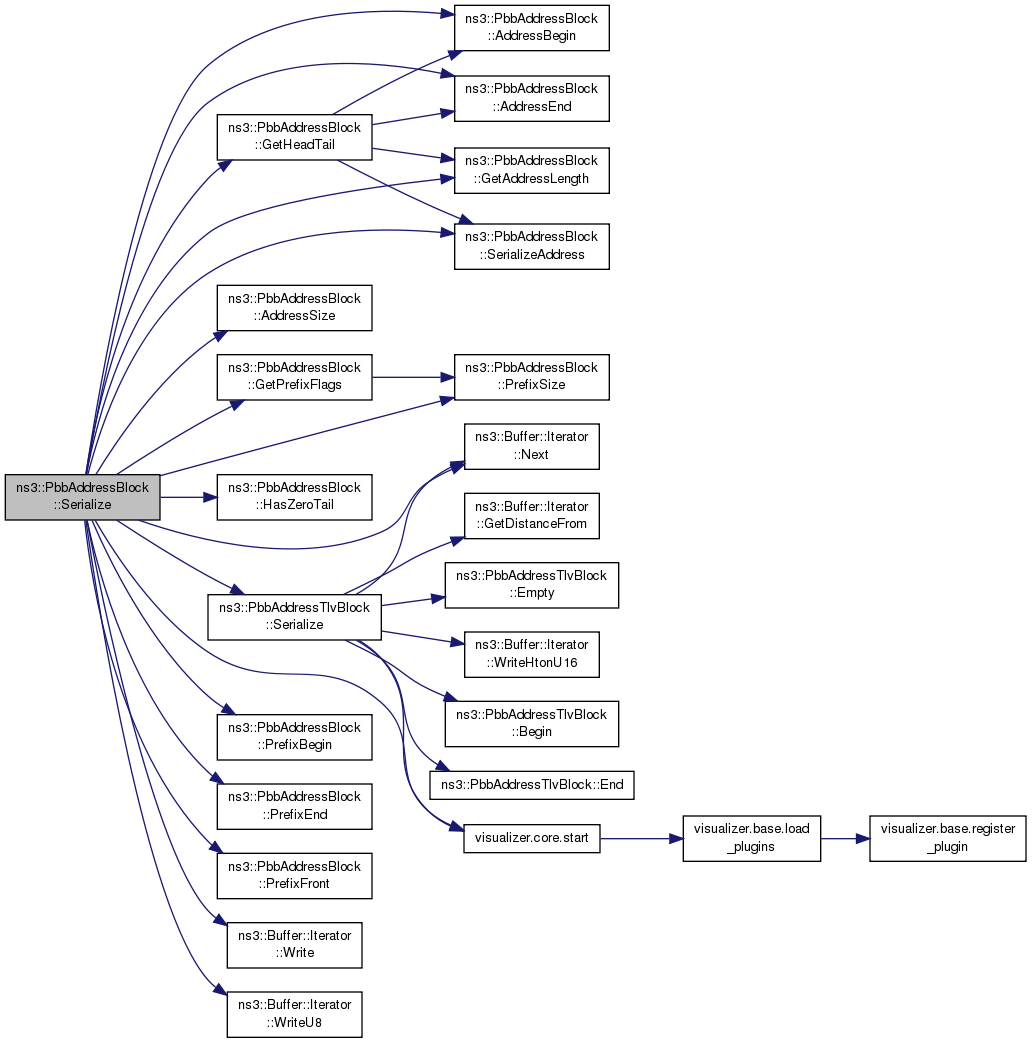

Here is the call graph for this function:

virtual void ns3::PbbAddressBlock::SerializeAddress	(	uint8_t *	buffer,
		ConstAddressIterator	iter
	)		const

protectedpure virtual

Serialize one or more addresses.

Parameters

buffer	the buffer to serialize to
iter	the iterator to the addresses

Implemented in ns3::PbbAddressBlockIpv6, and ns3::PbbAddressBlockIpv4.

Referenced by GetHeadTail(), and Serialize().

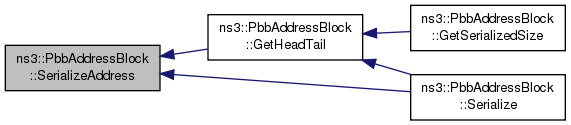

Here is the caller graph for this function:

Ptr< PbbAddressTlv > ns3::PbbAddressBlock::TlvBack ( void )

Returns: a smart pointer to the last address TLV in this message.

Definition at line 2129 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Back(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

const Ptr< PbbAddressTlv > ns3::PbbAddressBlock::TlvBack ( void ) const

Returns: a const smart pointer to the last address TLV in this message.

Definition at line 2136 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Back(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbAddressBlock::TlvIterator ns3::PbbAddressBlock::TlvBegin ( void )

Returns: an iterator to the first address TLV in this block.

Definition at line 2073 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Begin(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbAddressBlock::ConstTlvIterator ns3::PbbAddressBlock::TlvBegin ( void ) const

Returns: a const iterator to the first address TLV in this block.

Definition at line 2080 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Begin(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

void ns3::PbbAddressBlock::TlvClear ( void )

Removes all address TLVs from this block.

Definition at line 2186 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Clear(), m_addressTlvList, and NS_LOG_FUNCTION.

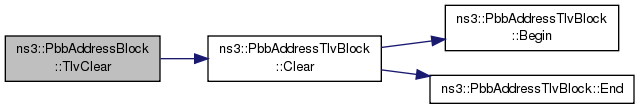

Here is the call graph for this function:

bool ns3::PbbAddressBlock::TlvEmpty ( void ) const

Returns: true if there are no address TLVs in this block, false otherwise.

Definition at line 2108 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Empty(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbAddressBlock::TlvIterator ns3::PbbAddressBlock::TlvEnd ( void )

Returns: an iterator to the last address TLV in this block.

Definition at line 2087 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::End(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbAddressBlock::ConstTlvIterator ns3::PbbAddressBlock::TlvEnd ( void ) const

Returns: a const iterator to the last address TLV in this block.

Definition at line 2094 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::End(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbAddressBlock::TlvIterator ns3::PbbAddressBlock::TlvErase ( PbbAddressBlock::TlvIterator position )

Removes the address TLV at the specified position.

Parameters

position an Iterator pointing to the address TLV to erase.

Returns: an iterator pointing to the next address TLV in the block.

Definition at line 2171 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Erase(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

PbbAddressBlock::TlvIterator ns3::PbbAddressBlock::TlvErase	(	PbbAddressBlock::TlvIterator	first,
		PbbAddressBlock::TlvIterator	last
	)

Removes all address TLVs from [first, last) (includes first, not includes last).

Parameters

first	an Iterator pointing to the first address TLV to erase (inclusive).
last	an Iterator pointing to the element past the last address TLV to erase.

Returns: an iterator pointing to the next address TLV in the message.

Definition at line 2178 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Erase(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Ptr< PbbAddressTlv > ns3::PbbAddressBlock::TlvFront ( void )

Returns: a smart pointer to the first address TLV in this block.

Definition at line 2115 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Front(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

const Ptr< PbbAddressTlv > ns3::PbbAddressBlock::TlvFront ( void ) const

Returns: a const smart pointer to the first address TLV in this message.

Definition at line 2122 of file packetbb.cc.

References ns3::PbbAddressTlvBlock::Front(), m_addressTlvList, and NS_LOG_FUNCTION.

Here is the call graph for this function:

TlvIterator ns3::PbbAddressBlock::TlvInsert	(	TlvIterator	position,
		const Ptr< PbbTlv >	value
	)

Inserts an address TLV at the specified position in this block.

Parameters

position	an Iterator pointing to the position in this block to insert the address TLV.
value	the prefix to insert.

Returns: An iterator pointing to the newly inserted address TLV.

void ns3::PbbAddressBlock::TlvPopBack ( void )

Removes an address TLV from the back of this message.

Definition at line 2164 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::PopBack().

Here is the call graph for this function:

void ns3::PbbAddressBlock::TlvPopFront ( void )

Removes an address TLV from the front of this message.

Definition at line 2150 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::PopFront().

Here is the call graph for this function:

void ns3::PbbAddressBlock::TlvPushBack ( Ptr< PbbAddressTlv > address )

Appends an address TLV to the back of this message.

Parameters

address a smart pointer to the address TLV to append.

Definition at line 2157 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::PushBack().

Referenced by PbbTestSuite::PbbTestSuite().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::PbbAddressBlock::TlvPushFront ( Ptr< PbbAddressTlv > address )

Prepends an address TLV to the front of this message.

Parameters

address a smart pointer to the address TLV to prepend.

Definition at line 2143 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::PushFront().

Here is the call graph for this function:

int ns3::PbbAddressBlock::TlvSize ( void ) const

Returns: the number of address TLVs in this block.

Definition at line 2101 of file packetbb.cc.

References m_addressTlvList, NS_LOG_FUNCTION, and ns3::PbbAddressTlvBlock::Size().

Here is the call graph for this function:

Member Data Documentation

std::list<Address> ns3::PbbAddressBlock::m_addressList

private

Addreses container.

Definition at line 1607 of file packetbb.h.

Referenced by AddressBack(), AddressBegin(), AddressClear(), AddressEmpty(), AddressEnd(), AddressErase(), AddressFront(), AddressPopBack(), AddressPopFront(), AddressPushBack(), AddressPushFront(), and AddressSize().

PbbAddressTlvBlock ns3::PbbAddressBlock::m_addressTlvList

private

PbbAddressTlv container.

Definition at line 1609 of file packetbb.h.

Referenced by Deserialize(), GetSerializedSize(), operator==(), Print(), Serialize(), TlvBack(), TlvBegin(), TlvClear(), TlvEmpty(), TlvEnd(), TlvErase(), TlvFront(), TlvPopBack(), TlvPopFront(), TlvPushBack(), TlvPushFront(), and TlvSize().

std::list<uint8_t> ns3::PbbAddressBlock::m_prefixList

private

Prefixes container.

Definition at line 1608 of file packetbb.h.

Referenced by PrefixBack(), PrefixBegin(), PrefixClear(), PrefixEmpty(), PrefixEnd(), PrefixErase(), PrefixFront(), PrefixInsert(), PrefixPopBack(), PrefixPopFront(), PrefixPushBack(), PrefixPushFront(), and PrefixSize().

The documentation for this class was generated from the following files:

src/network/utils/packetbb.h
src/network/utils/packetbb.cc

Public Types

Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
