Implements PIE Active Queue Management discipline. More...

#include "pie-queue-disc.h"

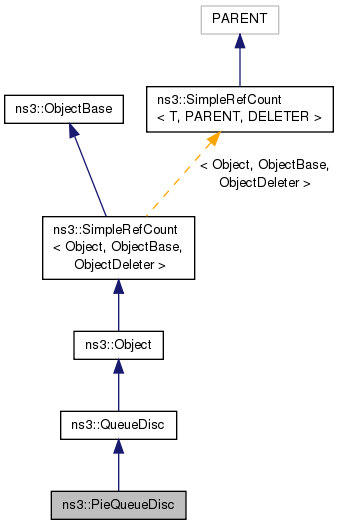

Inheritance diagram for ns3::PieQueueDisc:

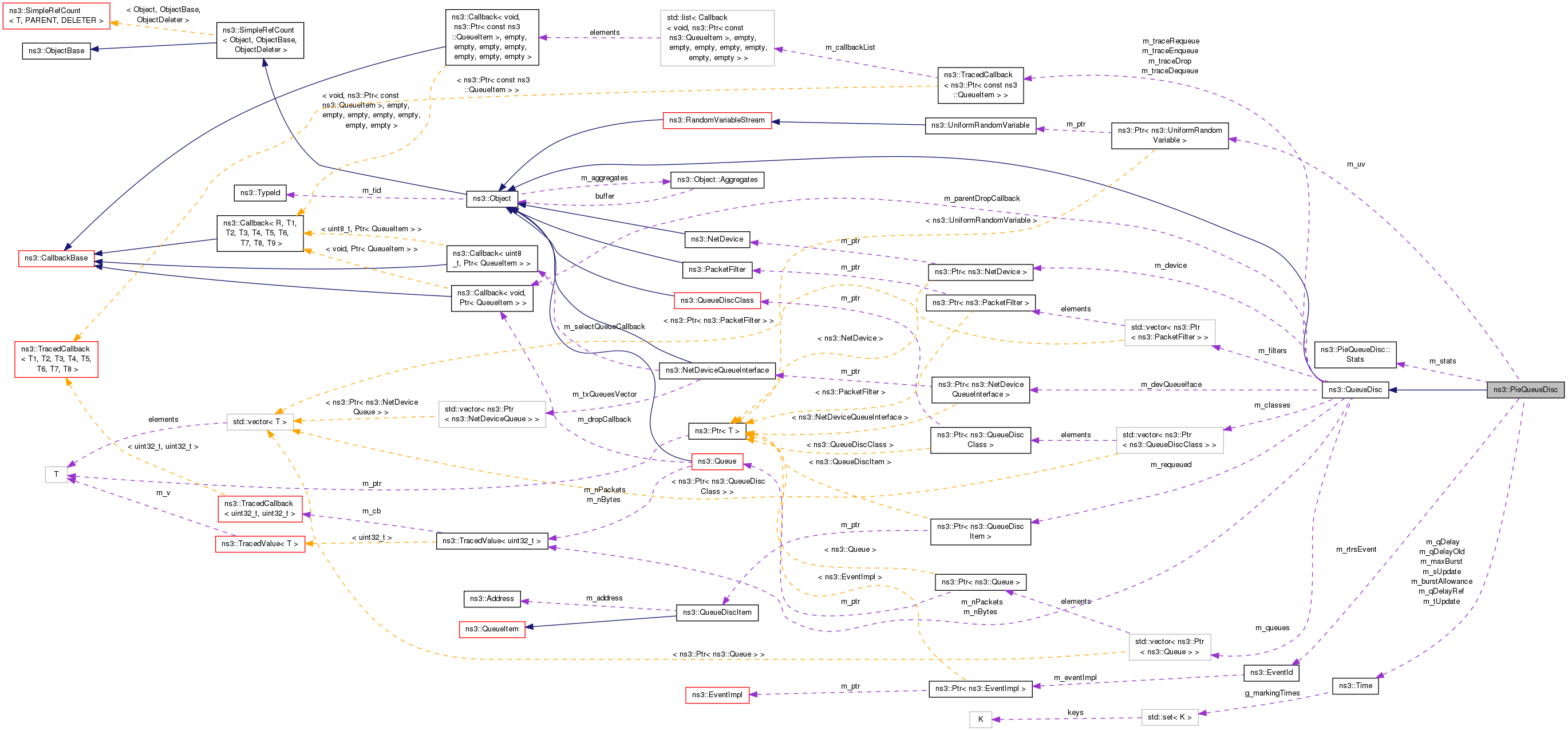

Collaboration diagram for ns3::PieQueueDisc:

Classes
struct	Stats
	Stats. More...

Public Types
enum	BurstStateT { NO_BURST, IN_BURST, IN_BURST_PROTECTING }
	Burst types. More...

Public Types inherited from ns3::QueueDisc
typedef Callback< void, Ptr< QueueItem > >	ParentDropCallback
	Callback invoked by a child queue disc to notify the parent of a packet drop. More...

enum	WakeMode { WAKE_ROOT = 0x00, WAKE_CHILD = 0x01 }
	Used to determine whether the queue disc itself or its children must be activated when a netdevice wakes a transmission queue. More...

Public Member Functions
	PieQueueDisc ()
	PieQueueDisc Constructor. More...

virtual	~PieQueueDisc ()
	PieQueueDisc Destructor. More...

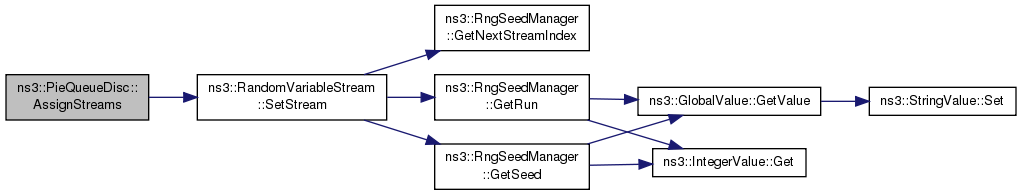

int64_t	AssignStreams (int64_t stream)
	Assign a fixed random variable stream number to the random variables used by this model. More...

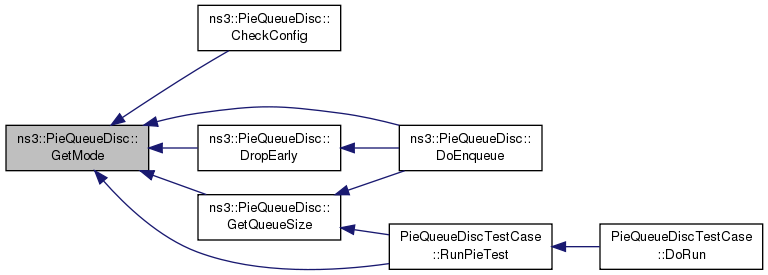

Queue::QueueMode	GetMode (void)
	Get the encapsulation mode of this queue. More...

Time	GetQueueDelay (void)
	Get queue delay. More...

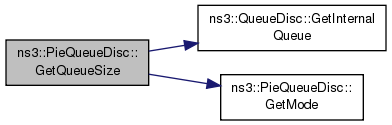

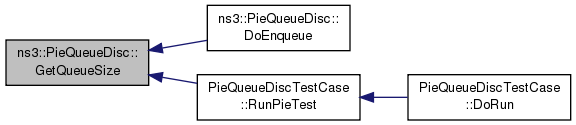

uint32_t	GetQueueSize (void)
	Get the current value of the queue in bytes or packets. More...

Stats	GetStats ()
	Get PIE statistics after running. More...

void	SetMode (Queue::QueueMode mode)
	Set the operating mode of this queue. More...

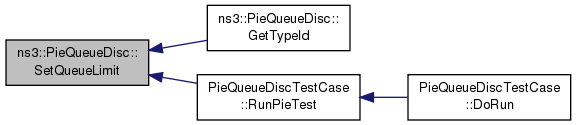

void	SetQueueLimit (uint32_t lim)
	Set the limit of the queue in bytes or packets. More...

Public Member Functions inherited from ns3::QueueDisc
	QueueDisc ()

void	AddInternalQueue (Ptr< Queue > queue)
	Add an internal queue to the tail of the list of queues. More...

void	AddPacketFilter (Ptr< PacketFilter > filter)
	Add a packet filter to the tail of the list of filters used to classify packets. More...

void	AddQueueDiscClass (Ptr< QueueDiscClass > qdClass)
	Add a queue disc class to the tail of the list of classes. More...

int32_t	Classify (Ptr< QueueDiscItem > item)
	Classify a packet by calling the packet filters, one at a time, until either a filter able to classify the packet is found or all the filters have been processed. More...

Ptr< QueueDiscItem >	Dequeue (void)
	Request the queue discipline to extract a packet. More...

bool	Enqueue (Ptr< QueueDiscItem > item)
	Pass a packet to store to the queue discipline. More...

Ptr< Queue >	GetInternalQueue (uint32_t i) const
	Get the i-th internal queue. More...

uint32_t	GetNBytes (void) const
	Get the amount of bytes stored by the queue disc. More...

Ptr< NetDevice >	GetNetDevice (void) const
	Get the NetDevice on which this queue discipline is installed. More...

uint32_t	GetNInternalQueues (void) const
	Get the number of internal queues. More...

uint32_t	GetNPacketFilters (void) const
	Get the number of packet filters. More...

uint32_t	GetNPackets (void) const
	Get the number of packets stored by the queue disc. More...

uint32_t	GetNQueueDiscClasses (void) const
	Get the number of queue disc classes. More...

Ptr< PacketFilter >	GetPacketFilter (uint32_t i) const
	Get the i-th packet filter. More...

Ptr< QueueDiscClass >	GetQueueDiscClass (uint32_t i) const
	Get the i-th queue disc class. More...

virtual uint32_t	GetQuota (void) const
	Get the maximum number of dequeue operations following a packet enqueue. More...

uint32_t	GetTotalDroppedBytes (void) const
	Get the total amount of dropped bytes. More...

uint32_t	GetTotalDroppedPackets (void) const
	Get the total number of dropped packets. More...

uint32_t	GetTotalReceivedBytes (void) const
	Get the total amount of received bytes. More...

uint32_t	GetTotalReceivedPackets (void) const
	Get the total number of received packets. More...

uint32_t	GetTotalRequeuedBytes (void) const
	Get the total amount of requeued bytes. More...

uint32_t	GetTotalRequeuedPackets (void) const
	Get the total number of requeued packets. More...

WakeMode	GetWakeMode (void)
	When setting up the wake callbacks on the netdevice queues, it is necessary to determine which queue disc (the root queue disc or one of its children) should be activated when the netdevice wakes one of its transmission queues. More...

Ptr< const QueueDiscItem >	Peek (void) const
	Get a copy of the next packet the queue discipline will extract, without actually extracting the packet. More...

void	Run (void)
	Modelled after the Linux function __qdisc_run (net/sched/sch_generic.c) Dequeues multiple packets, until a quota is exceeded or sending a packet to the device failed. More...

void	SetNetDevice (Ptr< NetDevice > device)
	Set the NetDevice on which this queue discipline is installed. More...

virtual void	SetParentDropCallback (ParentDropCallback cb)
	Set the parent drop callback. More...

virtual void	SetQuota (const uint32_t quota)
	Set the maximum number of dequeue operations following a packet enqueue. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions

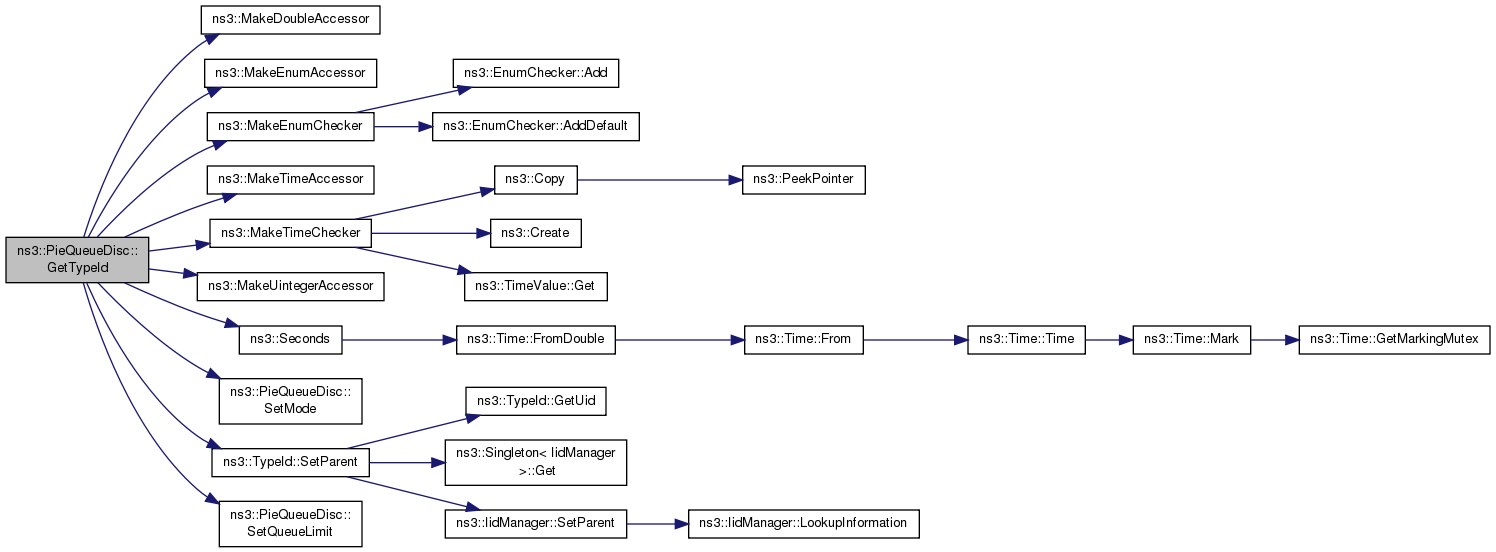

static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::QueueDisc
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Protected Member Functions

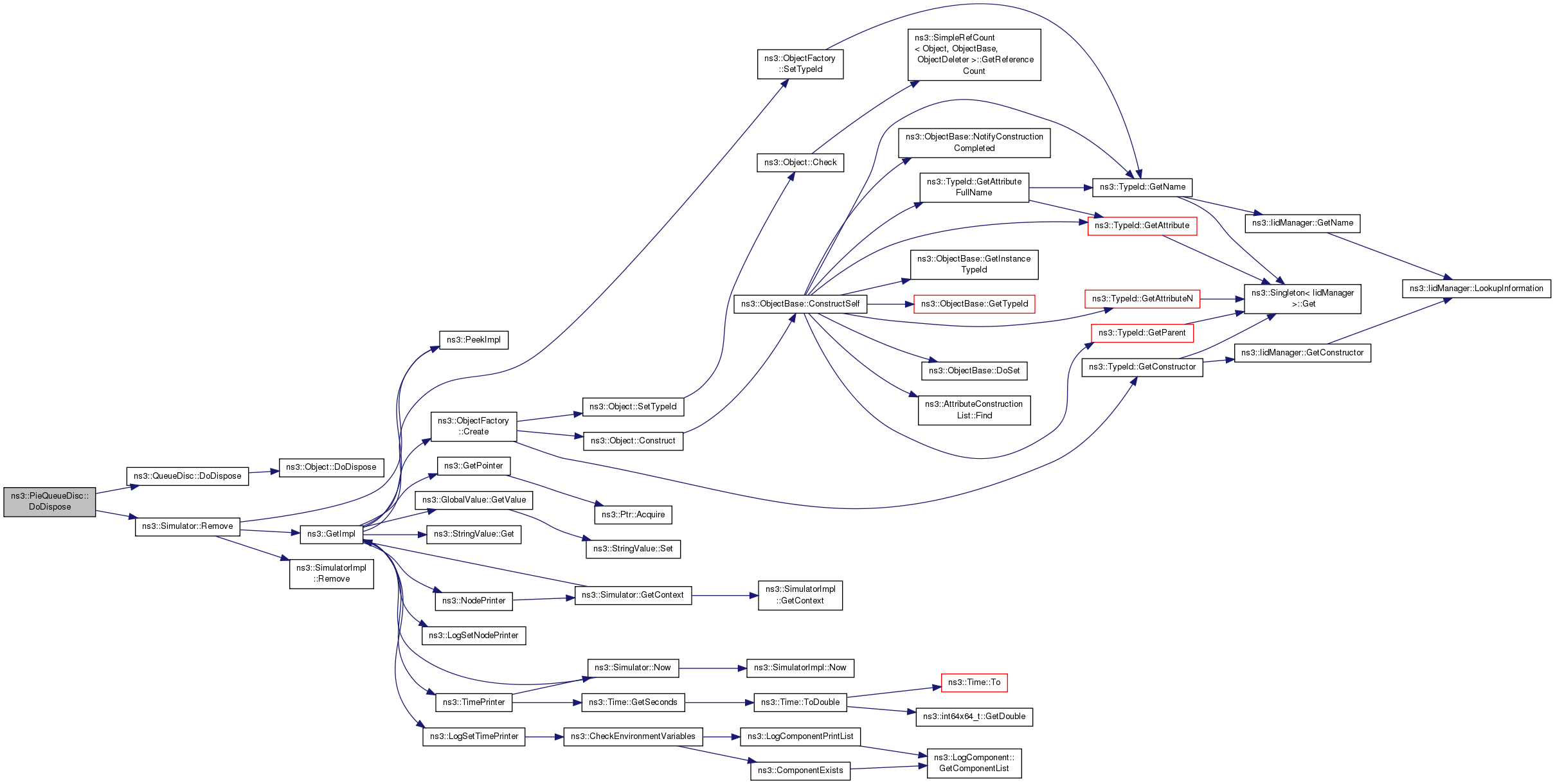

virtual void	DoDispose (void)
	Dispose of the object. More...

Protected Member Functions inherited from ns3::QueueDisc
virtual void	DoInitialize (void)
	Check whether the configuration is correct and initialize parameters. More...

void	Drop (Ptr< QueueItem > item)
	Drop a packet. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Private Member Functions

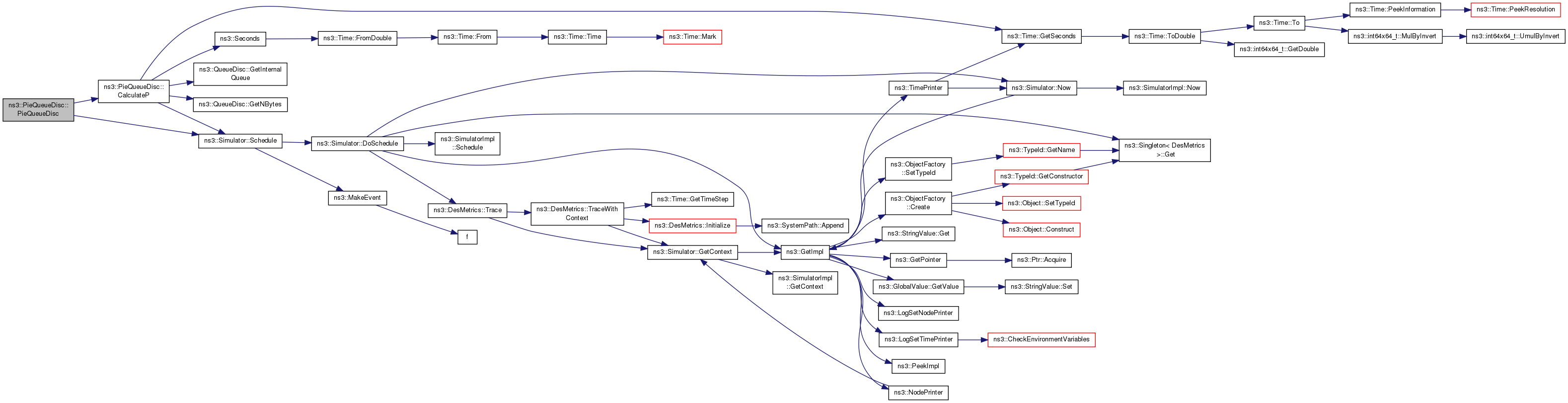

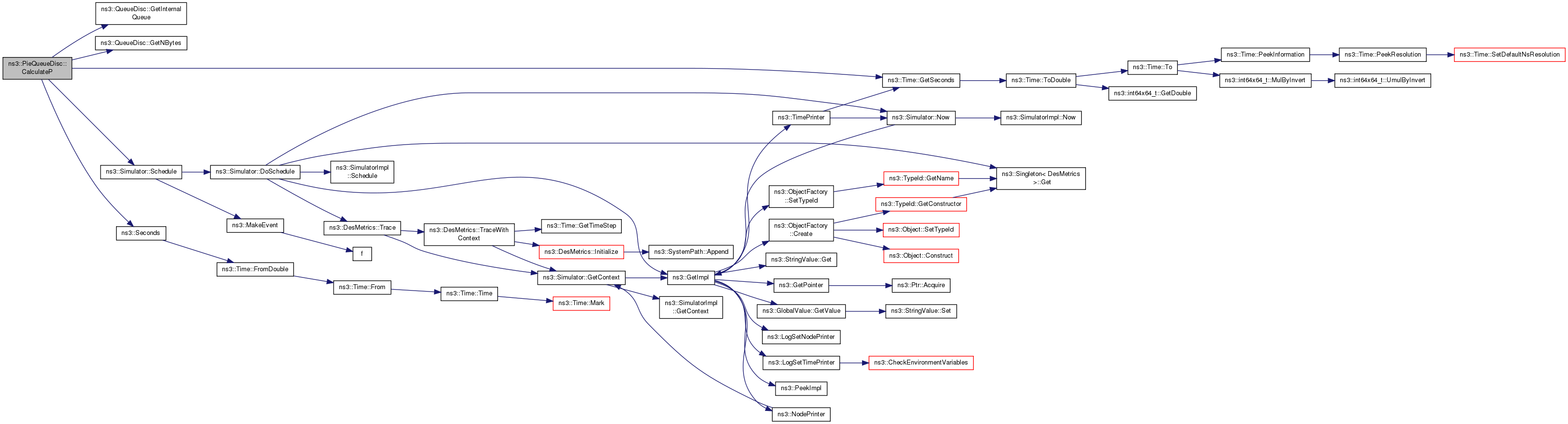

void	CalculateP ()
	Periodically update the drop probability based on the delay samples: not only the current delay sample but also the trend where the delay is going, up or down. More...

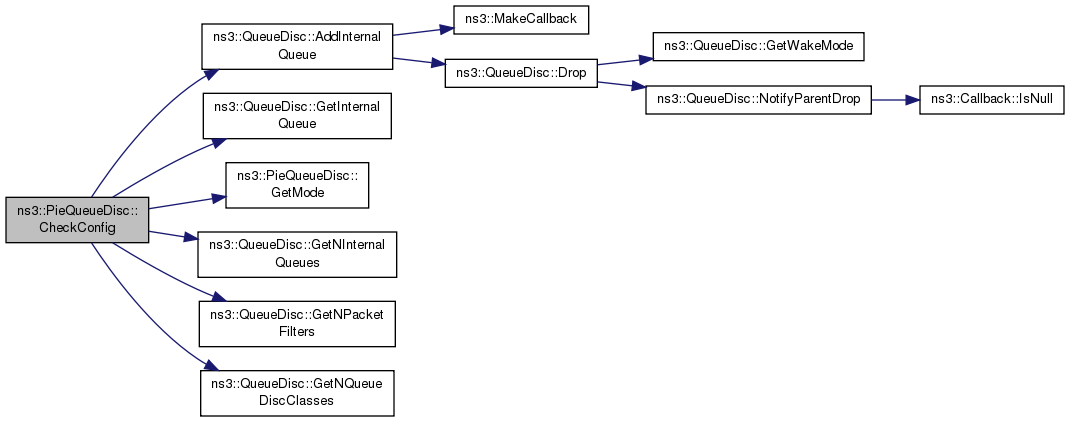

virtual bool	CheckConfig (void)
	Check whether the current configuration is correct. More...

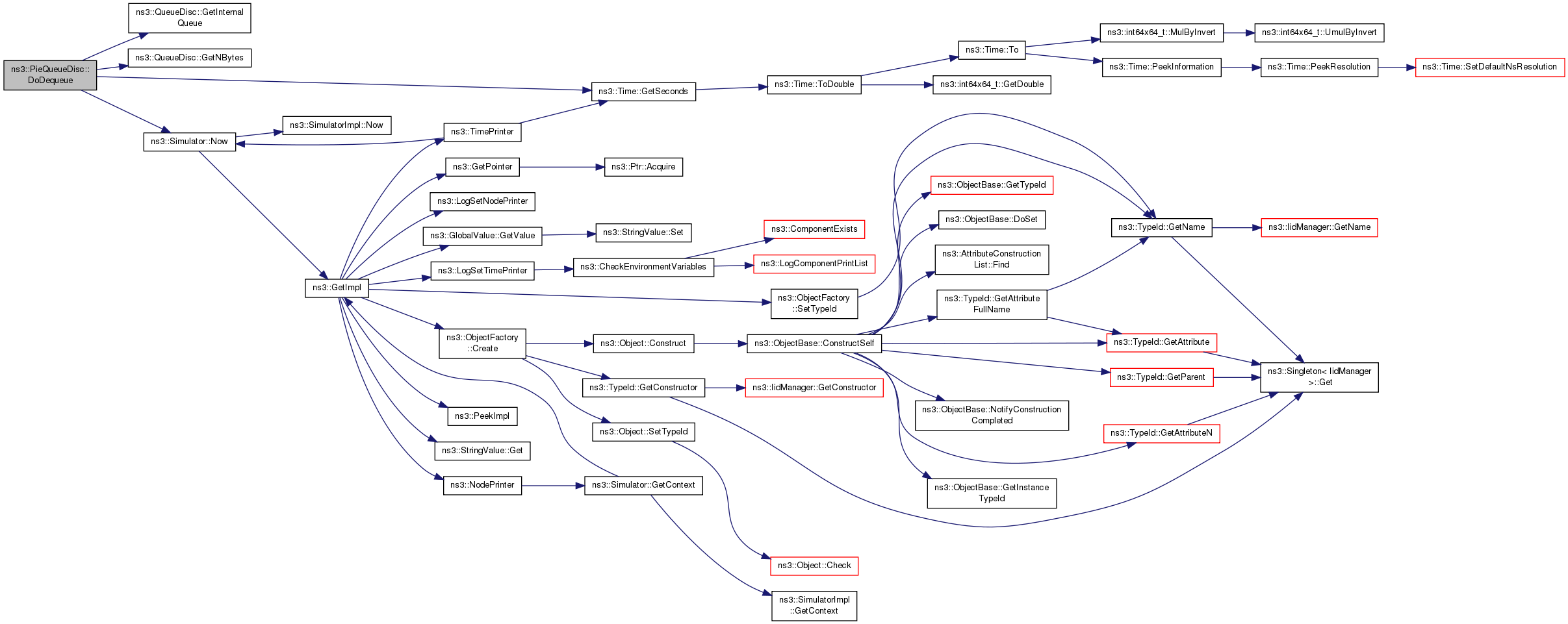

virtual Ptr< QueueDiscItem >	DoDequeue (void)
	This function actually extracts a packet from the queue disc. More...

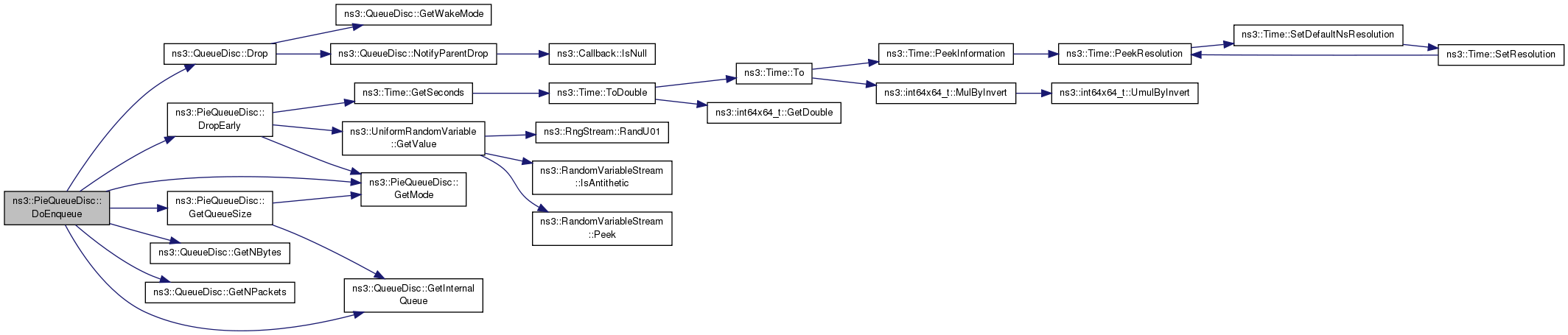

virtual bool	DoEnqueue (Ptr< QueueDiscItem > item)
	This function actually enqueues a packet into the queue disc. More...

virtual Ptr< const QueueDiscItem >	DoPeek (void) const
	This function returns a copy of the next packet the queue disc will extract. More...

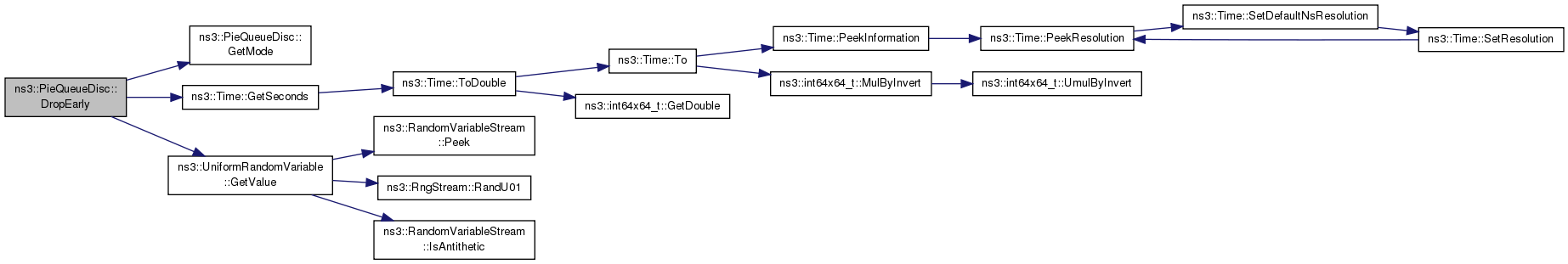

bool	DropEarly (Ptr< QueueDiscItem > item, uint32_t qSize)
	Check if a packet needs to be dropped due to probability drop. More...

virtual void	InitializeParams (void)
	Initialize the queue parameters. More...

Private Attributes
double	m_a
	Parameter to pie controller. More...

double	m_avgDqRate
	Time averaged dequeue rate. More...

double	m_b
	Parameter to pie controller. More...

Time	m_burstAllowance
	Current max burst value in seconds that is allowed before random drops kick in. More...

uint32_t	m_burstReset
	Used to reset value of burst allowance. More...

BurstStateT	m_burstState
	Used to determine the current state of burst. More...

uint32_t	m_dqCount
	Number of bytes departed since current measurement cycle starts. More...

double	m_dqStart
	Start timestamp of current measurement cycle. More...

uint32_t	m_dqThreshold
	Minimum queue size in bytes before dequeue rate is measured. More...

double	m_dropProb
	Variable used in calculation of drop probability. More...

bool	m_inMeasurement
	Indicates whether we are in a measurement cycle. More...

Time	m_maxBurst
	Maximum burst allowed before random early dropping kicks in. More...

uint32_t	m_meanPktSize
	Average packet size in bytes. More...

Queue::QueueMode	m_mode
	Mode (bytes or packets) More...

Time	m_qDelay
	Current value of queue delay. More...

Time	m_qDelayOld
	Old value of queue delay. More...

Time	m_qDelayRef
	Desired queue delay. More...

uint32_t	m_queueLimit
	Queue limit in bytes / packets. More...

EventId	m_rtrsEvent
	Event used to decide the decision of interval of drop probability calculation. More...

Stats	m_stats
	PIE statistics. More...

Time	m_sUpdate
	Start time of the update timer. More...

Time	m_tUpdate
	Time period after which CalculateP () is called. More...

Ptr< UniformRandomVariable >	m_uv
	Rng stream. More...

Additional Inherited Members
Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Implements PIE Active Queue Management discipline.

Introspection did not find any typical Config paths.

Attributes

Mode: Determines unit for QueueLimit
- Set with class: ns3::EnumValue
- Underlying type:
- Initial value: QUEUE_MODE_PACKETS
- Flags: construct write
MeanPktSize: Average of packet size
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 1000
- Flags: construct write read
A: Value of alpha
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 0.125
- Flags: construct write read
B: Value of beta
- Set with class: ns3::DoubleValue
- Underlying type: double -1.79769e+308:1.79769e+308
- Initial value: 1.25
- Flags: construct write read
Tupdate: Time period to calculate drop probability
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +29999999.0ns
- Flags: construct write read
Supdate: Start time of the update timer
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +0.0ns
- Flags: construct write read
QueueLimit: Queue limit in bytes/packets
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 25
- Flags: construct write
DequeueThreshold: Minimum queue size in bytes before dequeue rate is measured
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 10000
- Flags: construct write read
QueueDelayReference: Desired queue delay
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +20000000.0ns
- Flags: construct write read
MaxBurstAllowance: Current max burst allowance in seconds before random drop
- Set with class: ns3::TimeValue
- Underlying type: Time –9223372036854775808.0ns:+9223372036854775807.0ns
- Initial value: +100000000.0ns
- Flags: construct write read

Attributes defined in parent class ns3::QueueDisc

Quota: The maximum number of packets dequeued in a qdisc run
- Set with class: ns3::UintegerValue
- Underlying type: uint32_t 0:4294967295
- Initial value: 64
- Flags: construct write read
InternalQueueList: The list of internal queues.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::Queue>
- Flags: read
PacketFilterList: The list of packet filters.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::PacketFilter>
- Flags: read
QueueDiscClassList: The list of queue disc classes.
- Set with class: ns3::ObjectPtrContainerValue
- Underlying type: ns3::Ptr< ns3::QueueDiscClass>
- Flags: read

No TraceSources are defined for this type.

TraceSources defined in parent class ns3::QueueDisc

Enqueue: Enqueue a packet in the queue disc
Callback signature: ns3::QueueItem::TracedCallback
Dequeue: Dequeue a packet from the queue disc
Callback signature: ns3::QueueItem::TracedCallback
Requeue: Requeue a packet in the queue disc
Callback signature: ns3::QueueItem::TracedCallback
Drop: Drop a packet stored in the queue disc
Callback signature: ns3::QueueItem::TracedCallback
PacketsInQueue: Number of packets currently stored in the queue disc
Callback signature: ns3::TracedValueCallback::Uint32
BytesInQueue: Number of bytes currently stored in the queue disc
Callback signature: ns3::TracedValueCallback::Uint32

Size of this type is 472 bytes (on a 64-bit architecture).

Definition at line 53 of file pie-queue-disc.h.

Constructor & Destructor Documentation

ns3::PieQueueDisc::PieQueueDisc ( )

PieQueueDisc Constructor.

Definition at line 105 of file pie-queue-disc.cc.

References CalculateP(), m_rtrsEvent, m_sUpdate, m_uv, NS_LOG_FUNCTION, and ns3::Simulator::Schedule().

Here is the call graph for this function:

ns3::PieQueueDisc::~PieQueueDisc ( )

virtual

PieQueueDisc Destructor.

Definition at line 113 of file pie-queue-disc.cc.

References NS_LOG_FUNCTION.

Member Function Documentation

int64_t ns3::PieQueueDisc::AssignStreams ( int64_t stream )

Assign a fixed random variable stream number to the random variables used by this model.

Return the number of streams (possibly zero) that have been assigned.

Parameters

stream first stream index to use

Returns: the number of stream indices assigned by this model

Definition at line 181 of file pie-queue-disc.cc.

References m_uv, NS_LOG_FUNCTION, and ns3::RandomVariableStream::SetStream().

Here is the call graph for this function:

void ns3::PieQueueDisc::CalculateP ( )

private

Periodically update the drop probability based on the delay samples: not only the current delay sample but also the trend where the delay is going, up or down.

Definition at line 289 of file pie-queue-disc.cc.

References BURST_RESET_TIMEOUT, ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNBytes(), ns3::Time::GetSeconds(), IN_BURST, IN_BURST_PROTECTING, m_a, m_avgDqRate, m_b, m_burstAllowance, m_burstReset, m_burstState, m_dqCount, m_dropProb, m_qDelay, m_qDelayOld, m_qDelayRef, m_rtrsEvent, m_tUpdate, NO_BURST, NS_LOG_FUNCTION, ns3::Simulator::Schedule(), and ns3::Seconds().

Referenced by PieQueueDisc().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::PieQueueDisc::CheckConfig ( void )

privatevirtual

Check whether the current configuration is correct.

Default objects (such as internal queues) might be created by this method to ensure the configuration is correct.

Returns: true if the configuration is correct, false otherwise

Implements ns3::QueueDisc.

Definition at line 483 of file pie-queue-disc.cc.

References ns3::QueueDisc::AddInternalQueue(), ns3::QueueDisc::GetInternalQueue(), GetMode(), ns3::QueueDisc::GetNInternalQueues(), ns3::QueueDisc::GetNPacketFilters(), ns3::QueueDisc::GetNQueueDiscClasses(), m_mode, m_queueLimit, NS_LOG_ERROR, NS_LOG_FUNCTION, ns3::Queue::QUEUE_MODE_BYTES, and ns3::Queue::QUEUE_MODE_PACKETS.

Here is the call graph for this function:

Ptr< QueueDiscItem > ns3::PieQueueDisc::DoDequeue ( void )

privatevirtual

This function actually extracts a packet from the queue disc.

Returns: 0 if the operation was not successful; the item otherwise.

Implements ns3::QueueDisc.

Definition at line 400 of file pie-queue-disc.cc.

References ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNBytes(), ns3::Time::GetSeconds(), m_avgDqRate, m_dqCount, m_dqStart, m_dqThreshold, m_inMeasurement, ns3::Simulator::Now(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

void ns3::PieQueueDisc::DoDispose ( void )

protectedvirtual

Dispose of the object.

Reimplemented from ns3::QueueDisc.

Definition at line 119 of file pie-queue-disc.cc.

References ns3::QueueDisc::DoDispose(), m_rtrsEvent, m_uv, NS_LOG_FUNCTION, and ns3::Simulator::Remove().

Here is the call graph for this function:

bool ns3::PieQueueDisc::DoEnqueue ( Ptr< QueueDiscItem > item )

privatevirtual

This function actually enqueues a packet into the queue disc.

Parameters

item	item to enqueue

Returns: True if the operation was successful; false otherwise

Implements ns3::QueueDisc.

Definition at line 189 of file pie-queue-disc.cc.

References ns3::QueueDisc::Drop(), DropEarly(), ns3::PieQueueDisc::Stats::forcedDrop, ns3::QueueDisc::GetInternalQueue(), GetMode(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), GetQueueSize(), m_queueLimit, m_stats, NS_LOG_FUNCTION, NS_LOG_LOGIC, ns3::Queue::QUEUE_MODE_BYTES, ns3::Queue::QUEUE_MODE_PACKETS, and ns3::PieQueueDisc::Stats::unforcedDrop.

Here is the call graph for this function:

Ptr< const QueueDiscItem > ns3::PieQueueDisc::DoPeek ( void ) const

privatevirtual

This function returns a copy of the next packet the queue disc will extract.

Returns: 0 if the operation was not successful; the packet otherwise.

Implements ns3::QueueDisc.

Definition at line 465 of file pie-queue-disc.cc.

References ns3::QueueDisc::GetInternalQueue(), ns3::QueueDisc::GetNBytes(), ns3::QueueDisc::GetNPackets(), NS_LOG_FUNCTION, and NS_LOG_LOGIC.

Here is the call graph for this function:

bool ns3::PieQueueDisc::DropEarly	(	Ptr< QueueDiscItem >	item,
		uint32_t	qSize
	)

private

Check if a packet needs to be dropped due to probability drop.

Parameters

item	queue item
qSize	queue size

Returns: 0 for no drop, 1 for drop

Definition at line 238 of file pie-queue-disc.cc.

References GetMode(), ns3::Time::GetSeconds(), ns3::UniformRandomVariable::GetValue(), IN_BURST_PROTECTING, m_burstAllowance, m_burstState, m_dropProb, m_maxBurst, m_meanPktSize, m_qDelayOld, m_qDelayRef, m_uv, NO_BURST, NS_LOG_FUNCTION, packetSize, ns3::Queue::QUEUE_MODE_BYTES, and ns3::Queue::QUEUE_MODE_PACKETS.

Referenced by DoEnqueue().

Here is the call graph for this function:

Here is the caller graph for this function:

Queue::QueueMode ns3::PieQueueDisc::GetMode ( void )

Get the encapsulation mode of this queue.

Returns: The encapsulation mode of this queue.

Definition at line 135 of file pie-queue-disc.cc.

References m_mode, and NS_LOG_FUNCTION.

Referenced by CheckConfig(), DoEnqueue(), DropEarly(), GetQueueSize(), and PieQueueDiscTestCase::RunPieTest().

Here is the caller graph for this function:

Time ns3::PieQueueDisc::GetQueueDelay ( void )

Get queue delay.

Definition at line 174 of file pie-queue-disc.cc.

References m_qDelay, and NS_LOG_FUNCTION.

uint32_t ns3::PieQueueDisc::GetQueueSize ( void )

Get the current value of the queue in bytes or packets.

Returns: The queue size in bytes or packets.

Definition at line 149 of file pie-queue-disc.cc.

References ns3::QueueDisc::GetInternalQueue(), GetMode(), NS_ABORT_MSG, NS_LOG_FUNCTION, ns3::Queue::QUEUE_MODE_BYTES, and ns3::Queue::QUEUE_MODE_PACKETS.

Referenced by DoEnqueue(), and PieQueueDiscTestCase::RunPieTest().

Here is the call graph for this function:

Here is the caller graph for this function:

PieQueueDisc::Stats ns3::PieQueueDisc::GetStats ( )

Get PIE statistics after running.

Returns: The drop statistics.

Definition at line 167 of file pie-queue-disc.cc.

References m_stats, and NS_LOG_FUNCTION.

TypeId ns3::PieQueueDisc::GetTypeId ( void )

static

Get the type ID.

Returns: the object TypeId

Definition at line 43 of file pie-queue-disc.cc.

References m_a, m_b, m_dqThreshold, m_maxBurst, m_meanPktSize, m_qDelayRef, m_sUpdate, m_tUpdate, ns3::MakeDoubleAccessor(), ns3::MakeEnumAccessor(), ns3::MakeEnumChecker(), ns3::MakeTimeAccessor(), ns3::MakeTimeChecker(), ns3::MakeUintegerAccessor(), ns3::Queue::QUEUE_MODE_BYTES, ns3::Queue::QUEUE_MODE_PACKETS, ns3::Seconds(), SetMode(), ns3::TypeId::SetParent(), and SetQueueLimit().

Here is the call graph for this function:

void ns3::PieQueueDisc::InitializeParams ( void )

privatevirtual

Initialize the queue parameters.

Implements ns3::QueueDisc.

Definition at line 224 of file pie-queue-disc.cc.

References ns3::PieQueueDisc::Stats::forcedDrop, m_avgDqRate, m_burstState, m_dqCount, m_dqStart, m_dropProb, m_inMeasurement, m_qDelayOld, m_stats, NO_BURST, ns3::Seconds(), and ns3::PieQueueDisc::Stats::unforcedDrop.

Here is the call graph for this function:

void ns3::PieQueueDisc::SetMode ( Queue::QueueMode mode )

Set the operating mode of this queue.

Parameters

mode	The operating mode of this queue.

Definition at line 128 of file pie-queue-disc.cc.

References m_mode, and NS_LOG_FUNCTION.

Referenced by GetTypeId().

Here is the caller graph for this function:

void ns3::PieQueueDisc::SetQueueLimit ( uint32_t lim )

Set the limit of the queue in bytes or packets.

Parameters

lim	The limit in bytes or packets.

Definition at line 142 of file pie-queue-disc.cc.

References m_queueLimit, and NS_LOG_FUNCTION.

Referenced by GetTypeId(), and PieQueueDiscTestCase::RunPieTest().

Here is the caller graph for this function:

Member Data Documentation

double ns3::PieQueueDisc::m_a

private

Parameter to pie controller.

Definition at line 183 of file pie-queue-disc.h.

Referenced by CalculateP(), and GetTypeId().

double ns3::PieQueueDisc::m_avgDqRate

private

Time averaged dequeue rate.

Definition at line 195 of file pie-queue-disc.h.

Referenced by CalculateP(), DoDequeue(), and InitializeParams().

double ns3::PieQueueDisc::m_b

private

Parameter to pie controller.

Definition at line 184 of file pie-queue-disc.h.

Referenced by CalculateP(), and GetTypeId().

Time ns3::PieQueueDisc::m_burstAllowance

private

Current max burst value in seconds that is allowed before random drops kick in.

Definition at line 191 of file pie-queue-disc.h.

Referenced by CalculateP(), and DropEarly().

uint32_t ns3::PieQueueDisc::m_burstReset

private

Used to reset value of burst allowance.

Definition at line 192 of file pie-queue-disc.h.

Referenced by CalculateP().

BurstStateT ns3::PieQueueDisc::m_burstState

private

Used to determine the current state of burst.

Definition at line 193 of file pie-queue-disc.h.

Referenced by CalculateP(), DropEarly(), and InitializeParams().

uint32_t ns3::PieQueueDisc::m_dqCount

private

Number of bytes departed since current measurement cycle starts.

Definition at line 197 of file pie-queue-disc.h.

Referenced by CalculateP(), DoDequeue(), and InitializeParams().

double ns3::PieQueueDisc::m_dqStart

private

Start timestamp of current measurement cycle.

Definition at line 196 of file pie-queue-disc.h.

Referenced by DoDequeue(), and InitializeParams().

uint32_t ns3::PieQueueDisc::m_dqThreshold

private

Minimum queue size in bytes before dequeue rate is measured.

Definition at line 185 of file pie-queue-disc.h.

Referenced by DoDequeue(), and GetTypeId().

double ns3::PieQueueDisc::m_dropProb

private

Variable used in calculation of drop probability.

Definition at line 188 of file pie-queue-disc.h.

Referenced by CalculateP(), DropEarly(), and InitializeParams().

bool ns3::PieQueueDisc::m_inMeasurement

private

Indicates whether we are in a measurement cycle.

Definition at line 194 of file pie-queue-disc.h.

Referenced by DoDequeue(), and InitializeParams().

Time ns3::PieQueueDisc::m_maxBurst

private

Maximum burst allowed before random early dropping kicks in.

Definition at line 182 of file pie-queue-disc.h.

Referenced by DropEarly(), and GetTypeId().

uint32_t ns3::PieQueueDisc::m_meanPktSize

private

Average packet size in bytes.

Definition at line 181 of file pie-queue-disc.h.

Referenced by DropEarly(), and GetTypeId().

Queue::QueueMode ns3::PieQueueDisc::m_mode

private

Mode (bytes or packets)

Definition at line 176 of file pie-queue-disc.h.

Referenced by CheckConfig(), GetMode(), and SetMode().

Time ns3::PieQueueDisc::m_qDelay

private

Current value of queue delay.

Definition at line 190 of file pie-queue-disc.h.

Referenced by CalculateP(), and GetQueueDelay().

Time ns3::PieQueueDisc::m_qDelayOld

private

Old value of queue delay.

Definition at line 189 of file pie-queue-disc.h.

Referenced by CalculateP(), DropEarly(), and InitializeParams().

Time ns3::PieQueueDisc::m_qDelayRef

private

Desired queue delay.

Definition at line 180 of file pie-queue-disc.h.

Referenced by CalculateP(), DropEarly(), and GetTypeId().

uint32_t ns3::PieQueueDisc::m_queueLimit

private

Queue limit in bytes / packets.

Definition at line 177 of file pie-queue-disc.h.

Referenced by CheckConfig(), DoEnqueue(), and SetQueueLimit().

EventId ns3::PieQueueDisc::m_rtrsEvent

private

Event used to decide the decision of interval of drop probability calculation.

Definition at line 198 of file pie-queue-disc.h.

Referenced by CalculateP(), DoDispose(), and PieQueueDisc().

Stats ns3::PieQueueDisc::m_stats

private

PIE statistics.

Definition at line 173 of file pie-queue-disc.h.

Referenced by DoEnqueue(), GetStats(), and InitializeParams().

Time ns3::PieQueueDisc::m_sUpdate

private

Start time of the update timer.

Definition at line 178 of file pie-queue-disc.h.

Referenced by GetTypeId(), and PieQueueDisc().

Time ns3::PieQueueDisc::m_tUpdate

private

Time period after which CalculateP () is called.

Definition at line 179 of file pie-queue-disc.h.

Referenced by CalculateP(), and GetTypeId().

Ptr<UniformRandomVariable> ns3::PieQueueDisc::m_uv

private

Rng stream.

Definition at line 199 of file pie-queue-disc.h.

Referenced by AssignStreams(), DoDispose(), DropEarly(), and PieQueueDisc().

The documentation for this class was generated from the following files:

src/traffic-control/model/pie-queue-disc.h
src/traffic-control/model/pie-queue-disc.cc

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Member Functions

Private Member Functions

Private Attributes

Additional Inherited Members

Detailed Description

Attributes

Attributes defined in parent class ns3::QueueDisc

TraceSources defined in parent class ns3::QueueDisc

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
