Topology file reader (Rocketfuel-format type). More...

#include "rocketfuel-topology-reader.h"

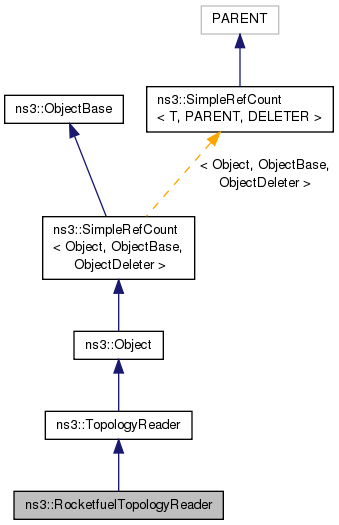

Inheritance diagram for ns3::RocketfuelTopologyReader:

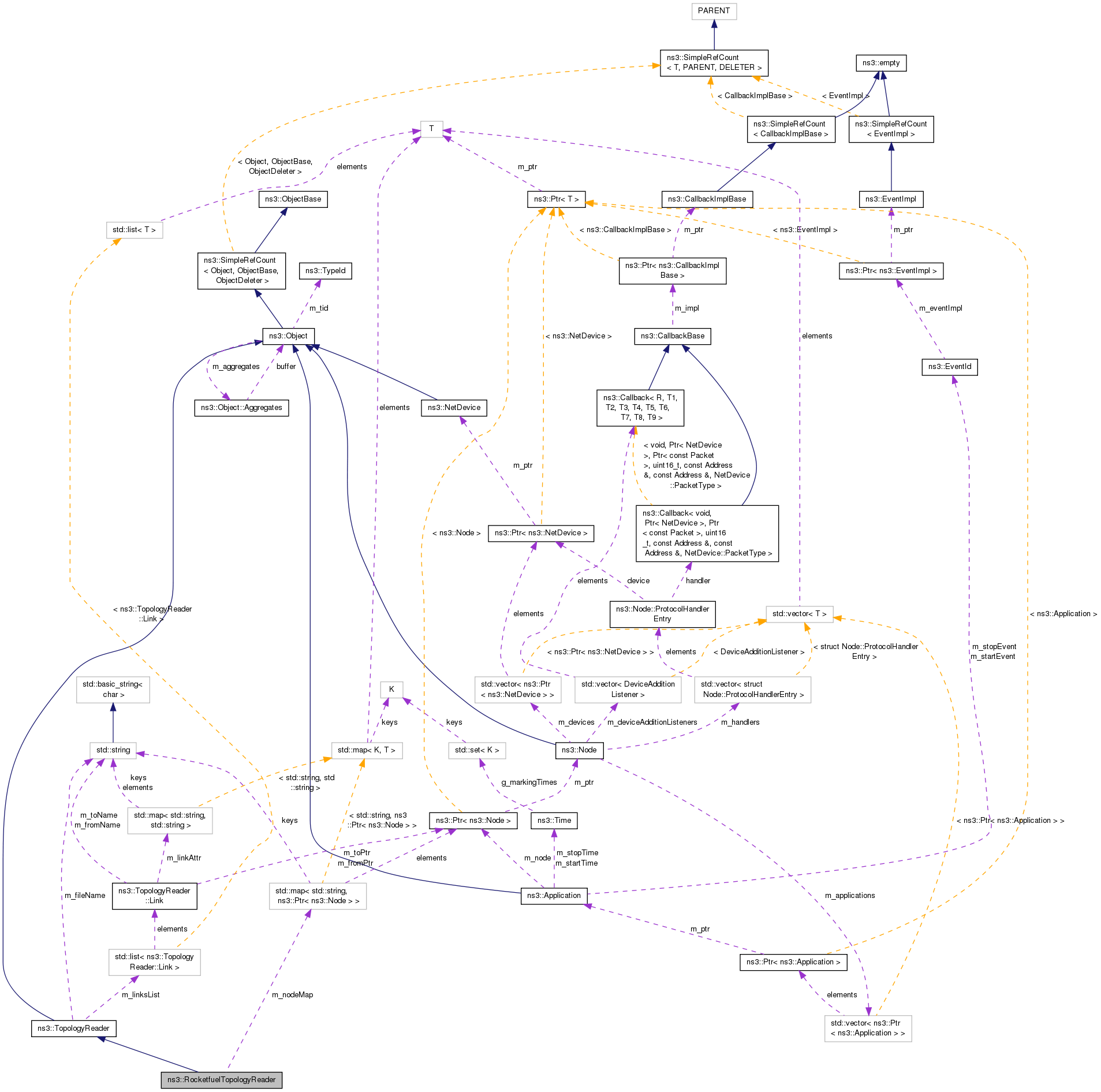

Collaboration diagram for ns3::RocketfuelTopologyReader:

Public Member Functions
	RocketfuelTopologyReader ()

virtual	~RocketfuelTopologyReader ()

virtual NodeContainer	Read (void)
	Main topology reading function. More...

Public Member Functions inherited from ns3::TopologyReader
	TopologyReader ()

virtual	~TopologyReader ()

void	AddLink (Link link)
	Adds a link to the topology. More...

std::string	GetFileName (void) const
	Returns the input file name. More...

ConstLinksIterator	LinksBegin (void) const
	Returns an iterator to the the first link in this block. More...

bool	LinksEmpty (void) const
	Checks if the block contains any links. More...

ConstLinksIterator	LinksEnd (void) const
	Returns an iterator to the the last link in this block. More...

int	LinksSize (void) const
	Returns the number of links in this block. More...

void	SetFileName (const std::string &fileName)
	Sets the input file name. More...

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::TopologyReader
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
enum	RF_FileType { RF_MAPS, RF_WEIGHTS, RF_UNKNOWN }
	Enum of the possible file types. More...

Private Member Functions
	RocketfuelTopologyReader (const RocketfuelTopologyReader &)
	Copy constructor. More...

NodeContainer	GenerateFromMapsFile (int argc, char *argv[])
	Topology read function from a file containing the nodes map. More...

NodeContainer	GenerateFromWeightsFile (int argc, char *argv[])
	Topology read function from a file containing the nodes weights. More...

enum RF_FileType	GetFileType (const char *)
	Classifies the file type according to its content. More...

RocketfuelTopologyReader &	operator= (const RocketfuelTopologyReader &)
	Copy constructor. More...

Private Attributes
int	m_linksNumber
	Number of links. More...

std::map< std::string, Ptr< Node > >	m_nodeMap
	Map of the nodes (name, node). More...

int	m_nodesNumber
	Number of nodes. More...

Additional Inherited Members
Public Types inherited from ns3::TopologyReader
typedef std::list< Link >::const_iterator	ConstLinksIterator
	Constant iterator to the list of the links. More...

Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoDispose (void)
	Destructor implementation. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Topology file reader (Rocketfuel-format type).

Introspection did not find any typical Config paths.

http://www.cs.washington.edu/research/networking/rocketfuel/

May 2nd, 2010: Currently only support "weights" file and "cch" file. http://www.cs.washington.edu/research/networking/rocketfuel/maps/weights-dist.tar.gz http://www.cs.washington.edu/research/networking/rocketfuel/maps/rocketfuel_maps_cch.tar.gz

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 112 bytes (on a 64-bit architecture).

Definition at line 43 of file rocketfuel-topology-reader.h.

Constructor & Destructor Documentation

ns3::RocketfuelTopologyReader::RocketfuelTopologyReader ( )

Definition at line 47 of file rocketfuel-topology-reader.cc.

References m_linksNumber, m_nodesNumber, and NS_LOG_FUNCTION.

ns3::RocketfuelTopologyReader::~RocketfuelTopologyReader ( )

virtual

Definition at line 54 of file rocketfuel-topology-reader.cc.

References NS_LOG_FUNCTION.

ns3::RocketfuelTopologyReader::RocketfuelTopologyReader ( const RocketfuelTopologyReader & )

private

Copy constructor.

Defined and unimplemented to avoid misuse.

Member Function Documentation

NodeContainer ns3::RocketfuelTopologyReader::GenerateFromMapsFile	(	int	argc,
		char *	argv[]
	)

private

Topology read function from a file containing the nodes map.

Parser for the *.cch file available at: http://www.cs.washington.edu/research/networking/rocketfuel/maps/rocketfuel_maps_cch.tar.gz

Parameters

[in]	argc	Argument counter.
[in]	argv	Argument vector.

Returns: The container of the nodes created (or empty container if there was an error).

Definition at line 104 of file rocketfuel-topology-reader.cc.

References ns3::NodeContainer::Add(), ns3::TopologyReader::AddLink(), m_linksNumber, m_nodeMap, m_nodesNumber, first::nodes, NS_LOG_INFO, NS_LOG_WARN, and ns3::PrintNodeInfo().

Referenced by Read().

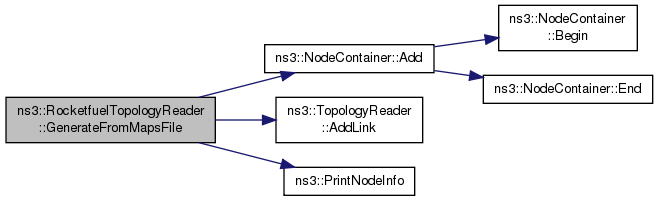

Here is the call graph for this function:

Here is the caller graph for this function:

NodeContainer ns3::RocketfuelTopologyReader::GenerateFromWeightsFile	(	int	argc,
		char *	argv[]
	)

private

Topology read function from a file containing the nodes weights.

Parser for the weights.* file available at: http://www.cs.washington.edu/research/networking/rocketfuel/maps/weights-dist.tar.gz

Parameters

[in]	argc	Argument counter.
[in]	argv	Argument vector.

Returns: The container of the nodes created (or empty container if there was an error).

Definition at line 219 of file rocketfuel-topology-reader.cc.

References ns3::NodeContainer::Add(), ns3::TopologyReader::AddLink(), ns3::TopologyReader::LinksBegin(), ns3::TopologyReader::LinksEnd(), m_linksNumber, m_nodeMap, m_nodesNumber, first::nodes, NS_LOG_INFO, NS_LOG_WARN, and NS_UNUSED.

Referenced by Read().

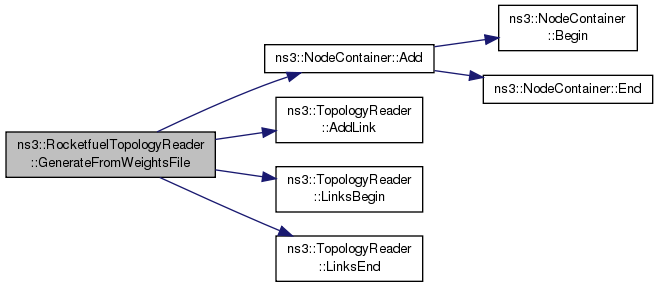

Here is the call graph for this function:

Here is the caller graph for this function:

enum RocketfuelTopologyReader::RF_FileType ns3::RocketfuelTopologyReader::GetFileType ( const char * line )

private

Classifies the file type according to its content.

Returns: The file type (RF_MAPS, RF_WEIGHTS, or RF_UNKNOWN)

Definition at line 282 of file rocketfuel-topology-reader.cc.

References REGMATCH_MAX, RF_MAPS, RF_UNKNOWN, RF_WEIGHTS, ROCKETFUEL_MAPS_LINE, and ROCKETFUEL_WEIGHTS_LINE.

Referenced by Read().

Here is the caller graph for this function:

TypeId ns3::RocketfuelTopologyReader::GetTypeId ( void )

static

Get the type ID.

Returns: The object TypeId

Definition at line 37 of file rocketfuel-topology-reader.cc.

References ns3::TypeId::SetParent().

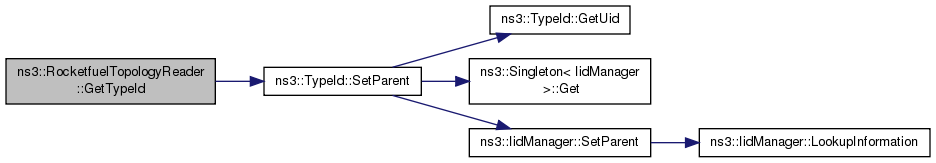

Here is the call graph for this function:

RocketfuelTopologyReader& ns3::RocketfuelTopologyReader::operator= ( const RocketfuelTopologyReader & )

private

Copy constructor.

Defined and unimplemented to avoid misuse.

Returns

NodeContainer ns3::RocketfuelTopologyReader::Read ( void )

virtual

Main topology reading function.

This method opens an input stream and reads the Rocketfuel-format file. Every row represents a topology link (the ids of a couple of nodes), so the input file is read line by line to figure out how many links and nodes are in the topology.
