this class implements the link manager of subscriber station net device. More...

#include "ss-link-manager.h"

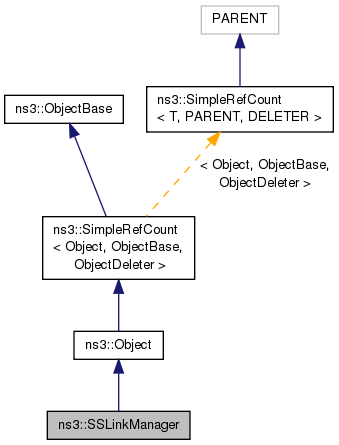

Inheritance diagram for ns3::SSLinkManager:

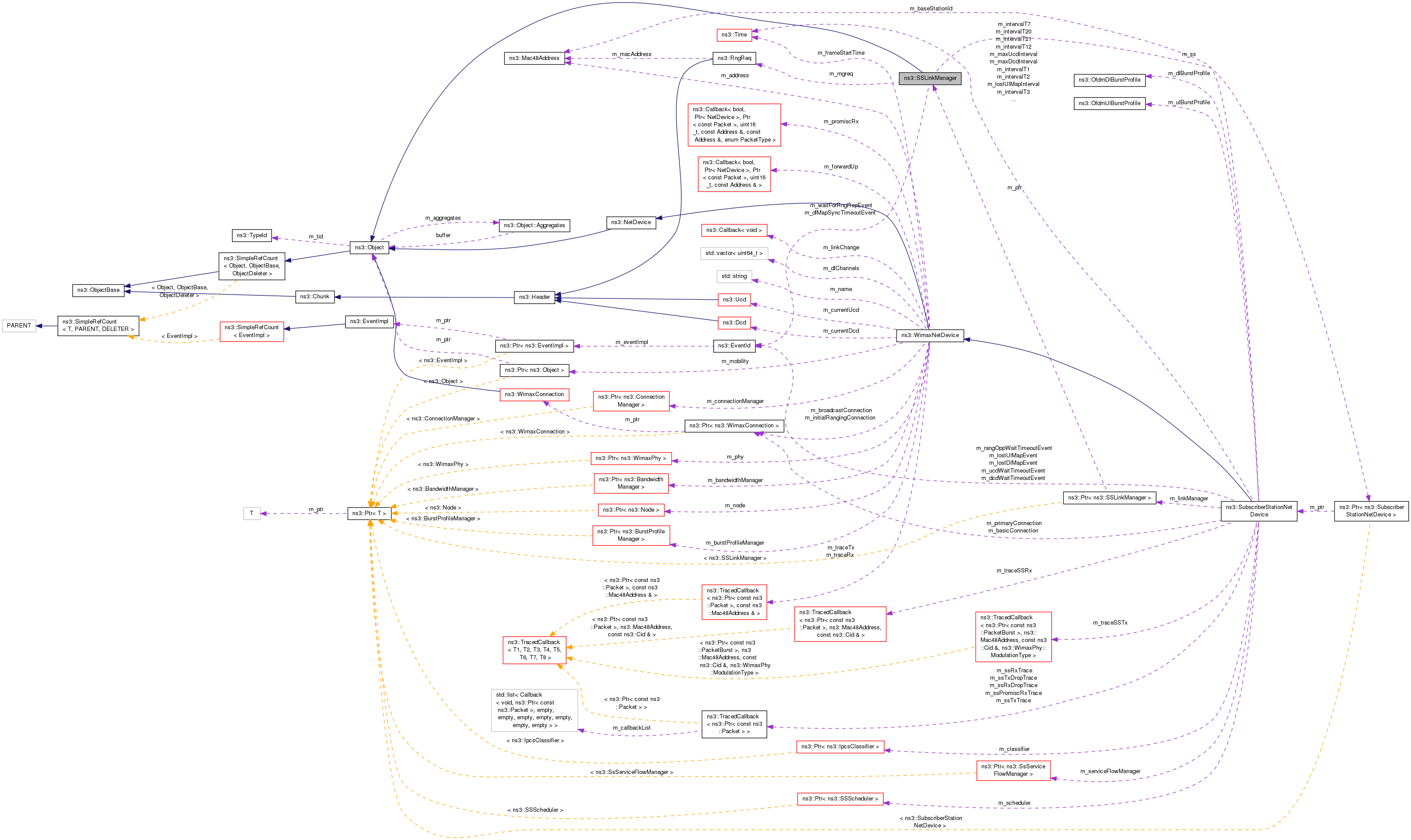

Collaboration diagram for ns3::SSLinkManager:

Public Member Functions
	SSLinkManager (Ptr< SubscriberStationNetDevice > ss)

	~SSLinkManager (void)

void	DoDispose (void)
	Destructor implementation. More...

EventId	GetDlMapSyncTimeoutEvent (void)

bool	GetRangingIntervalFound (void) const

void	IncrementNrInvitedPollsRecvd (void)

bool	IsUlChannelUsable (void)

void	PerformBackoff (void)

void	PerformRanging (Cid cid, RngRsp rngrsp)

void	ScheduleScanningRestart (Time interval, SubscriberStationNetDevice::EventType eventType, bool deleteUlParameters, EventId &eventId)

void	SendRangingRequest (uint8_t uiuc, uint16_t allocationSize)

void	SetBsEirp (uint16_t bs_eirp)

void	SetEirXPIrMax (uint16_t eir_x_p_ir_max)

void	SetNrRangingTransOpps (uint8_t nrRangingTransOpps)

void	SetRangingCW (uint8_t rangingCW)

void	SetRangingIntervalFound (bool rangingIntervalFound)

void	StartContentionResolution (void)

void	StartScanning (SubscriberStationNetDevice::EventType type, bool deleteParameters)

Public Member Functions inherited from ns3::Object
	Object ()
	Constructor. More...

virtual	~Object ()
	Destructor. More...

void	AggregateObject (Ptr< Object > other)
	Aggregate two Objects together. More...

void	Dispose (void)
	Dispose of this Object. More...

AggregateIterator	GetAggregateIterator (void) const
	Get an iterator to the Objects aggregated to this one. More...

virtual TypeId	GetInstanceTypeId (void) const
	Implement the GetInstanceTypeId method defined in ObjectBase. More...

template<typename T >
Ptr< T >	GetObject (void) const
	Get a pointer to the requested aggregated Object. More...

template<typename T >
Ptr< T >	GetObject (TypeId tid) const
	Get a pointer to the requested aggregated Object by TypeId. More...

void	Initialize (void)
	Invoke DoInitialize on all Objects aggregated to this one. More...

bool	IsInitialized (void) const
	Check if the object has been initialized. More...

Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
	SimpleRefCount ()
	Constructor. More...

	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...

uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...

SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...

void	Ref (void) const
	Increment the reference count. More...

void	Unref (void) const
	Decrement the reference count. More...

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId (void)

Static Public Member Functions inherited from ns3::Object
static TypeId	GetTypeId (void)
	Register this type. More...

Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter >
static void	Cleanup (void)
	Noop. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	SSLinkManager (const SSLinkManager &)

void	AdjustRangingParameters (const RngRsp &rngrsp)

uint16_t	CalculateMaxIRSignalStrength (void)

void	DeleteUplinkParameters (void)

void	EndScanning (bool status, uint64_t frequency)

uint16_t	GetMinTransmitPowerLevel (void)

void	IncreaseRangingRequestCW (void)

void	NegotiateBasicCapabilities (void)

SSLinkManager &	operator= (const SSLinkManager &)

void	ResetRangingRequestCW (void)

bool	SearchForDlChannel (uint8_t channel)

void	SelectRandomBackoff (void)

void	StartSynchronizing (void)

Private Attributes
uint16_t	m_bsEirp

uint8_t	m_contentionRangingRetries

uint8_t	m_dlChnlNr

EventId	m_dlMapSyncTimeoutEvent

uint16_t	m_eirXPIrMax

uint64_t	m_frequency

uint8_t	m_initRangOppNumber

bool	m_isBackoffSet

uint16_t	m_nrInvitedPollsRecvd

uint8_t	m_nrRangingTransOpps

uint16_t	m_nrRngReqsSent

uint16_t	m_nrRngRspsRecvd

uint16_t	m_pTxIrMax

uint8_t	m_rangingAnomalies

uint8_t	m_rangingBO

uint8_t	m_rangingCW

bool	m_rangingIntervalFound

WimaxNetDevice::RangingStatus	m_rangingStatus

RngReq	m_rngreq

uint32_t	m_rngReqFrameNumber

Ptr< SubscriberStationNetDevice >	m_ss

EventId	m_waitForRngRspEvent

Additional Inherited Members
Protected Member Functions inherited from ns3::Object
	Object (const Object &o)
	Copy an Object. More...

virtual void	DoInitialize (void)
	Initialize() implementation. More...

virtual void	NotifyNewAggregate (void)
	Notify all Objects aggregated to this one of a new Object being aggregated. More...

Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

this class implements the link manager of subscriber station net device.

An ss link manager is responsible for link scanning and ranging

Config Paths

ns3::SSLinkManager is accessible through the following paths with Config::Set and Config::Connect:

"/NodeList/[i]/DeviceList/[i]/$ns3::WimaxNetDevice/$ns3::SubscriberStationNetDevice/LinkManager"
"/NodeList/[i]/DeviceList/[i]/$ns3::SubscriberStationNetDevice/LinkManager"

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 160 bytes (on a 64-bit architecture).

Definition at line 41 of file ss-link-manager.h.

Constructor & Destructor Documentation

ns3::SSLinkManager::SSLinkManager ( Ptr< SubscriberStationNetDevice > ss )

Definition at line 48 of file ss-link-manager.cc.

ns3::SSLinkManager::~SSLinkManager ( void )

Definition at line 72 of file ss-link-manager.cc.

References m_ss.

ns3::SSLinkManager::SSLinkManager ( const SSLinkManager & )

private

Member Function Documentation

void ns3::SSLinkManager::AdjustRangingParameters ( const RngRsp & rngrsp )

private

Definition at line 449 of file ss-link-manager.cc.

References ns3::RngRsp::GetOffsetFreqAdjust(), ns3::RngRsp::GetPowerLevelAdjust(), and ns3::RngRsp::GetTimingAdjust().

Referenced by PerformRanging().

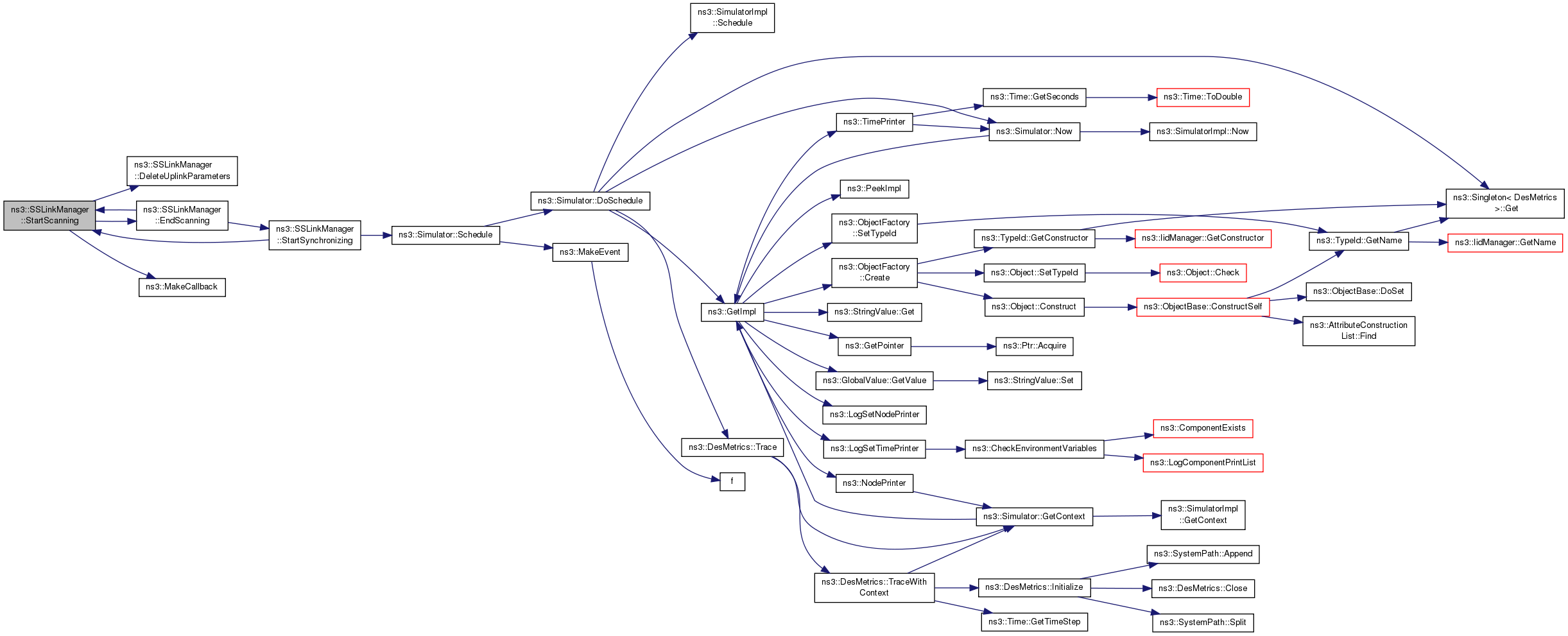

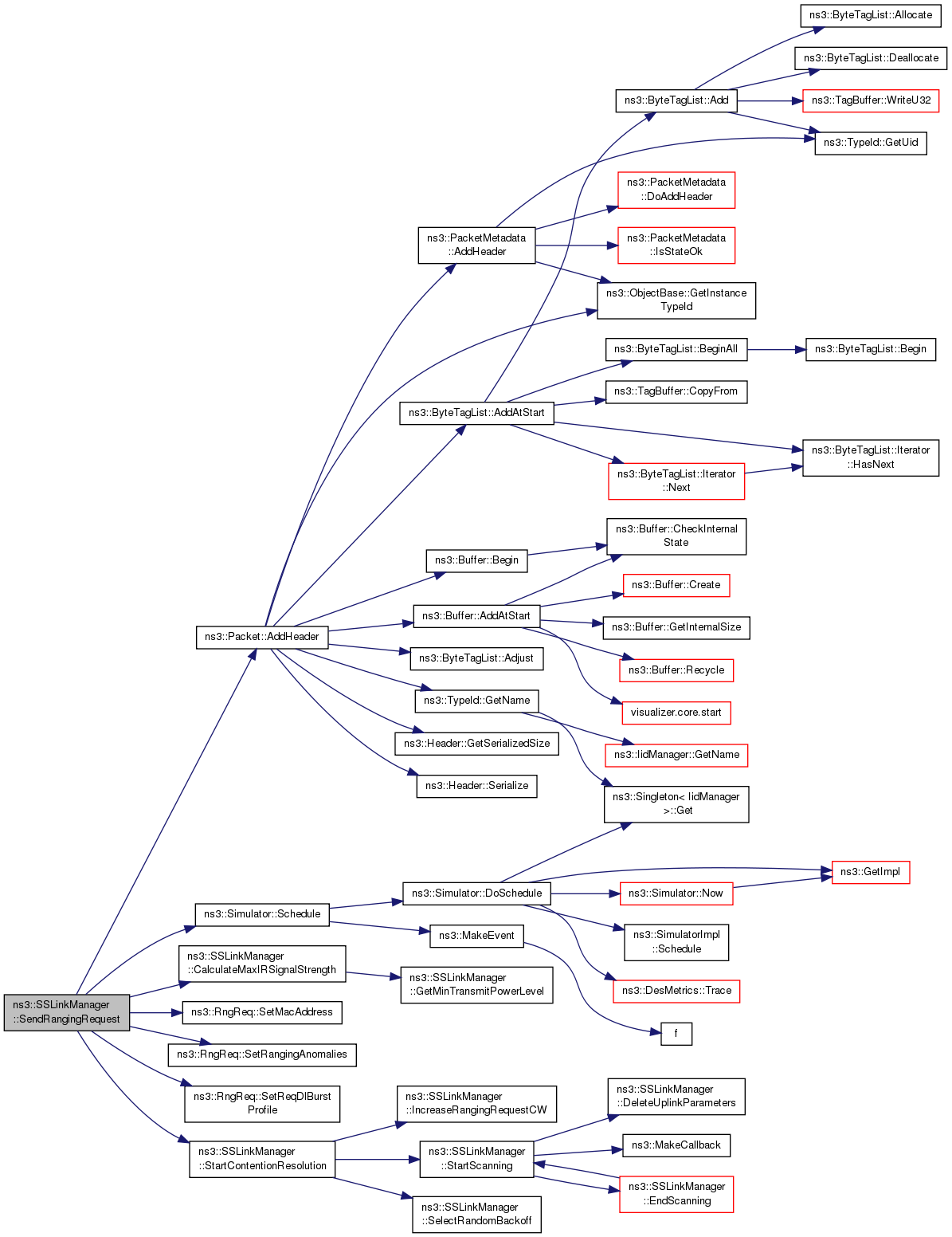

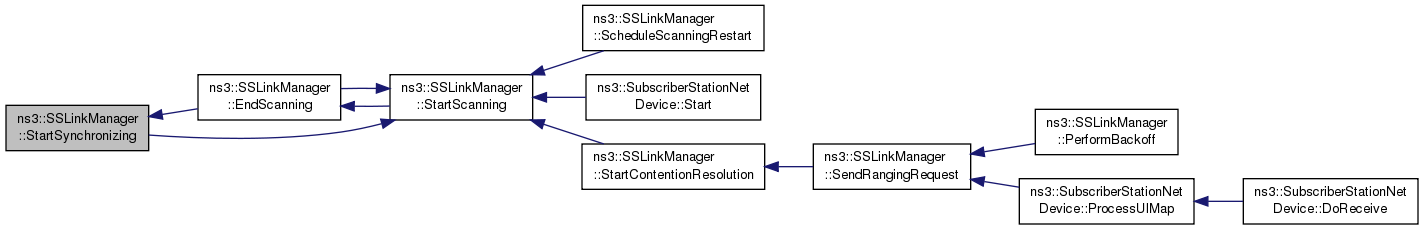

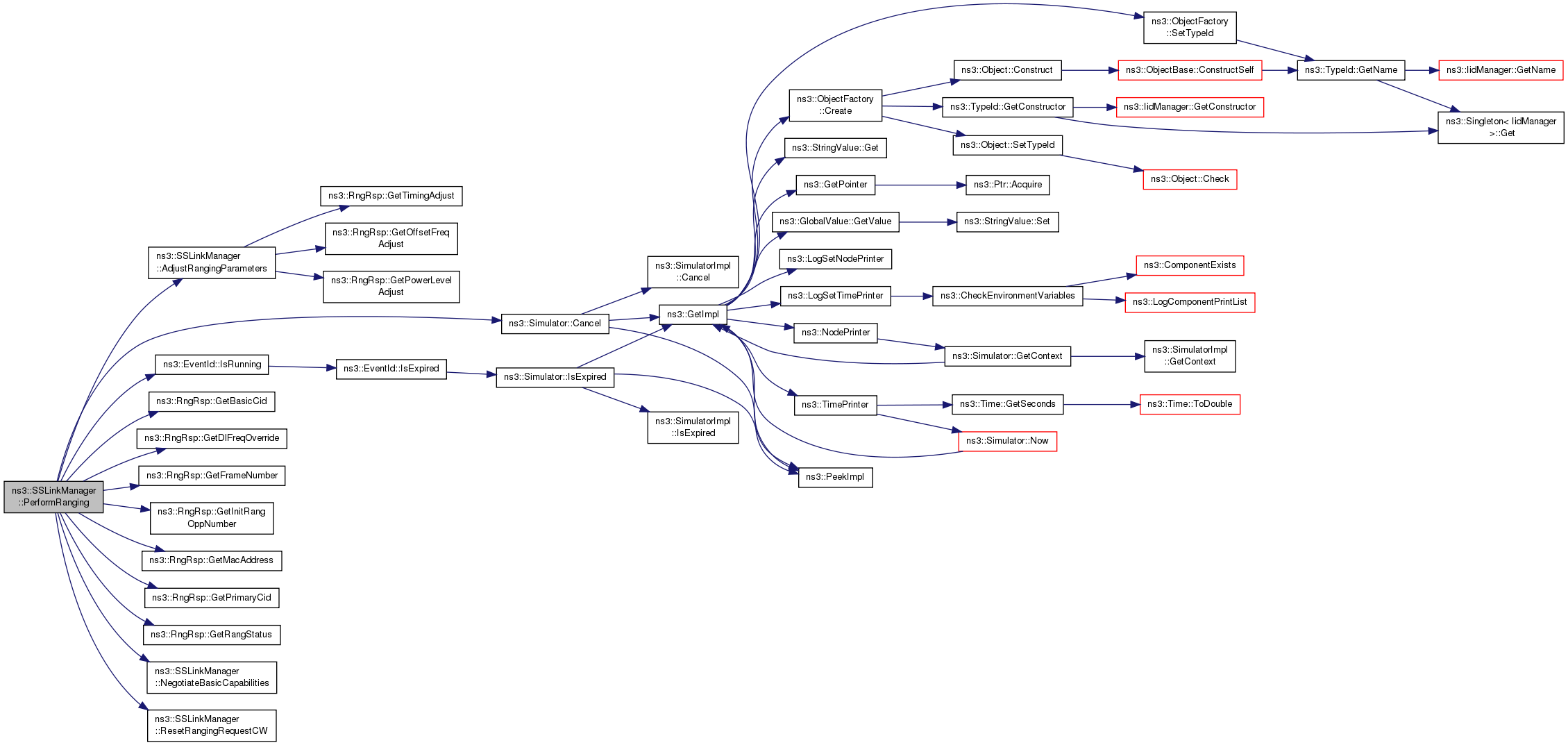

Here is the call graph for this function:

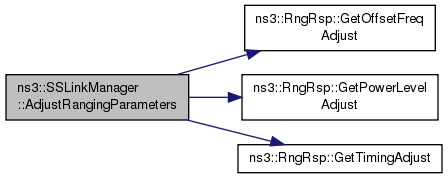

Here is the caller graph for this function:

uint16_t ns3::SSLinkManager::CalculateMaxIRSignalStrength ( void )

private

Definition at line 473 of file ss-link-manager.cc.

References GetMinTransmitPowerLevel(), m_bsEirp, and m_eirXPIrMax.

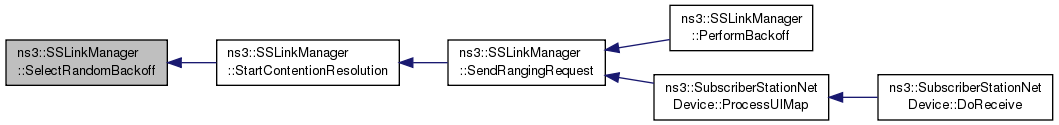

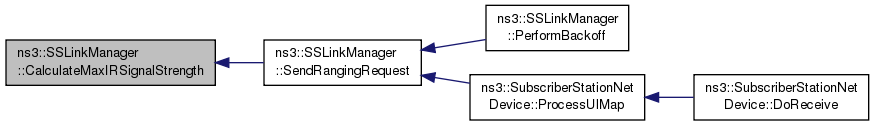

Referenced by SendRangingRequest().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::SSLinkManager::DeleteUplinkParameters ( void )

private

Definition at line 436 of file ss-link-manager.cc.

References m_ss.

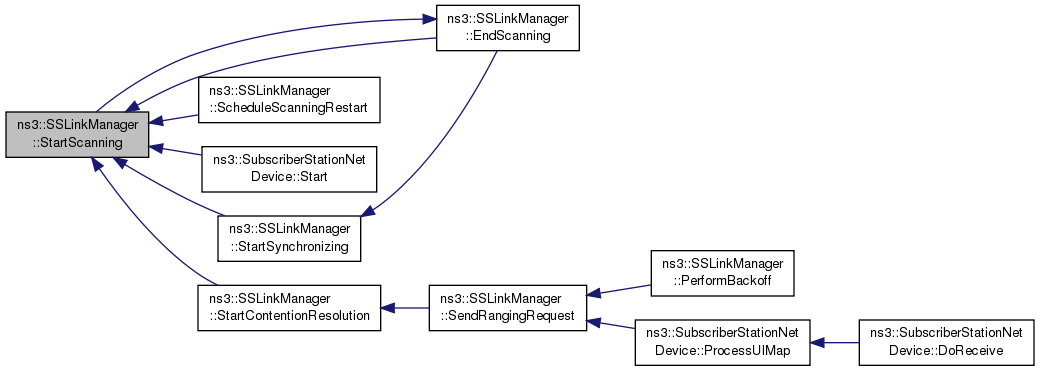

Referenced by StartScanning().

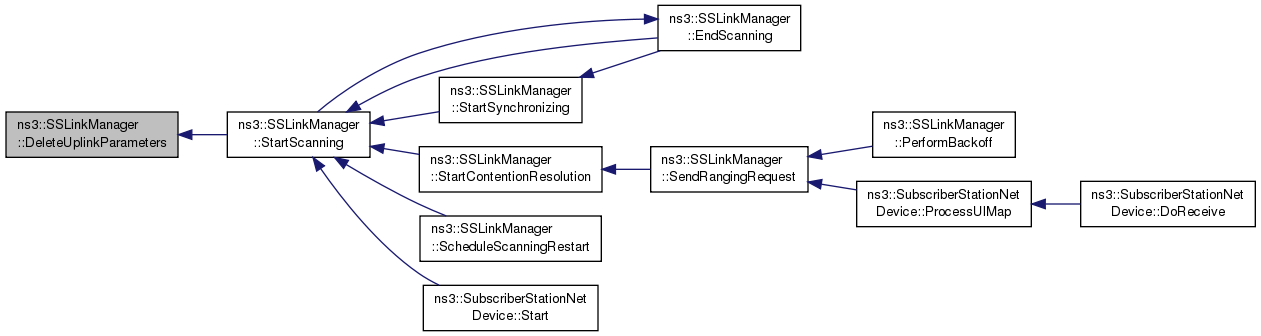

Here is the caller graph for this function:

void ns3::SSLinkManager::DoDispose ( void )

virtual

Destructor implementation.

This method is called by Dispose() or by the Object's destructor, whichever comes first.

Subclasses are expected to implement their real destruction code in an overriden version of this method and chain up to their parent's implementation once they are done. i.e, for simplicity, the destructor of every subclass should be empty and its content should be moved to the associated DoDispose() method.

It is safe to call GetObject() from within this method.

Reimplemented from ns3::Object.

Definition at line 79 of file ss-link-manager.cc.

References m_ss.

void ns3::SSLinkManager::EndScanning	(	bool	status,
		uint64_t	frequency
	)

private

Definition at line 165 of file ss-link-manager.cc.

References ns3::SubscriberStationNetDevice::EVENT_NONE, m_frequency, StartScanning(), and StartSynchronizing().

Referenced by StartScanning().

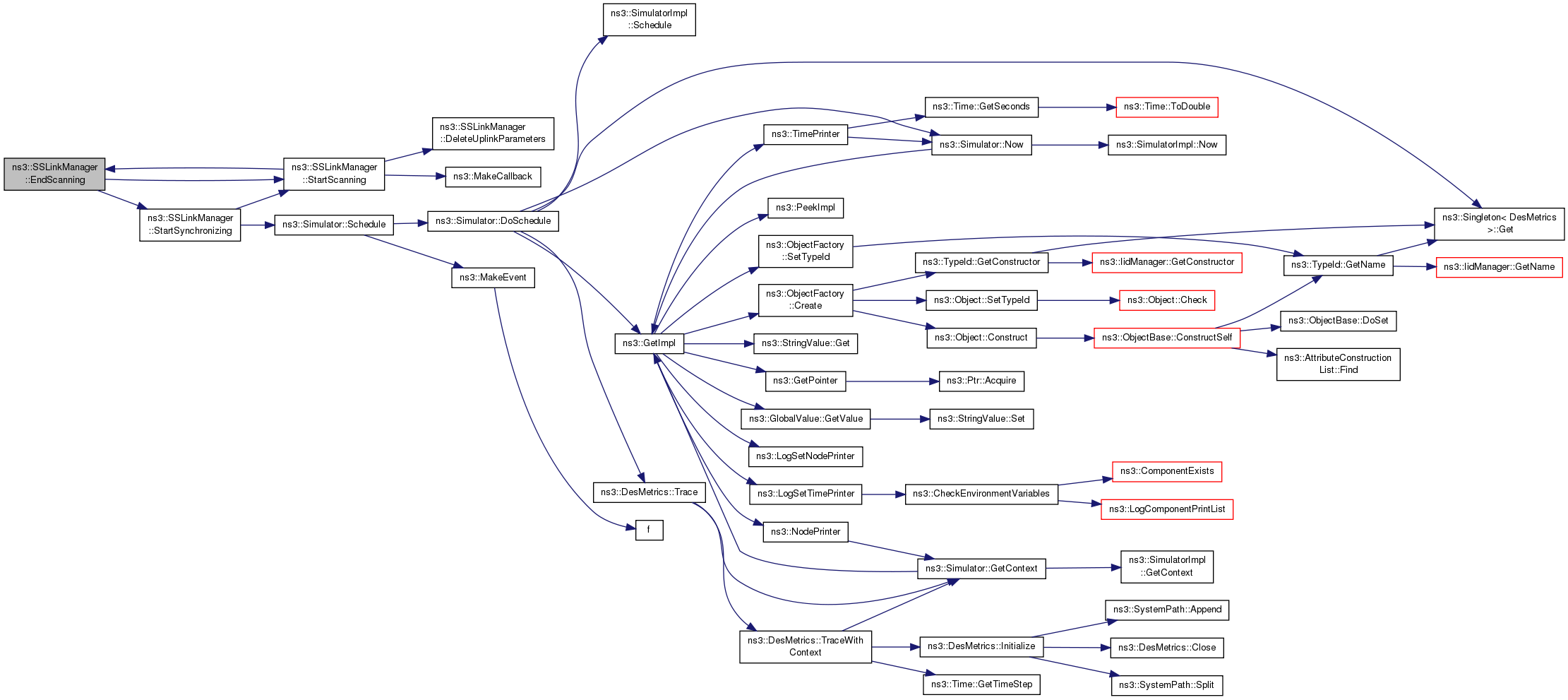

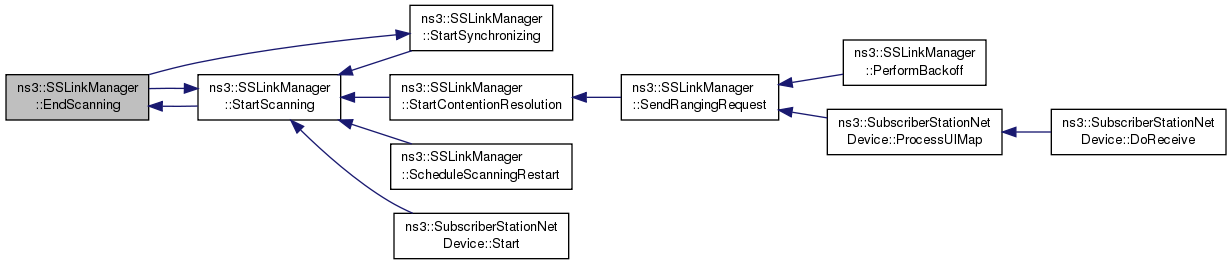

Here is the call graph for this function:

Here is the caller graph for this function:

EventId ns3::SSLinkManager::GetDlMapSyncTimeoutEvent ( void )

Definition at line 127 of file ss-link-manager.cc.

References m_dlMapSyncTimeoutEvent.

uint16_t ns3::SSLinkManager::GetMinTransmitPowerLevel ( void )

private

Definition at line 491 of file ss-link-manager.cc.

Referenced by CalculateMaxIRSignalStrength().

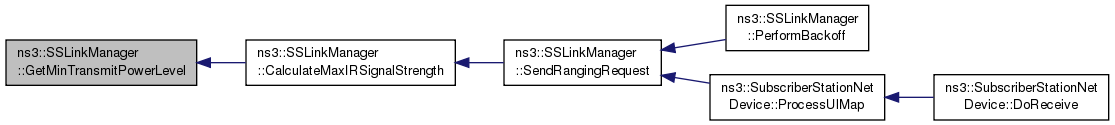

Here is the caller graph for this function:

bool ns3::SSLinkManager::GetRangingIntervalFound ( void ) const

Definition at line 103 of file ss-link-manager.cc.

References m_rangingIntervalFound.

TypeId ns3::SSLinkManager::GetTypeId ( void )

static

Definition at line 40 of file ss-link-manager.cc.

References ns3::TypeId::SetParent().

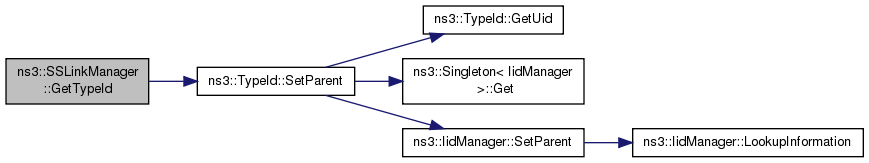

Here is the call graph for this function:

void ns3::SSLinkManager::IncreaseRangingRequestCW ( void )

private

Definition at line 332 of file ss-link-manager.cc.

References m_rangingCW, m_ss, and min.

Referenced by StartContentionResolution().

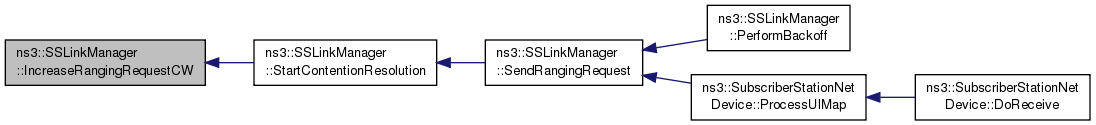

Here is the caller graph for this function:

void ns3::SSLinkManager::IncrementNrInvitedPollsRecvd ( void )

Definition at line 121 of file ss-link-manager.cc.

References m_nrInvitedPollsRecvd.

bool ns3::SSLinkManager::IsUlChannelUsable ( void )

Definition at line 442 of file ss-link-manager.cc.

void ns3::SSLinkManager::NegotiateBasicCapabilities ( void )

private

Definition at line 467 of file ss-link-manager.cc.

Referenced by PerformRanging().

Here is the caller graph for this function:

SSLinkManager& ns3::SSLinkManager::operator= ( const SSLinkManager & )

private

void ns3::SSLinkManager::PerformBackoff ( void )

Definition at line 289 of file ss-link-manager.cc.

References m_initRangOppNumber, m_isBackoffSet, m_nrRangingTransOpps, m_rangingBO, m_rngReqFrameNumber, m_ss, ns3::Simulator::Schedule(), ns3::Seconds(), SendRangingRequest(), and ns3::OfdmUlBurstProfile::UIUC_INITIAL_RANGING.

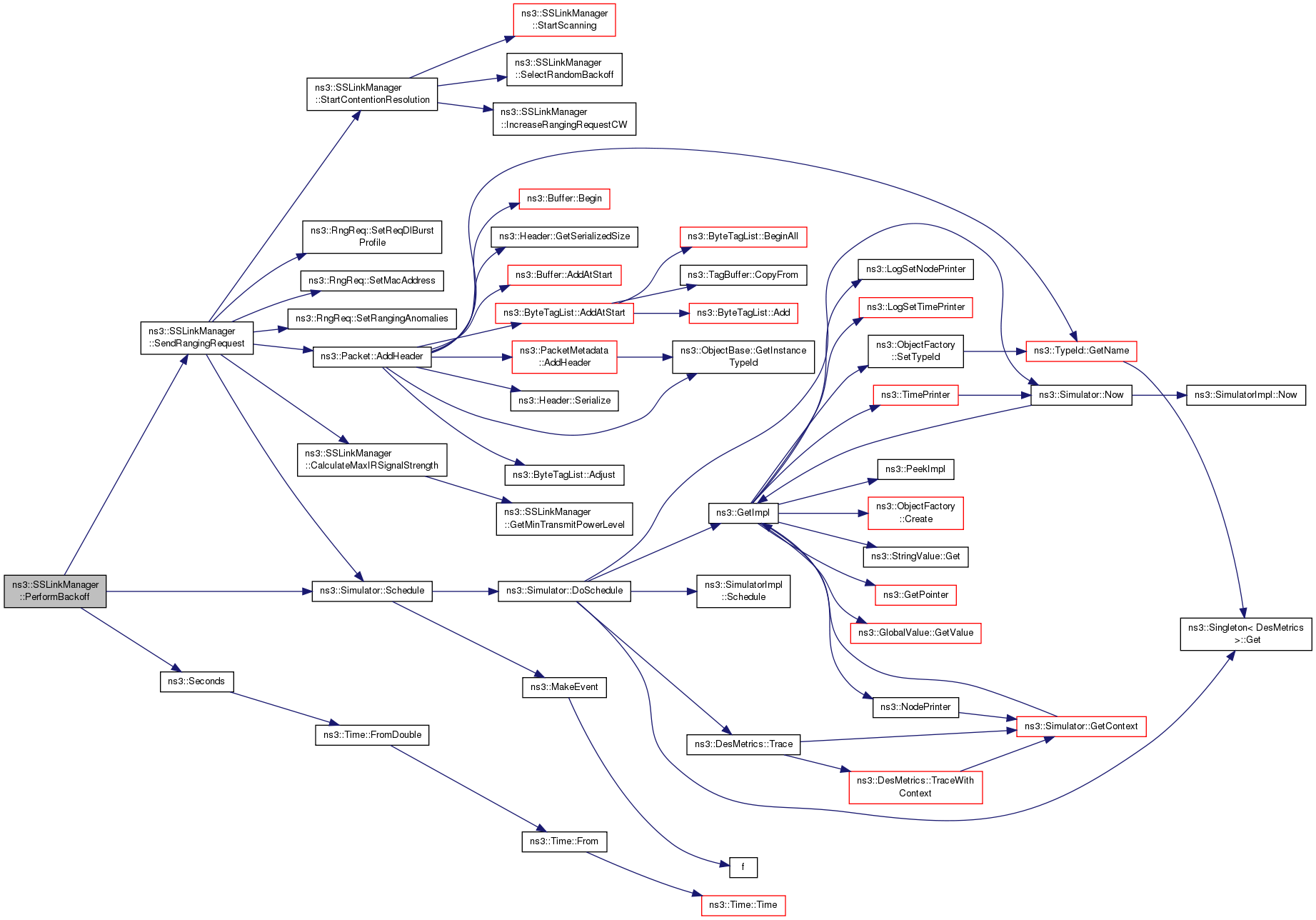

Here is the call graph for this function:

void ns3::SSLinkManager::PerformRanging	(	Cid	cid,
		RngRsp	rngrsp
	)

Definition at line 346 of file ss-link-manager.cc.

References AdjustRangingParameters(), ns3::Cid::BASIC, ns3::Simulator::Cancel(), ns3::RngRsp::GetBasicCid(), ns3::RngRsp::GetDlFreqOverride(), ns3::RngRsp::GetFrameNumber(), ns3::RngRsp::GetInitRangOppNumber(), ns3::RngRsp::GetMacAddress(), ns3::RngRsp::GetPrimaryCid(), ns3::RngRsp::GetRangStatus(), ns3::EventId::IsRunning(), m_initRangOppNumber, m_nrRngRspsRecvd, m_rangingStatus, m_rngReqFrameNumber, m_ss, m_waitForRngRspEvent, NegotiateBasicCapabilities(), NS_ASSERT_MSG, ns3::Cid::PRIMARY, ns3::WimaxNetDevice::RANGING_STATUS_ABORT, ns3::WimaxNetDevice::RANGING_STATUS_CONTINUE, ns3::WimaxNetDevice::RANGING_STATUS_SUCCESS, ResetRangingRequestCW(), ns3::SubscriberStationNetDevice::SS_STATE_ADJUSTING_PARAMETERS, ns3::SubscriberStationNetDevice::SS_STATE_REGISTERED, and ns3::SubscriberStationNetDevice::SS_STATE_WAITING_INV_RANG_INTRVL.

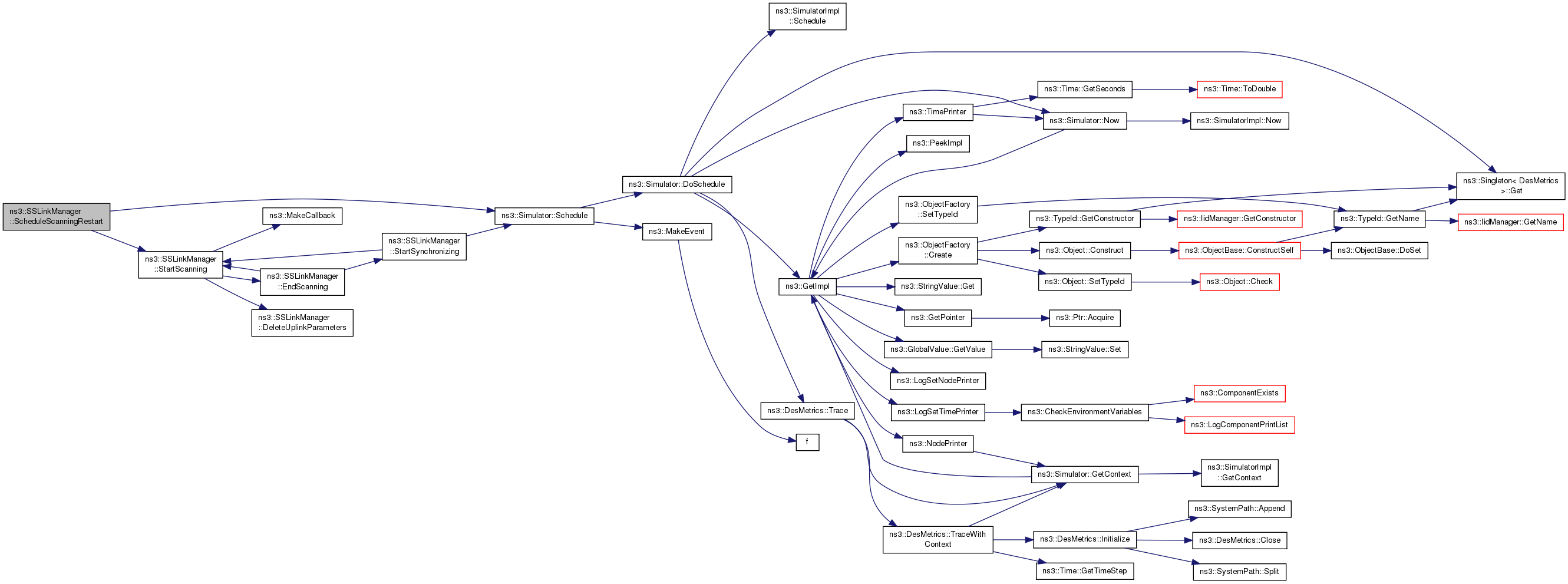

Here is the call graph for this function:

void ns3::SSLinkManager::ResetRangingRequestCW ( void )

private

Definition at line 339 of file ss-link-manager.cc.

References m_rangingCW, and m_ss.

Referenced by PerformRanging().

Here is the caller graph for this function:

void ns3::SSLinkManager::ScheduleScanningRestart	(	Time	interval,
		SubscriberStationNetDevice::EventType	eventType,
		bool	deleteUlParameters,
		EventId &	eventId
	)
