Walks a given NodeContainer sequentially, and for each node allocate a new position randomly in the same room of that node. More...
#include "building-position-allocator.h"
Inheritance diagram for ns3::SameRoomPositionAllocator: Collaboration diagram for ns3::SameRoomPositionAllocator:Public Member Functions | |
| SameRoomPositionAllocator () | |
| SameRoomPositionAllocator (NodeContainer c) | |
| int64_t | AssignStreams (int64_t) |
| Assign a fixed random variable stream number to the random variables used by this model. More... | |
| virtual Vector | GetNext (void) const |
| Public Member Functions inherited from ns3::PositionAllocator | |
| PositionAllocator () | |
| virtual | ~PositionAllocator () |
| Public Member Functions inherited from ns3::Object | |
| Object () | |
| Constructor. More... | |
| virtual | ~Object () |
| Destructor. More... | |
| void | AggregateObject (Ptr< Object > other) |
| Aggregate two Objects together. More... | |
| void | Dispose (void) |
| Dispose of this Object. More... | |
| AggregateIterator | GetAggregateIterator (void) const |
| Get an iterator to the Objects aggregated to this one. More... | |
| virtual TypeId | GetInstanceTypeId (void) const |
| Implement the GetInstanceTypeId method defined in ObjectBase. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (void) const |
| Get a pointer to the requested aggregated Object. More... | |
| template<typename T > | |
| Ptr< T > | GetObject (TypeId tid) const |
| Get a pointer to the requested aggregated Object by TypeId. More... | |
| void | Initialize (void) |
| Invoke DoInitialize on all Objects aggregated to this one. More... | |
| bool | IsInitialized (void) const |
| Check if the object has been initialized. More... | |
| Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| SimpleRefCount () | |
| Constructor. More... | |
| SimpleRefCount (const SimpleRefCount &o) | |
| Copy constructor. More... | |
| uint32_t | GetReferenceCount (void) const |
| Get the reference count of the object. More... | |
| SimpleRefCount & | operator= (const SimpleRefCount &o) |
| Assignment. More... | |
| void | Ref (void) const |
| Increment the reference count. More... | |
| void | Unref (void) const |
| Decrement the reference count. More... | |
| Public Member Functions inherited from ns3::ObjectBase | |
| virtual | ~ObjectBase () |
| Virtual destructor. More... | |
| void | GetAttribute (std::string name, AttributeValue &value) const |
| Get the value of an attribute, raising fatal errors if unsuccessful. More... | |
| bool | GetAttributeFailSafe (std::string name, AttributeValue &value) const |
| Get the value of an attribute without raising erros. More... | |
| void | SetAttribute (std::string name, const AttributeValue &value) |
| Set a single attribute, raising fatal errors if unsuccessful. More... | |
| bool | SetAttributeFailSafe (std::string name, const AttributeValue &value) |
| Set a single attribute without raising errors. More... | |
| bool | TraceConnect (std::string name, std::string context, const CallbackBase &cb) |
| Connect a TraceSource to a Callback with a context. More... | |
| bool | TraceConnectWithoutContext (std::string name, const CallbackBase &cb) |
| Connect a TraceSource to a Callback without a context. More... | |
| bool | TraceDisconnect (std::string name, std::string context, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected with a context. More... | |
| bool | TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb) |
| Disconnect from a TraceSource a Callback previously connected without a context. More... | |
Static Public Member Functions | |
| static TypeId | GetTypeId (void) |
| Static Public Member Functions inherited from ns3::PositionAllocator | |
| static TypeId | GetTypeId (void) |
| Register this type with the TypeId system. More... | |
| Static Public Member Functions inherited from ns3::Object | |
| static TypeId | GetTypeId (void) |
| Register this type. More... | |
| Static Public Member Functions inherited from ns3::SimpleRefCount< Object, ObjectBase, ObjectDeleter > | |
| static void | Cleanup (void) |
| Noop. More... | |
| Static Public Member Functions inherited from ns3::ObjectBase | |
| static TypeId | GetTypeId (void) |
| Get the type ID. More... | |
Private Attributes | |
| NodeContainer::Iterator | m_nodeIt |
| NodeContainer | m_nodes |
| Ptr< UniformRandomVariable > | m_rand |
| Provides uniform random variables. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from ns3::Object | |
| Object (const Object &o) | |
| Copy an Object. More... | |
| virtual void | DoDispose (void) |
| Destructor implementation. More... | |
| virtual void | DoInitialize (void) |
| Initialize() implementation. More... | |
| virtual void | NotifyNewAggregate (void) |
| Notify all Objects aggregated to this one of a new Object being aggregated. More... | |
| Protected Member Functions inherited from ns3::ObjectBase | |
| void | ConstructSelf (const AttributeConstructionList &attributes) |
| Complete construction of ObjectBase; invoked by derived classes. More... | |
| virtual void | NotifyConstructionCompleted (void) |
| Notifier called once the ObjectBase is fully constructed. More... | |
| Related Functions inherited from ns3::ObjectBase | |
| static TypeId | GetObjectIid (void) |
| Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More... | |
Walks a given NodeContainer sequentially, and for each node allocate a new position randomly in the same room of that node.
ns3::SameRoomPositionAllocator is accessible through the following paths with Config::Set and Config::Connect:
No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 72 bytes (on a 64-bit architecture).
Definition at line 119 of file building-position-allocator.h.
| ns3::SameRoomPositionAllocator::SameRoomPositionAllocator | ( | ) |
Definition at line 197 of file building-position-allocator.cc.
References NS_FATAL_ERROR.
| ns3::SameRoomPositionAllocator::SameRoomPositionAllocator | ( | NodeContainer | c | ) |
Definition at line 203 of file building-position-allocator.cc.
References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::Object::GetObject(), m_nodeIt, m_nodes, m_rand, ns3::BuildingsHelper::MakeConsistent(), and NS_ASSERT_MSG.

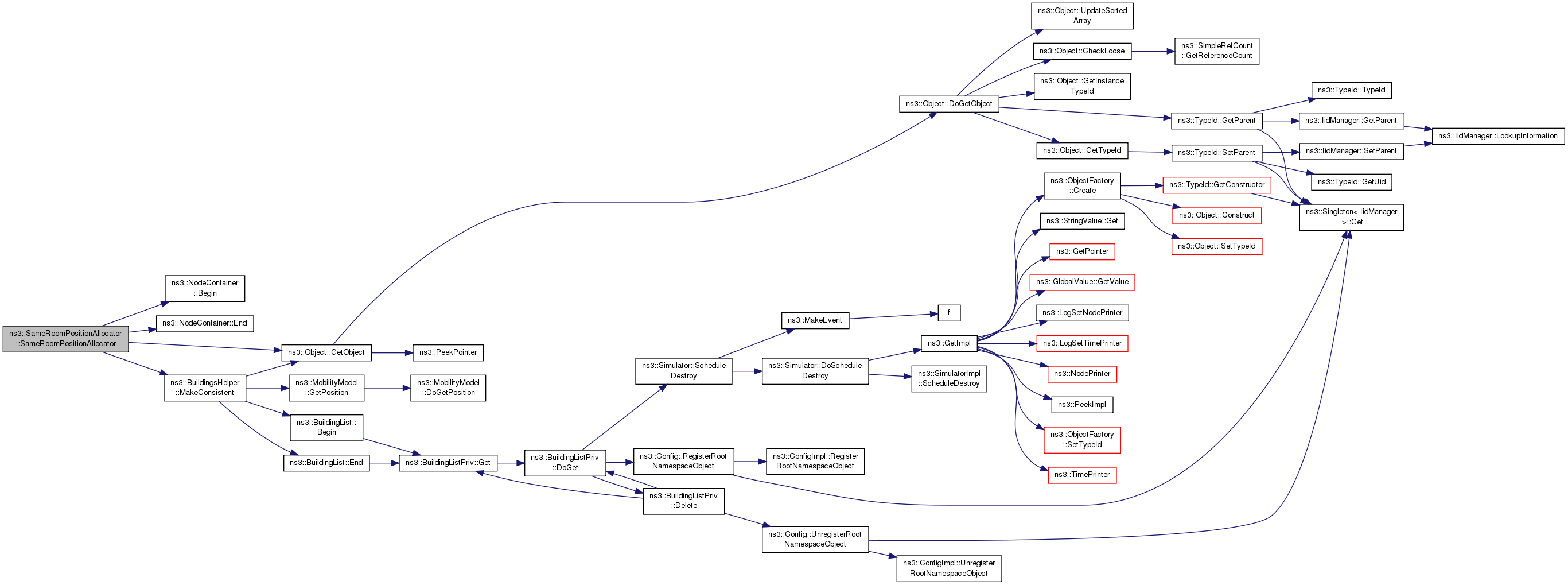

Here is the call graph for this function:
|
virtual |
Assign a fixed random variable stream number to the random variables used by this model.
Return the number of streams (possibly zero) that have been assigned.
| stream | first stream index to use |
Implements ns3::PositionAllocator.
Definition at line 279 of file building-position-allocator.cc.
References m_rand, and ns3::RandomVariableStream::SetStream().

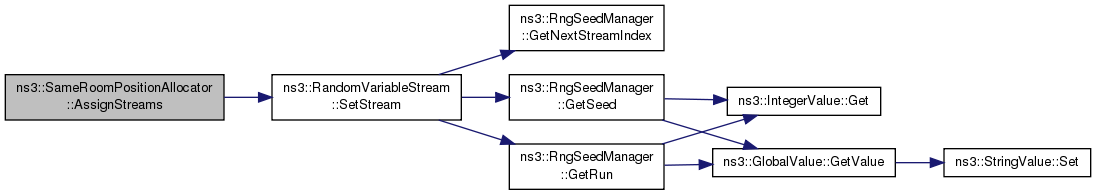

Here is the call graph for this function:
|
virtual |
This method must be implement in subclasses.
Implements ns3::PositionAllocator.
Definition at line 230 of file building-position-allocator.cc.
References ns3::NodeContainer::Begin(), ns3::NodeContainer::End(), ns3::Object::GetObject(), ns3::UniformRandomVariable::GetValue(), m_nodeIt, m_nodes, m_rand, NS_ASSERT_MSG, NS_LOG_FUNCTION, NS_LOG_LOGIC, sample-rng-plot::x, ns3::Box::xMax, ns3::Box::xMin, ns3::Box::yMax, ns3::Box::yMin, ns3::Box::zMax, and ns3::Box::zMin.

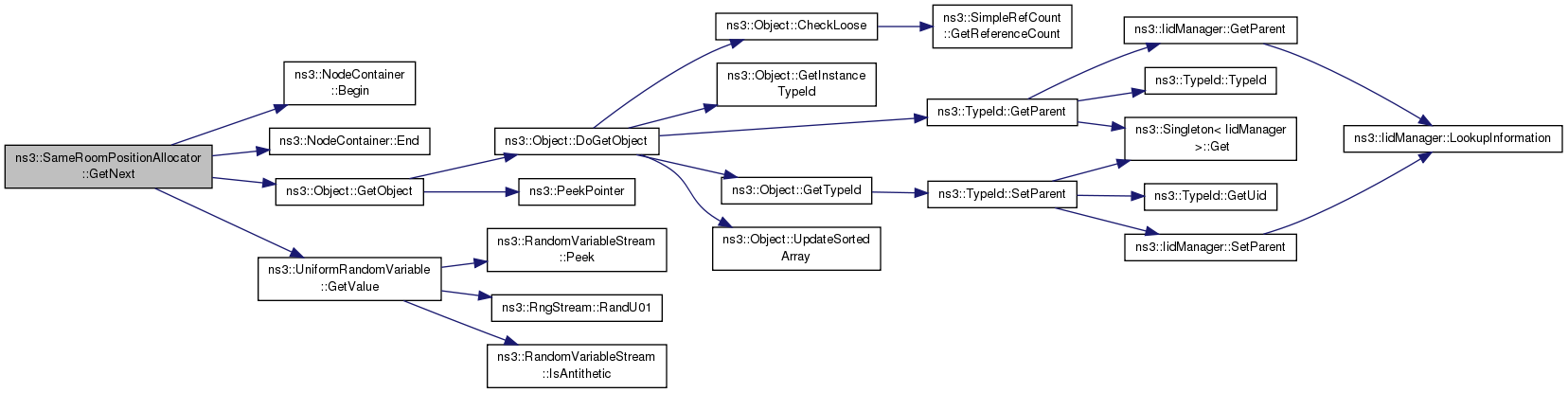

Here is the call graph for this function:
|
static |
Definition at line 220 of file building-position-allocator.cc.
References ns3::TypeId::SetParent().

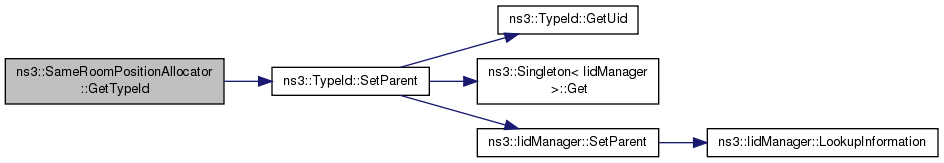

Here is the call graph for this function:
|
mutableprivate |
Definition at line 144 of file building-position-allocator.h.
Referenced by GetNext(), and SameRoomPositionAllocator().
|
private |
Definition at line 143 of file building-position-allocator.h.
Referenced by GetNext(), and SameRoomPositionAllocator().
|
private |
Provides uniform random variables.
Definition at line 147 of file building-position-allocator.h.
Referenced by AssignStreams(), GetNext(), and SameRoomPositionAllocator().
