Test the behavior of RFC congestion avoidance. More...

#include "tcp-cong-avoid-test.h"

Inheritance diagram for ns3::TcpNewRenoCongAvoidNormalTest:

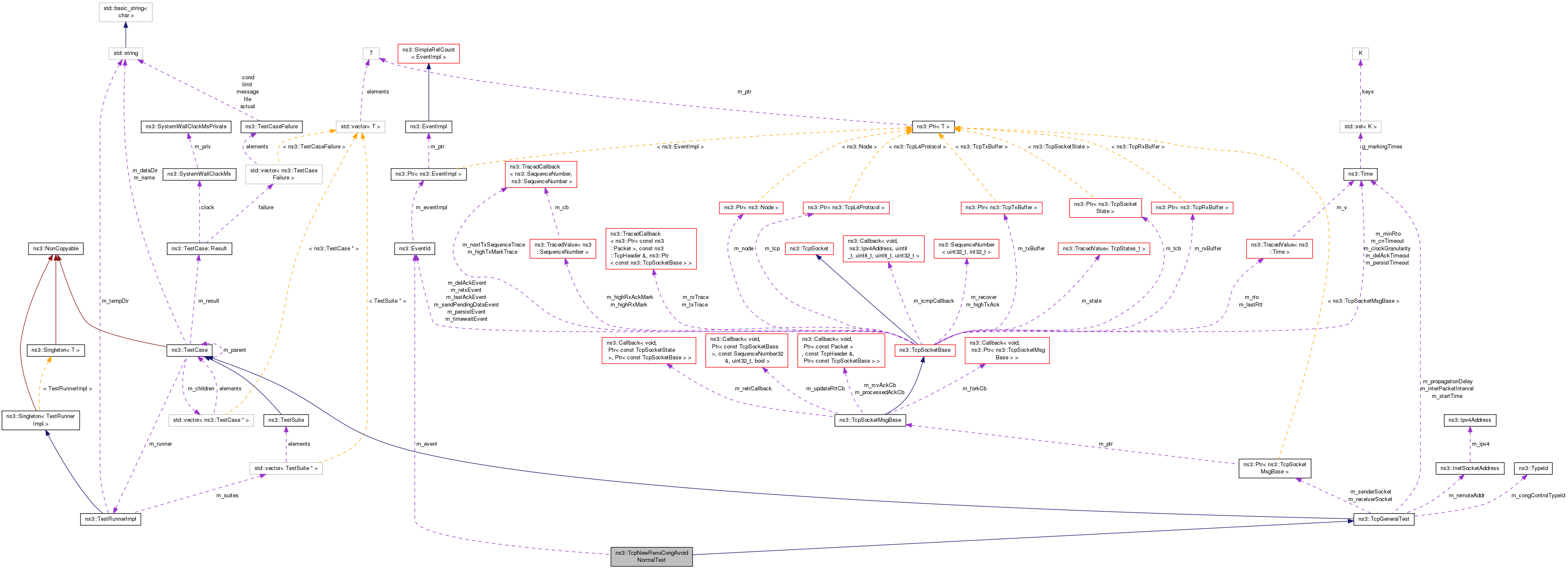

Collaboration diagram for ns3::TcpNewRenoCongAvoidNormalTest:

Public Member Functions
	TcpNewRenoCongAvoidNormalTest (uint32_t segmentSize, uint32_t packetSize, uint32_t packets, TypeId &congControl, const std::string &msg)

Public Member Functions inherited from ns3::TcpGeneralTest
	TcpGeneralTest (const std::string &desc)
	TcpGeneralTest constructor. More...

	~TcpGeneralTest ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Protected Member Functions

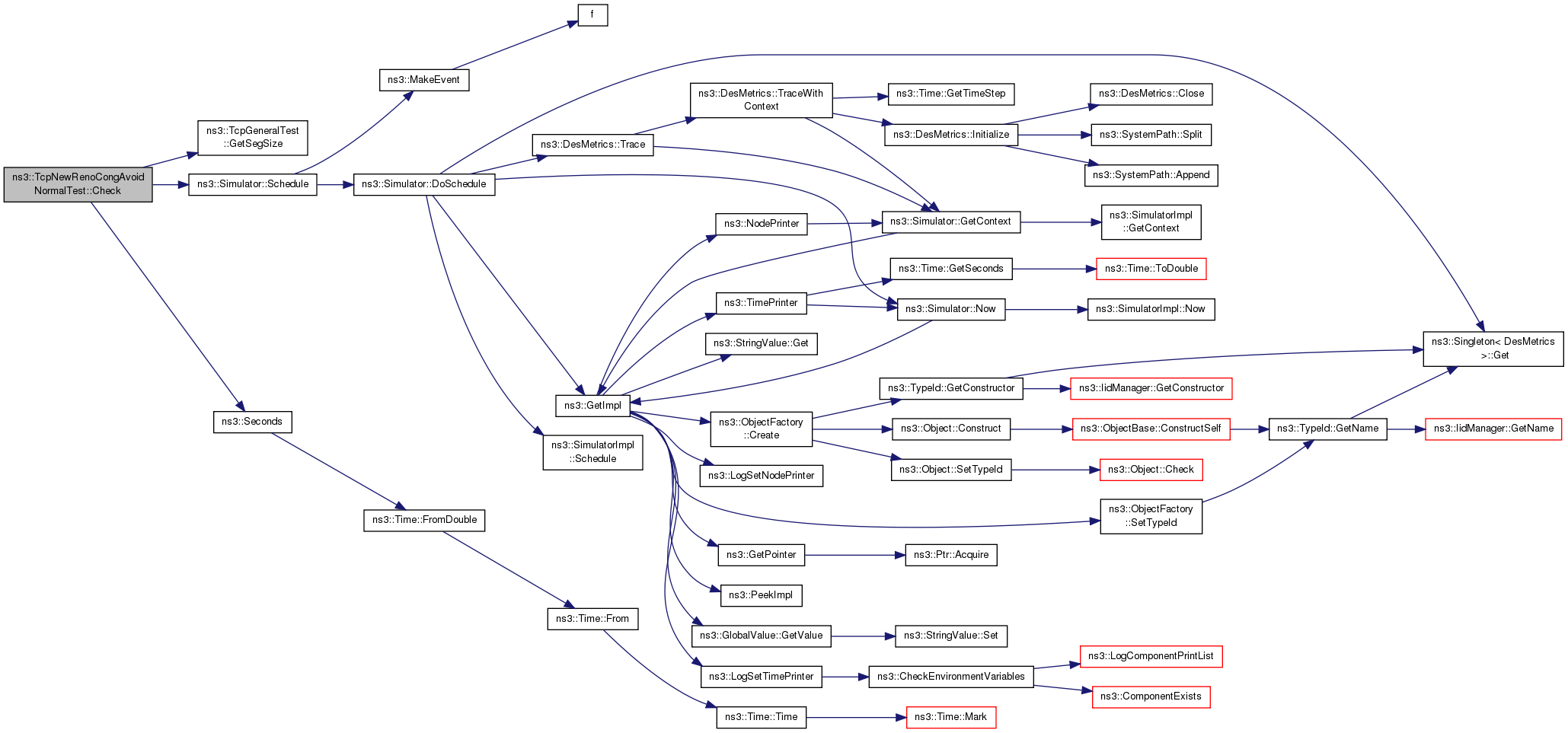

void	Check ()
	Called each RTT (1.0 sec in the testing environment) and check that the overall increment in this RTT is less or equal than 1 MSS. More...

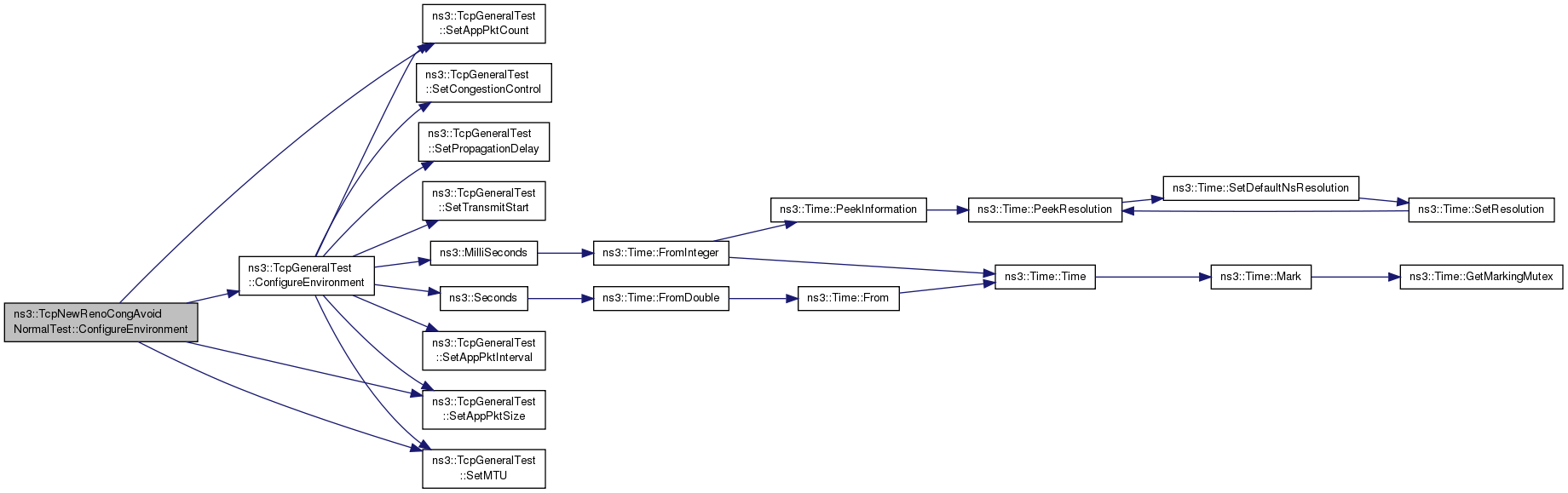

void	ConfigureEnvironment ()
	Change the configuration of the evironment. More...

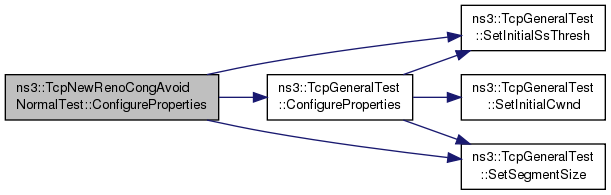

void	ConfigureProperties ()
	Change the configuration of the socket properties. More...

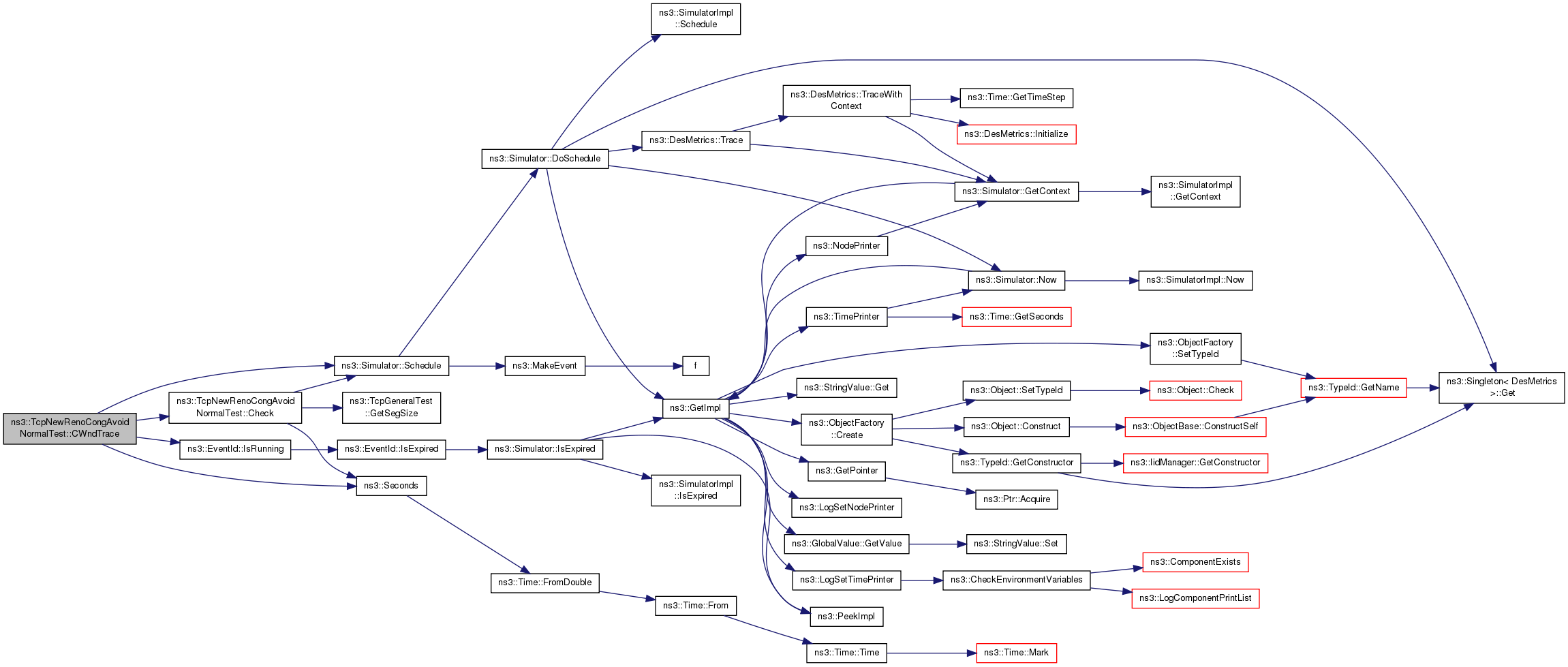

virtual void	CWndTrace (uint32_t oldValue, uint32_t newValue)
	Check the increment of the congestion window in the congestion avoidance. More...

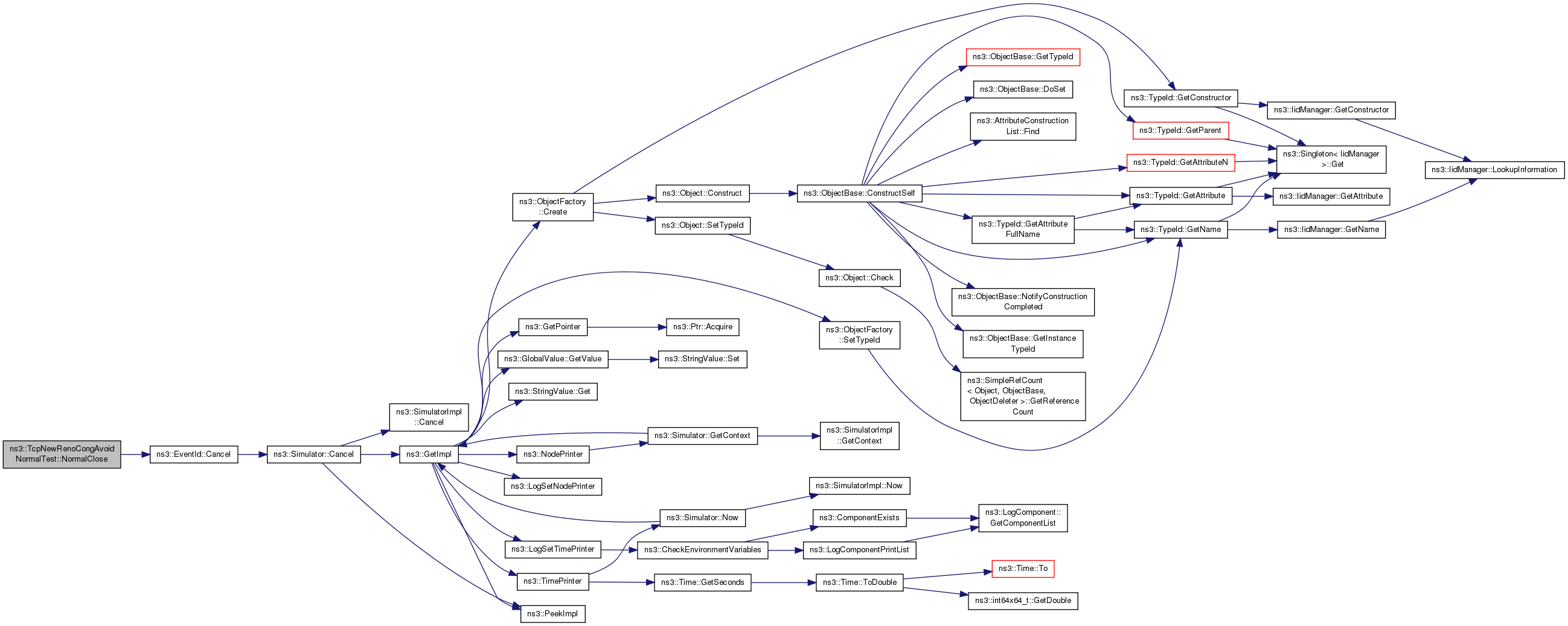

void	NormalClose (SocketWho who)
	Socket closed normally. More...

void	PhyDrop (SocketWho who)
	Link drop. More...

void	QueueDrop (SocketWho who)
	Drop on the queue. More...

Protected Member Functions inherited from ns3::TcpGeneralTest
virtual void	BytesInFlightTrace (uint32_t oldValue, uint32_t newValue)
	Bytes in flight changes. More...

virtual void	CongStateTrace (const TcpSocketState::TcpCongState_t oldValue, const TcpSocketState::TcpCongState_t newValue)
	State on Ack state machine changes. More...

virtual Ptr< SimpleChannel >	CreateChannel ()
	Create and return the channel installed between the two socket. More...

virtual Ptr< ErrorModel >	CreateReceiverErrorModel ()
	Create and return the error model to install in the receiver node. More...

virtual Ptr< TcpSocketMsgBase >	CreateReceiverSocket (Ptr< Node > node)
	Create and install the socket to install on the receiver. More...

virtual Ptr< ErrorModel >	CreateSenderErrorModel ()
	Create and return the error model to install in the sender node. More...

virtual Ptr< TcpSocketMsgBase >	CreateSenderSocket (Ptr< Node > node)
	Create and install the socket to install on the sender. More...

virtual Ptr< TcpSocketMsgBase >	CreateSocket (Ptr< Node > node, TypeId socketType, TypeId congControl)
	Create a socket. More...

virtual void	DataSent (uint32_t size, SocketWho who)
	Notifying application for sent data. More...

void	DoConnect ()
	Scheduled at 0.0, SENDER starts the connection to RECEIVER. More...

virtual void	DoRun (void)
	Execute the tcp test. More...

virtual void	DoTeardown (void)
	Teardown the TCP test. More...

virtual void	ErrorClose (SocketWho who)
	Socket closed with an error. More...

virtual void	FinalChecks ()
	Performs the (eventual) final checks through test asserts. More...

Time	GetClockGranularity (SocketWho who)
	Get the clock granularity attribute. More...

Time	GetConnTimeout (SocketWho who)
	Get the retransmission time for the SYN segments. More...

uint32_t	GetDelAckCount (SocketWho who)
	Get the number of delayed ack (if present) More...

Time	GetDelAckTimeout (SocketWho who)
	Get the timeout of delayed ack (if present) More...

uint32_t	GetDupAckCount (SocketWho who)
	Get the number of dupack received. More...

SequenceNumber32	GetHighestTxMark (SocketWho who)
	Get the highest tx mark of the node specified. More...

uint32_t	GetInitialCwnd (SocketWho who)
	Get the initial congestion window. More...

uint32_t	GetInitialSsThresh (SocketWho who)
	Get the initial slow start threshold. More...

Time	GetMinRto (SocketWho who)
	Get the minimun RTO attribute. More...

uint32_t	GetMtu () const
	Get the MTU of the environment. More...

EventId	GetPersistentEvent (SocketWho who)
	Get the persistent event of the selected socket. More...

Time	GetPersistentTimeout (SocketWho who)
	Get the persistent timeout of the selected socket. More...

uint32_t	GetPktCount () const
	Get the number of application packets. More...

Time	GetPktInterval () const
	Get the interval to wait for each packet sent down from application to TCP. More...

uint32_t	GetPktSize () const
	Get the application packet size. More...

Time	GetPropagationDelay () const
	Get the channel Propagation Delay. More...

Ptr< TcpSocketMsgBase >	GetReceiverSocket ()
	Get the pointer to a previously created receiver socket. More...

uint32_t	GetReTxThreshold (SocketWho who)
	Get the retransmission threshold. More...

Time	GetRto (SocketWho who)
	Get the retransmission time. More...

Ptr< RttEstimator >	GetRttEstimator (SocketWho who)
	Get the Rtt estimator of the socket. More...

uint32_t	GetRWnd (SocketWho who)
	Get the rWnd of the selected socket. More...

Ptr< TcpRxBuffer >	GetRxBuffer (SocketWho who)
	Get the Rx buffer from selected socket. More...

uint32_t	GetSegSize (SocketWho who)
	Get the segment size of the node specified. More...

Ptr< TcpSocketMsgBase >	GetSenderSocket ()
	Get the pointer to a previously created sender socket. More...

Time	GetStartTime () const
	Get the data start time. More...

Ptr< TcpSocketState >	GetTcb (SocketWho who)
	Get the TCB from selected socket. More...

TcpSocket::TcpStates_t	GetTcpState (SocketWho who)
	Get the state of the TCP state machine. More...

virtual void	ProcessedAck (const Ptr< const TcpSocketState > tcb, const TcpHeader &h, SocketWho who)
	Processed ack. More...

virtual void	RcvAck (const Ptr< const TcpSocketState > tcb, const TcpHeader &h, SocketWho who)
	Received ack. More...

virtual void	ReceivePacket (Ptr< Socket > socket)
	Packet received. More...

virtual void	RTOExpired (const Ptr< const TcpSocketState > tcb, SocketWho who)
	Rto has expired. More...

virtual void	RttTrace (Time oldTime, Time newTime)
	Rtt changes. More...

virtual void	Rx (const Ptr< const Packet > p, const TcpHeader &h, SocketWho who)
	Packet received from IP layer. More...

void	SendPacket (Ptr< Socket > socket, uint32_t pktSize, uint32_t pktCount, Time pktInterval)
	Send packets to other endpoint. More...

void	SetAppPktCount (uint32_t pktCount)
	Set app packet count. More...

void	SetAppPktInterval (Time pktInterval)
	Interval between app-generated packet. More...

void	SetAppPktSize (uint32_t pktSize)
	Set app packet size. More...

void	SetCongestionControl (TypeId congControl)
	Congestion control of the sender socket. More...

void	SetInitialCwnd (SocketWho who, uint32_t initialCwnd)
	Forcefully set the initial cwnd. More...

void	SetInitialSsThresh (SocketWho who, uint32_t initialSsThresh)
	Forcefully set the initial ssth. More...

void	SetMTU (uint32_t mtu)
	MTU of the bottleneck link. More...

void	SetPropagationDelay (Time propDelay)
	Propagation delay of the bottleneck link. More...

void	SetRcvBufSize (SocketWho who, uint32_t size)
	Forcefully set a defined size for rx buffer. More...

void	SetSegmentSize (SocketWho who, uint32_t segmentSize)
	Forcefully set the segment size. More...

void	SetTransmitStart (Time startTime)
	Set the initial time at which the application sends the first data packet. More...

virtual void	SsThreshTrace (uint32_t oldValue, uint32_t newValue)
	Slow start threshold changes. More...

virtual void	Tx (const Ptr< const Packet > p, const TcpHeader &h, SocketWho who)
	Packet transmitted down to IP layer. More...

virtual void	UpdatedRttHistory (const SequenceNumber32 &seq, uint32_t sz, bool isRetransmission, SocketWho who)
	Updated the Rtt history. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, enum TestDuration duration)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Private Attributes
EventId	m_event

uint32_t	m_increment

bool	m_initial

uint32_t	m_packets

uint32_t	m_packetSize

uint32_t	m_segmentSize

Additional Inherited Members
Public Types inherited from ns3::TcpGeneralTest
enum	SocketWho { SENDER, RECEIVER }
	Used as parameter of methods, specifies on what node the caller is interested (e.g. More...

Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Attributes inherited from ns3::TcpGeneralTest
TypeId	m_congControlTypeId
	Congestion control. More...

Detailed Description

Test the behavior of RFC congestion avoidance.

From RFC 5681:

cwnd += min (N, SMSS)                      (2)

During congestion avoidance, cwnd is incremented by roughly 1 full- sized segment per round-trip time (RTT). Congestion avoidance continues until congestion is detected. The basic guidelines for incrementing cwnd during congestion avoidance are:

MAY increment cwnd by SMSS bytes
SHOULD increment cwnd per equation (2) once per RTT
MUST NOT increment cwnd by more than SMSS bytes

To test this behavior and these points, a tracing callback is attached to the cWnd. Each time it increases, the increment is saved. Meanwhile, a timer checks if an amount of time equals to the RTT has passed, and if yes, it checks that the increment has not passed the 1 MSS limit.

Definition at line 50 of file tcp-cong-avoid-test.h.

Constructor & Destructor Documentation

ns3::TcpNewRenoCongAvoidNormalTest::TcpNewRenoCongAvoidNormalTest	(	uint32_t	segmentSize,
		uint32_t	packetSize,
		uint32_t	packets,
		TypeId &	congControl,
		const std::string &	msg
	)
