ns3::WifiPhyHelper Class Referenceabstract

create PHY objects More...

#include "wifi-helper.h"

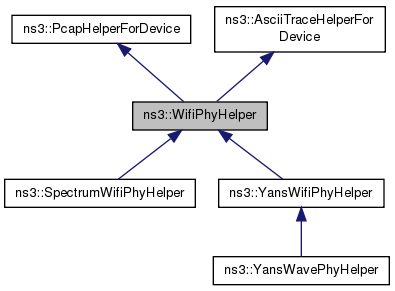

+ Inheritance diagram for ns3::WifiPhyHelper:

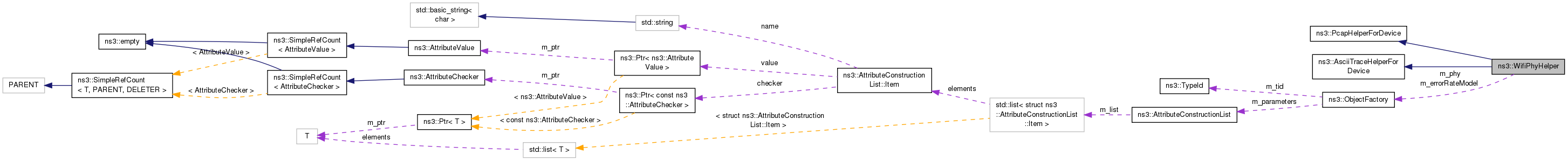

+ Collaboration diagram for ns3::WifiPhyHelper:

Public Types

enum  SupportedPcapDataLinkTypes { DLT_IEEE802_11 = PcapHelper::DLT_IEEE802_11, DLT_PRISM_HEADER = PcapHelper::DLT_PRISM_HEADER, DLT_IEEE802_11_RADIO = PcapHelper::DLT_IEEE802_11_RADIO }
 An enumeration of the pcap data link types (DLTs) which this helper supports. More...


Public Member Functions

 WifiPhyHelper ()

virtual ~WifiPhyHelper ()

virtual Ptr< WifiPhyCreate (Ptr< Node > node, Ptr< NetDevice > device) const =0

PcapHelper::DataLinkType GetPcapDataLinkType (void) const
 Get the data link type of PCAP traces to be used. More...

void Set (std::string name, const AttributeValue &v)

void SetErrorRateModel (std::string name, std::string n0="", const AttributeValue &v0=EmptyAttributeValue(), std::string n1="", const AttributeValue &v1=EmptyAttributeValue(), std::string n2="", const AttributeValue &v2=EmptyAttributeValue(), std::string n3="", const AttributeValue &v3=EmptyAttributeValue(), std::string n4="", const AttributeValue &v4=EmptyAttributeValue(), std::string n5="", const AttributeValue &v5=EmptyAttributeValue(), std::string n6="", const AttributeValue &v6=EmptyAttributeValue(), std::string n7="", const AttributeValue &v7=EmptyAttributeValue())

void SetPcapDataLinkType (enum SupportedPcapDataLinkTypes dlt)
 Set the data link type of PCAP traces to be used. More...

- Public Member Functions inherited from ns3::PcapHelperForDevice
 PcapHelperForDevice ()
 Construct a PcapHelperForDevice. More...

virtual ~PcapHelperForDevice ()
 Destroy a PcapHelperForDevice. More...

void EnablePcap (std::string prefix, Ptr< NetDevice > nd, bool promiscuous=false, bool explicitFilename=false)
 Enable pcap output the indicated net device. More...

void EnablePcap (std::string prefix, std::string ndName, bool promiscuous=false, bool explicitFilename=false)
 Enable pcap output the indicated net device using a device previously named using the ns-3 object name service. More...

void EnablePcap (std::string prefix, NetDeviceContainer d, bool promiscuous=false)
 Enable pcap output on each device in the container which is of the appropriate type. More...

void EnablePcap (std::string prefix, NodeContainer n, bool promiscuous=false)
 Enable pcap output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void EnablePcap (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool promiscuous=false)
 Enable pcap output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void EnablePcapAll (std::string prefix, bool promiscuous=false)
 Enable pcap output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

- Public Member Functions inherited from ns3::AsciiTraceHelperForDevice
 AsciiTraceHelperForDevice ()
 Construct an AsciiTraceHelperForDevice. More...

virtual ~AsciiTraceHelperForDevice ()
 Destroy an AsciiTraceHelperForDevice. More...

void EnableAscii (std::string prefix, Ptr< NetDevice > nd, bool explicitFilename=false)
 Enable ascii trace output on the indicated net device. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, Ptr< NetDevice > nd)
 Enable ascii trace output on the indicated net device. More...

void EnableAscii (std::string prefix, std::string ndName, bool explicitFilename=false)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, std::string ndName)
 Enable ascii trace output the indicated net device using a device previously named using the ns-3 object name service. More...

void EnableAscii (std::string prefix, NetDeviceContainer d)
 Enable ascii trace output on each device in the container which is of the appropriate type. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, NetDeviceContainer d)
 Enable ascii trace output on each device in the container which is of the appropriate type. More...

void EnableAscii (std::string prefix, NodeContainer n)
 Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, NodeContainer n)
 Enable ascii trace output on each device (which is of the appropriate type) in the nodes provided in the container. More...

void EnableAscii (std::string prefix, uint32_t nodeid, uint32_t deviceid, bool explicitFilename)
 Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void EnableAscii (Ptr< OutputStreamWrapper > stream, uint32_t nodeid, uint32_t deviceid)
 Enable ascii trace output on the device specified by a global node-id (of a previously created node) and associated device-id. More...

void EnableAsciiAll (std::string prefix)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...

void EnableAsciiAll (Ptr< OutputStreamWrapper > stream)
 Enable ascii trace output on each device (which is of the appropriate type) in the set of all nodes created in the simulation. More...


Static Protected Member Functions

static void PcapSniffRxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu, struct signalNoiseDbm signalNoise)

static void PcapSniffTxEvent (Ptr< PcapFileWrapper > file, Ptr< const Packet > packet, uint16_t channelFreqMhz, uint16_t channelNumber, uint32_t rate, WifiPreamble preamble, WifiTxVector txVector, struct mpduInfo aMpdu)


Protected Attributes

ObjectFactory m_errorRateModel

ObjectFactory m_phy


Private Member Functions

virtual void EnableAsciiInternal (Ptr< OutputStreamWrapper > stream, std::string prefix, Ptr< NetDevice > nd, bool explicitFilename)
 Enable ascii trace output on the indicated net device. More...

virtual void EnablePcapInternal (std::string prefix, Ptr< NetDevice > nd, bool promiscuous, bool explicitFilename)
 Enable pcap output the indicated net device. More...


Private Attributes

PcapHelper::DataLinkType m_pcapDlt


Detailed Description

create PHY objects

This base class must be implemented by new PHY implementation which wish to integrate with the ns3::WifiHelper class.

Definition at line 48 of file wifi-helper.h.

Member Enumeration Documentation

An enumeration of the pcap data link types (DLTs) which this helper supports.

See http://wiki.wireshark.org/Development/LibpcapFileFormat for more information on these formats.

Enumerator
DLT_IEEE802_11

IEEE 802.11 Wireless LAN headers on packets.

DLT_PRISM_HEADER

Include Prism monitor mode information.

DLT_IEEE802_11_RADIO

Include Radiotap link layer information.

Definition at line 113 of file wifi-helper.h.

Constructor & Destructor Documentation

ns3::WifiPhyHelper::WifiPhyHelper ( )

Definition at line 102 of file wifi-helper.cc.

ns3::WifiPhyHelper::~WifiPhyHelper ( )
virtual

Definition at line 107 of file wifi-helper.cc.

Member Function Documentation

virtual Ptr<WifiPhy> ns3::WifiPhyHelper::Create ( Ptr< Node node,
Ptr< NetDevice device
) const
pure virtual
Parameters
nodethe node on which the PHY object will reside
devicethe device within which the PHY object will reside
Returns
a new PHY object.

Subclasses must implement this method to allow the ns3::WifiHelper class to create PHY objects from ns3::WifiHelper::Install.

Typically the device type will be of class WifiNetDevice but the type of the pointer is generalized so that this method may be used by other Wifi device variants such as WaveNetDevice.

Implemented in ns3::YansWifiPhyHelper, and ns3::SpectrumWifiPhyHelper.

Referenced by ns3::MeshHelper::CreateInterface(), ns3::WaveHelper::Install(), and ns3::WifiHelper::Install().

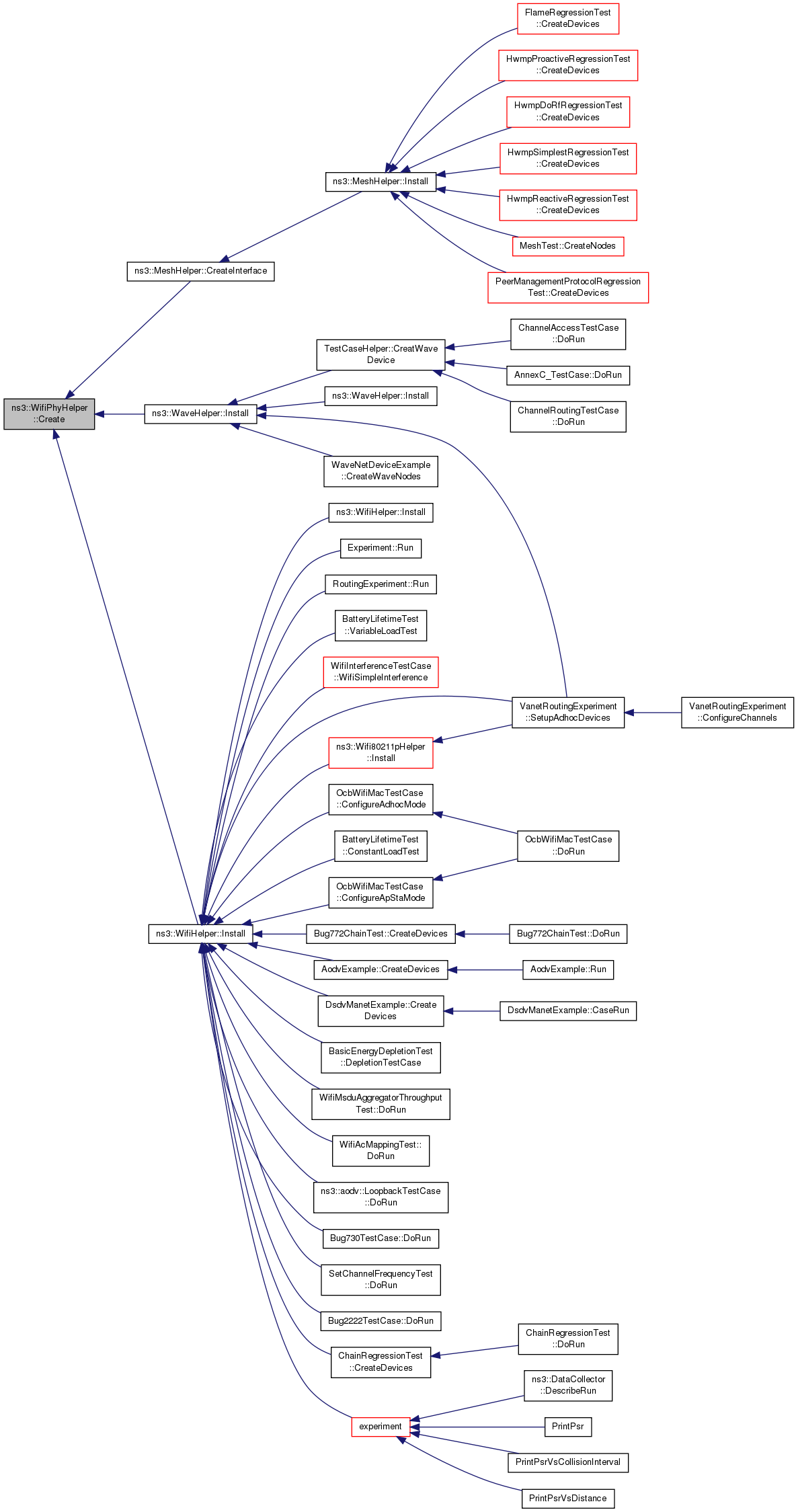

+ Here is the caller graph for this function:

void ns3::WifiPhyHelper::EnableAsciiInternal ( Ptr< OutputStreamWrapper stream,
std::string  prefix,
Ptr< NetDevice nd,
bool  explicitFilename
)
privatevirtual

Enable ascii trace output on the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters
streamThe output stream object to use when logging ascii traces.
prefixFilename prefix to use for ascii trace files.
ndNet device for which you want to enable tracing.
explicitFilenameTreat the prefix as an explicit filename if true

Implements ns3::AsciiTraceHelperForDevice.

Reimplemented in ns3::YansWavePhyHelper.

Definition at line 589 of file wifi-helper.cc.

References ns3::AsciiPhyReceiveSinkWithContext(), ns3::AsciiPhyReceiveSinkWithoutContext(), ns3::AsciiPhyTransmitSinkWithContext(), ns3::AsciiPhyTransmitSinkWithoutContext(), ns3::Config::Connect(), ns3::Config::ConnectWithoutContext(), ns3::AsciiTraceHelper::CreateFileStream(), ns3::Packet::EnablePrinting(), ns3::AsciiTraceHelper::GetFilenameFromDevice(), ns3::MakeBoundCallback(), and NS_LOG_INFO.

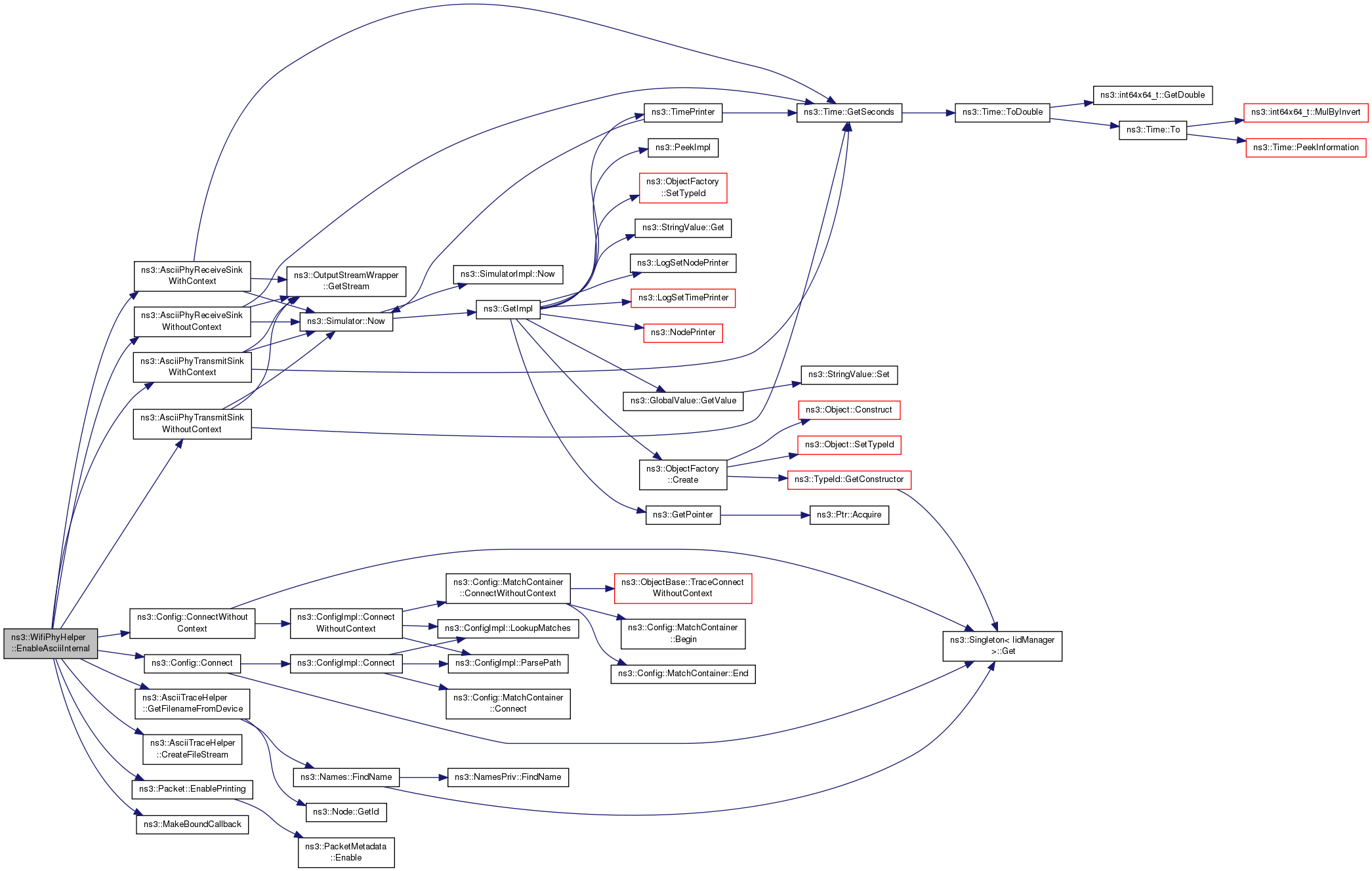

+ Here is the call graph for this function:

void ns3::WifiPhyHelper::EnablePcapInternal ( std::string  prefix,
Ptr< NetDevice nd,
bool  promiscuous,
bool  explicitFilename
)
privatevirtual

Enable pcap output the indicated net device.

NetDevice-specific implementation mechanism for hooking the trace and writing to the trace file.

Parameters
prefixFilename prefix to use for pcap files.
ndNet device for which you want to enable tracing.
promiscuousIf true capture all possible packets available at the device.
explicitFilenameTreat the prefix as an explicit filename if true

Implements ns3::PcapHelperForDevice.

Reimplemented in ns3::YansWavePhyHelper.

Definition at line 555 of file wifi-helper.cc.

References ns3::PcapHelper::CreateFile(), ns3::PcapHelper::GetFilenameFromDevice(), m_pcapDlt, ns3::MakeBoundCallback(), NS_ABORT_MSG_IF, NS_LOG_INFO, PcapSniffRxEvent(), PcapSniffTxEvent(), third::phy, and ns3::ObjectBase::TraceConnectWithoutContext().

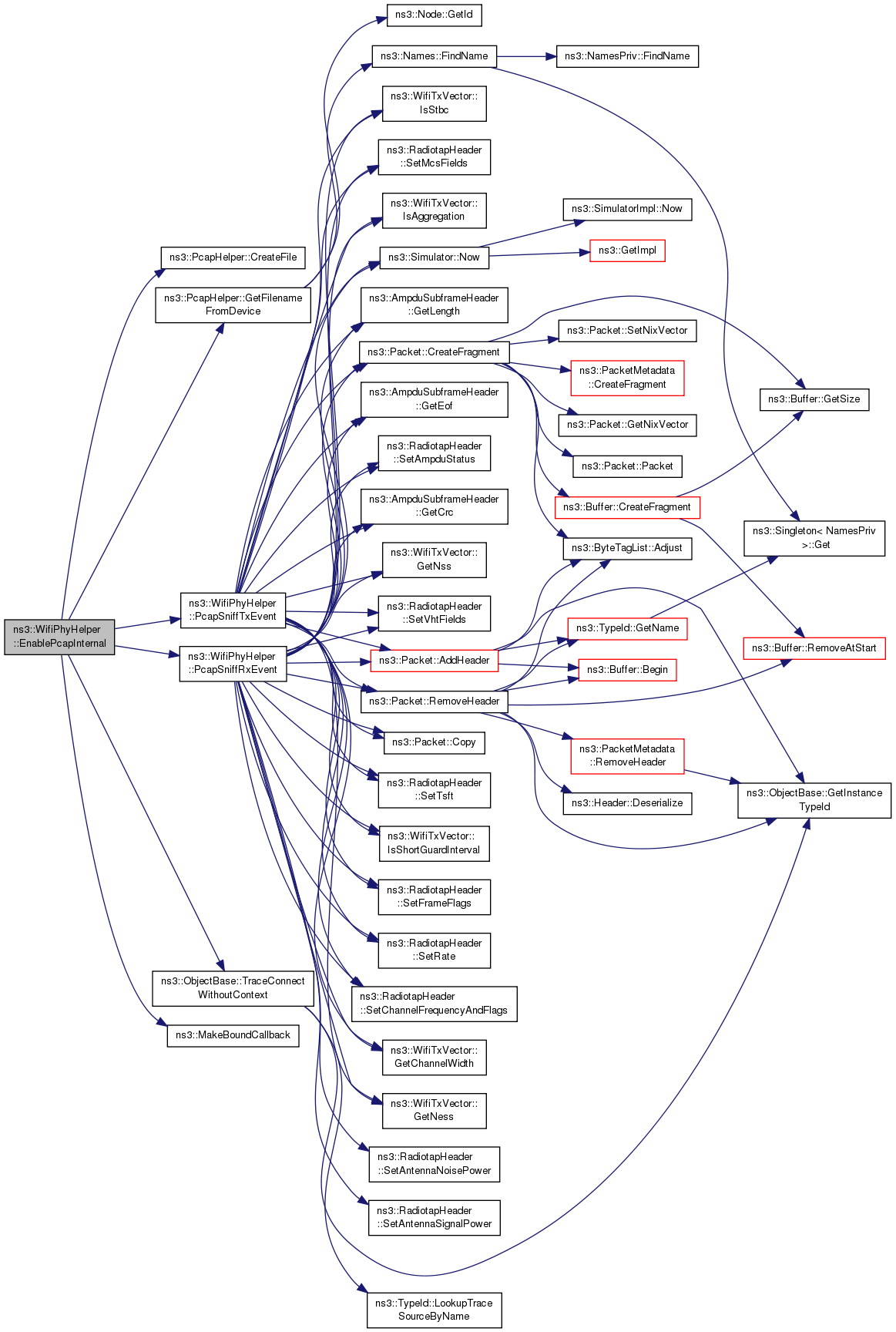

+ Here is the call graph for this function:

PcapHelper::DataLinkType ns3::WifiPhyHelper::GetPcapDataLinkType ( void  ) const

Get the data link type of PCAP traces to be used.

See also
SupportedPcapDataLinkTypes
Returns
The data link type of the pcap file (and packets) to be used

Definition at line 549 of file wifi-helper.cc.

References m_pcapDlt.

Referenced by ns3::YansWavePhyHelper::EnablePcapInternal().

+ Here is the caller graph for this function:

void ns3::WifiPhyHelper::PcapSniffRxEvent ( Ptr< PcapFileWrapper file,
Ptr< const Packet packet,
uint16_t  channelFreqMhz,
uint16_t  channelNumber,
uint32_t  rate,
WifiPreamble  preamble,
WifiTxVector  txVector,
struct mpduInfo  aMpdu,
struct signalNoiseDbm  signalNoise
)
staticprotected
Parameters
filethe pcap file wrapper
packetthe packet
channelFreqMhzthe channel frequency
channelNumberthe channel number
ratethe PHY bitrate
preamblethe preamble type
txVectorthe TXVECTOR
aMpduthe A-MPDU information
signalNoisethe rx signal and noise information

Handle rx pcap.

Definition at line 333 of file wifi-helper.cc.

References ns3::RadiotapHeader::A_MPDU_STATUS_DELIMITER_CRC_KNOWN, ns3::RadiotapHeader::A_MPDU_STATUS_LAST, ns3::RadiotapHeader::A_MPDU_STATUS_LAST_KNOWN, ns3::RadiotapHeader::A_MPDU_STATUS_NONE, ns3::Packet::AddHeader(), ns3::RadiotapHeader::CHANNEL_FLAG_CCK, ns3::RadiotapHeader::CHANNEL_FLAG_OFDM, ns3::RadiotapHeader::CHANNEL_FLAG_SPECTRUM_2GHZ, ns3::RadiotapHeader::CHANNEL_FLAG_SPECTRUM_5GHZ, ns3::Packet::Copy(), ns3::Packet::CreateFragment(), ns3::PcapHelper::DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, ns3::RadiotapHeader::FRAME_FLAG_FCS_INCLUDED, ns3::RadiotapHeader::FRAME_FLAG_NONE, ns3::RadiotapHeader::FRAME_FLAG_SHORT_GUARD, ns3::RadiotapHeader::FRAME_FLAG_SHORT_PREAMBLE, ns3::WifiTxVector::GetChannelWidth(), ns3::AmpduSubframeHeader::GetCrc(), ns3::AmpduSubframeHeader::GetEof(), ns3::AmpduSubframeHeader::GetLength(), ns3::WifiTxVector::GetNess(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::IsAggregation(), ns3::WifiTxVector::IsShortGuardInterval(), ns3::WifiTxVector::IsStbc(), ns3::LAST_MPDU_IN_AGGREGATE, ns3::RadiotapHeader::MCS_FLAGS_BANDWIDTH_40, ns3::RadiotapHeader::MCS_FLAGS_GUARD_INTERVAL, ns3::RadiotapHeader::MCS_FLAGS_HT_GREENFIELD, ns3::RadiotapHeader::MCS_FLAGS_NESS_BIT_0, ns3::RadiotapHeader::MCS_FLAGS_NONE, ns3::RadiotapHeader::MCS_FLAGS_STBC_STREAMS, ns3::RadiotapHeader::MCS_KNOWN_BANDWIDTH, ns3::RadiotapHeader::MCS_KNOWN_FEC_TYPE, ns3::RadiotapHeader::MCS_KNOWN_GUARD_INTERVAL, ns3::RadiotapHeader::MCS_KNOWN_HT_FORMAT, ns3::RadiotapHeader::MCS_KNOWN_INDEX, ns3::RadiotapHeader::MCS_KNOWN_NESS, ns3::RadiotapHeader::MCS_KNOWN_NESS_BIT_1, ns3::RadiotapHeader::MCS_KNOWN_NONE, ns3::RadiotapHeader::MCS_KNOWN_STBC, ns3::mpduInfo::mpduRefNumber, ns3::signalNoiseDbm::noise, ns3::Simulator::Now(), NS_ABORT_MSG, NS_FATAL_ERROR, ns3::Packet::RemoveHeader(), ns3::RadiotapHeader::SetAmpduStatus(), ns3::RadiotapHeader::SetAntennaNoisePower(), ns3::RadiotapHeader::SetAntennaSignalPower(), ns3::RadiotapHeader::SetChannelFrequencyAndFlags(), ns3::RadiotapHeader::SetFrameFlags(), ns3::RadiotapHeader::SetMcsFields(), ns3::RadiotapHeader::SetRate(), ns3::RadiotapHeader::SetTsft(), ns3::RadiotapHeader::SetVhtFields(), ns3::signalNoiseDbm::signal, ns3::mpduInfo::type, ns3::RadiotapHeader::VHT_FLAGS_GUARD_INTERVAL, ns3::RadiotapHeader::VHT_FLAGS_NONE, ns3::RadiotapHeader::VHT_FLAGS_STBC, ns3::RadiotapHeader::VHT_KNOWN_BANDWIDTH, ns3::RadiotapHeader::VHT_KNOWN_BEAMFORMED, ns3::RadiotapHeader::VHT_KNOWN_GUARD_INTERVAL, ns3::RadiotapHeader::VHT_KNOWN_NONE, ns3::RadiotapHeader::VHT_KNOWN_STBC, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_NONE, ns3::WIFI_PREAMBLE_SHORT, and ns3::WIFI_PREAMBLE_VHT.

Referenced by ns3::YansWavePhyHelper::EnablePcapInternal(), and EnablePcapInternal().

+ Here is the call graph for this function:

+ Here is the caller graph for this function:

void ns3::WifiPhyHelper::PcapSniffTxEvent ( Ptr< PcapFileWrapper file,
Ptr< const Packet packet,
uint16_t  channelFreqMhz,
uint16_t  channelNumber,
uint32_t  rate,
WifiPreamble  preamble,
WifiTxVector  txVector,
struct mpduInfo  aMpdu
)
staticprotected
Parameters
filethe pcap file wrapper
packetthe packet
channelFreqMhzthe channel frequency
channelNumberthe channel number
ratethe PHY bitrate
preamblethe preamble type
txVectorthe TXVECTOR
aMpduthe A-MPDU information

Handle tx pcap.

Definition at line 141 of file wifi-helper.cc.

References ns3::RadiotapHeader::A_MPDU_STATUS_LAST, ns3::RadiotapHeader::A_MPDU_STATUS_LAST_KNOWN, ns3::RadiotapHeader::A_MPDU_STATUS_NONE, ns3::Packet::AddHeader(), ns3::RadiotapHeader::CHANNEL_FLAG_CCK, ns3::RadiotapHeader::CHANNEL_FLAG_OFDM, ns3::RadiotapHeader::CHANNEL_FLAG_SPECTRUM_2GHZ, ns3::RadiotapHeader::CHANNEL_FLAG_SPECTRUM_5GHZ, ns3::Packet::Copy(), ns3::Packet::CreateFragment(), ns3::PcapHelper::DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, ns3::RadiotapHeader::FRAME_FLAG_FCS_INCLUDED, ns3::RadiotapHeader::FRAME_FLAG_NONE, ns3::RadiotapHeader::FRAME_FLAG_SHORT_GUARD, ns3::RadiotapHeader::FRAME_FLAG_SHORT_PREAMBLE, ns3::WifiTxVector::GetChannelWidth(), ns3::AmpduSubframeHeader::GetCrc(), ns3::AmpduSubframeHeader::GetEof(), ns3::AmpduSubframeHeader::GetLength(), ns3::WifiTxVector::GetNess(), ns3::WifiTxVector::GetNss(), ns3::WifiTxVector::IsAggregation(), ns3::WifiTxVector::IsShortGuardInterval(), ns3::WifiTxVector::IsStbc(), ns3::LAST_MPDU_IN_AGGREGATE, ns3::RadiotapHeader::MCS_FLAGS_BANDWIDTH_40, ns3::RadiotapHeader::MCS_FLAGS_GUARD_INTERVAL, ns3::RadiotapHeader::MCS_FLAGS_HT_GREENFIELD, ns3::RadiotapHeader::MCS_FLAGS_NESS_BIT_0, ns3::RadiotapHeader::MCS_FLAGS_NONE, ns3::RadiotapHeader::MCS_FLAGS_STBC_STREAMS, ns3::RadiotapHeader::MCS_KNOWN_BANDWIDTH, ns3::RadiotapHeader::MCS_KNOWN_FEC_TYPE, ns3::RadiotapHeader::MCS_KNOWN_GUARD_INTERVAL, ns3::RadiotapHeader::MCS_KNOWN_HT_FORMAT, ns3::RadiotapHeader::MCS_KNOWN_INDEX, ns3::RadiotapHeader::MCS_KNOWN_NESS, ns3::RadiotapHeader::MCS_KNOWN_NESS_BIT_1, ns3::RadiotapHeader::MCS_KNOWN_NONE, ns3::RadiotapHeader::MCS_KNOWN_STBC, ns3::mpduInfo::mpduRefNumber, ns3::Simulator::Now(), NS_ABORT_MSG, NS_FATAL_ERROR, ns3::Packet::RemoveHeader(), ns3::RadiotapHeader::SetAmpduStatus(), ns3::RadiotapHeader::SetChannelFrequencyAndFlags(), ns3::RadiotapHeader::SetFrameFlags(), ns3::RadiotapHeader::SetMcsFields(), ns3::RadiotapHeader::SetRate(), ns3::RadiotapHeader::SetTsft(), ns3::RadiotapHeader::SetVhtFields(), ns3::mpduInfo::type, ns3::RadiotapHeader::VHT_FLAGS_GUARD_INTERVAL, ns3::RadiotapHeader::VHT_FLAGS_NONE, ns3::RadiotapHeader::VHT_FLAGS_STBC, ns3::RadiotapHeader::VHT_KNOWN_BANDWIDTH, ns3::RadiotapHeader::VHT_KNOWN_BEAMFORMED, ns3::RadiotapHeader::VHT_KNOWN_GUARD_INTERVAL, ns3::RadiotapHeader::VHT_KNOWN_NONE, ns3::RadiotapHeader::VHT_KNOWN_STBC, ns3::WIFI_PREAMBLE_HT_GF, ns3::WIFI_PREAMBLE_HT_MF, ns3::WIFI_PREAMBLE_NONE, ns3::WIFI_PREAMBLE_SHORT, and ns3::WIFI_PREAMBLE_VHT.

Referenced by ns3::YansWavePhyHelper::EnablePcapInternal(), and EnablePcapInternal().

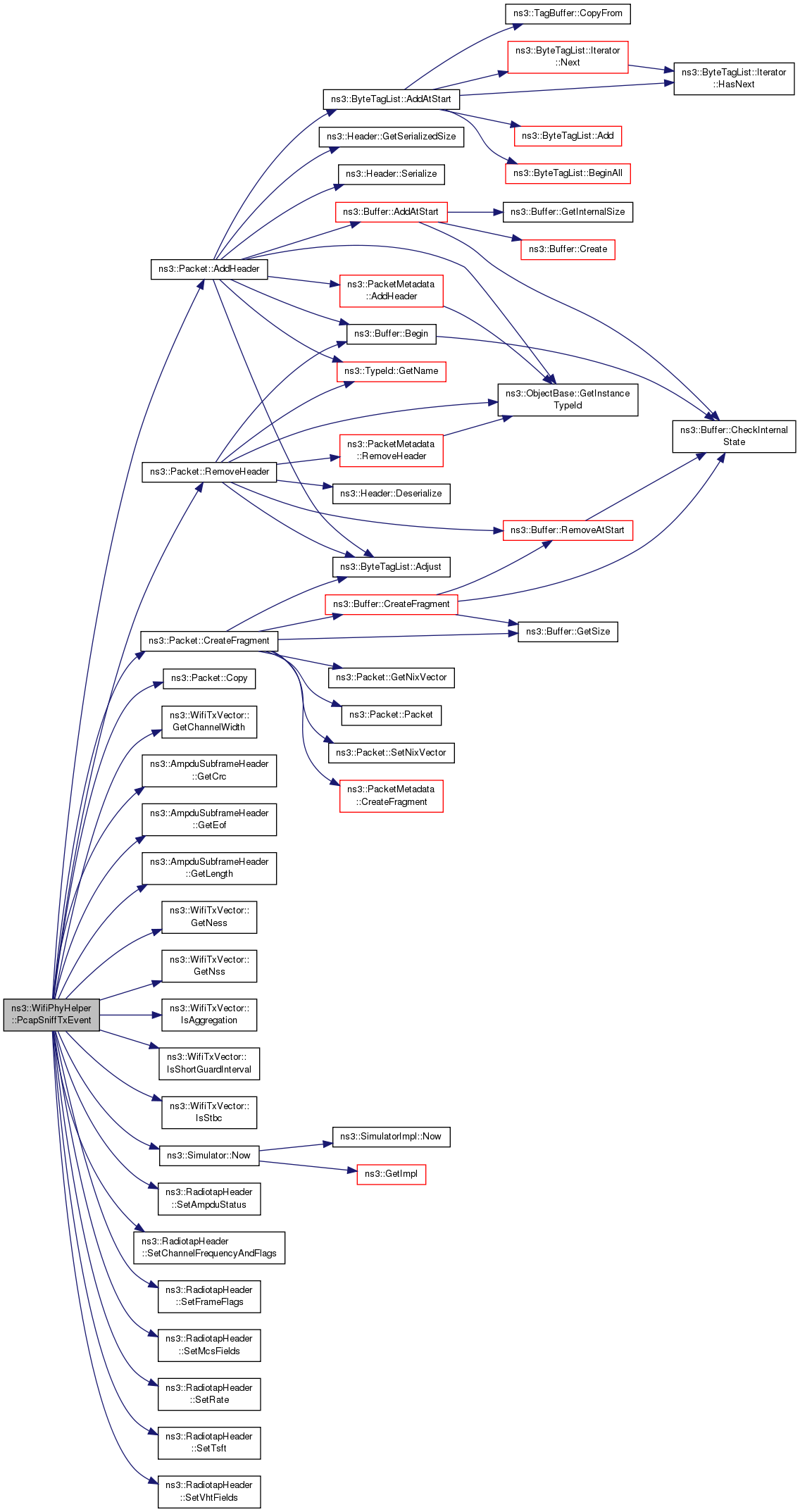

+ Here is the call graph for this function:

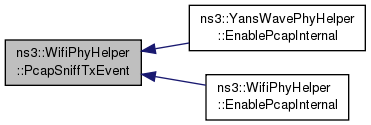

+ Here is the caller graph for this function:

void ns3::WifiPhyHelper::Set ( std::string  name,
const AttributeValue v
)
Parameters
namethe name of the attribute to set
vthe value of the attribute

Set an attribute of the underlying PHY object.

Definition at line 112 of file wifi-helper.cc.

References m_phy, and ns3::ObjectFactory::Set().

Referenced by BatteryLifetimeTest::ConstantLoadTest(), BasicEnergyDepletionTest::DepletionTestCase(), SetChannelFrequencyTest::DoRun(), Experiment::Run(), RoutingExperiment::Run(), VanetRoutingExperiment::SetupAdhocDevices(), BatteryLifetimeTest::VariableLoadTest(), and WifiInterferenceTestCase::WifiSimpleInterference().

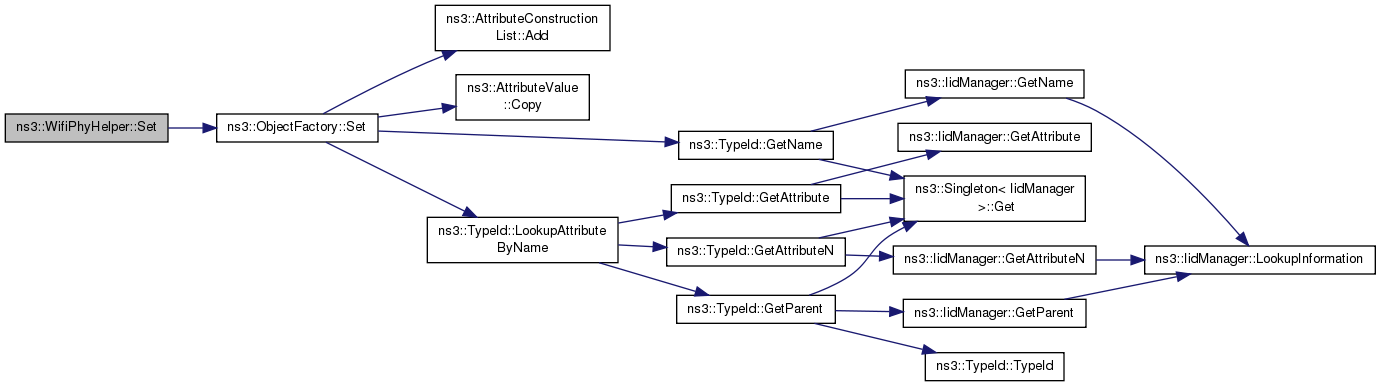

+ Here is the call graph for this function:

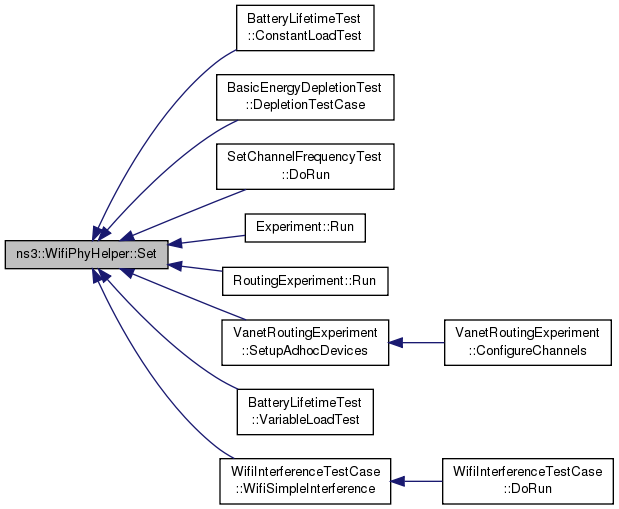

+ Here is the caller graph for this function:

void ns3::WifiPhyHelper::SetErrorRateModel ( std::string  name,
std::string  n0 = "",
const AttributeValue v0 = EmptyAttributeValue (),
std::string  n1 = "",
const AttributeValue v1 = EmptyAttributeValue (),
std::string  n2 = "",
const AttributeValue v2 = EmptyAttributeValue (),
std::string  n3 = "",
const AttributeValue v3 = EmptyAttributeValue (),
std::string  n4 = "",
const AttributeValue v4 = EmptyAttributeValue (),
std::string  n5 = "",
const AttributeValue v5 = EmptyAttributeValue (),
std::string  n6 = "",
const AttributeValue v6 = EmptyAttributeValue (),
std::string  n7 = "",
const AttributeValue v7 = EmptyAttributeValue ()
)
Parameters
namethe name of the error rate model to set.
n0the name of the attribute to set
v0the value of the attribute to set
n1the name of the attribute to set
v1the value of the attribute to set
n2the name of the attribute to set
v2the value of the attribute to set
n3the name of the attribute to set
v3the value of the attribute to set
n4the name of the attribute to set
v4the value of the attribute to set
n5the name of the attribute to set
v5the value of the attribute to set
n6the name of the attribute to set
v6the value of the attribute to set
n7the name of the attribute to set
v7the value of the attribute to set

Set the error rate model and its attributes to use when Install is called.

Definition at line 118 of file wifi-helper.cc.

References m_errorRateModel, ns3::ObjectFactory::Set(), and ns3::ObjectFactory::SetTypeId().

Referenced by Bug772ChainTest::CreateDevices(), HwmpProactiveRegressionTest::CreateDevices(), FlameRegressionTest::CreateDevices(), HwmpDoRfRegressionTest::CreateDevices(), HwmpReactiveRegressionTest::CreateDevices(), ChainRegressionTest::CreateDevices(), ns3::YansWavePhyHelper::Default(), ns3::SpectrumWifiPhyHelper::Default(), and ns3::YansWifiPhyHelper::Default().

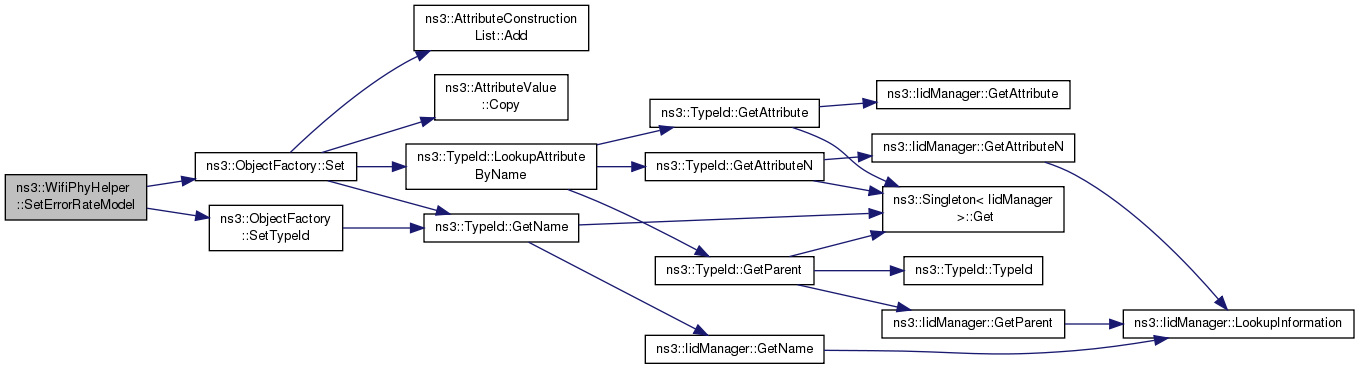

+ Here is the call graph for this function:

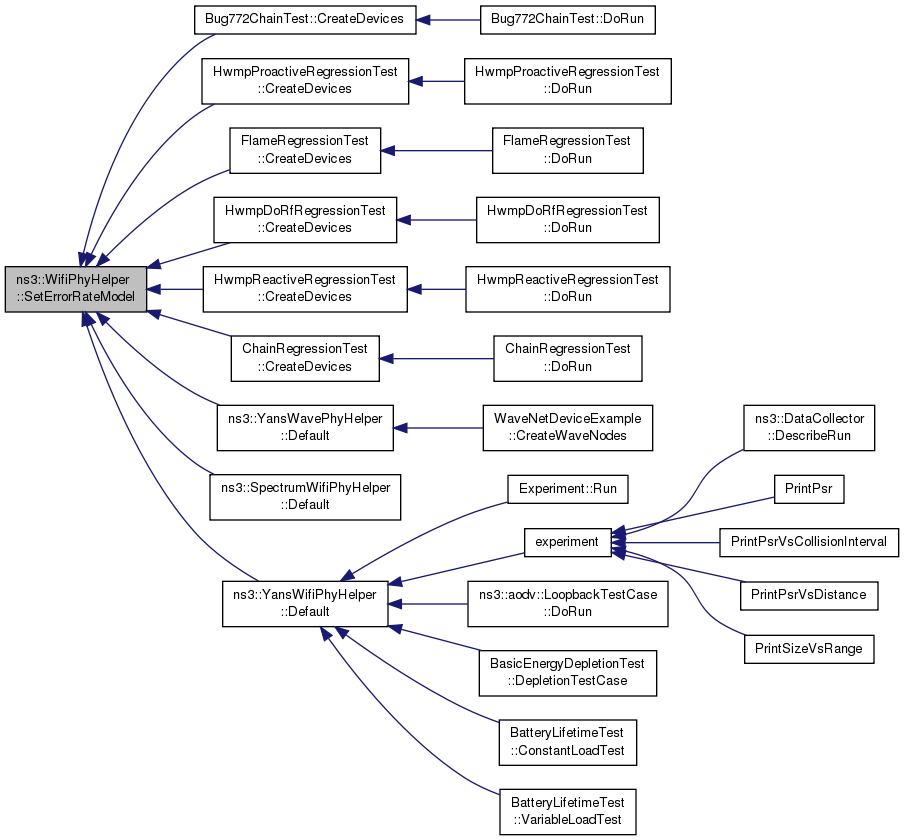

+ Here is the caller graph for this function:

void ns3::WifiPhyHelper::SetPcapDataLinkType ( enum SupportedPcapDataLinkTypes  dlt)

Set the data link type of PCAP traces to be used.

This function has to be called before EnablePcap(), so that the header of the pcap file can be written correctly.

See also
SupportedPcapDataLinkTypes
Parameters
dltThe data link type of the pcap file (and packets) to be used

Definition at line 530 of file wifi-helper.cc.

References ns3::PcapHelper::DLT_IEEE802_11, DLT_IEEE802_11, ns3::PcapHelper::DLT_IEEE802_11_RADIO, DLT_IEEE802_11_RADIO, ns3::PcapHelper::DLT_PRISM_HEADER, DLT_PRISM_HEADER, m_pcapDlt, and NS_ABORT_MSG.

Referenced by BatteryLifetimeTest::ConstantLoadTest(), WaveNetDeviceExample::CreateWaveNodes(), BasicEnergyDepletionTest::DepletionTestCase(), Experiment::Run(), VanetRoutingExperiment::SetupAdhocDevices(), BatteryLifetimeTest::VariableLoadTest(), and WifiInterferenceTestCase::WifiSimpleInterference().

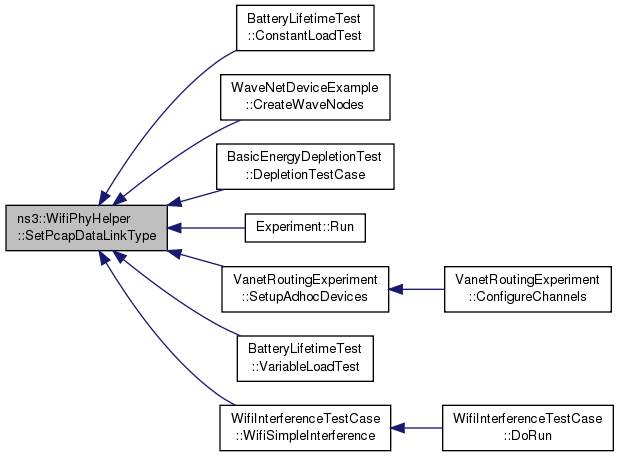

+ Here is the caller graph for this function:

Member Data Documentation

ObjectFactory ns3::WifiPhyHelper::m_errorRateModel
protected
PcapHelper::DataLinkType ns3::WifiPhyHelper::m_pcapDlt
private

Definition at line 220 of file wifi-helper.h.

Referenced by EnablePcapInternal(), GetPcapDataLinkType(), and SetPcapDataLinkType().


The documentation for this class was generated from the following files:
