Route Reply (RREP) Message Format. More...

#include "aodv-packet.h"

Inheritance diagram for ns3::aodv::RrepHeader:

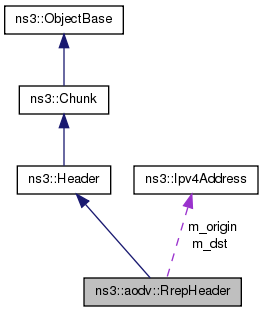

Collaboration diagram for ns3::aodv::RrepHeader:

Public Member Functions
	RrepHeader (uint8_t prefixSize=0, uint8_t hopCount=0, Ipv4Address dst=Ipv4Address(), uint32_t dstSeqNo=0, Ipv4Address origin=Ipv4Address(), Time lifetime=MilliSeconds(0))
	c-tor More...

uint32_t	Deserialize (Buffer::Iterator start)

bool	GetAckRequired () const

Ipv4Address	GetDst () const

uint32_t	GetDstSeqno () const

uint8_t	GetHopCount () const

TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

Time	GetLifeTime () const

Ipv4Address	GetOrigin () const

uint8_t	GetPrefixSize () const

uint32_t	GetSerializedSize () const

bool	operator== (RrepHeader const &o) const

void	Print (std::ostream &os) const

void	Serialize (Buffer::Iterator start) const

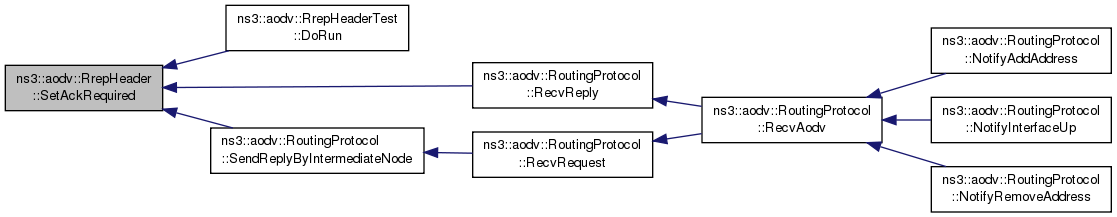

void	SetAckRequired (bool f)

void	SetDst (Ipv4Address a)

void	SetDstSeqno (uint32_t s)

void	SetHello (Ipv4Address src, uint32_t srcSeqNo, Time lifetime)
	Configure RREP to be a Hello message. More...

void	SetHopCount (uint8_t count)

void	SetLifeTime (Time t)

void	SetOrigin (Ipv4Address a)

void	SetPrefixSize (uint8_t sz)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Attributes
Ipv4Address	m_dst
	Destination IP Address. More...

uint32_t	m_dstSeqNo
	Destination Sequence Number. More...

uint8_t	m_flags
	A - acknowledgment required flag. More...

uint8_t	m_hopCount
	Hop Count. More...

uint32_t	m_lifeTime
	Lifetime (in milliseconds) More...

Ipv4Address	m_origin
	Source IP Address. More...

uint8_t	m_prefixSize
	Prefix Size. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Route Reply (RREP) Message Format.

Introspection did not find any typical Config paths.

0                   1                   2                   3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|     Type      |R|A|    Reserved     |Prefix Sz|   Hop Count   |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                     Destination IP address                    |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                  Destination Sequence Number                  |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Originator IP address                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                           Lifetime                            |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 32 bytes (on a 64-bit architecture).

Definition at line 172 of file aodv-packet.h.

Constructor & Destructor Documentation

ns3::aodv::RrepHeader::RrepHeader	(	uint8_t	prefixSize = `0`,
		uint8_t	hopCount = `0`,
		Ipv4Address	dst = `Ipv4Address ()`,
		uint32_t	dstSeqNo = `0`,
		Ipv4Address	origin = `Ipv4Address ()`,
		Time	lifetime = `MilliSeconds (0)`
	)

c-tor

Definition at line 282 of file aodv-packet.cc.

References ns3::Time::GetMilliSeconds(), and m_lifeTime.

Here is the call graph for this function:

Member Function Documentation

uint32_t ns3::aodv::RrepHeader::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 328 of file aodv-packet.cc.

References ns3::Buffer::Iterator::GetDistanceFrom(), GetSerializedSize(), m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, m_prefixSize, NS_ASSERT, ns3::ReadFrom(), ns3::Buffer::Iterator::ReadNtohU32(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

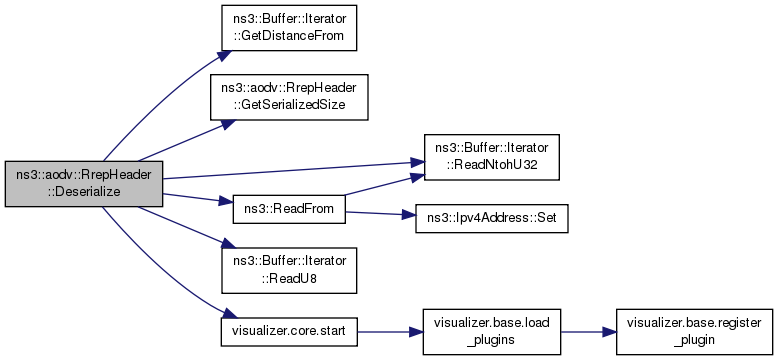

Here is the call graph for this function:

bool ns3::aodv::RrepHeader::GetAckRequired ( ) const

Definition at line 380 of file aodv-packet.cc.

References m_flags.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

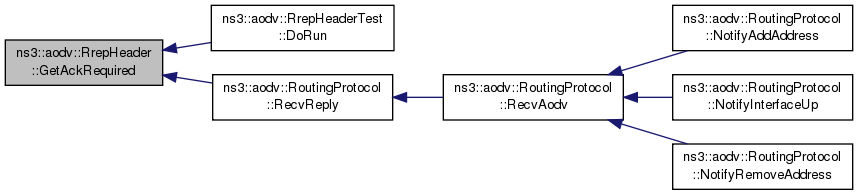

Here is the caller graph for this function:

Ipv4Address ns3::aodv::RrepHeader::GetDst ( ) const

inline

Definition at line 191 of file aodv-packet.h.

References m_dst.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

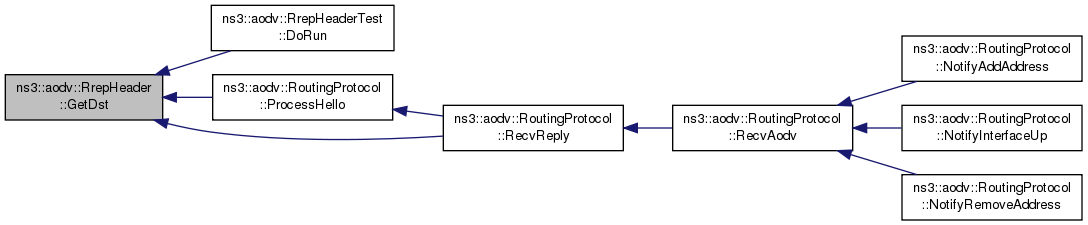

Here is the caller graph for this function:

uint32_t ns3::aodv::RrepHeader::GetDstSeqno ( ) const

inline

Definition at line 193 of file aodv-packet.h.

References m_dstSeqNo.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

Here is the caller graph for this function:

uint8_t ns3::aodv::RrepHeader::GetHopCount ( ) const

inline

Definition at line 189 of file aodv-packet.h.

References m_hopCount.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

Here is the caller graph for this function:

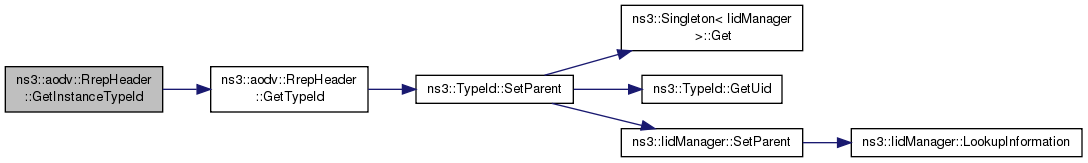

TypeId ns3::aodv::RrepHeader::GetInstanceTypeId ( ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 304 of file aodv-packet.cc.

References GetTypeId().

Here is the call graph for this function:

Time ns3::aodv::RrepHeader::GetLifeTime ( ) const

Definition at line 364 of file aodv-packet.cc.

References m_lifeTime, and ns3::MilliSeconds().

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), ns3::aodv::RoutingProtocol::ProcessHello(), and ns3::aodv::RoutingProtocol::RecvReply().

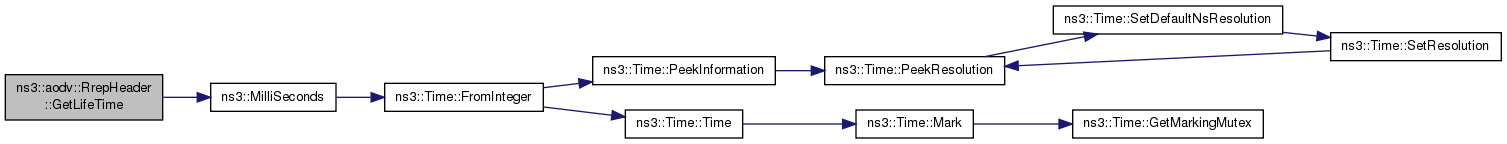

Here is the call graph for this function:

Here is the caller graph for this function:

Ipv4Address ns3::aodv::RrepHeader::GetOrigin ( ) const

inline

Definition at line 195 of file aodv-packet.h.

References m_origin.

Referenced by ns3::aodv::RrepHeaderTest::DoRun(), and ns3::aodv::RoutingProtocol::RecvReply().

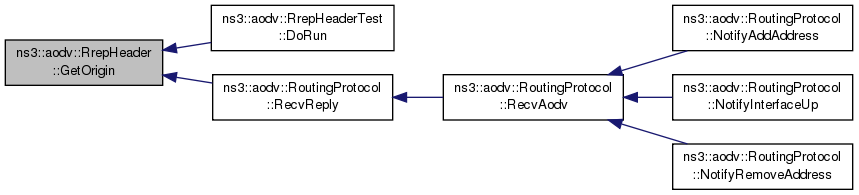

Here is the caller graph for this function:

uint8_t ns3::aodv::RrepHeader::GetPrefixSize ( ) const

Definition at line 392 of file aodv-packet.cc.

References m_prefixSize.

Referenced by ns3::aodv::RrepHeaderTest::DoRun().

Here is the caller graph for this function:

uint32_t ns3::aodv::RrepHeader::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 310 of file aodv-packet.cc.

Referenced by Deserialize().

Here is the caller graph for this function:

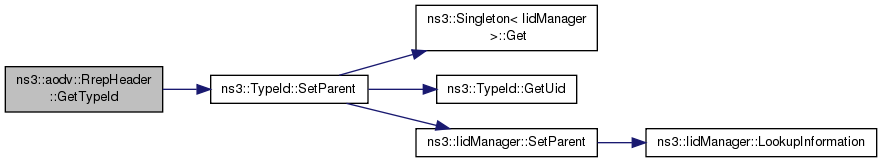

TypeId ns3::aodv::RrepHeader::GetTypeId ( void )

static

Definition at line 293 of file aodv-packet.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

Here is the call graph for this function:

Here is the caller graph for this function:

bool ns3::aodv::RrepHeader::operator== ( RrepHeader const & o ) const

Definition at line 398 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, and m_prefixSize.

void ns3::aodv::RrepHeader::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 346 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_lifeTime, m_origin, and m_prefixSize.

Referenced by ns3::aodv::operator<<().

Here is the caller graph for this function:

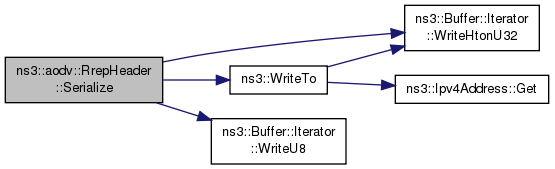

void ns3::aodv::RrepHeader::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 316 of file aodv-packet.cc.

References m_dst, m_dstSeqNo, m_flags, m_hopCount, m_lifeTime, m_origin, m_prefixSize, ns3::Buffer::Iterator::WriteHtonU32(), ns3::WriteTo(), and ns3::Buffer::Iterator::WriteU8().
