802.11s Peer link open management frame More...

#include "peer-link-frame.h"

Inheritance diagram for ns3::dot11s::PeerLinkOpenStart:

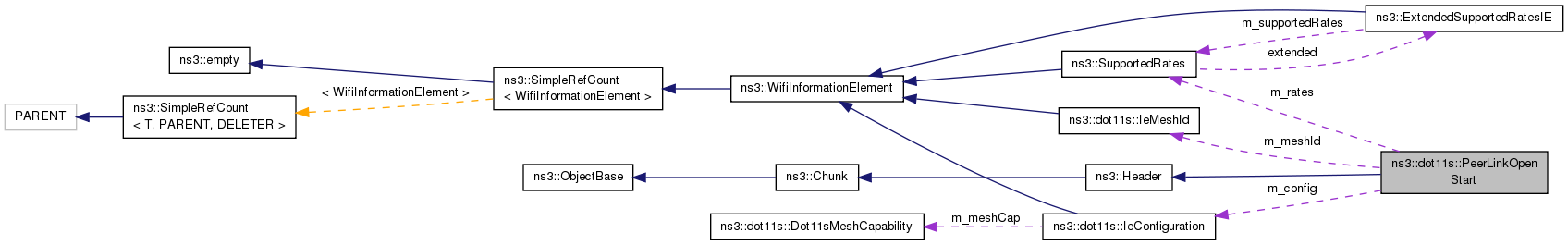

Collaboration diagram for ns3::dot11s::PeerLinkOpenStart:

Classes
struct	PlinkOpenStartFields
	fields: More...

Public Member Functions
	PeerLinkOpenStart ()

virtual uint32_t	Deserialize (Buffer::Iterator start)

PlinkOpenStartFields	GetFields () const

virtual TypeId	GetInstanceTypeId () const
	Get the most derived TypeId for this Object. More...

virtual uint32_t	GetSerializedSize () const

virtual void	Print (std::ostream &os) const

virtual void	Serialize (Buffer::Iterator start) const

void	SetPlinkOpenStart (PlinkOpenStartFields)

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Member Functions
	PeerLinkOpenStart (const PeerLinkOpenStart &)

PeerLinkOpenStart &	operator= (const PeerLinkOpenStart &)

Private Attributes
uint16_t	m_capability

IeConfiguration	m_config

IeMeshId	m_meshId

SupportedRates	m_rates

Friends
bool	operator== (const PeerLinkOpenStart &a, const PeerLinkOpenStart &b)

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

802.11s Peer link open management frame

Introspection did not find any typical Config paths.

Peer link opent frame includes the following:

Capability
Supported rates
Mesh ID of mesh
Configuration

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 184 bytes (on a 64-bit architecture).

Definition at line 44 of file peer-link-frame.h.

Constructor & Destructor Documentation

ns3::dot11s::PeerLinkOpenStart::PeerLinkOpenStart ( )

Definition at line 31 of file peer-link-frame.cc.

ns3::dot11s::PeerLinkOpenStart::PeerLinkOpenStart ( const PeerLinkOpenStart & )

private

Member Function Documentation

uint32_t ns3::dot11s::PeerLinkOpenStart::Deserialize ( Buffer::Iterator start )

virtual

Parameters

start an iterator which points to where the header should read from.

Returns: the number of bytes read.

This method is used by Packet::RemoveHeader to re-create a header from the byte buffer of a packet. The data read is expected to match bit-for-bit the representation of this header in real networks.

Note that data is not actually removed from the buffer to which the iterator points. Both Packet::RemoveHeader() and Packet::PeekHeader() call Deserialize(), but only the RemoveHeader() has additional statements to remove the header bytes from the underlying buffer and associated metadata.

Implements ns3::Header.

Definition at line 103 of file peer-link-frame.cc.

References ns3::WifiInformationElement::Deserialize(), ns3::WifiInformationElement::DeserializeIfPresent(), ns3::dot11s::IeMeshId::DeserializeInformationField(), ns3::dot11s::IeConfiguration::DeserializeInformationField(), ns3::dot11s::IeMeshId::ElementId(), ns3::dot11s::IeConfiguration::ElementId(), ns3::SupportedRates::extended, ns3::Buffer::Iterator::GetDistanceFrom(), ns3::dot11s::IeMeshId::GetInformationFieldSize(), ns3::dot11s::IeConfiguration::GetInformationFieldSize(), m_capability, m_config, m_meshId, m_rates, ns3::Buffer::Iterator::Next(), NS_FATAL_ERROR, ns3::Buffer::Iterator::ReadLsbtohU16(), ns3::Buffer::Iterator::ReadU8(), and visualizer.core::start().

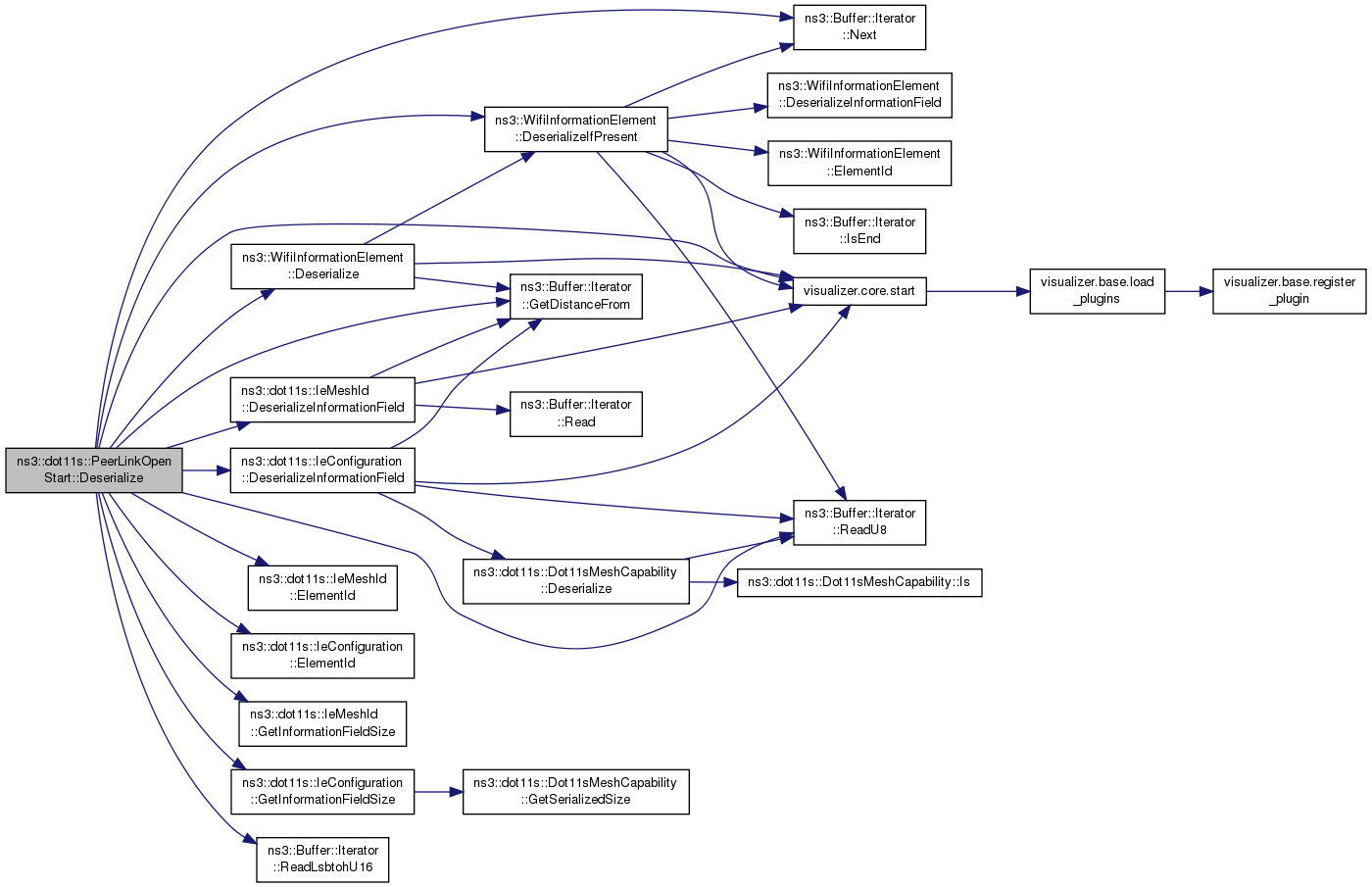

Here is the call graph for this function:

PeerLinkOpenStart::PlinkOpenStartFields ns3::dot11s::PeerLinkOpenStart::GetFields ( ) const

Todo:: protocol version:

Definition at line 45 of file peer-link-frame.cc.

References ns3::dot11s::PeerLinkOpenStart::PlinkOpenStartFields::capability, ns3::dot11s::PeerLinkOpenStart::PlinkOpenStartFields::config, m_capability, m_config, m_meshId, m_rates, ns3::dot11s::PeerLinkOpenStart::PlinkOpenStartFields::meshId, and ns3::dot11s::PeerLinkOpenStart::PlinkOpenStartFields::rates.

Referenced by ns3::dot11s::PeerManagementProtocolMac::Receive().

Here is the caller graph for this function:

TypeId ns3::dot11s::PeerLinkOpenStart::GetInstanceTypeId ( ) const

virtual

Get the most derived TypeId for this Object.

This method is typically implemented by ns3::Object::GetInstanceTypeId but some classes which derive from ns3::ObjectBase directly have to implement it themselves.

Returns: The TypeId associated to the most-derived type of this instance.

Implements ns3::ObjectBase.

Definition at line 67 of file peer-link-frame.cc.

References GetTypeId().

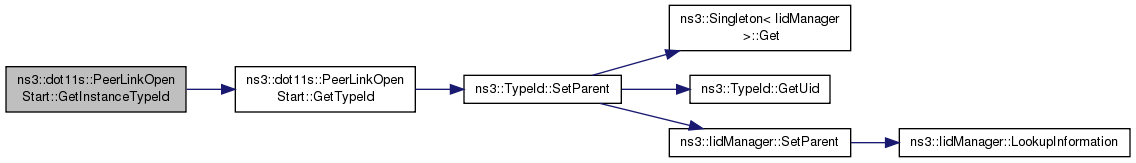

Here is the call graph for this function:

uint32_t ns3::dot11s::PeerLinkOpenStart::GetSerializedSize ( ) const

virtual

Returns: the expected size of the header.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. This method should return the number of bytes which are needed to store the full header data by Serialize.

Implements ns3::Header.

Definition at line 81 of file peer-link-frame.cc.

References ns3::SupportedRates::extended, ns3::dot11s::IeMeshId::GetInformationFieldSize(), ns3::dot11s::IeConfiguration::GetInformationFieldSize(), ns3::ExtendedSupportedRatesIE::GetSerializedSize(), ns3::WifiInformationElement::GetSerializedSize(), m_config, m_meshId, and m_rates.

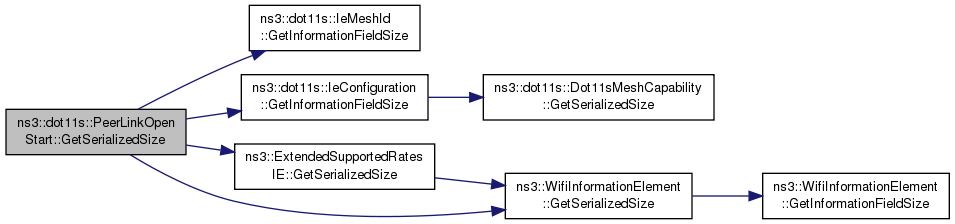

Here is the call graph for this function:

TypeId ns3::dot11s::PeerLinkOpenStart::GetTypeId ( void )

static

Definition at line 57 of file peer-link-frame.cc.

References ns3::TypeId::SetParent().

Referenced by GetInstanceTypeId().

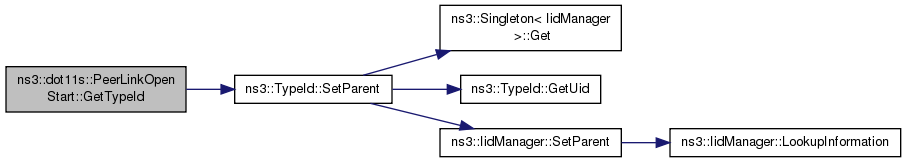

Here is the call graph for this function:

Here is the caller graph for this function:

PeerLinkOpenStart& ns3::dot11s::PeerLinkOpenStart::operator= ( const PeerLinkOpenStart & )

private

void ns3::dot11s::PeerLinkOpenStart::Print ( std::ostream & os ) const

virtual

Parameters

os output stream This method is used by Packet::Print to print the content of a header as ascii data to a c++ output stream. Although the header is free to format its output as it wishes, it is recommended to follow a few rules to integrate with the packet pretty printer: start with flags, small field values located between a pair of parens. Values should be separated by whitespace. Follow the parens with the important fields, separated by whitespace. i.e.: (field1 val1 field2 val2 field3 val3) field4 val4 field5 val5

Implements ns3::Header.

Definition at line 72 of file peer-link-frame.cc.

References m_capability, m_config, m_meshId, m_rates, ns3::dot11s::IeMeshId::Print(), and ns3::dot11s::IeConfiguration::Print().

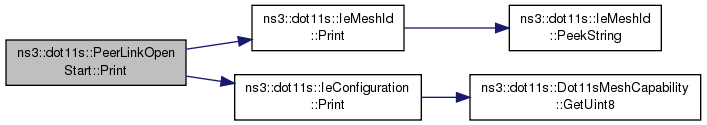

Here is the call graph for this function:

void ns3::dot11s::PeerLinkOpenStart::Serialize ( Buffer::Iterator start ) const

virtual

Parameters

start an iterator which points to where the header should be written.

This method is used by Packet::AddHeader to store a header into the byte buffer of a packet. The data written is expected to match bit-for-bit the representation of this header in a real network.

Implements ns3::Header.

Definition at line 92 of file peer-link-frame.cc.

References ns3::SupportedRates::extended, m_capability, m_config, m_meshId, m_rates, ns3::ExtendedSupportedRatesIE::Serialize(), ns3::WifiInformationElement::Serialize(), visualizer.core::start(), and ns3::Buffer::Iterator::WriteHtolsbU16().

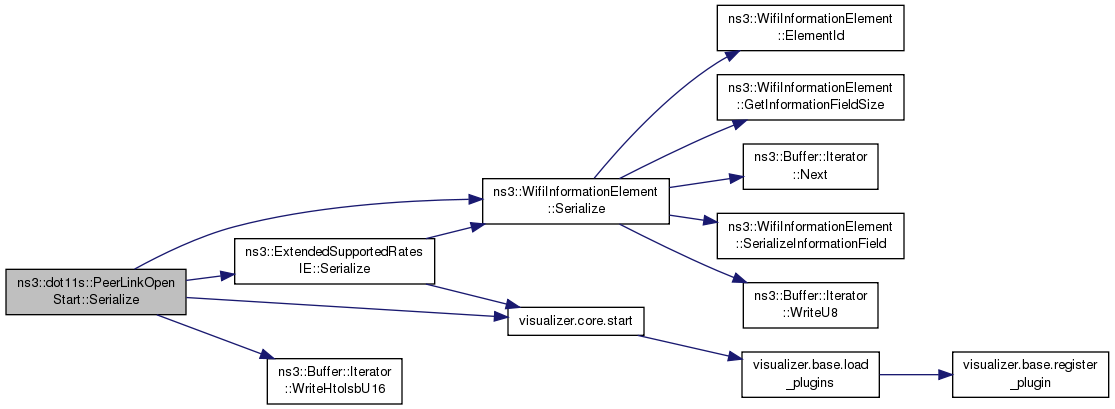

Here is the call graph for this function:
