Source Route (SR) Message Format. More...

#include "dsr-option-header.h"

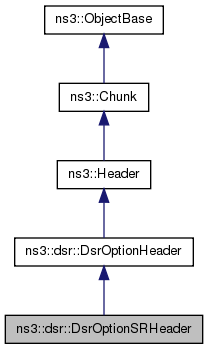

Inheritance diagram for ns3::dsr::DsrOptionSRHeader:

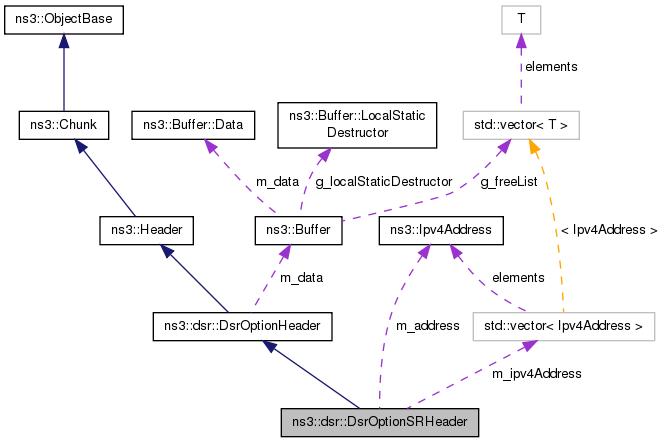

Collaboration diagram for ns3::dsr::DsrOptionSRHeader:

Public Types
typedef void(*	TracedCallback) (const DsrOptionSRHeader &header)
	TracedCallback signature for DsrOptionSrHeader. More...

Public Member Functions
	DsrOptionSRHeader ()
	Constructor. More...

virtual	~DsrOptionSRHeader ()
	Destructor. More...

virtual uint32_t	Deserialize (Buffer::Iterator start)
	Deserialize the packet. More...

virtual Alignment	GetAlignment () const
	Get the Alignment requirement of this option header. More...

virtual TypeId	GetInstanceTypeId () const
	Get the instance type ID. More...

Ipv4Address	GetNodeAddress (uint8_t index) const
	Get a Node IPv4 Address. More...

uint8_t	GetNodeListSize () const

std::vector< Ipv4Address >	GetNodesAddress () const
	Get the vector of ipv4 address. More...

uint8_t	GetSalvage () const

uint8_t	GetSegmentsLeft () const

virtual uint32_t	GetSerializedSize () const
	Get the serialized size of the packet. More...

virtual void	Print (std::ostream &os) const
	Print some informations about the packet. More...

virtual void	Serialize (Buffer::Iterator start) const
	Serialize the packet. More...

void	SetNodeAddress (uint8_t index, Ipv4Address addr)
	Set a Node IPv4 Address. More...

void	SetNodesAddress (std::vector< Ipv4Address > ipv4Address)
	Set the vector of ipv4 address. More...

void	SetNumberAddress (uint8_t n)
	Set the number of ipv4 address. More...

void	SetSalvage (uint8_t salvage)

void	SetSegmentsLeft (uint8_t segmentsLeft)

Public Member Functions inherited from ns3::dsr::DsrOptionHeader
	DsrOptionHeader ()
	Constructor. More...

virtual	~DsrOptionHeader ()
	Destructor. More...

uint8_t	GetLength () const
	Get the option length. More...

uint8_t	GetType () const
	Get the type of the option. More...

void	SetLength (uint8_t length)
	Set the option length. More...

void	SetType (uint8_t type)
	Set the type of the option. More...

Public Member Functions inherited from ns3::Header
virtual	~Header ()

Public Member Functions inherited from ns3::ObjectBase
virtual	~ObjectBase ()
	Virtual destructor. More...

void	GetAttribute (std::string name, AttributeValue &value) const
	Get the value of an attribute, raising fatal errors if unsuccessful. More...

bool	GetAttributeFailSafe (std::string name, AttributeValue &value) const
	Get the value of an attribute without raising erros. More...

void	SetAttribute (std::string name, const AttributeValue &value)
	Set a single attribute, raising fatal errors if unsuccessful. More...

bool	SetAttributeFailSafe (std::string name, const AttributeValue &value)
	Set a single attribute without raising errors. More...

bool	TraceConnect (std::string name, std::string context, const CallbackBase &cb)
	Connect a TraceSource to a Callback with a context. More...

bool	TraceConnectWithoutContext (std::string name, const CallbackBase &cb)
	Connect a TraceSource to a Callback without a context. More...

bool	TraceDisconnect (std::string name, std::string context, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected with a context. More...

bool	TraceDisconnectWithoutContext (std::string name, const CallbackBase &cb)
	Disconnect from a TraceSource a Callback previously connected without a context. More...

Static Public Member Functions
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::dsr::DsrOptionHeader
static TypeId	GetTypeId ()
	Get the type identificator. More...

Static Public Member Functions inherited from ns3::Header
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::Chunk
static TypeId	GetTypeId (void)
	Get the type ID. More...

Static Public Member Functions inherited from ns3::ObjectBase
static TypeId	GetTypeId (void)
	Get the type ID. More...

Private Types
typedef std::vector< Ipv4Address >	VectorIpv4Address_t
	A vector of IPv4 Address. More...

Private Attributes
Ipv4Address	m_address
	The ip address header deserilize to. More...

VectorIpv4Address_t	m_ipv4Address
	The vector of Nodes' IPv4 Address. More...

uint8_t	m_salvage
	Number of savlage times for a packet. More...

uint8_t	m_segmentsLeft
	Number of left segments. More...

Additional Inherited Members
Protected Member Functions inherited from ns3::ObjectBase
void	ConstructSelf (const AttributeConstructionList &attributes)
	Complete construction of ObjectBase; invoked by derived classes. More...

virtual void	NotifyConstructionCompleted (void)
	Notifier called once the ObjectBase is fully constructed. More...

Related Functions inherited from ns3::ObjectBase
static TypeId	GetObjectIid (void)
	Ensure the TypeId for ObjectBase gets fully configured to anchor the inheritance tree properly. More...

Detailed Description

Source Route (SR) Message Format.

Header of Dsr Option Source Route.

Introspection did not find any typical Config paths.

 |      0        |      1        |      2        |      3        |
 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7 0 1 2 3 4 5 6 7
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |  Option Type |  Opt Data Len |F|L|Reservd|Salvage|  Segs Left |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[1]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[2]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                               ...                             |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
 |                            Address[n]                         |
 +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

No Attributes are defined for this type.
No TraceSources are defined for this type.
Size of this type is 80 bytes (on a 64-bit architecture).

Definition at line 569 of file dsr-option-header.h.

Member Typedef Documentation

typedef void(* ns3::dsr::DsrOptionSRHeader::TracedCallback) (const DsrOptionSRHeader &header)

TracedCallback signature for DsrOptionSrHeader.

Parameters

[in] header The DsrOptionsSRHeader

Definition at line 675 of file dsr-option-header.h.

typedef std::vector<Ipv4Address> ns3::dsr::DsrOptionSRHeader::VectorIpv4Address_t

private

A vector of IPv4 Address.

Definition at line 693 of file dsr-option-header.h.

Constructor & Destructor Documentation

ns3::dsr::DsrOptionSRHeader::DsrOptionSRHeader ( )

Constructor.

Definition at line 536 of file dsr-option-header.cc.

References m_ipv4Address, ns3::dsr::DsrOptionHeader::SetLength(), and ns3::dsr::DsrOptionHeader::SetType().

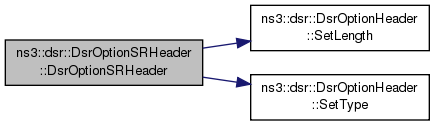

Here is the call graph for this function:

ns3::dsr::DsrOptionSRHeader::~DsrOptionSRHeader ( )

virtual

Destructor.

Definition at line 544 of file dsr-option-header.cc.

Member Function Documentation

uint32_t ns3::dsr::DsrOptionSRHeader::Deserialize ( Buffer::Iterator start )

virtual

Deserialize the packet.

Parameters

start Buffer iterator

Returns: size of the packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 634 of file dsr-option-header.cc.

References ns3::Ipv4Address::Deserialize(), GetSerializedSize(), m_address, m_ipv4Address, m_salvage, m_segmentsLeft, ns3::Buffer::Iterator::Read(), ns3::Buffer::Iterator::ReadU8(), ns3::dsr::DsrOptionHeader::SetLength(), SetNodeAddress(), ns3::dsr::DsrOptionHeader::SetType(), and visualizer.core::start().

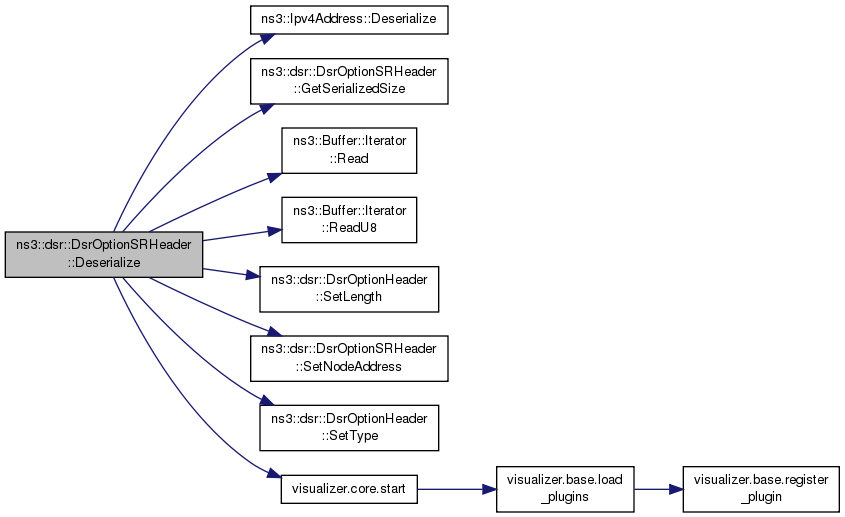

Here is the call graph for this function:

DsrOptionHeader::Alignment ns3::dsr::DsrOptionSRHeader::GetAlignment ( ) const

virtual

Get the Alignment requirement of this option header.

Returns: The required alignment

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 656 of file dsr-option-header.cc.

TypeId ns3::dsr::DsrOptionSRHeader::GetInstanceTypeId ( void ) const

virtual

Get the instance type ID.

Returns: instance type ID

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 531 of file dsr-option-header.cc.

References GetTypeId().

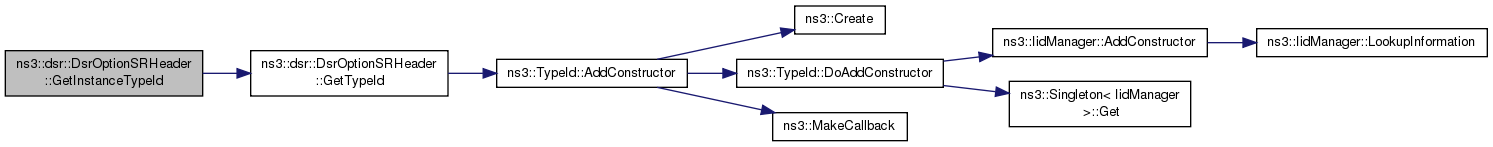

Here is the call graph for this function:

Ipv4Address ns3::dsr::DsrOptionSRHeader::GetNodeAddress ( uint8_t index ) const

Get a Node IPv4 Address.

Parameters

index the index of the IPv4 Address

Returns: the router IPv4 Address

Definition at line 590 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), and ns3::dsr::DsrOptionSR::Process().

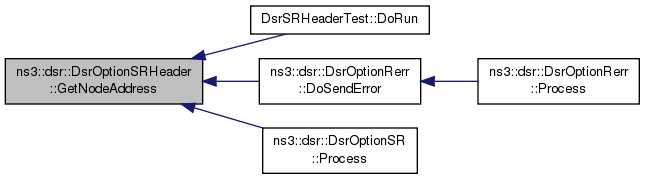

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrOptionSRHeader::GetNodeListSize ( ) const

Definition at line 595 of file dsr-option-header.cc.

References m_ipv4Address.

std::vector< Ipv4Address > ns3::dsr::DsrOptionSRHeader::GetNodesAddress ( ) const

Get the vector of ipv4 address.

Returns: the vector of ipv4 address

Definition at line 580 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrOptionSR::Process(), and ns3::dsr::DsrRouting::SendPacketFromBuffer().

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrOptionSRHeader::GetSalvage ( ) const

Definition at line 563 of file dsr-option-header.cc.

References m_salvage.

Referenced by ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrOptionSR::Process(), and ns3::dsr::DsrRouting::SalvagePacket().

Here is the caller graph for this function:

uint8_t ns3::dsr::DsrOptionSRHeader::GetSegmentsLeft ( ) const

Definition at line 553 of file dsr-option-header.cc.

References m_segmentsLeft.

Referenced by DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::ForwardPacket(), and ns3::dsr::DsrOptionSR::Process().

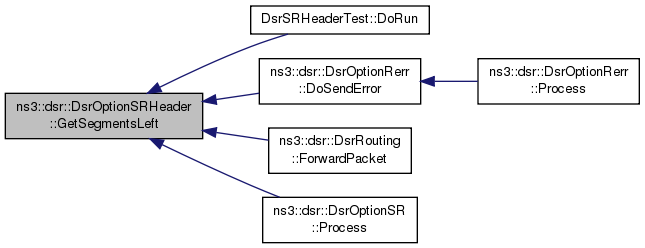

Here is the caller graph for this function:

uint32_t ns3::dsr::DsrOptionSRHeader::GetSerializedSize ( void ) const

virtual

Get the serialized size of the packet.

Returns: size

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 612 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize(), ns3::dsr::DsrOptionRerr::DoSendError(), and ns3::dsr::DsrOptionSR::Process().

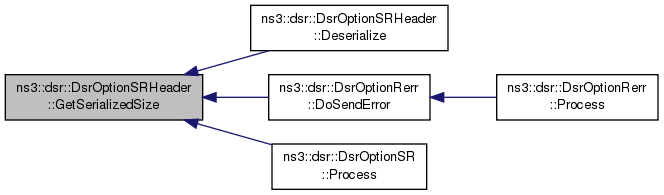

Here is the caller graph for this function:

TypeId ns3::dsr::DsrOptionSRHeader::GetTypeId ( void )

static

Get the type identificator.

Returns: type identificator

Definition at line 521 of file dsr-option-header.cc.

References ns3::TypeId::AddConstructor().

Referenced by GetInstanceTypeId().

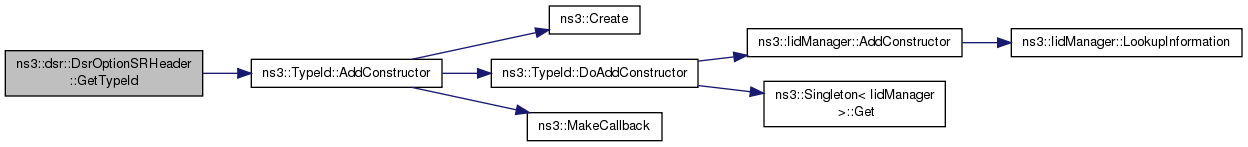

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionSRHeader::Print ( std::ostream & os ) const

virtual

Print some informations about the packet.

Parameters

os	output stream

Returns: info about this packet

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 600 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), and m_ipv4Address.

Referenced by ns3::dsr::operator<<().

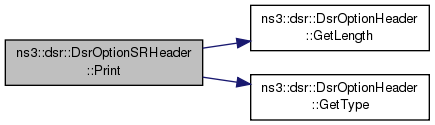

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionSRHeader::Serialize ( Buffer::Iterator start ) const

virtual

Serialize the packet.

Parameters

start Buffer iterator

Reimplemented from ns3::dsr::DsrOptionHeader.

Definition at line 617 of file dsr-option-header.cc.

References ns3::dsr::DsrOptionHeader::GetLength(), ns3::dsr::DsrOptionHeader::GetType(), m_ipv4Address, m_salvage, m_segmentsLeft, visualizer.core::start(), ns3::Buffer::Iterator::Write(), and ns3::Buffer::Iterator::WriteU8().

Here is the call graph for this function:

void ns3::dsr::DsrOptionSRHeader::SetNodeAddress	(	uint8_t	index,
		Ipv4Address	addr
	)

Set a Node IPv4 Address.

Parameters

index	the index of the IPv4 Address
addr	the new IPv4 Address

Definition at line 585 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by Deserialize().

Here is the caller graph for this function:

void ns3::dsr::DsrOptionSRHeader::SetNodesAddress ( std::vector< Ipv4Address > ipv4Address )

Set the vector of ipv4 address.

Parameters

ipv4Address the vector of ipv4 address

Definition at line 574 of file dsr-option-header.cc.

References m_ipv4Address, and ns3::dsr::DsrOptionHeader::SetLength().

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendUnreachError().

Here is the call graph for this function:

Here is the caller graph for this function:

void ns3::dsr::DsrOptionSRHeader::SetNumberAddress ( uint8_t n )

Set the number of ipv4 address.

Parameters

n	the number of ipv4' address

Definition at line 568 of file dsr-option-header.cc.

References m_ipv4Address.

Referenced by ns3::dsr::DsrRouting::AddAckReqHeader(), ns3::dsr::DsrRouting::CancelPacketTimerNextHop(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrOptionSR::Process(), and ns3::dsr::DsrRouting::SalvagePacket().

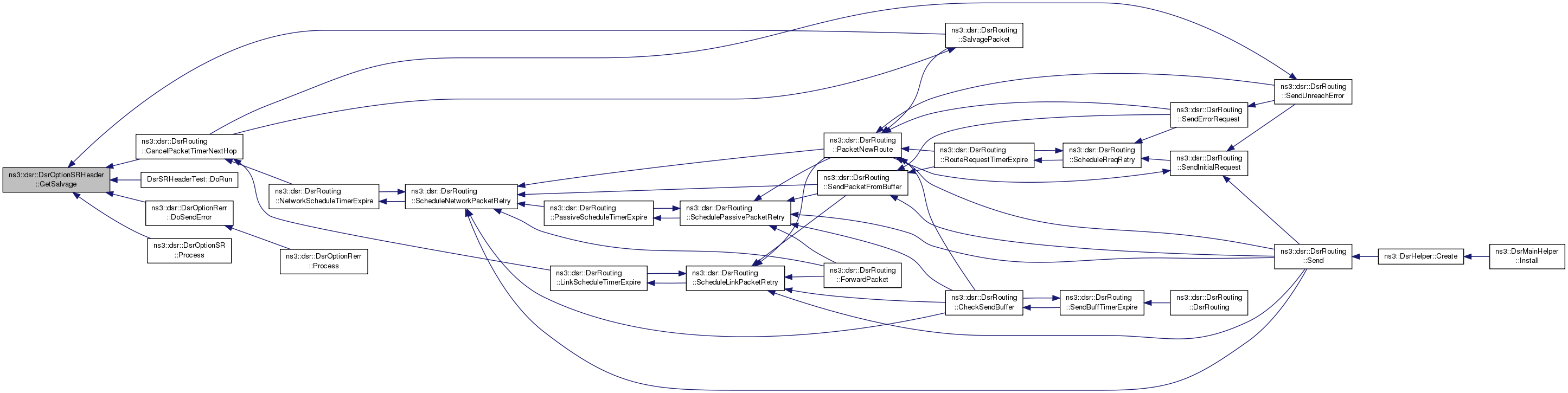

Here is the caller graph for this function:

void ns3::dsr::DsrOptionSRHeader::SetSalvage ( uint8_t salvage )

Definition at line 558 of file dsr-option-header.cc.

References m_salvage.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::Send(), and ns3::dsr::DsrRouting::SendErrorRequest().

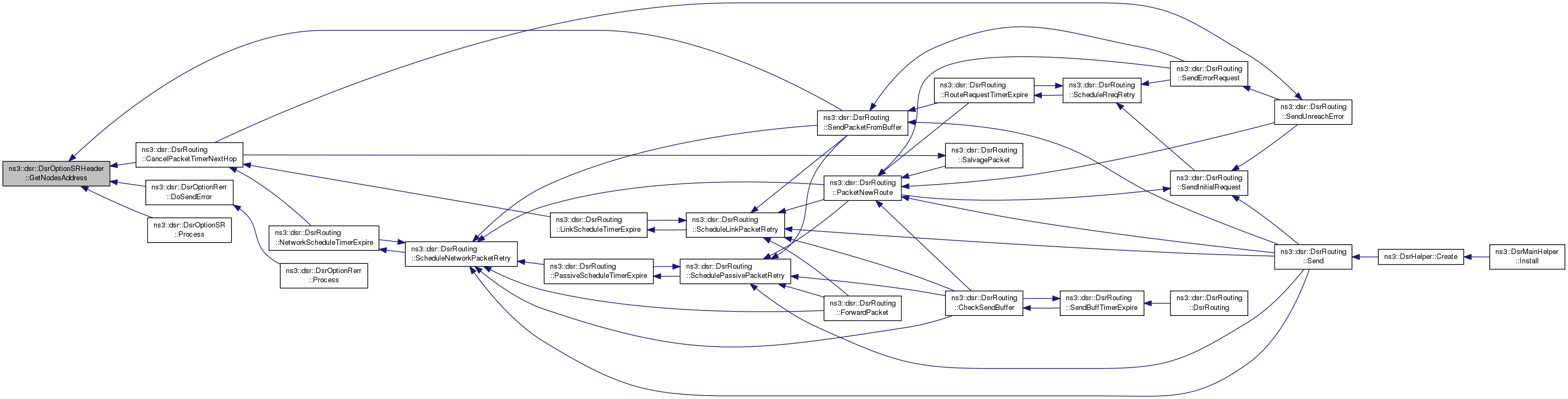

Here is the caller graph for this function:

void ns3::dsr::DsrOptionSRHeader::SetSegmentsLeft ( uint8_t segmentsLeft )

Definition at line 548 of file dsr-option-header.cc.

References m_segmentsLeft.

Referenced by ns3::dsr::DsrRouting::CheckSendBuffer(), DsrSRHeaderTest::DoRun(), ns3::dsr::DsrOptionRerr::DoSendError(), ns3::dsr::DsrRouting::PacketNewRoute(), ns3::dsr::DsrOptionRreq::Process(), ns3::dsr::DsrOptionRrep::Process(), ns3::dsr::DsrOptionSR::Process(), ns3::dsr::DsrRouting::RouteRequestTimerExpire(), ns3::dsr::DsrRouting::SalvagePacket(), ns3::dsr::DsrRouting::Send(), ns3::dsr::DsrRouting::SendErrorRequest(), and ns3::dsr::DsrRouting::SendUnreachError().

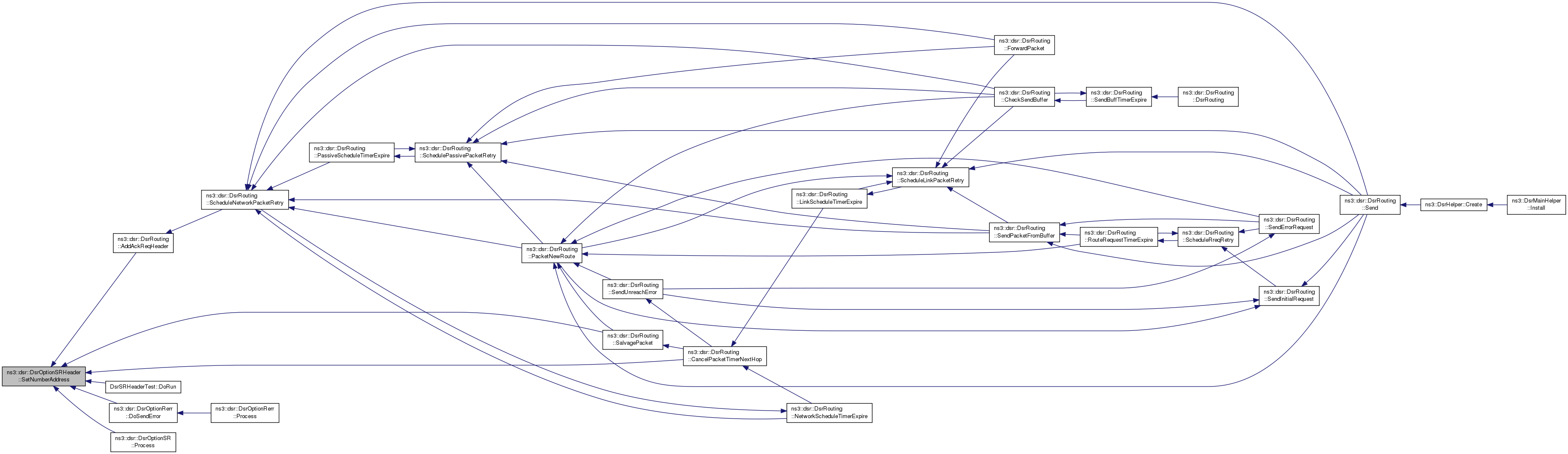

Here is the caller graph for this function:

Member Data Documentation

Ipv4Address ns3::dsr::DsrOptionSRHeader::m_address

private

The ip address header deserilize to.

Definition at line 681 of file dsr-option-header.h.

Referenced by Deserialize().

VectorIpv4Address_t ns3::dsr::DsrOptionSRHeader::m_ipv4Address

private

The vector of Nodes' IPv4 Address.

Definition at line 697 of file dsr-option-header.h.

Referenced by Deserialize(), DsrOptionSRHeader(), GetNodeAddress(), GetNodeListSize(), GetNodesAddress(), GetSerializedSize(), Print(), Serialize(), SetNodeAddress(), SetNodesAddress(), and SetNumberAddress().

uint8_t ns3::dsr::DsrOptionSRHeader::m_salvage

private

Number of savlage times for a packet.

Definition at line 689 of file dsr-option-header.h.

Referenced by Deserialize(), GetSalvage(), Serialize(), and SetSalvage().

uint8_t ns3::dsr::DsrOptionSRHeader::m_segmentsLeft

private

Number of left segments.

Definition at line 685 of file dsr-option-header.h.

Referenced by Deserialize(), GetSegmentsLeft(), Serialize(), and SetSegmentsLeft().

The documentation for this class was generated from the following files:

src/dsr/model/dsr-option-header.h
src/dsr/model/dsr-option-header.cc

Public Types

Public Member Functions

Static Public Member Functions

Private Types

Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
