Simulator

Control the virtual time and the execution of simulation events. More...

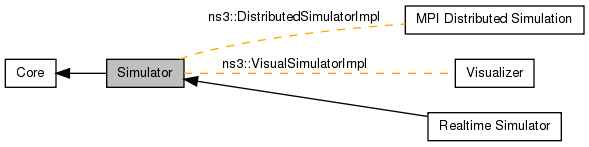

Collaboration diagram for Simulator:

Modules
	Realtime Simulator
	Realtime simulator implementation.

Files
file	default-simulator-impl.cc
	Implementation of class ns3::DefaultSimulatorImpl.
file	default-simulator-impl.h
	Declaration of class ns3::DefaultSimulatorImpl.
file	des-metrics.cc
	ns3::DesMetrics implementation.
file	des-metrics.h
	ns3::DesMetrics declaration.
file	sample-simulator.cc
	Example program demonstrating use of various Schedule functions.
file	simulator-impl.cc
	Implementation of class ns3::SimulatorImpl.
file	simulator-impl.h
	Declaration of class ns3::SimulatorImpl.
file	simulator.cc
	ns3::Simulator implementation, as well as implementation pointer, global scheduler implementation, and default ns3::NodePrinter and ns3::TimePrinter.
file	simulator.h
	ns3::Simulator declaration.

Classes
class	ns3::DefaultSimulatorImpl
	The default single process simulator implementation. More...
class	ns3::DesMetrics
	Event trace data collector for the DES Metrics project. More...
class	ns3::DistributedSimulatorImpl
	Distributed simulator implementation using lookahead. More...
struct	ns3::DefaultSimulatorImpl::EventWithContext
	Wrap an event with its execution context. More...
class	ns3::Simulator
	Control the scheduling of simulation events. More...
class	ns3::SimulatorImpl
	The SimulatorImpl base class. More...
class	ns3::VisualSimulatorImpl
	A replacement simulator that starts the visualizer. More...

Enumerations
enum	{ ns3::Simulator::NO_CONTEXT = 0xffffffff }
	Context enum values. More...

Functions
static SimulatorImpl *	ns3::GetImpl (void)
	Get the SimulatorImpl singleton. More...
Time	ns3::Now (void)
	create an ns3::Time instance which contains the current simulation time. More...
static SimulatorImpl **	ns3::PeekImpl (void)
	Get the static SimulatorImpl instance. More...

Variables
static GlobalValue	ns3::g_simTypeImpl
	The specific simulator implementation to use. More...

Detailed Description

Control the virtual time and the execution of simulation events.

Enumeration Type Documentation

anonymous enum

Context enum values.

Enumerator
NO_CONTEXT	Flag for events not associated with any particular context.

Definition at line 188 of file simulator.h.

Function Documentation

static SimulatorImpl* ns3::GetImpl ( void  )

static

Get the SimulatorImpl singleton.

Returns

The singleton pointer.

See also

Simulator::GetImplementation()

Definition at line 127 of file simulator.cc.

References ns3::ObjectFactory::Create(), ns3::StringValue::Get(), ns3::GetPointer(), ns3::GlobalValue::GetValue(), ns3::LogSetNodePrinter(), ns3::LogSetTimePrinter(), ns3::NodePrinter(), ns3::PeekImpl(), ns3::ObjectFactory::SetTypeId(), and ns3::TimePrinter().

Referenced by ns3::Simulator::Cancel(), ns3::Simulator::DoSchedule(), ns3::Simulator::DoScheduleDestroy(), ns3::Simulator::DoScheduleNow(), ns3::Simulator::GetContext(), ns3::Simulator::GetDelayLeft(), ns3::Simulator::GetImplementation(), ns3::Simulator::GetMaximumSimulationTime(), ns3::Simulator::GetSystemId(), ns3::Simulator::IsExpired(), ns3::Simulator::IsFinished(), ns3::Simulator::Now(), ns3::Simulator::Remove(), ns3::Simulator::Run(), ns3::Simulator::ScheduleWithContext(), ns3::Simulator::SetScheduler(), and ns3::Simulator::Stop().

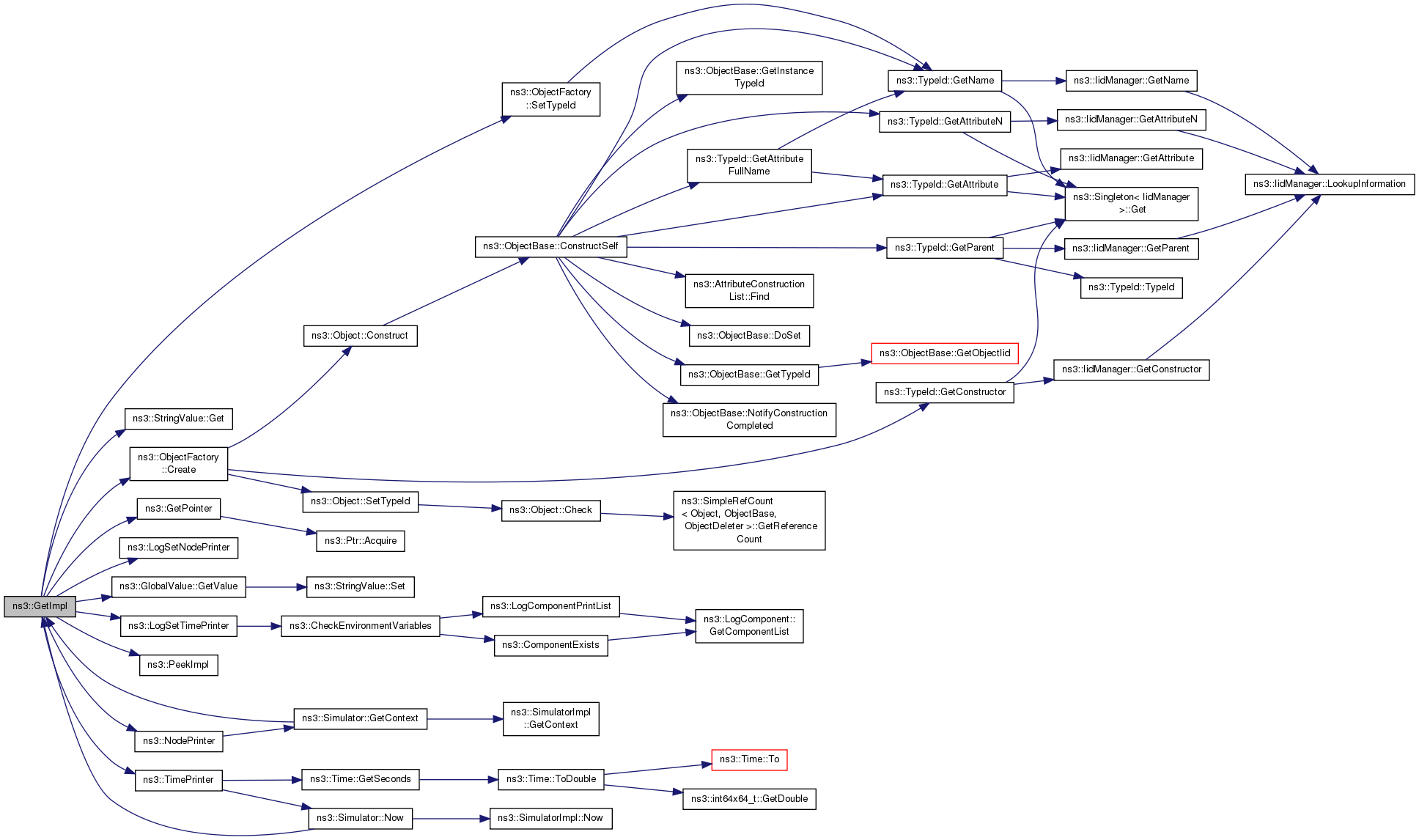

Here is the call graph for this function:

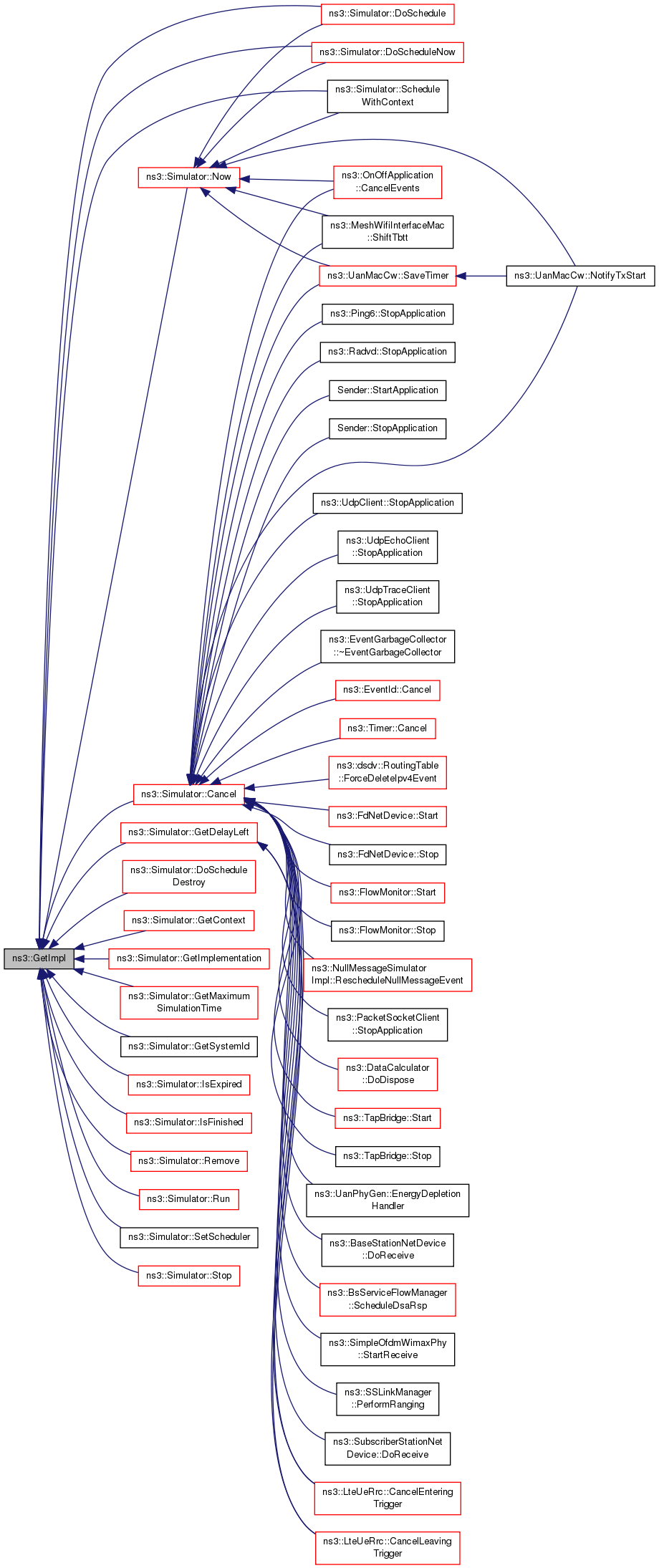

Here is the caller graph for this function:

Time ns3::Now

(

void

)

create an ns3::Time instance which contains the current simulation time.

This is really a shortcut for the ns3::Simulator::Now method. It is typically used as shown below to schedule an event which expires at the absolute time "2 seconds":

Simulator::Schedule (Seconds (2.0) - Now (), &my_function);

Returns

The current simulation time.

Definition at line 340 of file simulator.cc.

References ns3::Simulator::Now().

Referenced by DcfManagerTest::AddAccessRequestWithAckTimeout(), DcfManagerTest::AddAccessRequestWithSuccessfullAck(), DcfManagerTest::AddAckTimeoutReset(), DcfManagerTest::AddCcaBusyEvt(), DcfManagerTest::AddNavReset(), DcfManagerTest::AddNavStart(), DcfManagerTest::AddRxErrorEvt(), DcfManagerTest::AddRxInsideSifsEvt(), DcfManagerTest::AddRxOkEvt(), DcfManagerTest::AddRxStartEvt(), DcfManagerTest::AddSwitchingEvt(), DcfManagerTest::AddTxEvt(), ns3::DefaultChannelScheduler::AssignDefaultCchAccess(), DsdvManetExample::CheckThroughput(), RoutingExperiment::CheckThroughput(), Experiment::CheckThroughput(), VanetRoutingExperiment::CheckThroughput(), ns3::LteInterference::ConditionallyEvaluateChunk(), ns3::SpectrumInterference::ConditionallyEvaluateChunk(), LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::ConnectionReconfigurationEnb(), LteDownlinkPowerControlRrcConnectionReconfigurationTestCase::ConnectionReconfigurationUe(), VanetRoutingExperiment::CourseChange(), WaypointLazyNotifyFalse::CourseChangeCallback(), WaypointLazyNotifyTrue::CourseChangeCallback(), CwndChange(), Ns3TcpCwndTestCase1::CwndChange(), Ns3TcpCwndTestCase2::CwndChange(), Ns3TcpLossTestCase::CwndTracer(), LrWpanAckTestCase::DataConfirm(), LrWpanAckTestCase::DataIndication(), CoDelQueueDiscBasicDrop::Dequeue(), LteFrAreaTestCase::DlDataRxStart(), LteCqiGenerationTestCase::DlScheduling(), LteInterferenceTestCase::DlScheduling(), LteLinkAdaptationTestCase::DlScheduling(), LtePathlossModelSystemTestCase::DlScheduling(), LteCqiGenerationDlPowerControlTestCase::DlScheduling(), ns3::SpectrumInterference::DoAddSignal(), EventGarbageCollectorTestCase::DoRun(), LiIonEnergyTestCase::DoRun(), BasicEnergyHarvesterTestCase::DoRun(), LrWpanAckTestCase::DoRun(), ns3::SpectrumInterference::DoSubtractSignal(), WatchdogTestCase::Expire(), ns3::Watchdog::Expire(), ns3::JakesProcess::GetComplexGain(), ns3::ChannelCoordinator::GetIntervalTime(), LenaMimoTestCase::GetRlcBufferSample(), Ipv4DynamicGlobalRoutingTestCase::HandleRead(), LteHandoverTargetTestCase::HandoverStartCallback(), Ns3TcpLossTestCase::Ipv4L3Tx(), Ns3TcpStateTestCase::Ipv4L3Tx(), Ns3TcpInteroperabilityTestCase::Ipv4L3Tx(), OcbWifiMacTestCase::MacAssoc(), JakesPropagationExample::Next(), DcfManagerTest::NotifyAccessGranted(), ChannelCoordinationTestCase::NotifyCchStartNow(), DcfManagerTest::NotifyChannelSwitching(), DcfManagerTest::NotifyCollision(), ChannelCoordinationTestCase::NotifyGuardStartNow(), DcfManagerTest::NotifyInternalCollision(), DcfImmediateAccessBroadcastTestCase::NotifyPhyTxBegin(), ChannelCoordinationTestCase::NotifySchStartNow(), SimulatorEventsTestCase::NowUs(), LrWpanCcaTestCase::PhyRxBegin(), LrWpanCcaTestCase::PhyRxDrop(), LrWpanCcaTestCase::PhyRxEnd(), OcbWifiMacTestCase::PhyRxOkTrace(), LrWpanCcaTestCase::PhyTxBegin(), LrWpanCcaTestCase::PhyTxEnd(), OcbWifiMacTestCase::PhyTxTrace(), ns3::Watchdog::Ping(), LrWpanCcaTestCase::PlmeCcaConfirm(), PrintReceivedPacket(), PrintReceivedRoutingPacket(), ns3::dsdv::RoutingProtocol::PrintRoutingTable(), ns3::aodv::RoutingProtocol::PrintRoutingTable(), ns3::Ipv4StaticRouting::PrintRoutingTable(), ns3::Ipv4ListRouting::PrintRoutingTable(), ns3::Ipv4GlobalRouting::PrintRoutingTable(), ns3::Ipv6ListRouting::PrintRoutingTable(), ns3::Ipv4NixVectorRouting::PrintRoutingTable(), ns3::Rip::PrintRoutingTable(), ns3::RipNg::PrintRoutingTable(), ns3::Ipv6StaticRouting::PrintRoutingTable(), ns3::olsr::RoutingProtocol::PrintRoutingTable(), LteUplinkPowerControlTestCase::PucchTxPowerTrace(), LteUplinkPowerControlTestCase::PuschTxPowerTrace(), WaveNetDeviceExample::Receive(), Receiver::Receive(), Bug730TestCase::Receive(), AnnexC_TestCase::Receive(), DsdvManetExample::ReceivePacket(), LrWpanPlmeAndPdInterfaceTestCase::ReceivePdDataInndication(), WaveNetDeviceExample::ReceiveVsa(), LteUeMeasurementsTestCase::RecvMeasurementReport(), LteUeMeasurementsPiecewiseTestCase1::RecvMeasurementReportCallback(), LteUeMeasurementsPiecewiseTestCase2::RecvMeasurementReportCallback(), LteUeMeasurementsHandoverTestCase::RecvMeasurementReportCallback(), LteUeMeasurementsTestCase::ReportUeMeasurements(), NetAnimExperiment::ResetData(), Experiment::ResetData(), RxDrop(), EpsBearerTagUdpClient::Send(), FlameRegressionTest::SendData(), HwmpProactiveRegressionTest::SendData(), Bug772ChainTest::SendData(), HwmpSimplestRegressionTest::SendData(), HwmpReactiveRegressionTest::SendData(), HwmpDoRfRegressionTest::SendDataA(), HwmpDoRfRegressionTest::SendDataB(), HwmpDoRfRegressionTest::SendDataC(), AnnexC_TestCase::SendPacket(), ChainRegressionTest::SendPing(), ChannelAccessTestCase::SendX(), LteUplinkPowerControlTestCase::SetTpcConfiguration(), LteFrAreaTestCase::SimpleTeleportUe(), LteUplinkPowerControlTestCase::SrsTxPowerTrace(), ns3::WaveformGenerator::Start(), ns3::ChannelCoordinator::StartChannelCoordination(), Ns3TcpStateTestCase::StartFlow(), Ns3TcpLossTestCase::StartFlow(), ns3::SpectrumInterference::StartRx(), ns3::LteInterference::StartRx(), LteUplinkPowerControlTestCase::TeleportUe(), LteFrAreaTestCase::TeleportUe(), LteFrAreaTestCase::TeleportUe2(), ChannelAccessTestCase::TestAlternating(), ChannelAccessTestCase::TestAlternatingAfter(), ChannelAccessTestCase::TestContinuous(), ChannelAccessTestCase::TestContinuousAfter(), ChannelAccessTestCase::TestExtended(), ChannelAccessTestCase::TestExtendedAfter(), ChannelCoordinationTestCase::TestIntervalAfter(), ProbeTestCase1::TraceSink(), WaveformGeneratorTestCase::TraceWave(), LteFrAreaTestCase::UlDataRxStart(), LteCqiGenerationTestCase::UlScheduling(), LteInterferenceTestCase::UlScheduling(), LteCqiGenerationDlPowerControlTestCase::UlScheduling(), ns3::SpectrumAnalyzer::UpdateEnergyReceivedSoFar(), NetAnimExperiment::UpdatePositions(), Experiment::UpdatePositions(), ns3::WriteAveragePowerSpectralDensityReport(), Ns3TcpStateTestCase::WriteUntilBufferFull(), and Ns3TcpLossTestCase::WriteUntilBufferFull().

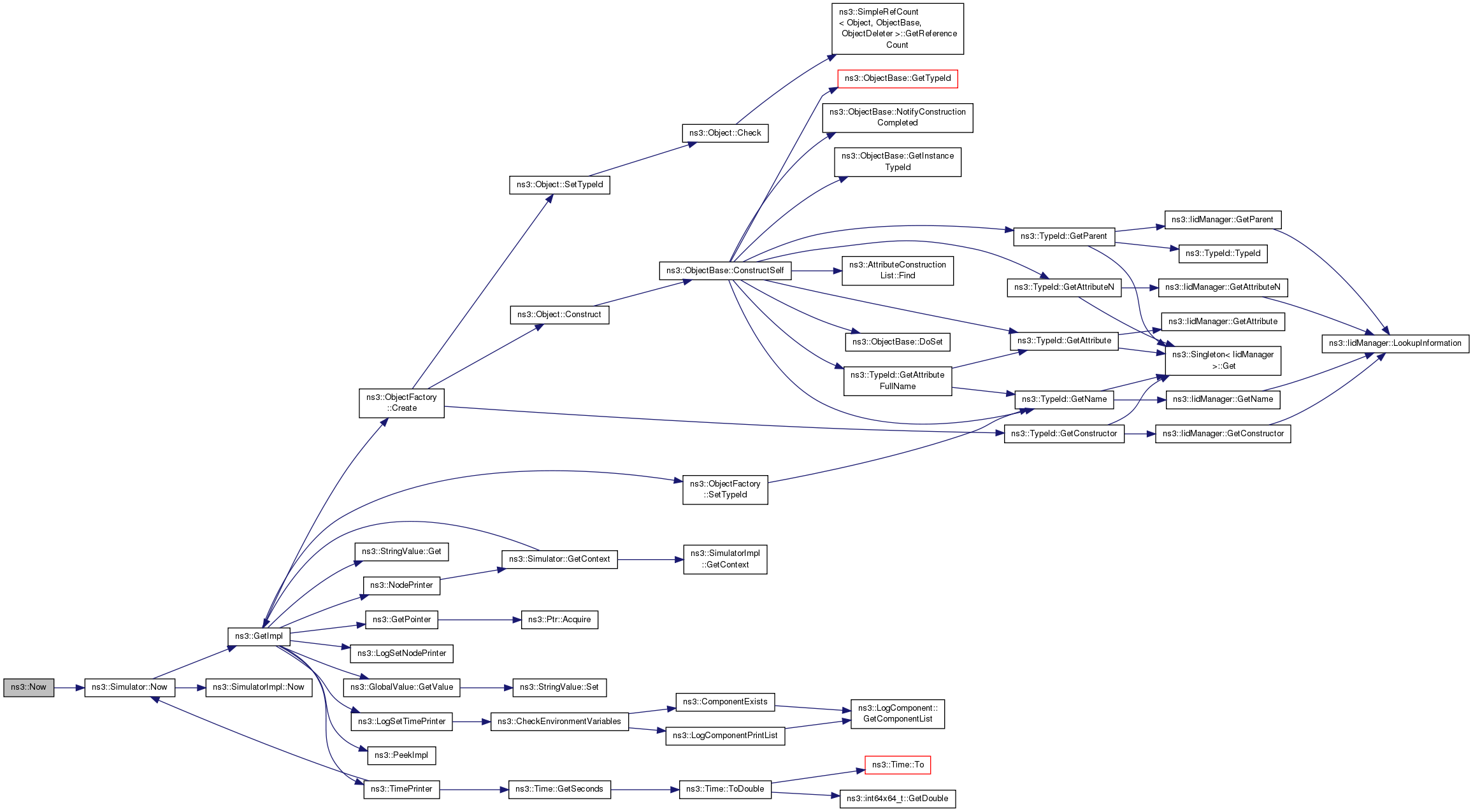

Here is the call graph for this function:

static SimulatorImpl** ns3::PeekImpl ( void  )

static

Get the static SimulatorImpl instance.

Returns

The SimulatorImpl instance pointer.

Definition at line 115 of file simulator.cc.

Referenced by ns3::Simulator::Cancel(), ns3::Simulator::Destroy(), ns3::GetImpl(), ns3::Simulator::GetSystemId(), ns3::Simulator::IsExpired(), ns3::Simulator::Remove(), and ns3::Simulator::SetImplementation().

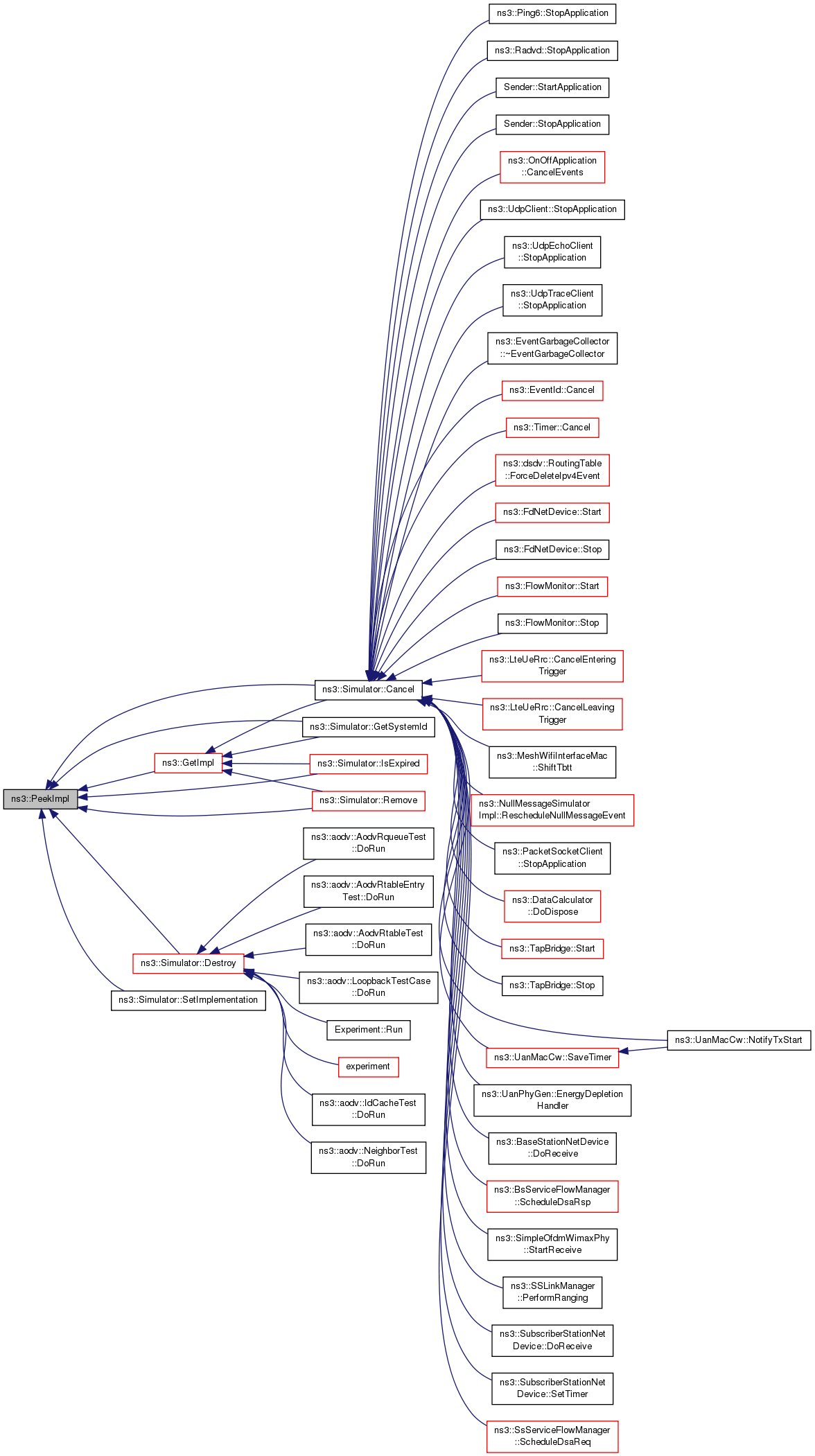

Here is the caller graph for this function:

Variable Documentation

GlobalValue ns3::g_simTypeImpl

static

Initial value:

= GlobalValue
  ("SimulatorImplementationType",
   "The object class to use as the simulator implementation",
   StringValue ("ns3::DefaultSimulatorImpl"),
   MakeStringChecker ())

The specific simulator implementation to use.

Must be derived from SimulatorImpl.

Definition at line 62 of file simulator.cc.
