ns3::HalfDuplexIdealPhySignalParameters Struct Reference

Signal parameters for HalfDuplexIdealPhy. More...

#include "half-duplex-ideal-phy-signal-parameters.h"

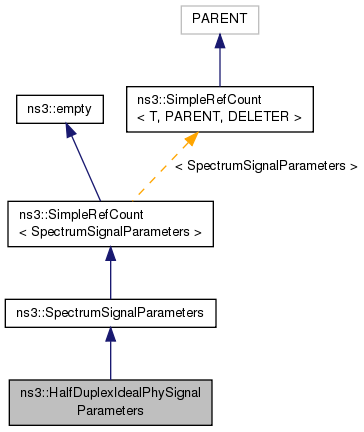

Inheritance diagram for ns3::HalfDuplexIdealPhySignalParameters:

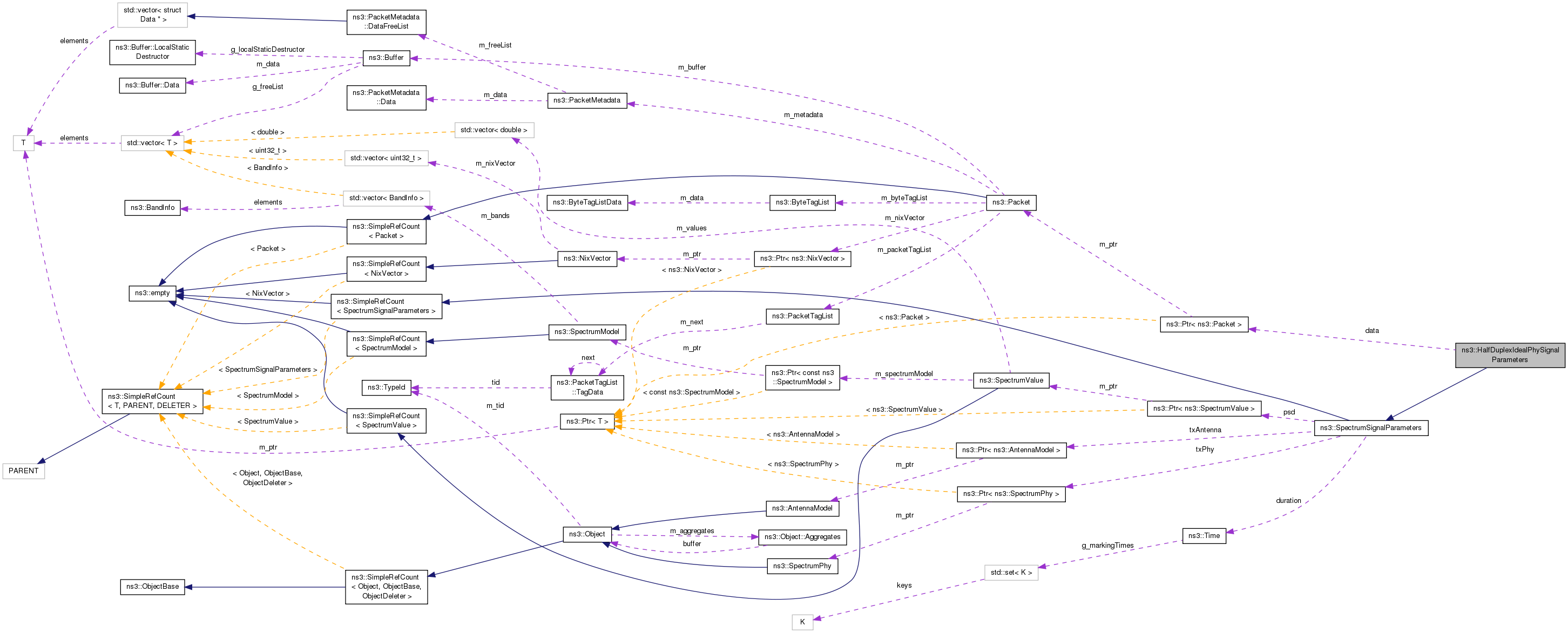

Collaboration diagram for ns3::HalfDuplexIdealPhySignalParameters:

Public Member Functions
	HalfDuplexIdealPhySignalParameters ()
	default constructor More...
	HalfDuplexIdealPhySignalParameters (const HalfDuplexIdealPhySignalParameters &p)
	copy constructor More...
virtual Ptr< SpectrumSignalParameters >	Copy ()
	make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type. More...
Public Member Functions inherited from ns3::SpectrumSignalParameters
	SpectrumSignalParameters ()
	default constructor More...
	SpectrumSignalParameters (const SpectrumSignalParameters &p)
	copy constructor More...
virtual	~SpectrumSignalParameters ()
	destructor More...
Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
	SimpleRefCount ()
	Constructor. More...
	SimpleRefCount (const SimpleRefCount &o)
	Copy constructor. More...
uint32_t	GetReferenceCount (void) const
	Get the reference count of the object. More...
SimpleRefCount &	operator= (const SimpleRefCount &o)
	Assignment. More...
void	Ref (void) const
	Increment the reference count. More...
void	Unref (void) const
	Decrement the reference count. More...

Public Attributes
Ptr< Packet >	data
	The data packet being transmitted with this signal. More...
Public Attributes inherited from ns3::SpectrumSignalParameters
Time	duration
	The duration of the packet transmission. More...
Ptr< SpectrumValue >	psd
	The Power Spectral Density of the waveform, in linear units. More...
Ptr< AntennaModel >	txAntenna
	The AntennaModel instance that was used to transmit this signal. More...
Ptr< SpectrumPhy >	txPhy
	The SpectrumPhy instance that is making the transmission. More...

Additional Inherited Members
Static Public Member Functions inherited from ns3::SimpleRefCount< SpectrumSignalParameters >
static void	Cleanup (void)
	Noop. More...

Detailed Description

Signal parameters for HalfDuplexIdealPhy.

Definition at line 36 of file half-duplex-ideal-phy-signal-parameters.h.

Constructor & Destructor Documentation

ns3::HalfDuplexIdealPhySignalParameters::HalfDuplexIdealPhySignalParameters

(

)

default constructor

Definition at line 30 of file half-duplex-ideal-phy-signal-parameters.cc.

References NS_LOG_FUNCTION.

ns3::HalfDuplexIdealPhySignalParameters::HalfDuplexIdealPhySignalParameters

(

const HalfDuplexIdealPhySignalParameters &

p

)

copy constructor

Definition at line 35 of file half-duplex-ideal-phy-signal-parameters.cc.

References ns3::Packet::Copy(), data, and NS_LOG_FUNCTION.

Here is the call graph for this function:

Member Function Documentation

Ptr< SpectrumSignalParameters > ns3::HalfDuplexIdealPhySignalParameters::Copy ( void  )

virtual

make a "virtual" copy of this class, where "virtual" refers to the fact that if the actual object is a derived class of SpectrumSignalParameters, then the copy is also a derived class of the same type.

Each class inheriting from SpectrumSignalParameters should override this method and use it to call the copy constructor of the derived class.

Returns

a copy of the (possibly derived) class

Reimplemented from ns3::SpectrumSignalParameters.

Definition at line 43 of file half-duplex-ideal-phy-signal-parameters.cc.

References NS_LOG_FUNCTION.

Member Data Documentation

Ptr<Packet> ns3::HalfDuplexIdealPhySignalParameters::data

The data packet being transmitted with this signal.

Definition at line 55 of file half-duplex-ideal-phy-signal-parameters.h.

Referenced by HalfDuplexIdealPhySignalParameters().

---

The documentation for this struct was generated from the following files:

• src/spectrum/model/half-duplex-ideal-phy-signal-parameters.h
• src/spectrum/model/half-duplex-ideal-phy-signal-parameters.cc
