Test case to check the functionality of the Tft Classifier. More...

Inheritance diagram for EpcTftClassifierTestCase:

Collaboration diagram for EpcTftClassifierTestCase:

Public Member Functions
	EpcTftClassifierTestCase (Ptr< EpcTftClassifier > c, EpcTft::Direction d, Ipv4Address sa, Ipv4Address da, uint16_t sp, uint16_t dp, uint8_t tos, uint32_t tftId)
	Constructor. More...

virtual	~EpcTftClassifierTestCase ()

Public Member Functions inherited from ns3::TestCase
virtual	~TestCase ()
	Destructor. More...

std::string	GetName (void) const

Private Member Functions
virtual void	DoRun (void)
	Implementation to actually run this TestCase. More...

Static Private Member Functions
static std::string	BuildNameString (Ptr< EpcTftClassifier > c, EpcTft::Direction d, Ipv4Address sa, Ipv4Address da, uint16_t sp, uint16_t dp, uint8_t tos, uint32_t tftId)
	Build name string. More...

Private Attributes
Ptr< EpcTftClassifier >	m_c
	the EPC TFT classifier More...

EpcTft::Direction	m_d
	the EPC TFT direction More...

Ipv4Header	m_ipHeader
	the IPv4 header More...

TcpHeader	m_tcpHeader
	the TCP header More...

uint8_t	m_tftId
	the TFT ID More...

UdpHeader	m_udpHeader
	the UDP header More...

Additional Inherited Members
Public Types inherited from ns3::TestCase
enum	TestDuration { QUICK = 1, EXTENSIVE = 2, TAKES_FOREVER = 3 }
	How long the test takes to execute. More...

Protected Member Functions inherited from ns3::TestCase
	TestCase (std::string name)
	Constructor. More...

void	AddTestCase (TestCase *testCase, TestDuration duration=QUICK)
	Add an individual child TestCase to this test suite. More...

TestCase *	GetParent () const
	Get the parent of this TestCsse. More...

bool	IsStatusFailure (void) const
	Check if any tests failed. More...

bool	IsStatusSuccess (void) const
	Check if all tests passed. More...

void	SetDataDir (std::string directory)
	Set the data directory where reference trace files can be found. More...

void	ReportTestFailure (std::string cond, std::string actual, std::string limit, std::string message, std::string file, int32_t line)
	Log the failure of this TestCase. More...

bool	MustAssertOnFailure (void) const
	Check if this run should assert on failure. More...

bool	MustContinueOnFailure (void) const
	Check if this run should continue on failure. More...

std::string	CreateDataDirFilename (std::string filename)
	Construct the full path to a file in the data directory. More...

std::string	CreateTempDirFilename (std::string filename)
	Construct the full path to a file in a temporary directory. More...

Detailed Description

Test case to check the functionality of the Tft Classifier.

Test consist of defining different TFT configurations, i.e. direction, ports, address, and it is checking if the clasiffication of UDP packets is done correctly.

Definition at line 49 of file test-epc-tft-classifier.cc.

Constructor & Destructor Documentation

EpcTftClassifierTestCase::EpcTftClassifierTestCase	(	Ptr< EpcTftClassifier >	c,
		EpcTft::Direction	d,
		Ipv4Address	sa,
		Ipv4Address	da,
		uint16_t	sp,
		uint16_t	dp,
		uint8_t	tos,
		uint32_t	tftId
	)

Constructor.

Parameters

c	the EPC TFT classifier
d	the EPC TFT direction
sa	the source address
da	the destination address
sp	the source port
dp	the destination port
tos	the TOS
tftId	the TFT ID

Definition at line 106 of file test-epc-tft-classifier.cc.

References m_ipHeader, m_udpHeader, NS_LOG_FUNCTION, ns3::Ipv4Header::SetDestination(), ns3::UdpHeader::SetDestinationPort(), ns3::Ipv4Header::SetSource(), ns3::UdpHeader::SetSourcePort(), and ns3::Ipv4Header::SetTos().

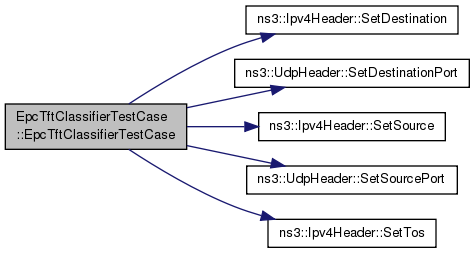

Here is the call graph for this function:

EpcTftClassifierTestCase::~EpcTftClassifierTestCase ( )

virtual

Definition at line 129 of file test-epc-tft-classifier.cc.

Member Function Documentation

std::string EpcTftClassifierTestCase::BuildNameString	(	Ptr< EpcTftClassifier >	c,
		EpcTft::Direction	d,
		Ipv4Address	sa,
		Ipv4Address	da,
		uint16_t	sp,
		uint16_t	dp,
		uint8_t	tos,
		uint32_t	tftId
	)

staticprivate

Build name string.

Parameters

c	the EPC TFT classifier
d	the EPC TFT direction
sa	the source address
da	the destination address
sp	the source port
dp	the destination port
tos	the TOS
tftId	the TFT ID
